Xiguang Display
1 / 5

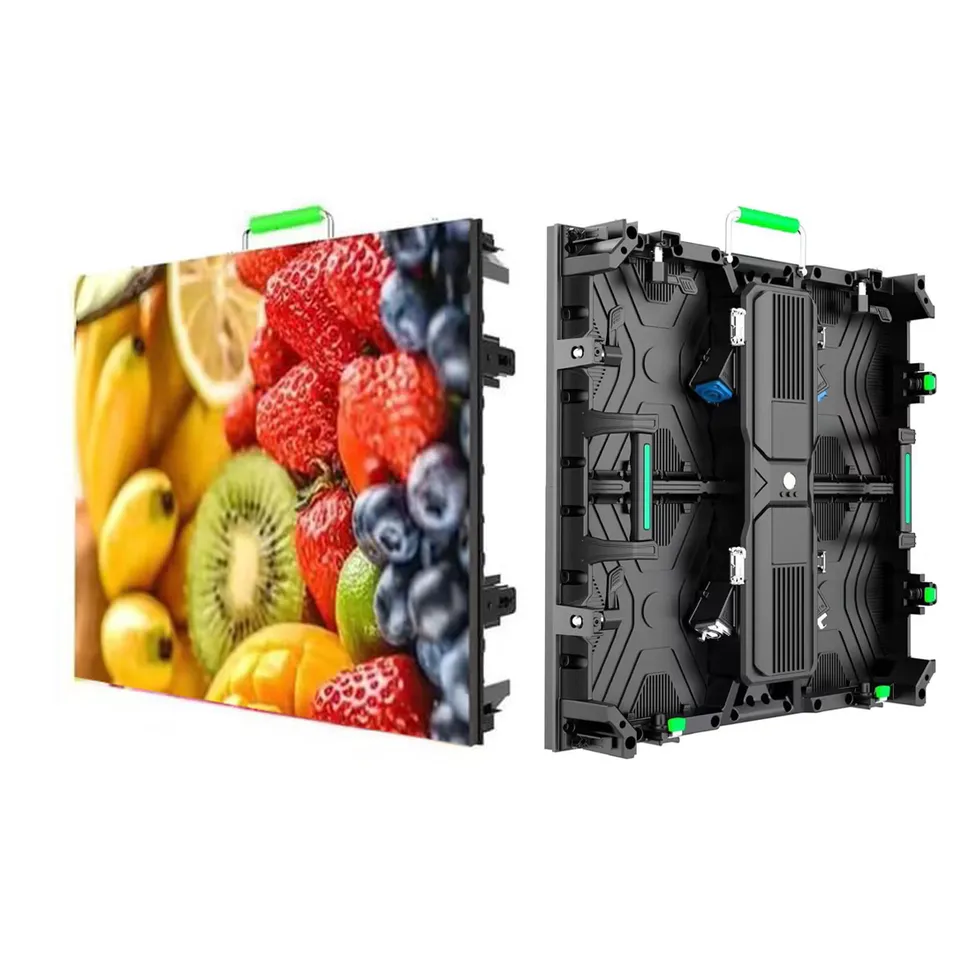

| Model NO. | P2.604 | Pixel Pitch | 2.6mm |
| Pixel Density | 147,456 DOT/M2 | Scanning Mode | 1/32 Scan |
| Display Type | LED Video Display | Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | IP43 | Certification | CE, RoHS, CCC, ETL |
| Cabinet Material | Die-Casting Aluminum | Warranty | 5 Years |
| Control System | Novastar | Best View Distance | 2~150m |
| Parameters Details | |
|---|---|
| Module Size | 250mm x 250mm |
| Pixel Configuration | SMD1515 |
| Cabinet Size | 500mm x 1000mm x 75mm / 500mm x 500mm x 75mm |
| Cabinet Weight | 12.5Kg / 6.5Kg |
| Brightness | 1500-1800 Nits |
| Refresh Rate | 7680Hz |
| Viewing Angle | 160º(H) / 160º(V) |
| Power Consumption | Max 600W/m², Ave 180W/m² |
| Color Temperature | 6500K |
| Operating Environment | -20°C ~ +60°C, Humidity 10%~95% RH |
Package Gross Weight: 6.500kg (per 500x500mm cabinet)
Package Size: 52.00cm * 52.00cm * 25.00cm

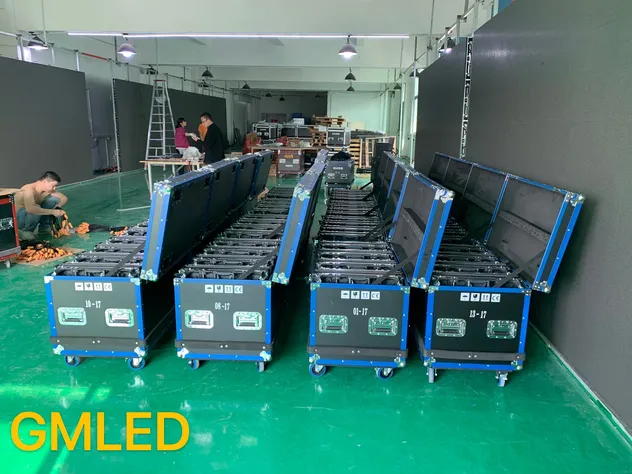

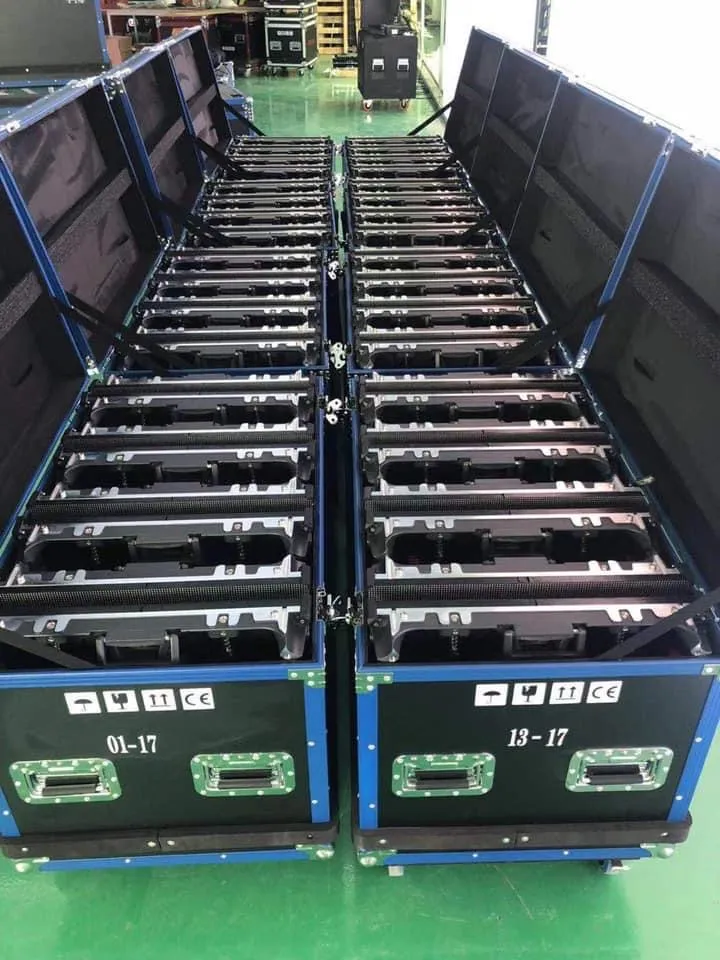

Shipment Terms: By Sea, Air, or Express in professional Flight Cases.

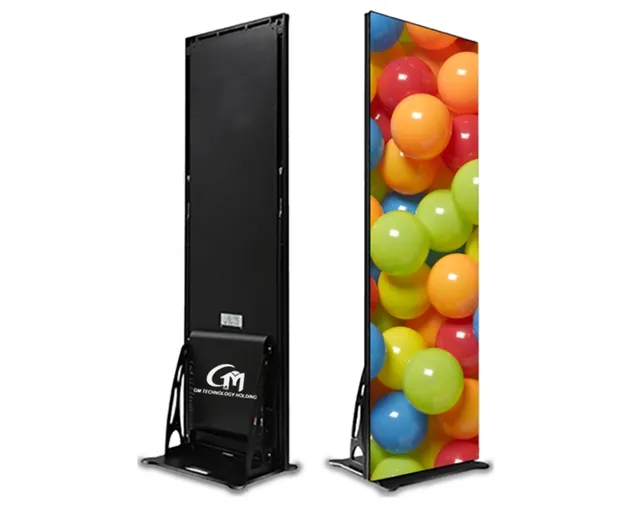

LED Poster
Size: 640mm*1920mm
Pitch: P1.25 to P2.5
Usage: Hotels, Malls, Weddings.

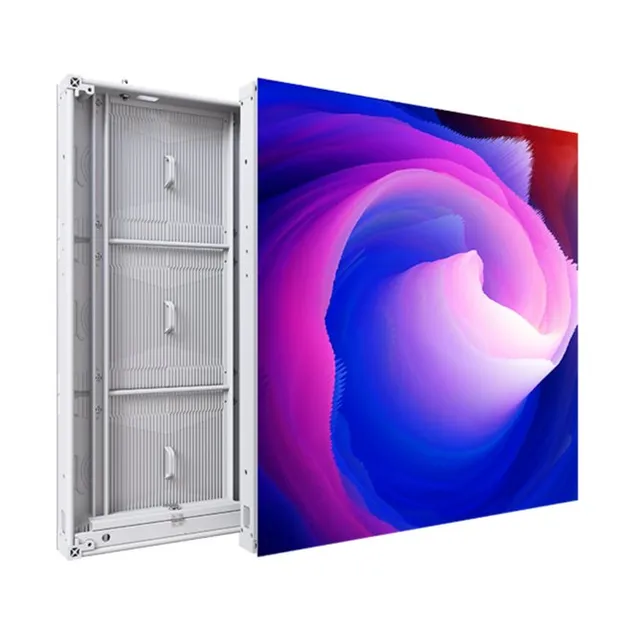

Outdoor 3D Media Screen
Size: 960mm*960mm
Pitch: P4.4 to P10
Usage: Commercial Real Estate, Airports.

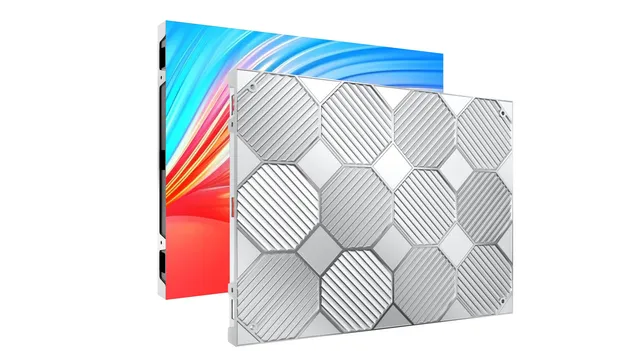

WallPaid Display
Size: 640mm*1920mm
Pitch: P1.25 to P2.5
Usage: Studios, Security Command Centers.
A: We offer a 5-year warranty and a lifespan of more than 100,000 hours for the screen.
A: We usually accept T/T or L/C with a 30% deposit in advance and 70% before delivery. The lead time is typically around 20 days.
A: All screens undergo an aging test before shipment. We also perform waterproof and shake tests to ensure safe transportation and normal usage.
A: Our technical team answers inquiries within 24 hours. For post-sale, we provide installation guidance, usage instructions, and module replacement support.
A: Yes, our design supports both front and back access maintenance for quick and efficient servicing.
A: Our LED displays are exported globally, including Asia, Europe, South America, North America, Africa, and the Middle East.
