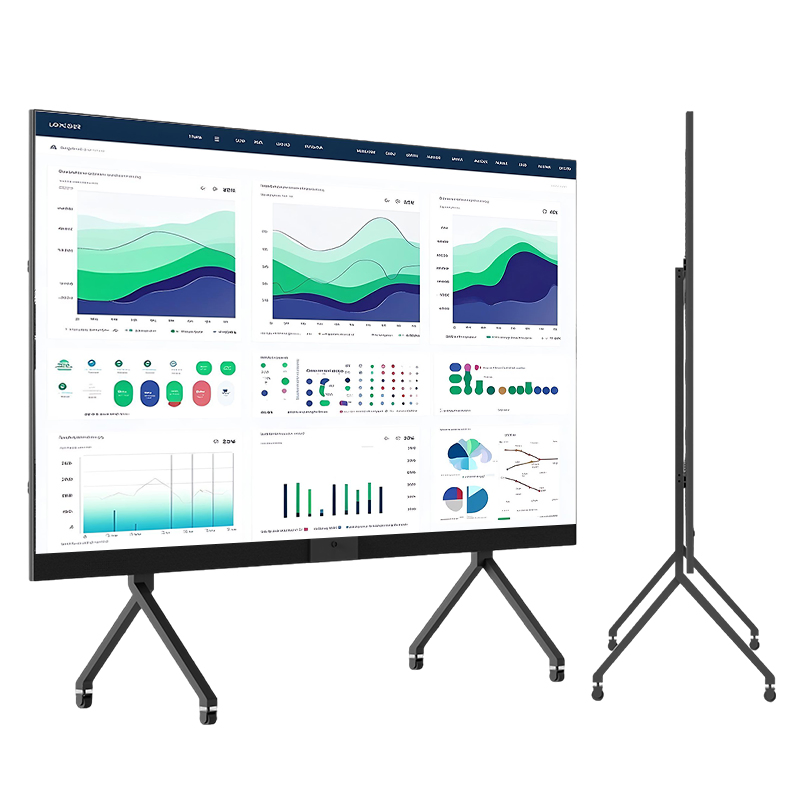

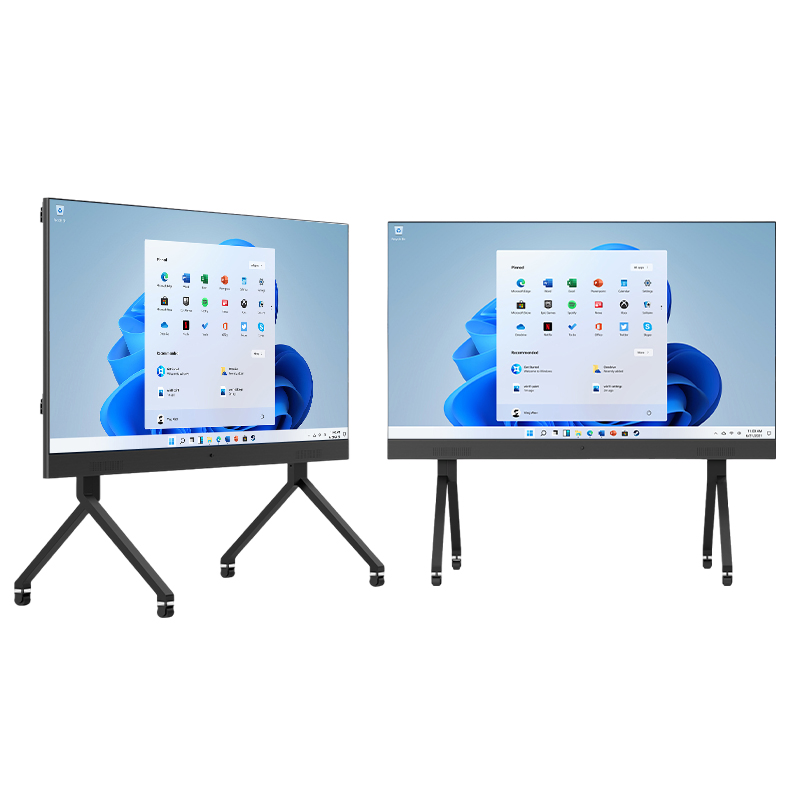

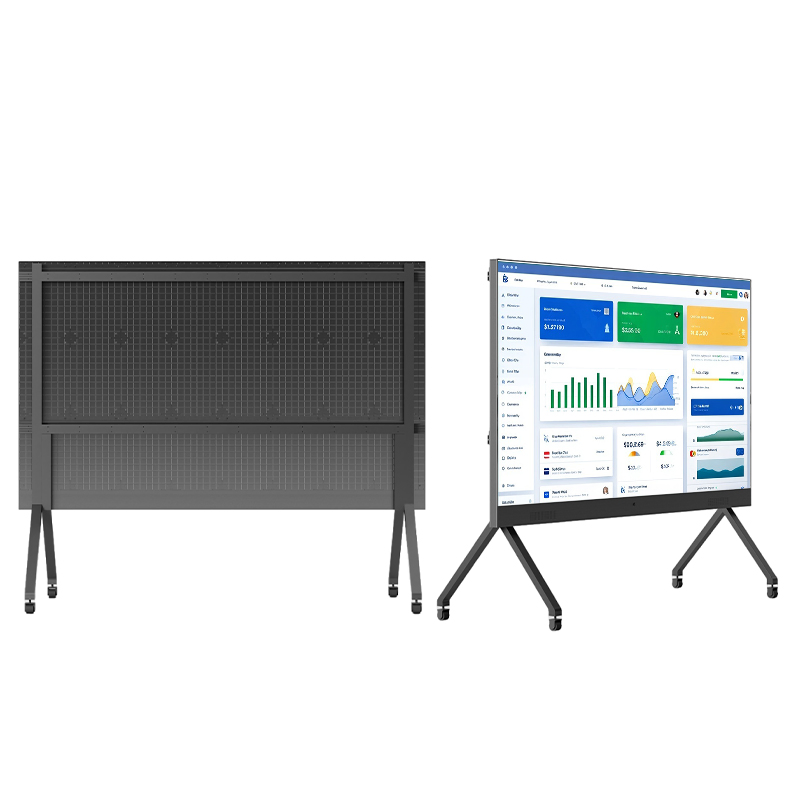

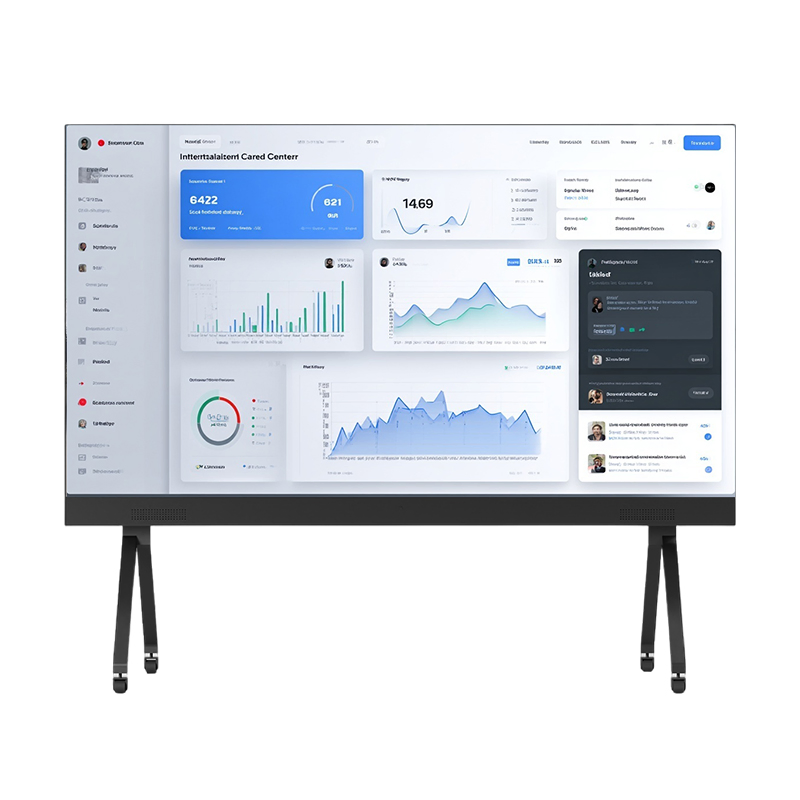

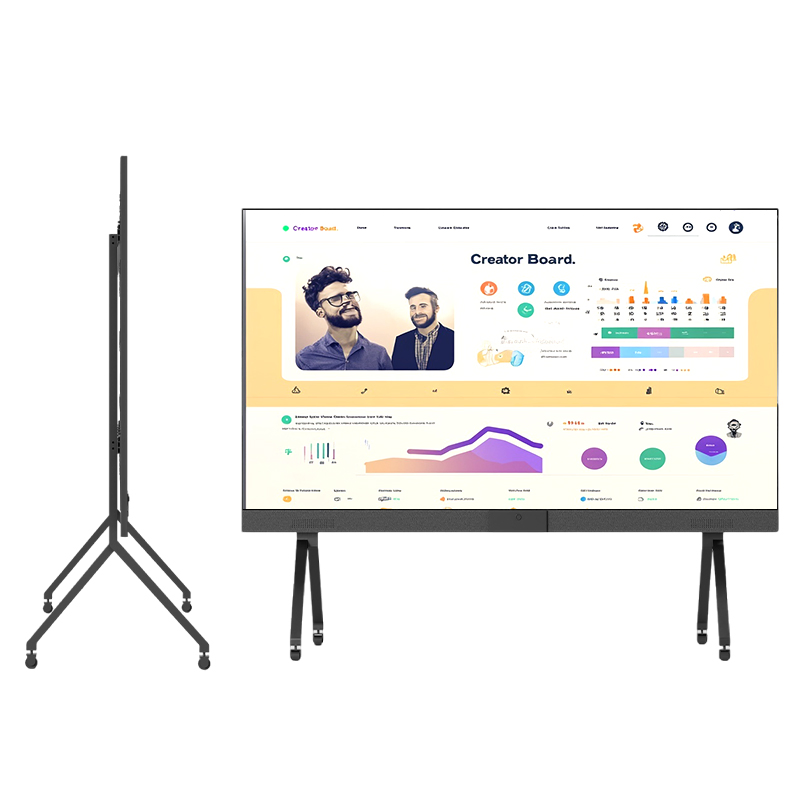

216 Inch 8K COB LED All-in-One Conference Machine, Interactive Touch Screen Display for Video Conference & Teaching

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
H-HY216
Application
Financial Services System
Screen Type
Infrared
Touch Type
Digital
Size
W4800mm × H2700mm × D30mm
Origin
China
HS Code
8528591090
Capacity
5000 Units

LED Conference All-in-One Machine

This LED Conference All-in-One is equipped with Chip-on-Board (COB) packaging technology. Aided by dynamic resolution technology, fine-pitch LED displays of the same size can deliver a display effect with double the resolution.
9-Layer Protection System: Anti-glare, anti-light dropout, anti-collision, scratch resistance, splash proofing, fingerprint resistance, anti-oxidation, anti-static, and dust proofing functions.

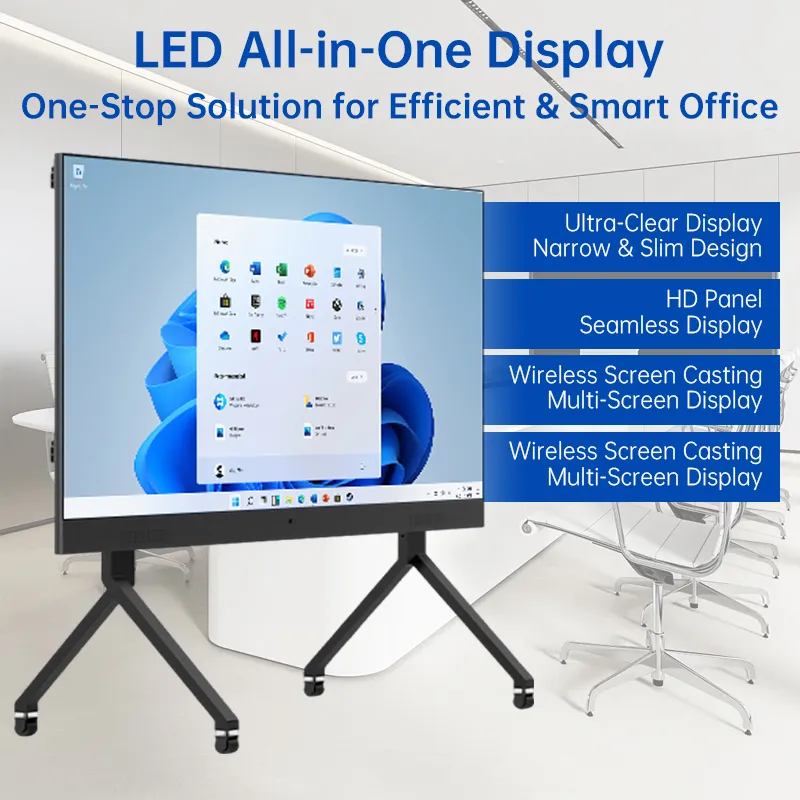

8K COB LED All-in-One Conference Machine
Interactive Touch Screen Display

Core Performance & Hardware

  • Advanced CPU: Android system; octa-core CPU, 8G large memory, 64G storage (expandable) for smooth 4K playback.
  • Smart Interaction: Supports multi-device screen mirroring, four-screen display, and QR code scanning; small screen controlling large screen.
  • Integrated Technology: 3-in-1 design (combining power supply, receiving card, and adapter card) eliminates complex external wiring.
  • Visual Quality: 2K/4K resolution options, 97% color saturation, and 8-level brightness adjustment.

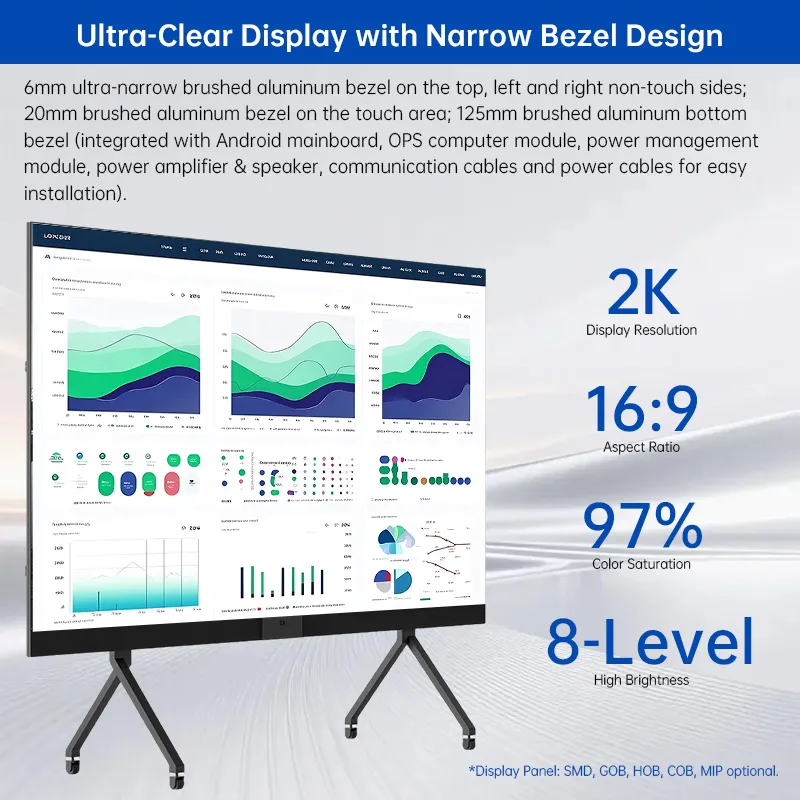

Data Visualization Display

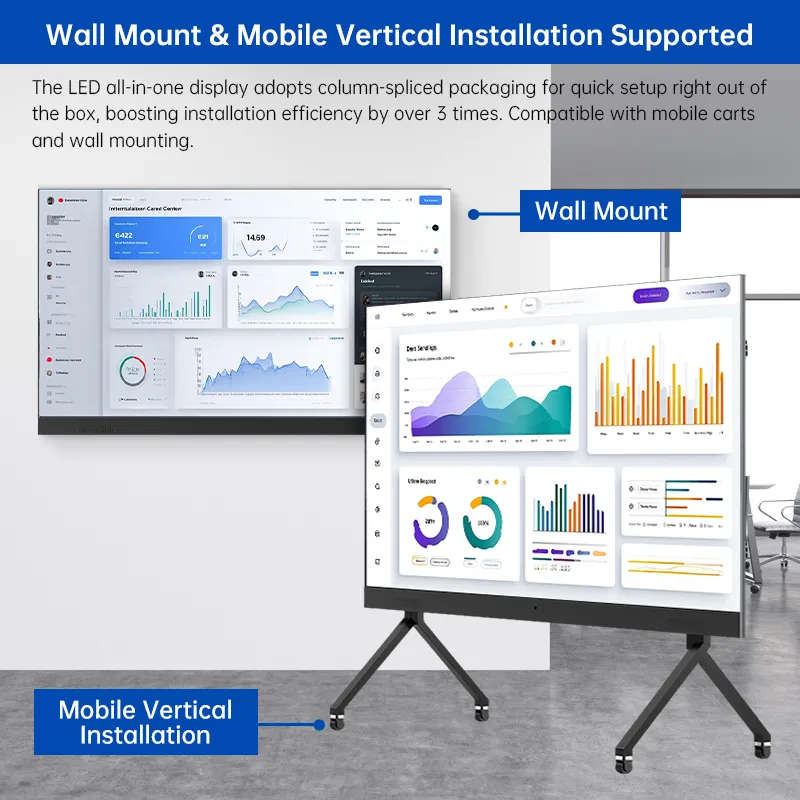

Ultra-simple integration

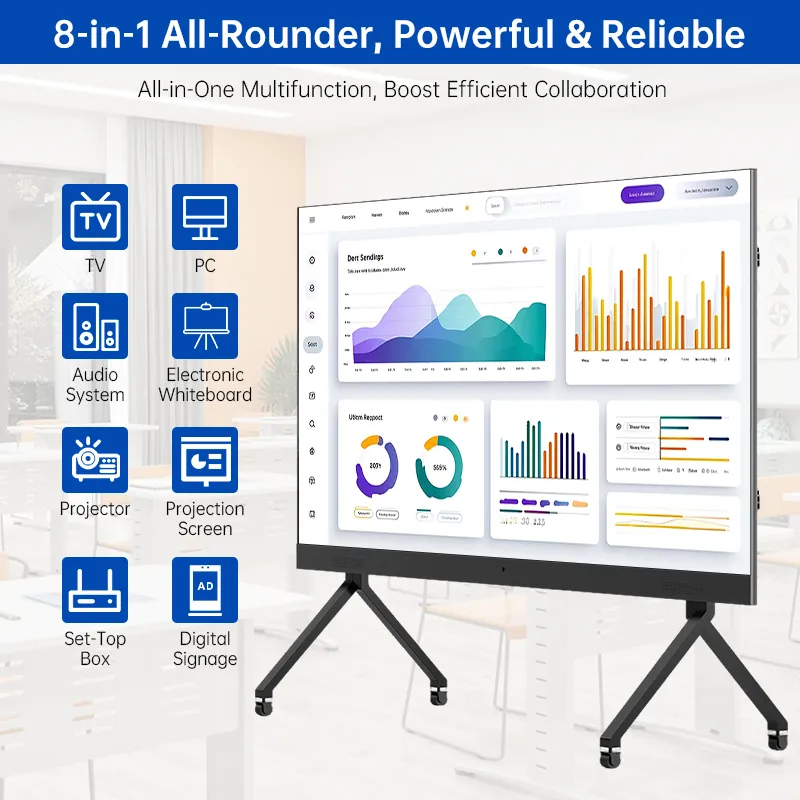

8-in-1 device integration

Technical Specifications

Parameter Type Feature 216" MAX Edition (2K) 216" MAX Edition (4K)
Basic Parameters Pixel Pitch (mm) 1.5625 1.25 / 1.875
Display Ratio 16:9
Resolution 3072 x 1728 3840 × 2160
Box Material Die-cast aluminum (Front Maintenance)
Master Control Operating System Android 13
Memory/Storage 8GB RAM / 64GB ROM
Connectivity HDMI x 2, USB 3.0, Bluetooth, WIFI, RJ45
Touch Support Infrared touch interaction

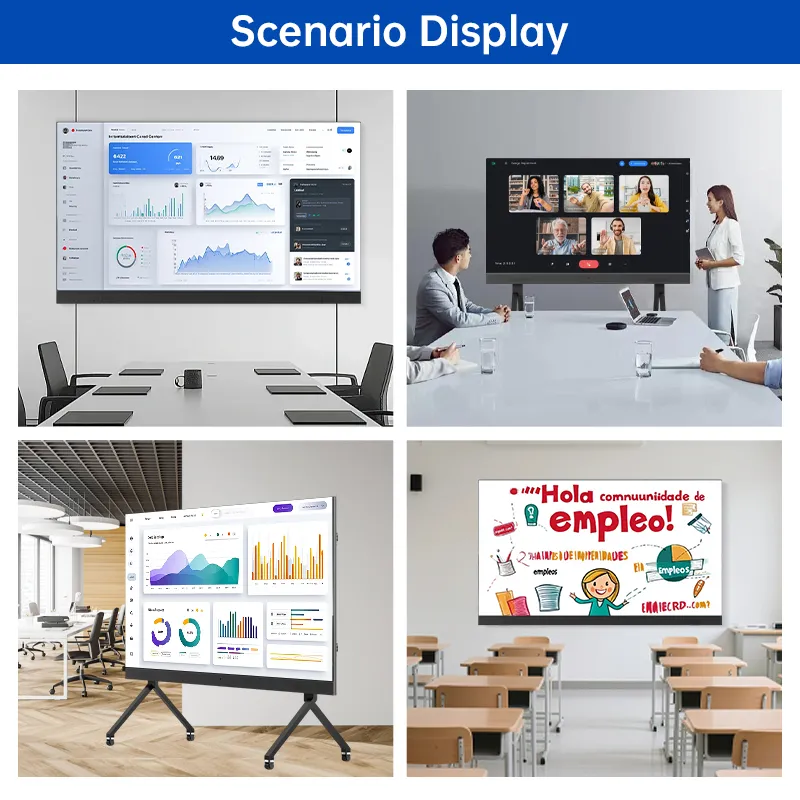

Application Scenarios

Multi-scenario Applications
Corporate & Business: Conference rooms, client presentations, and team collaboration.
Education & Training: School classrooms for course demonstrations and interactive teaching.
Finance & Medical: Data visualization for financial institutions and case discussions in hospitals.
Public & Retail: Government policy promotion and retail product branding.
Frequently Asked Questions
Q1: Does the product support size and resolution customization?
A: Yes, full-size customization is supported from 10 inches to over 200 inches, with resolution options including 1080P, 4K, and 8K.
Q2: What installation methods are available?
A: We support various methods including wall-mounted (standard), floor-standing mobile brackets, ceiling-mounted, and embedded installations.
Q3: Is the power supply compatible globally?
A: Yes, the device operates on a wide voltage range of 100-240V, making it compatible with global power standards without needing additional transformers.
Q4: How do I update content on the display?
A: Content can be updated locally via USB drive or remotely via WiFi/4G using our free management backend for real-time edits.
Q5: What is the standard warranty and after-sales support?
A: We provide a 2-year warranty for core components (mainboard) and a 1-year warranty for the whole machine, supported by 24/7 technical assistance.
Q6: Which operating systems are compatible with the machine?
A: The unit comes with Android 13 by default. Windows system is an optional configuration, and it supports mainstream formats like MP4, JPG, and PNG.
