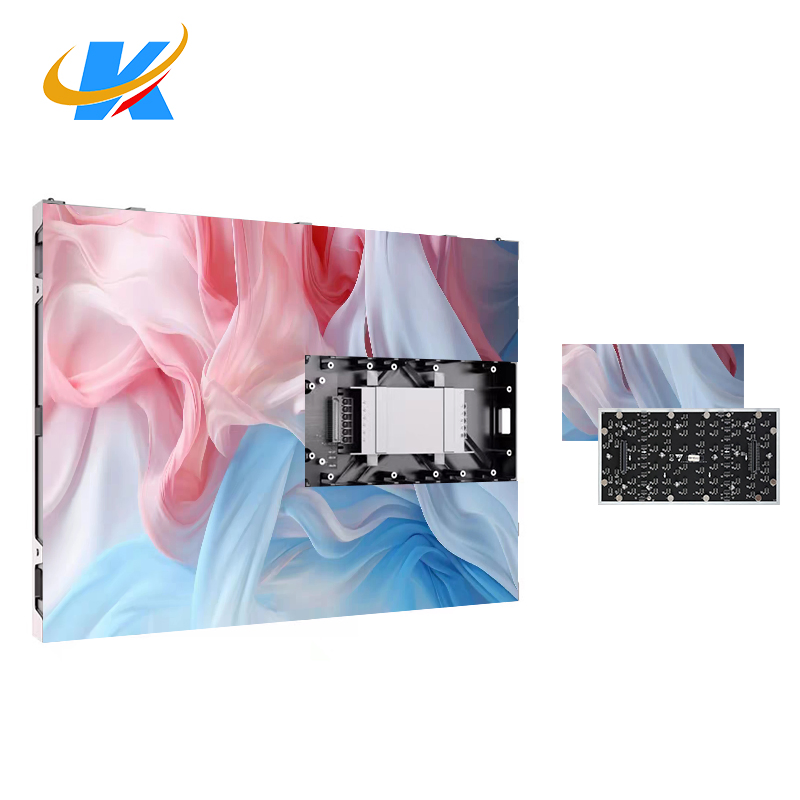

Aluminum Cabinet Indoor Full Color Screen P1.25 P1.5 P1.8 P2 P2.5 Video Wall Flexible Installation Sign High Quality LED Display

1 / 5

Aluminum Cabinet Indoor Full Color Screen P1.25 P1.5 P1.8 P2 P2.5 Video Wall Flexible Installation Sign High Quality LED Display

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

P2.5

Pixel Pitch

2.5mm

Pixel Density

160000 Dots/Sqm

Scanning Mode

1/32 Scan

Display Type

LED Video Display

IP Rating

IP40

Certification

CE, RoHS, CCC

Lamp Type

SMD2020

Cabinet Material

Die-Casting Aluminum

Refresh Rate

3840Hz or 7680Hz

Brightness

700-800nits

Control System

Novastar/Colorlight/Huidu

🔍 Product Overview

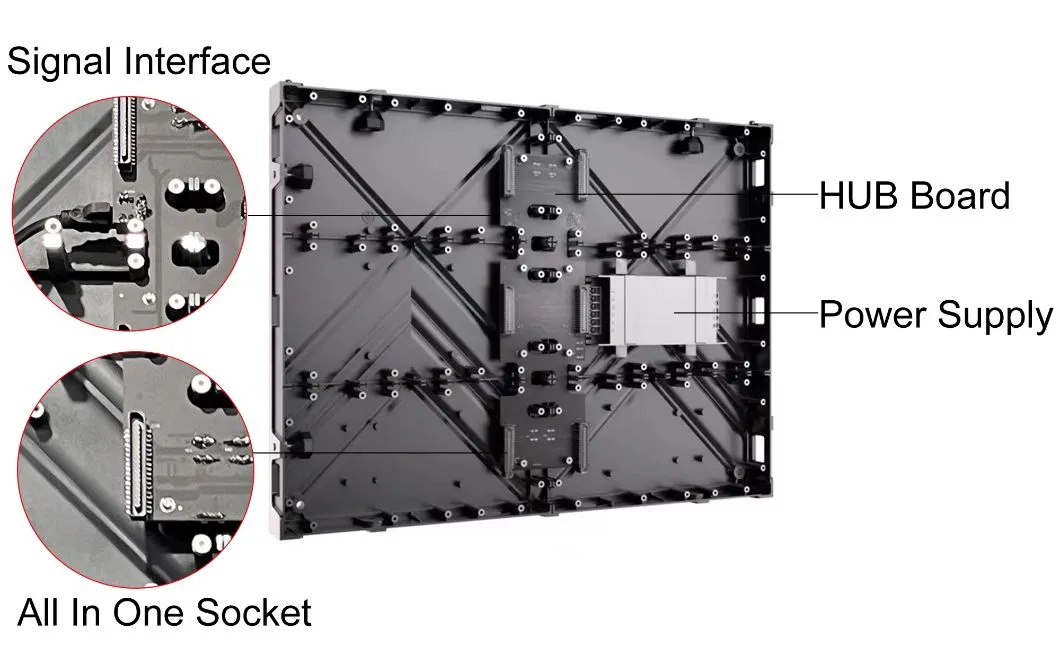

Internal Structure Features:

Hub board connection, two-in-one module interface
Supports fast assembly and disassembly
Magnetic Module, easy to repair and replace components

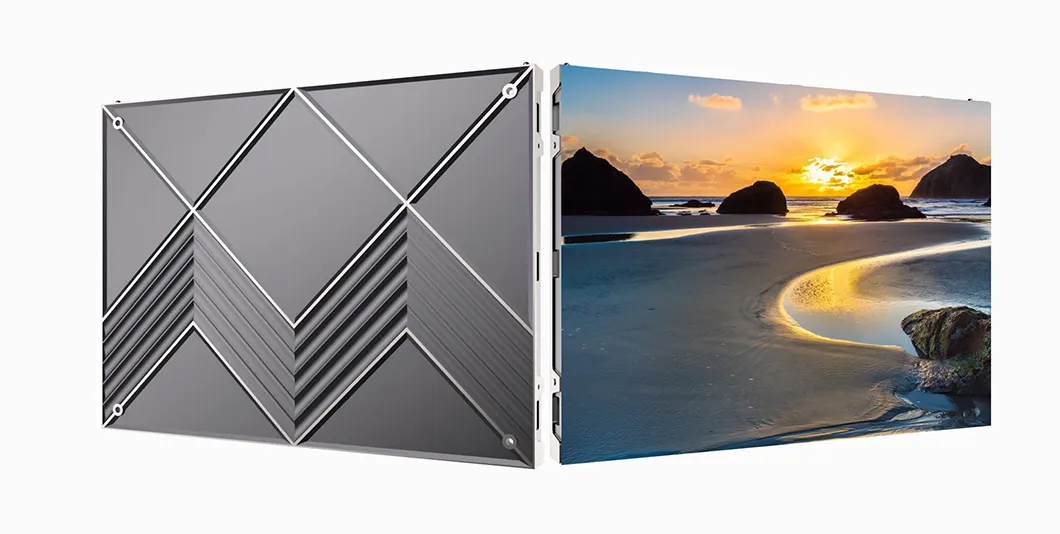

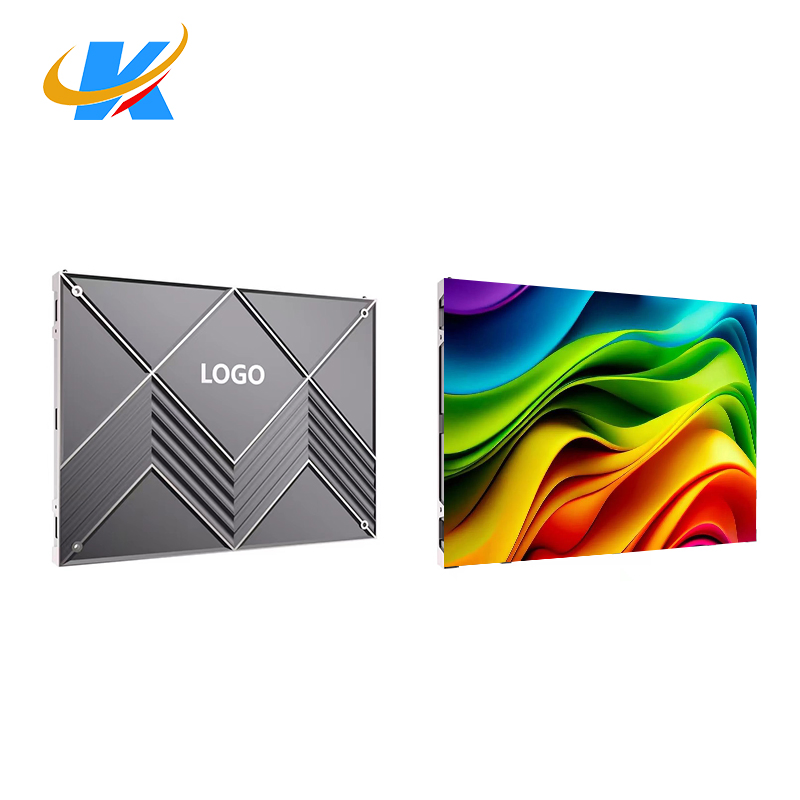

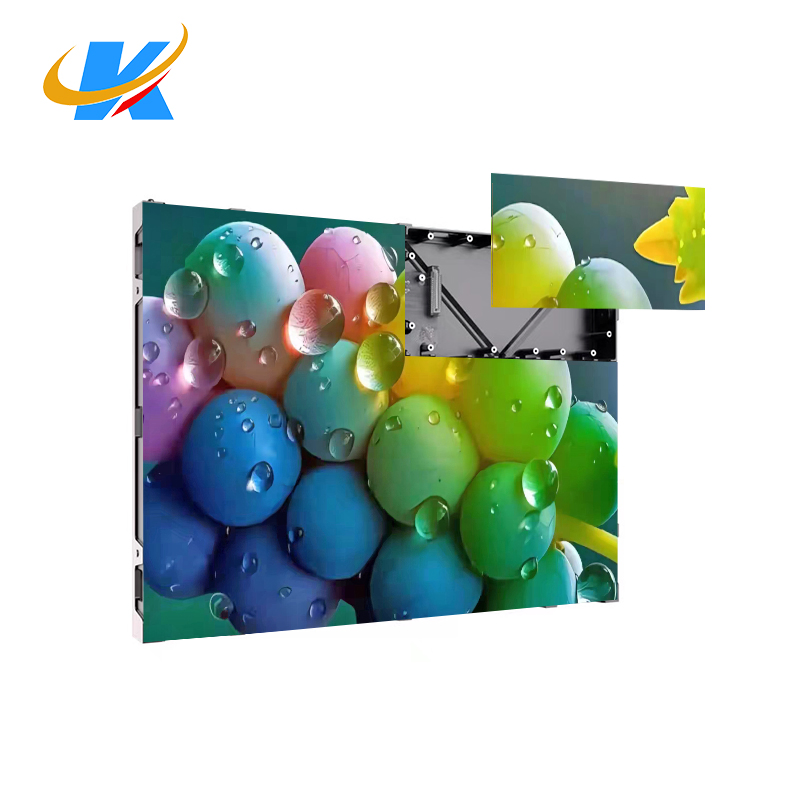

Cabinet Design:

Standard 4:3 ratio
Ultra-thin 47mm thickness
Lightweight Die-Casting Aluminum material

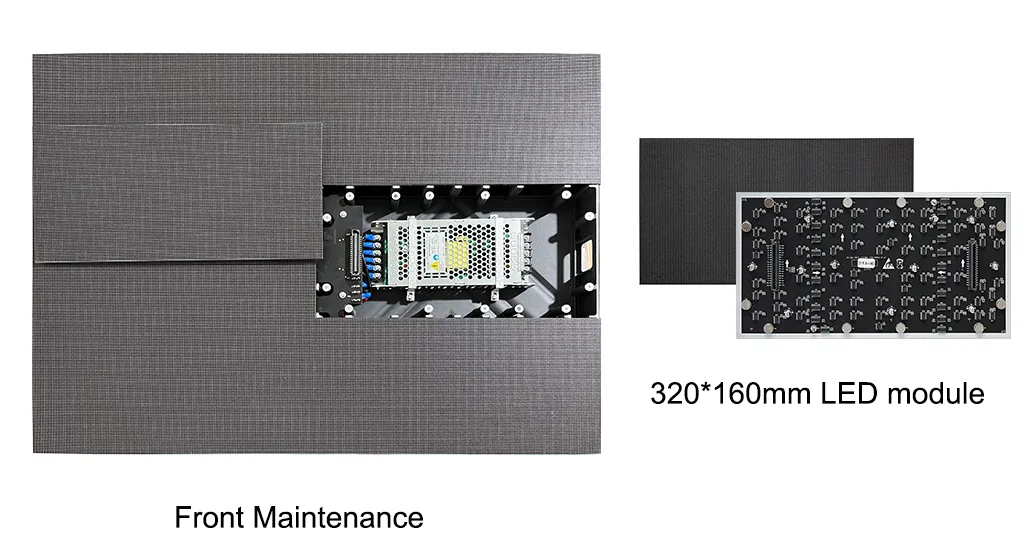

Full Front Maintenance design
Ultra thin LED module
Flexible 2*3 module splicing

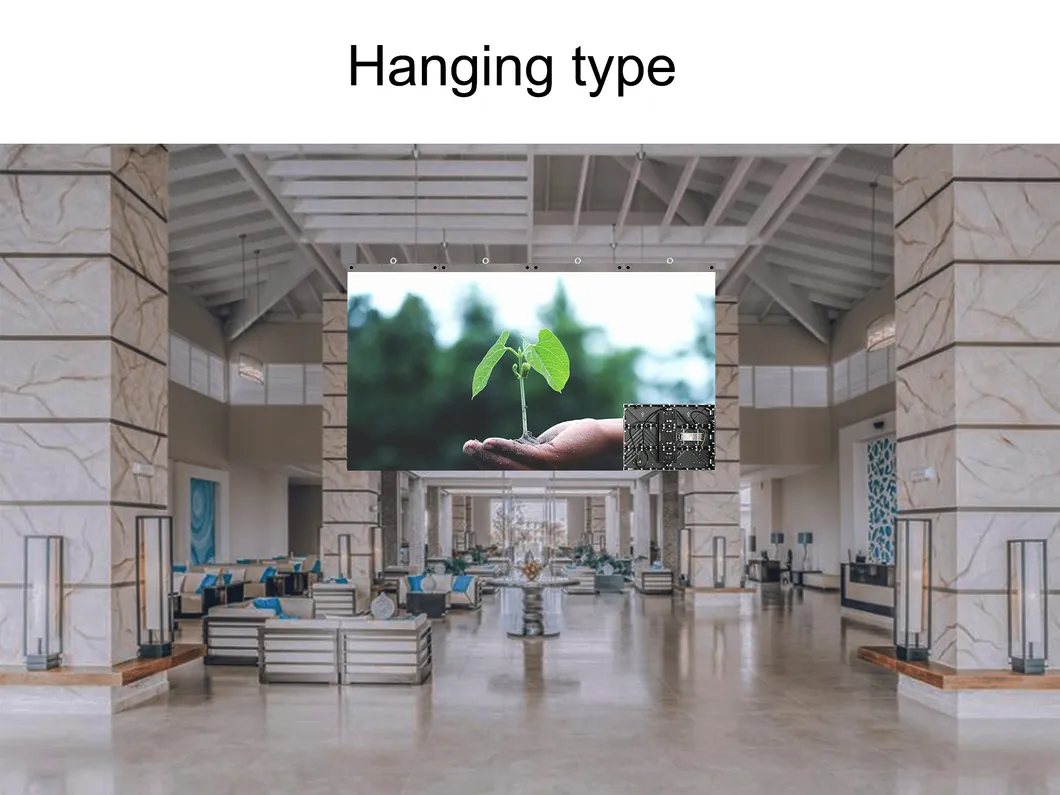

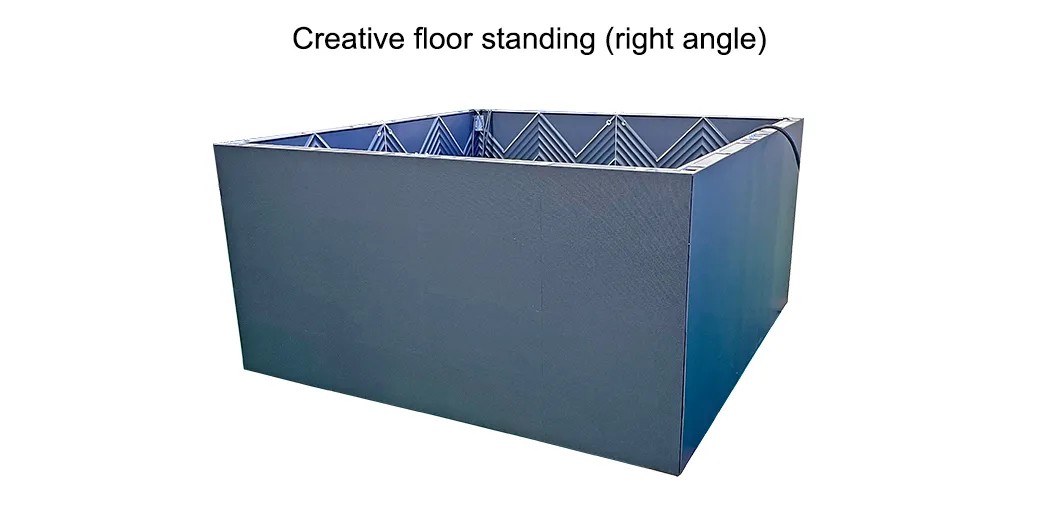

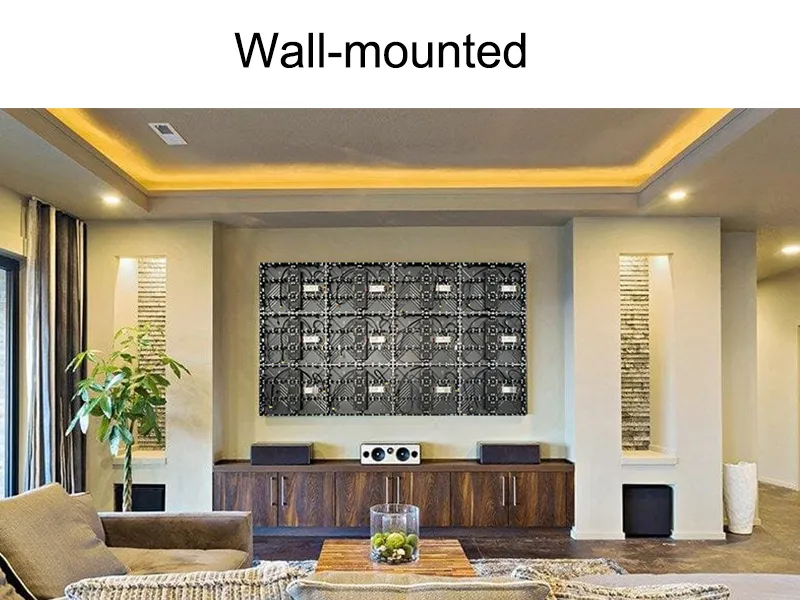

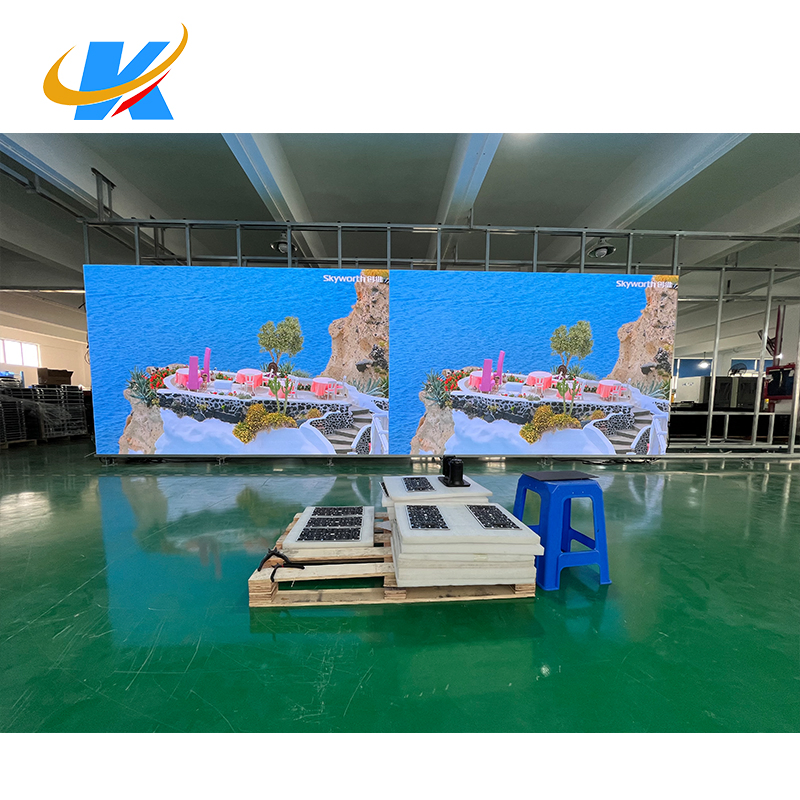

🛠️ Installation Display

📋 Series Comparison

Model	P1.25 GOB	P1.53 GOB	P1.86	P2	P2.5	P3.076
Pixel Pitch(mm)	1.25	1.538	1.86	2	2.5	3.076
Module Size	320*160mm

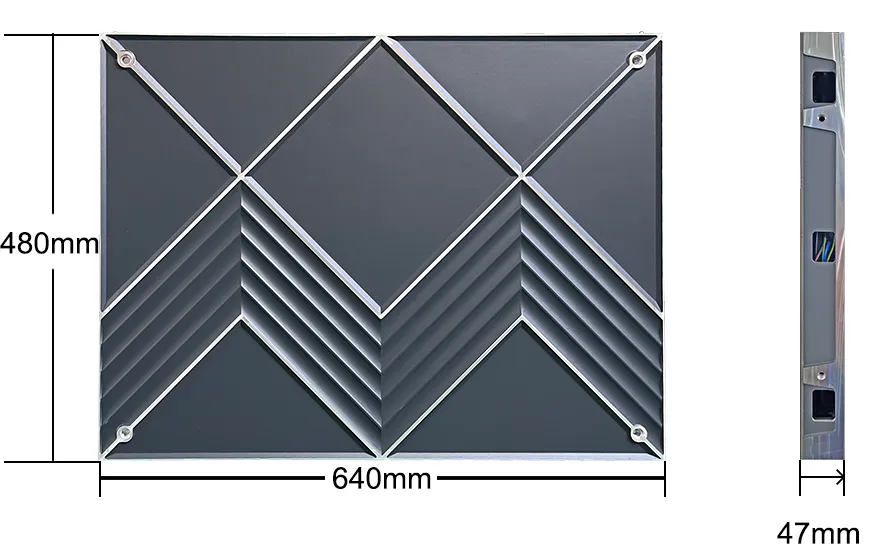

Cabinet Size	64048047mm
Brightness	700 to 800nits
Lamp Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020	SMD2020
Refresh rate	3840Hz or 7680Hz
Pixel dots/m2	640000	422753	289050	250000	160000	105688

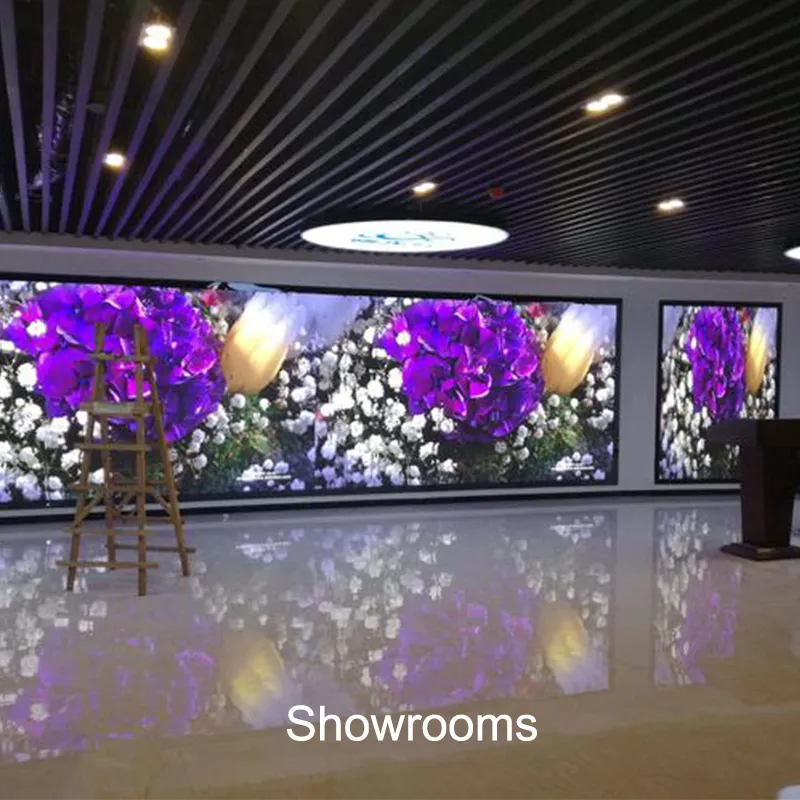

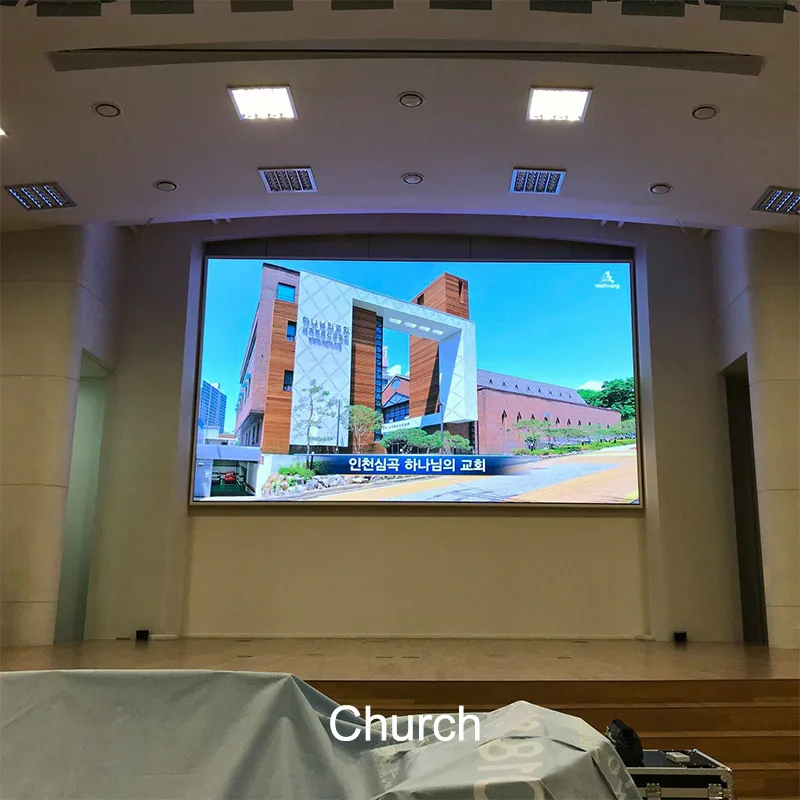

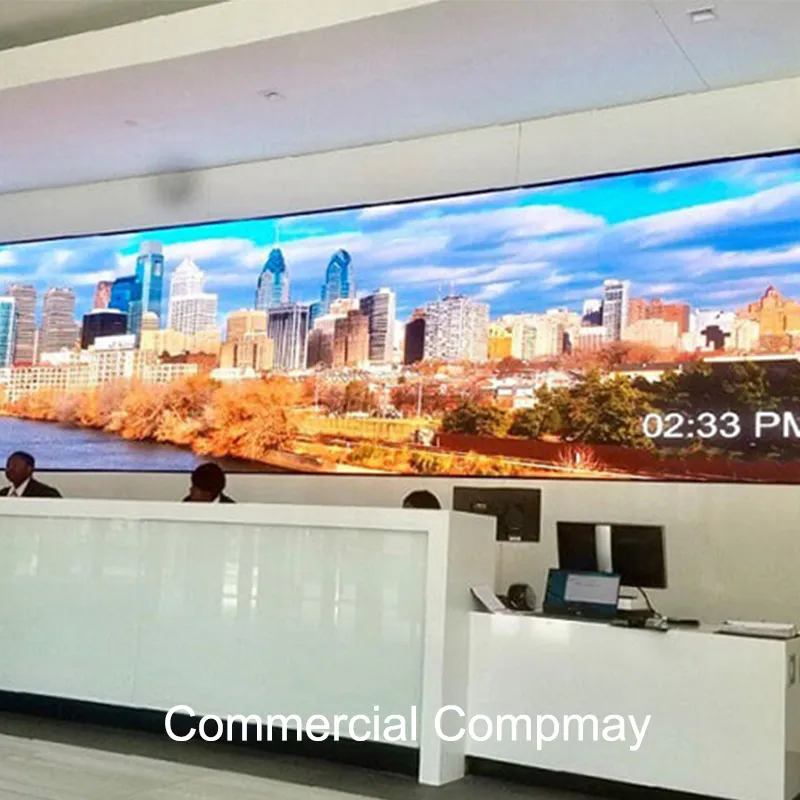

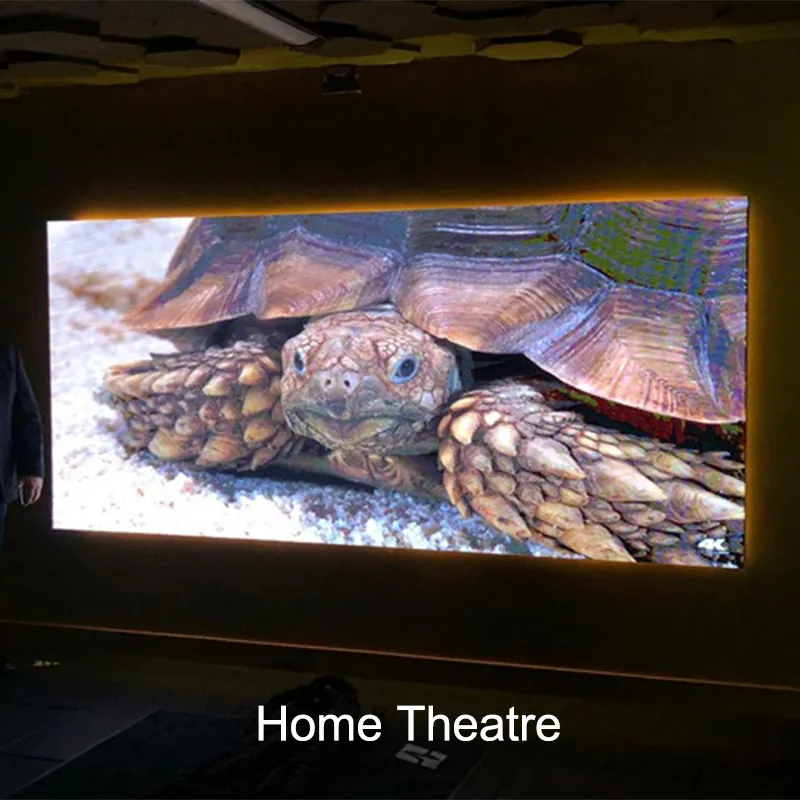

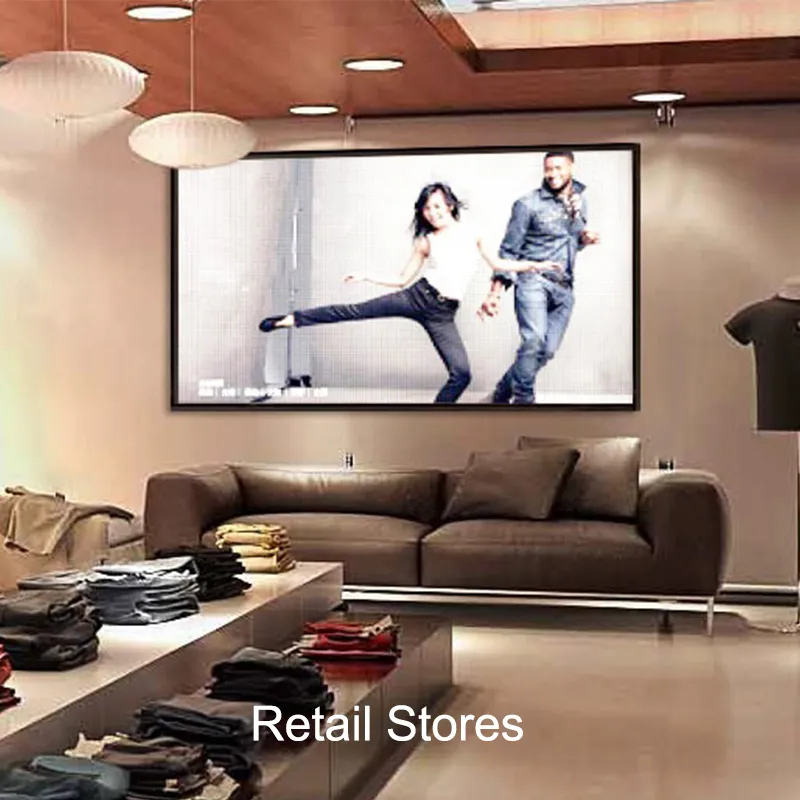

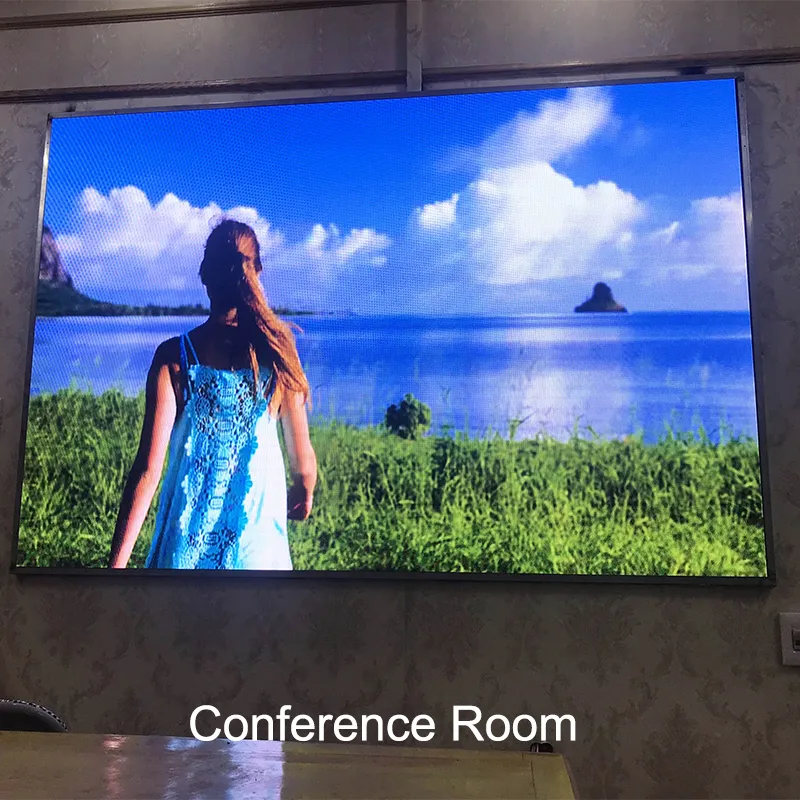

🏢 Application Scenarios

⭐ Professional Service

Warranty

2-year comprehensive warranty with failure maintenance for LED panels.

Support

Free remote control debugging and 24-hour hotline for technical guidance.

Ready to Use

Pre-loaded programs provided so customers can use the screen immediately after installation.

❓ Frequently Asked Questions

Is the product customizable?

Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery to ensure high quality performance.

How about your delivery time?

Generally, it will takes about 20-22 days after receiving your advance payment. The specific delivery time depends on the items and quantity.

What is your terms of payment?

T/T 40% as deposit, and 60% before delivery. We'll show you photos of the products and packages before final payment.

Do you provide any free spare parts in each order?

Yes, a certain amount of spare parts (modules, cables, LED lamps, ICs, power supplies, etc.) are provided for free.

What technical guidance is provided?

We provide 24-hour hotline service, including counseling and comprehensive technical guidance for installation and operation.
