Basic Information
Pixel Configuration
1R,1G,1B
Pixel Density
25600dots/Sqm
Viewing Angle
H: 160°; V: 70°
Operating Voltage
220V±15%
Production Capacity
5000sqm/Month

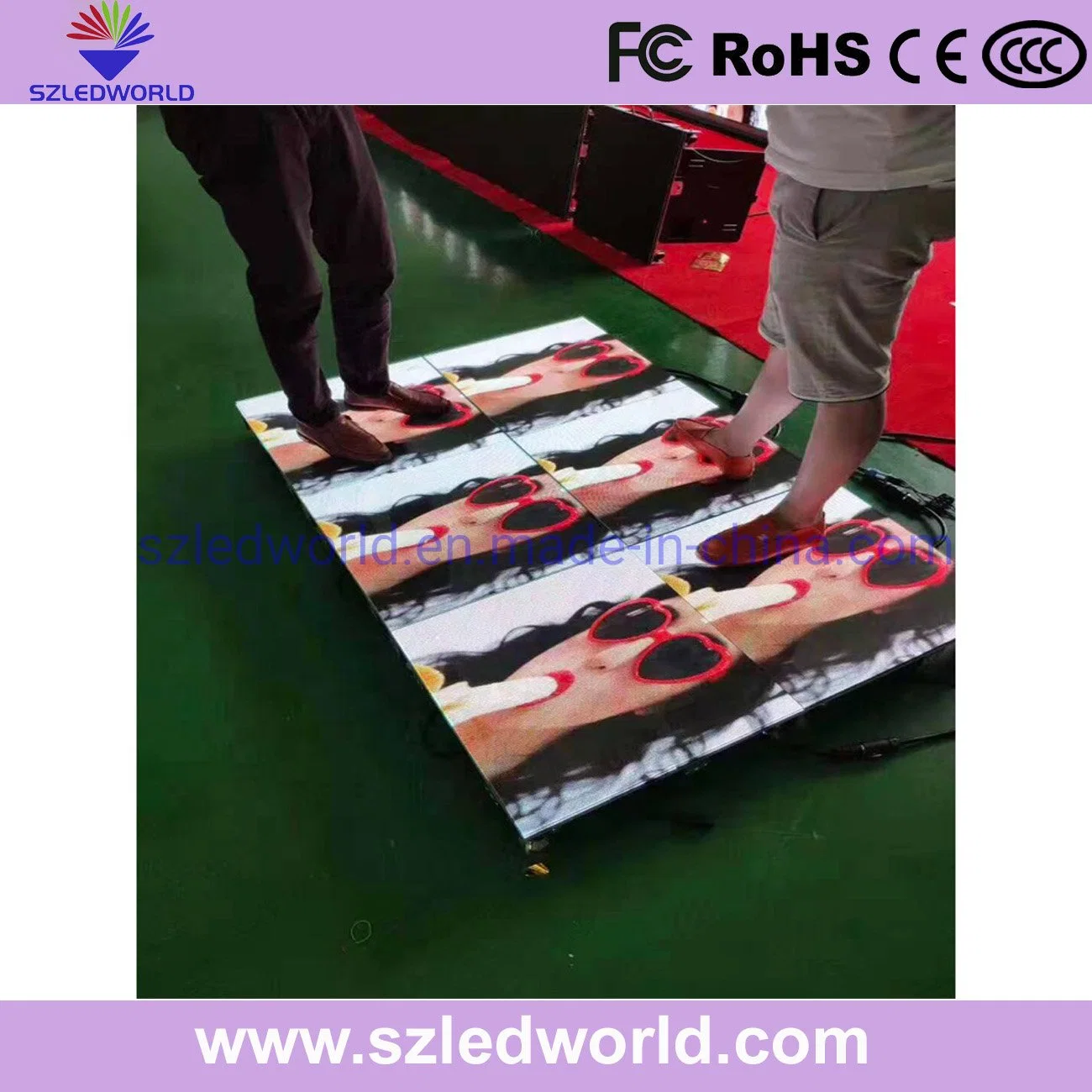

Product Description: P6.25 Waterproof RGB LED Dance Floor
🚀
Quick and flexible installation: It can be installed directly without tools or with the guide rail.
⚖️
High load-bearing performance: Aluminum alloy structure, high load-bearing per square meter can reach 1.5 tons.
🛠️
Excellent maintenance performance: It can be directly exchanged without removing adjacent boxes.
📺
High contrast design: Technical design mask, clear playing effect.
✨
Visual Quality: Excellent low brightness and high ash effect, display gray uniformity, good consistency.
Technical Specifications
| Pixel Pitch | 6.25mm |
| Module Size | 250mm×250mm |
| Screen Weight | 20kg/ m2 (frontal face of simple cabinet IP65) |
| Power Consumption | Average 550-1000 W/ m2 |
| Grayscale/Color | Logic output 16384, CRT vision 256 gray, 16.7M colors |
| Flatness | ≤0.5mm between any adjacent pixels |
| Protective Performance | Moisture, corrosion, wind, earthquake, flame retardant |

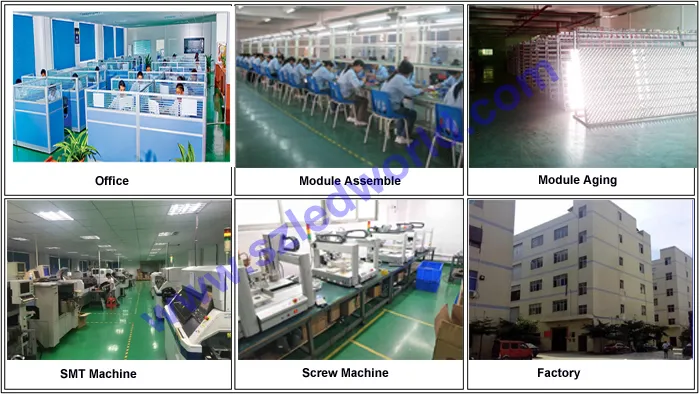

Product Display & Factory
Service & Quality Control
User training include system use, maintenance, and equipment protection.
Engineers available for on-site guidance and installation.
Detailed CAD drawings provided for metal structure preparation.
Products passed RoHS, 3C, FCC, and CE quality authentication.
Frequently Asked Questions
How long is the warranty period?
We offer at least a 2-year warranty for all our LED display products.
What is an LED display?
It is a full-color screen composed of many LEDs. One pixel consists of Red, Green, and Blue (RGB) LEDs, allowing it to display text, pictures, and videos.
How are the products shipped?
Normally via air/express (DHL, FedEx, UPS) for smaller needs, or in containers by sea for mass orders.
Can it withstand heavy weight?
Yes, the aluminum alloy structure allows it to bear up to 1.5 tons per square meter, making it perfect for dance floors.
Is it waterproof?
Yes, the product features an IP65 rating, ensuring moisture and waterproof performance for various environments.
Do you provide installation support?
Yes, we can provide CAD drawings for structures and send engineers on-site to guide the installation process.
