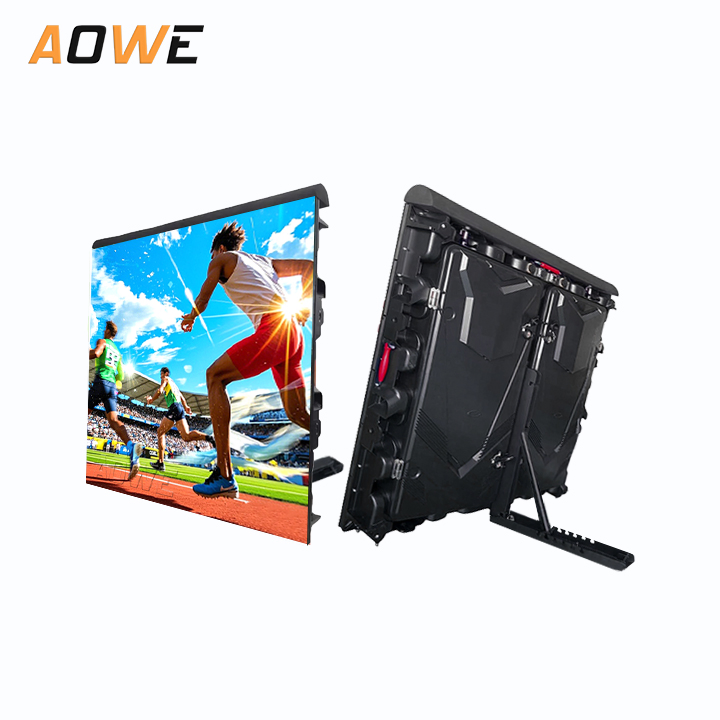

Aowe High Brightness Scoreboard Portable Sport LED Sign Board P5 P8 P10 Football Stadium Perimeter LED Screen Display

1 / 5

Aowe High Brightness Scoreboard Portable Sport LED Sign Board P5 P8 P10 Football Stadium Perimeter LED Screen Display

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP67

Send Inquiry

Product Description

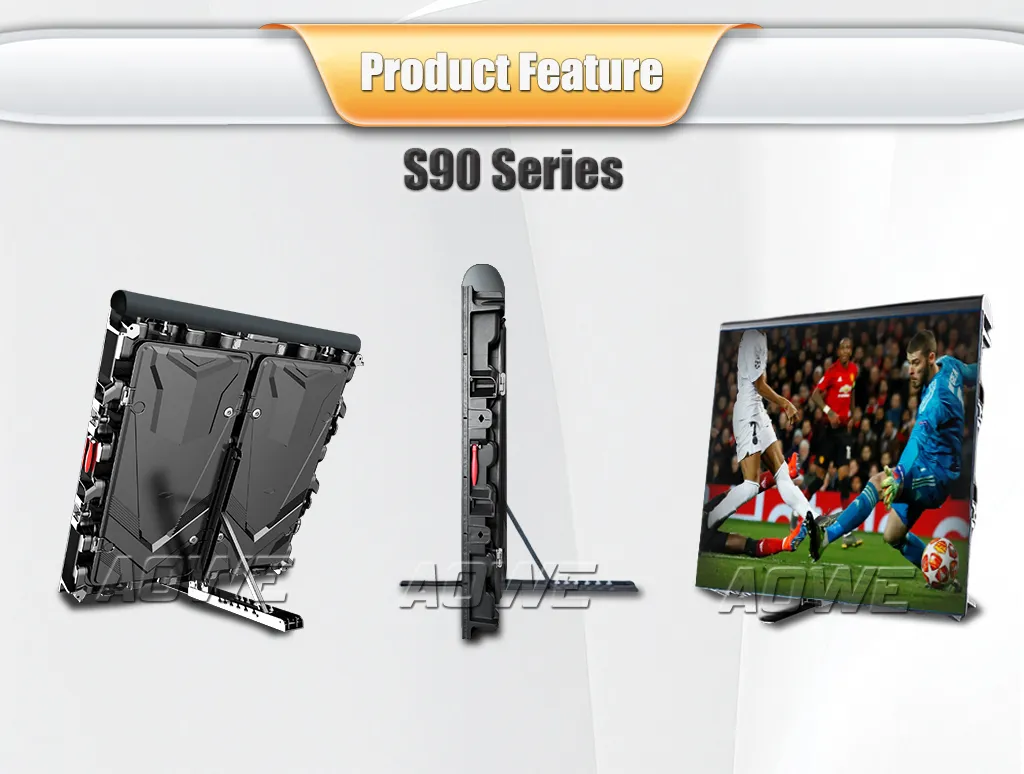

S90 Series LED Display Professional Solution

Basic Specifications

Pixel Pitch

4/5/6.67/8/10mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Text, Picture, 3D Text, Office

Average Power

300W / m²

Refresh Rate

3840Hz

Brightness

7000-10,000nits

Warranty

3 Years

Module Size

320mm x 320mm

Certification

CE, RoHS, CCC, ETL

Material

Aluminum/Iron

Product Highlights

Multiple Pixel Options for Versatility

Offers P2.5-P10 pixel pitches with 160×320mm standard modules, ideal for flexible indoor/outdoor splicing.

Lightweight & Durable Design

Die-cast aluminum cabinets weigh 28kg (30% lighter than iron), IP65 waterproof for all-weather use.

Smart Tech for Optimal Performance

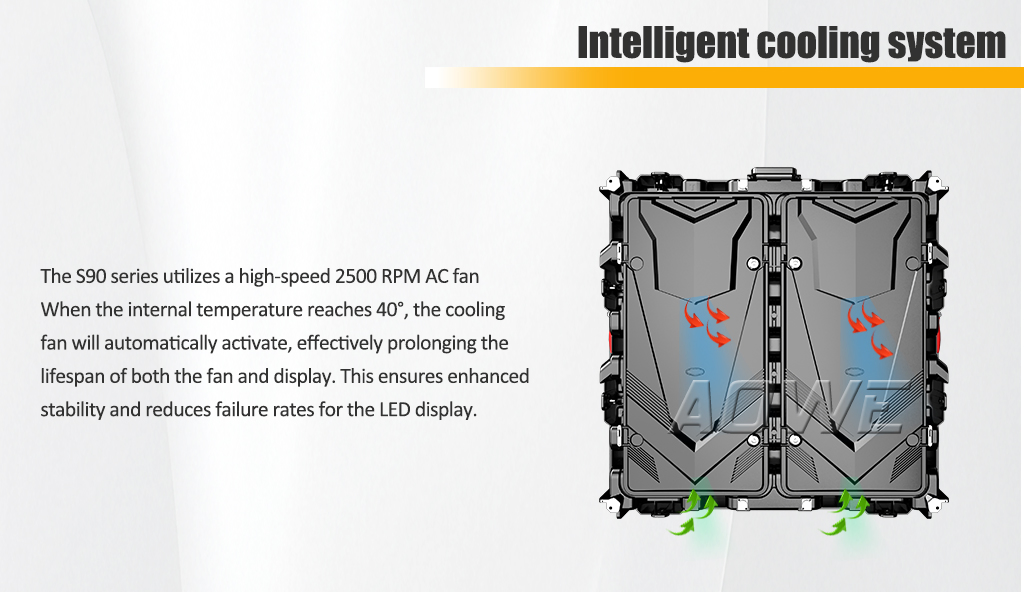

2500 RPM intelligent cooling fan, 140°-160° wide viewing angle, and auto brightness adjustment.

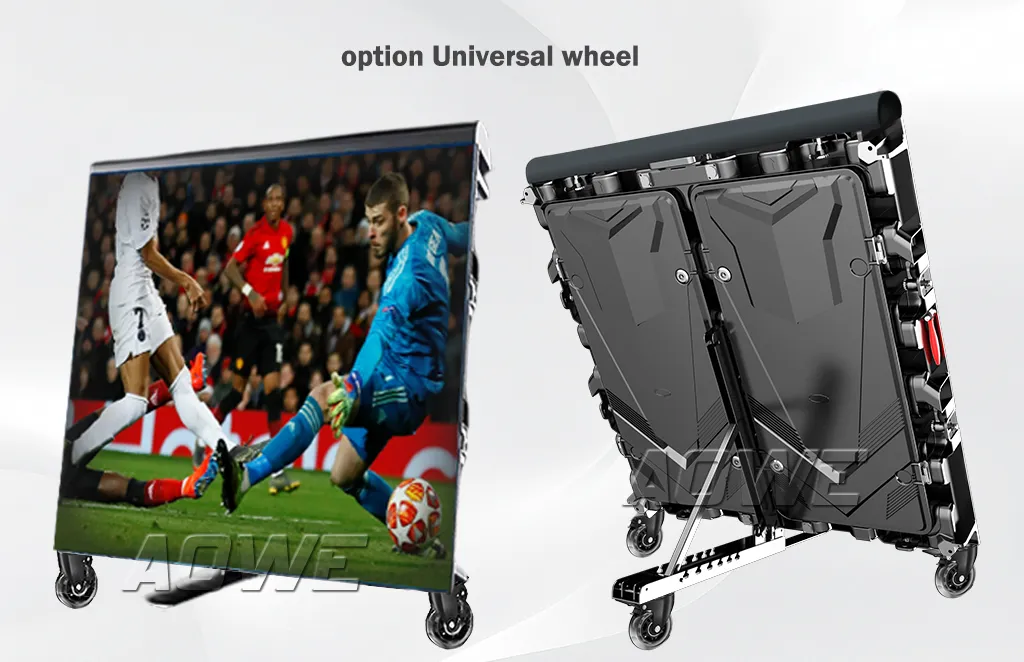

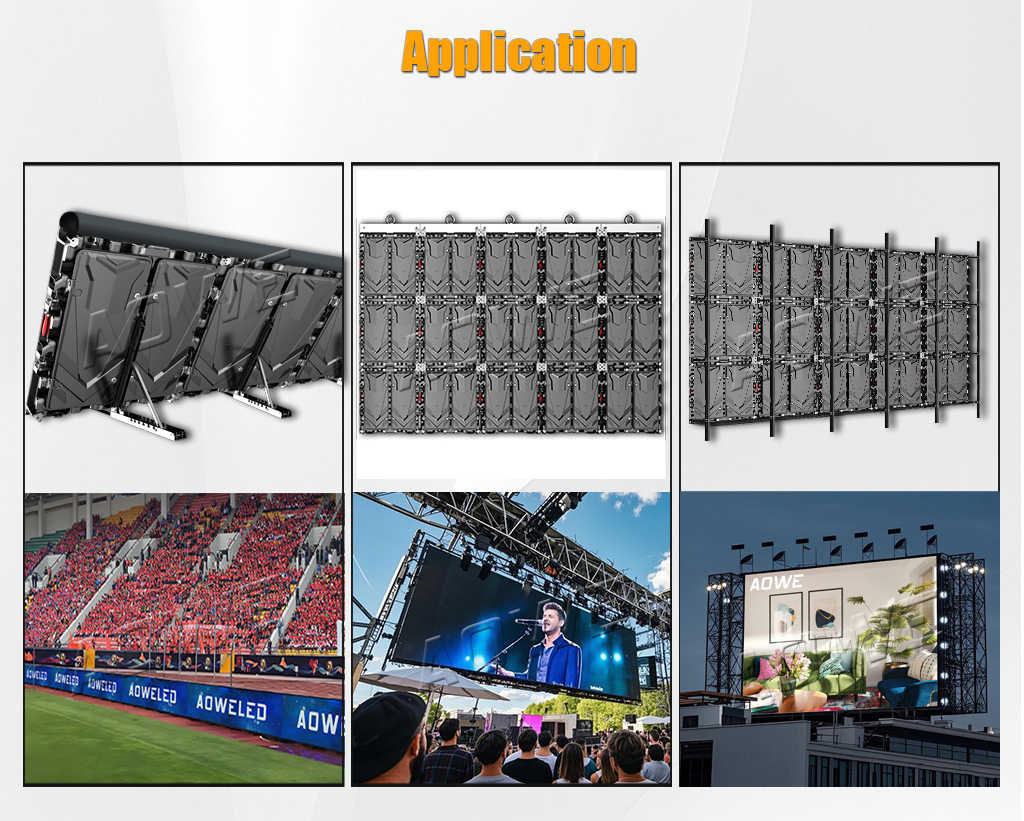

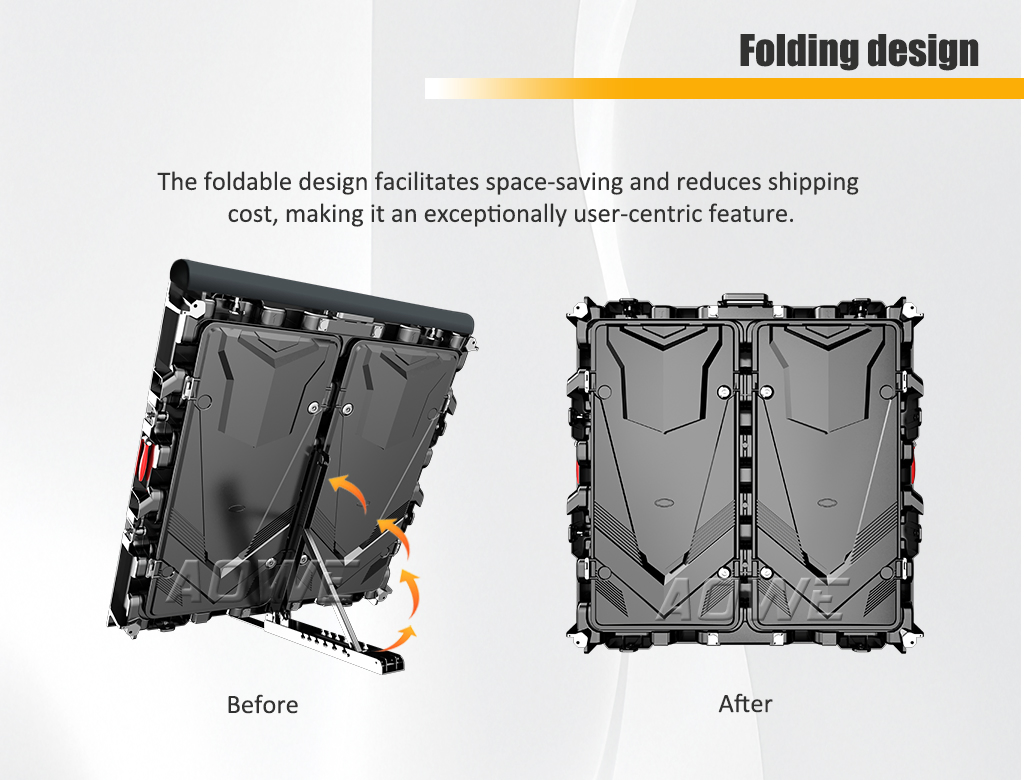

Flexible Installation & High Refresh Rate

Supports fixed/hanging/standing setups, 1920-7680Hz refresh rate for smooth visuals.

Visual Presentation

Pixel Pitch	Modules resolution	Cabinet size	Density	Refresh rate	Brightness	Scan
2.5mm	64x128pixel	960x960mm	160,000pixel	1920-7680Hz	4,500cd/sq.m	1/16
4mm	40x80pixel	960x960mm	62,500pixel	1920-7680Hz	5,000cd/sq.m	1/10
5mm	32x64pixel	960x960mm	40,000pixel	1920-7680Hz	5,500cd/sq.m	1/8
8mm	20x40pixel	960x960mm	15,625pixel	1920-7680Hz	5,500cd/sq.m	1/4
10mm	16x32pixel	960x960mm	10,000pixel	1920-7680Hz	5,500cd/sq.m	1/2

Frequently Asked Questions

What is the warranty period for the S90 series?

The S90 series comes with a standard 3-year warranty covering manufacturing defects and performance stability.

Is this LED display suitable for outdoor use?

Yes, it features an IP65 waterproof rating and high brightness up to 10,000 nits, making it perfect for all-weather outdoor advertising.

What maintenance options are available?

This series supports Front Access Service, allowing for easy maintenance and module replacement from the front side.

Does it support high-speed visuals?

Absolutely. With a refresh rate up to 7680Hz, it ensures smooth video playback without flickering, ideal for broadcasting and live events.

Can the brightness be adjusted automatically?

Yes, the system includes smart tech for auto-brightness adjustment to suit ambient lighting conditions and save energy.

What materials are used for the cabinets?

We offer both die-cast aluminum and iron cabinets. Aluminum is recommended for its lightweight (28kg) and superior heat dissipation.
