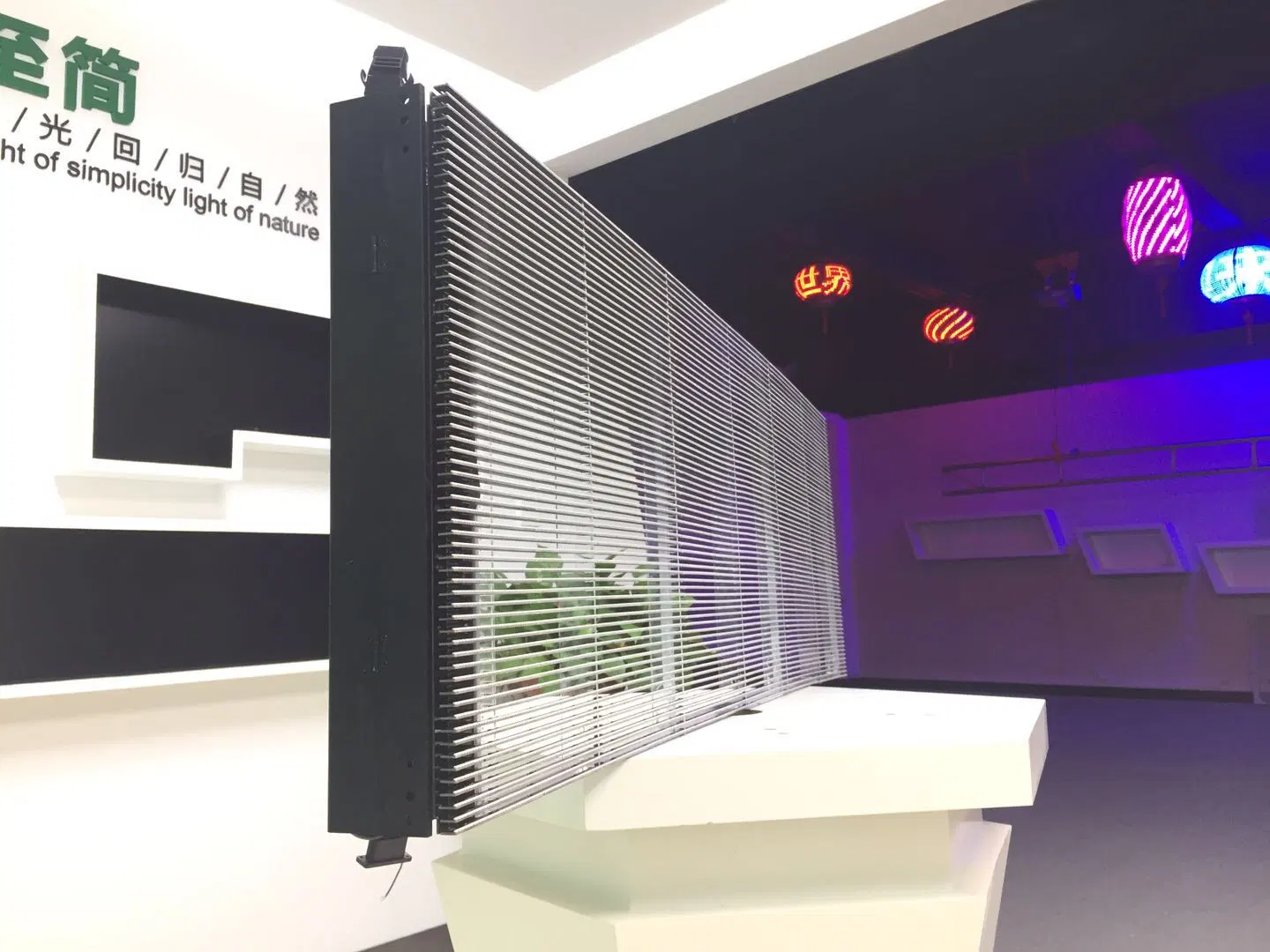

China Full Color HD Advertising Curtain Window Screen Panel P3.91-7.81 Transparent LED Display

Still deciding? Get samples of $ !
Order Sample

Product Description

📊

Basic Specifications

Model NO.
TS-3.96
Pixel Pitch
H3.96 / V7.81mm
Pixel Density
32256 DOT/M2
Brightness
4000 CD/Sqm
Scanning Mode
1/7 Scan
IP Rating
IP30
Cabinet Material
Die Cast Aluminum
LED Type
Nationstar SMD1921
Module Size
500*125 mm
Cabinet Size
1000*500 mm
Weight
6 KG
Certification
CE, FCC
📝

Product Description

  • High brightness up to 4000 nits, specifically designed for indoor window installations.
  • Perfect for store windows facing streets or high-traffic passages for maximum advertising impact.
  • Exceptional transparency with light transmittance reaching over 70%, ensuring the view behind the screen is not obstructed.
  • Features a unique H3.96mm horizontal and V7.81mm vertical pixel pitch design.
  • Cabinet supports standard sizes of 1000mm*500mm and 1000mm*1000mm.
LED & Component Parameters
Pixel Pitch H3.96/V7.81 (1R1G1B) LEDs Type SMD1921 NationStar
LED Parameters
Chip Color Brand Intensity Wavelength
Red Chip Epistar 450 mcd 622 nm
Green Chip Epistar 730 mcd 522 nm
Blue Chip Epistar 105 mcd 472 nm
Module & Cabinet Details

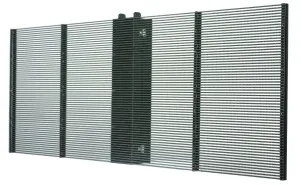

LED Module

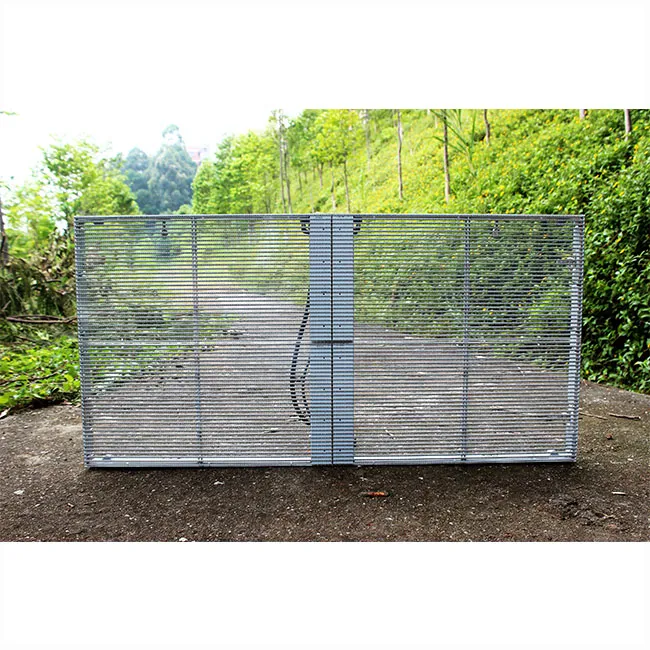

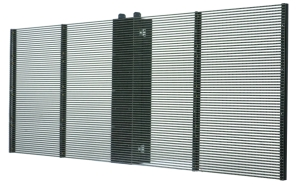

LED Cabinet
Technical Display Performance
Transmittance >75% Viewing Angle H 140°, V 140°
Refresh Rate >1920 Hz Grey Scale 16 bit
Max Power 680 W/m² Average Power 240 W/m²
Life Span ≥100,000 Hours Operating Temp -30ºC to +60ºC
📦

Packaging & Logistics

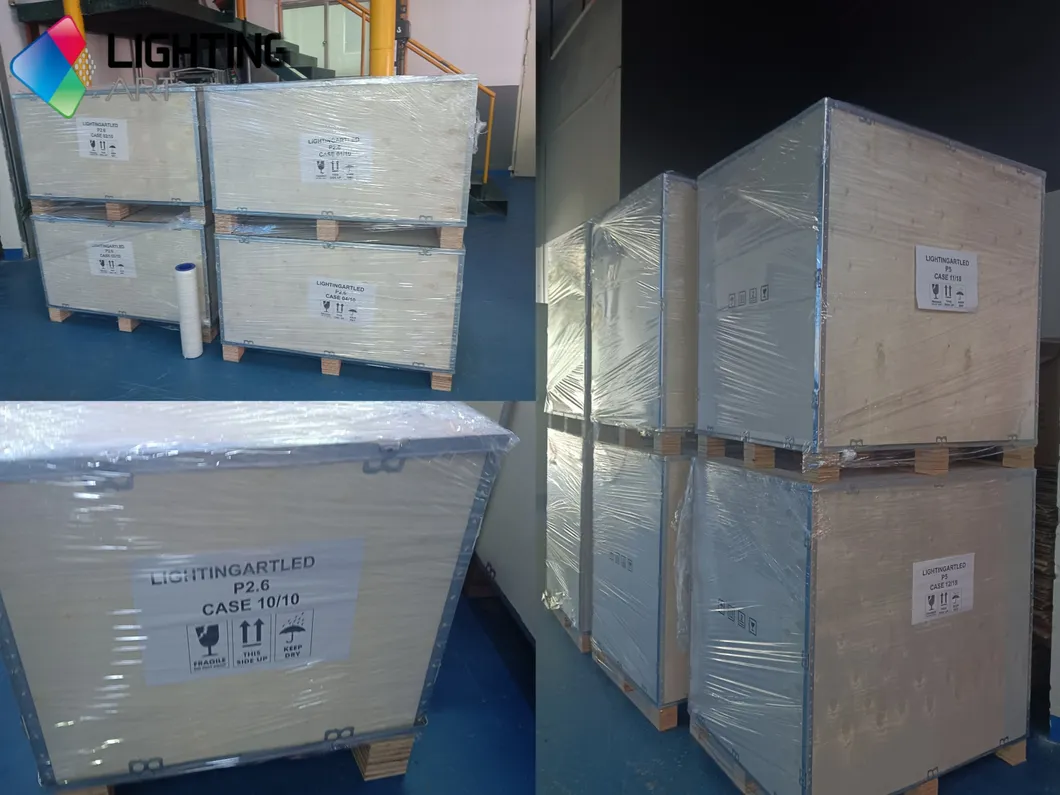

Plywood Case Packing

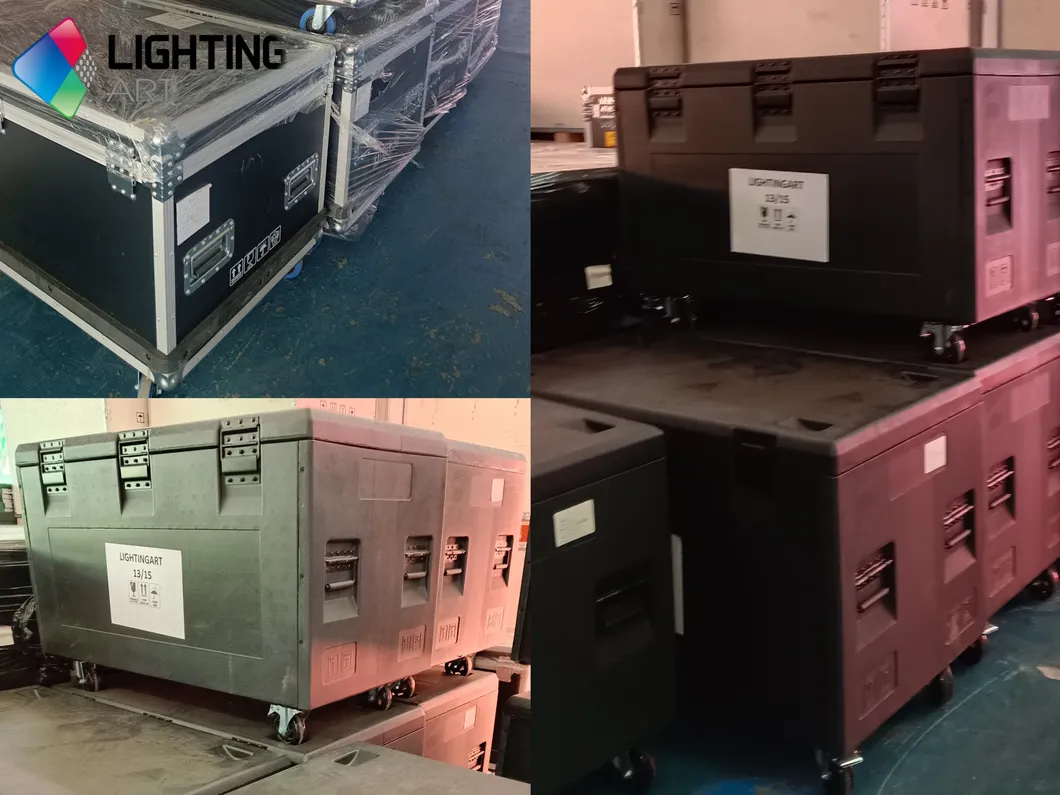

Flight Case Packing
  • Production Time: Approx. 25 days for 1-200 m² (including aging test).
  • Payment Terms: T/T 30% advance, 70% before shipping.
  • Package Options: Professional Plywood Case or Flight Case.
🛡️

Service & Quality

Two years comprehensive warranty.
24-hour online technical support, lifetime free.
Skillful workers with over 6 years of experience.
Strict aging and grayscale tests for every module.

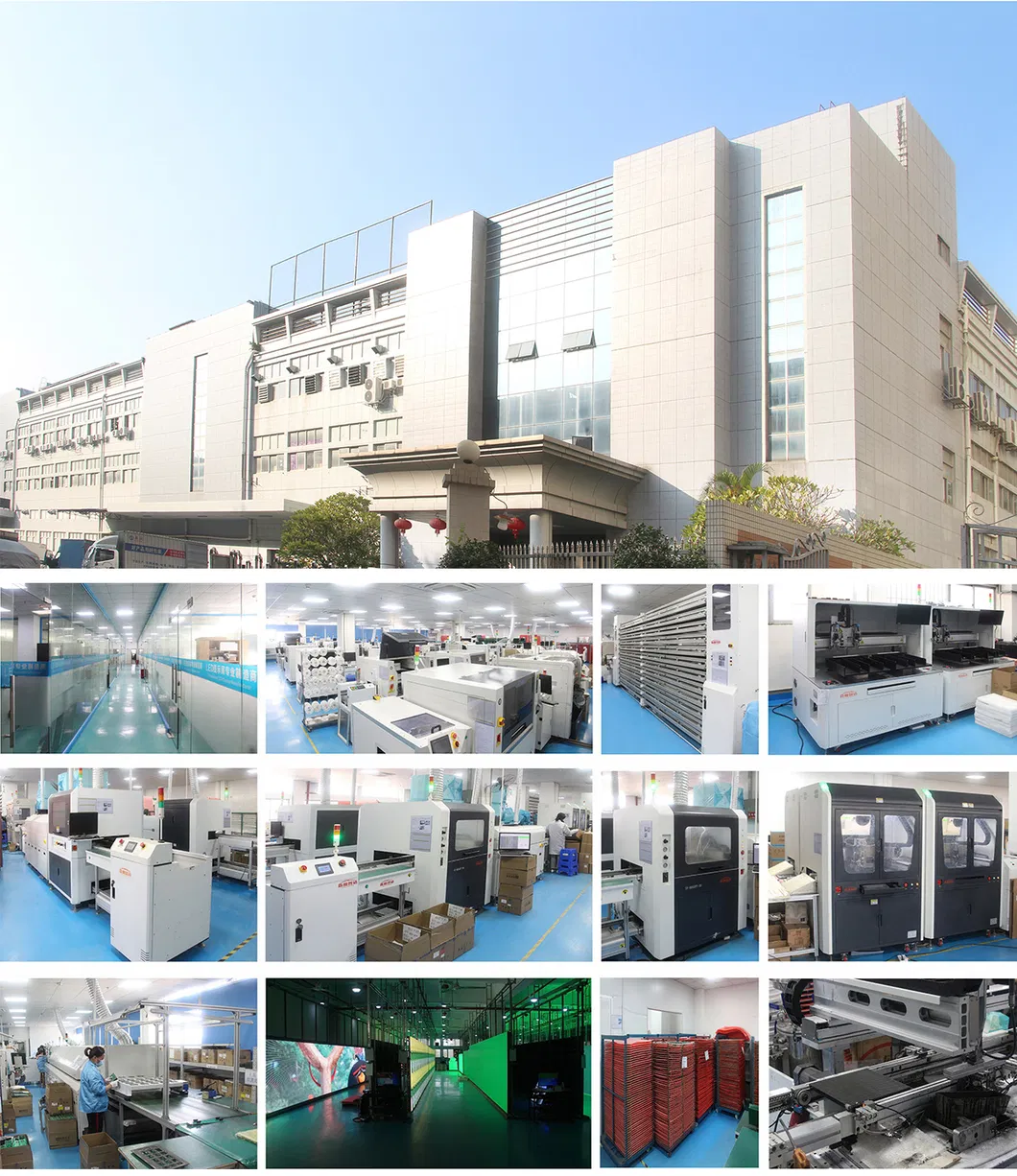

Factory Production
Aging Test

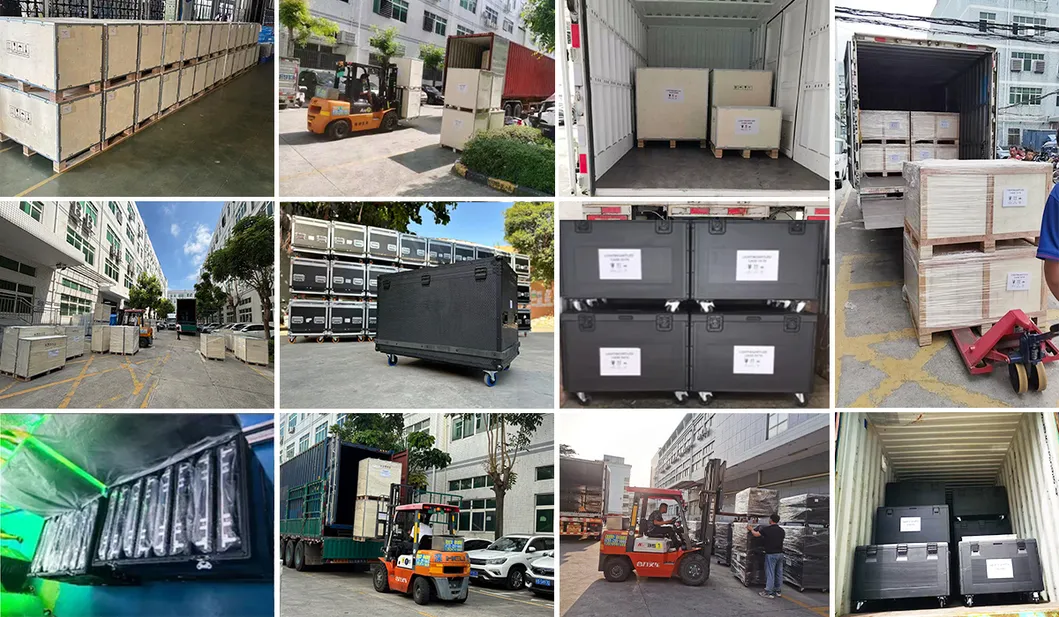

Delivery Preparation

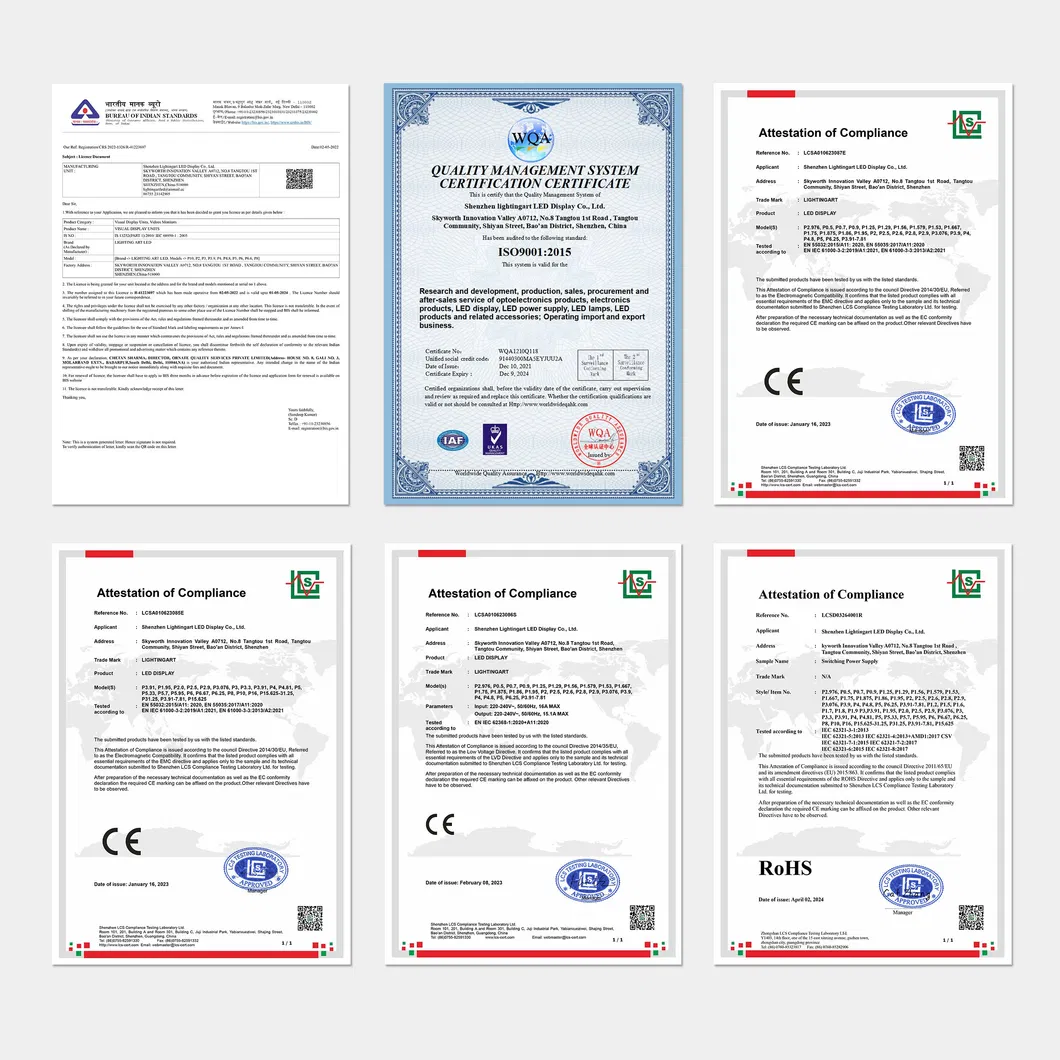

Certificates

Frequently Asked Questions

Q1: Can this transparent LED screen be installed outdoors?
No, this specific model (TS-3.96) is designed for indoor fixed installation, typically behind glass windows. However, its high brightness of 4000 nits ensures visibility even in sunlight.
Q2: What is the transparency rate of the display?
The screen offers excellent transparency, reaching over 75% transmittance, allowing natural light to pass through and keeping the area behind the screen visible.
Q3: What is the lifespan of the Nationstar SMD LEDs?
The display is built with high-quality Nationstar SMD1921 LEDs, featuring a lifespan of ≥100,000 hours.
Q4: What kind of files can I play on the LED screen?
The system supports a wide range of input formats including TXT, DOC, AVI, JPEG, MOV, MPEG, BMP, GIF, and many others through DVI/VGA interfaces.
Q5: What is included in the after-sales service?
We provide a 2-year warranty, 24-hour lifetime online support, and depot repair services. During the warranty, we offer free labor for repairs.
Q6: How heavy is each cabinet?
The cabinet is made of lightweight die-cast aluminum, weighing only 6 KG for a 1000*500mm unit, making it easy to install and maintain.
