📋 Basic Information
Model NO.:silicone heater
Type:Silicone Rubber Heater
Certification:CE, ISO, RoHS
Structure:Heating Wire
Thickness:1.5mm-3mm
Size Deviation:±0.5%
Power Deviation:±5%
Insulation Resistance:≥5 MΩ
HS Code:8516800000
🔥 Product Description

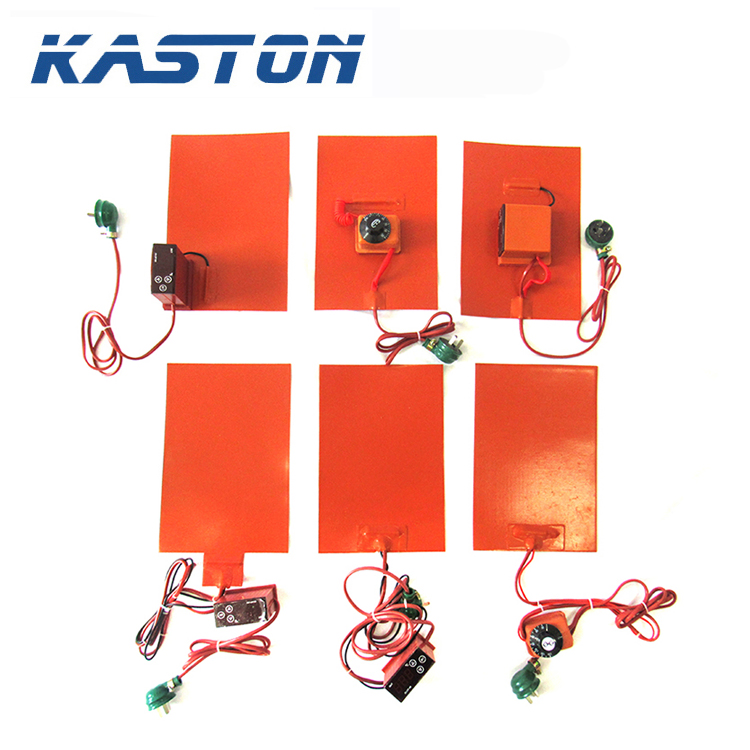

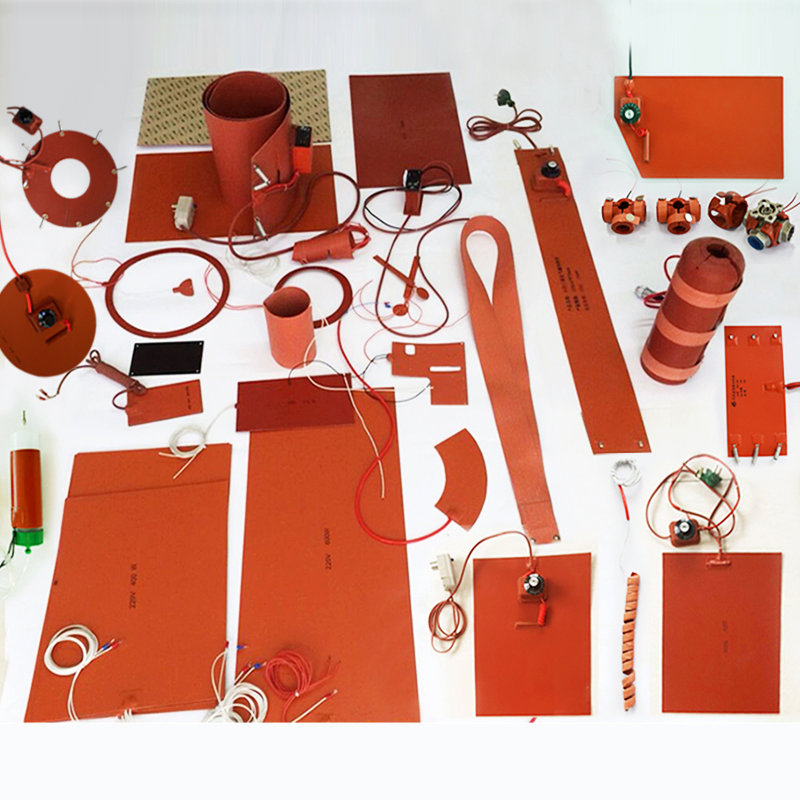

Silicone heater is a flexible heating element made of a silicone rubber material designed to provide uniform and efficient heat transfer. It consists of a resistance wire (nickel-chromium or copper-nickel) embedded in a silicone rubber substrate bonded to fiberglass insulation.
Key Advantages: Conforms to irregular surfaces, ideal for complex geometries, and highly customizable in shapes and sizes.
| Temperature Range | -40.00~180.00°C |
| Power Density | 0.10~1.50w/cm² |
| Mechanical Pressure | 100.00kg/cm² |
| Heating Element | Ni-Cr alloy |
| Voltage | 3.7-660V |
✨ Features of Silicone Heating Pads
- Flexibility: Conforms to curved or irregular surfaces.
- Durability: Resistant to water, chemicals, and high temperatures.
- Uniform Heating: Even heat distribution across the surface.
- Lightweight: Thin profile, easy to integrate.
- Safety: Non-toxic, flame-resistant, and electrically insulated.
⚙️ Temperature Control Options
1. Digital Temperature Control: Range -45 ºC ~ 220 ºC. Maintains precise constant temperatures.

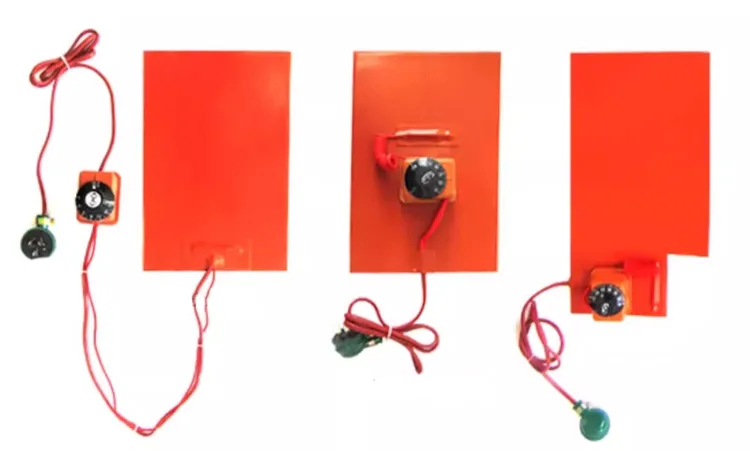

2. Knob Temperature Control: Common ranges like 0-120°C, 30-150°C. Suitable for antifreeze and general insulation.

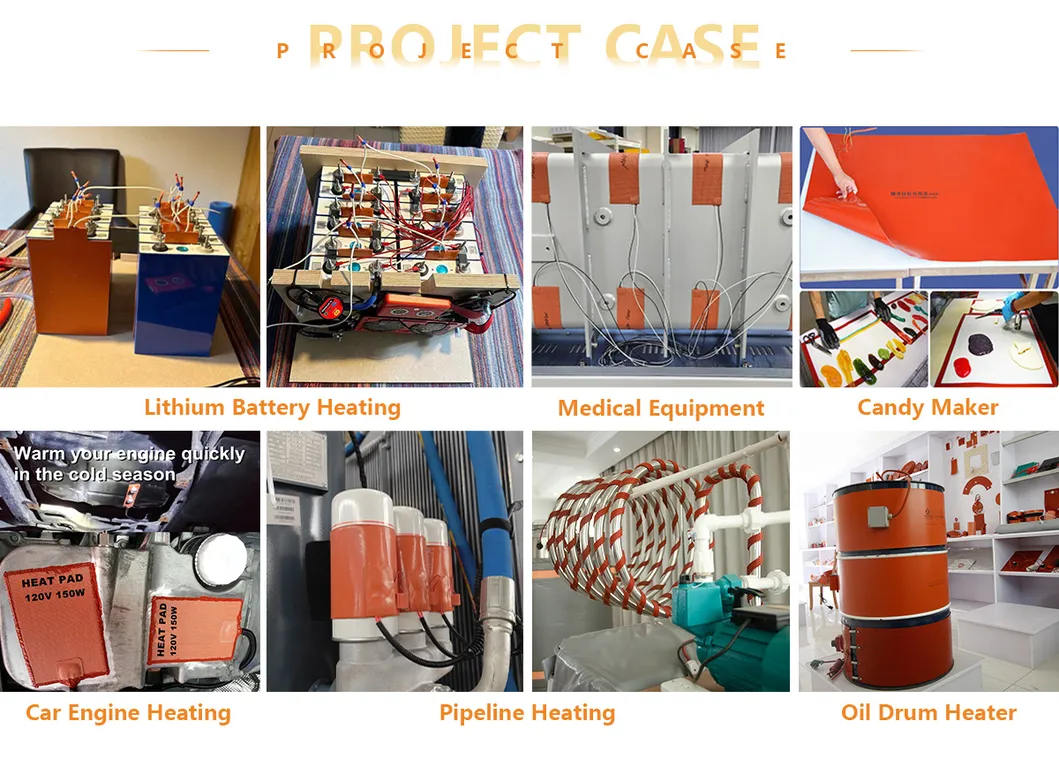

🚀 Main Applications
Industrial: Molds, equipment heating, fluid line maintenance.
Medical: Patient warming, therapeutic heat pads.
Automotive: Car seats, EV battery systems.
Food: Serving trays, processing equipment.
❓ Frequently Asked Questions

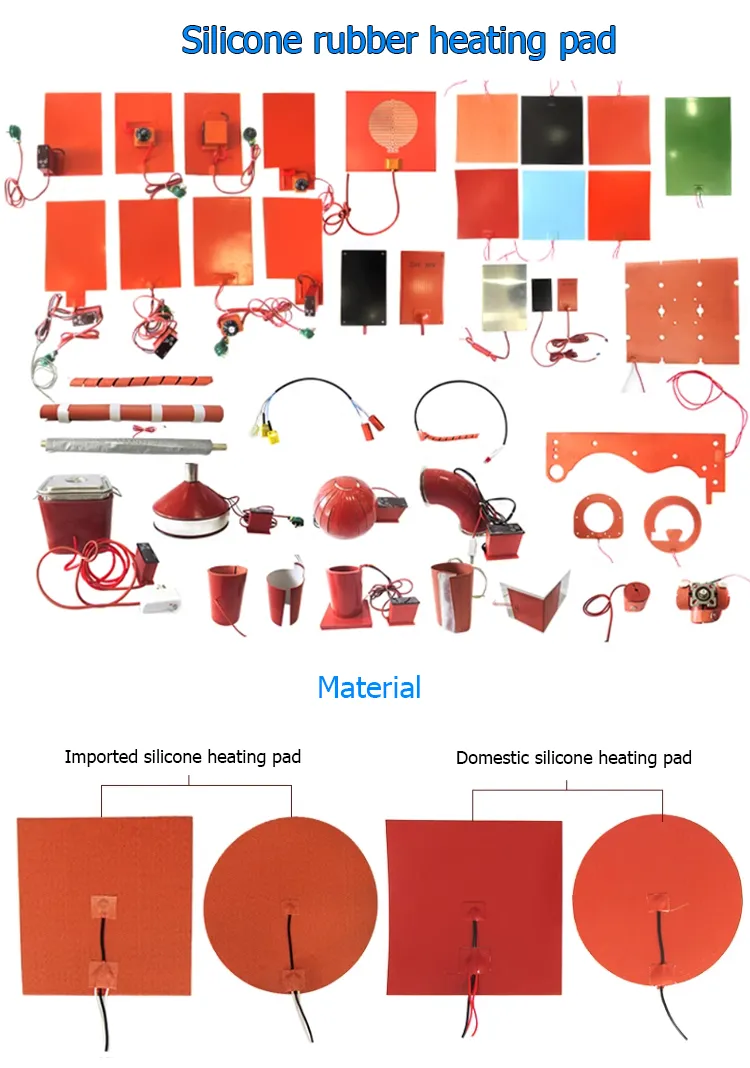

What is the maximum temperature for silicone heaters?
Imported silicone heating elements can reach up to 200 ºC, while standard domestic versions typically operate up to 180 ºC.

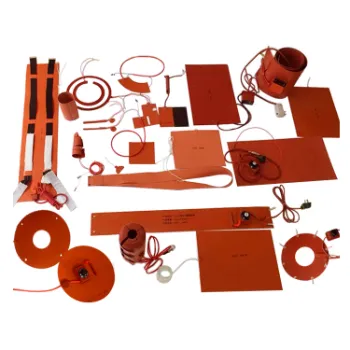

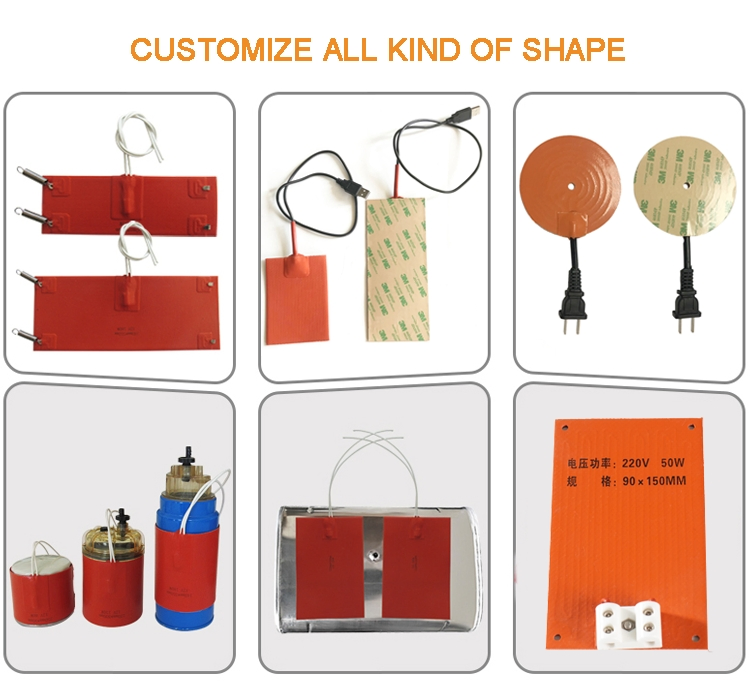

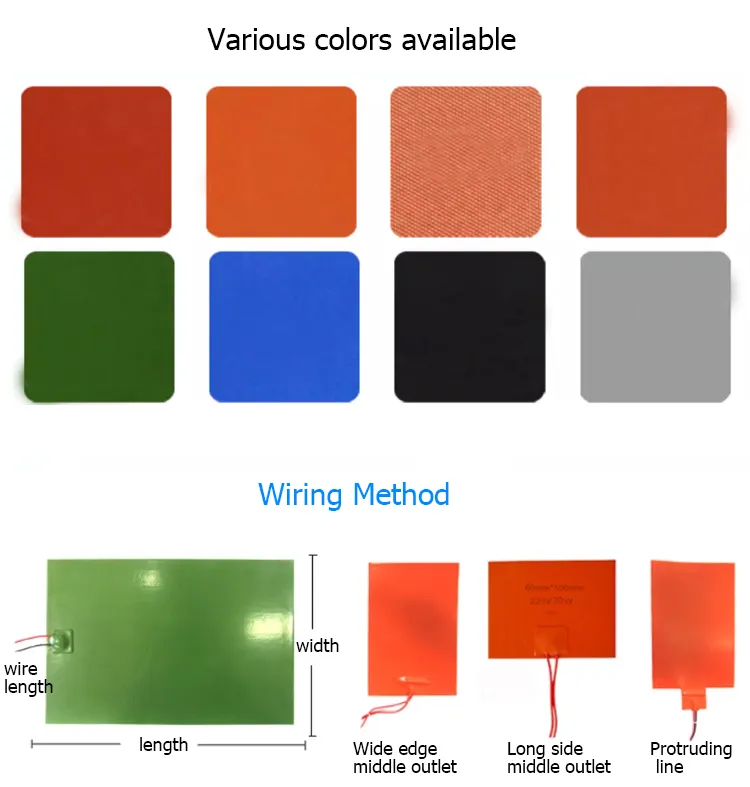

Can the shape be customized?
Yes, circular, irregular, and special shapes can be fully customized to fit your specific equipment geometry.

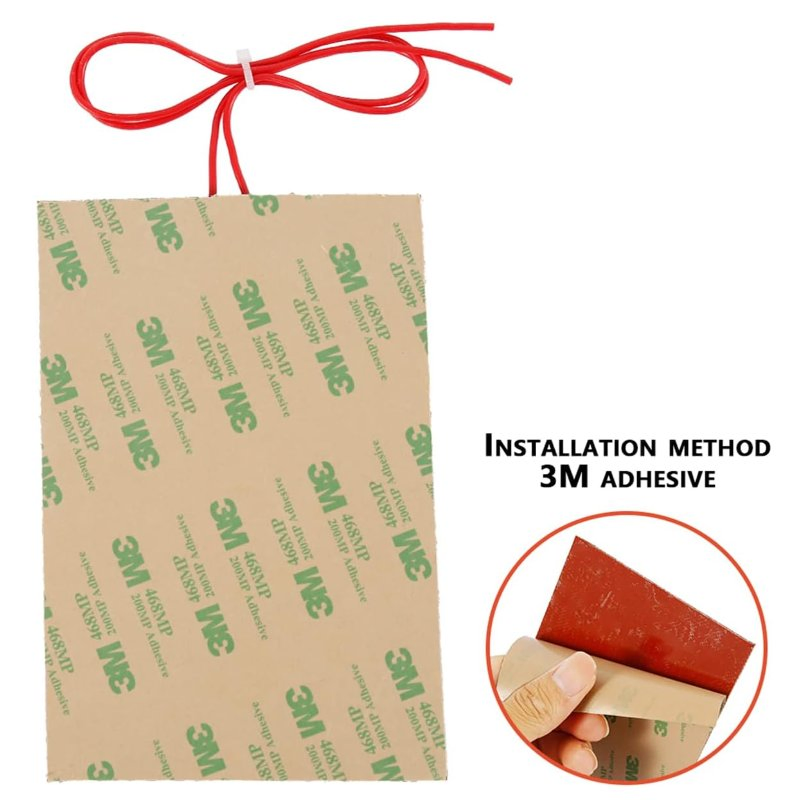

Do these come with adhesive backing?
The default specification does not include 3M adhesive backing, but it can be added upon request for easy installation.
What voltages are available?
We provide a wide range of voltages including 5V, 12V, 24V, 110V, 220V, and 380V to suit different power requirements.
How is the temperature controlled?

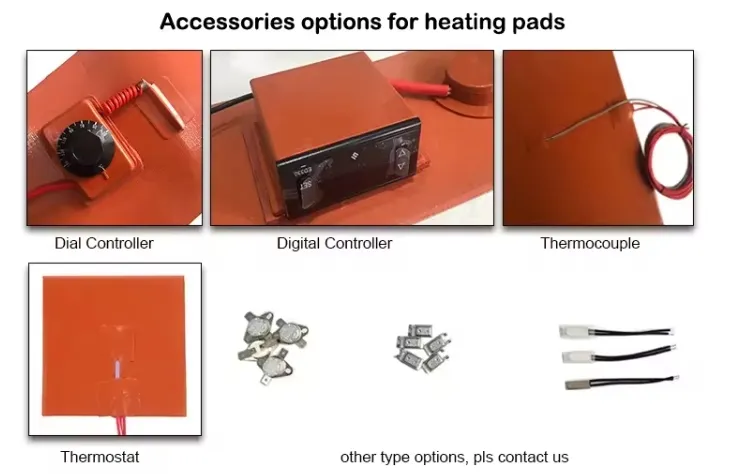

Options include digital temperature controllers for high precision, manual knob controllers, or fixed-temperature thermal switches.
Are they resistant to chemicals?
Yes, silicone rubber is naturally resistant to many chemicals, moisture, and harsh industrial environments.
