Chinese Indoor Glass Flexible LED Film Screen Advertising Digital Soft Video Wall LED Display for Fixed Poster Billboard

Customization: Available
Tube Chip Color: Full Color
Display Function: Video Display, Image & Text Display, Text Display, Market Display

Product Description

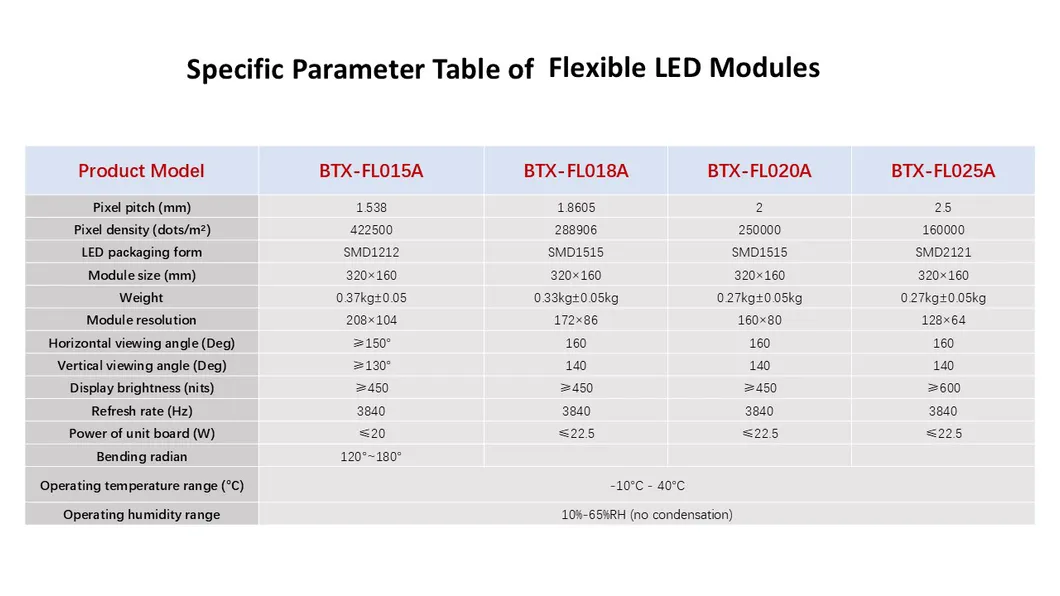

Basic Product Specifications

Model NO.
BTX
Pixel Pitch
1.58/1.8605/2/2.5mm
Configuration
1R,1G,1B
Display Type
LED Video Display
IP Rating
IP43
Module Size
320×160mm
Refresh Rate
3840Hz
Viewing Angle
H≥150°, V≥130°
Brightness
≥450 Nits
Certification
CE, RoHS, CCC, ETL

Product Introduction

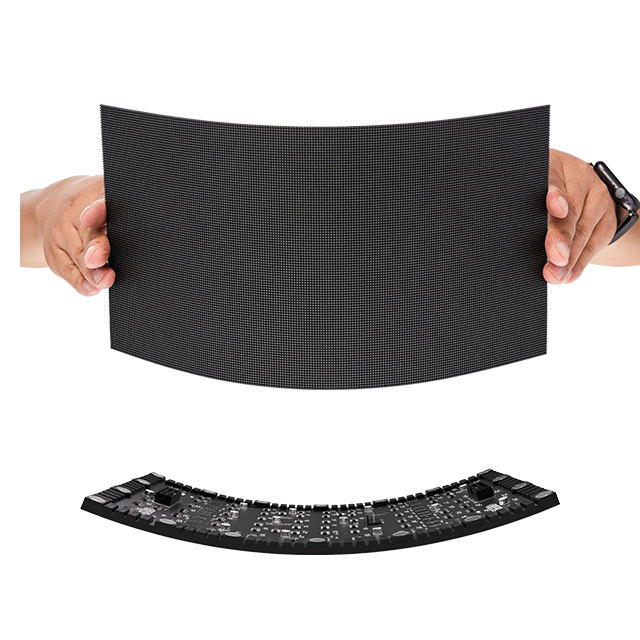

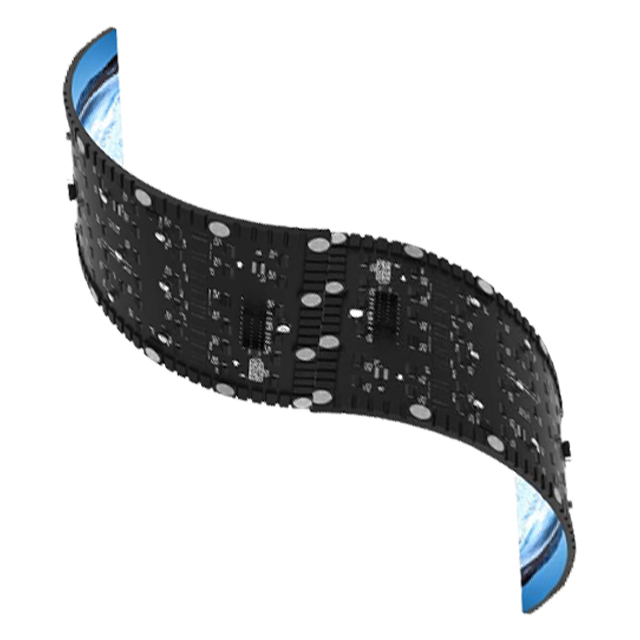

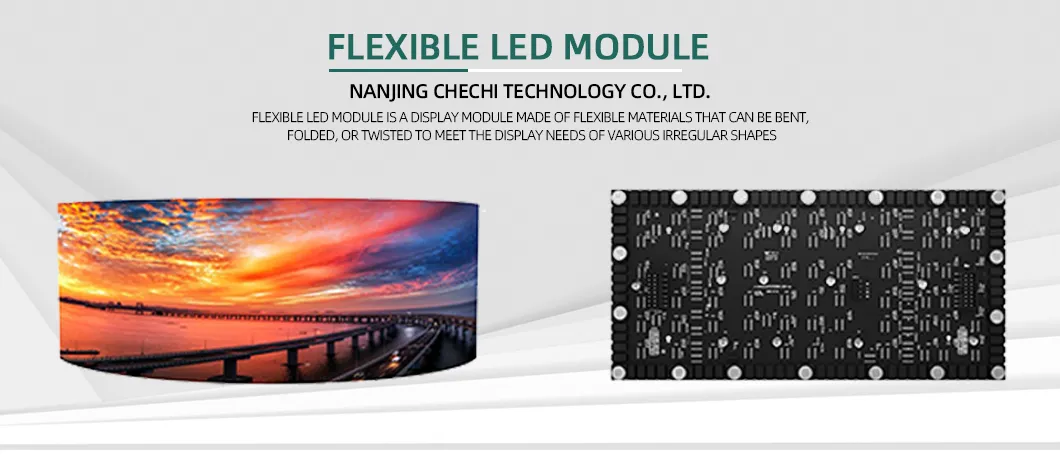

Flexible LED Display
Traditional LED display modules are made from rigid PCB boards and inherently lack flexibility, making them unsuitable for curved areas. The emergence of flexible LED modules addresses this issue. Made of high-softness materials, they can achieve perfect display effects for arc, cylindrical, wavy, or other creative shapes.

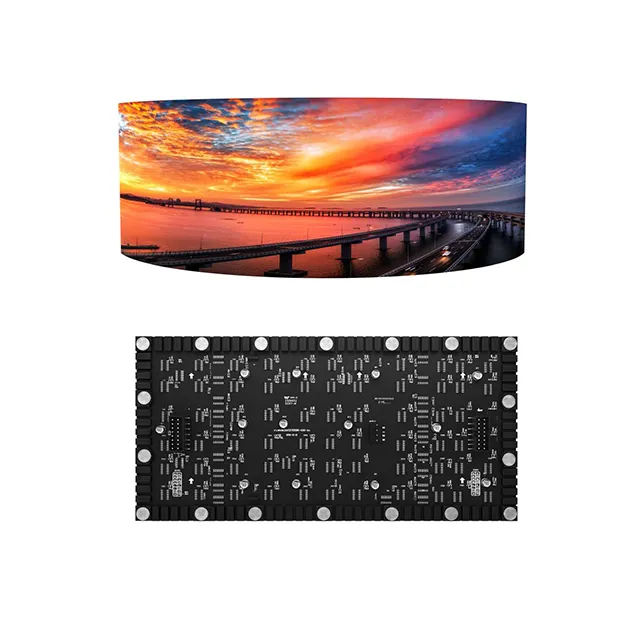

Product Demo

Main Features

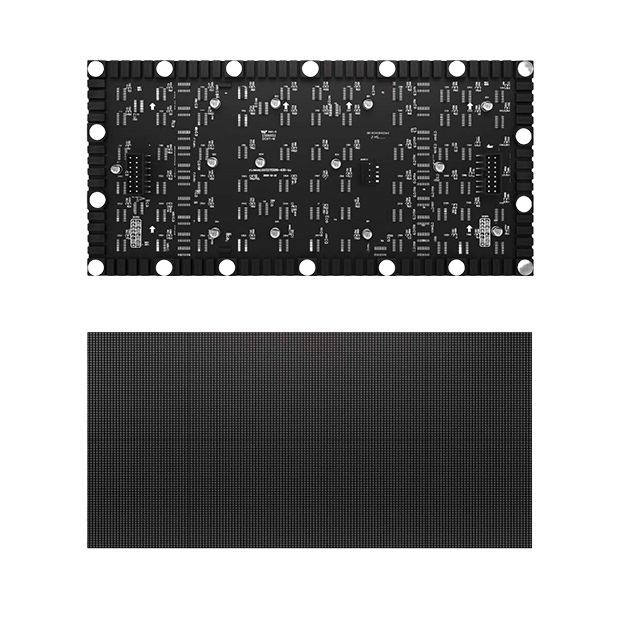

  • Standardized size: 320x160mm.

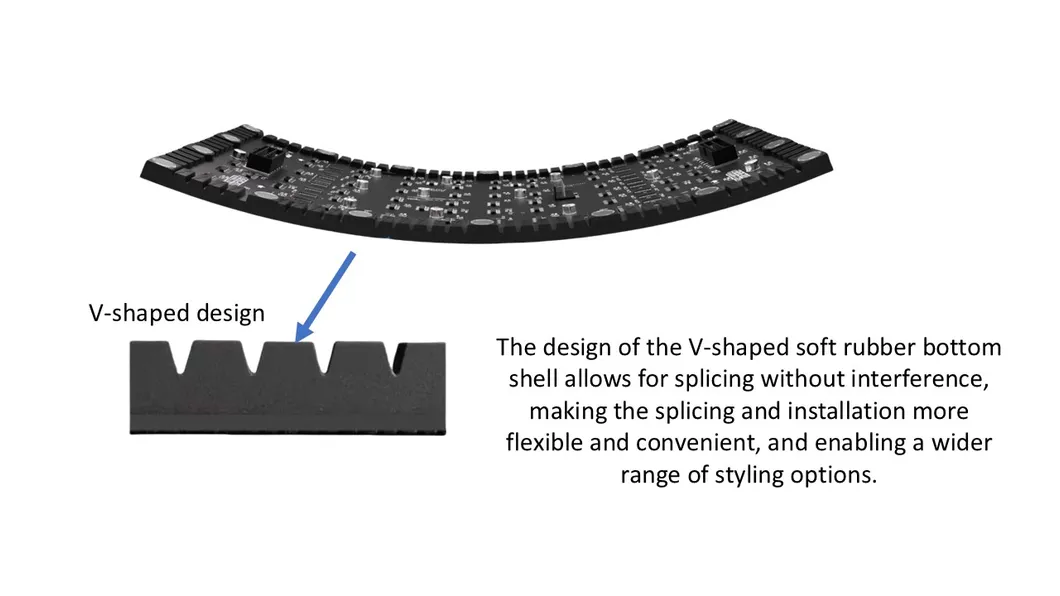

  • Flexible soft PCB board with high-quality silicone bottom shell.
  • Bending angle between 120° and 180°.
  • High refresh rate (over 3840Hz) and high grayscale IC design.
  • Viewing angle up to 160°, perfect for artistic planning.

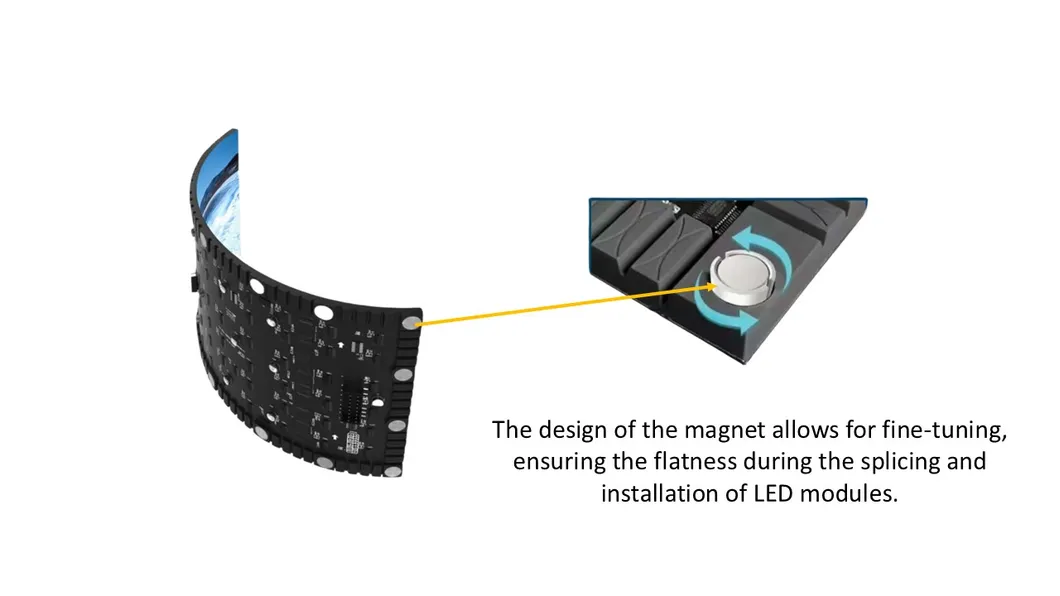

  • Strong magnetic adsorption (18 points) for micro-adjustment and flatness.

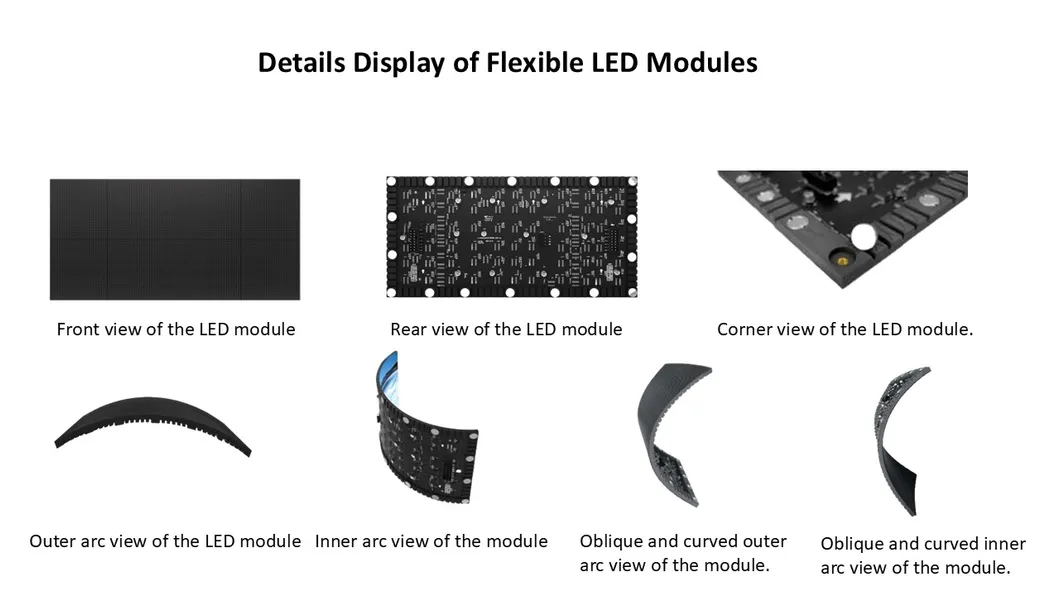

Feature Overview

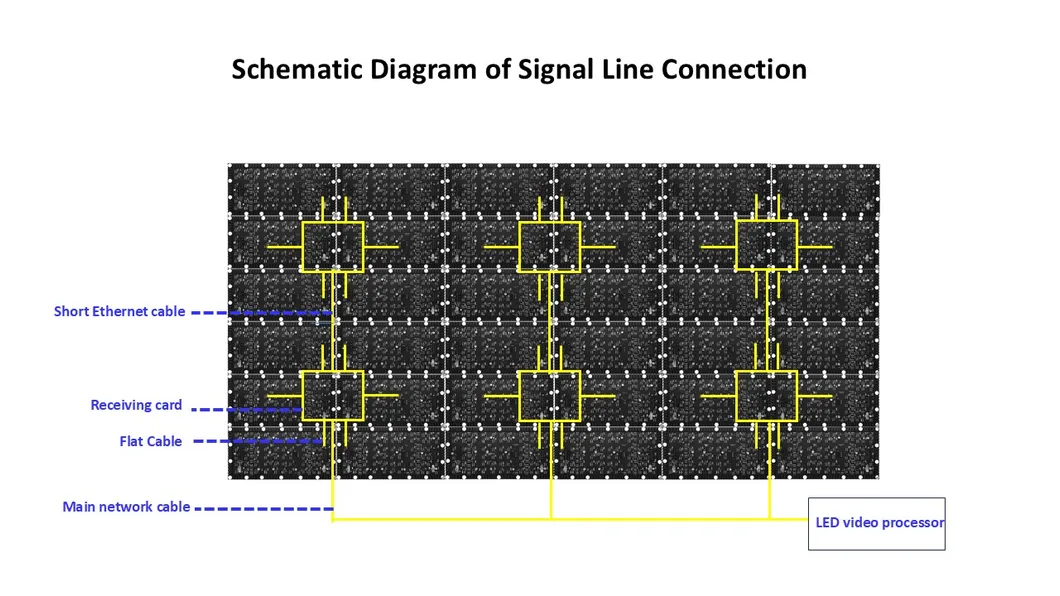

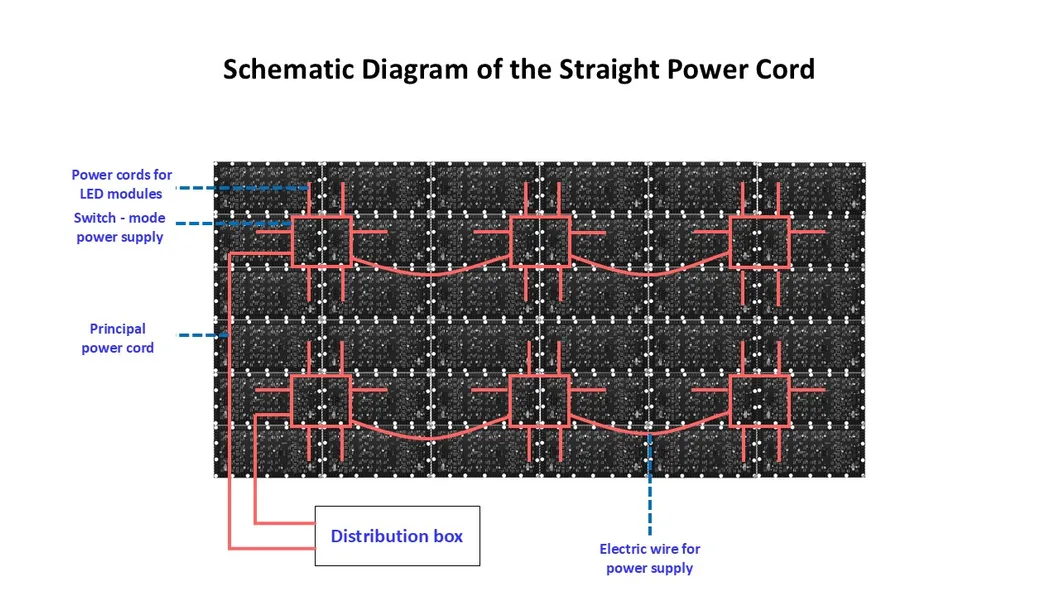

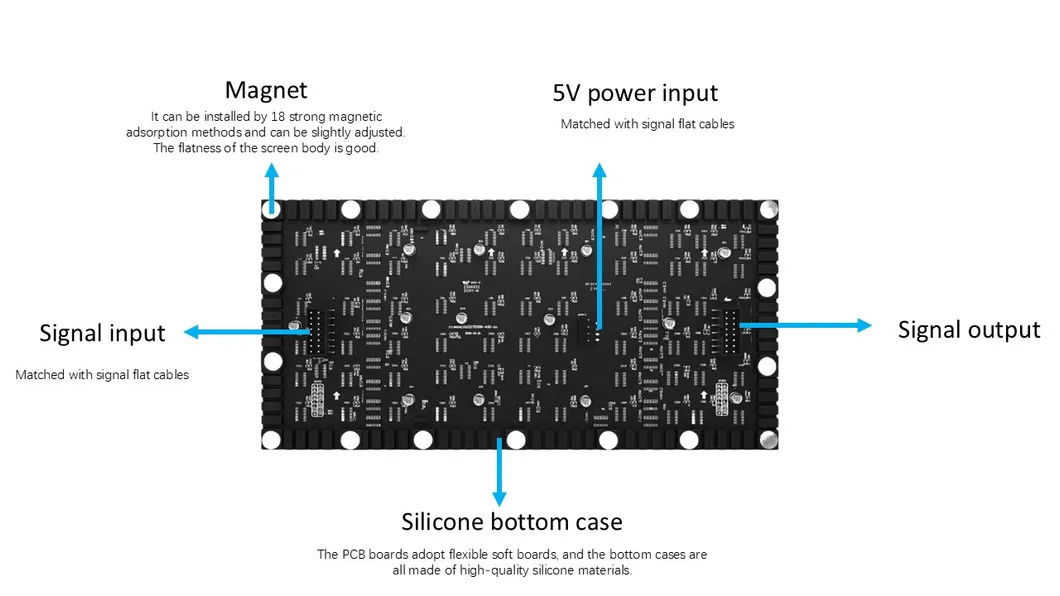

Software & Hardware Highlights

Precautions for Use

Precautions
  • ⚠️Do not violently tear modules to avoid breaking copper pillars or damaging PCB.

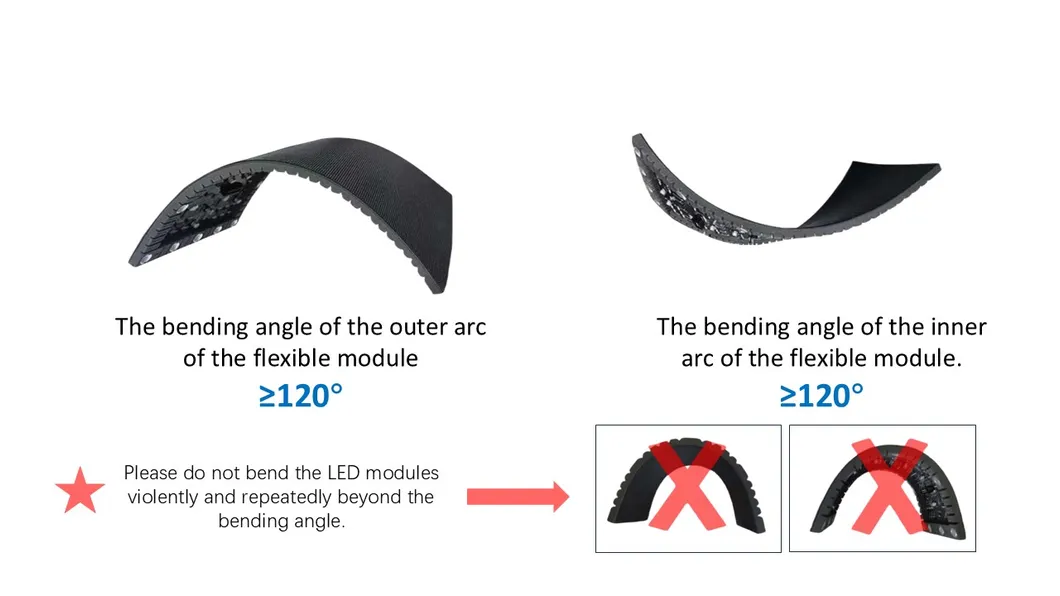

  • ⚠️Bending angle must stay between 120° and 180°. Avoid violent repeated folding.
  • ⚠️Recommended to use sheet metal sandblasted iron boxes for best flatness.
  • ⚠️Supports fixing, lifting, and wall mounting for various indoor safety requirements.

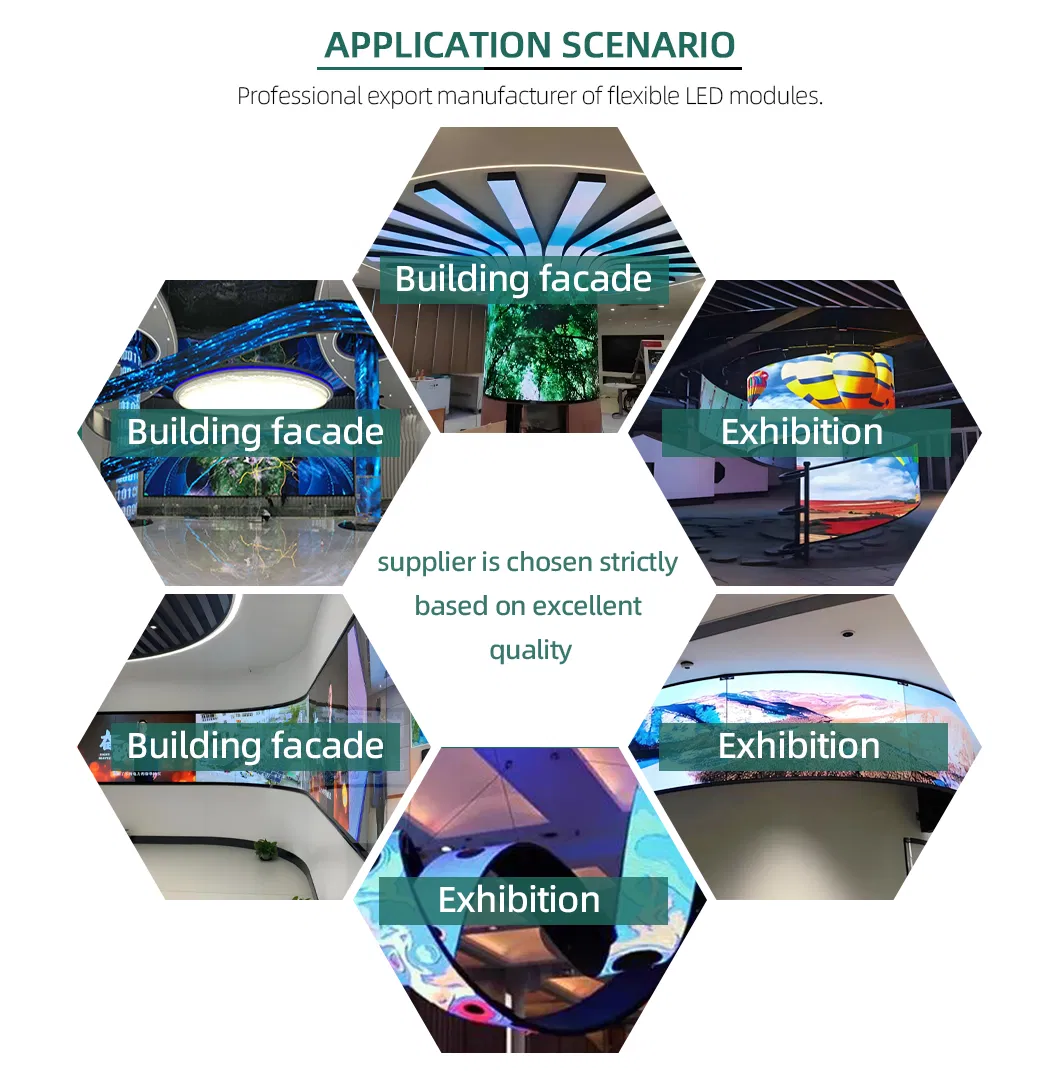

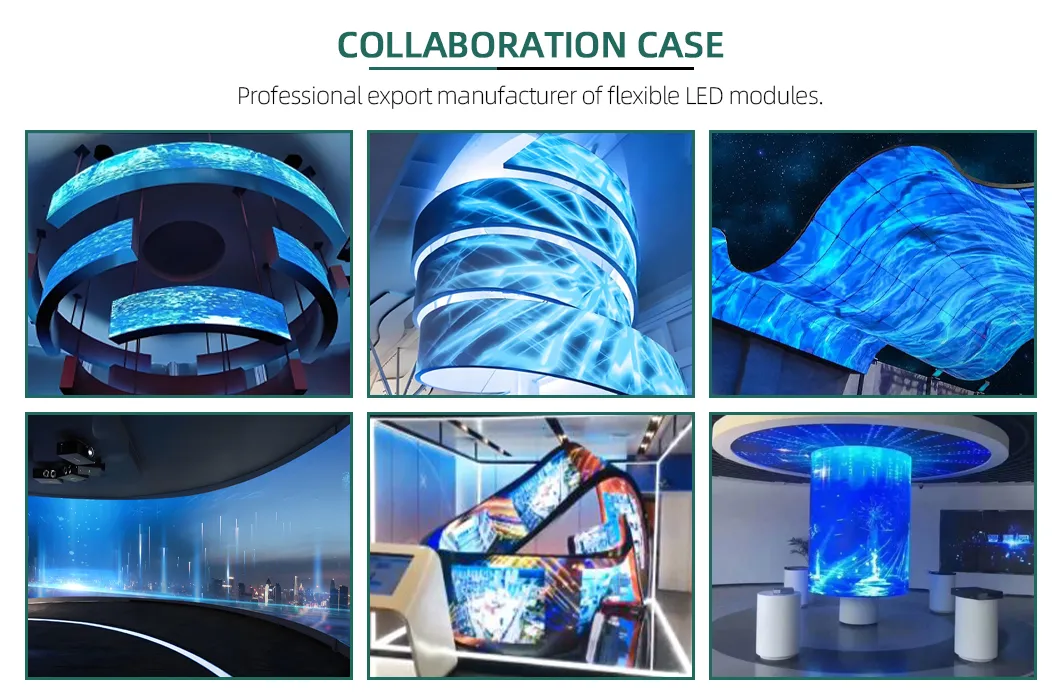

Application & Cases

Certifications

Product Certifications

Frequently Asked Questions

How can I get an accurate quotation for LED products?
Please provide the budget, application scenario, and specific dimensions (area, length, or width). A CAD design drawing helps us configure a precise plan for your requirements.
How long does it take to receive a quotation?
Usually, we reply immediately upon receiving your inquiry. For urgent requests, please contact us via direct messaging or email for an instant response.
How do I choose the right dot pitch for my project?
Selection depends on your resolution needs, application environment, and viewing distance. We can calculate the optimal pitch for you based on these details.
What is the standard lead time for orders?
Standard products can be arranged within 15 days. Customized solutions typically take 30-45 working days, depending on order volume.
What is the warranty period for your LED products?
The standard warranty period is one year. Extended warranty services are available upon request before placing an order.
How is the installation handled for flexible LED screens?
The process involves structure construction, cabling, mounting cabinets/modules, and final power-on debugging. We provide free remote guidance to assist with the setup.
