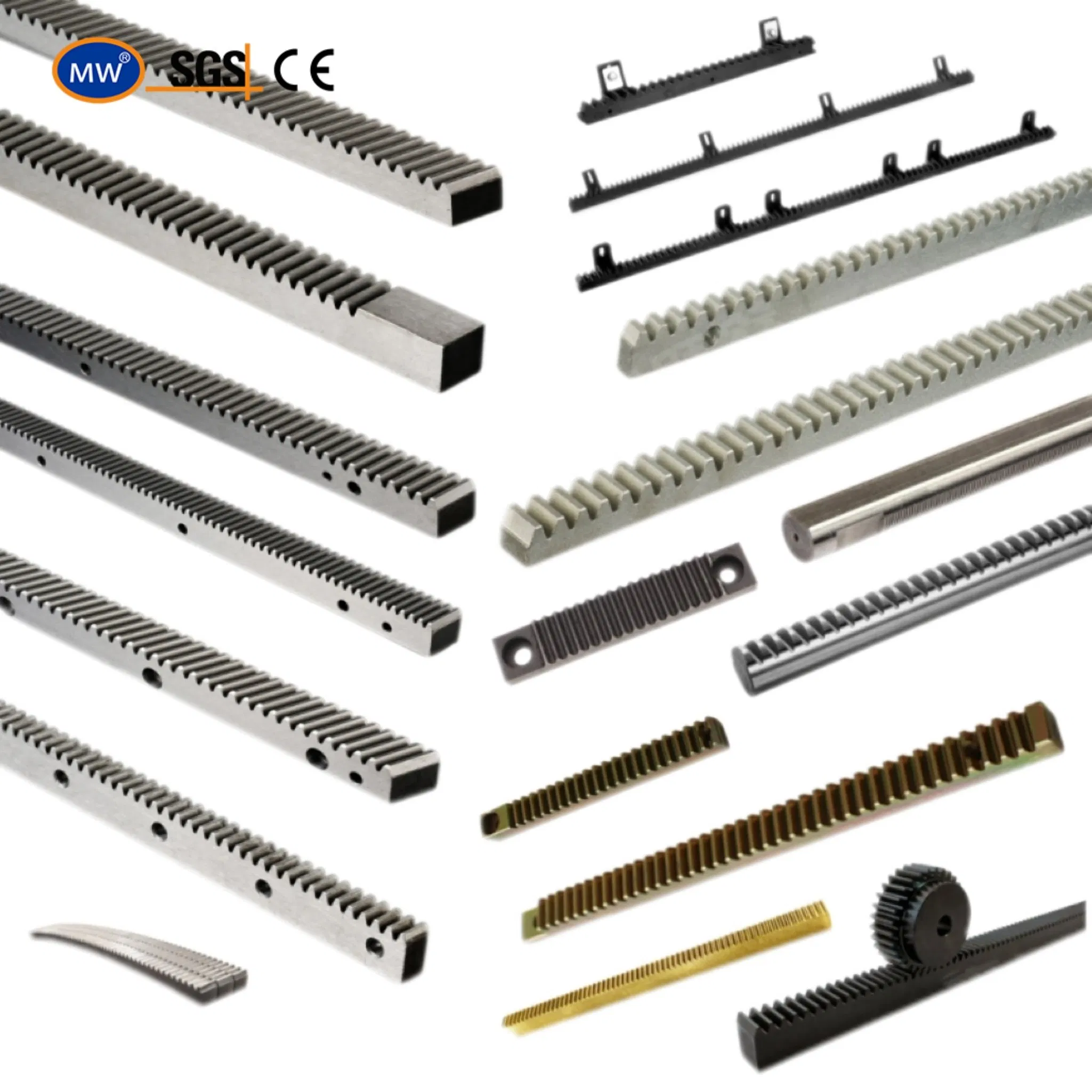

MW OEM Flexible Metric Linear Round CNC Helical Spur Curved Steering Plastic Nylon Stainless Steel Pinion Gear Rack for Automatic Door Gate Window Opener

📊Basic Specifications

Model NO.:M0.5, M1 - M10

Material:Steel / Stainless Steel / Nylon

Surface Treatment:Zinc Plating / Blackening

Certification:ISO

Hardness:HB 190-250 / 50-55HRC

Pressure Angle:20° / 14.5°

⚙️Product Overview

Flexible Metric Linear Round CNC Helical Spur Curved Steering Pinion Gear Rack designed for automatic doors, gates, window openers, and industrial machinery. These components utilize high-quality alloy steel and precision engineering-grade materials, ensuring exceptional strength, dimensional accuracy, and wear resistance for reliable performance in demanding environments.

Key Highlights:

High Precision Linear Drive Components: Ideal for factory automation and robotics.
Durable Construction: Steel and Nylon options ensure longevity in heavy-duty applications.
Precision Machining: All critical rack teeth undergo precision hobbing or grinding processes.
Versatile Application: Suitable for engraving machines, lifters, escalators, and power tools.

📋Technical Parameters

Module Number	Tooth Hardness	Material	Tooth Type	Length
M 1.25 - M10	50-55HRC	S45C, SCM440, C45	Straight / Helical	1000mm - 2000mm

📏Standard Dimensions (Quick Delivery)

Module	Dimensions (MM)	Module	Dimensions (MM)
M1	15X15X1000	M3	30X30X1000
M1.5	17X17X1000	M4	40X40X1000
M2	20X20X1000	M6	60X60X1000

🛠️OEM/ODM Customization Services

We provide comprehensive customization support to meet your specific industrial requirements:

Drawing-Based Manufacturing (OEM): Precise production following your technical specifications.
Sample-Based Customization (ODM): Material analysis and process replication based on physical samples.
Full-Parameter Flexibility: Custom lengths up to 3M, specific tooth profiles, and special material coatings (Nylon, Stainless Steel).
Heat Treatment: Tooth surface induction hardening available for high-wear applications.

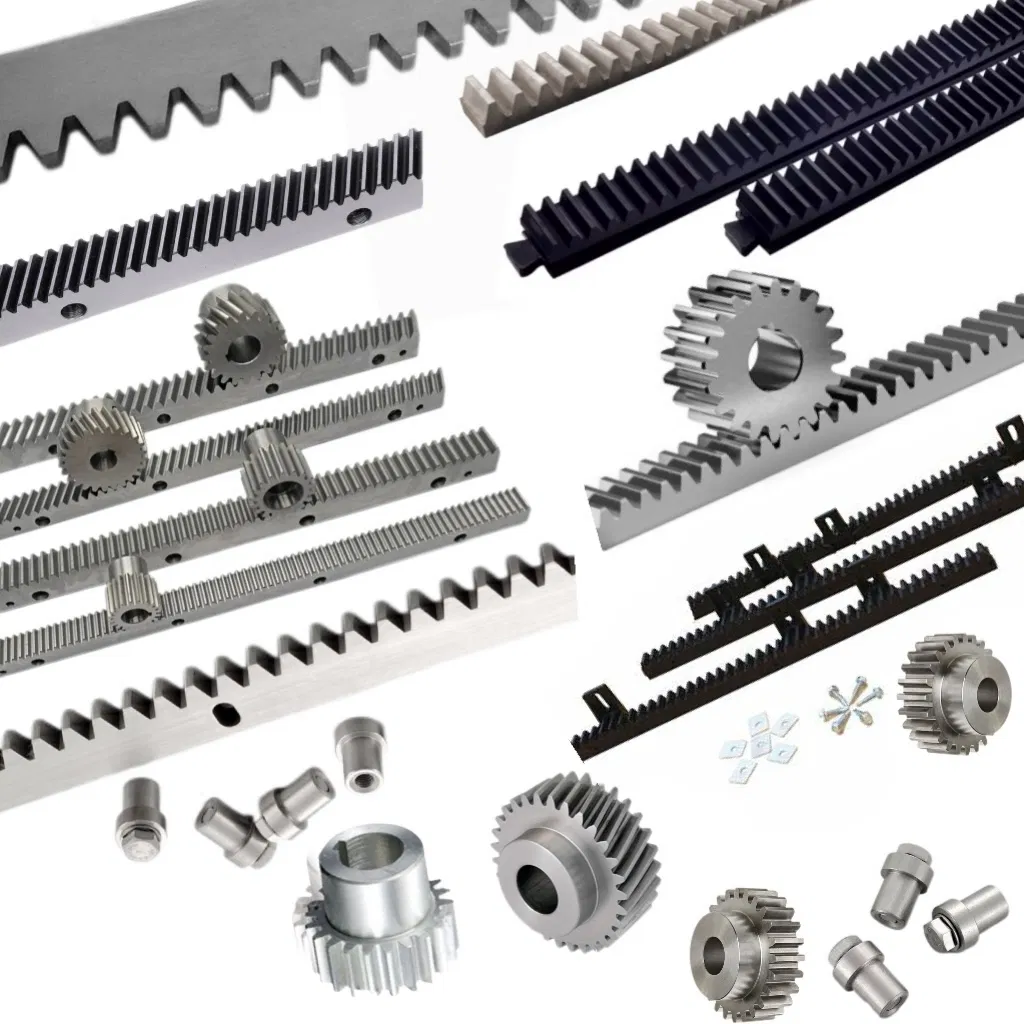

📦Featured Products

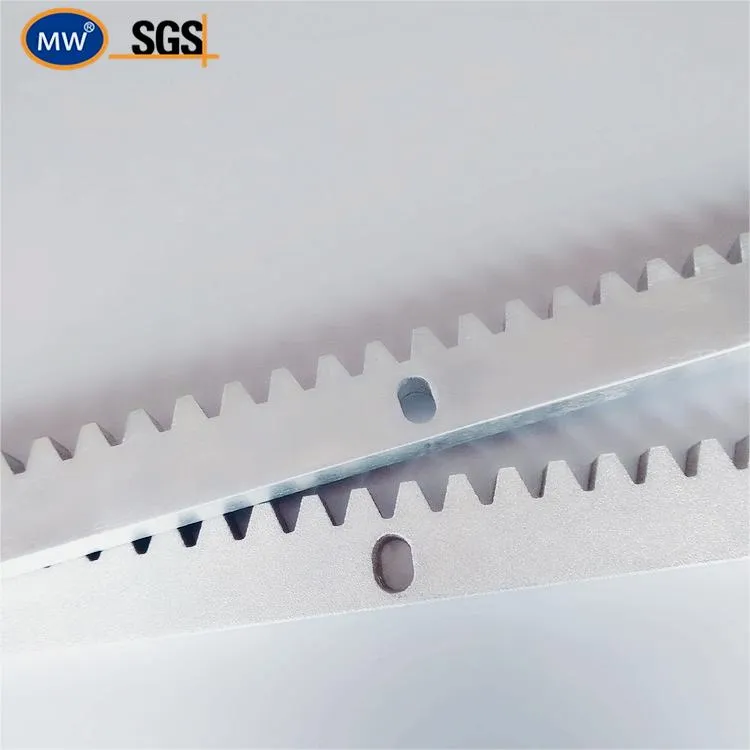

Gear Racks for Sliding Gate

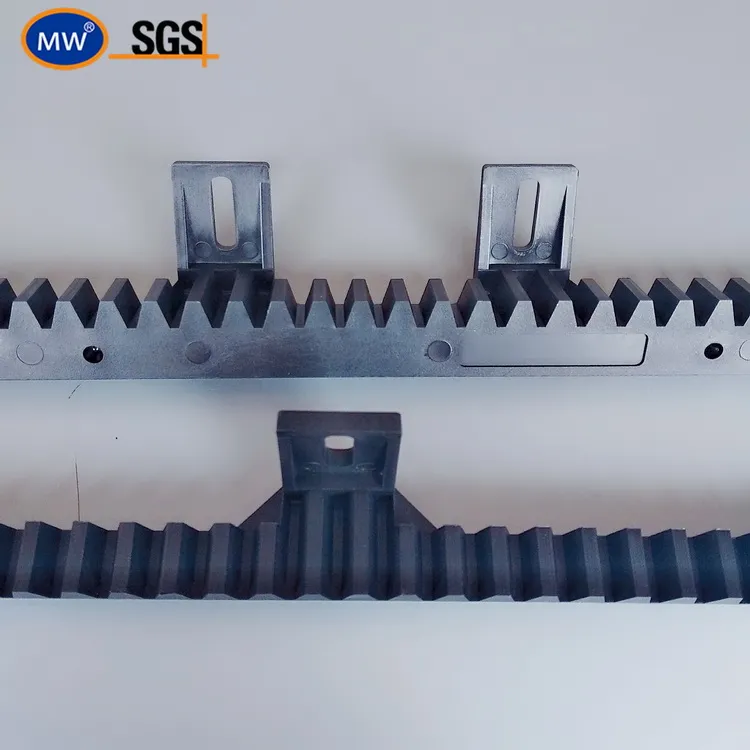

Plastic/Nylon Gear Rack

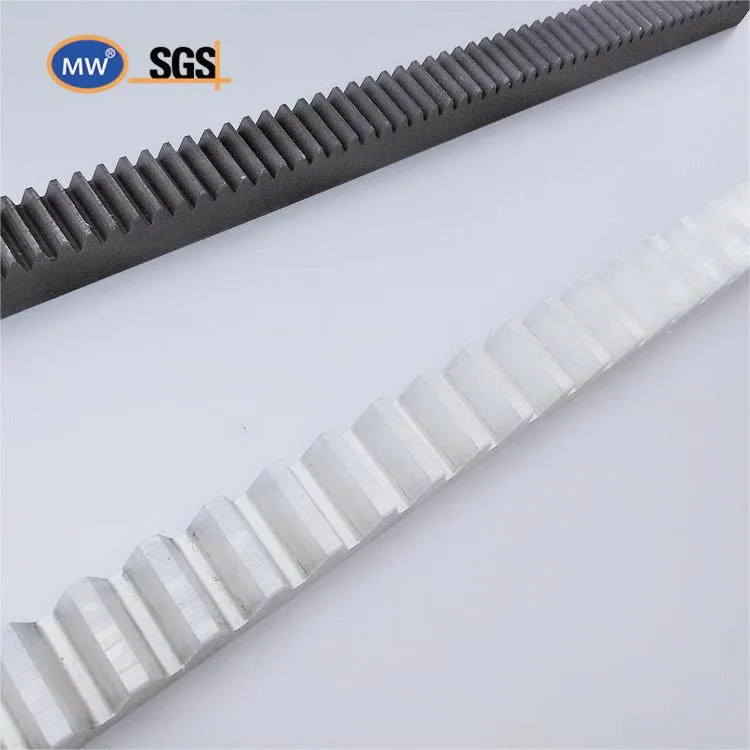

CNC Precision Gear Rack

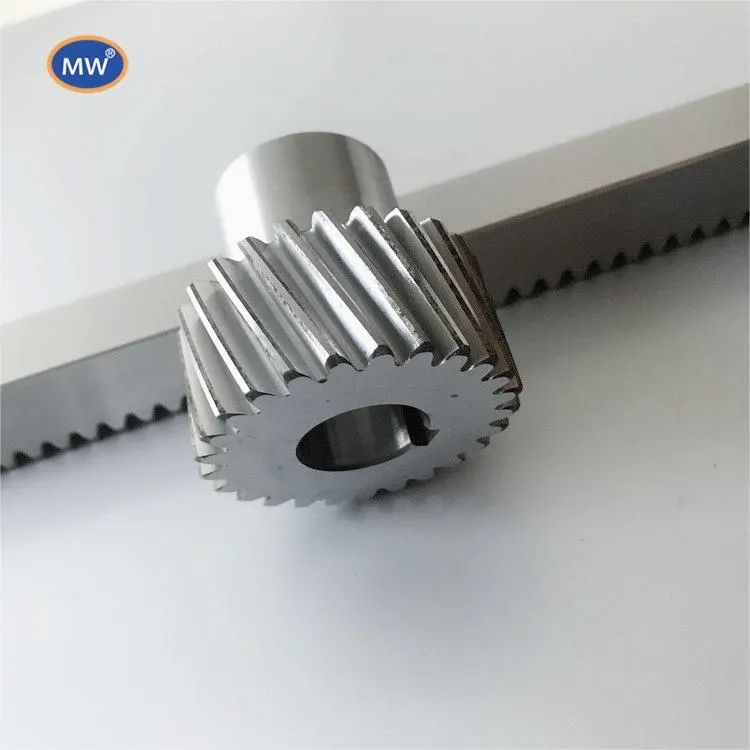

Helical Rack Pinion Gear

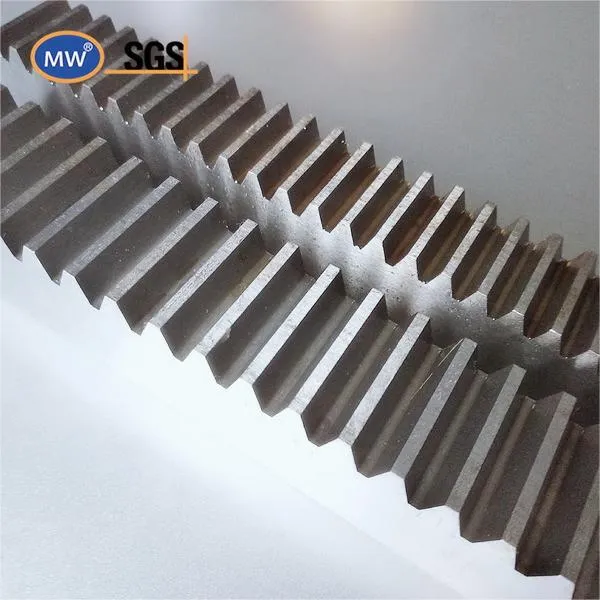

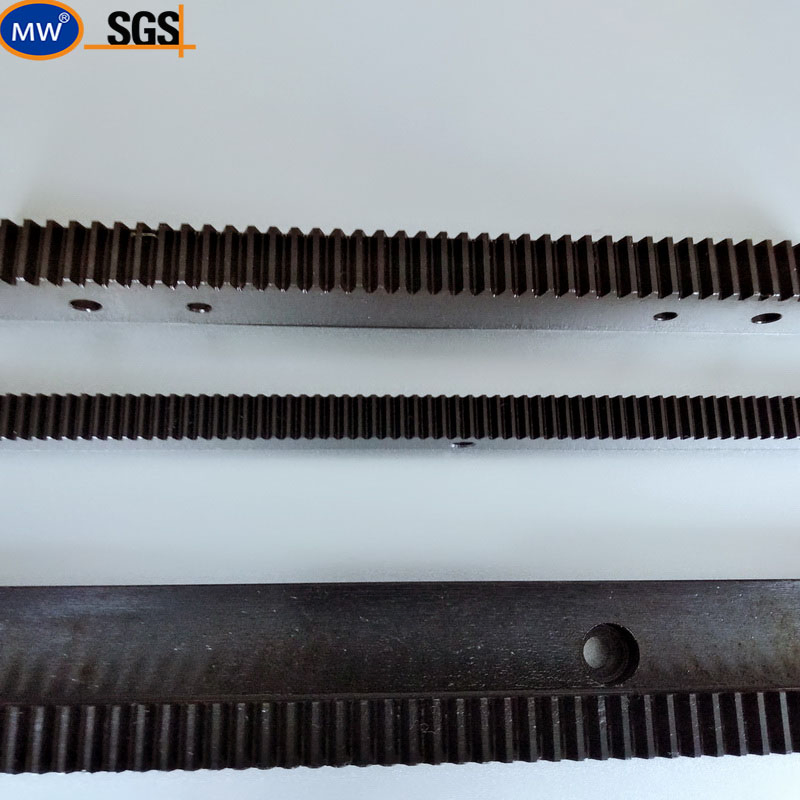

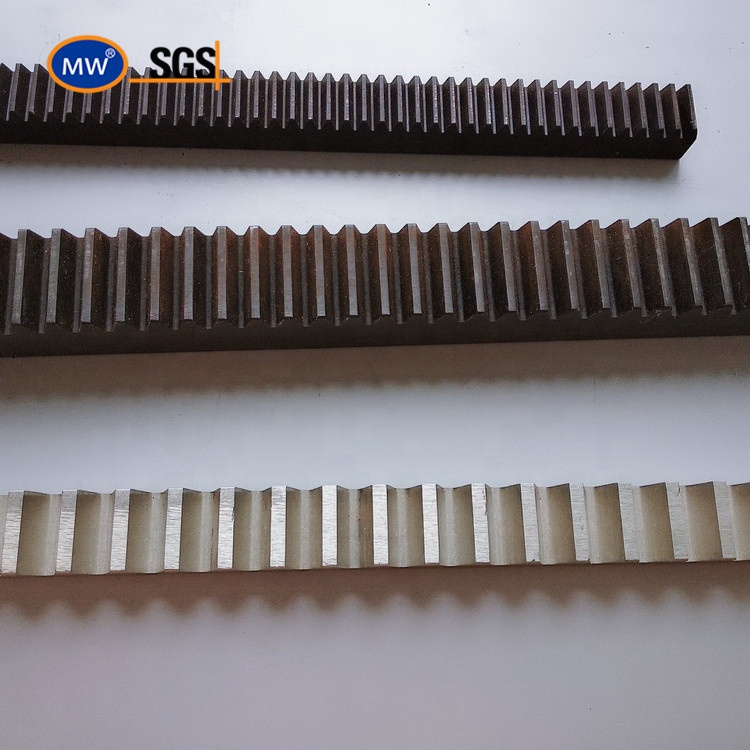

Steel Rack Gears

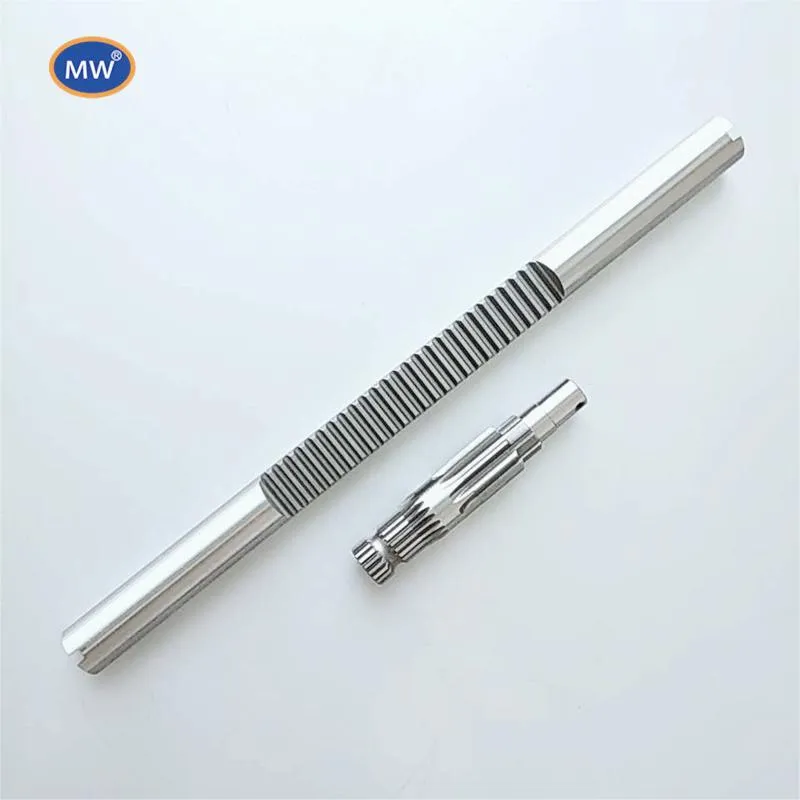

Round Gear Racks

🚢Packaging & Delivery

Standard sea-worthy packaging is used to ensure products arrive in perfect condition. We offer efficient lead times: approximately 10 workdays for samples and 20-40 workdays for bulk production after deposit.

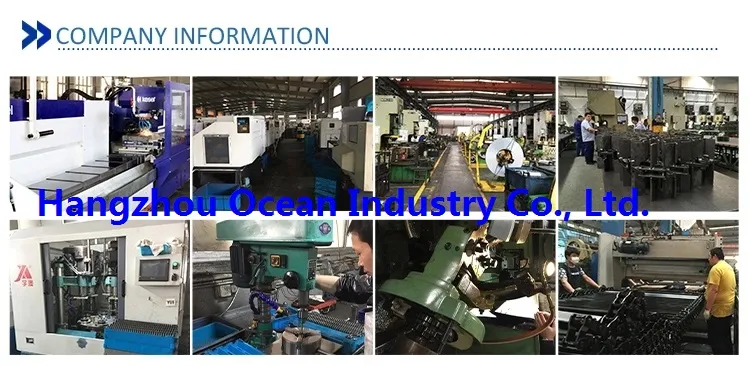

🏭Manufacturing Excellence

❓Frequently Asked Questions

Q1: Are you a manufacturer or a trading company? A: We are a professional factory specializing in high-quality linear drive components and conveyor line parts.

Q2: What is your typical delivery time? A: Sample lead times are generally 10 workdays, while mass production typically takes 20-40 workdays depending on the order volume.

Q3: Can you produce gear racks according to custom drawings? A: Yes, we provide full OEM and ODM services. Most of our customers provide detailed drawings which we use to manufacture custom gear racks.

Q4: What materials are available for the gear racks? A: We support a wide range of materials including C45 steel, SCM440, Stainless Steel (304/316L), aluminum, copper, and reinforced nylon.

Q5: What is the maximum length of the gear rack you can produce? A: While standard lengths are 1M or 2M, we can produce custom gear racks with a maximum continuous length of up to 3500mm.

Q6: What are the advantages of your gear racks? A: Our racks are CNC machined for high precision, feature induction-hardened teeth for durability, and offer competitive factory pricing with strict ISO9001 quality control.
