Basic Information
Touch Screen Type
Non-Touch
Viewing Angle
6:00 O'clock
LCD Drive Mode
Multiplex Drive LCD Module
LCD Type
Segment LCD Display
Display Modle
Htn/Negative
Polarizer Type
Transmissive
Backlight
White LED Backlight
Product Description

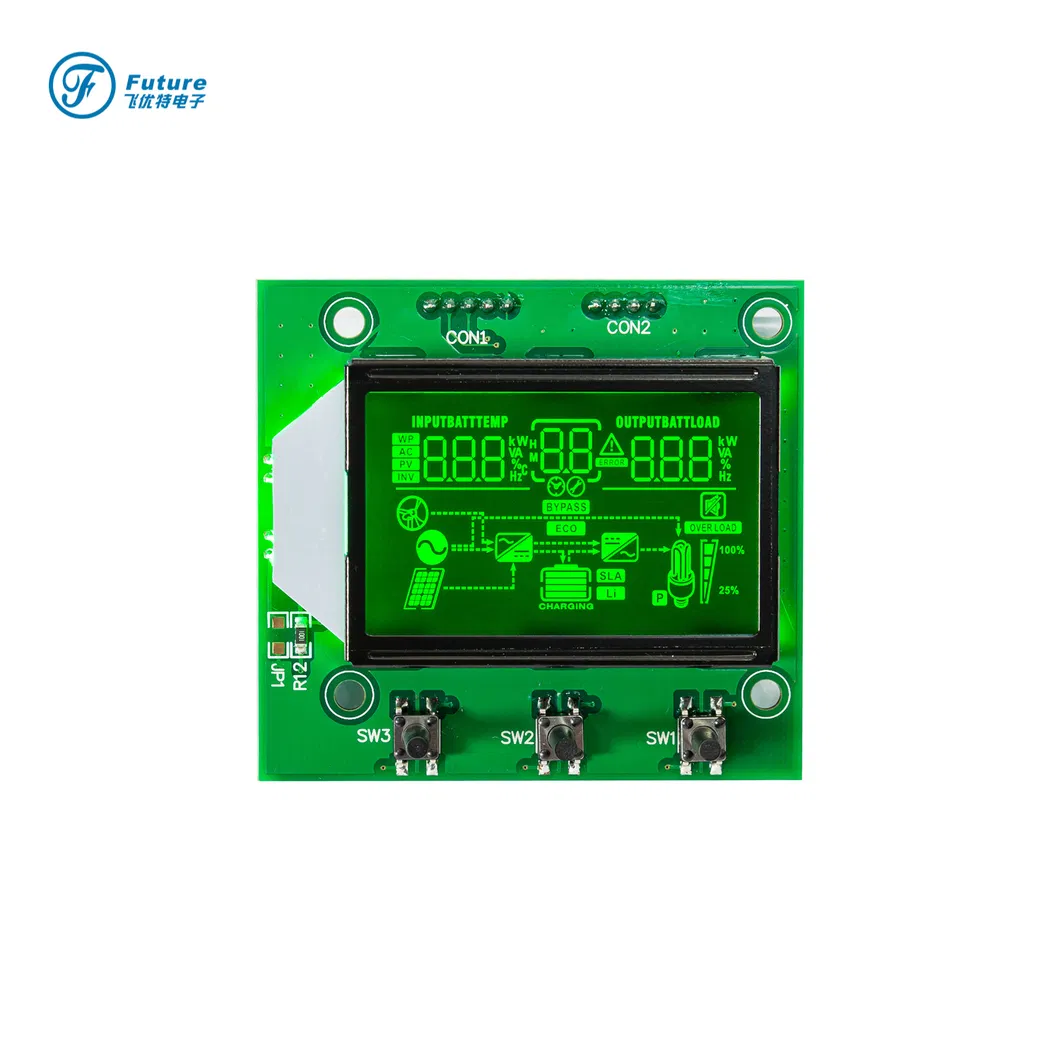

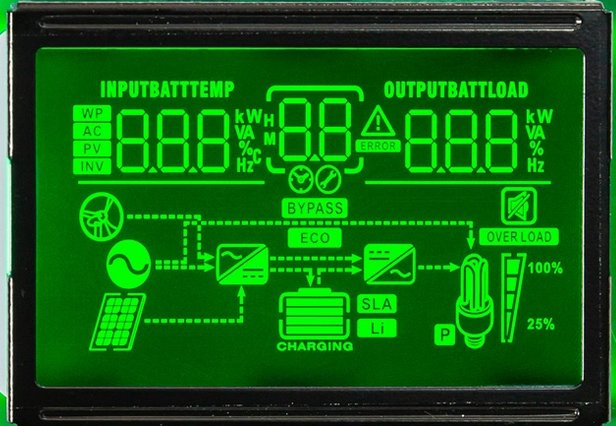

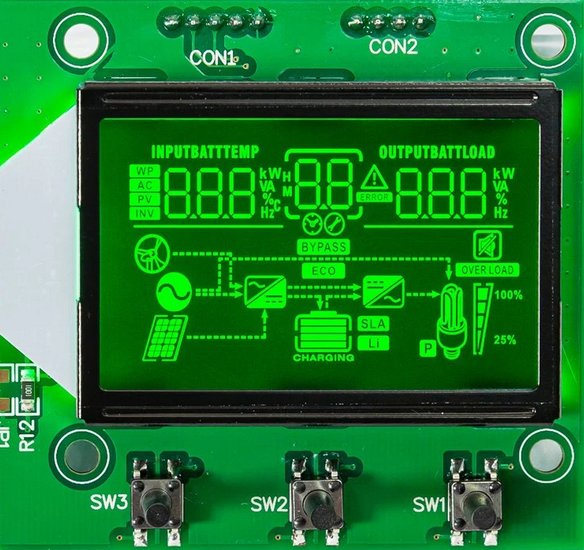

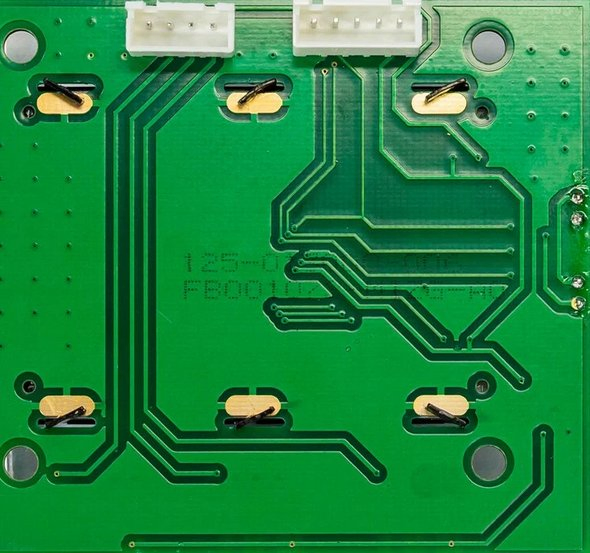

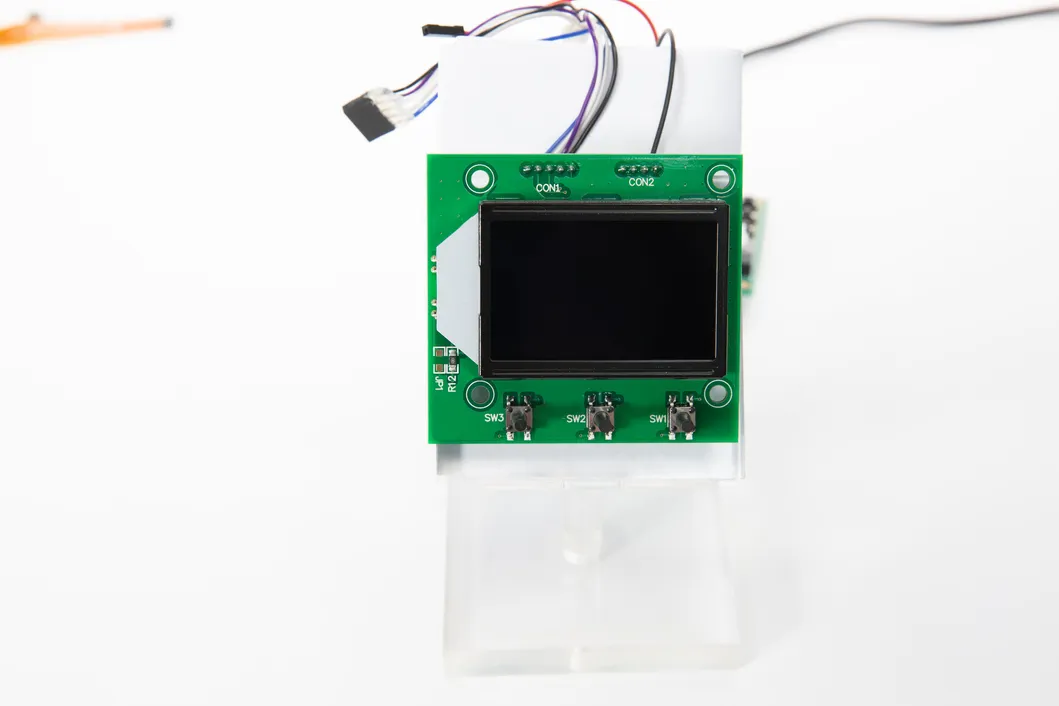

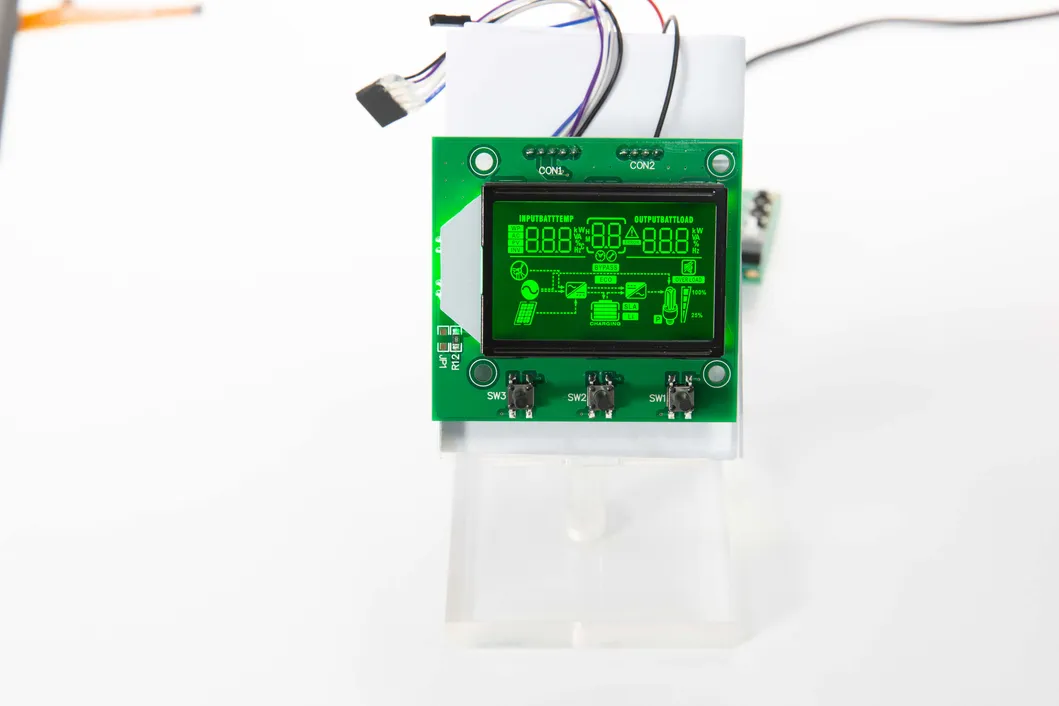

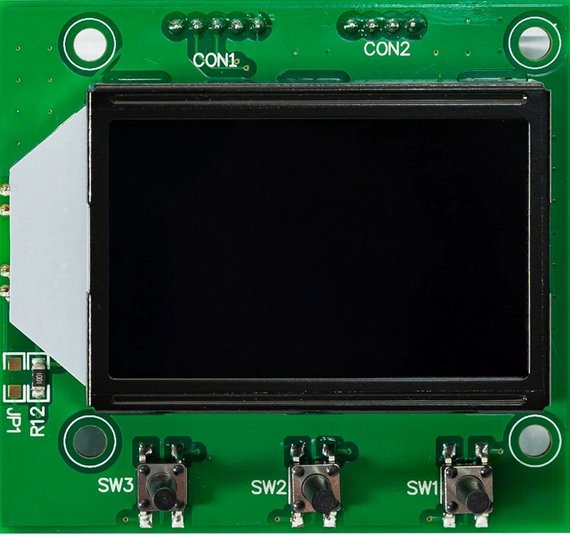

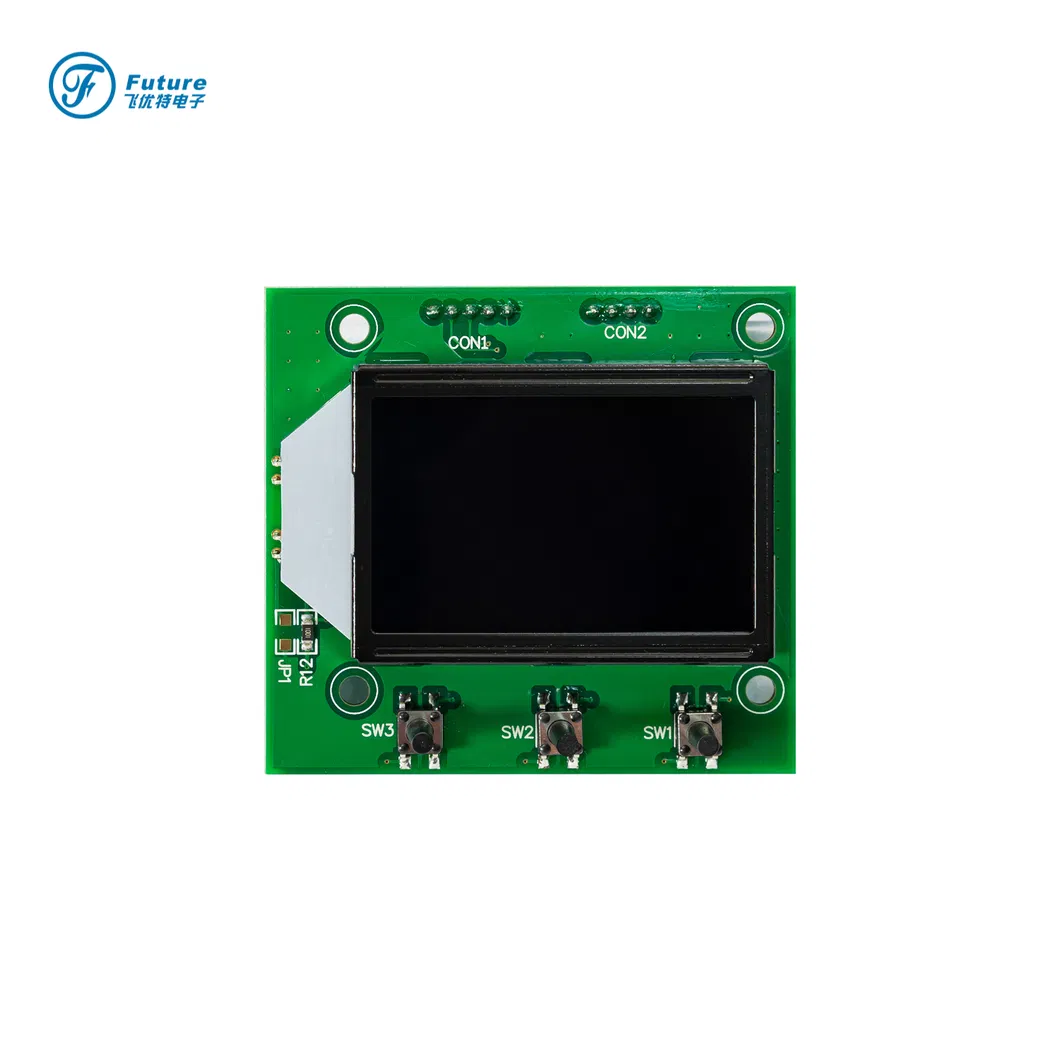

Va Htn LCD Display Module COB LCD with White LED Backlight

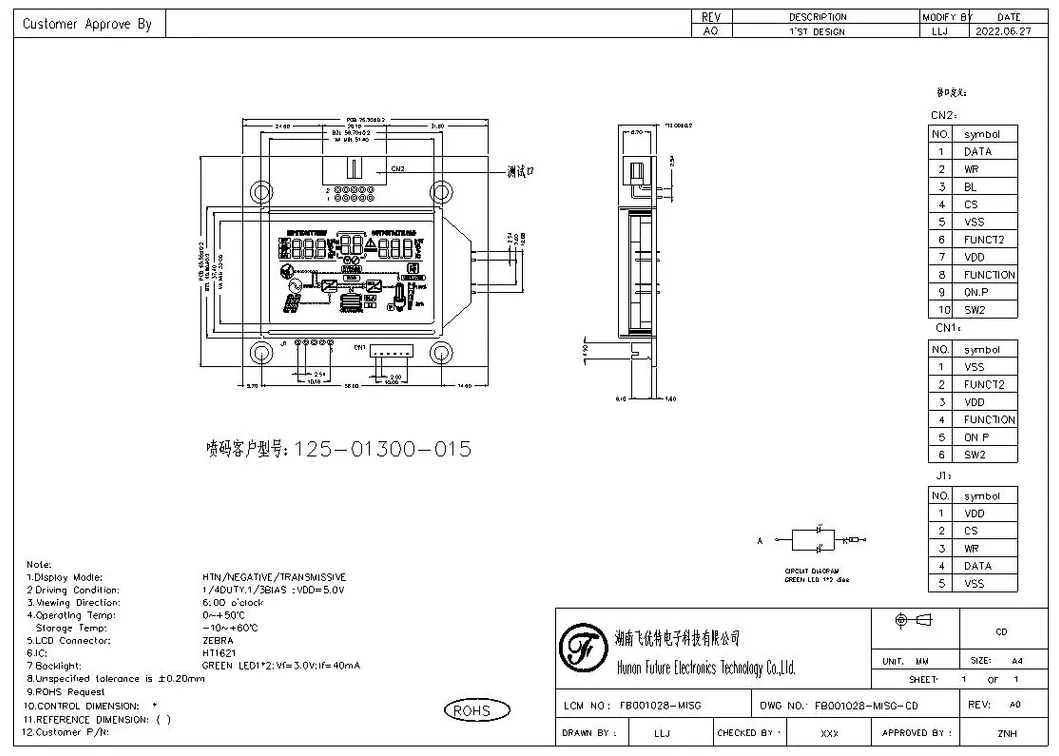

Display Type: VA/NEGATIVE
Outline Dimension: 76.30(W) × 65.55 (H) × 12.00(D) mm
Viewing Size: 51.40(W) * 32.00(H) mm
Viewing Angle: 6:00 o'clock
Polarizer Type: TRANSMISSIVE
Driving Method: 1/4Duty, 1/3Bias
Connector Type: Zebra
Operating Volt: 5.0V

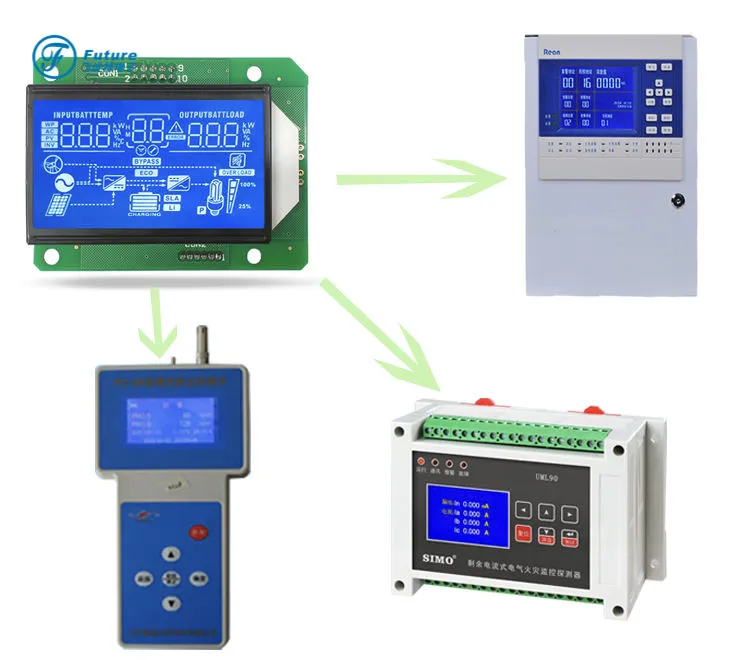

Applications
We provide custom display solutions worldwide across various industries including medical, communications, industrial equipment, appliance industry, handheld devices, meters, and automotive products.
More Products & Customization

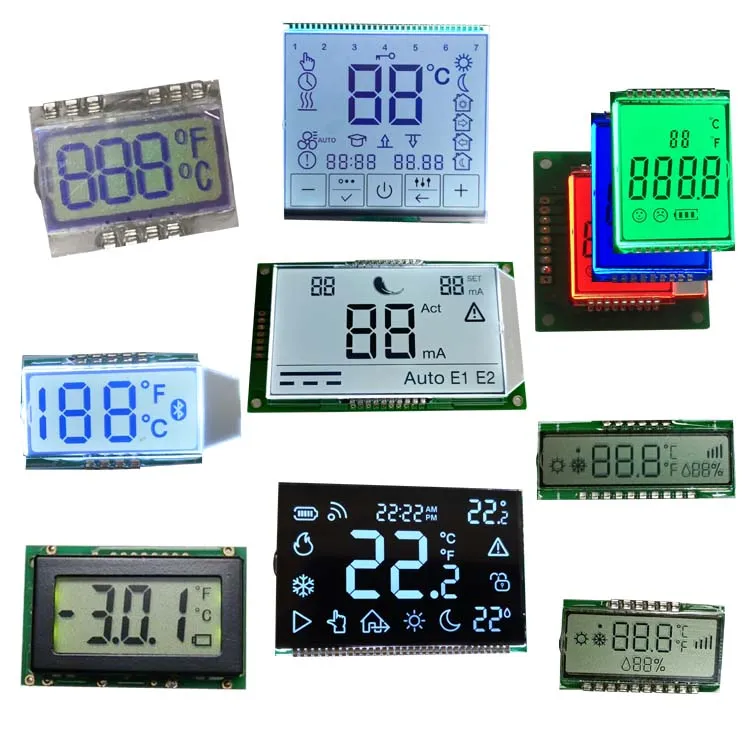

Custom all kinds of LCD and LCM: TN, HTN, STN, FSTN, VATN, COB, COG Display and Backlights.
Factory Price → Stable High Quality → Controllable Lead Time

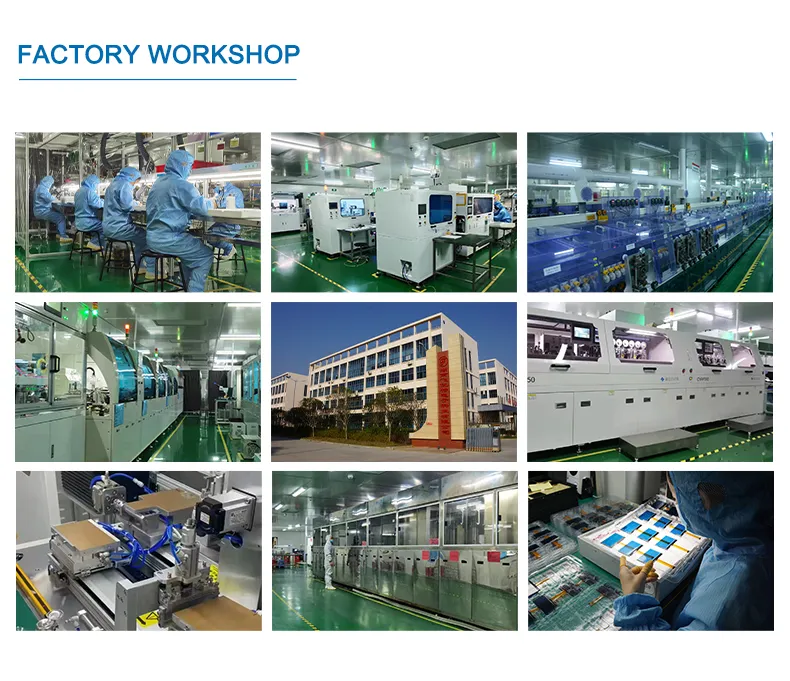

Factory possesses various full-automatic production lines. Our team of highly qualified electronic engineers provides expert technical support; all products are 100% inspected before shipment.
Global Presence
Having 17 years of manufacturing and sales experience in LCD/LCM and TFT Displays. We are looking forward to establishing a win-win cooperation relationship with you.
We continuously develop overseas markets such as the United States, Europe, Japan, and South Korea, with products sold across Asia and other global regions.
Certifications
We have a complete quality management system and have passed ISO9001:2015, SGS, TUV, BV, RoHS, and other certifications.
Frequently Asked Questions
What is the operating temperature for this VA HTN LCD?
The operating temperature range is 0°C to 50°C, with a storage temperature range of -10°C to 60°C.
Do you offer customization for LCD displays?
Yes, we specialize in custom solutions for various types including TN, HTN, STN, FSTN, VA, and both COB and COG modules.
What type of connector does this module use?
This specific module uses a Zebra connector for reliable connectivity.
What certifications do your products hold?
Our products and factory are certified by ISO9001:2015, SGS, TUV, BV, and are fully RoHS compliant.
What is your monthly production capacity?
Our facility has a production capacity of approximately 500,000 PCS per month.
In which industries are these displays typically used?
They are widely used in medical devices, industrial equipment, automotive products, handheld meters, and home appliances.
