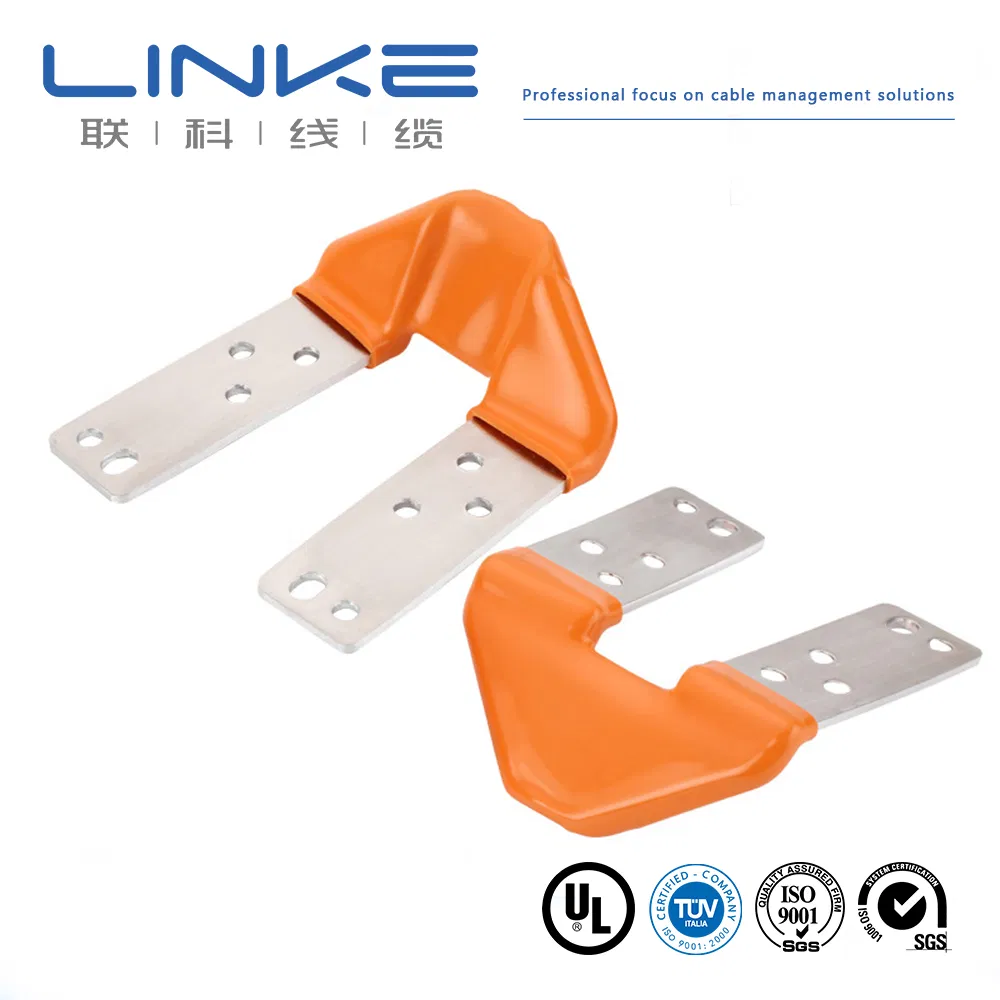

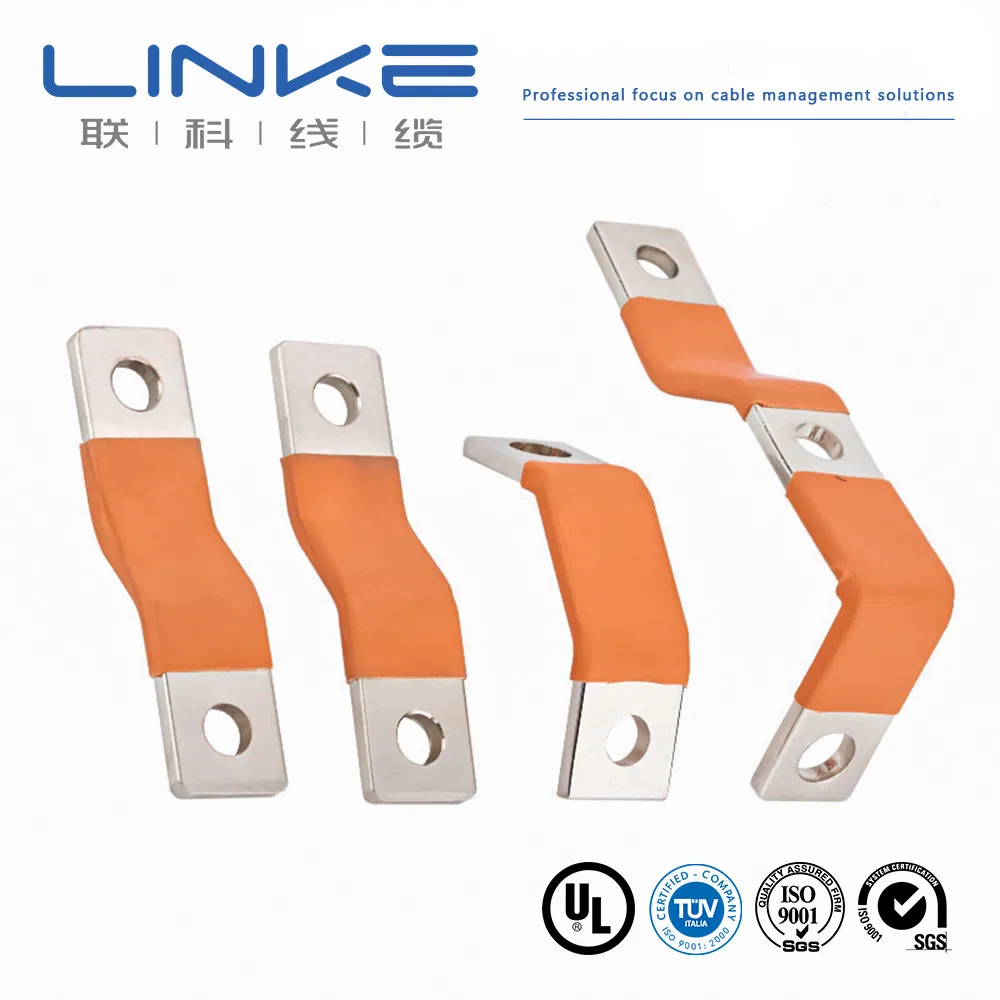

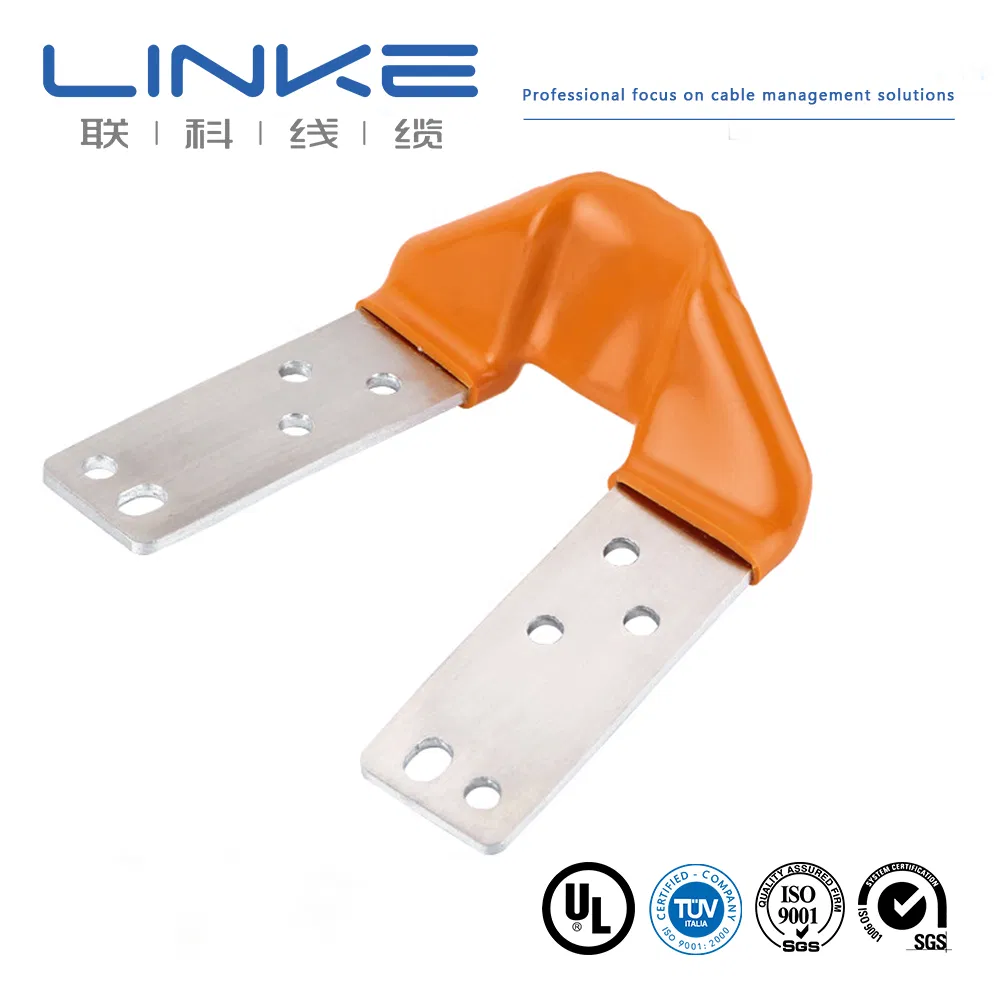

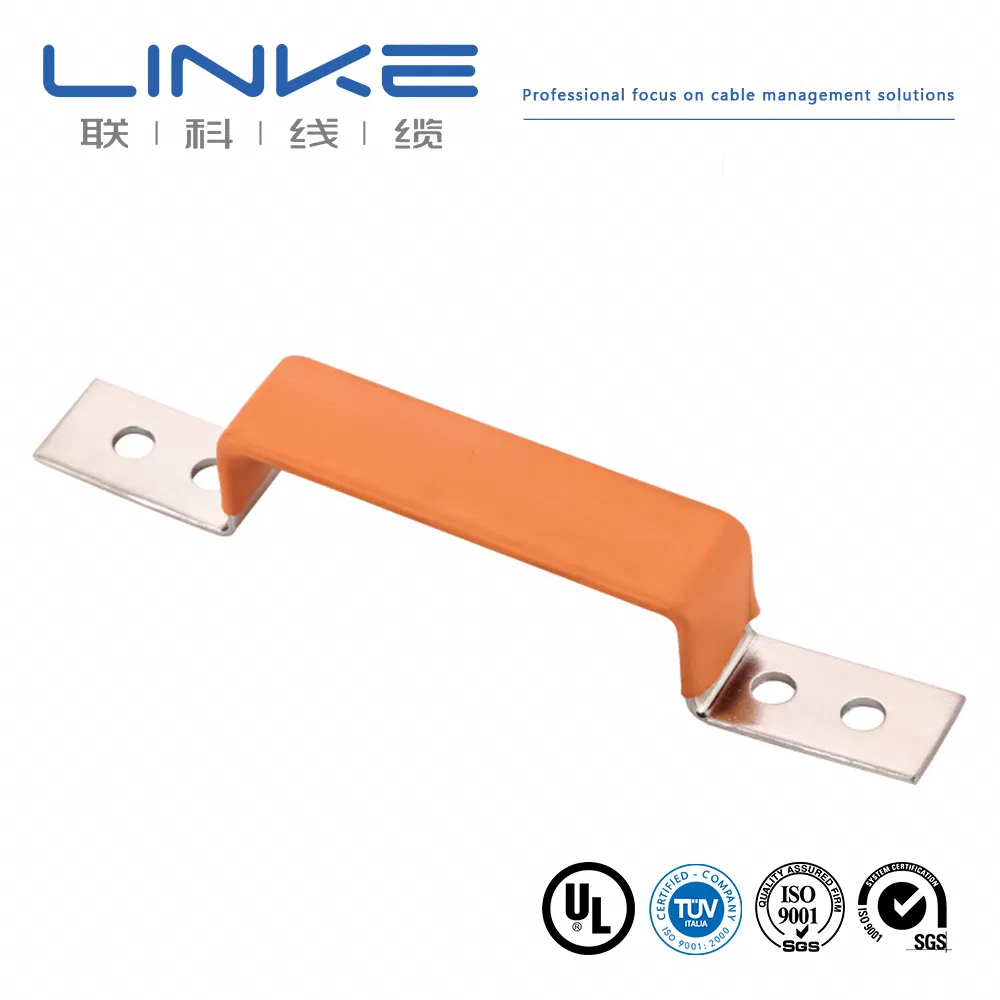

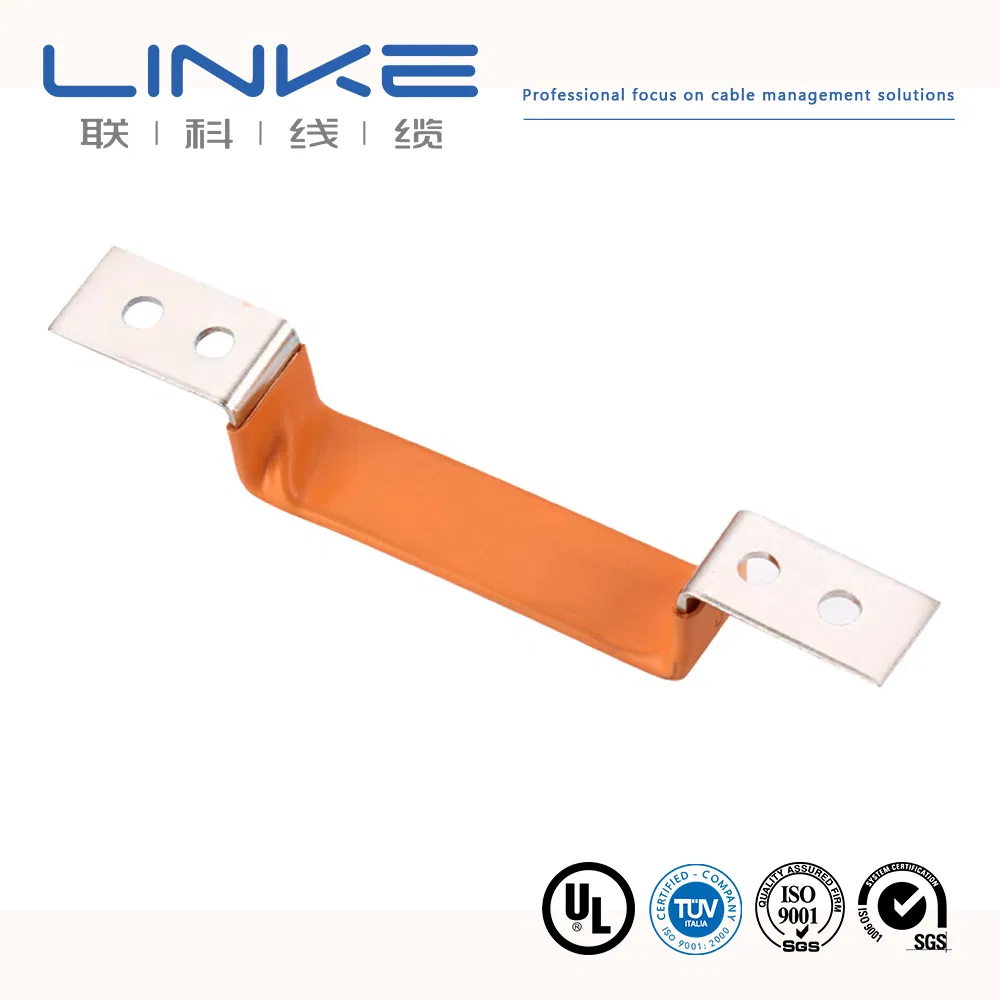

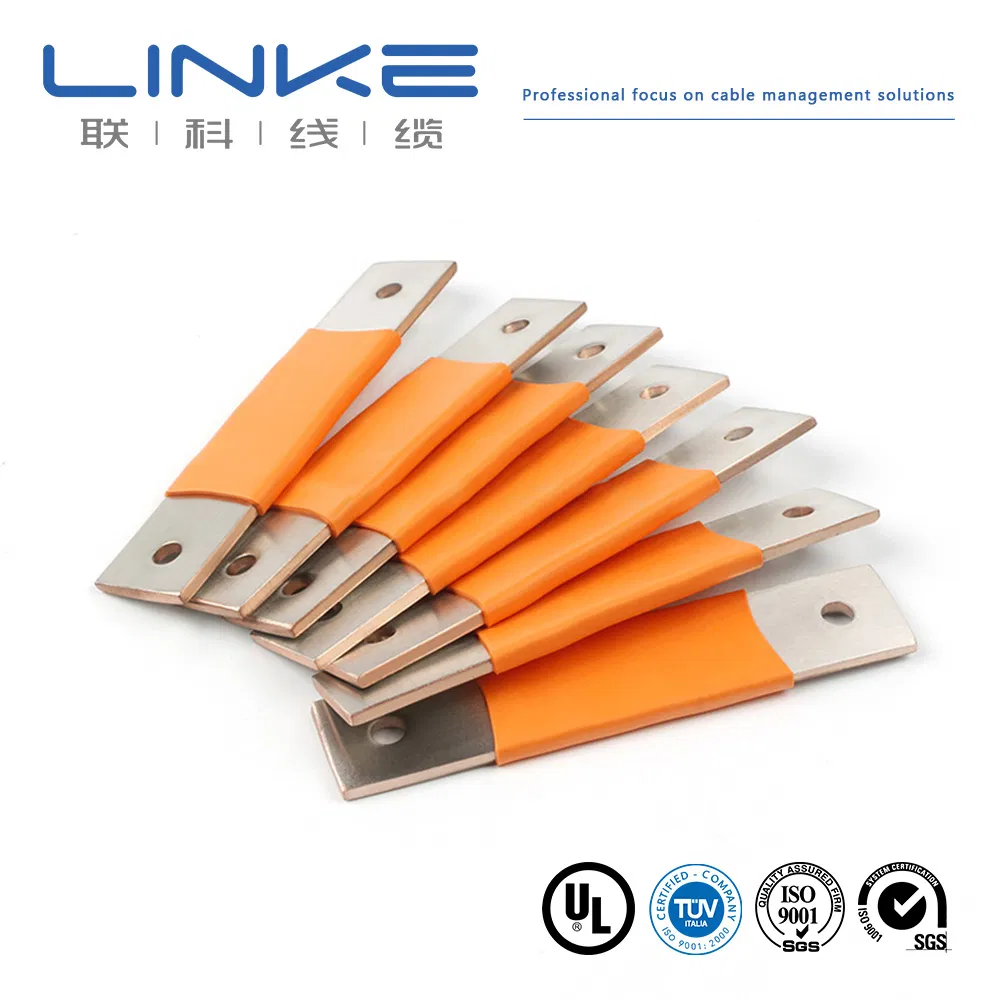

Flexible busbar is through brazing the copper foil parts together, which is 99.9% copper contented. It capitals the products excellent conductivity with less impurities. Laminated copper busbar have more current carrying surface area.
Copper foil: 0.05mm to 0.3mm thick. The contact surface can be tinned or silvered according to the user's requirements. The current is based on the customer's requirement of 1 square knitting belt & the effective loads current 4A calculation. Copper conductors with different sectional areas have different parameters. The large area can be multi-layer or set. The price depends on the current copper price and current size.
| Material Standard | GB : T2 Copper with Min. 99.9% DIN: E-Cu58; EN: Cu-ETP; ISO: Cu-ETP; UNS: C11000; JIS: C1100; BS: C101 |
| Resistance | 0.00001Ω |
| Conductivity | 57% |
| Copper Foil Thickness | 0.1/0.2/0.3/0.5/1.0mm, depend on bus bar structure |
| Insulation Material | PVC Dipping Coating (High performance, flexible, durable) |
| Flame Retardant | UL94-V-0 or upon request |
| Leakage Testing | PVC Dipping Sleeves: 3500VDC (Leakage 0.025 MA) to 5000 VAC (Leakage 0.065 MA) |
| Surface Plating | Nickel, tin or silver plated (3um to 12um) |
| Operating Temp | -45 to +150 ºC |
| Quality Standard | Meet Auto Industry IATF 16949 |
ISO9001, ISO13485, and TS16949

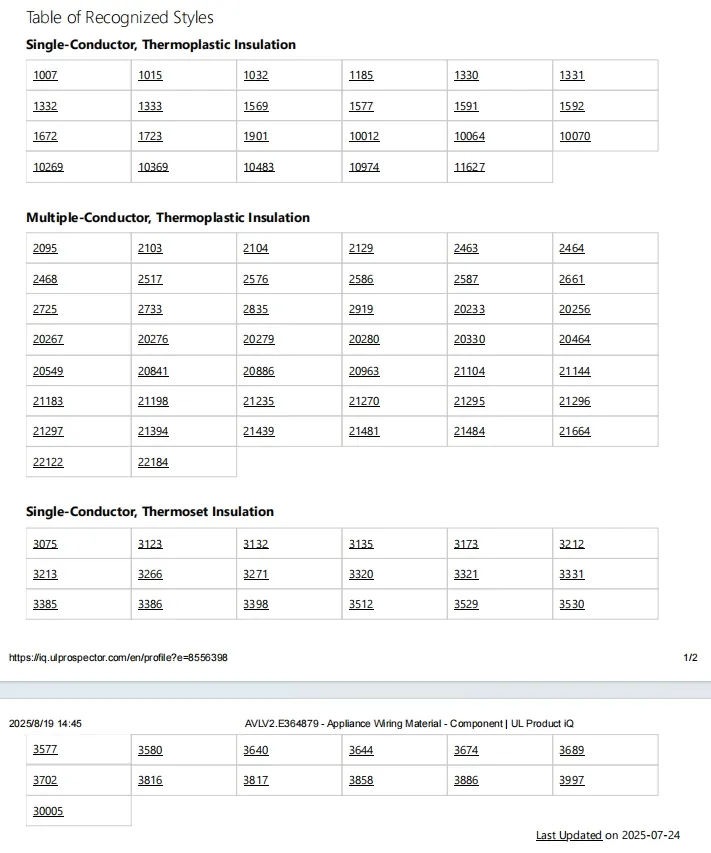

CNR- Appliance Wiring Material, Extruded PVC Insulated Single (105ºC, 1000V), Extruded TPU Non-integral Jacketed Cable (80ºC, 300V).
