Digital Signage Full Color P2.6 P2.9 HD LED Display Screen Concert LED Screen Panel Wholesale

1 / 5

Digital Signage Full Color P2.6 P2.9 HD LED Display Screen Concert LED Screen Panel Wholesale

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Text Display, Market Display

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Indoor P2.976 LED-Display

Pixel Pitch

2.976

Pixel Configuration

1R,1G,1B

Pixel Density

112896dots/M2

Scanning Mode

1/28

Refresh Rate

3840Hz or 1920Hz

Brightness

1000CD/M2

Grey Scale

65536 Degree

Life Time

More 100,000 Hours

IP Rating

IP43

Certification

CE, RoHS, CCC

HS Code

8528591090

🚀 Product Description

✔ High-quality Driver IC: ICN2153 or MBI5153
✔ Reliable G-energy power supply
✔ Nationstar and Kinglight LED lamps
✔ 2-3 years warranty period

Key Product Features:

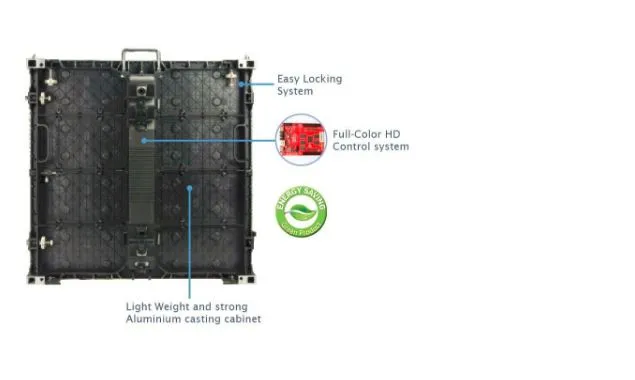

📍 Lightweight & Ultra-thin: Less than 80mm thickness. Only 6.8kg (500x500mm) or 12.5kg (500x1000mm) per panel.

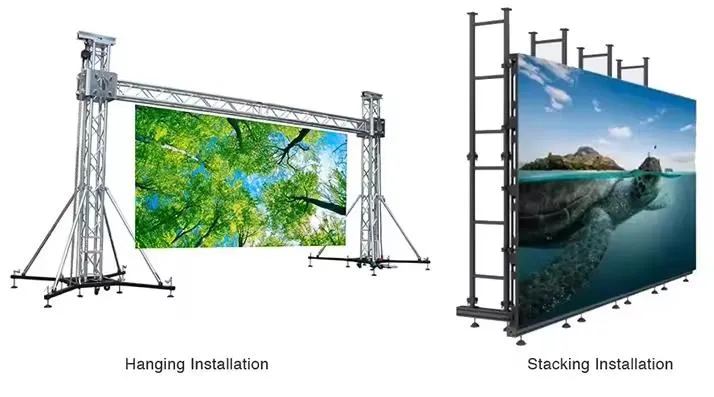

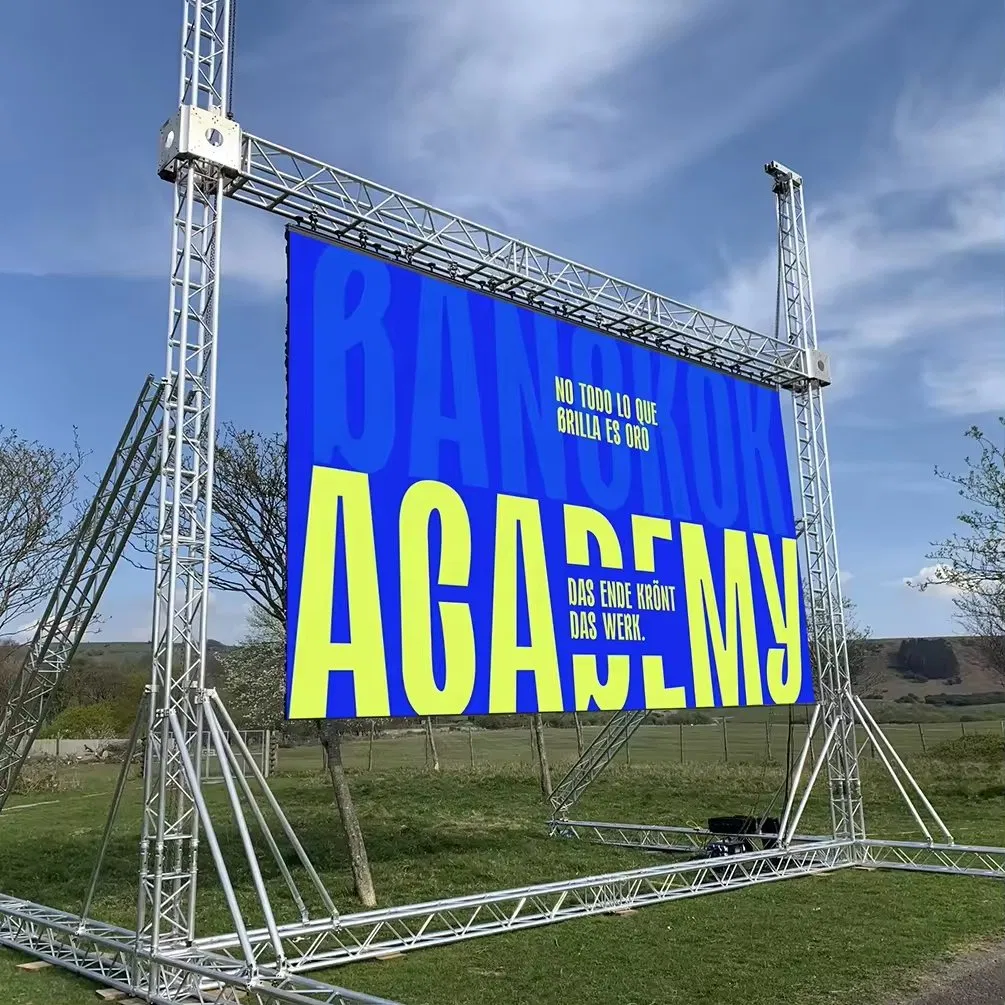

📍 Rental Design: Easy installation and dismantling with fast locks and aviation plugs. Supports fixed or hanging setups.
📍 Visual Performance: High refresh rate up to 3840Hz and contrast ratio of 5000:1 for rich, real colors.

⚙️ Technical Specifications

Item	Parameter Specification
Product Name	P2.976 led display screen
Pixel Pitch	2.976mm
Pixel Configuration	1R1G1B / SMD2121 Lamp
Pixel Density	112896 dots/m2
Brightness	1000 cd/m2
Module Size (W*H)	250*250mm
Cabinet Size (W*H)	500mm×500mm
Cabinet Resolution	84dots x 84dots
Drive IC	MBI5124 / ICN2153

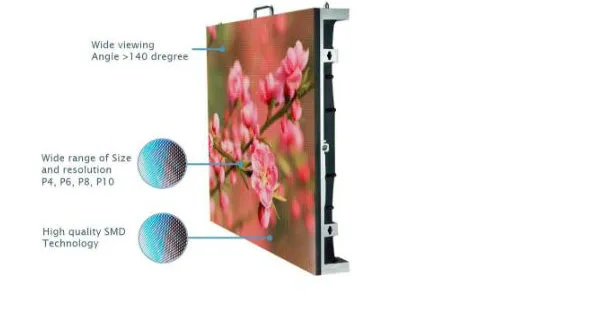

Viewing Angle (V/H)	140 ºC
Grey Scale	65536 Degree
Refresh Rate	≥1920Hz / 3840Hz
Operating Temp	-30 to 60ºC
Power Consumption	Max: 900w/m2; Average: 300w/m2

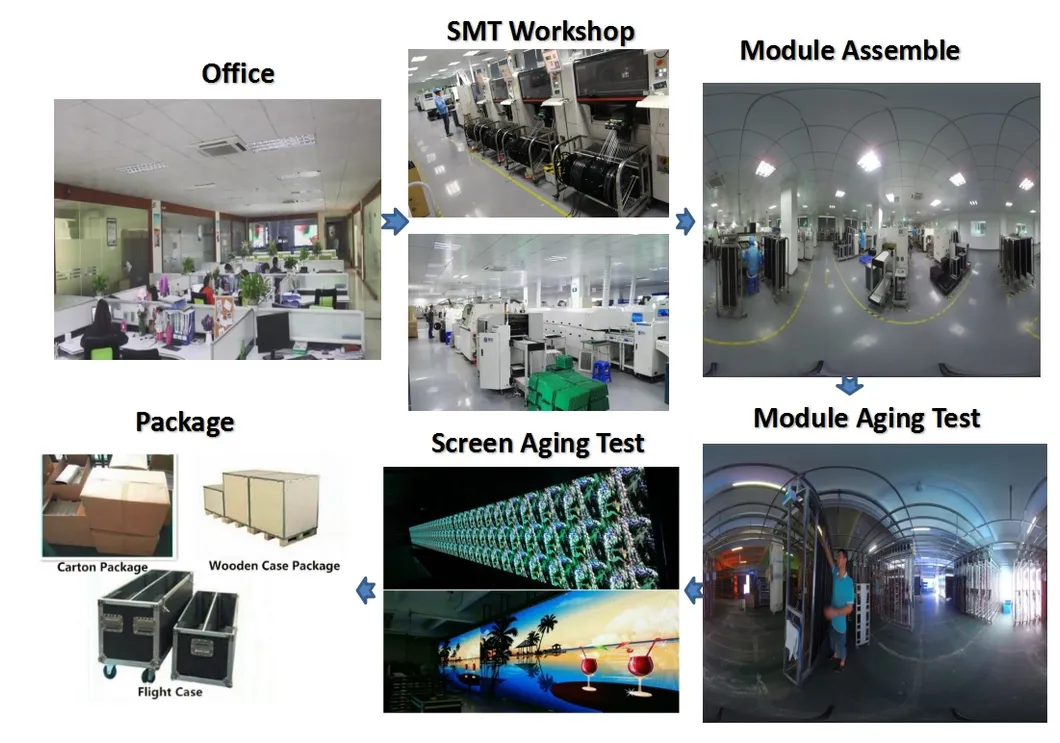

🏢 Production & Quality Control

📦 Order & Logistics Information

Payment Terms

T/T, 30~50% down payment

Lead Time

8-12 working days (<20sqm)

MOQ

2 sqm (Screen) / 10pcs (Module)

Guarantee

2-3 Years Quality Warranty

Package Types

Anti-shaking Wooden Case, Carton, Flight Case

Certifications

CE, CCC, EMC, FC, RoHS

❓ Frequently Asked Questions

What is the pixel pitch and density of this LED screen?

This model features a 2.976mm pixel pitch with a high density of 112,896 dots per square meter, ensuring clear and sharp visual output.

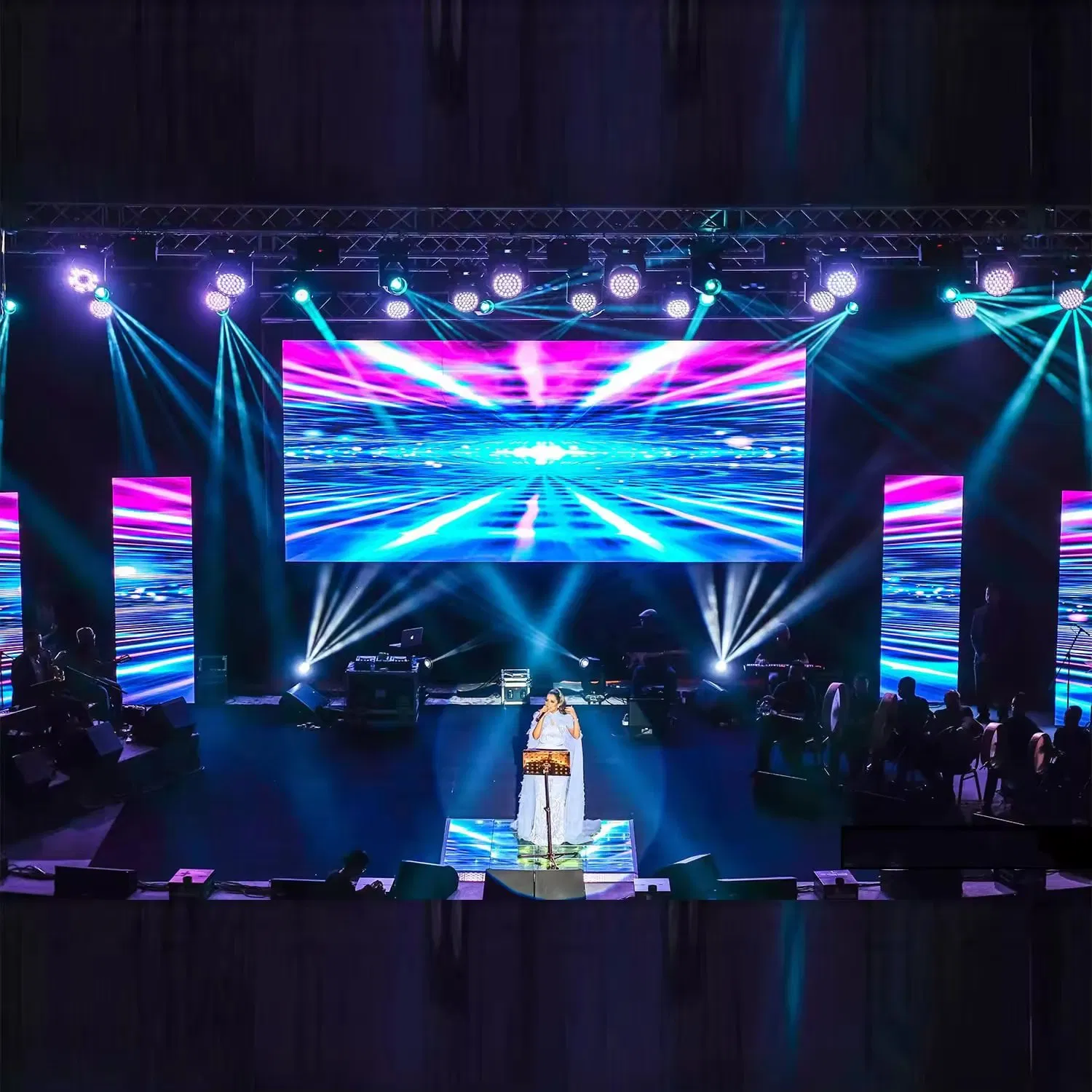

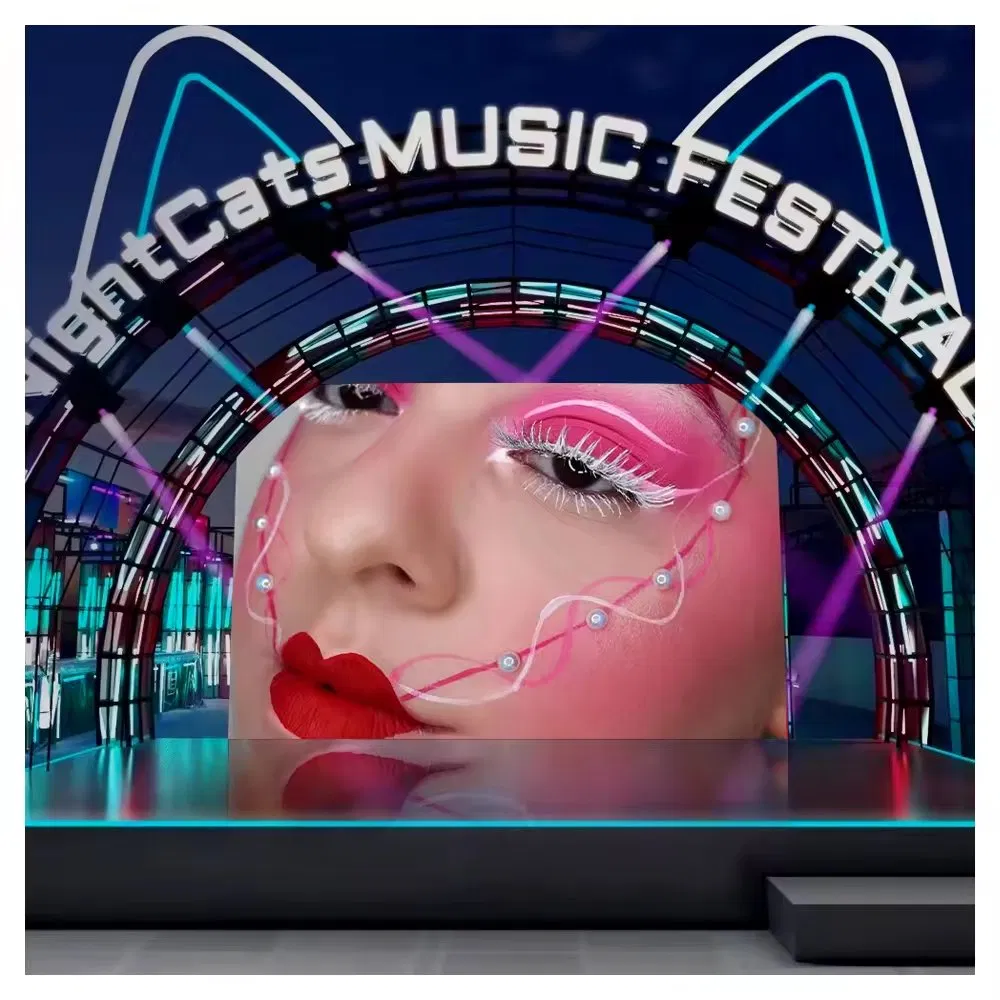

Is the P2.976 LED display suitable for stage rentals?

Yes, it is specifically designed for rental use with a lightweight cabinet (6.8kg to 12.5kg), fast locks for quick assembly, and durable aviation plugs.

What kind of refresh rate can I expect?

The display supports a high refresh rate of up to 3840Hz, which is ideal for broadcasting and flicker-free photography during events.

How long is the product warranty?

We provide a 2 to 3-year warranty. During this period, we repair default parts free of charge. After the warranty, we only charge for material costs.

What packaging options are available for shipping?

Products can be packed in anti-shaking wooden cases, carton boxes, or professional flight cases, depending on your transport requirements (air, sea, or express).

Does this display support high grayscale?

Yes, it offers a 65,536-degree grayscale, providing excellent color depth and smooth transitions for high-definition video content.
