| Model NO. | 24K (3K 6K 12K 24K ) |
| Application | Heating |
| Conductor Material | Carbon Fiber |
| Sheath Material | Silicon Rubber |
| Certification | ISO9001, CE, CCC, RoHS |
| Rated Voltage | 220V |
| Temperature Range | -60c~+260c |
| Resistance | 17ohm |
| Power | 230W/PCS |
| Package Size | 55.00cm * 37.00cm * 29.00cm |

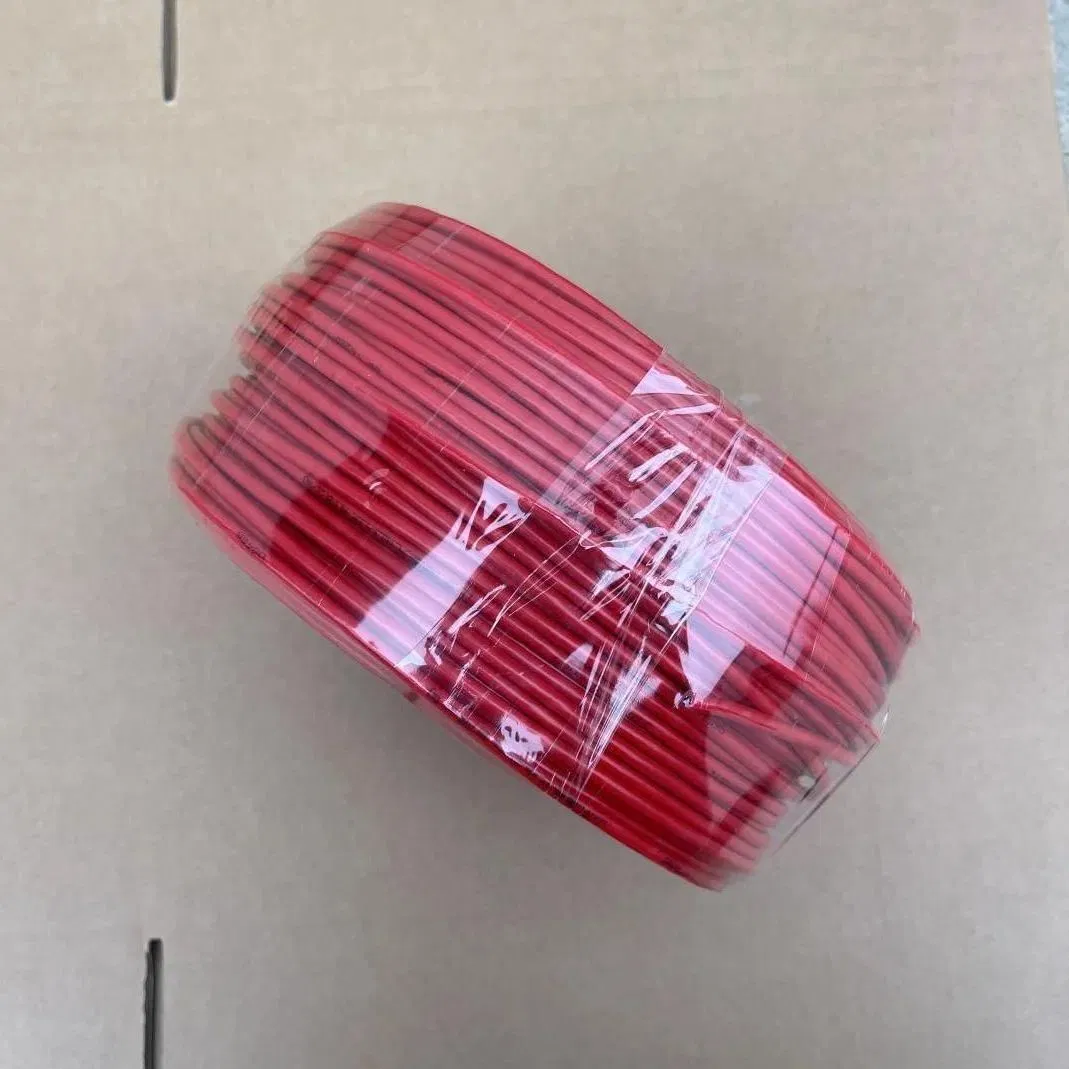

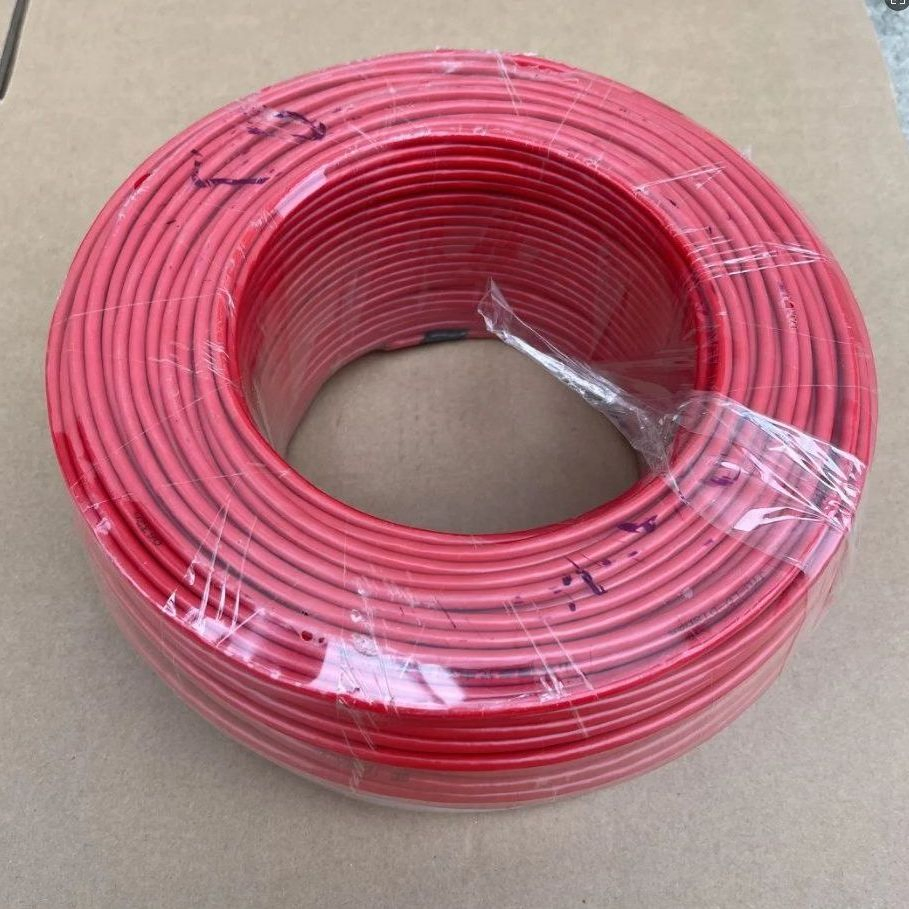

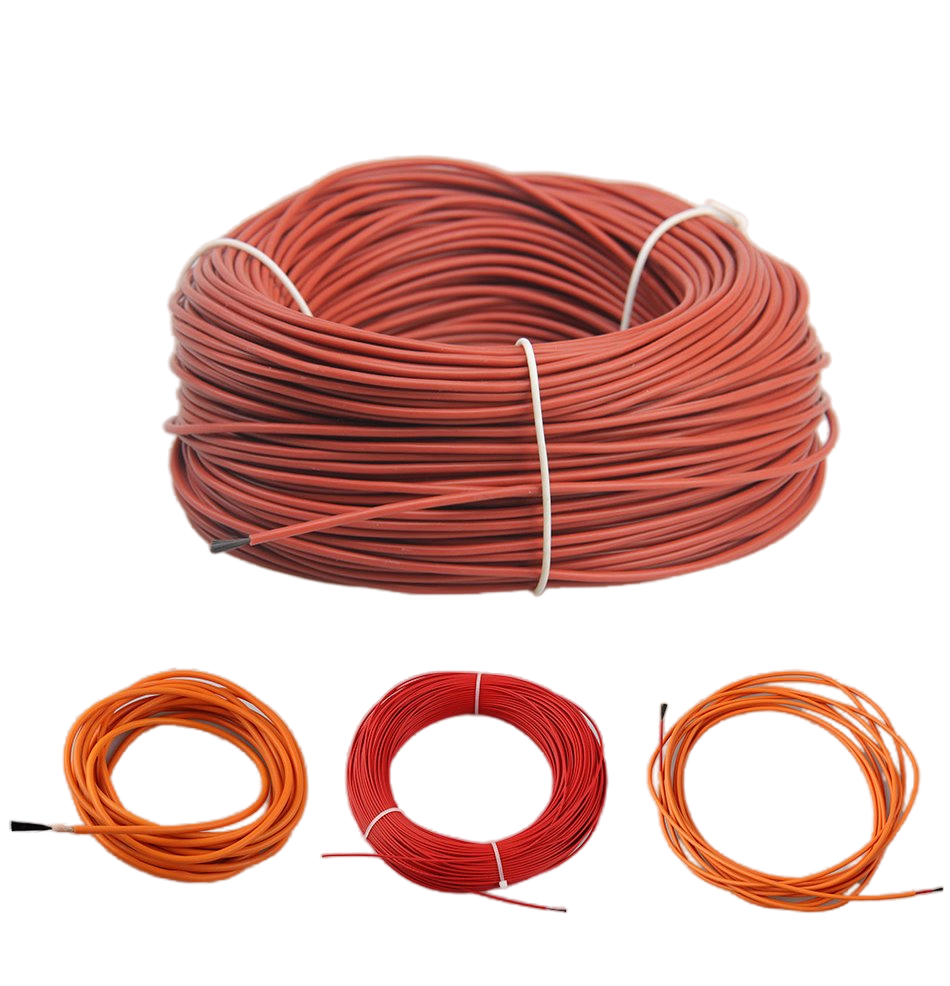

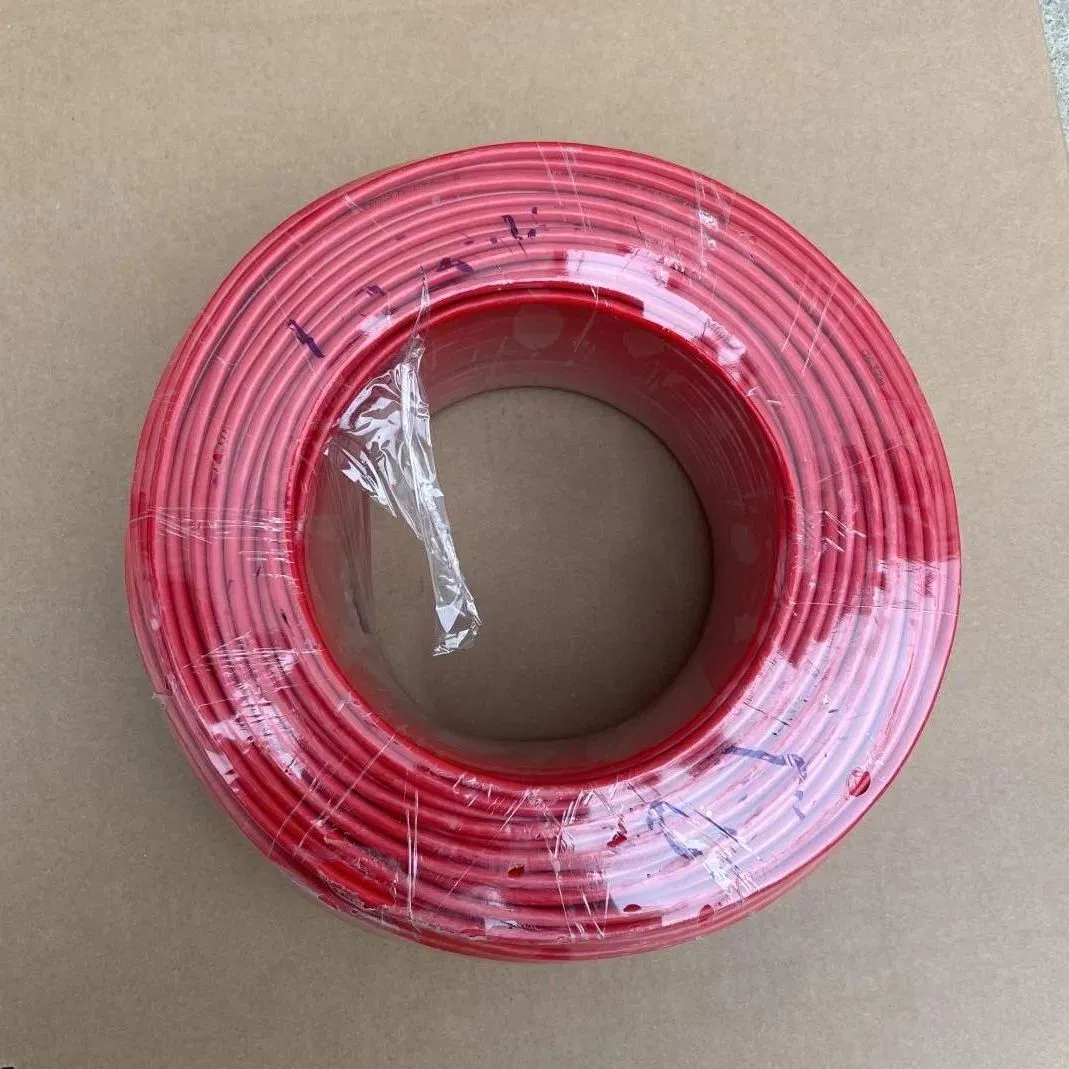

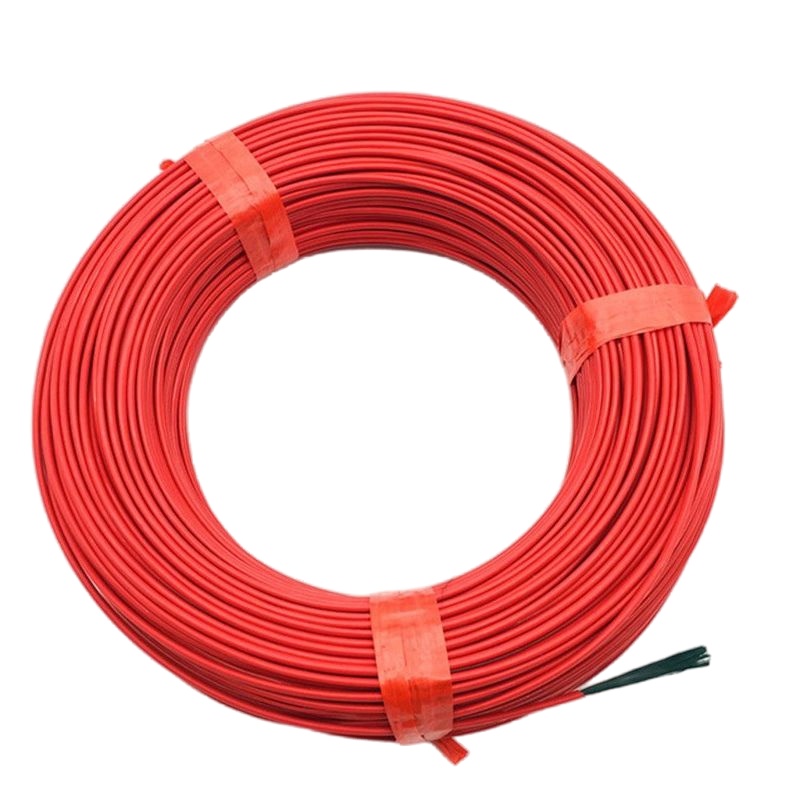

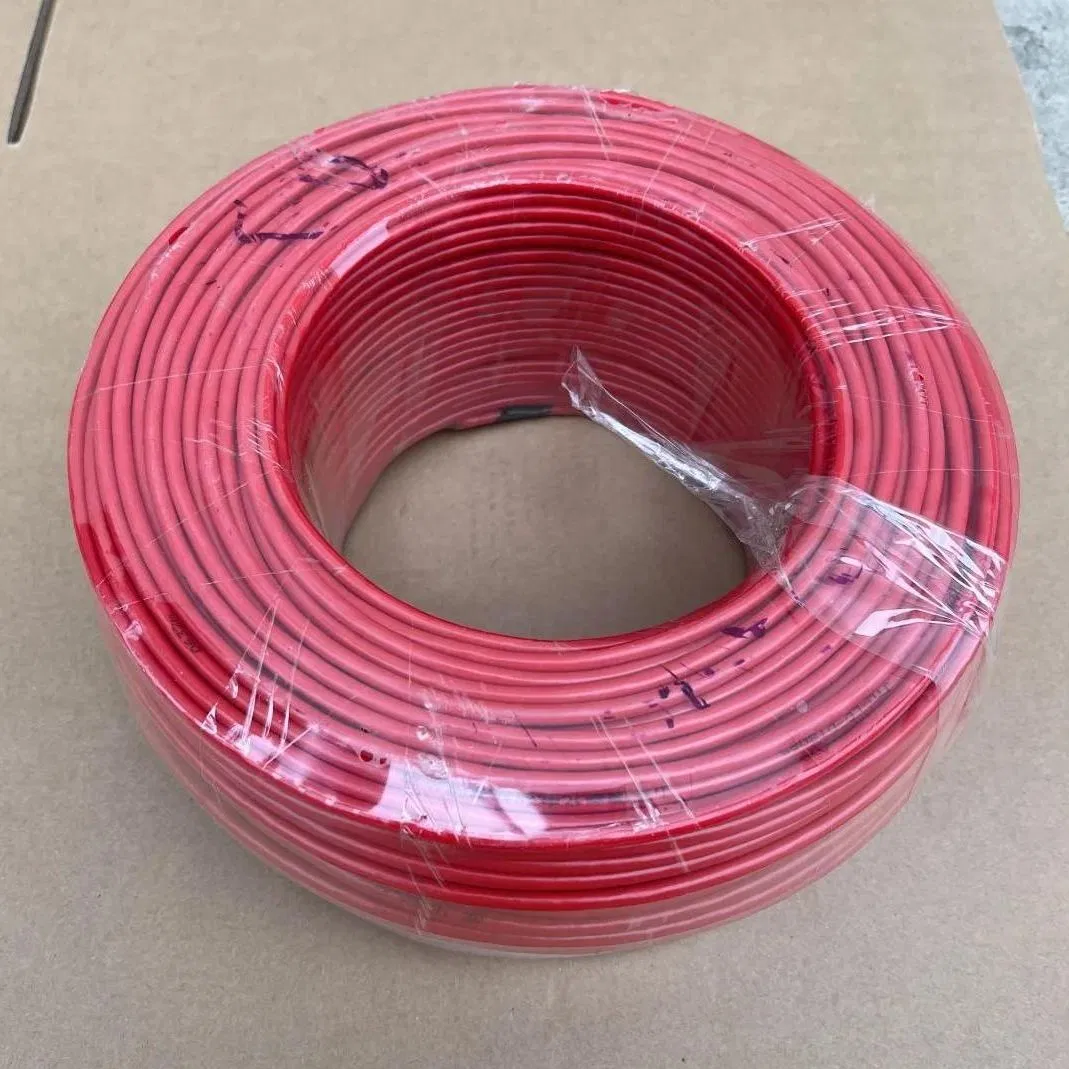

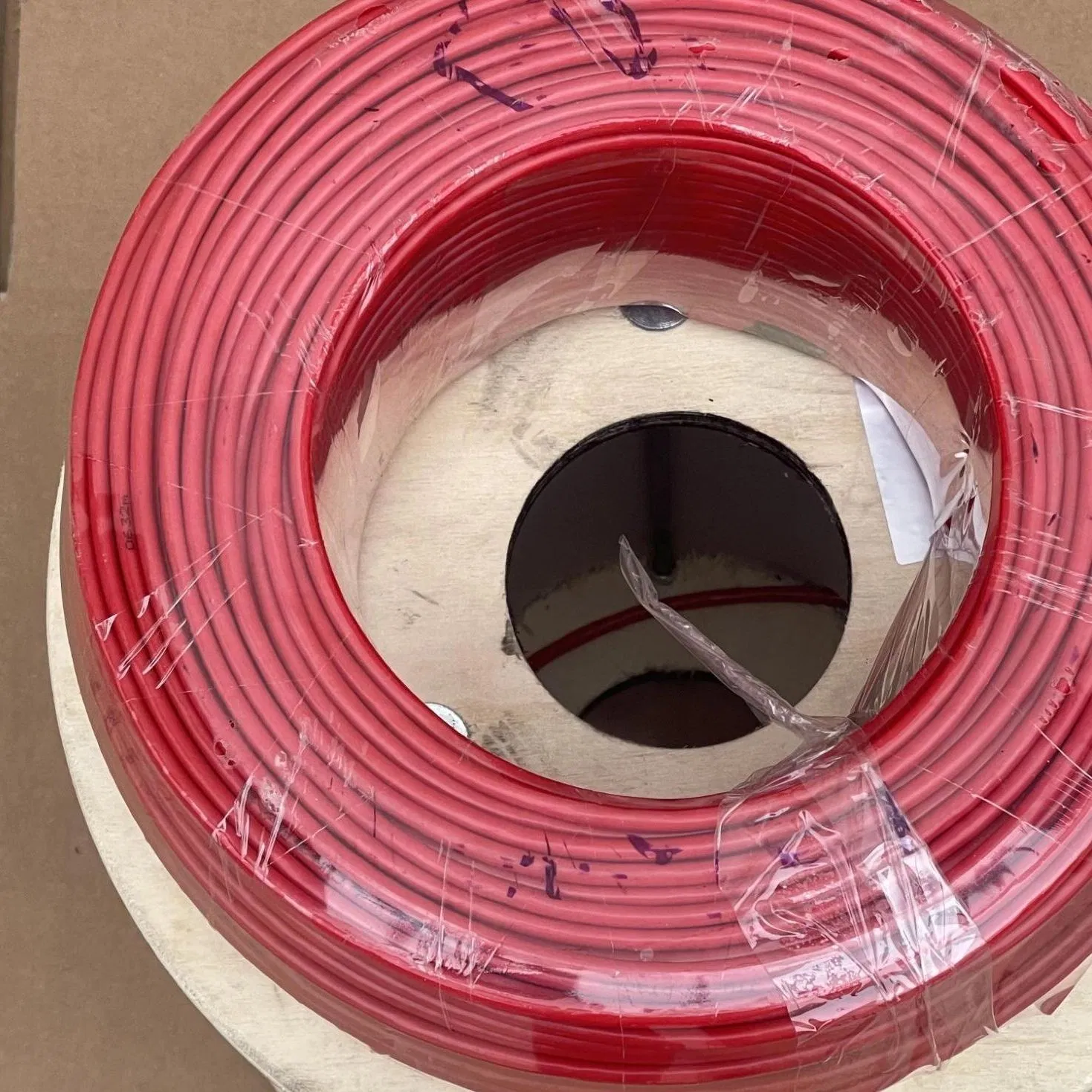

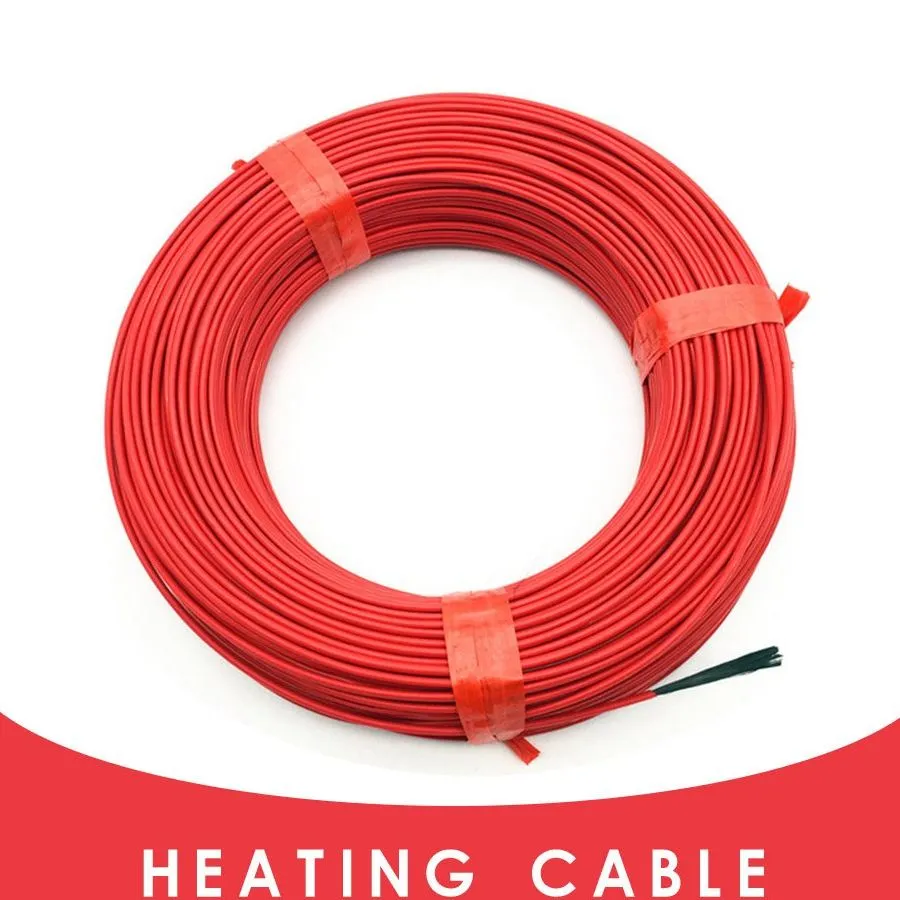

| Product Name | Silicone rubber temperature-sensing cable for fire detection |
| Heating Material | IMPORT Japan Toray Original Filament Carbon Fiber |
| Working Voltage | 12~380v |
| Withstanding Voltage | 6kv |
| Diameter | 2.2mm (options available) |
| Product Feature | High and low Temperature resistance, acid and alkali resistance |
| Main Application | Electric blanket, jade mattress, physiotherapy bed, slimming belts, medical equipment, beauty equipment |
The core of the temperature-sensing cable consists of one (or multiple) pair(s) of mutually insulated conductors. The insulation layer is made of a special thermosensitive material. When the temperature at any point reaches the preset alarm threshold, the insulation layer undergoes rapid changes (melting or resistance shift), creating a short circuit. The connected signal processor triggers a fire alarm immediately.

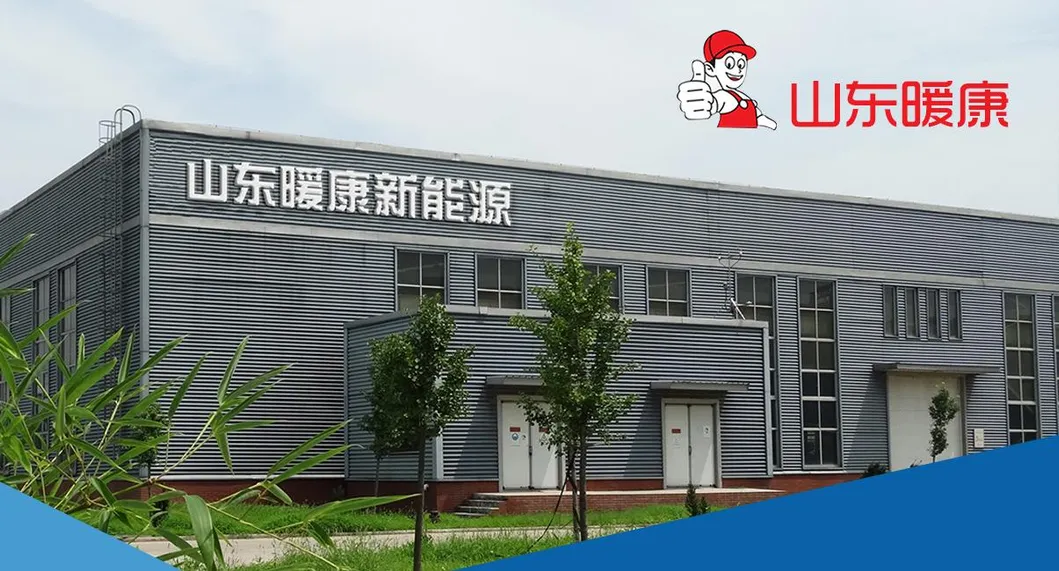

We are an innovative enterprise committed to the research, development, and sales of high-efficiency, energy-saving, and environmental electric heating products. Our specialization includes Carbon fiber heating cables and high flame retardant high-temperature resistance electric cables.
