| Pixel Pitch | P0.78 | P0.9375 | P1.25 | P1.56 | P1.875 | P2.5 |
|---|---|---|---|---|---|---|
| LED Type | Mini 4 in 1 | COB | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515/GOB |
| Density (Dot/sqm) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,444 | 160,000 |
| Module Size (mm) | 150x168.75 | 150x168.75 | 150x337.5 | 150x337.5 | 150x337.5 | 150x337.5 |
| Panel Dim. (mm) | 600 x 337.5 x 27.5 | |||||
| Weight (kg) | 4.5 | |||||
| Refresh Rate (Hz) | 3840 | |||||

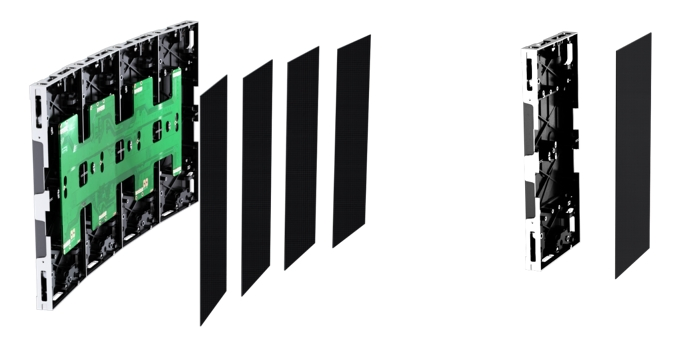

150mm Small Cabinet

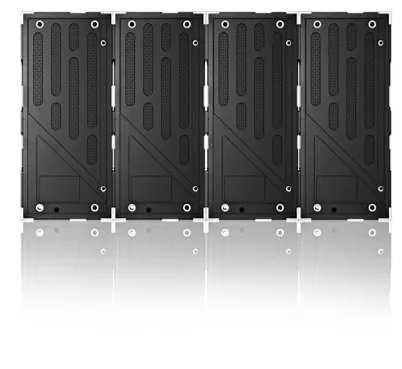

Combined 600mm Cabinet Unit
Supports complete front access for installation and maintenance. The X3-curve series and 150mm small cabinets are designed for easy handling in tight spaces.

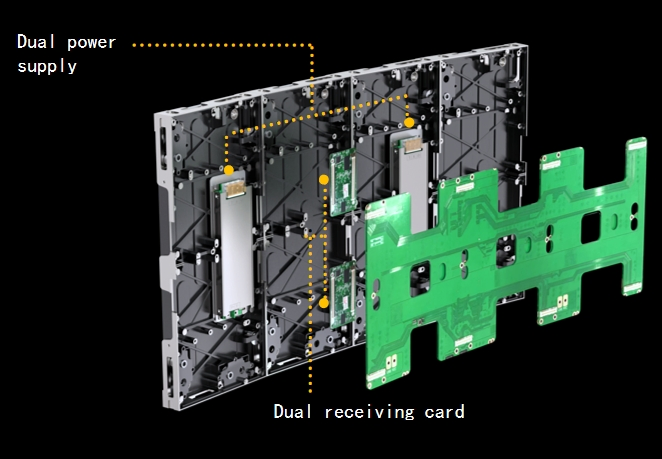

Ensures the power supply is never interrupted and signals are never lost. This redundant design makes the system more stable and reliable for critical monitoring environments.

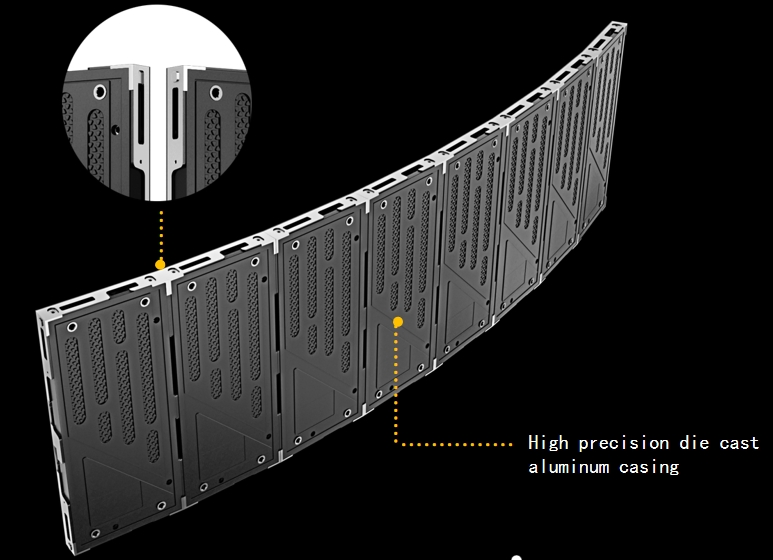

Adopting CNC high-precision die-cast aluminum casing with a hard link design and anti-collision platform to improve screen flatness across multiple dimensions.

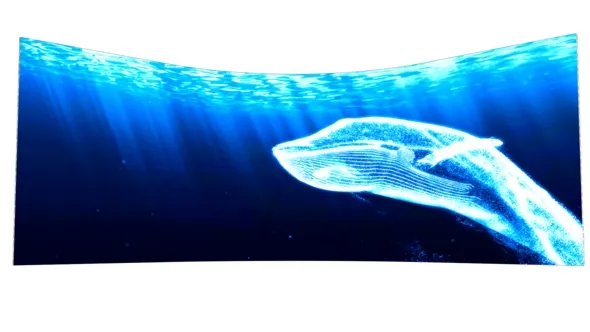

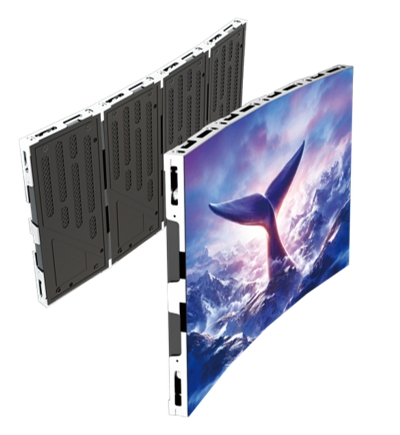

Supports both inner and outer arc splicing, allowing for the creation of various creative curved shapes for immersive visual experiences.

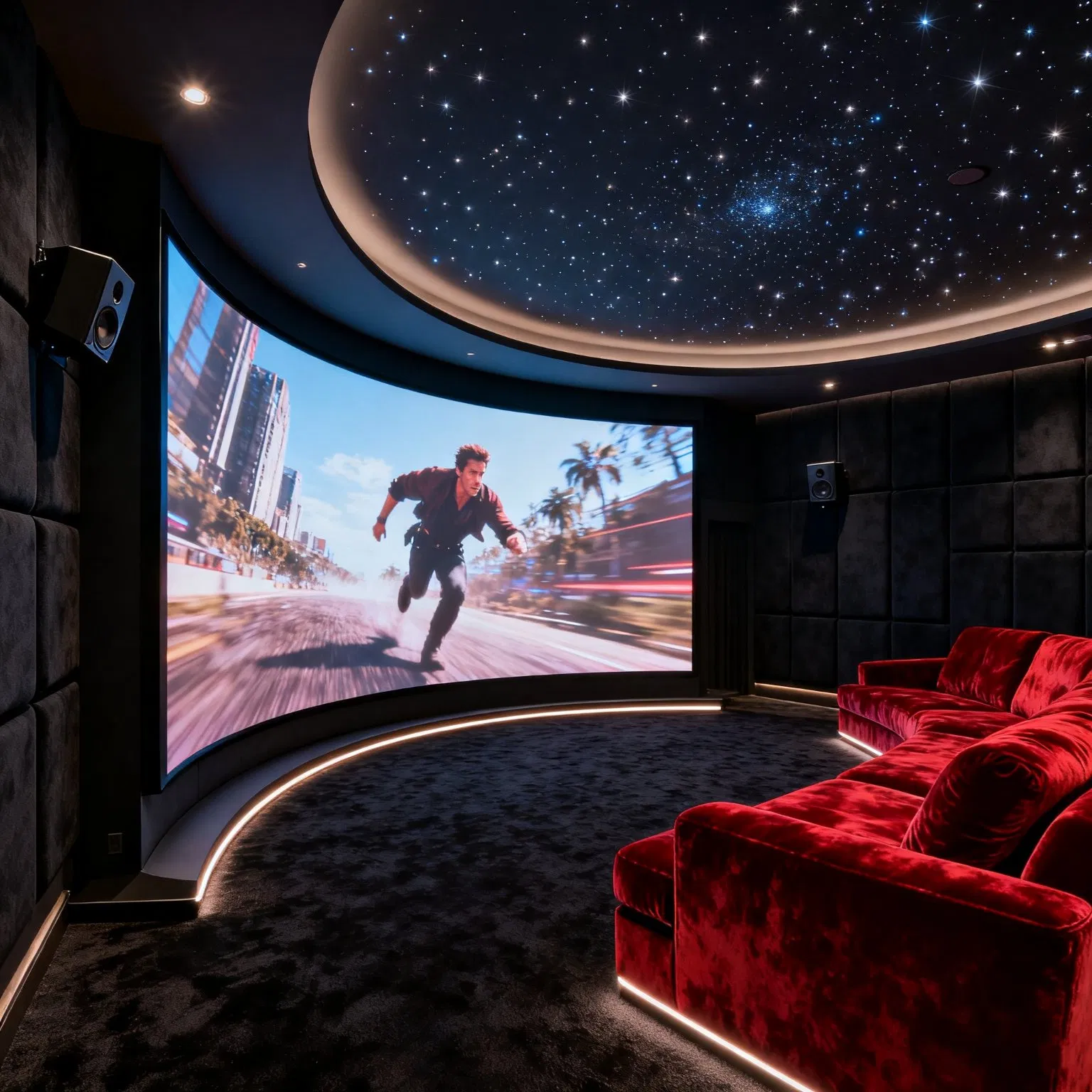

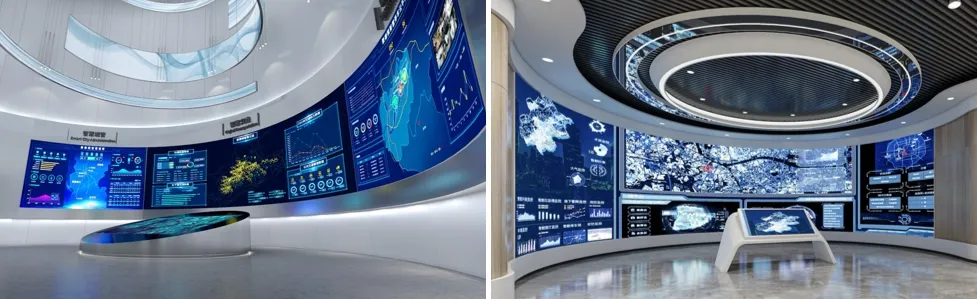

Perfectly suited for conference rooms, command and control centers, monitoring rooms, technology exhibition halls, museums, shopping centers, studios, and high-end commercial displays.
