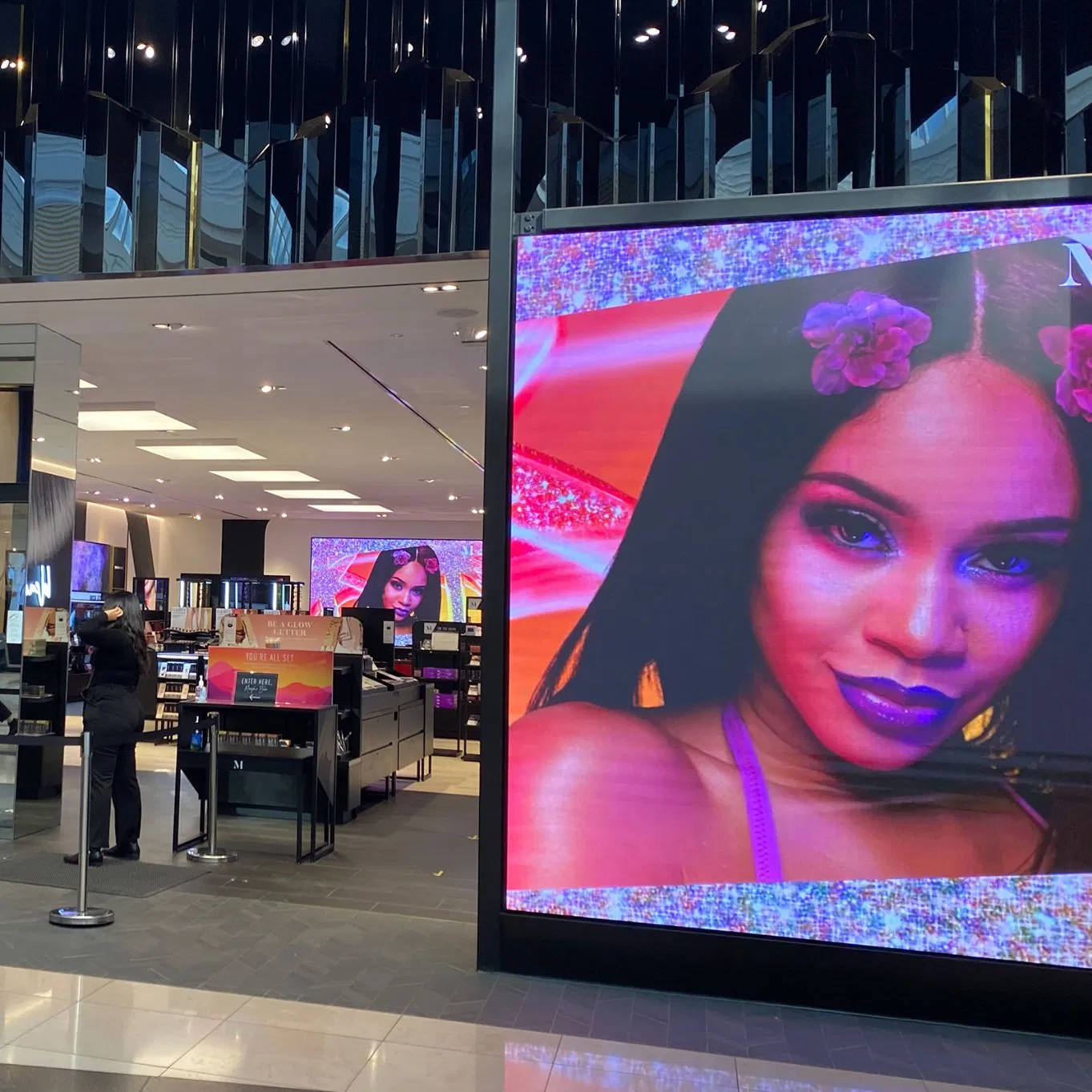

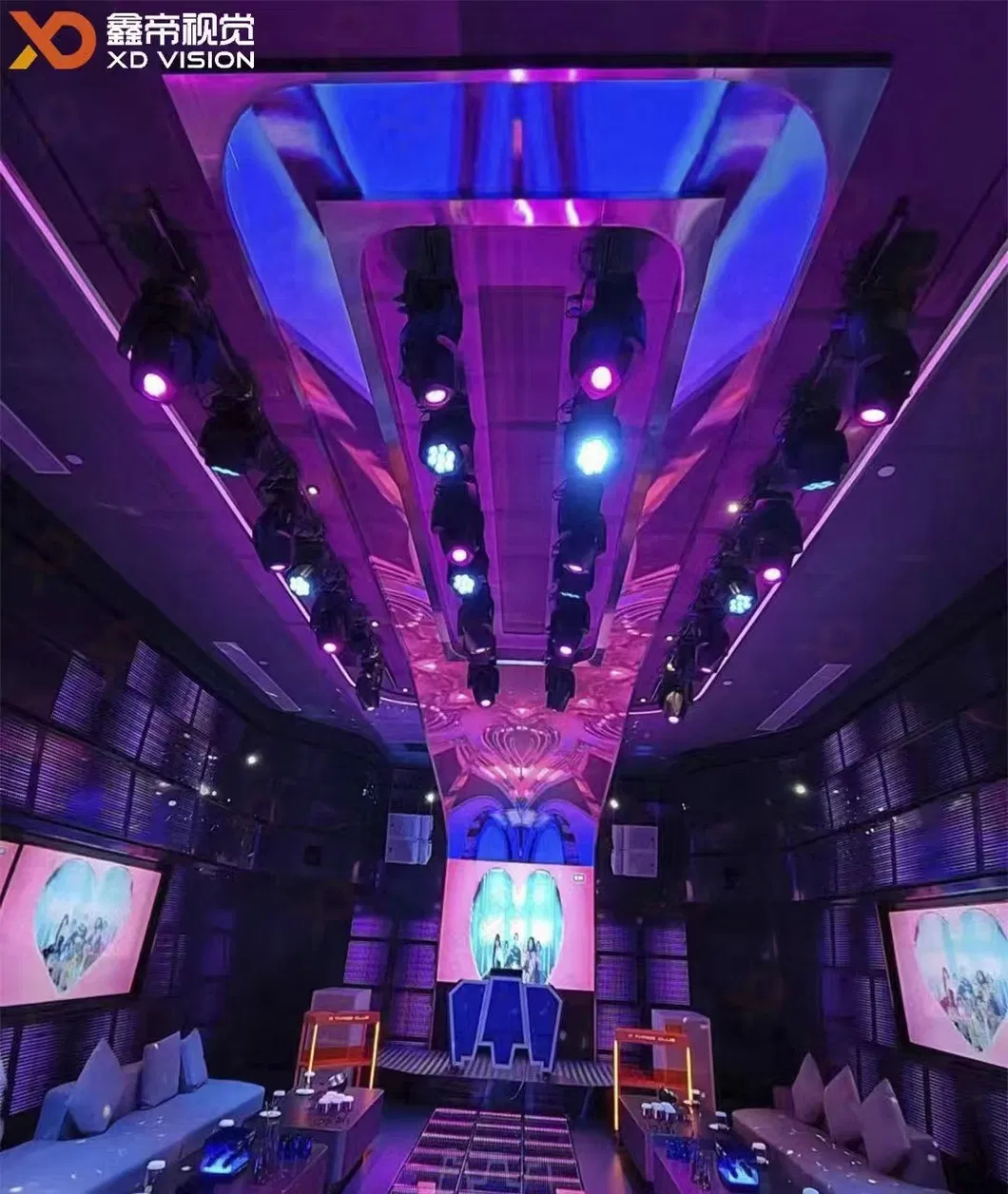

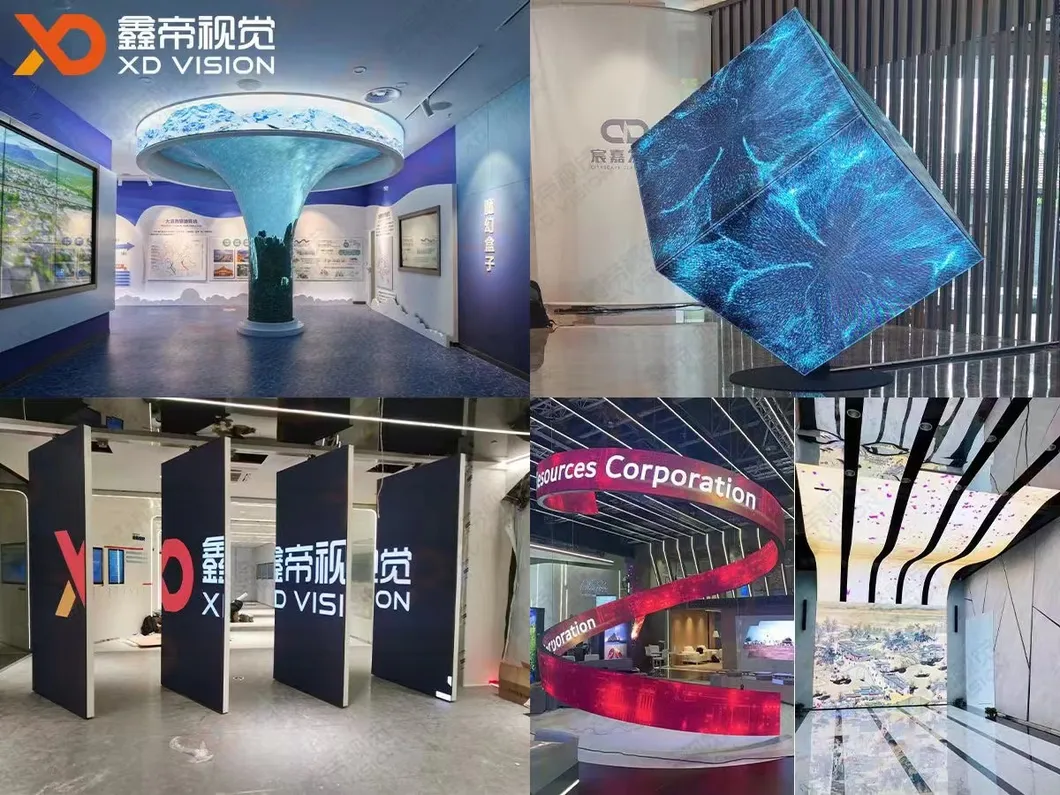

We are a professional manufacturer of LED display with excellent R&D and independent design capabilities. Our product range covers single color displays, indoor/outdoor full-color screens, and wireless mobile solutions for various applications including shopping centers, transit hubs, and creative architectural projects.
| Module Parameters | |||
|---|---|---|---|
| Pixel Pitch | 5.7mm | Pixel Configuration | 1R 1G 1B |
| Module Size | 480*320mm | Module Resolution | 84*56 |
| LED Type | SMD2727 | ||
| Cabinet Parameters | |||
| Cabinet Size | 960*960*76mm | Material | Aluminum |
| Weight | 25kg | Maintenance | Front/Rear |
| Max Power | 900w/sqm | Avg Power | 450w/sqm |
| Display Performance | |||
| Brightness | Up to 6000nits (Adjustable) | ||
| Viewing Angle | H: 140° / V: 140° | ||
| Refresh Rate | 3840Hz | Ingress Protection | IP65 |
| Lifespan | >100,000 hours | ||
Our solutions serve global markets across America, Europe, and Asia. All products are certified by ROHS, CCC, CE, and FCC, ensuring high quality and reliability for over 120 countries.
