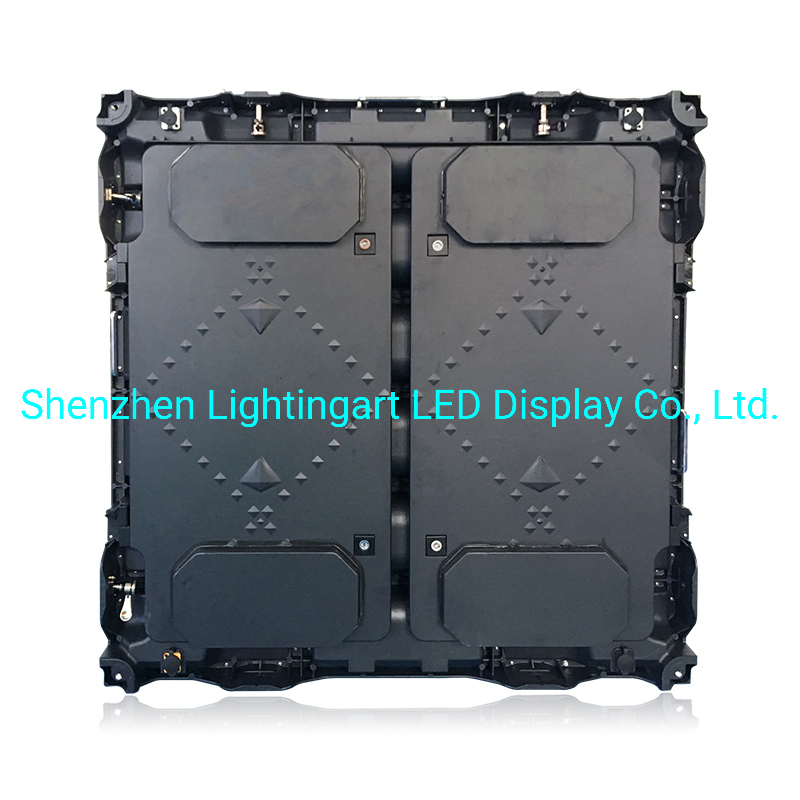

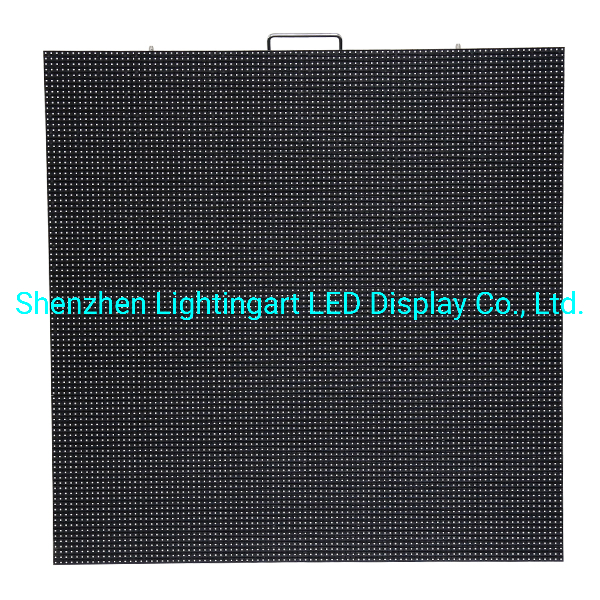

High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
1 / 5
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display
High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display

High Brightness P3 P4 P5 P6 P8 P10 Outdoor SMD Full Color LED Digital Billboard Display

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Specifications
Model NO.:OF-10
Pixel Pitch:10mm
Pixel Density:10000 dot / m²
Brightness:6500 cd/sqm
Module Size:320*160mm
Cabinet Size:960mm*960mm
LED Type:Nationstar SMD3535
Protection Grade:IP65 (Waterproof)
Application:Outdoor Advertising
Certification:CE, FCC, RoHS, ETL
🚀 Product Overview

Outdoor Fixed Installation with Back Service

  • Waterproof cabinet design, high protection grade IP65.
  • High brightness and reliable quality guarantee.
  • Energy saving with low power consumption.
  • Available in Steel or Die Cast Magnesium cabinet materials.

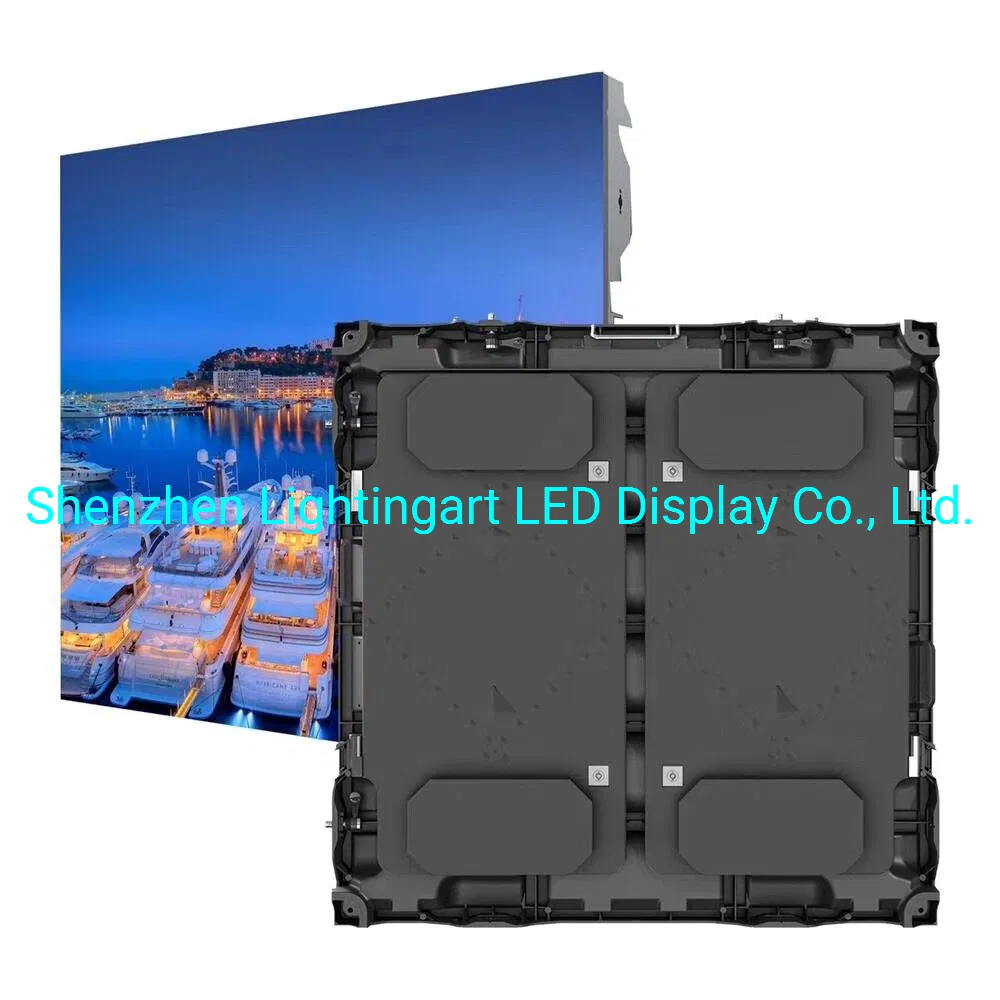

Cabinet Options:

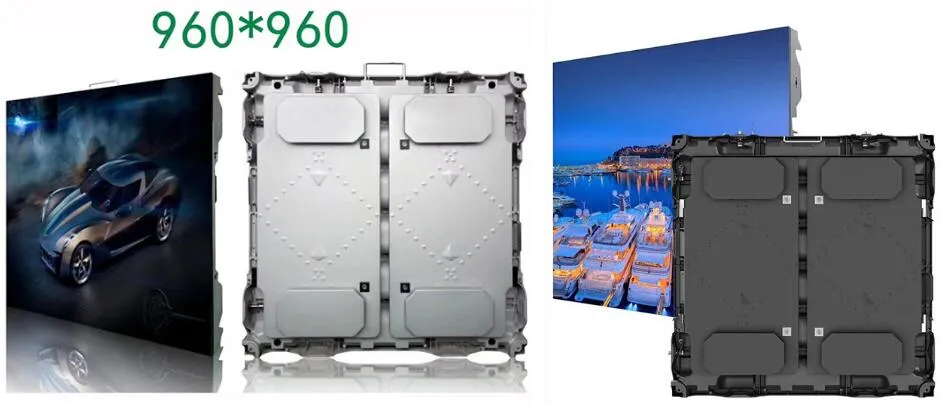

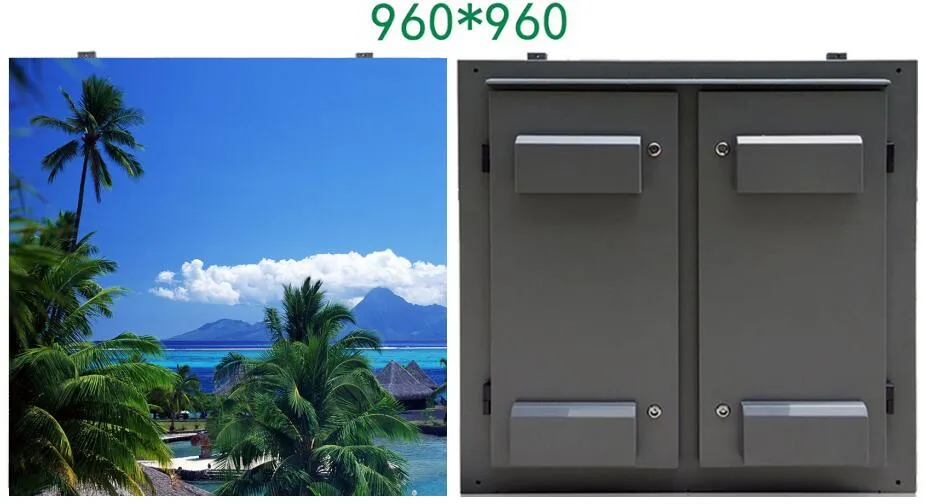

Steel Cabinet LED Display Die Cast Megnesium Cabinet
⚙️ Technical Parameters (OF P10)
Display Performance Electronic Components
Pixel Pitch10 mm LED TypeSMD3535 KINGLIGHT
Pixel Density10000 dots/sqm Brightness6500 cd/sqm
Module Dimension320*160 mm Refresh Rate1920 or 3840 Hz
Cabinet Dimension960*960*120 mm Scanning Method1/2 Scan
Cabinet MaterialSteel / Magnesium Max Power Consumption750 W/sqm
Viewing AngleH:160° V:140° Life Span≥100,000 hours

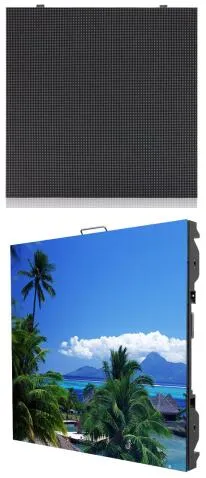

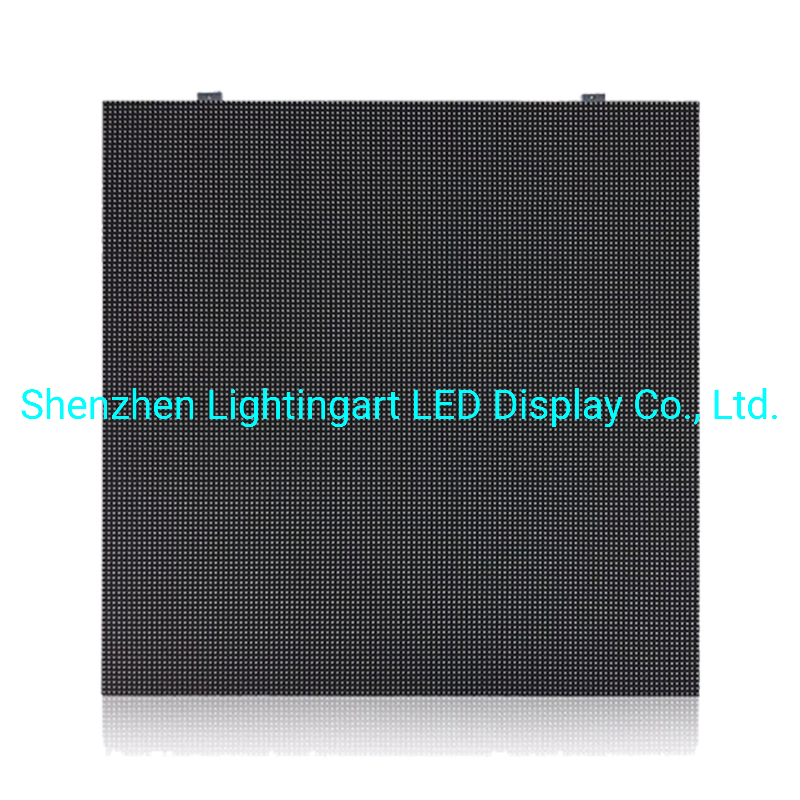

LED Chip Detail LED Module Detail
📋 Full Series Comparison
ModelOF 3.0OF 4OF 5OF 8OF 10
Pixel Pitch (mm)3.07645810
Pixel Density (dots/m²)10562562500400001562510000
Brightness (cd/m²)65006500550055006500
Viewing Distance (m)3.8-105-136-1610-2612.5-33
🏗️ Projects & Production

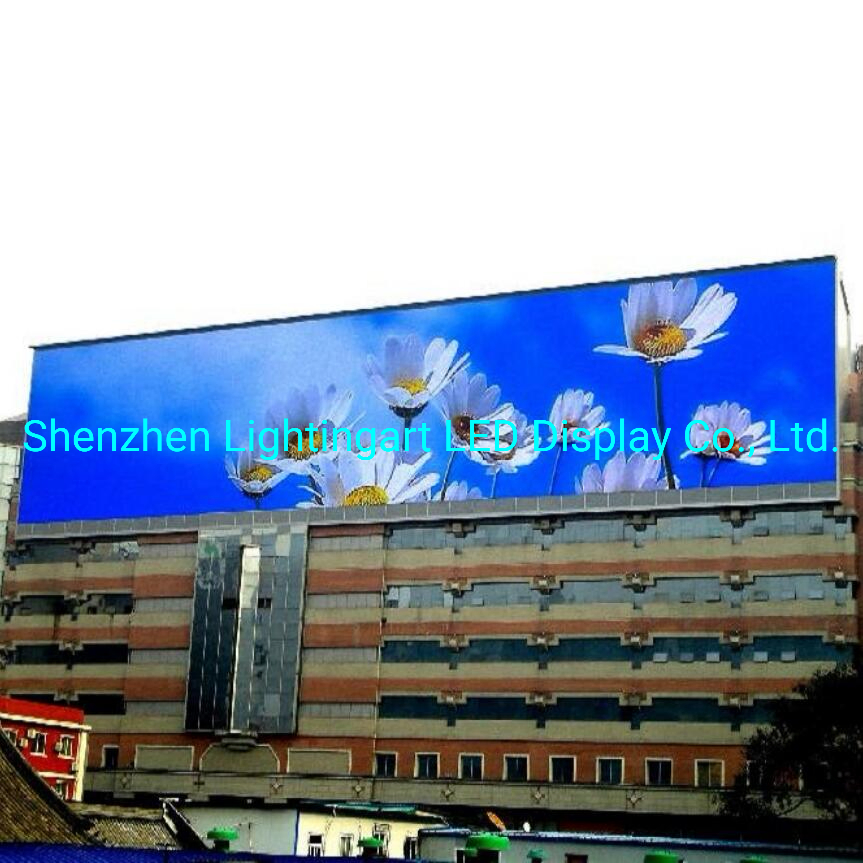

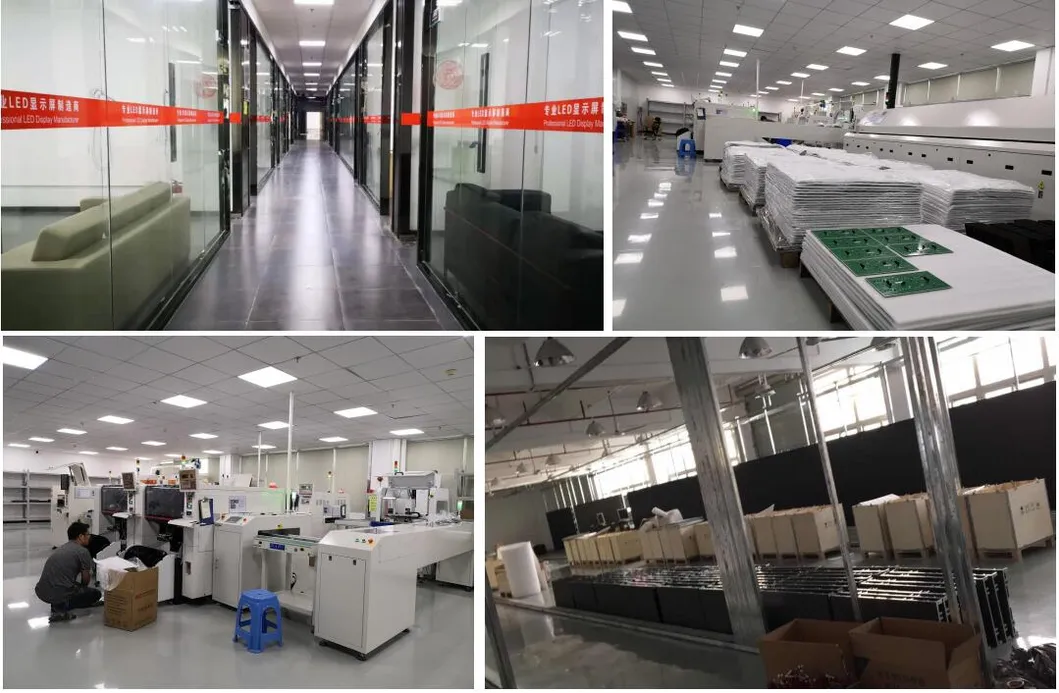

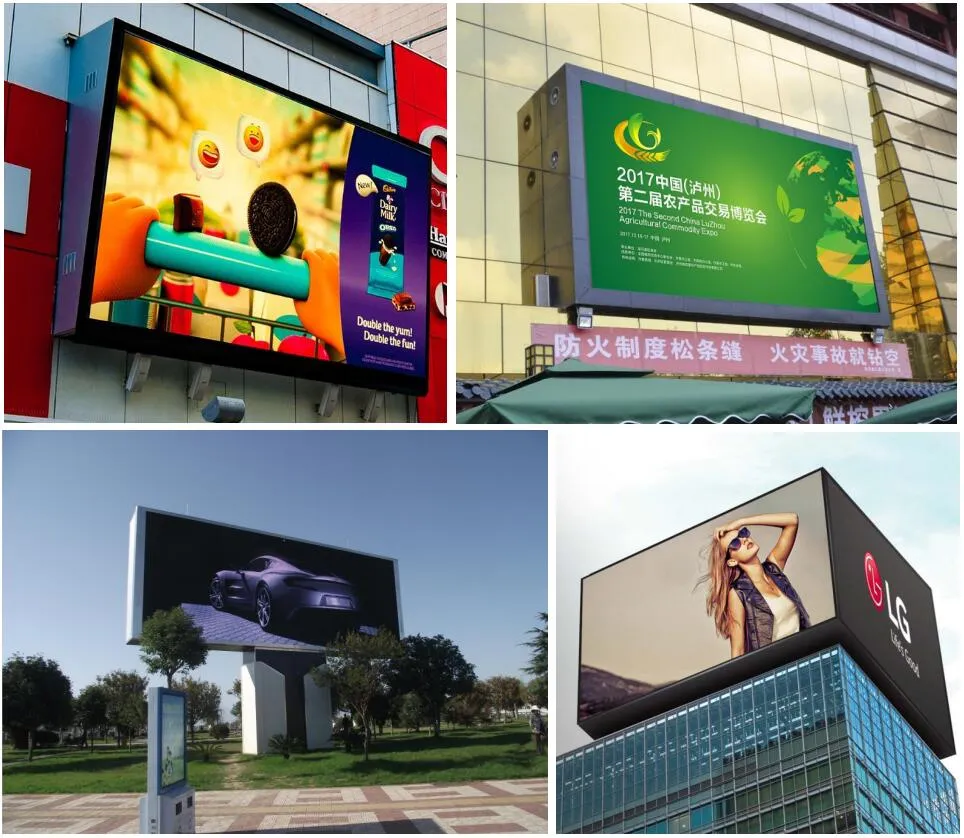

Successful LED Projects Factory Assembly Line
📦 Delivery & Service
  • Production Lead Time: Approx. 25 days for 1-200 m² (including aging test).
  • Payment Terms: T/T 30% advance, 70% before shipping.
  • Warranty: Two years full warranty with lifetime 24h online support.
  • Packaging: Plywood cases for fixed installations or Flight cases for rental usage.

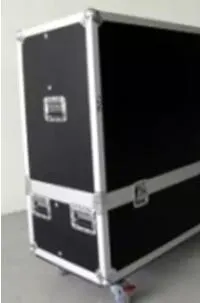

Plywood Case Flight Case
🛡️ Quality Certifications

Our products comply with international standards including CE, RoHS, ETL, FCC, and ISO9001:2015.

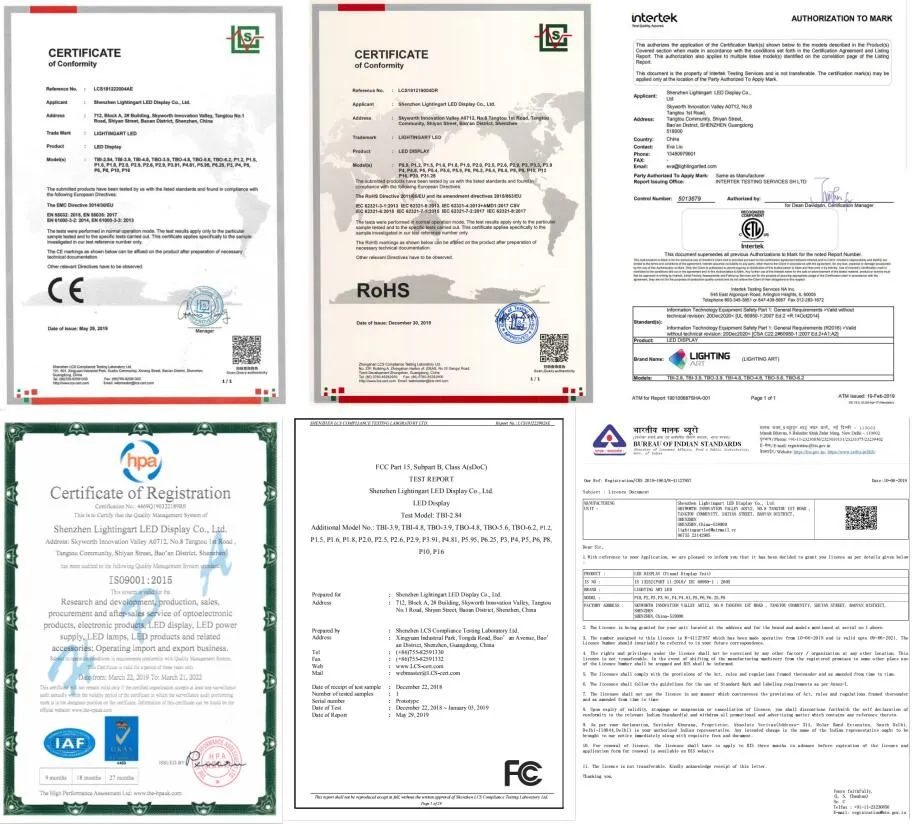

Product Certificates
❓ Frequently Asked Questions
What is the pixel pitch of the OF-10 model?
The OF-10 model features a 10mm pixel pitch, providing an optimal viewing distance starting from 12.5 meters.
Is this LED screen suitable for rainy outdoor environments?
Yes, the cabinet is designed with an IP65 protection grade, making it fully waterproof and durable for all-weather outdoor use.
What kind of warranty do you provide?
We provide a two-year warranty and lifetime free 24-hour online technical support.
Can the cabinet material be customized?
Yes, we offer two primary options: heavy-duty Steel cabinets or lightweight Die Cast Magnesium cabinets.
What is the typical production time for an order?
For orders between 1-200 m², production typically takes about 25 days, which includes a rigorous aging test to ensure quality.
What components are used in your screens?
We use high-quality components such as Nationstar or Kinglight LEDs, Mbi5124 ICs, and G-Energy power supplies.
