Product Description

Basic Information

Model NO.
AV1.2
Pixel Pitch
1.25 mm
Pixel Configuration
1R,1G,1B
Pixel Density
129600 Dots/M2
Scanning Mode
1/60s
Operating Platform
Windows10
Display Type
LED Video Display
Application
Stage, Advertising, Shopping Guide
IP Rating
IP50
Certification
CE, RoHS, CCC
LED Type
SMD
Unit Ratio
16:9
Materials
Die-Cast Aluminum
Refresh Frequency
3840Hz
Package Size
60.00cm * 33.75cm * 2.70cm
Gross Weight
4.500kg

Product Highlights

✔Ultra-thin panel design, the thickest part is only 27mm, total weight less than 5KG.
✔Three-in-one design: Integrated power supply, HUB card, and receiving card for easy maintenance.
✔16:9 Aspect Ratio: Ideal for 720P, 1080P, 4K, and 8K point-to-point splicing.
✔Low brightness & High gray: Over 14bit grayscale even at 300nits brightness.
✔Visual Excellence: 5000:1 maximum contrast ratio and 16.7M high color reproduction.
✔Precision Build: Cast aluminum technology for heat dissipation and high precision.
✔Convenience: Pure front maintenance design for quick accessibility.
✔Quiet Operation: Fanless and silent design for indoor environments.

Technical Parameters

Category Parameter Name Specification
Unit SpecsPixel Pitch1.25mm
LED TypeSMD
Unit Resolution480*270 Dots
Unit Weight4.5kg / panel
Unit Size (WxHxD)600mm × 337.5mm × 27mm
Maintenance TypeFront Maintenance
Optical SpecsBrightness600nit (7500K)
Contrast Ratio5000:1
Viewing AngleH: 160°; V: 160°
Refresh Rate3840Hz
Power & UsageInput VoltageAC 90~264V (50/60Hz)
Typical Power30W per unit
Lifespan≥ 50,000 Hours

Product Display

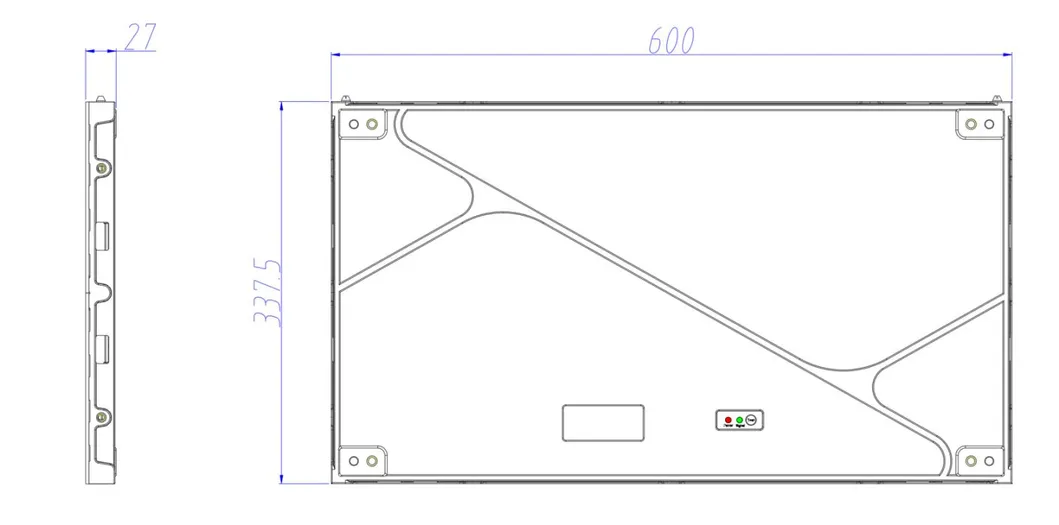

Indoor LED Display

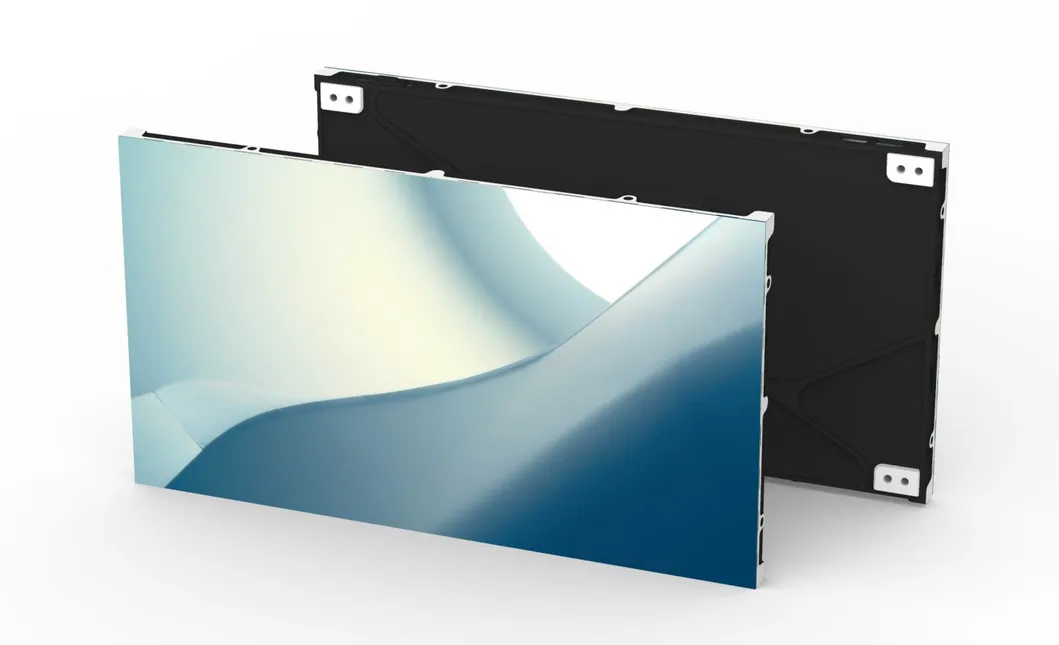

High Grayscale LED Performance

Manufacturing & Quality

Facility 1
Facility 2

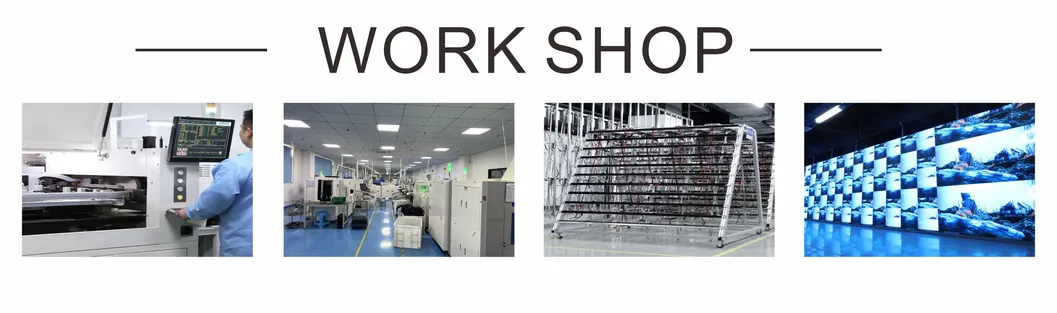

Facility 3
Facility 4

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a professional LED display manufacturer focusing on high-quality visual solutions.
What types of LED displays do you offer?
Our products cover indoor/outdoor full-color displays, rental displays, advertisement screens, stage backgrounds, sports displays, and customized irregular-shape displays.
How do you ensure product quality before shipping?
Every screen undergoes rigorous aging tests, waterproof tests, and vibration tests to ensure safe transportation and stable performance.
What are the advantages of the 16:9 unit ratio?
The 16:9 ratio allows for easy point-to-point splicing to reach standard resolutions like 1080P, 4K, and 8K without image stretching.
Is this product easy to maintain?
Yes, it features a pure front maintenance design, and the 3-in-1 integrated card system makes component replacement very simple.
What is the recommended viewing distance for the AV1.2 model?
Due to its fine 1.25mm pixel pitch, the recommended viewing distance is 2 meters or more for a perfectly clear image.
