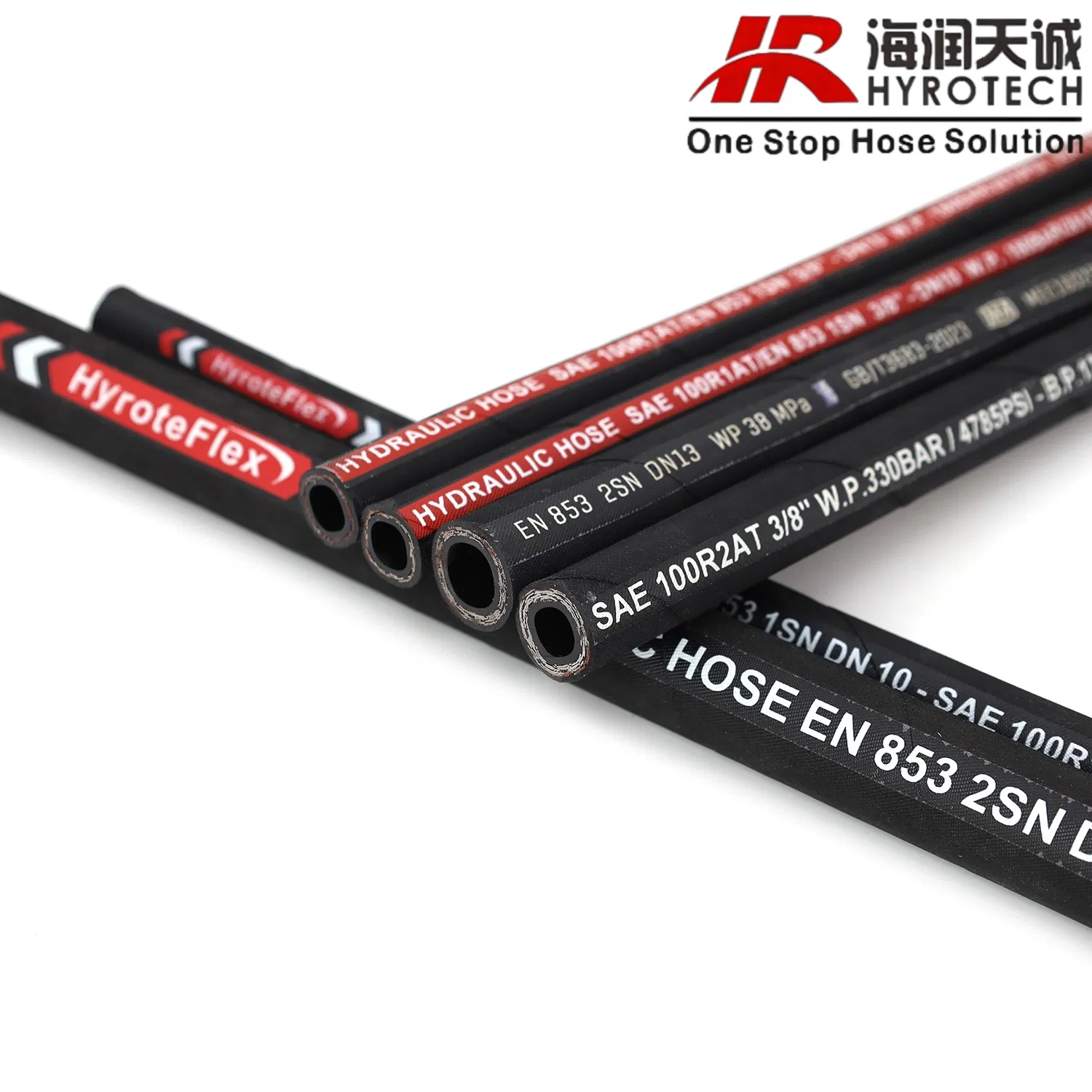

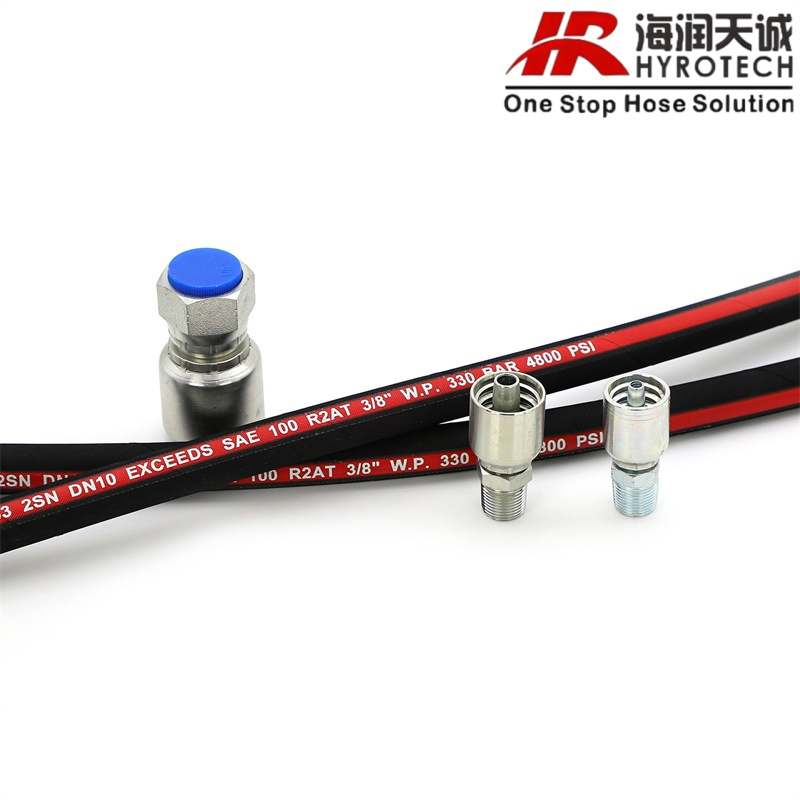

Hot Sell! High Performance Long Life Wire Braided Hydraulic Rubber Hose Flexible DIN En Standard High Pressure Rubber Hose DIN En853 2sn/R2at Hydraulic Hose

Basic Information

Model NO.

R2 2SN

Delivery Time

20 days for 20FT Container

Certificate

ISO 9001:2008

Tube

Oil Resistant Synthetic Rubber

Reinforcement

Two High Tensile Steel Wire Braids

Cover

Oil and Weather Resistant Synthetic Rubber

Temperature

-40 to +100°C

HS Code

40092100

Specification

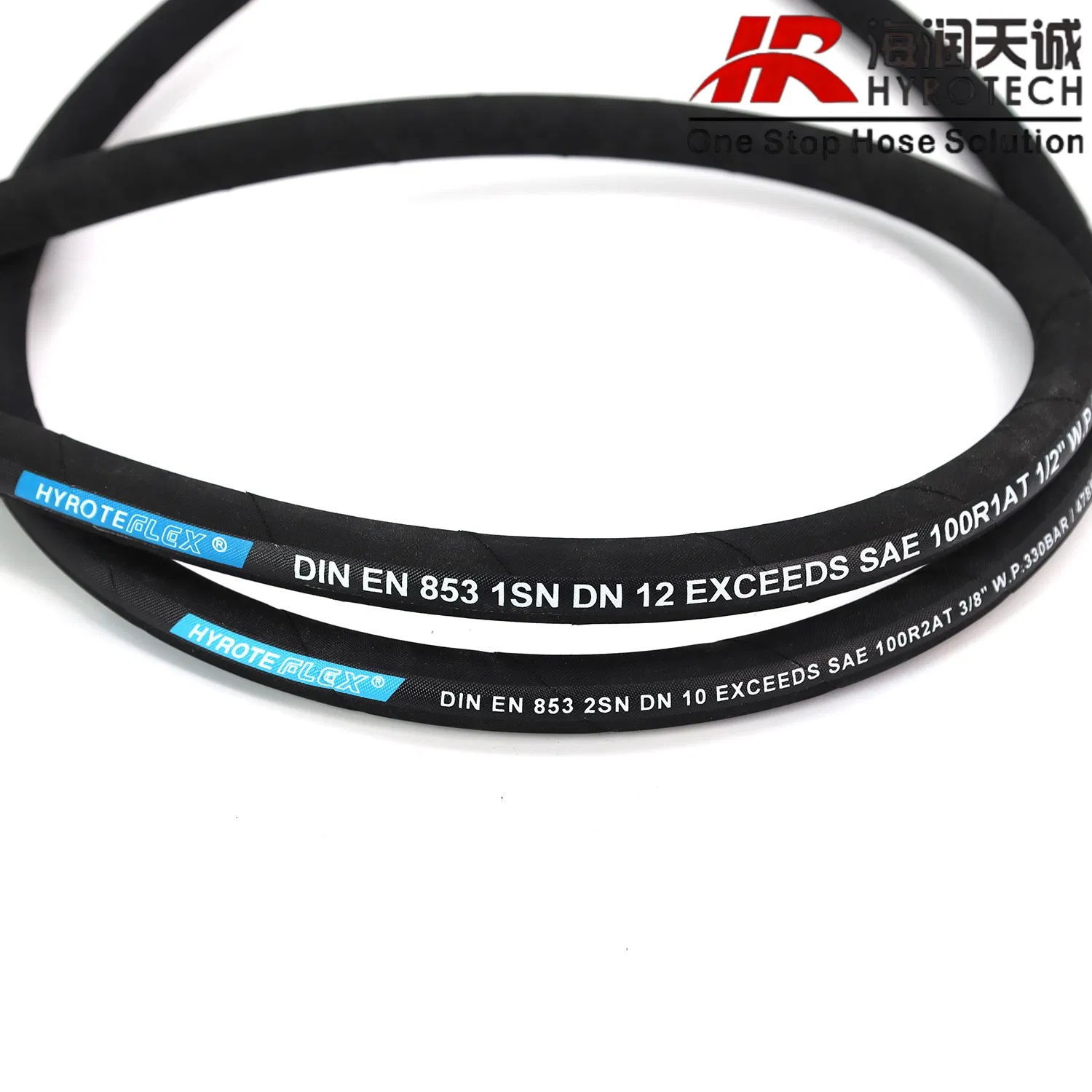

SAE 100R2AT & DIN EN 853 2SN

Product Description

⭐

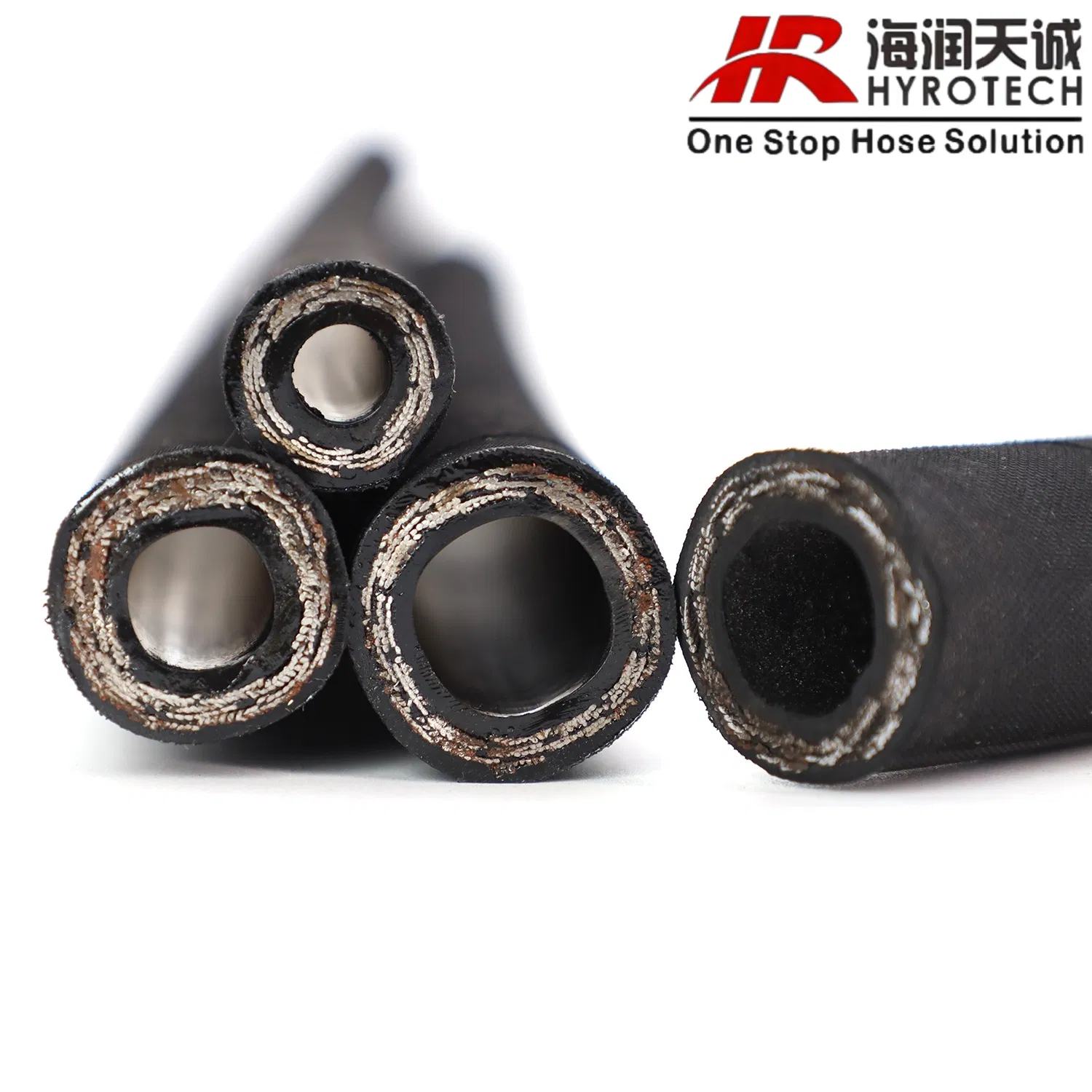

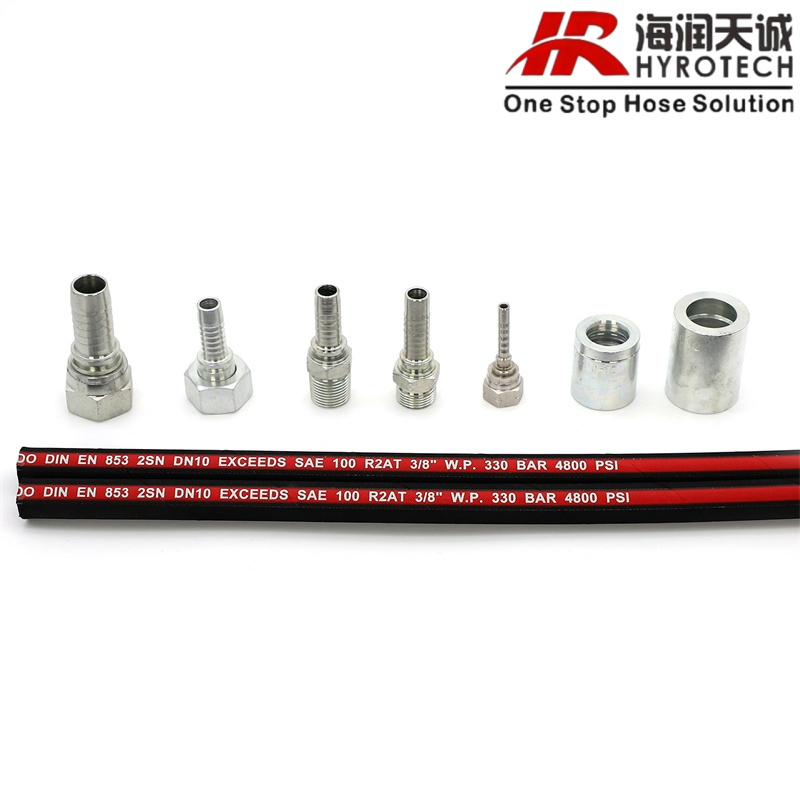

High Performance DIN EN Standard Hydraulic Hose
Long life wire braided hydraulic rubber hose, designed for high-pressure industrial applications.

A leading manufacturer and exporter of rubber hoses, PVC hoses, and a variety of hose accessories. The facility covers an area of 20,000 square meters workshop with a total investment up to RMB 100 million, utilizing 100 sets of advanced equipment for production and testing.

Technical Parameters

Hose I.D.		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	kg/m
1/4	6.4	0.59	15.1	5800	40.0	23200	160.0	3.94	100	0.38
3/8	9.5	0.74	18.7	4800	33.0	19200	132.0	4.92	125	0.56
1/2	12.7	0.86	21.8	4000	27.5	16000	110.0	7.09	180	0.66
3/4	19.1	1.14	29.0	3120	21.5	12480	85.0	9.45	240	0.99
1	25.4	1.43	36.5	2400	16.5	9600	65.0	11.81	300	1.36
2	50.8	2.58	65.6	1175	8.0	4700	32.0	24.80	630	2.75

Manufacturing & Exhibition

Quality Certifications

Packaging & Shipping

Customer Feedback

Frequently Asked Questions

1. What standards do your hydraulic hoses comply with?

Our hydraulic hoses meet the SAE 100R2AT and DIN EN 853 2SN international standards, ensuring compatibility and safety for high-pressure systems.

2. What is the typical lead time for an order?

For a standard 20FT container, the delivery time is approximately 20 days.

3. What is the temperature range for these hoses?

The standard operating temperature range is -40 to +100°C. We also offer special versions that can handle temperatures from -55 to +100°C.

4. What materials are used in the hose construction?

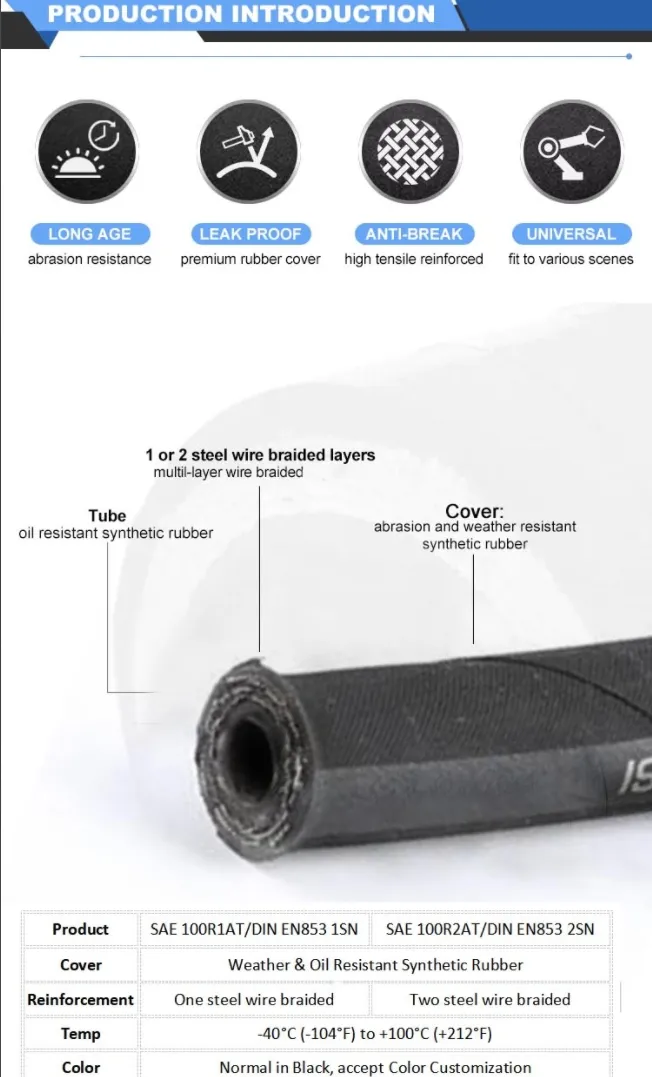

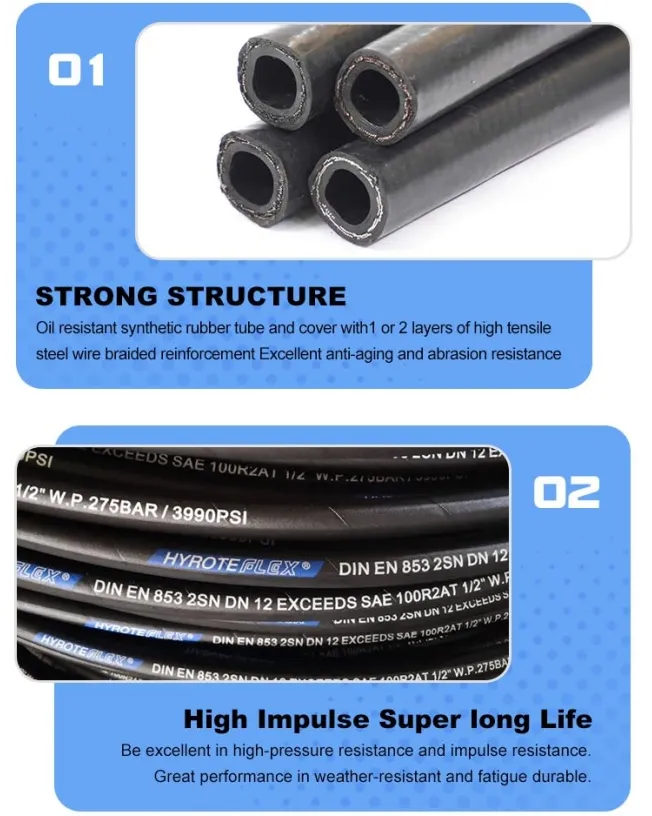

The tube is made of oil-resistant synthetic rubber, reinforced with two high-tensile steel wire braids, and finished with an oil and weather-resistant synthetic rubber cover.

5. What certificates does your factory hold?

Our production processes are certified under the ISO 9001:2008 quality management system.

6. How are the hoses packaged for transport?

Hoses are typically packed in blue plastic woven bags or customized according to your specific requirements to ensure safe transit.
