| Parameter | Value |
|---|---|
| Model NO. | LED Transparent Display |
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 73728 |
| Scanning Mode | 1/8 Scan |
| Display Type | LED Video Display |
| Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | IP30 |
| Certification | CE, CCC, PSE |
| LED Type | SMD |
| Regular Panel Size | 1000*1000*65mm / 500*1000*65mm |
| Frame Material | Aluminum |
| Contrast Ratio | ≥10000:1 |
| View Angle | 160°/160° |
| Maintenance Method | Front Service |

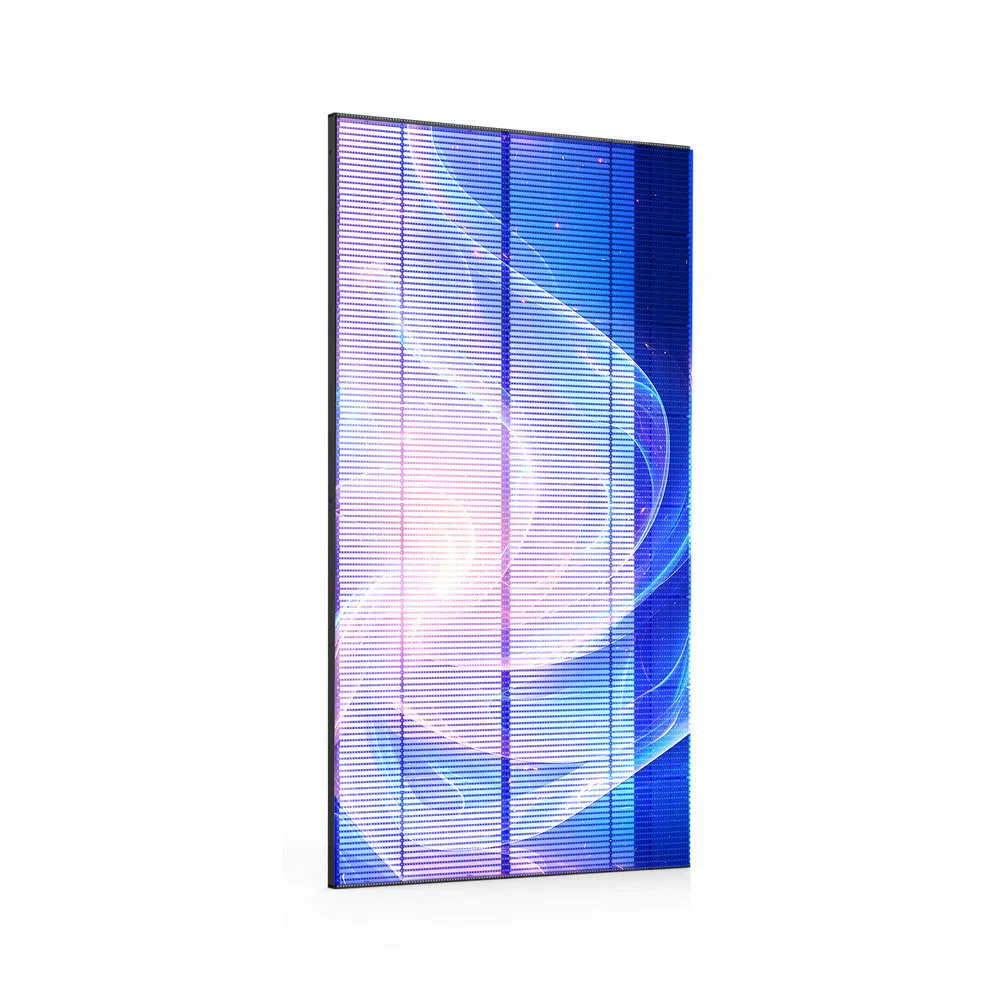

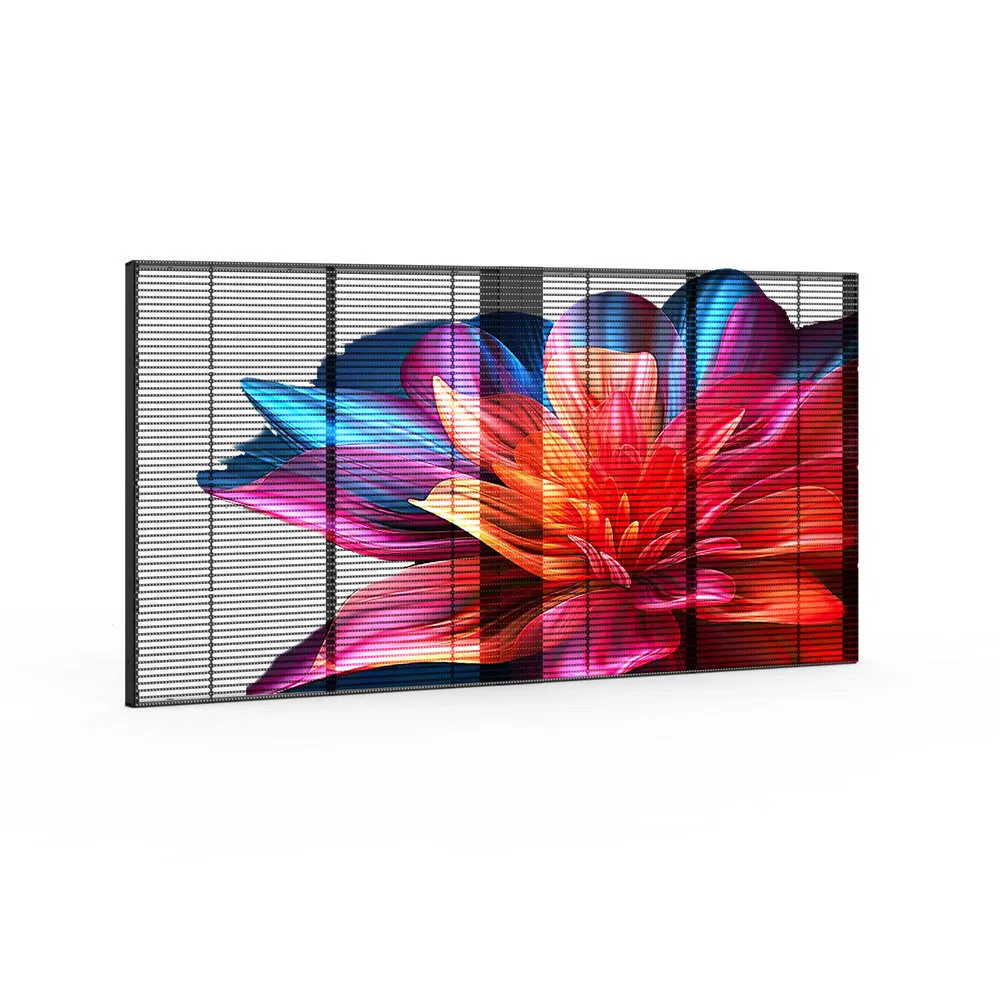

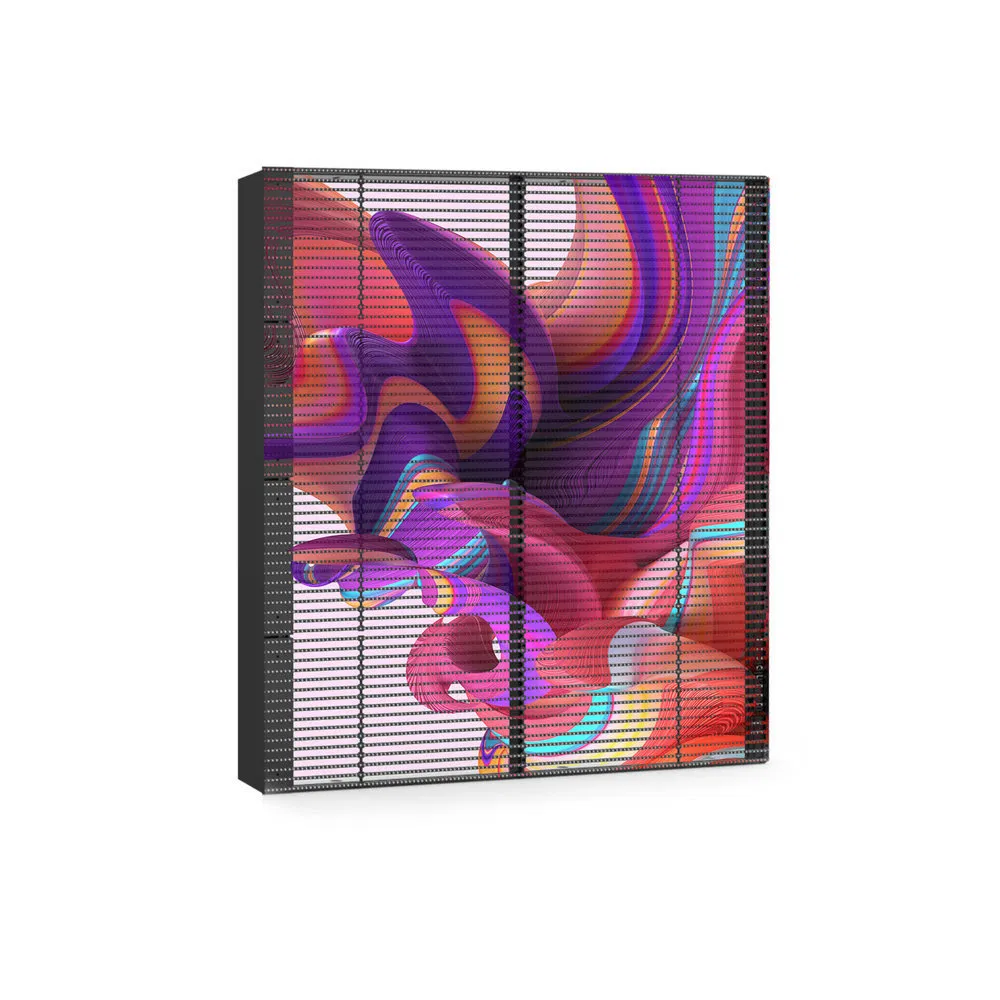

Our LED Transparent Display is an innovative, front-luminous LED transparent screen that can be seamlessly spliced to create large, see-through video walls without blocking light or views. Using advanced transparent LED technology, the screen transforms any window or glass wall into a dynamic full-color advertising display while maintaining high transparency and natural daylight.
With features such as high brightness, creative lightweight structure, modular design, intelligent control, and energy-saving performance, this transparent LED screen is ideal for shop windows, high-end shopping malls, commercial exhibitions, glass facades and glass railings.
| Physical Parameters | W2.6mm*H5.2mm | W2.6mm*H6.25mm | W3.9mm*7.8mm |
|---|---|---|---|
| Pixel Density (dot/Sqm) | 73728 | 61440 | 32768 |
| Module Size (mm) | 500*125 | 500×125 | 500*125 |
| Brightness (cd/m²) | 800-5000 | 1000-5500 | 1000-5000 |
| Transparency | 60% | 56% | 60% |
| Refresh Rate (Hz) | 1920 / 3840 | ||
| Grayscale | 14bit - 16bit | ||
| Max Power Consumption | 800 W/m² | ||
| Average Power Consumption | 260 W/m² | 260 W/m² | 240 W/m² |

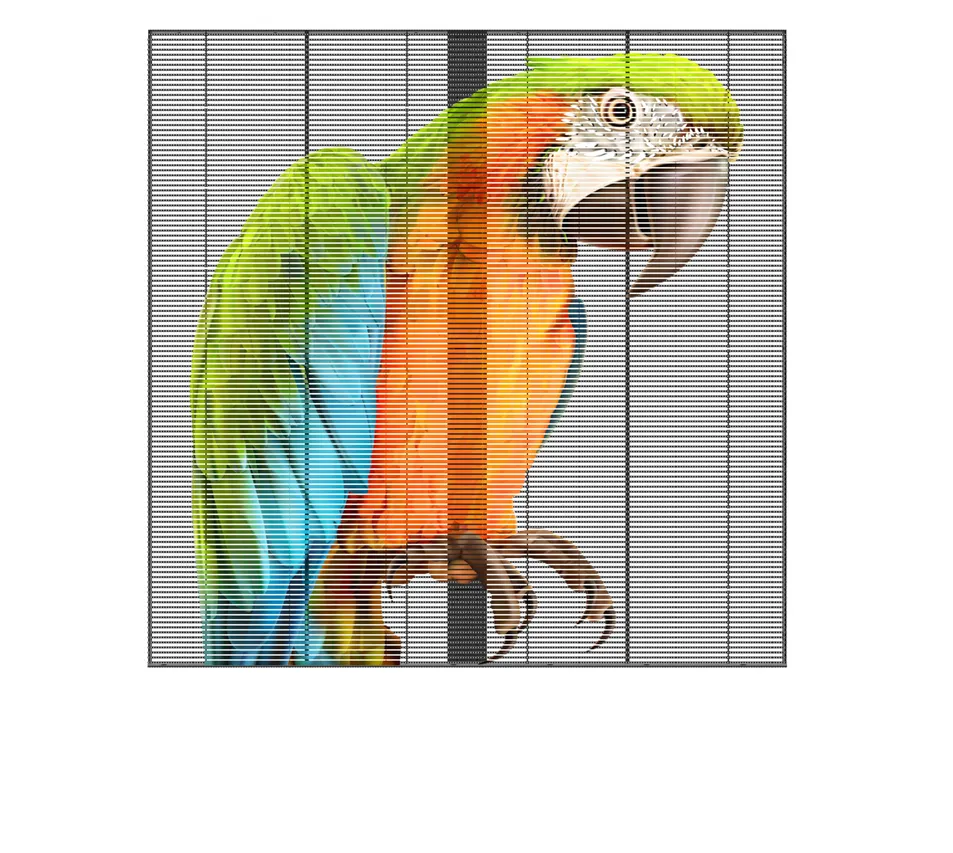

Allows light to pass through, ensuring the display does not block the view in or out of the building. Perfect for glass windows where natural light is essential.

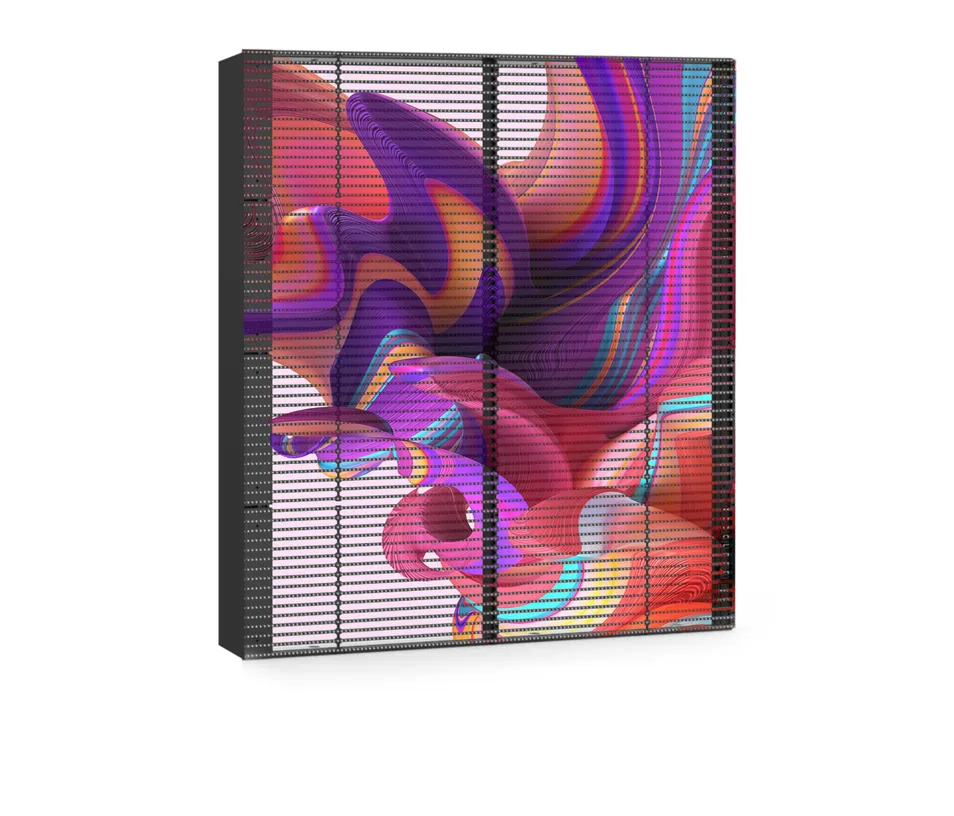

High brightness levels provide excellent visibility even in strong ambient light, making it a superior alternative to standard transparent OLED/LCD tech.

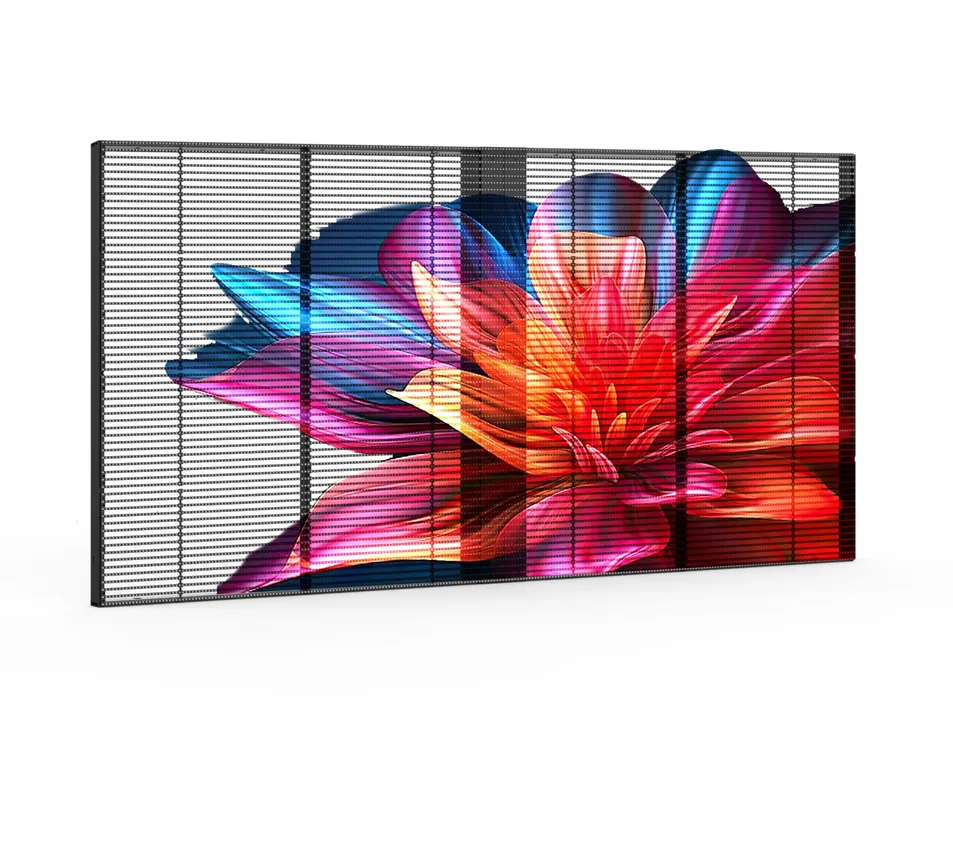

Modular, front-luminous structure can be seamlessly spliced into large-format video walls, supporting various sizes and simplifying maintenance.

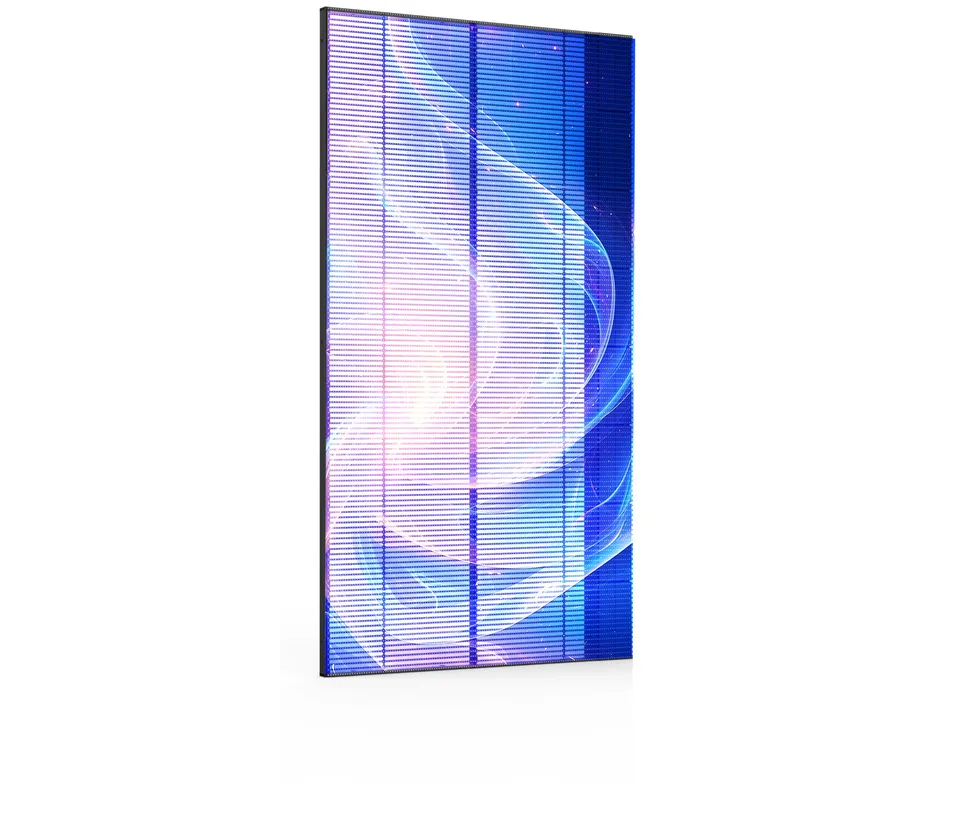

Slim frame adds minimal load to glass walls and supports creative configurations like large curtain-walls and custom-shaped layouts.

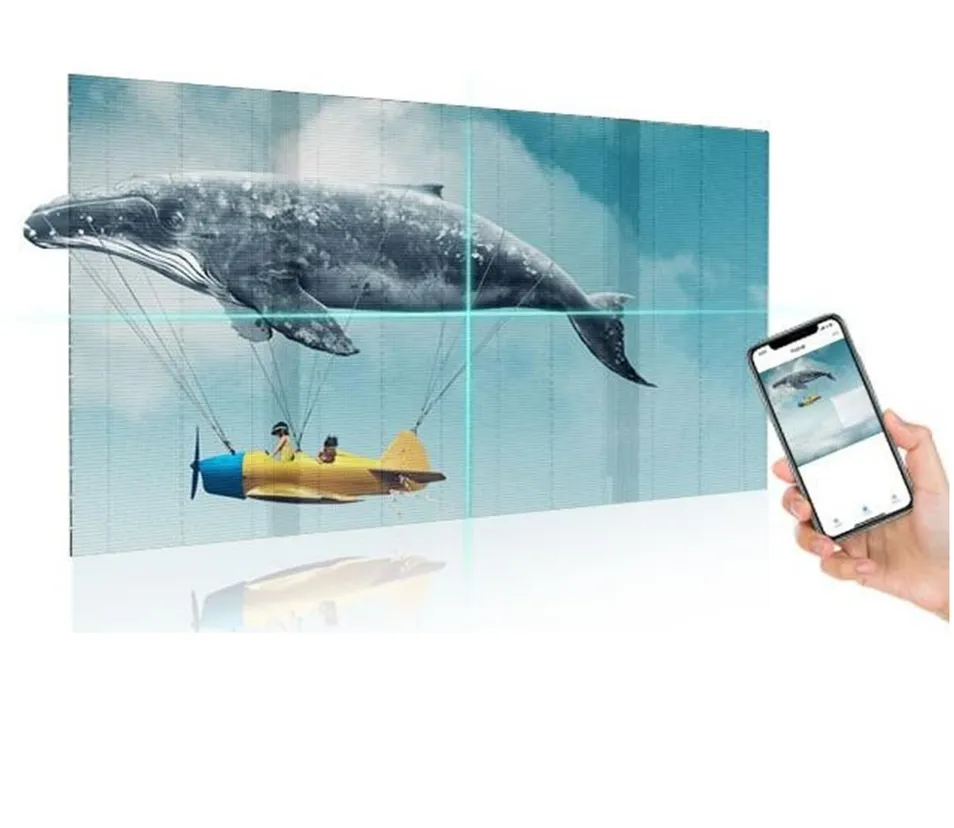

Can be retrofitted behind existing windows without major structural changes. Options include ceiling-mounted or floor-mounted installations.
SHOP WINDOWS: Turns retail windows into dynamic advertising screens without covering products.

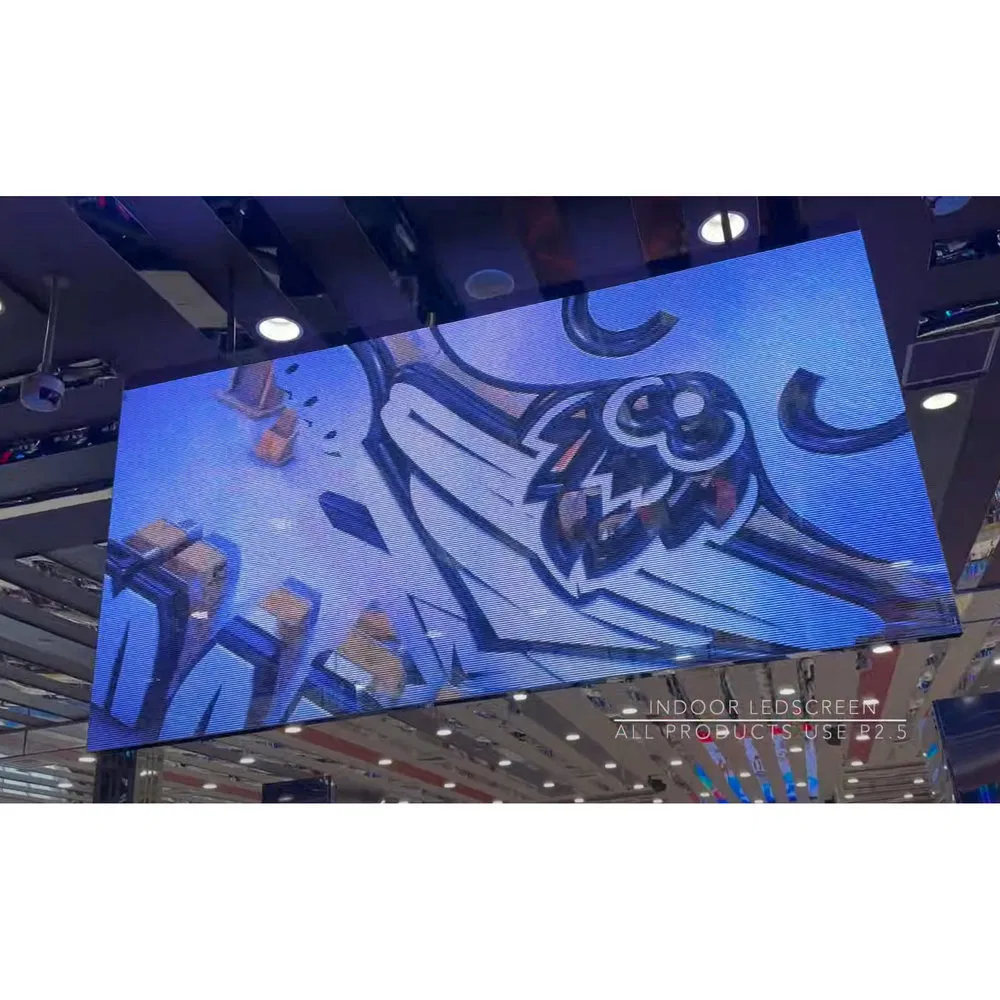

SHOPPING MALLS: Creates floating visual effects in atriums and high-end commercial spaces.

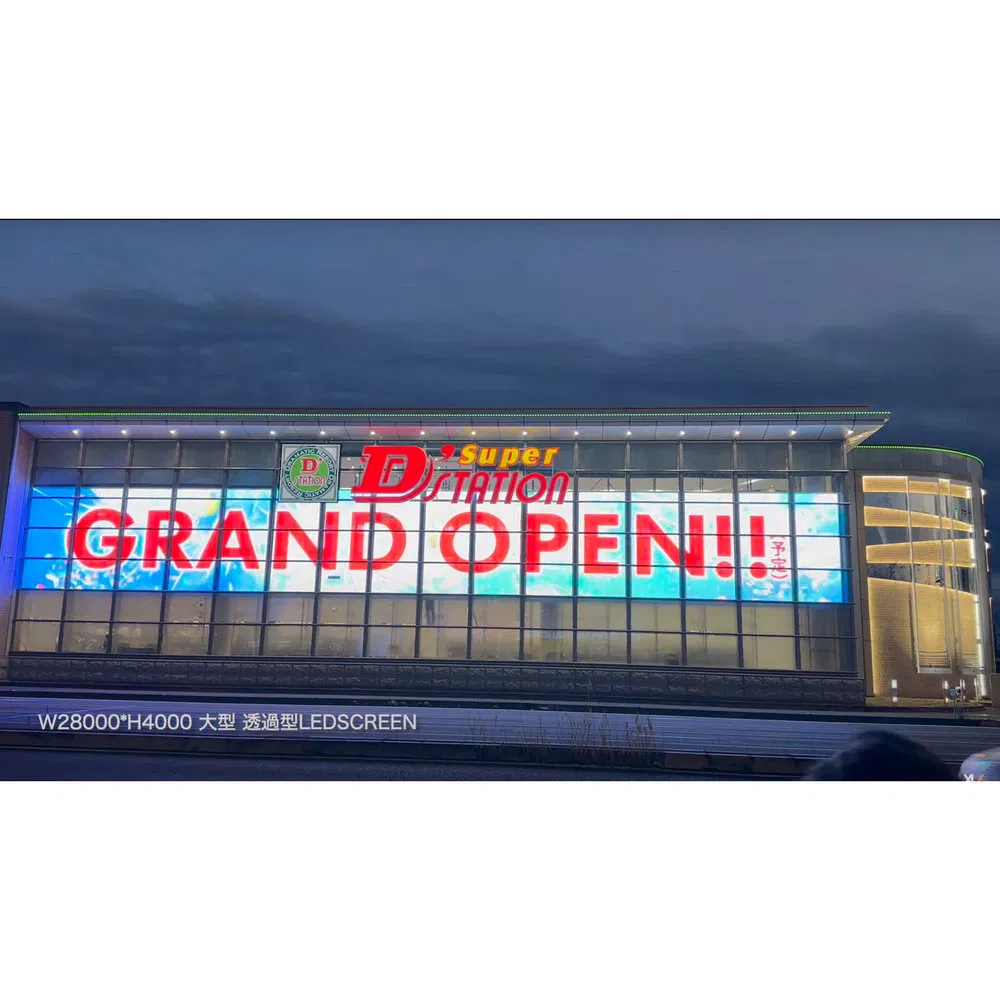

BUILDING FACADES: Adds a programmable media layer to glass architecture for digital signage and beautification.
EXHIBITION HALLS: Enables immersive storytelling by layering digital content over physical exhibits.
