P2.9 500*750 Indoor Concert Stage Background LED Video Wall Display Full Color Billboard Digital Screen

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
MF-C 500*750
Pixel Pitch
2.9mm
Pixel Configuration
1R,1G,1B
Pixel Density
112,896 Dots/M^2
Scanning Mode
1/32 Scan
System Platform
WIN XP
Display Type
LED Video Display
Application
Stage, Advertising, Shopping Guide
IP Rating
IP20
Certification
CE, RoHS, CCC, ETL, ISO
Cabinet Material
Die-Casting Aluminum

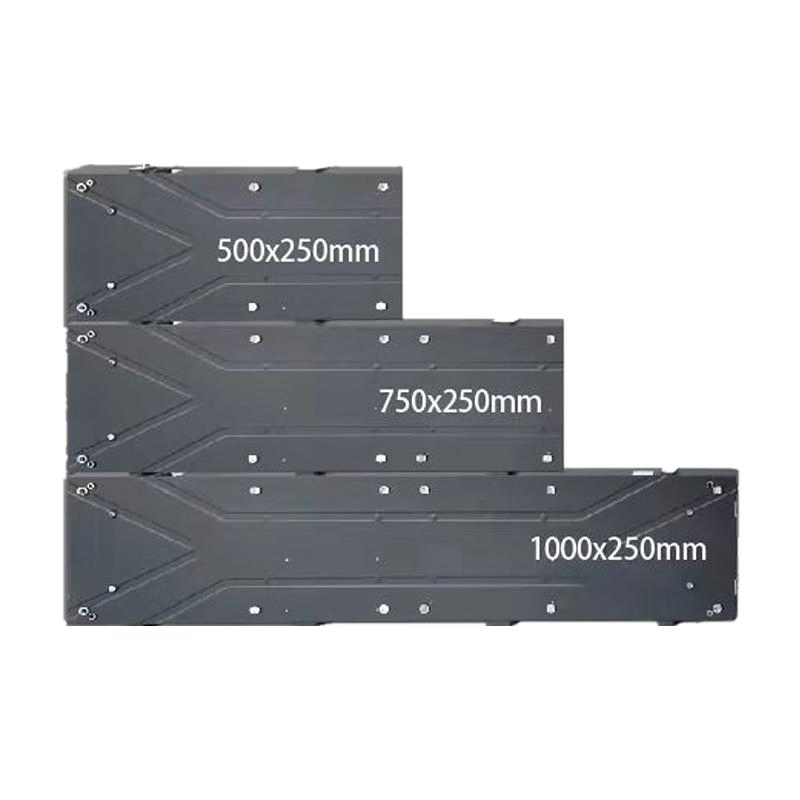

Cabinet Size
500mm*750mm
Cabinet Resolution
168*252 Dots
Refresh Frequency
≥3840 Hz
Equilibrium Brightness
≥750 CD/M^2
Grey Scale
≥16.7m Color

Product Description

MF-C series slim indoor LED displays feature fast heat dissipation, high contrast, wide color gamut, and high color reproduction. These ultra-thin and ultra-light cabinets provide constant brightness, large viewing angles, and low power consumption. Designed for seamless stitching and anti-electromagnetic interference, they offer a cost-effective solution with customizable sizing and modeling options.

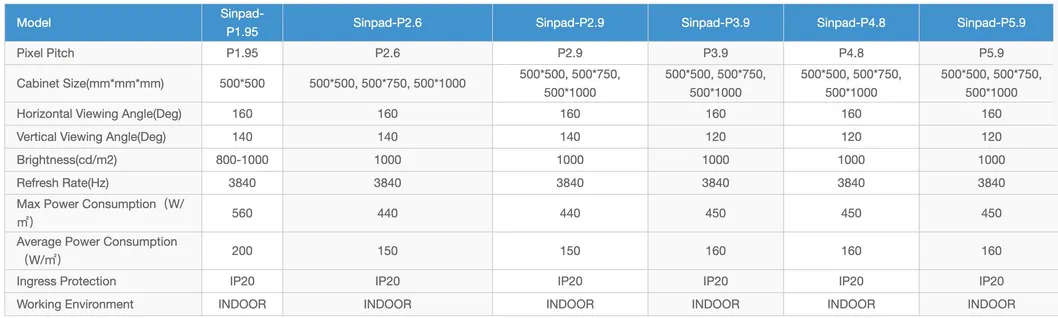

Technical Specification

Main Features

1. Excellent Performance

High refresh rate prevents flicker, while 16-bit color processing provides the highest level of color gradient and natural gray scale shifting to reduce shooting stripes.

🛠️ 2. Exquisite Craftsmanship

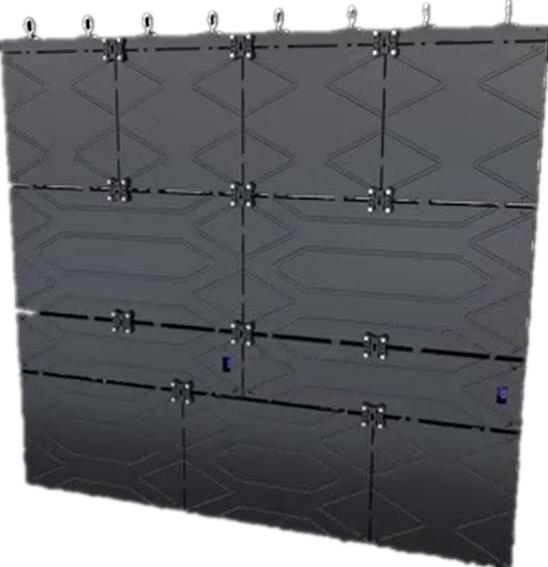

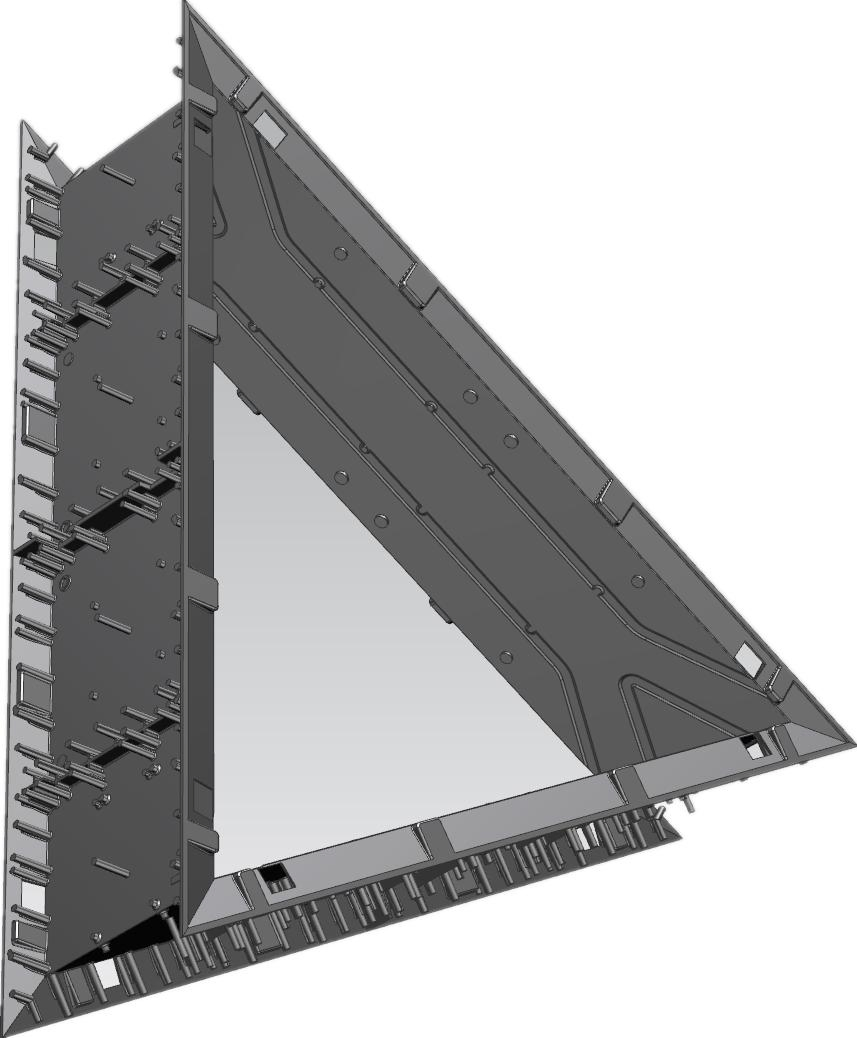

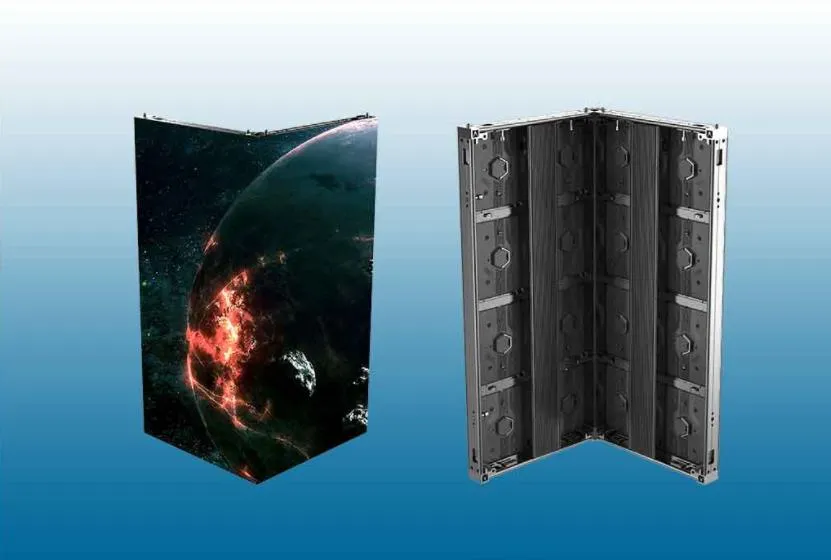

High-precision cabinet splicing controlled within 0.1mm. Magnetic maintenance supports 90-degree splicing and seamless connection.

🌈 3. Uniform Color

Broadcast color gamut, temperature, and brightness are intelligently adjustable, resulting in high contrast and natural pictures.

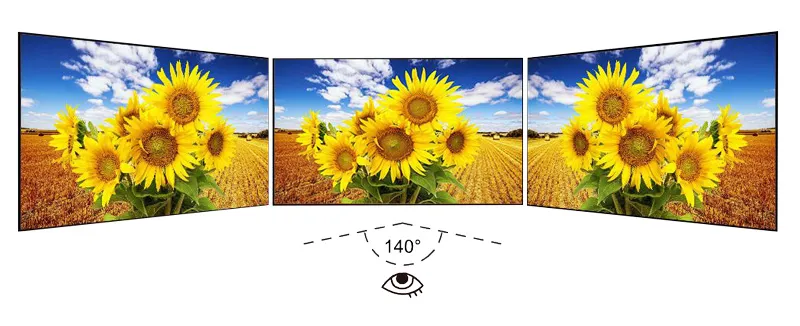

👁️ 4. Wide Viewing Angle

The product features a super clear, ultra-large field of vision for optimal viewing from various positions.

🔧 5. Easy Installation

Cabinets designed for wall-mounted installation with full front and back access. Quick assembly via inner cable connections.

📡 6. Optional Supporting Plan

Compatible with cameras, 5G, WIFI technology, and cloud broadcast control systems.

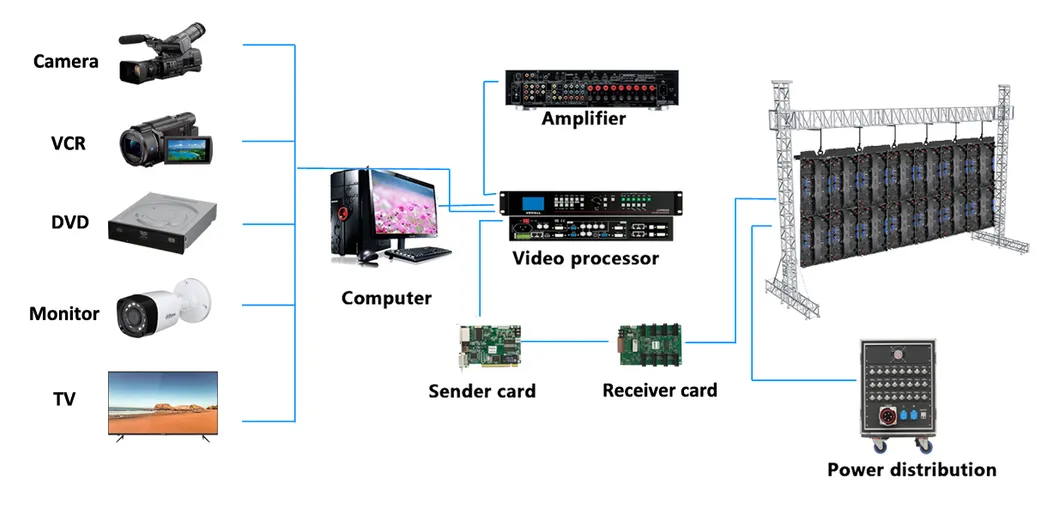

Installation and Maintenance

Application

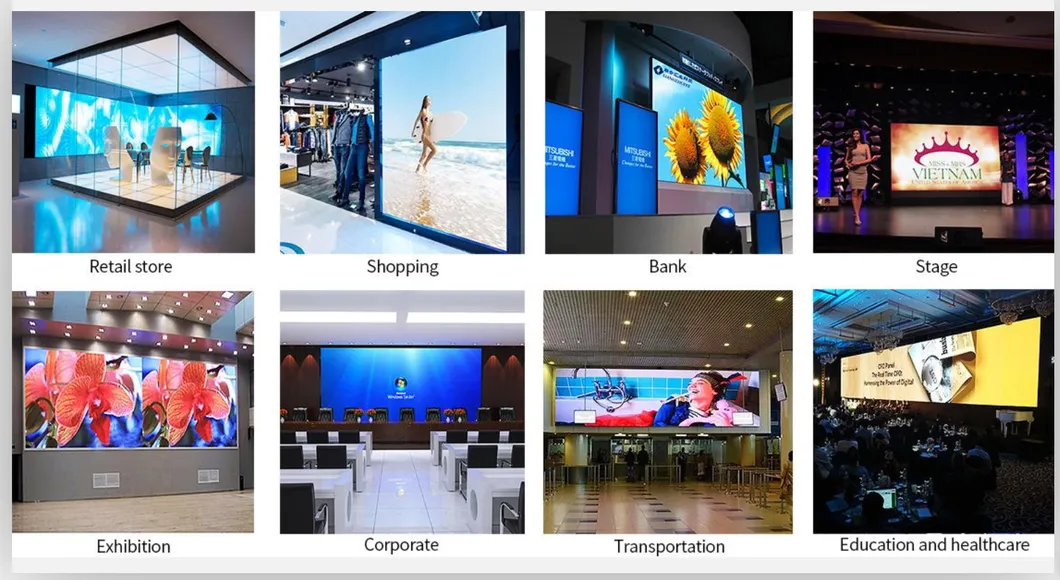

Application Scenarios

Hardware Features

  • Plug-in connection without arrangement improves stability and facilitates maintenance.
  • New die-cast aluminum shell: lightweight, high precision, and fast heat dissipation.
  • Point-to-point module design for both front and back maintenance access.
  • HD modular design for simplified field maintenance and quick disassembly.
  • Seamless connection technology for a smooth visual experience across the entire wall.
⚠️ IMPORTANT ATTENTION:

It is recommended to purchase enough LED display modules for spare replacement at once. Modules from different production batches may have slight color differences due to manufacturing variations.

Distribution & Logistics

Logistics and Distribution

Frequently Asked Questions

Can I have a sample order for the LED screen?
Yes, we welcome sample orders to test and check quality for both individual modules or full screen setups.
What is the typical lead time?
The standard lead time is approximately 7 to 10 working days depending on the order size.
Is there a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 1 square meter or a single module for checking is available.
How are the goods shipped?
We generally accept FOB terms. Shipping usually takes 20 to 30 days by sea, plus a few days for customs clearance.
What is the warranty period?
We offer a 2-year warranty on our LED display products.
How do you handle faulty products?
Our products are produced under a strict quality control system with a defective rate of less than 0.2%. For any issues, we provide technical support and replacement parts.
