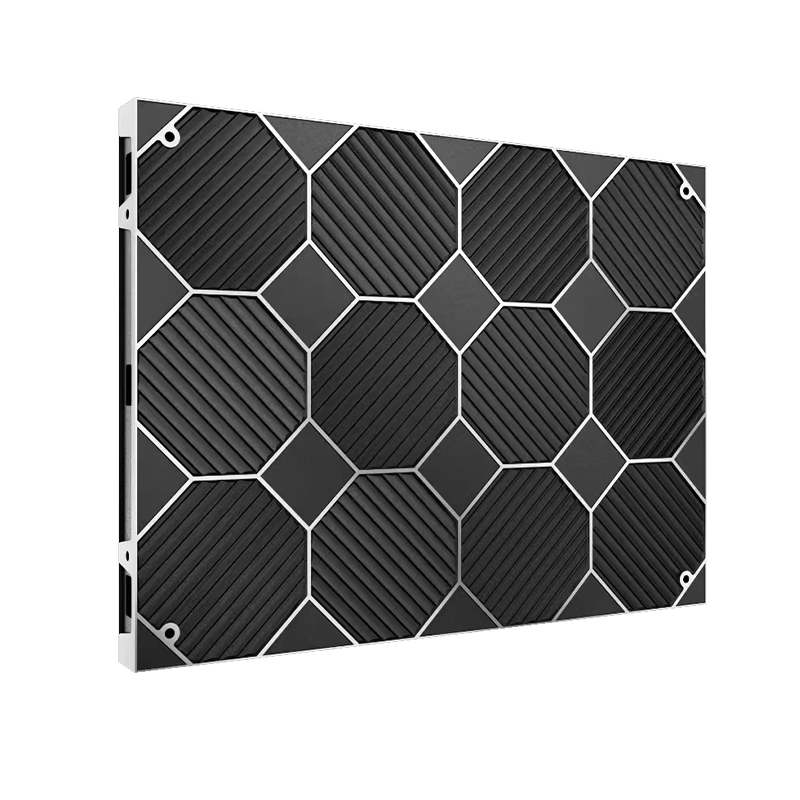

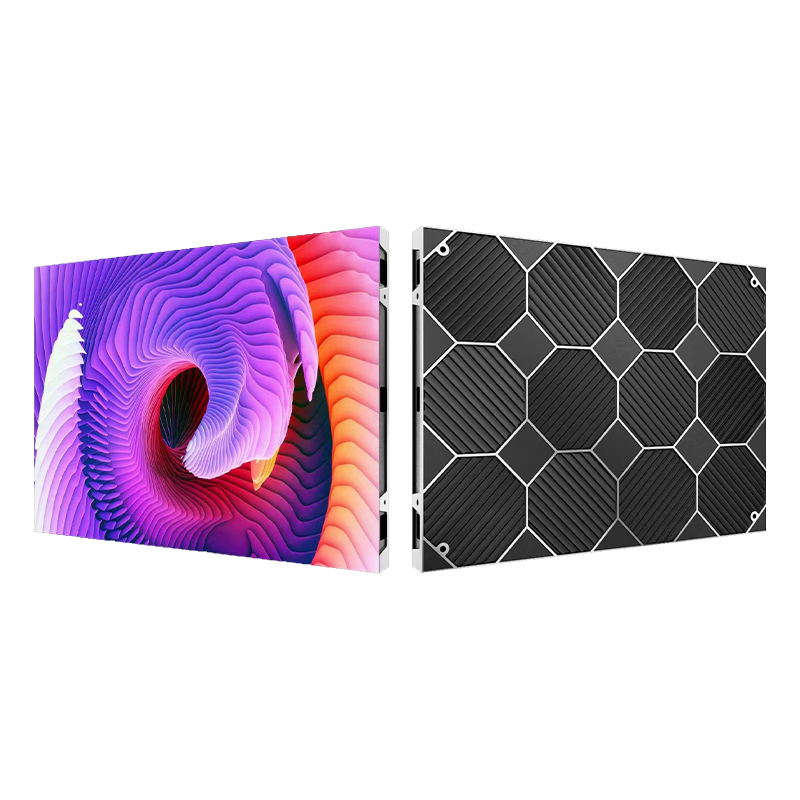

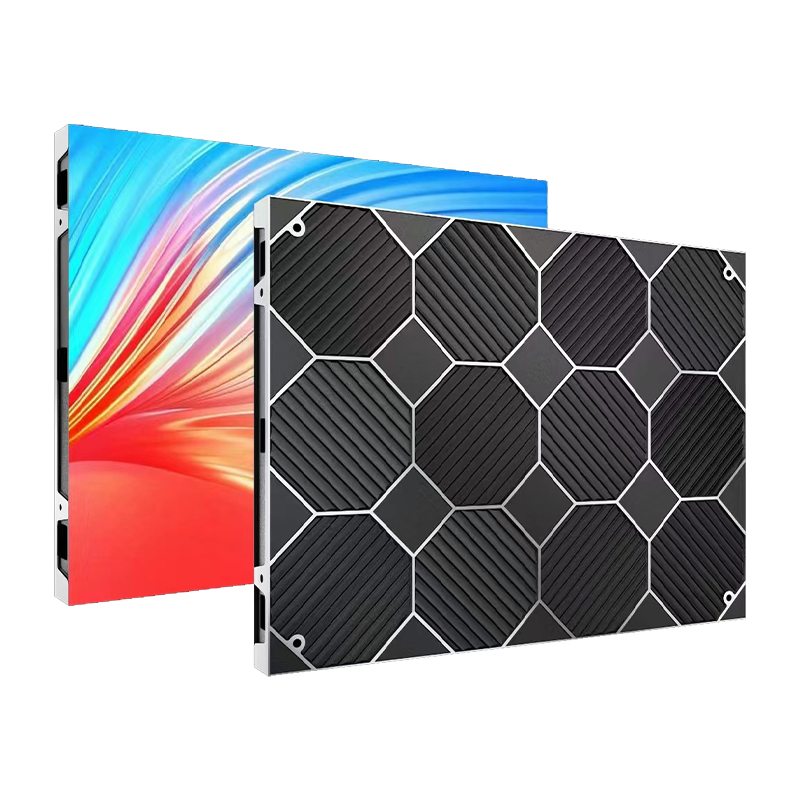

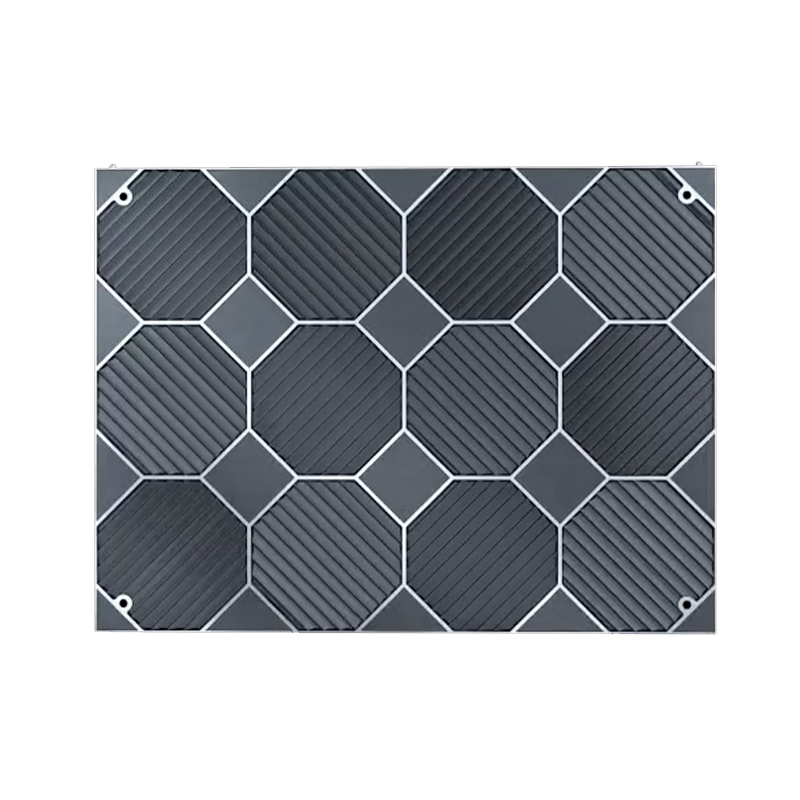

P1.53 640X480 Indoor Fixed Series LED Display for Control Center, Conference Room, Shopping Mall, Chain Store, Home Cinema

Customization: Available
Tube Chip Color: Full Color
IP Rating: IP32

Product Description

📋 Basic Info.
Model NO.
FI-I 640x480 S-P1.53 Indoor Fixed LED Display
Pixel Pitch
1.53 mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text
Average Power
200W/Sqm
Pixel Density
427186 Dots/Sqm
Scanning Mode
1/26 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC, ETL
Brightness
Over 500 Nits
Refresh Rate
1920Hz/3840Hz
Module Size
320mm*160mm
Cabinet Size
640mm*480mm
Life Span
100,000 Hrs
Warranty
1~2 Years
💡 Product Description

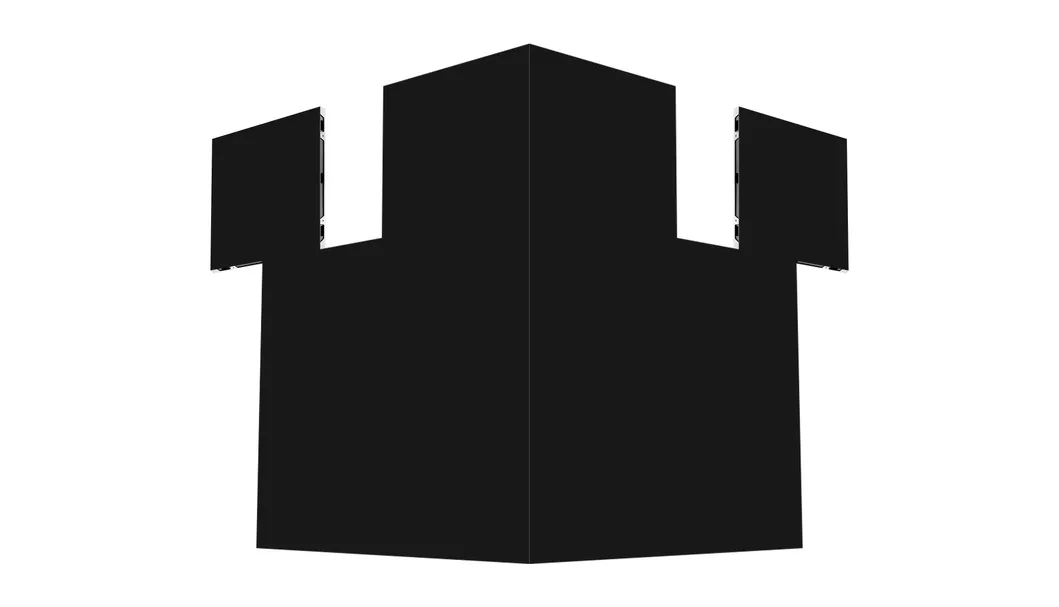

Our 640X480 indoor fixed installation LED Displays adopt magnetic suction design for front maintenance. The Die-Casting aluminum cabinet with fast lock allows for quick installation in only 5 seconds. Cabinets can be spliced at 90 degrees to meet various creative needs. These displays feature excellent heat dissipation, high brightness, low power consumption, and a sleek, ultra-thin profile. With wide viewing angles and high color reproduction, they provide a premium visual experience.

Perfect Visual Effect

The display features high brightness (up to 2000cd/m²), wide viewing angles exceeding 160 degrees, and seamless splicing for perfect flatness. It can also automatically adjust brightness based on ambient light for a more humanized experience.

Visual Effect
Lower Dead Light Rate and Higher Stability

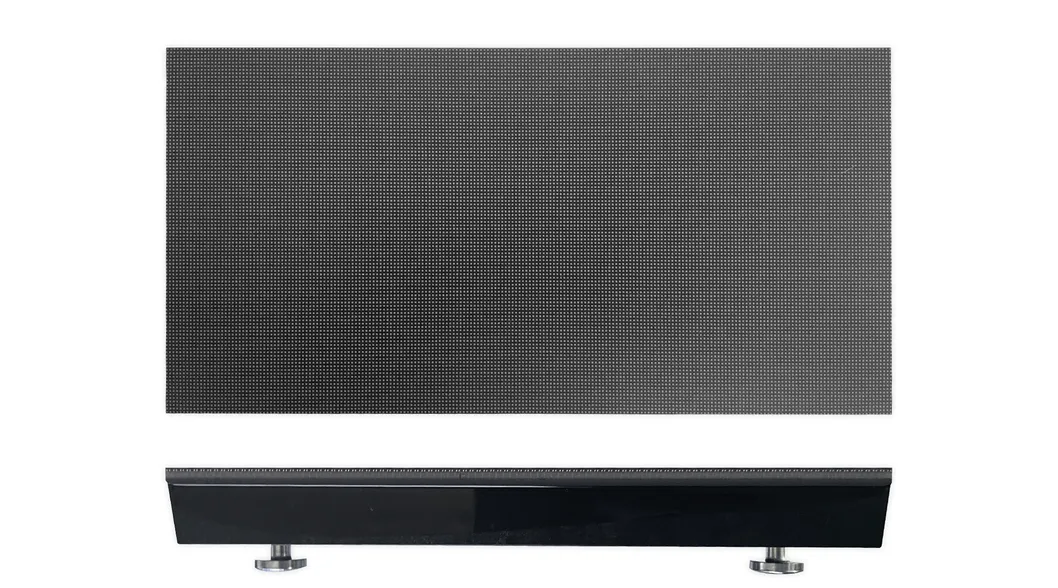

Utilizing advanced packaging methods such as COB and high-quality SMD components with protective coatings, the stability of the lamp beads is greatly enhanced, significantly reducing the dead light rate.

Stability
Superior Functions & Multiple Installation

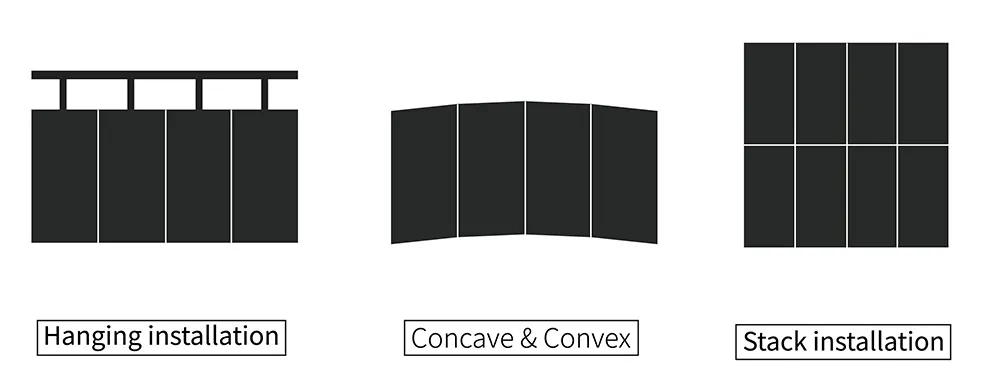

Lightweight Die-Casting cabinets support wall-mounted, frame, and hanging installations. The magnetic front service design makes operation and maintenance extremely efficient.

Functions
Installation
🛠️ Hardware Features
  • Connecting plug-in without arrangement to improve stability and facilitate maintenance.
  • Unit structure adopts new cast aluminum shell: lightweight, high precision, fast heat dissipation.

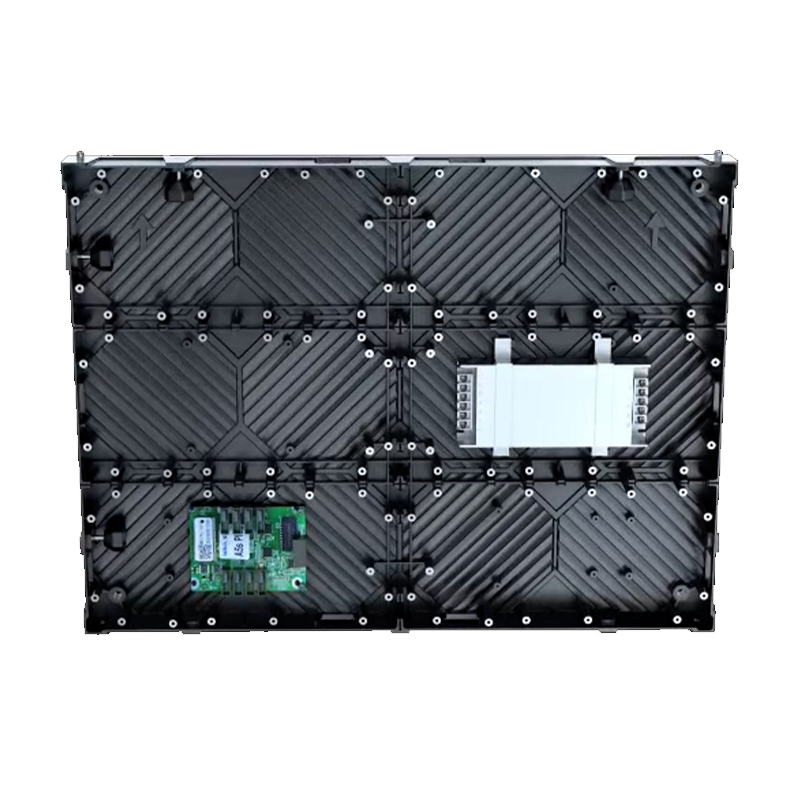

  • Point-to-point module design for both front and back maintenance.
  • Modular design for HD led video walls, easy for installation and field maintenance.
  • Seamless connection with precise modules for a smooth viewing experience.
Applications

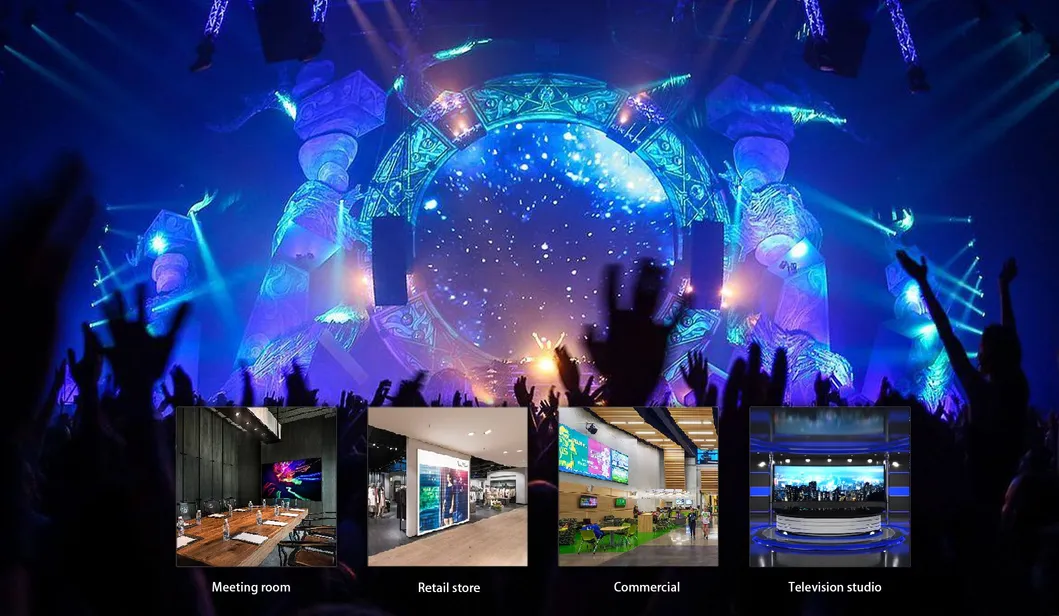

Extremely Thin 4K LED displays are ideal for: Meeting rooms, TV studios, Exhibition centers, Shopping malls, and Airports.

Applications
⚠️ Attention:

We recommend purchasing enough LED display modules for spare replacement at once. Modules from different batches may have slight color differences due to production variations.

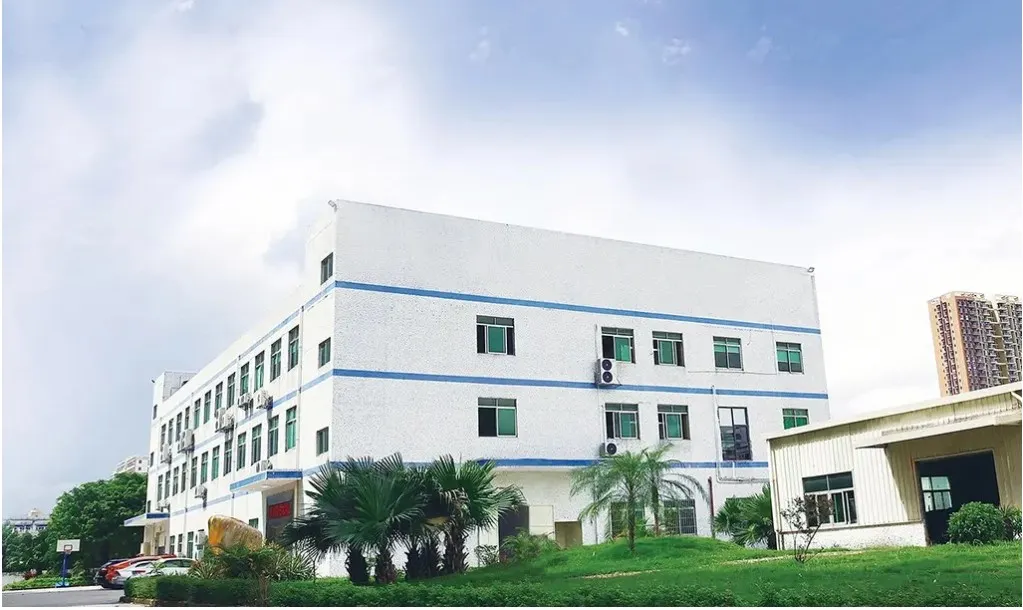

Process
Production
Distribution
Frequently Asked Questions
Q1. Can I have a sample order for the LED Screen?
Yes, we welcome sample orders to test and check quality for both LED modules and whole screens.
Q2. What is the typical lead time for production?
The lead time is approximately 7 to 10 working days.
Q3. Is there a minimum order quantity (MOQ)?
We offer a low MOQ; even 1 square meter or a single module for checking is available.
Q4. How are the goods shipped and how long does it take to arrive?
Shipping by sea usually takes 20 to 30 days plus time for customs clearance. We can assist in arranging shipping agents.
Q5. Do you offer a guarantee for the products?
Yes, we offer a 2-year warranty on our products. Our defective rate is strictly controlled to less than 0.2%.
