| Model Name | A2.6-5.2 | A3.9-7.8 | A7.8-7.8 | A10-10 |
|---|---|---|---|---|
| Pixel Pitch(W*H) | 2.604-5.208mm | 3.91-7.81mm | 7.8125-7.8125mm | 10.42-10.42mm |
| Pixel Density/sqm | 73,728 dots | 32,768 dots | 16,384 dots | 9216 dots |
| LED Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Panel Dimension | 1000*500*75mm | 1000*500*75mm | 1000*500*75mm | 1000*500*75mm |

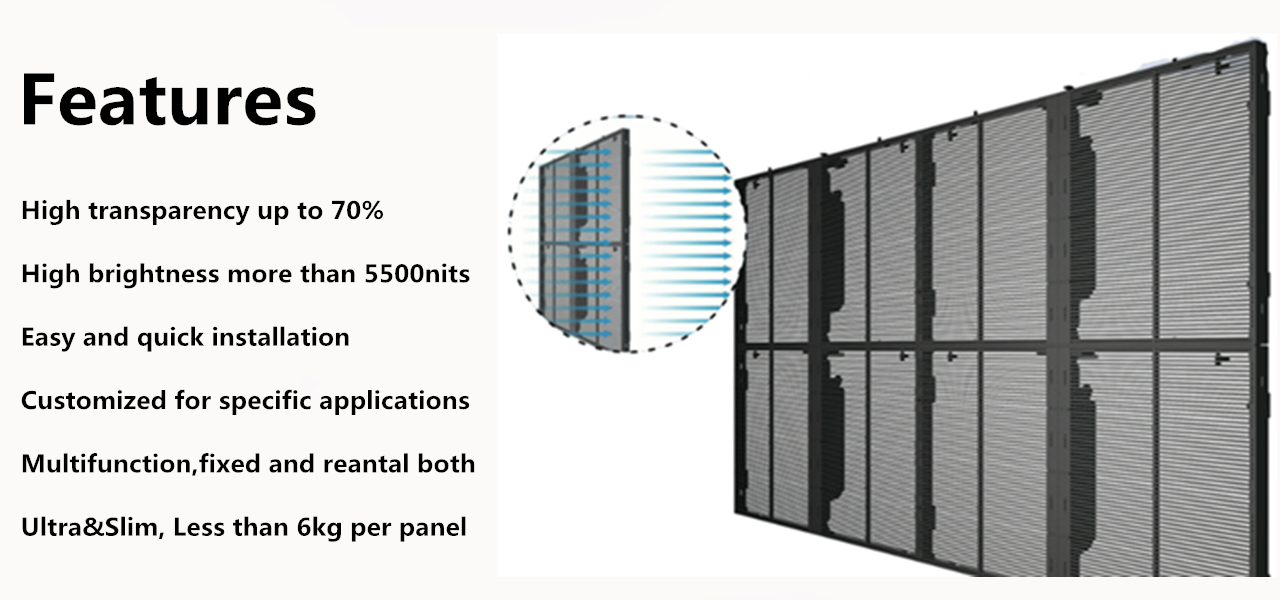

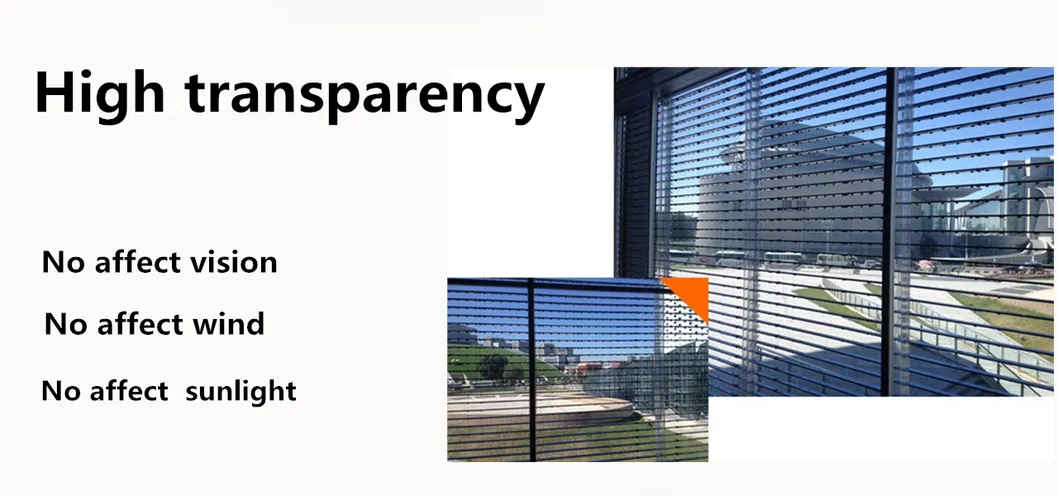

| Transparent rate | 62% | 70% | 70% | 75% |
| Power (Ave/Max) | 184/480W | 184/480W | 184/480W | 114/380W |
| Refresh Rate | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
| Brightness (cd/sqm) | ≥ 1200/5000 | ≥ 1200/5500 | ≥ 5500 | ≥ 5500 |

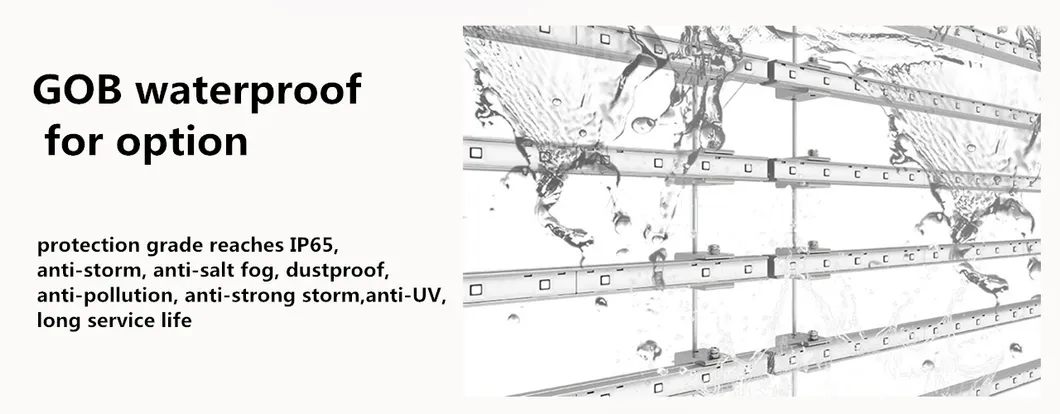

| IP Rating | IP22 | |||
| Material | Aluminum | |||
1. Modules are packed in high-quality cartons.
2. Fixed installation cabinets are secured in wooden cases.
3. Rental series cabinets are packed in professional flight cases.
Inner Protection: Bubble wrap is used to prevent scratches and pressure damage.
• Express: Flexible and fast for urgent small orders.
• Sea Transport: Large capacity and cost-effective for bulk orders.
• Air Transport: High speed and smooth handling for sensitive cargo.
