Common negative technology effectively solves high temperature and power consumption issues. The average temperature is 14.6ºC lower than traditional circuits, reducing power consumption by over 20%.
Includes dynamic energy saving, black screen energy saving (6mA to 0.6mA), full-screen standby saving (6mA to 0.5mA), and shunt power supply step-down technology to minimize conduction internal resistance.
With a refresh rate up to 3840Hz and 16-bit grayscale, the display is realistic and delicate. Wide viewing angles reach over 140° with excellent consistency.

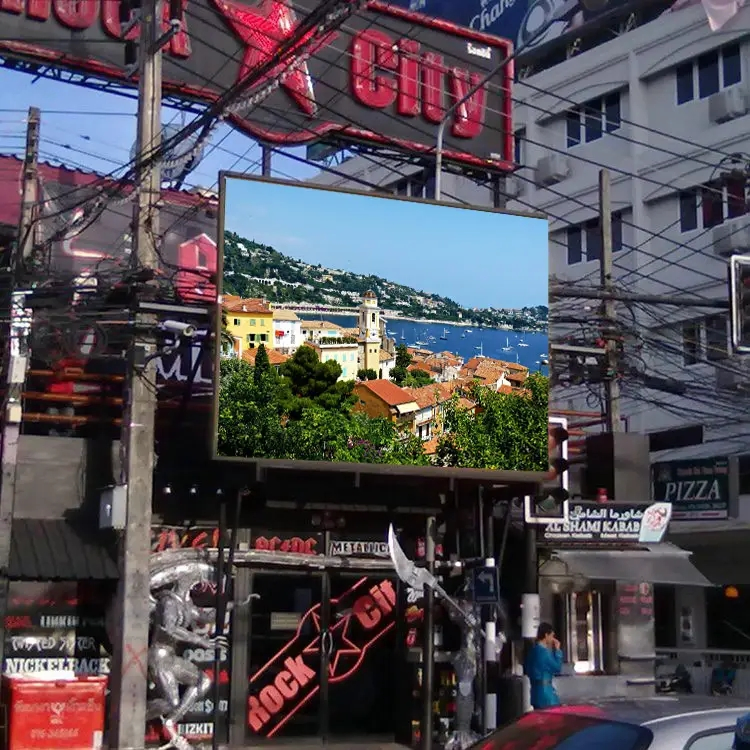

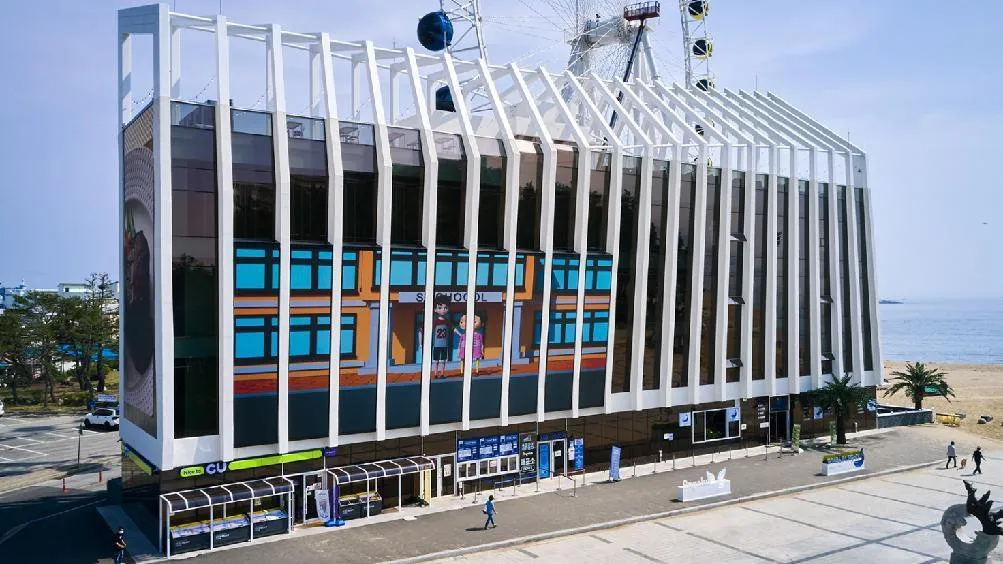

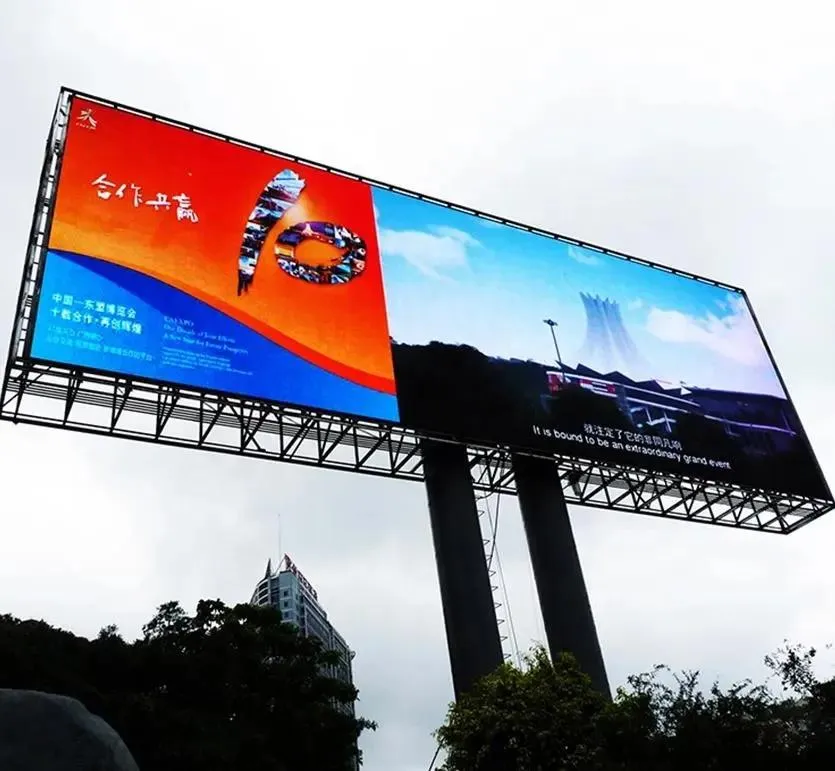

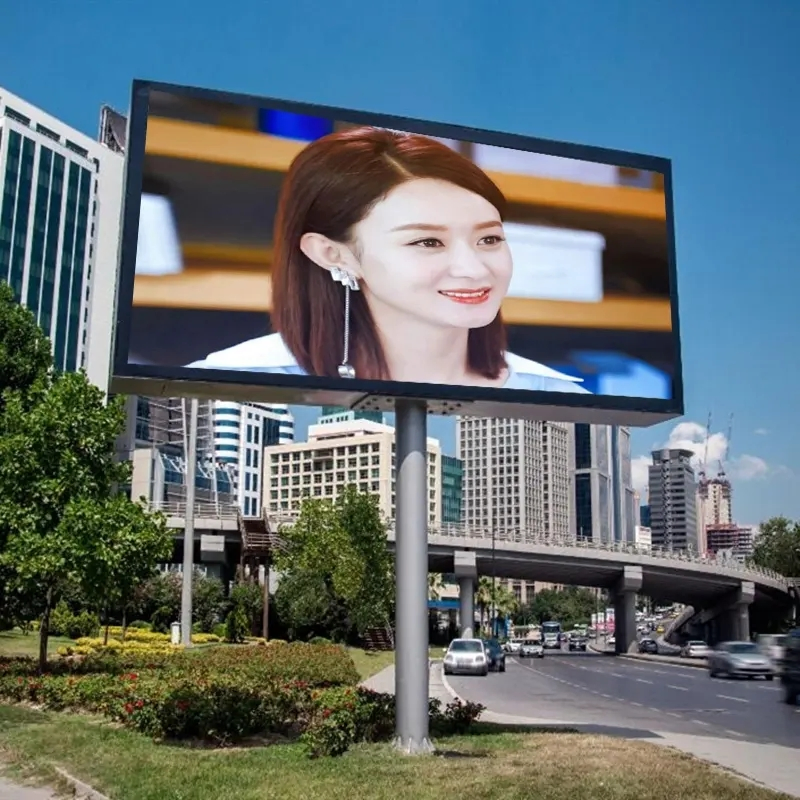

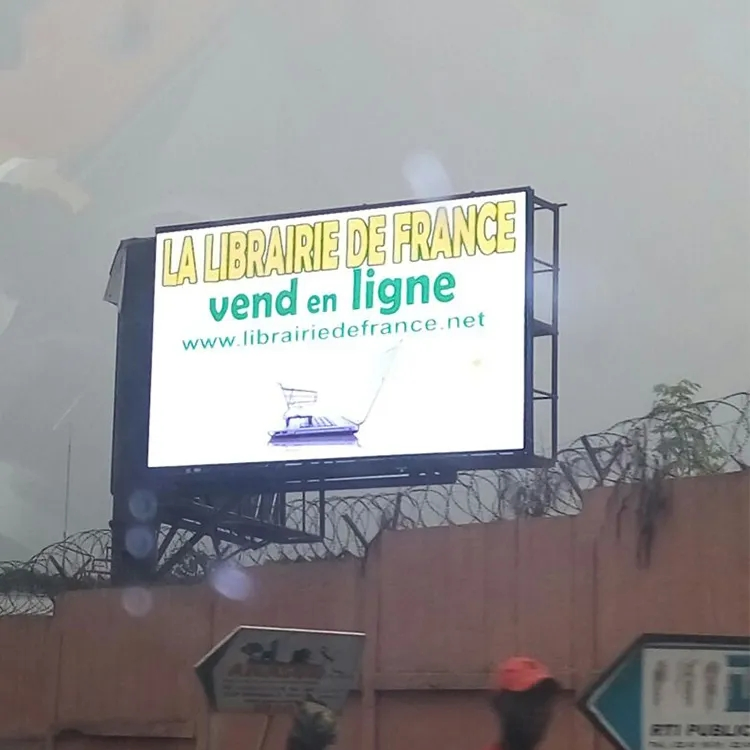

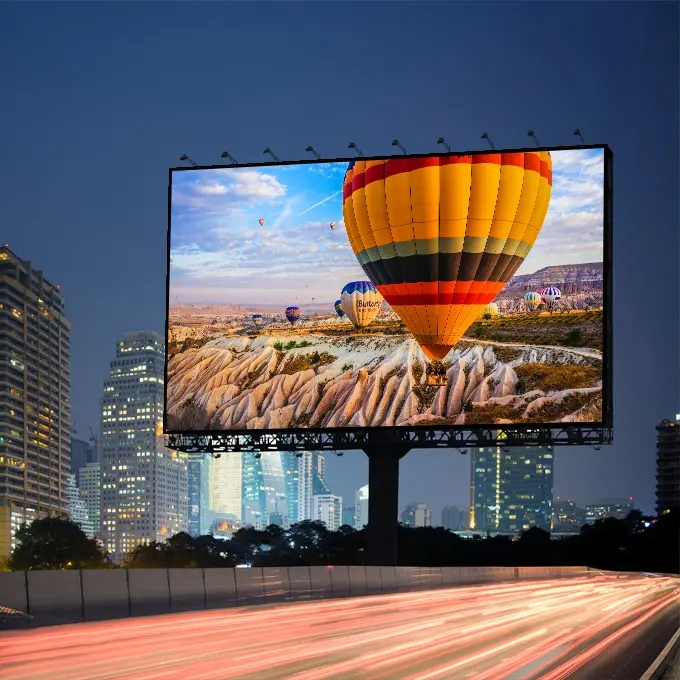

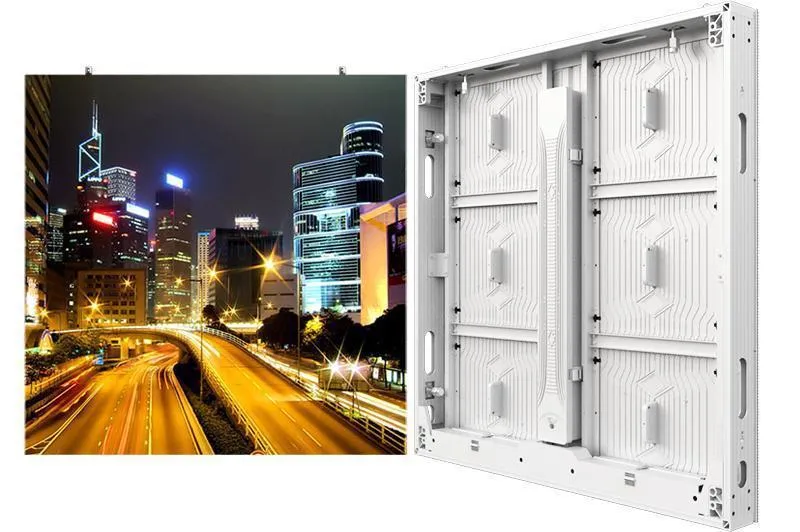

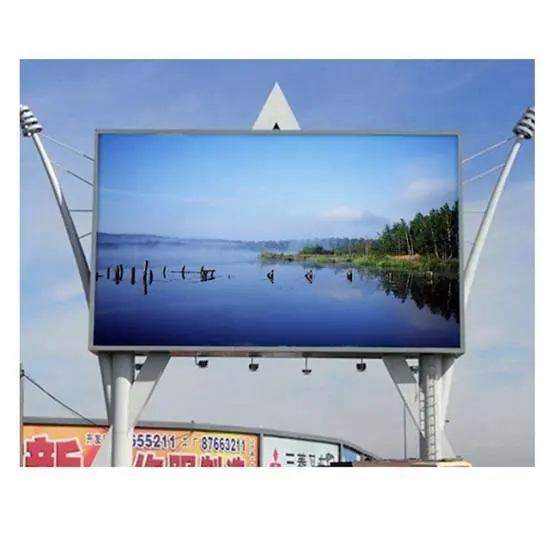

Supports floor, hanging, and wall mounting. Modular design allows for front and rear maintenance with hard connections, saving structural costs.
IP66 protection grade with an all-aluminum design. Corrosion-resistant, flame retardant, and moisture-resistant, operating reliably between -40ºC and 80ºC.
| Parameter Name | P4.4 | P5.7 | P6.6 | P10 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 4.4mm | 5.7mm | 6.67mm | 10mm |

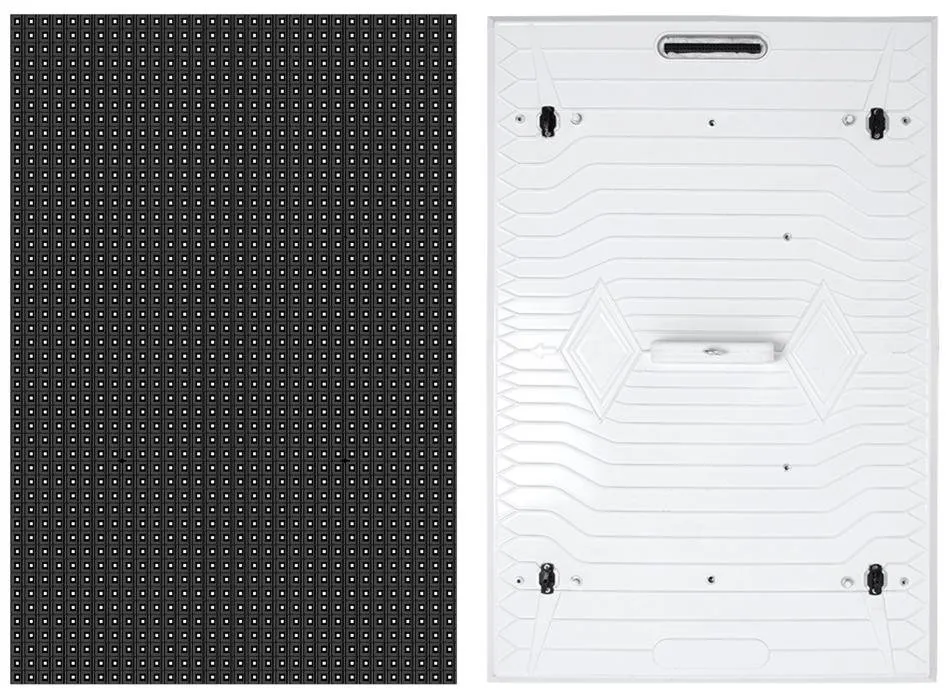

| Module Size (mm) | 480*320*15 | 480*320*15 | 480*320*17 | 480*320*17 |

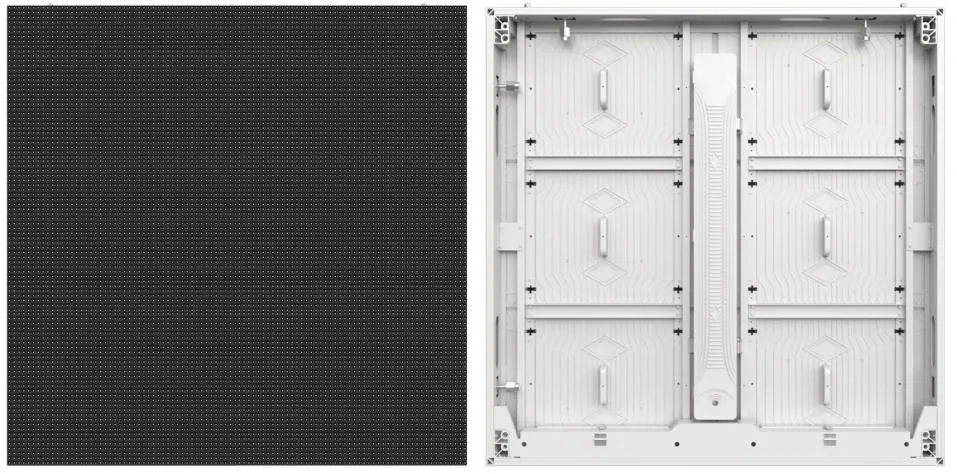

| Cabinet Size (mm) | 960*960*90 | 960*960*90 | 960*960*92 | 960*960*92 |
| IP Rating | IP66 | |||
| Brightness (cd/m²) | 5000 | 5500 | 7500 | 7500 |
| Refresh Frequency (Hz) | 3840 | |||
| Gray Scale | 16bit (65536 levels) | |||
| Maintenance | Front / Rear Maintenance | |||
