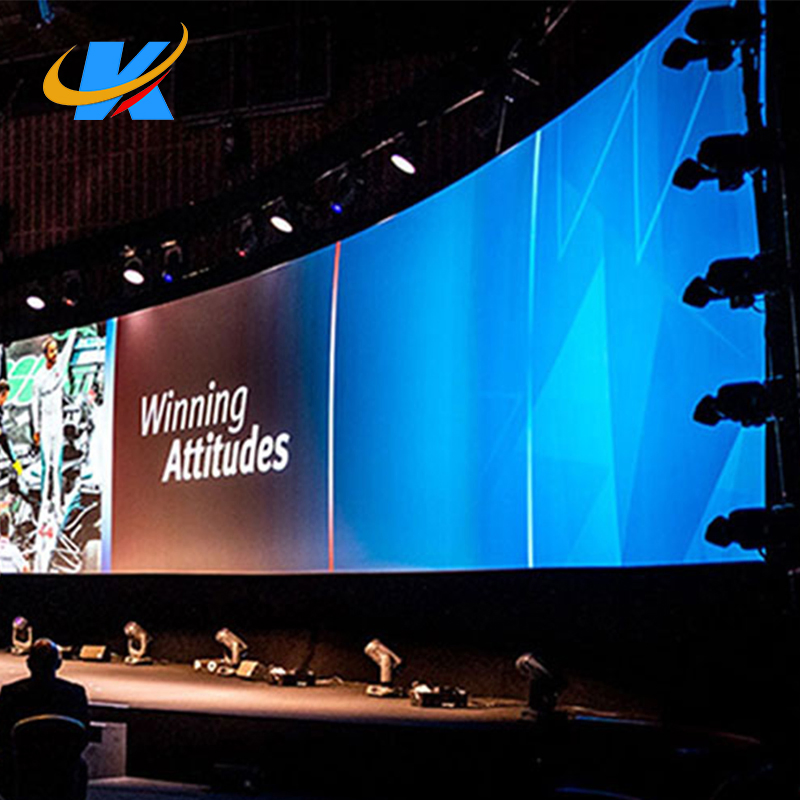

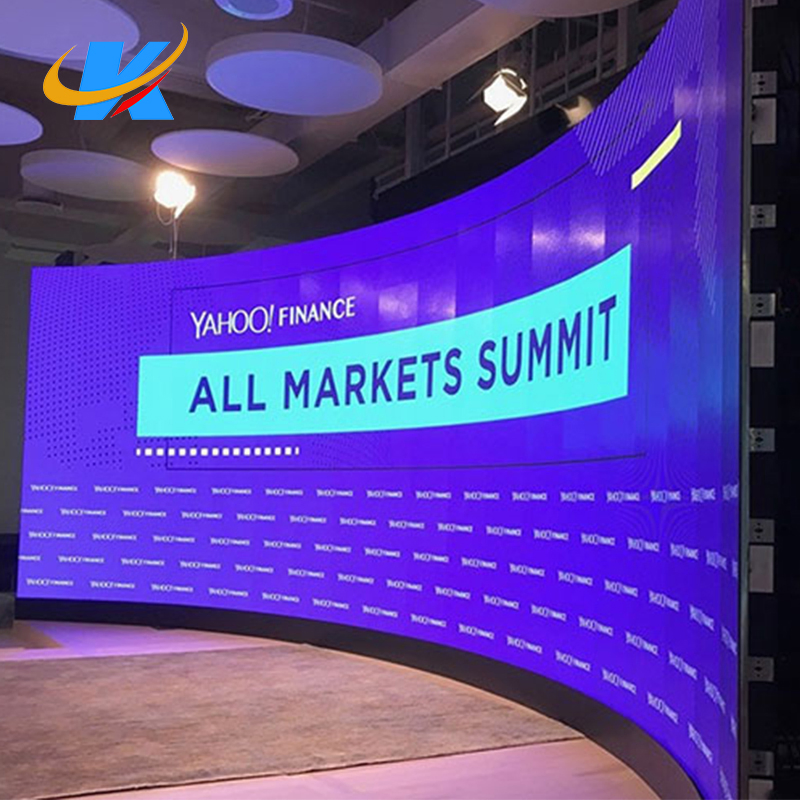

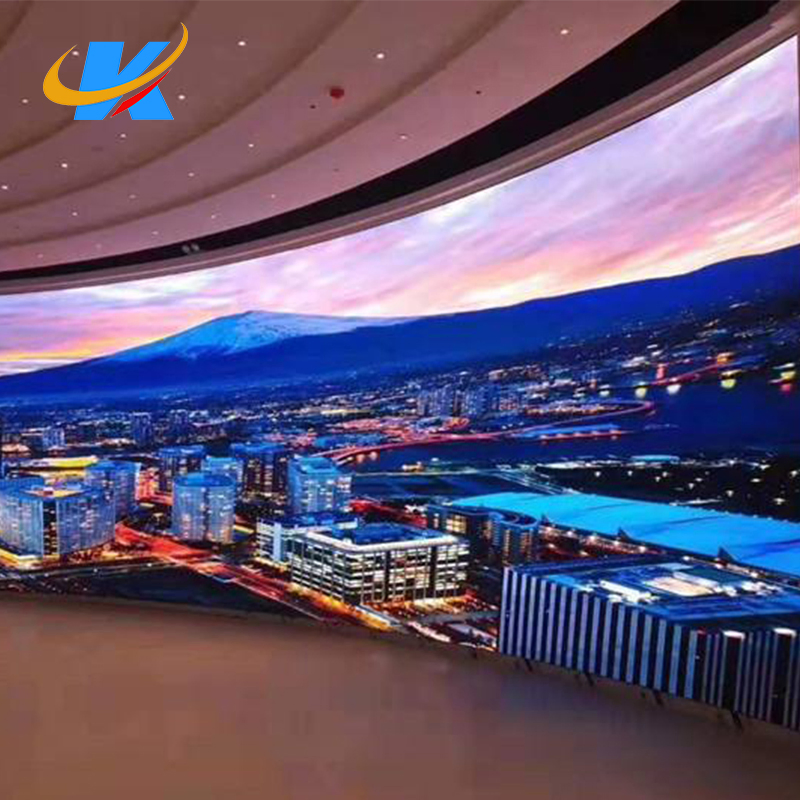

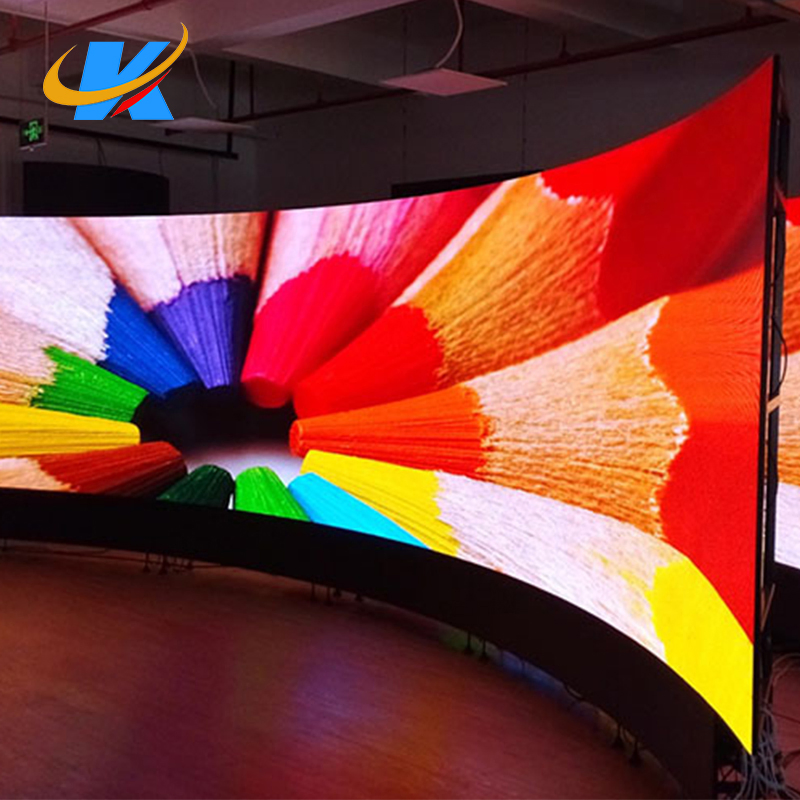

Large P1.25 P1.5 P1.86 Indoor Control Live News Room Flexible LED Display

1 / 5

Large P1.25 P1.5 P1.86 Indoor Control Live News Room Flexible LED Display

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

P1.53

Pixel Pitch

1.538mm

Pixel Configuration

1R,1G,1B

Pixel Density

422753 Dots/Sqm

Scanning Mode

1/52 Scan

Display Type

LED Video Display

Application

Advertising, Shopping Guide

IP Rating

IP40

Certification

CE, RoHS, CCC

Module Size

320*160mm

Lamp Type

SMD1212

Cabinet Material

Die-Casting Aluminum

Cabinet Weight

8kg/Unit

Refresh Rate

3840Hz or 7680Hz

Brightness

700-800nits

Maintenance Way

Front

Grey Level

12-16bits

HS Code

8528591090

Indoor Control Live News Room Flexible LED Display

Technical Specifications

Item	P1.25	P1.53	P1.86	P2	P2.5
Pixel Pitch	1.25mm	1.538mm	1.86mm	2mm	2.5mm
Module Size	320*160mm
Module Resolution	256*128	208*104	172*96	160*80	128*64
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020
Driving Method	1/60 Scan	1/52 Scan	1/43 Scan	1/40 Scan	1/32 Scan
Refresh Rate	Over 3840Hz or 7680Hz
Life Time	over 100,000 Hours

Product Highlights

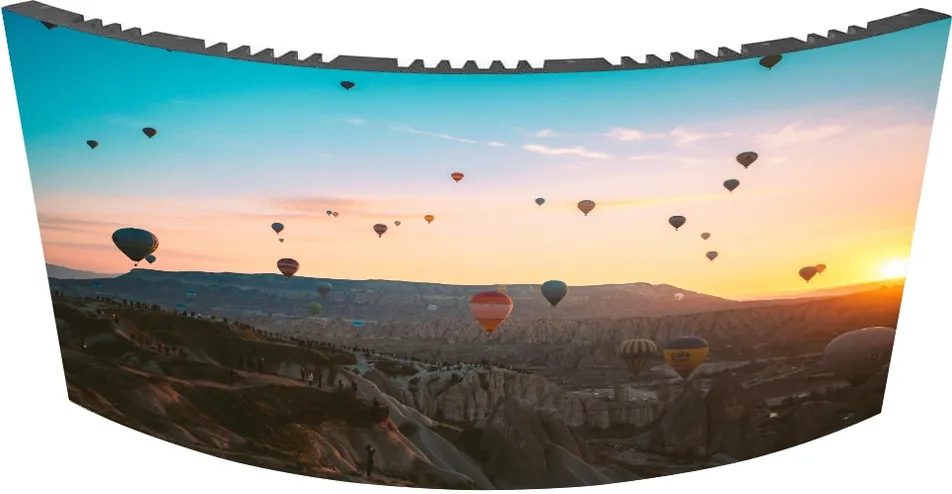

Flexible LED Module

320*160mm or 256*128mm Standard Size
Highly bendable and flexible for creative shapes
Magnets on the backside for easy iron cabinet fixation

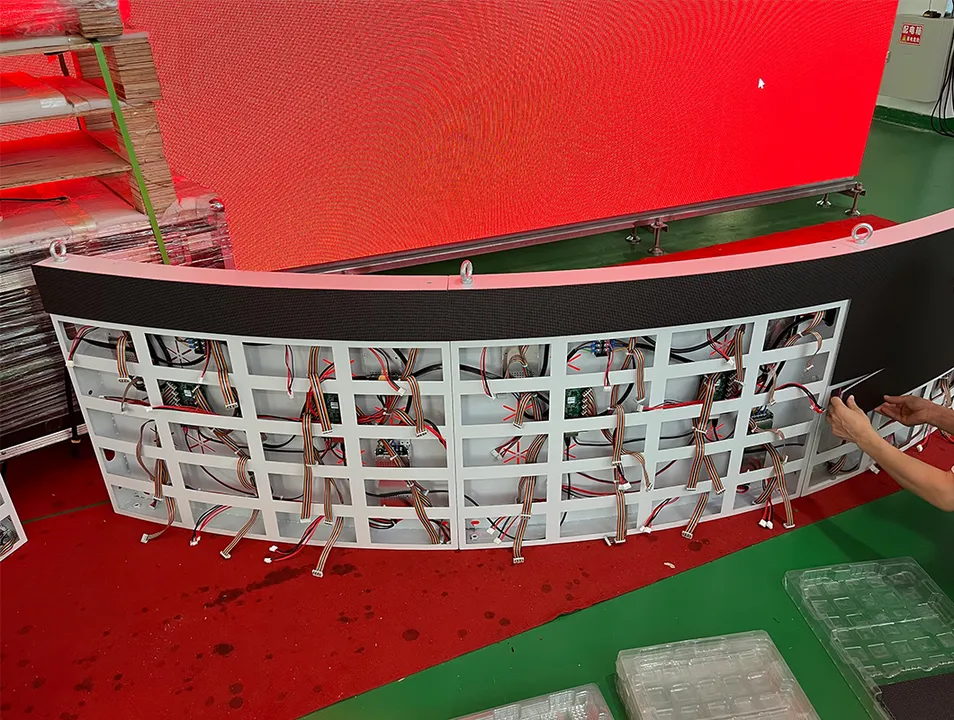

Front Maintenance System

Easy to install and replace modules quickly
Precision module position fine-tuning
Space-saving design; no rear maintenance channel required

Versatile Applications

Flexible display screens are ideal for customizing various shapes such as ribbons, cylinders, arcs, and waves.

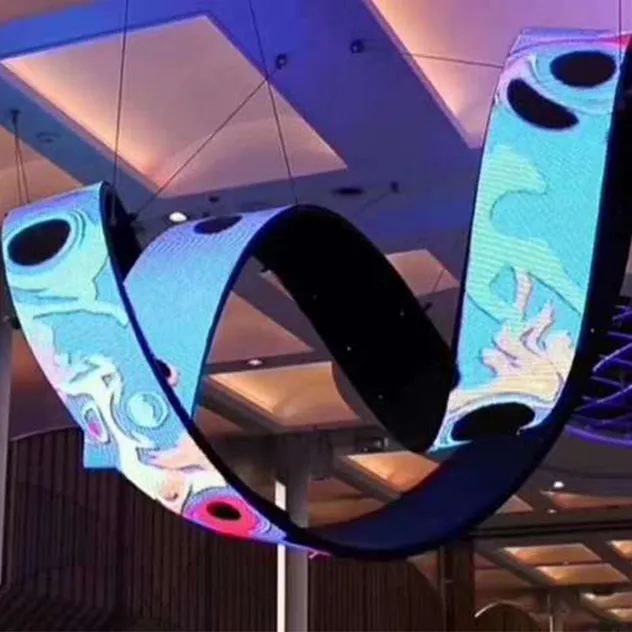

Hall

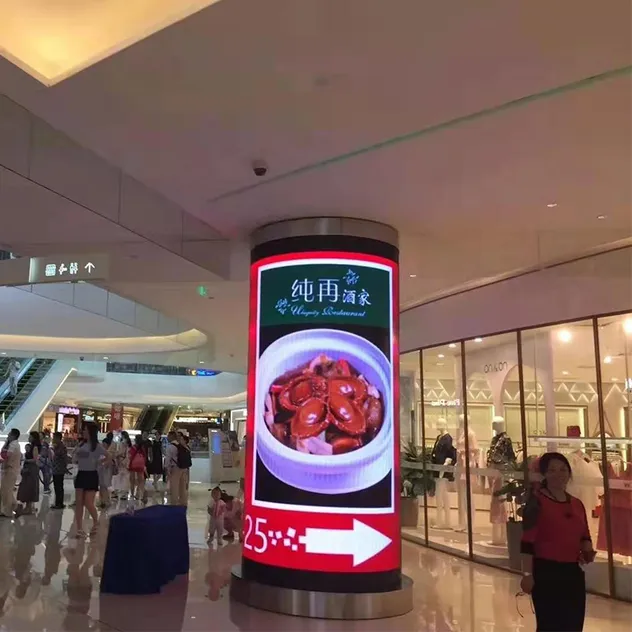

Shopping Mall

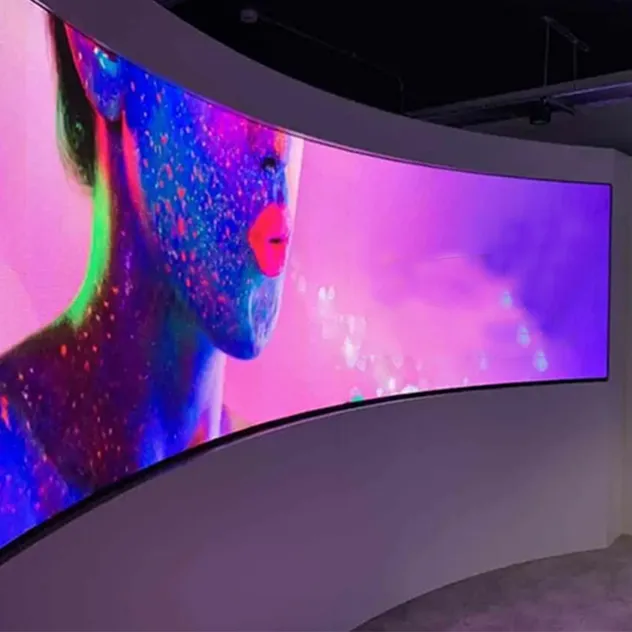

Exhibition

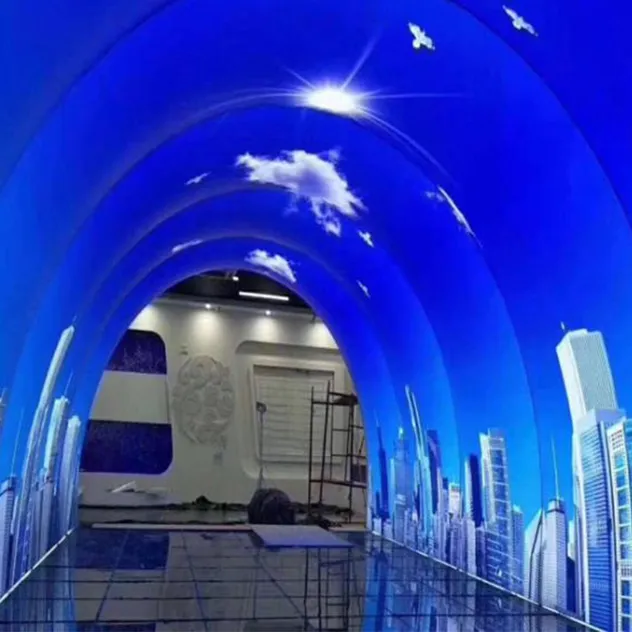

Pedestrian Passage

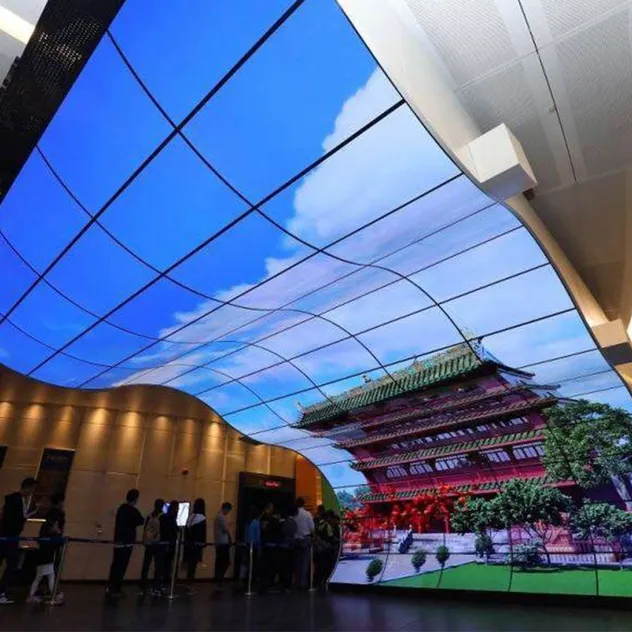

Ceiling

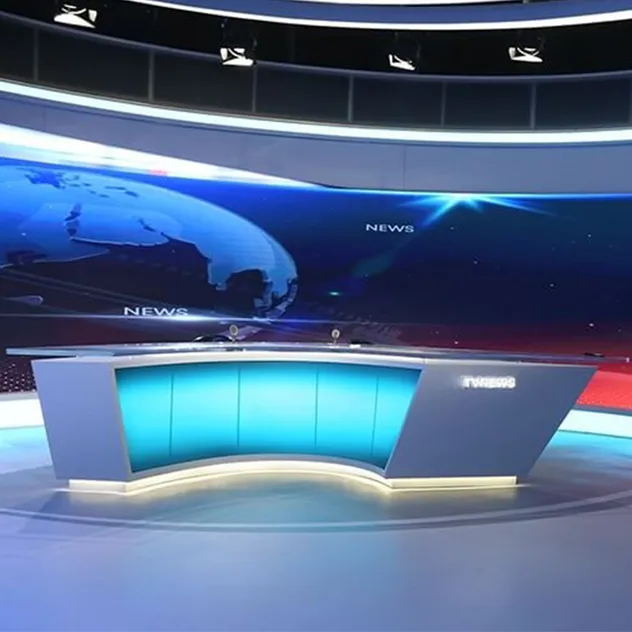

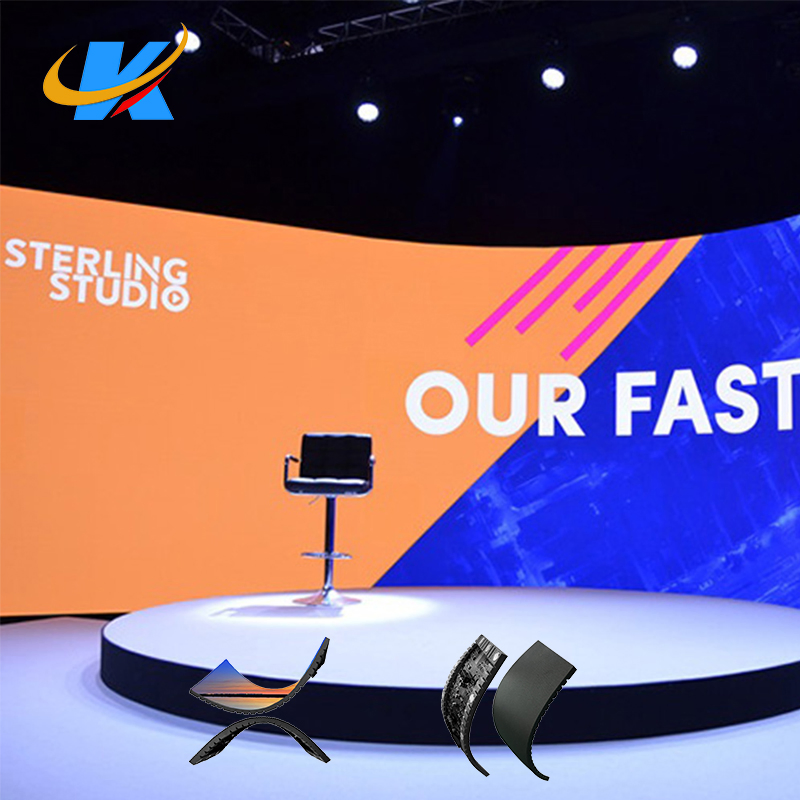

News Room Background

Packing & Delivery

Packed in robust wooden boxes suitable for international transit.
Internal desiccant placement to prevent moisture.
Optional separate packing for modules and cabinets to minimize collision.
Flexible shipping via air or sea based on your timeline and budget.

Certifications & Quality

Global Exhibitions

Frequently Asked Questions

What control system do you use for the LED screens?

We primarily use the Novastar control system, which is a world-renowned brand known for its stability and high-quality performance. Other systems like Colorlight and Huidu are also available upon request.

Do you offer OEM or ODM customization services?

Yes, we provide full OEM and ODM services. We can customize the shape, size, and technical specifications of the LED displays to meet your specific project requirements.

How long is the typical lead time and delivery?

Production generally takes 20-22 days. Total time, including international shipping, usually ranges from 2-3 months depending on the destination and chosen shipping method (air or sea).

How is the installation of the LED screen handled?

We provide detailed technical drawings and step-by-step instructions. Additionally, we offer remote online guidance during the installation and commissioning phases to resolve any issues.

Are spare parts included with the order?

Yes, we provide a free set of essential spare parts with every order, including modules, power cables, signal cables, LED lamps, ICs, masks, power supplies, and receiving cards.

What are the main advantages of your flexible LED modules?

Our modules are highly bendable, allowing for creative curved, cylindrical, and wave-shaped designs. They feature magnetic front-maintenance systems for easy installation in tight spaces.
