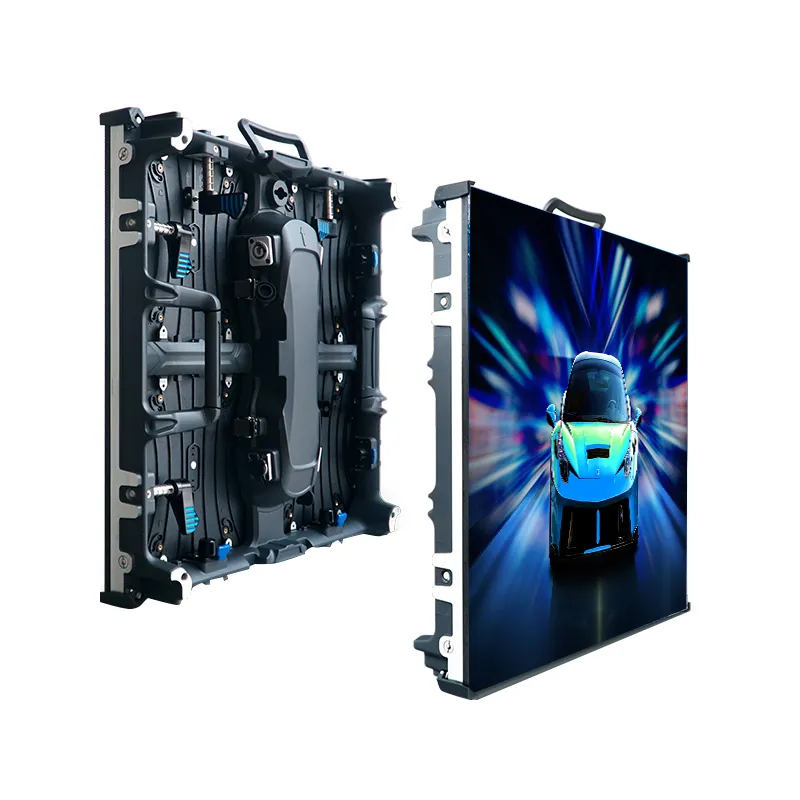

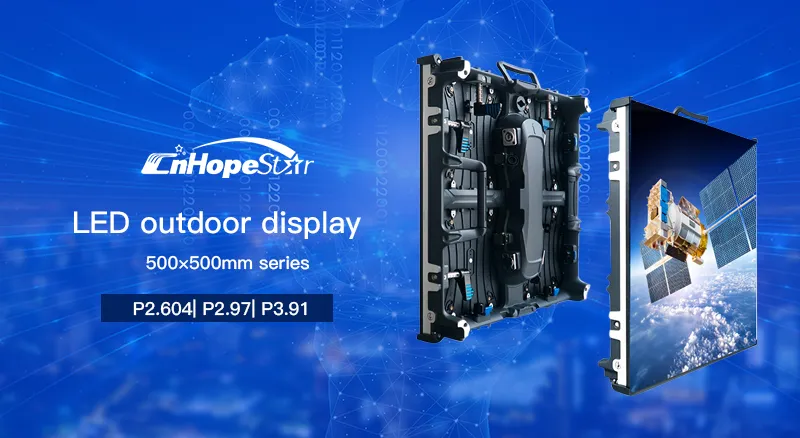

Description of outdoor led screen display: LED outdoor display is an outdoor surface-mount LED high-definition display. The module kit adopts a customized 45-degree tilt angle design, which can be spliced at right angles and arcs to enhance the visual effect.

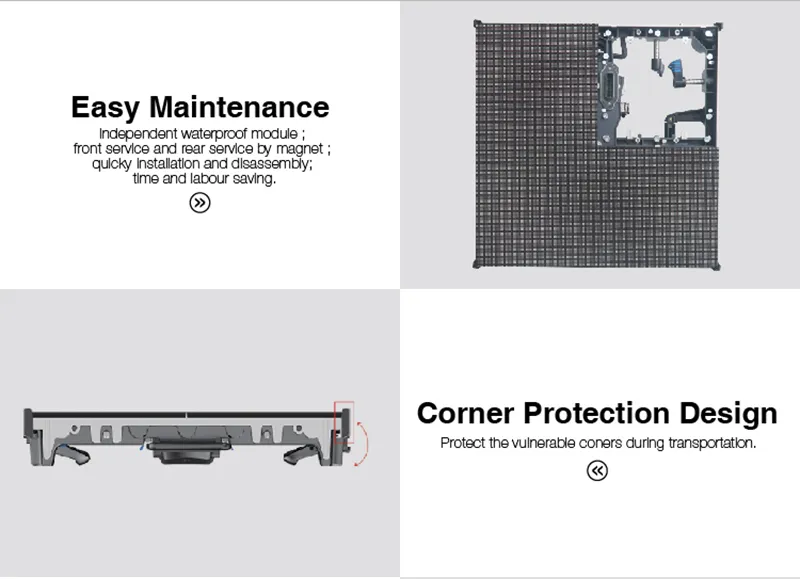

Independent waterproof module; front service and rear service by magnet; quick installation and disassembly; time and labour saving.
Protect the vulnerable corners during transportation and handling.

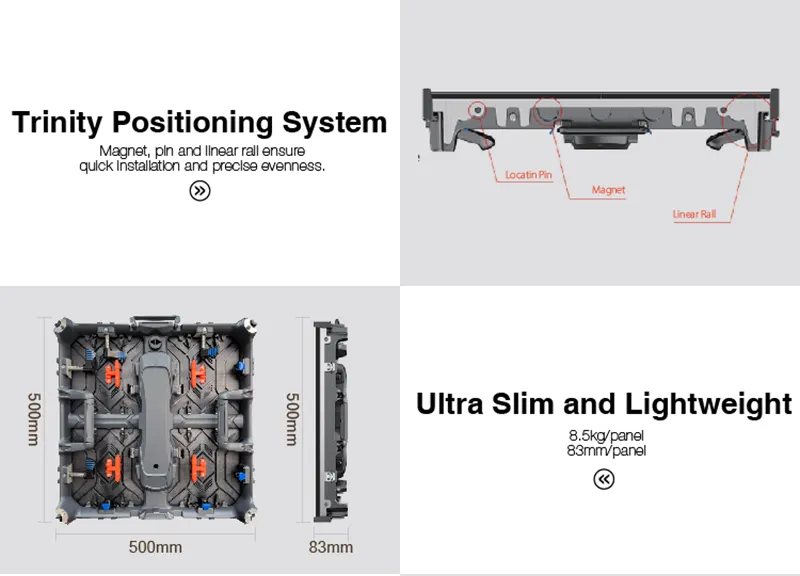

Magnet, pin and linear rail ensure quick installation and precise evenness.

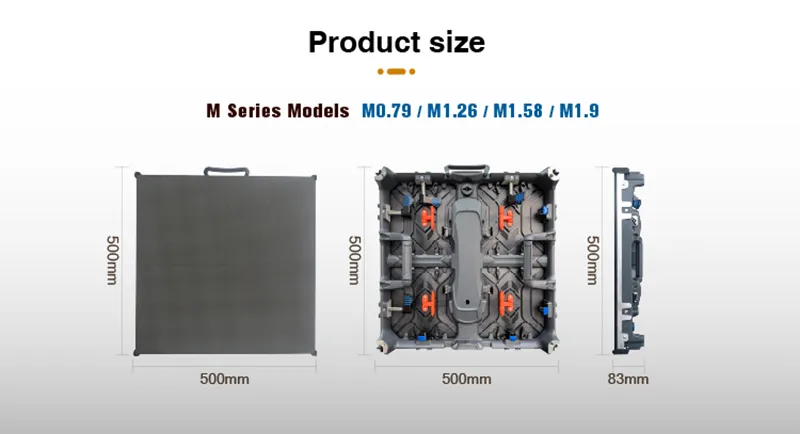

Only 8.5kg per panel with an 83mm ultra-slim profile.

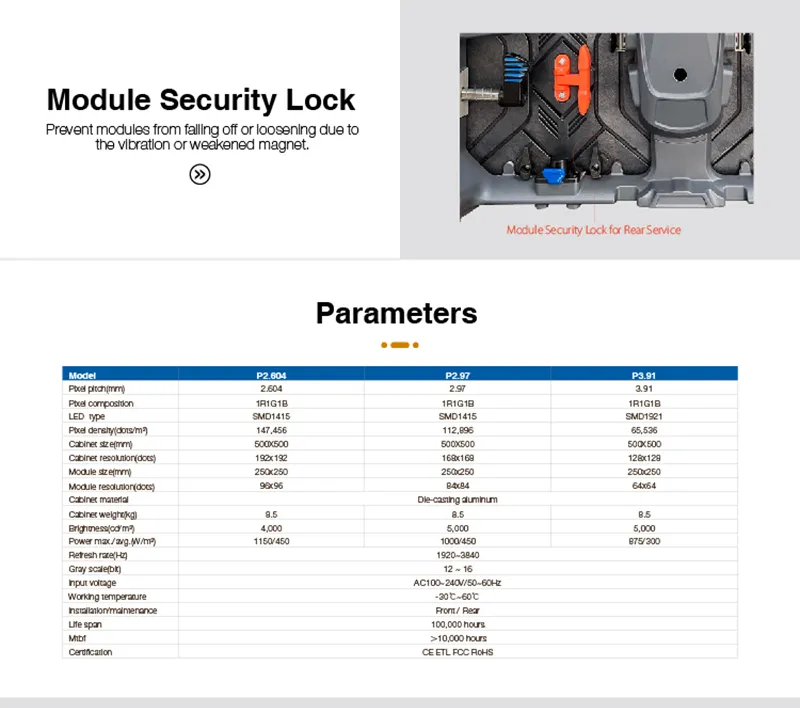

Prevent modules from falling off or loosening due to vibration or weakened magnets.

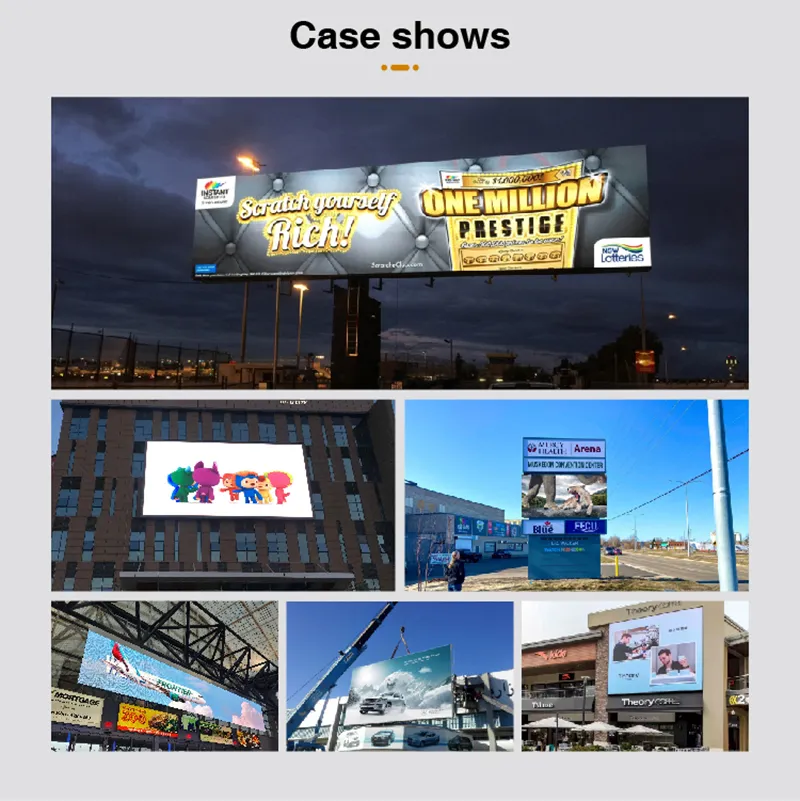

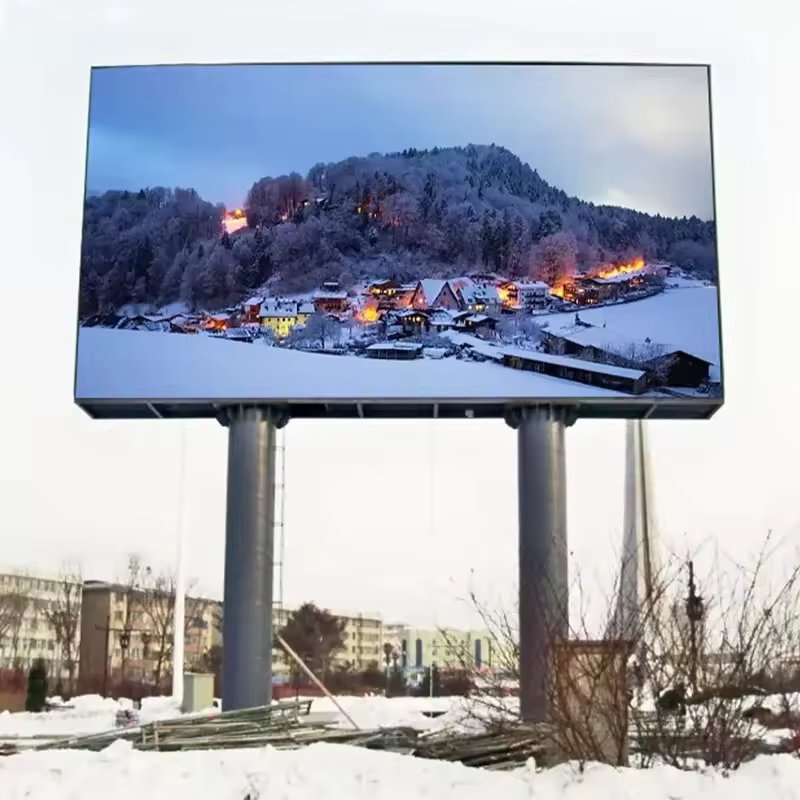

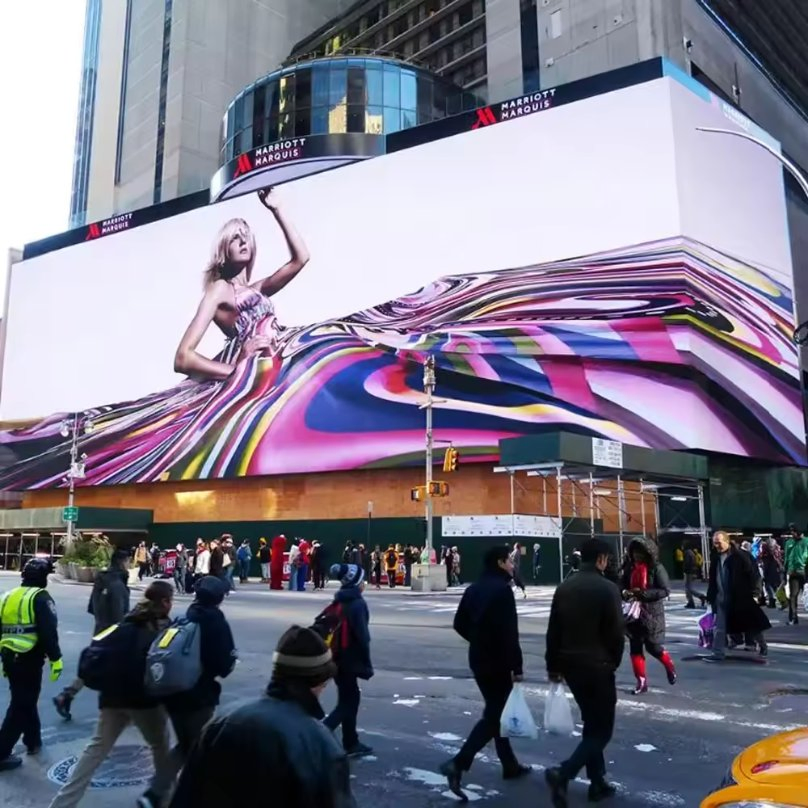

Application: Widely used in outdoor plazas, buildings, airports, railway stations, bus stations, high-speed rail stations, road traffic, and more.
| Series | HRKOSD-P2.97 | HRKOSD-P3.91 |
| Pixel pitch (mm) | 2.97 | 3.91 |
| Pixel density (dots/m²) | 112,896 | 65,536 |
| Cabinet size (mm) | 500*500 | 500*500 |
| Cabinet resolution | 168*168 | 128*128 |
| Cabinet weight (kg) | 8.5 | 8.5 |
| Screen brightness (cd/m²) | 5000 | 5000 |
| Refresh rate (Hz) | 1920-3840 | 1920-3840 |
| Input voltage | AC100-240V/50-60Hz | |
