Basic Information
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text, Market Display
Avg Power Consumption
250W/M2
Pixel Density
10000 dot / m²
Display Type
LED Video Display
Application
Advertising / Sports Stadium
Product Description

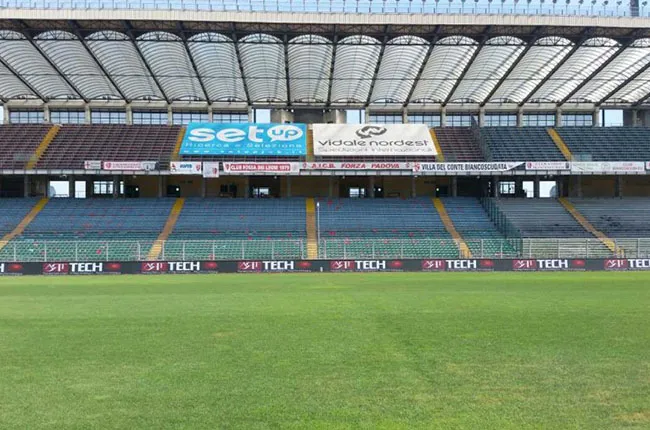

Advanced LED Solutions for Sports Stadiums:

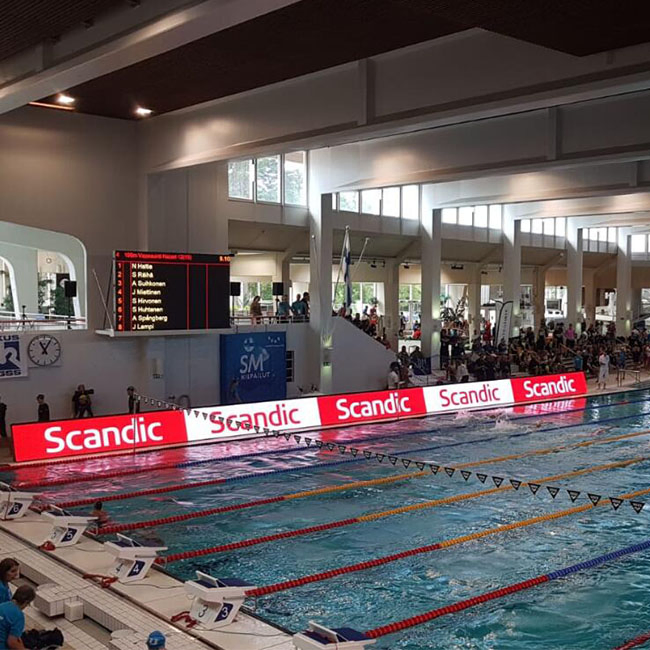

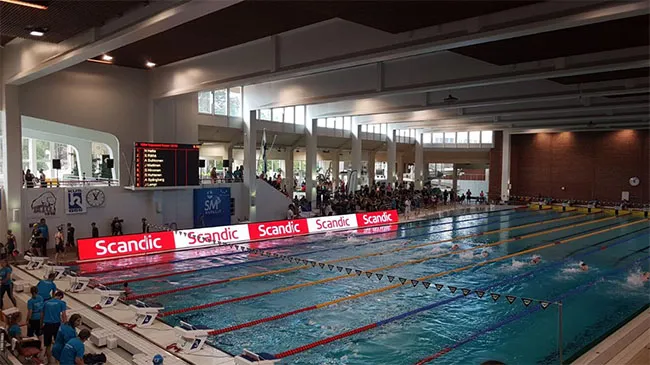

- Ideal for football stadiums, basketball courts, hockey areas, and swimming pools.

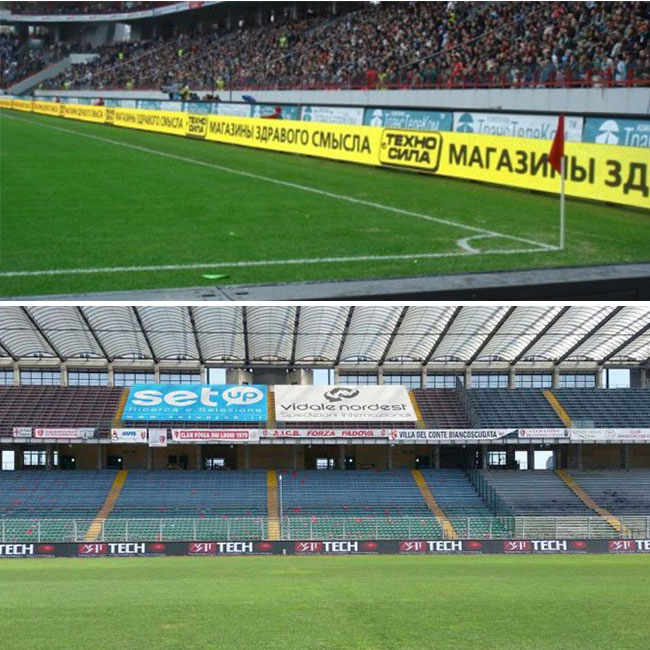

- Highly popular solution for stadium perimeter advertising.

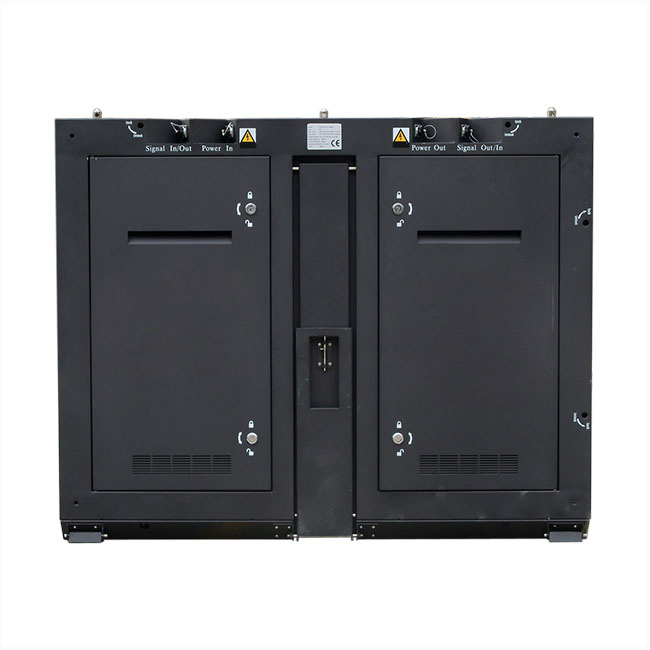

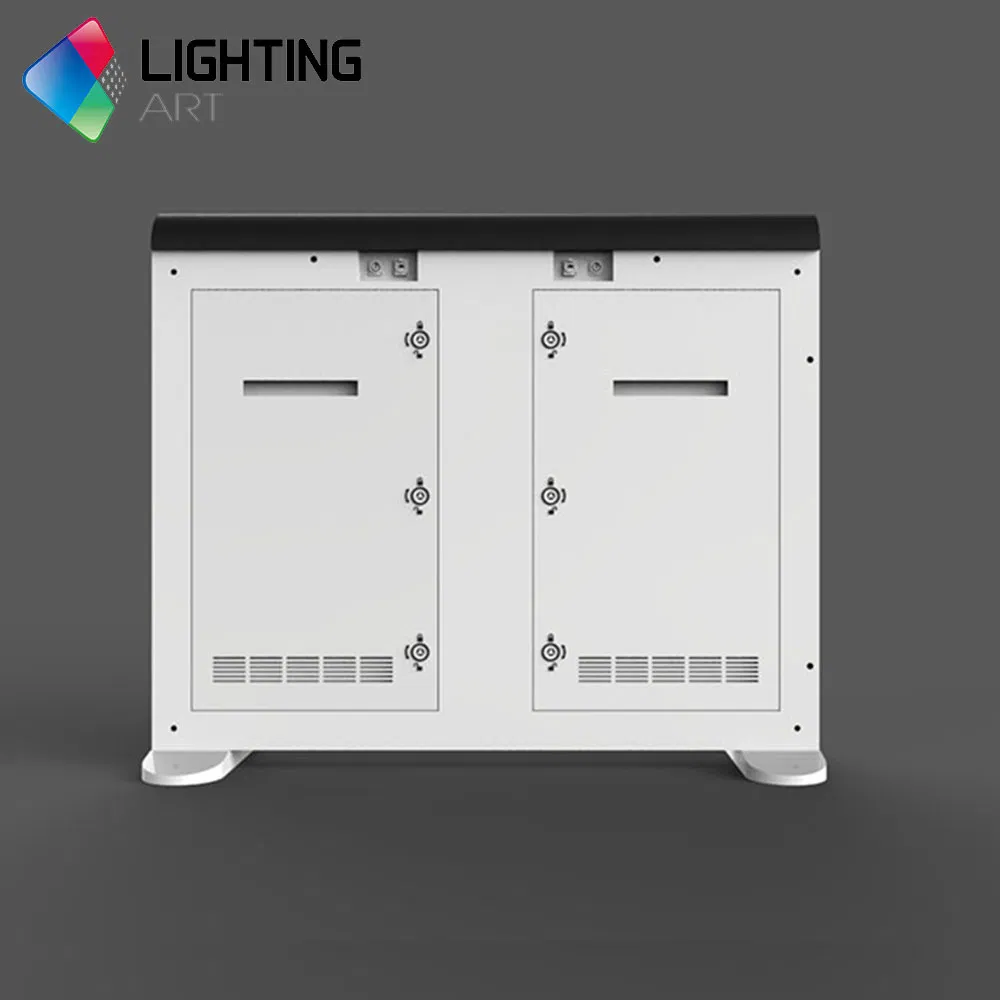

- Cost-effective aluminum cabinet construction.

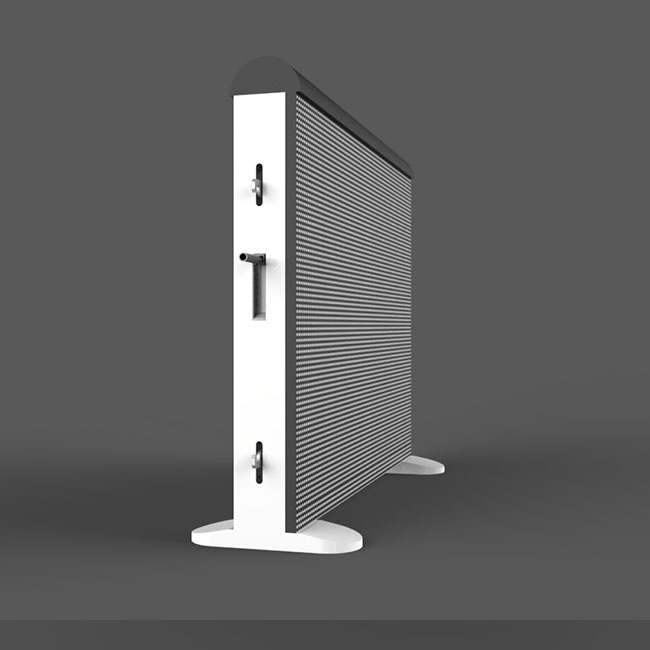

- Safety-first design: Soft top cover and soft mask to protect athletes from impact.
- Flexible viewing: Supports angle adjustments from 0-15 degrees.
Technical Specifications
| No. |
Parameter |
Specification Details |
| 1 | Model No. | SPAS10 |
| 2 | Pixel Pitch (mm) | 10 |
| 3 | Module Size (mm) | 320*160 |
| 4 | Cabinet Size (mm) | 1280*960*120 |
| 5 | LED Encapsulation | SMD3535 KINGLIGHT |
| 6 | Brightness (NIT) | 6500 |
| 7 | Refresh Rate (Hz) | 3840 |
| 8 | Gray Scale (BIT) | 14 |
| 9 | Contrast Ratio | 3000:1 |
| 10 | Protection Grade | IP65 |
| 11 | Viewing Angle (H/V) | ±140°/±140° |
| 12 | Average Power | 250 W/m² |
Key Advantages
- High Brightness: Exceptional visibility even under direct sunlight (6500 NIT).
- Tool-Free Splicing: Fast installation and maintenance for stadium environments.
- Energy Efficiency: Low power consumption (Avg. 250W/m²) for long-term savings.
- Rugged Protection: IP65 rated against dust and water ingress.
- Athlete Protection: Soft impact-resistant materials for perimeter safety.

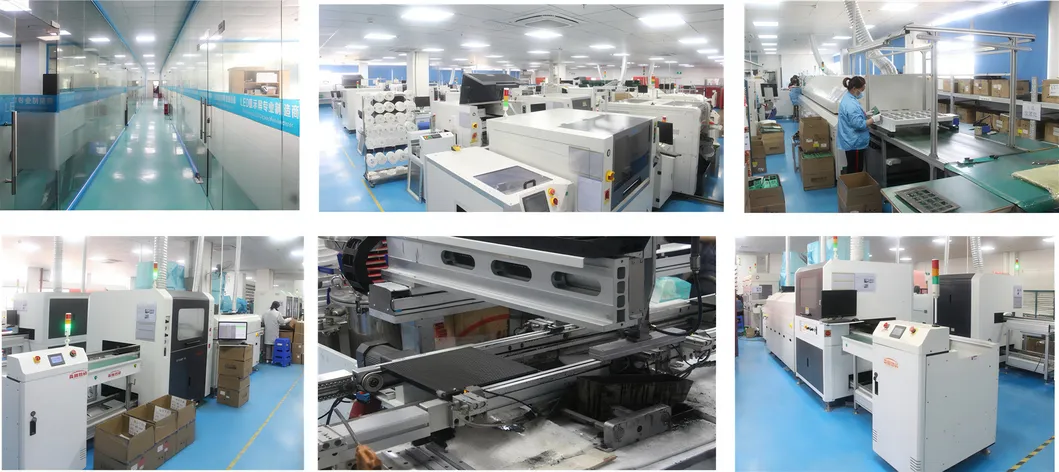

Production & Quality Control
Our production process ensures maximum reliability through rigorous testing:
- Automated high-precision manufacturing.
- Comprehensive Aging Test and Grayscale Test for every module.
- Professional engineering team for custom solution designs.
Delivery & Payment Terms
Production Time
Approx. 25 days (0-200 m²)
Payment Terms
T/T (30% deposit, 70% before shipping)
Trade Terms
FOB, CIF, DDU, DDP

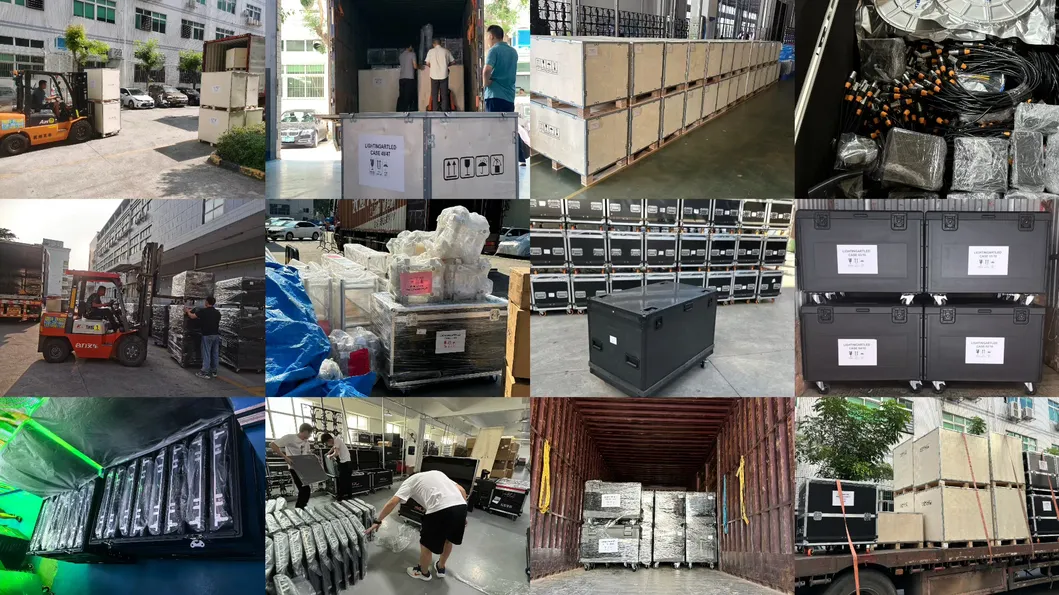

Packaging
Plywood Case or Professional Flight Case
Frequently Asked Questions
Is the SPAS-10 LED screen suitable for outdoor rain conditions?
Yes, the display features an IP65 protection grade, making it fully waterproof and dustproof for all-weather outdoor stadium use.
How does the screen protect athletes during a game?
The cabinet is designed with a soft top cover and a soft module mask to cushion impacts, preventing injury to players and protecting the LEDs from damage.
What is the optimal viewing distance for P10 stadium screens?
The optimal viewing distance is 20 meters or more, providing clear and vibrant visuals for spectators in the stands.
Can the screen angle be adjusted for different camera heights?
Yes, the cabinet supports an adjustable angle range of 0 to 15 degrees to ensure the best viewing angle for both live audiences and broadcast cameras.
What is the refresh rate, and why does it matter?
The SPAS-10 offers a high refresh rate of 3840Hz, which ensures flicker-free performance on TV broadcasts and high-speed photography.
What kind of maintenance access does the cabinet provide?
The aluminum cabinets are designed for fast, tool-free splicing and maintenance, allowing for quick component swaps during busy event schedules.
