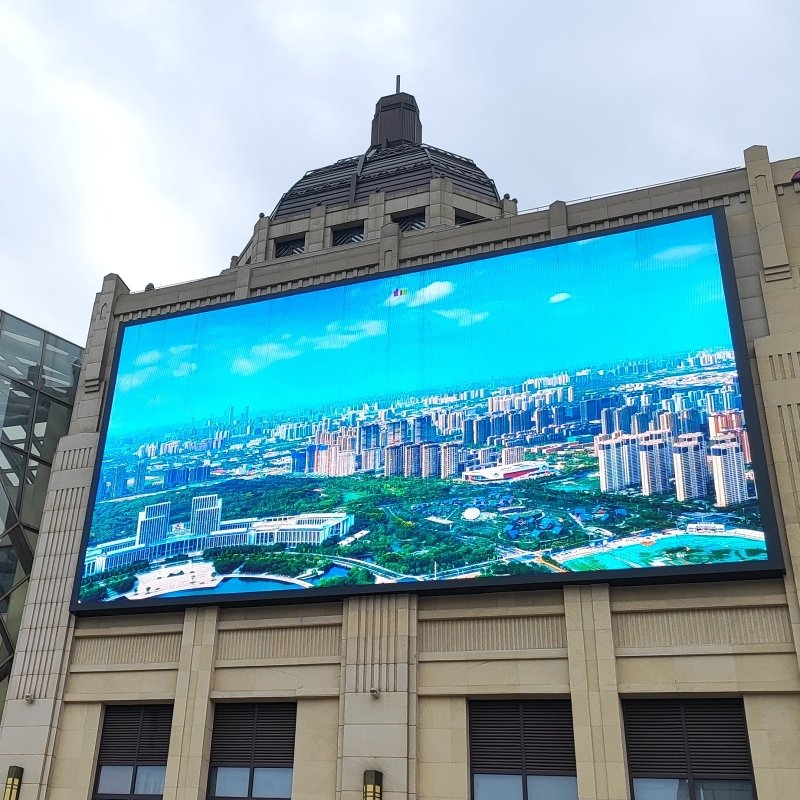

Outdoor Energy-Saving LED Display Wall for Video Playback and 3D Display

Basic Information

Model NO.

O8

Pixel Pitch

8mm

Display Function

Video, Image, Text, Market Display

Power Consumption

600W / m² (Avg: 240W)

Pixel Density

15625 DOT/Sqm

Refresh Rate

3840/7680Hz

Brightness

4500 CD/Sqm

Cabinet Material

Iron

Certification

CE, RoHS, ETL, FCC

Waterproof

IP65

Product Description

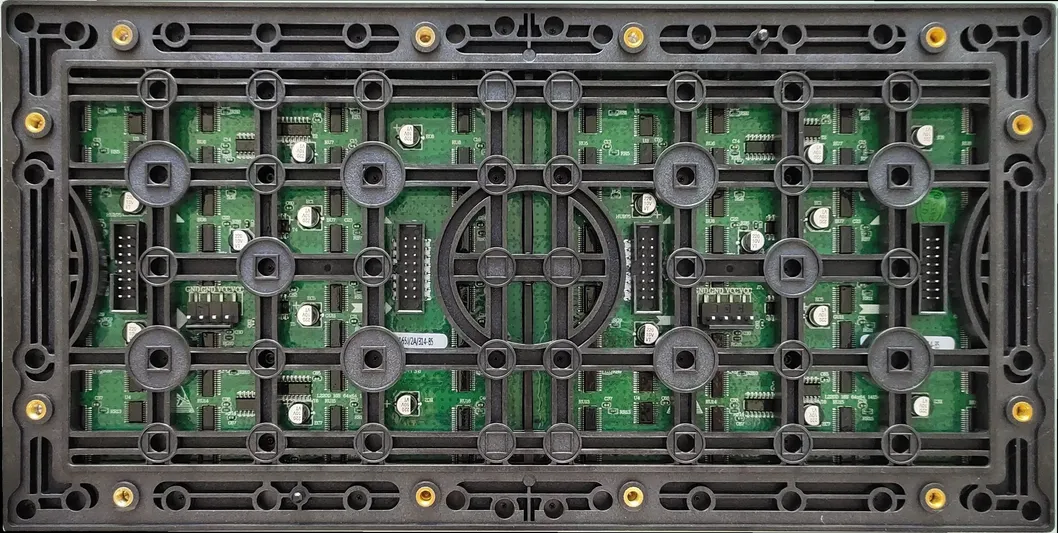

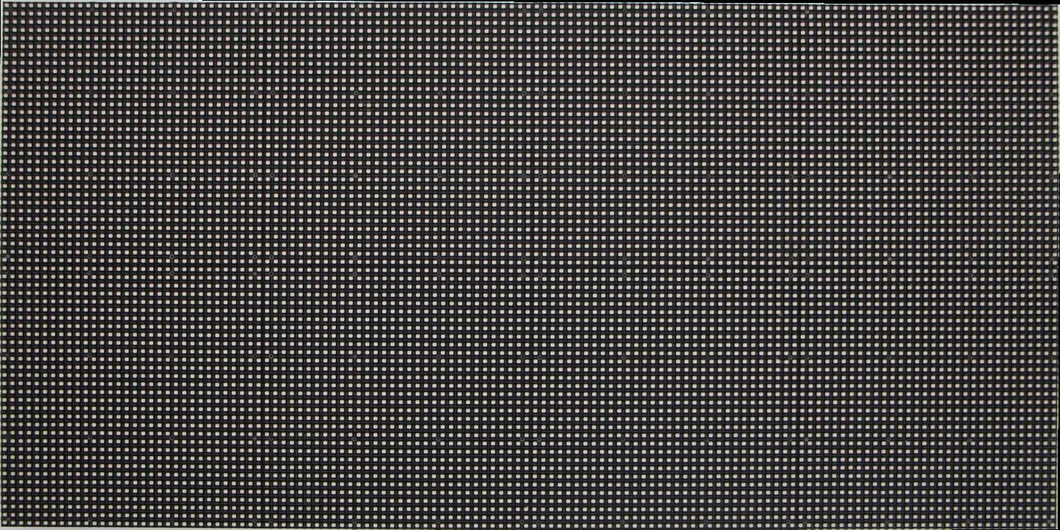

Outdoor LED Module Features

Unique mask design with dark black color for high contrast performance.
Standard module size of 320*160mm for versatile configurations.
Utilizes SMD1415 lamps for superior heat dissipation and weather resistance.
High brightness levels exceeding 4500 cd/sqm with excellent light distribution.
Constant current drive ensuring uniform and stable visual output.

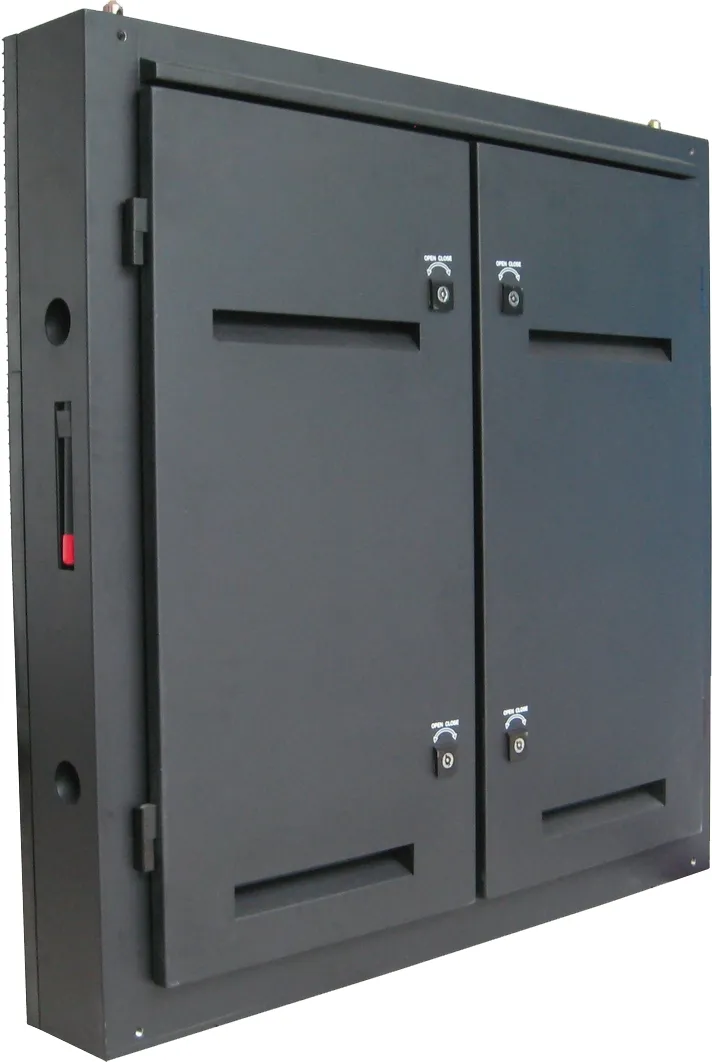

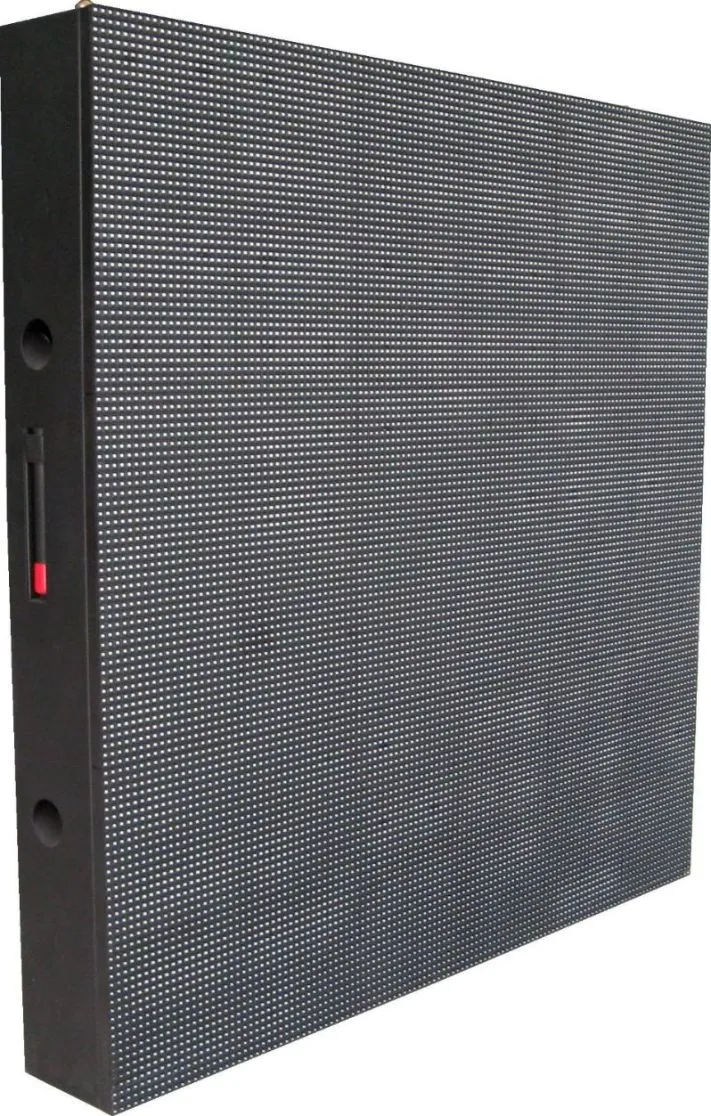

Waterproof Cabinet Design

Our standard 960 * 960mm iron cabinets are fully compatible with all 320 * 160mm modules. Features include unified installation holes, waterproof gaskets, and a robust IP65 rating for harsh outdoor environments.

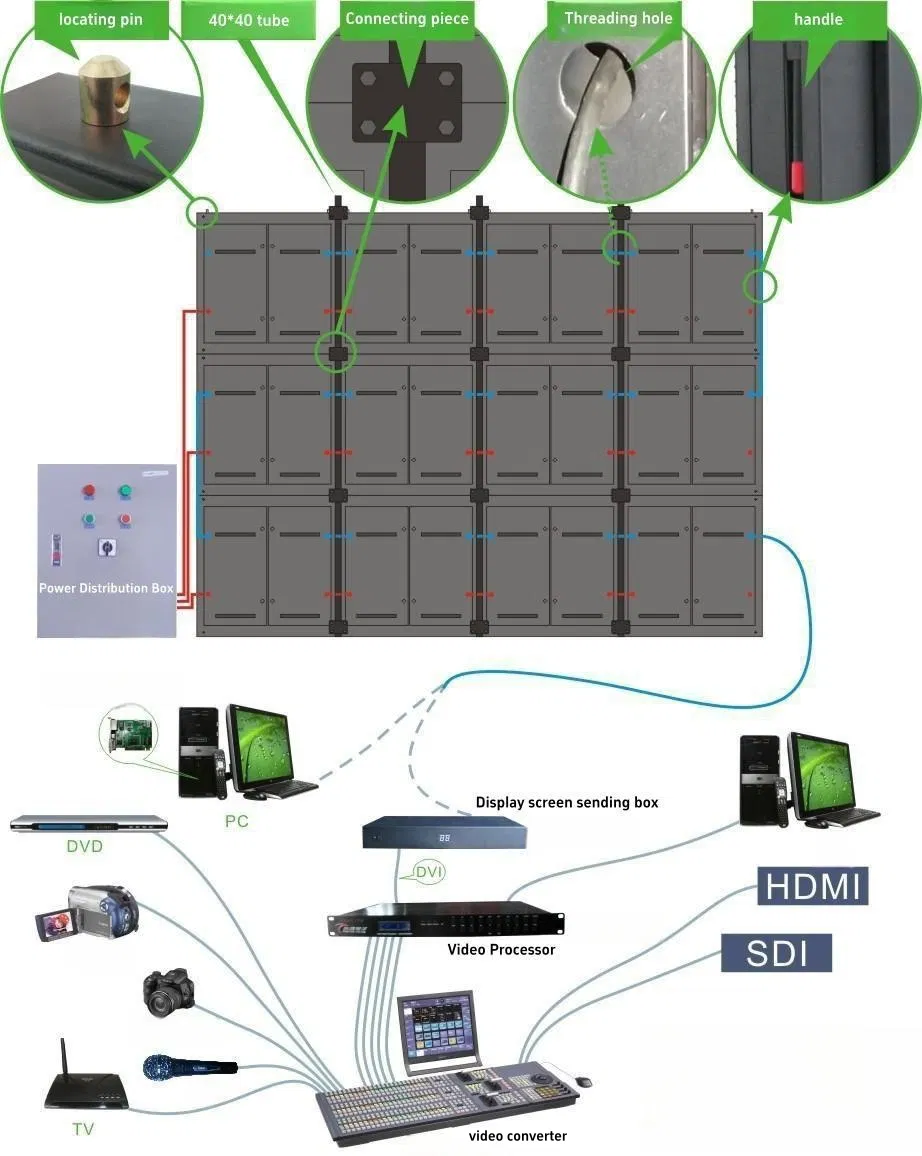

System Diagram

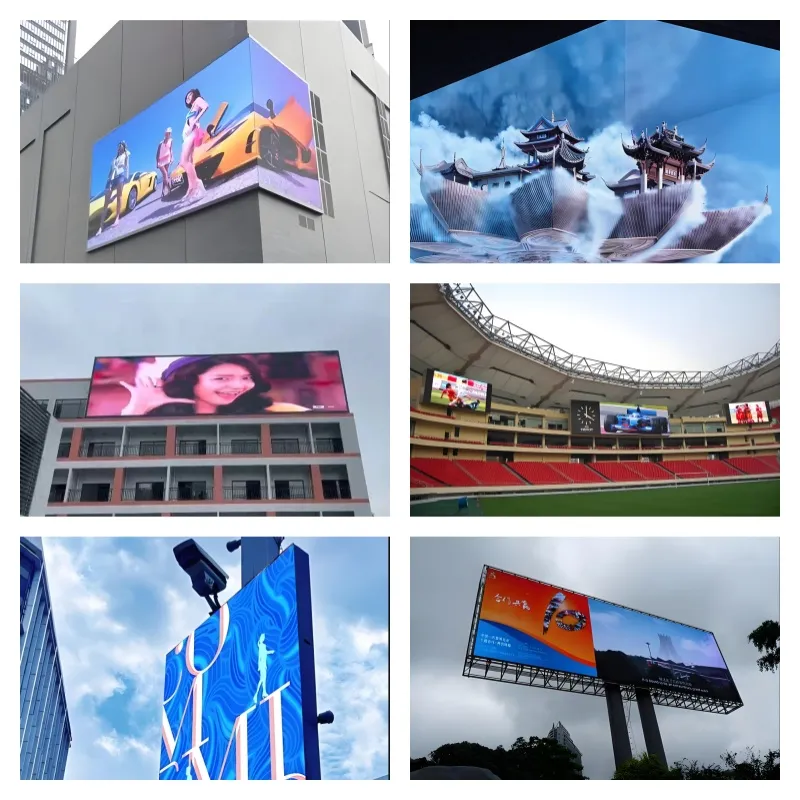

Application Scenarios

Shopping Mall Advertising
Outdoor Landmark Building 3D Displays
Educational Facilities & Schools
Sports Stadiums & Arenas
Highway & Roadside Billboards
Office Building Commercial Displays

Technical Parameters

Item	P2.5	P4	P5	P6	P8	P10
Pixel Pitch	2.5mm	4mm	5mm	6mm	8mm	10mm
Pixel Density (dot/sqm)	160000	62500	40000	27777	15625	10000
LED Type	SMD1415	SMD1921	SMD2828	SMD3535	SMD3535	SMD3535
Module Size	320*160	320*160	320*160	192*192	256*128	320*160
Brightness	4500cd	4500cd	4500cd	4500cd	4500cd	4500cd
Refresh Rate	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
Waterproof	IP65	IP65	IP65	IP65	IP65	IP65

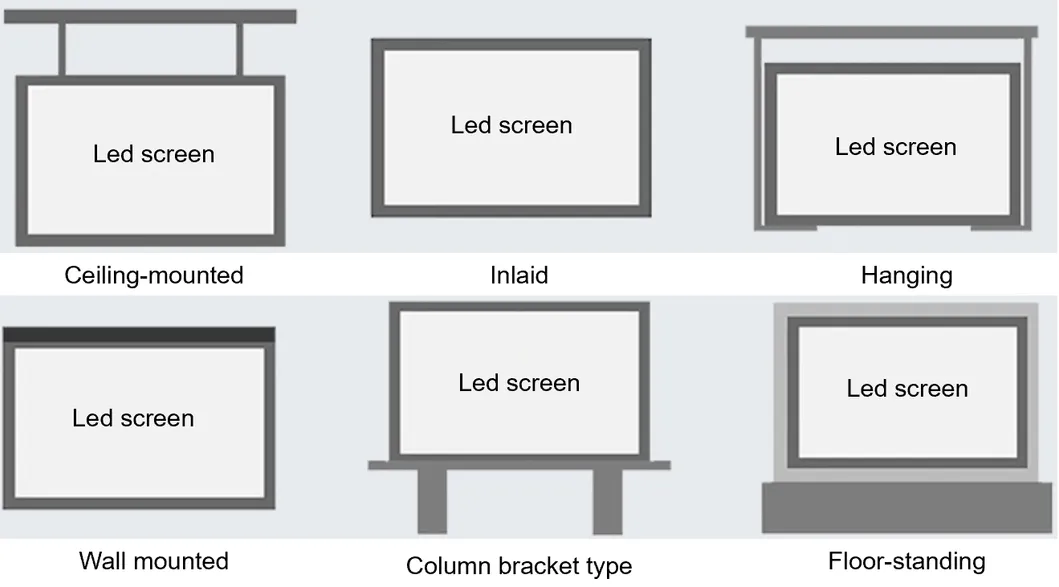

Installation & Logistics

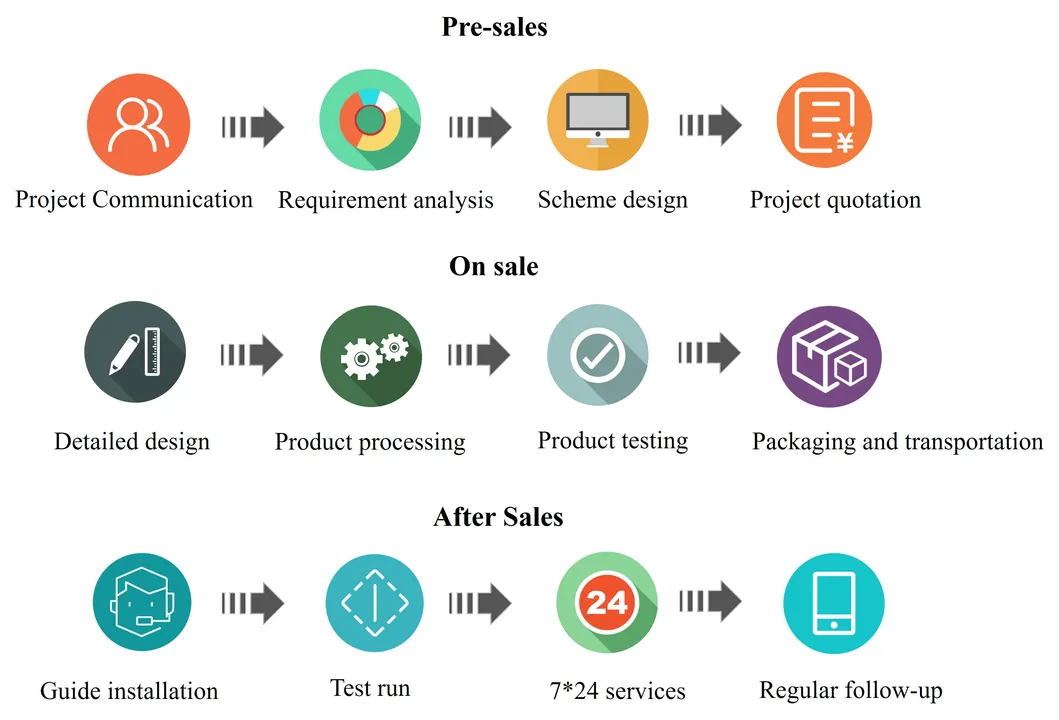

About Us & Advantages

Originally engaged in stage truss production, our business expanded in 2008 to focus on the LED display field. We specialize in LED chip packaging, module production, aging testing, and full-screen installations. We have evolved into experts in performing arts technology and full-scene solution services, providing intelligent equipment integration for global stages, cultural venues, and commercial spaces.

One-stop Solutions: Tailored services from design to installation.
Complete Supply Chain: Covering materials, modules, and customized products.
Customer-Centric: Value-oriented problem solving rather than just product sales.
Refined Service: Excellent support covering transportation and follow-up.
Global Reach: Serving over 1,000 customers across North America, Europe, and more.

Frequently Asked Questions

Q1: What is your minimum order quantity?

A1: We accept any quantity for orders. Prices for large volume orders are negotiable.

Q2: What is the lifespan of an LED display?

A2: LED displays typically have a lifespan of 100,000 hours, depending on component quality and usage conditions.

Q3: When will you deliver?

A3: Depending on order size and quantity, we typically deliver finished LED screens within 10-20 days.

Q4: How long is the warranty period?

A4: The standard warranty period is 2 years. Extended warranty options are available upon request.

Q5: Will you provide free installation design?

A5: Yes, we provide free design drawings tailored to your specific screen installation site environment.

Q6: How is after-sales service guaranteed?

A6: Each project is supported by a professional technical team providing remote guidance, debugging, and on-site technical services if required.
