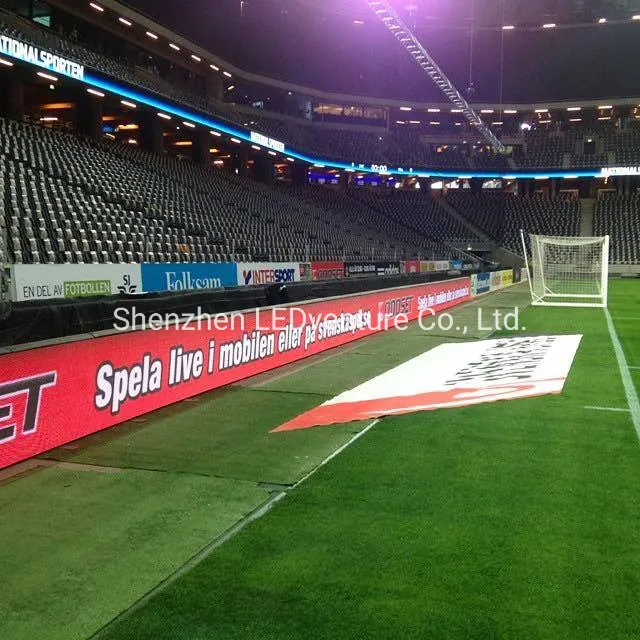

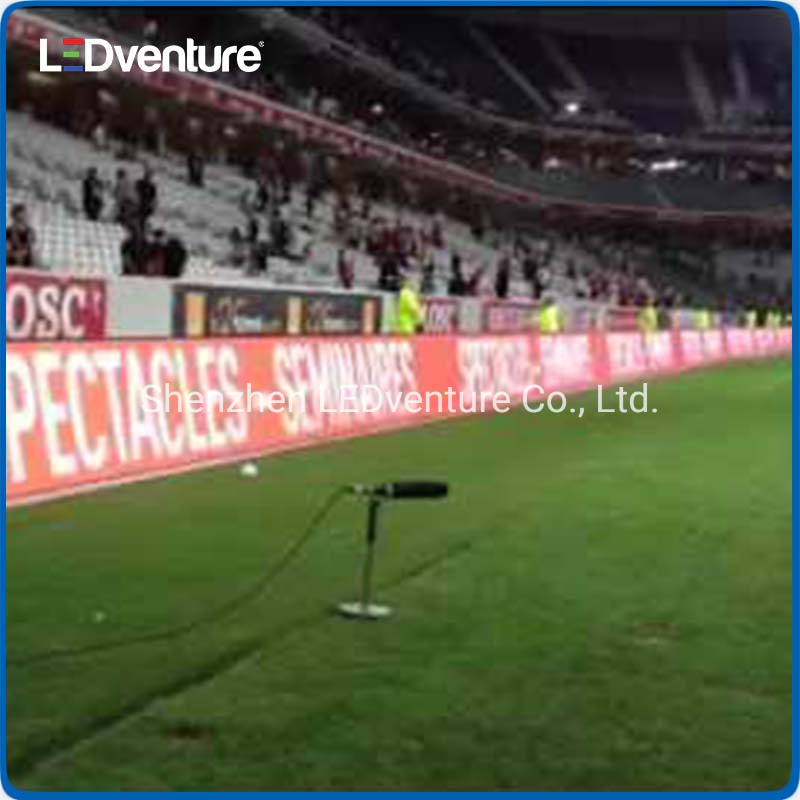

P16 Outdoor Full Color Sport Perimeter LED Stadium Display

1 / 5

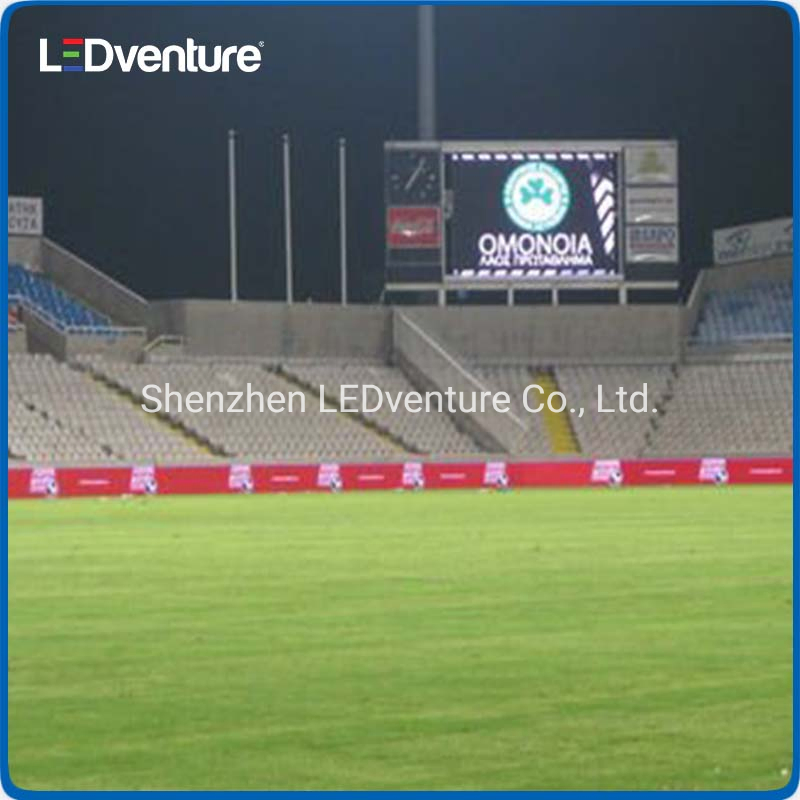

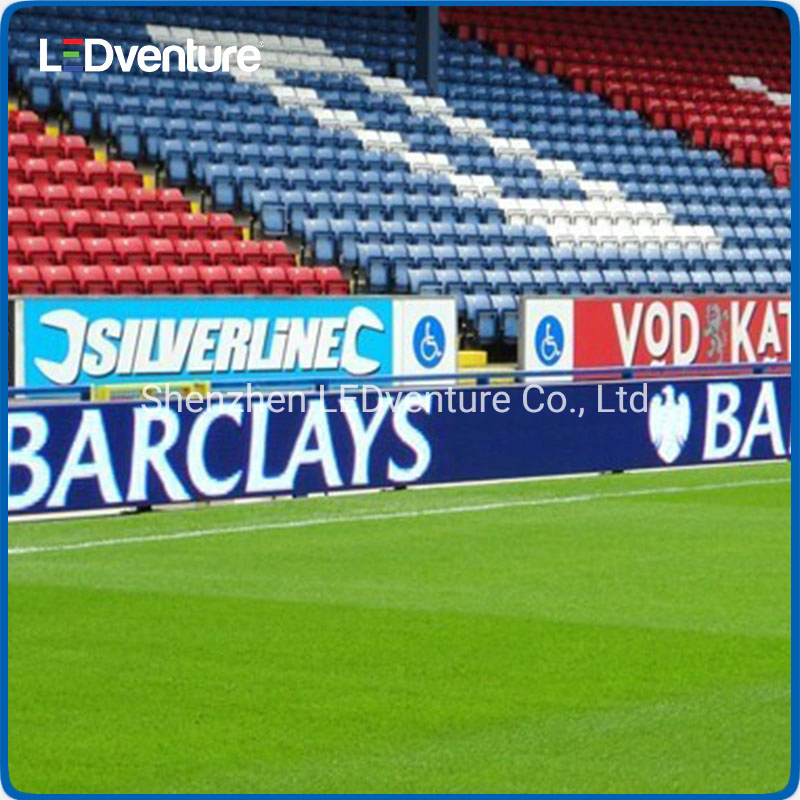

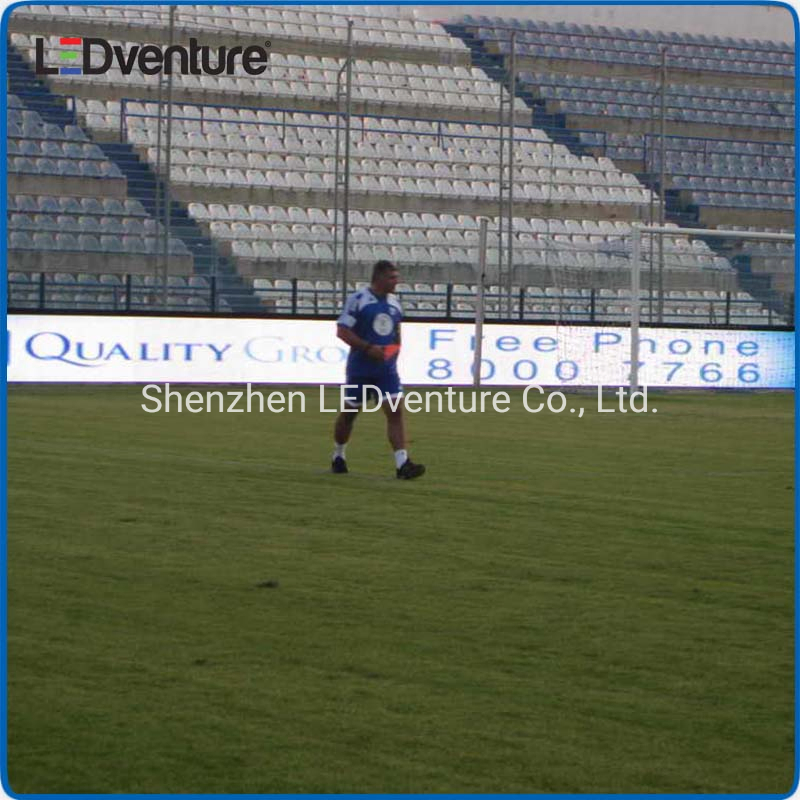

P16 Outdoor Full Color Sport Perimeter LED Stadium Display

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

P16

Pixel Pitch

20mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image & Text

Avg Power Consumption

220W / m²

Pixel Density

2500 Pixels/M2

Scanning Mode

Static Scan

Brightness

>7500 Nits

Refresh Rate

>1920 Hz

Protection Rating

IP65/IP54

Product Description

✔Comprehensive LED solutions including control systems, software, and technical support.
✔Outdoor Fixed installation cabinet with IP65/IP54 Waterproof Protection.
✔Optimized for 16:9 and 4:3 display ratios.
✔Wide operating temperature range: -30ºC to 40ºC.
✔User-friendly design with multi-function side holes and handles for easy movement.
✔Versatile installation: wall-mounted, curved, single, or double pillar.

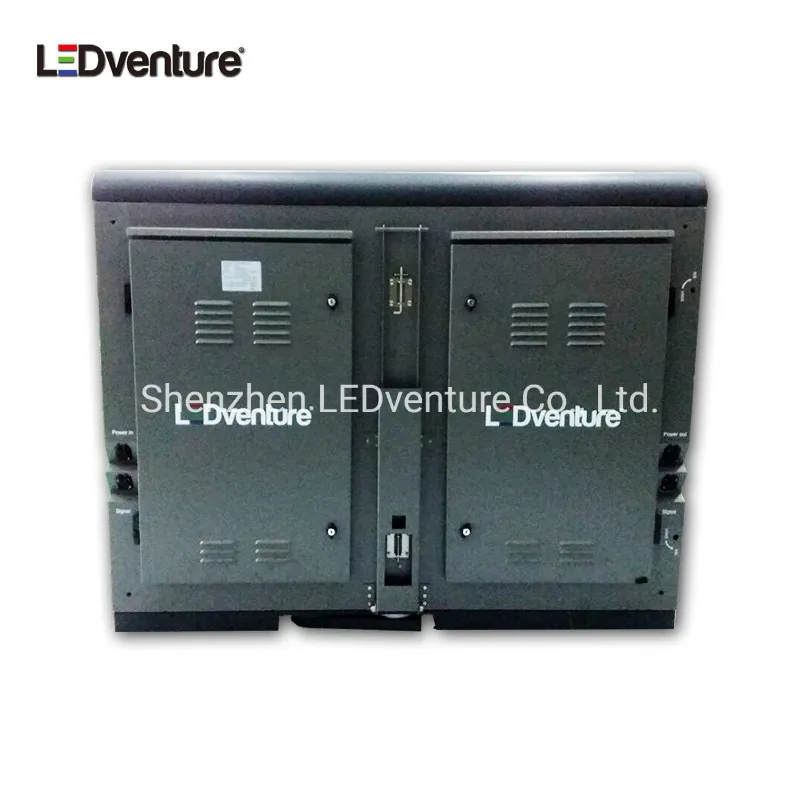

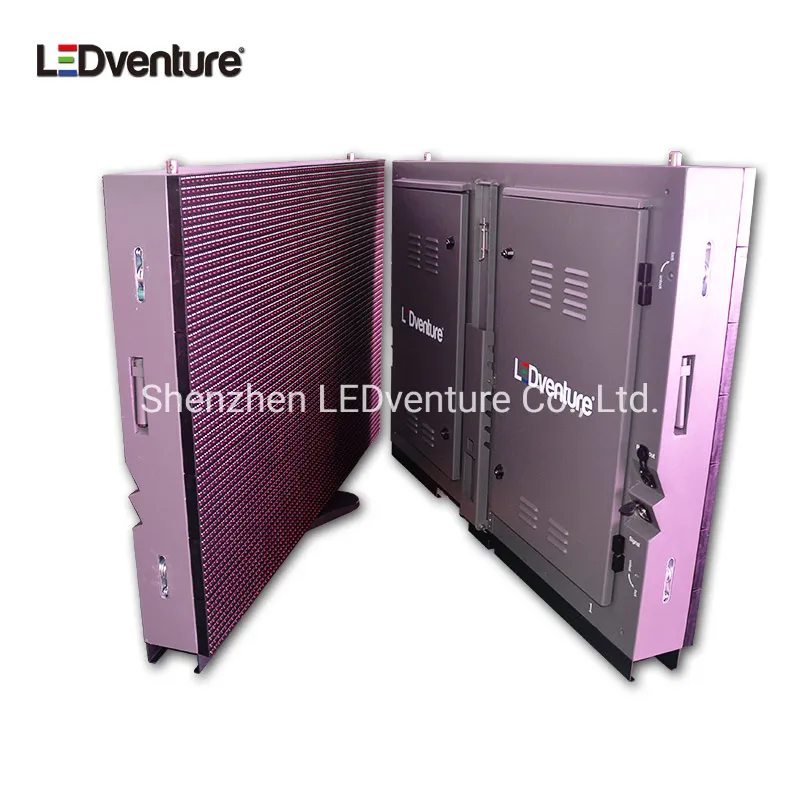

P16 Outdoor Full Color Sport Perimeter LED Stadium Display Cabinet

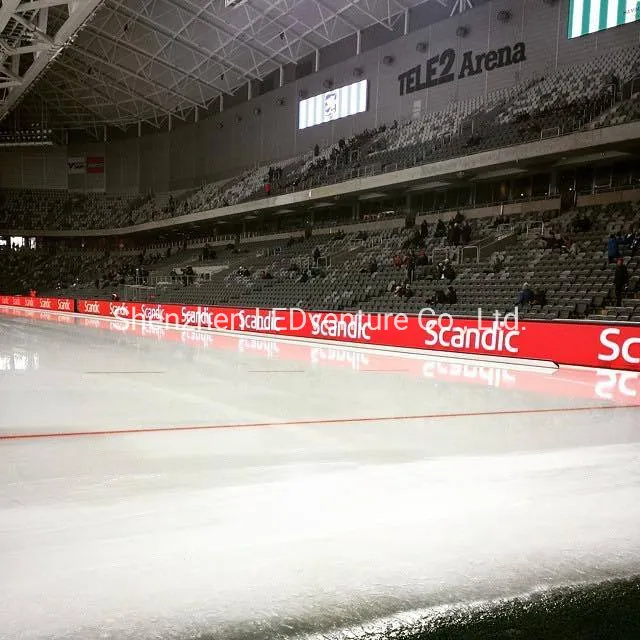

Detailed View of Sport Perimeter LED Display

Technical Specifications

Parameters	Description
Pixel pitch	16mm
Pixel configuration	1R1G1B (DIP346)
Physical density	3906 pixels / M2
Cabinet size	W1280mm x H896mm x D100mm
Cabinet material	Aluminum
Brightness	≥7500 Nits
Viewing angle	H: 120°; V: 60°
Refresh Rate	1920Hz
Input Voltage	110-220VAC ±10%
Life Time	≥100,000 Hours
Certifications	CCC, CE, FCC, ETL, IP65, EMC

Applications

Sport stadium perimeter LED screens are specifically designed for brand marketing during major sporting events such as World Cups. These displays feature a soft mask to protect both the LEDs and athletes, security glue for durability, and specialized standing legs with adjustable viewing angles to ensure target audiences get the best visual experience.

Production & Quality Control

Packaging & Shipping

Frequently Asked Questions

1. What makes the P16 LED display suitable for stadiums?

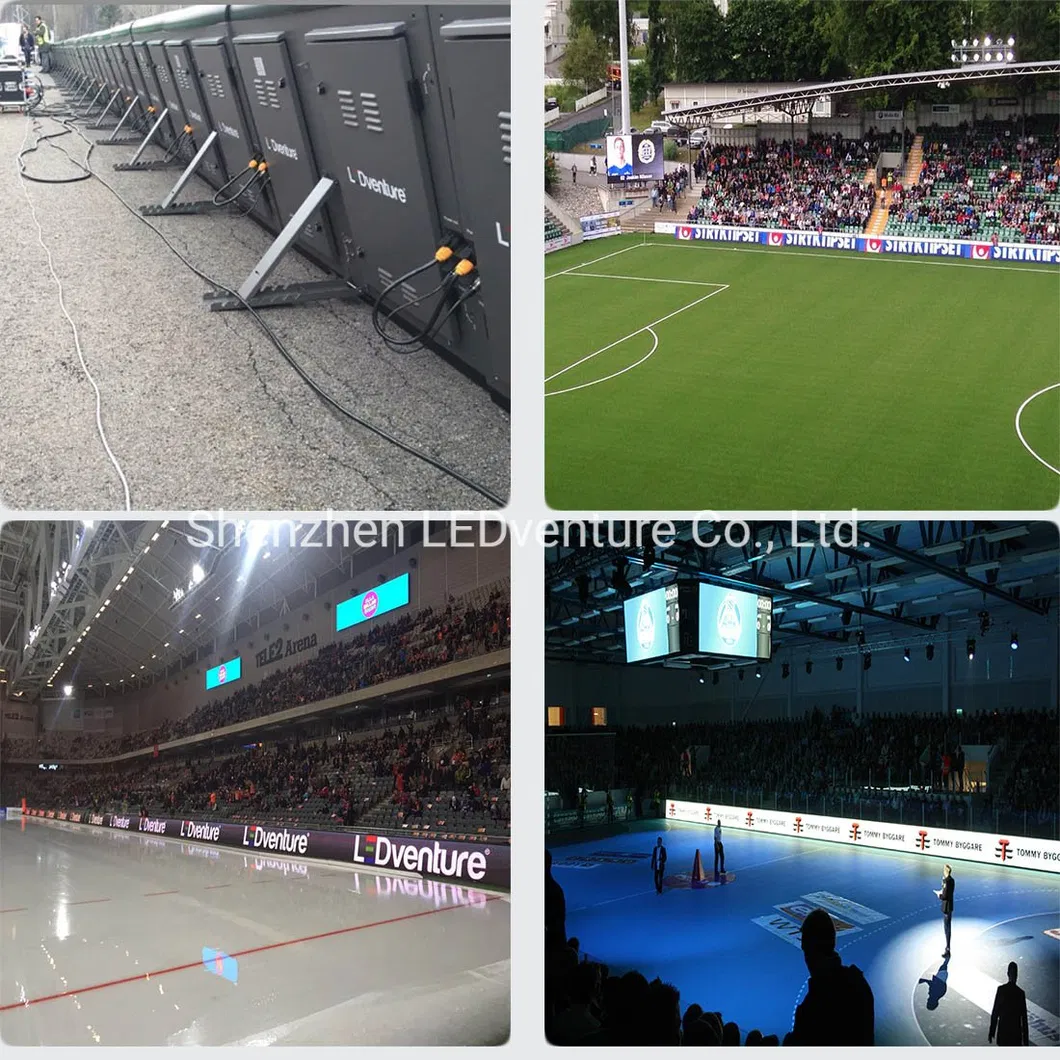

The P16 is designed with a soft protective mask and rubber padding on the top to protect athletes from injury while ensuring the screen remains durable under impact. It also features adjustable standing legs for optimal camera viewing angles.

2. Is this LED screen waterproof for outdoor use?

Yes, it features an IP65 protection rating on the front and IP54 on the rear, making it fully resistant to rain and dust, which is essential for outdoor stadium environments.

3. How high is the brightness of the P16 display?

The display offers a brightness level of ≥7500 Nits, ensuring that the content remains clearly visible even under direct sunlight during daytime sporting events.

4. What is the typical lifespan of these LED panels?

Our LED displays are built using high-quality components with a rated operational life of ≥100,000 hours, providing long-term reliability for many years of use.

5. Can the display be used for other purposes besides stadium perimeters?

While optimized for perimeters, the modular design and high brightness allow it to be used for outdoor fixed installations, billboards, and rental events.

6. What maintenance access is provided?

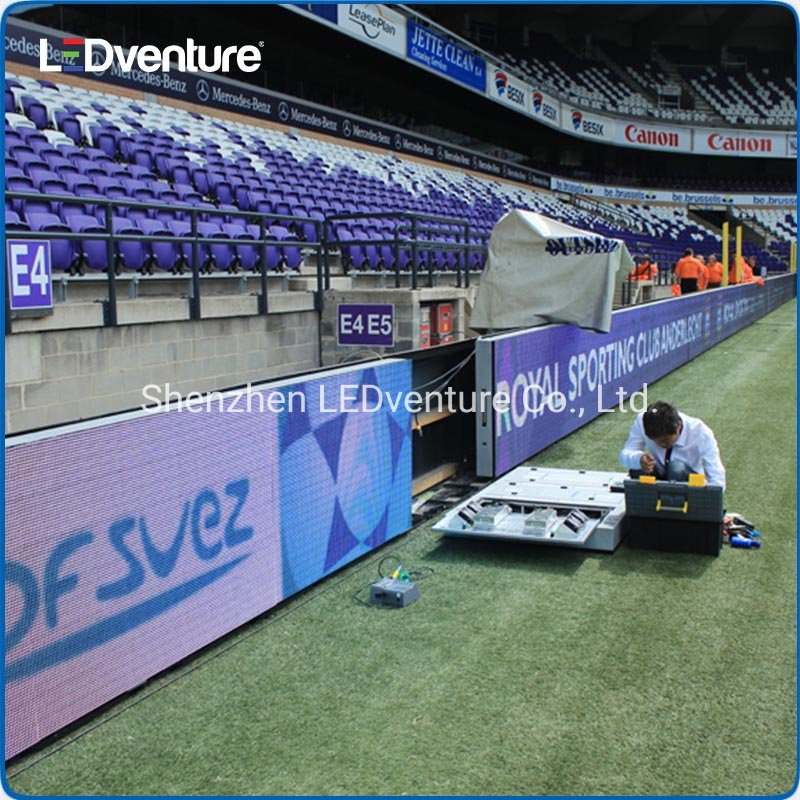

The P16 series generally supports rear access for maintenance, allowing technicians to easily service power supplies and receiving cards without dismantling the entire front screen.
