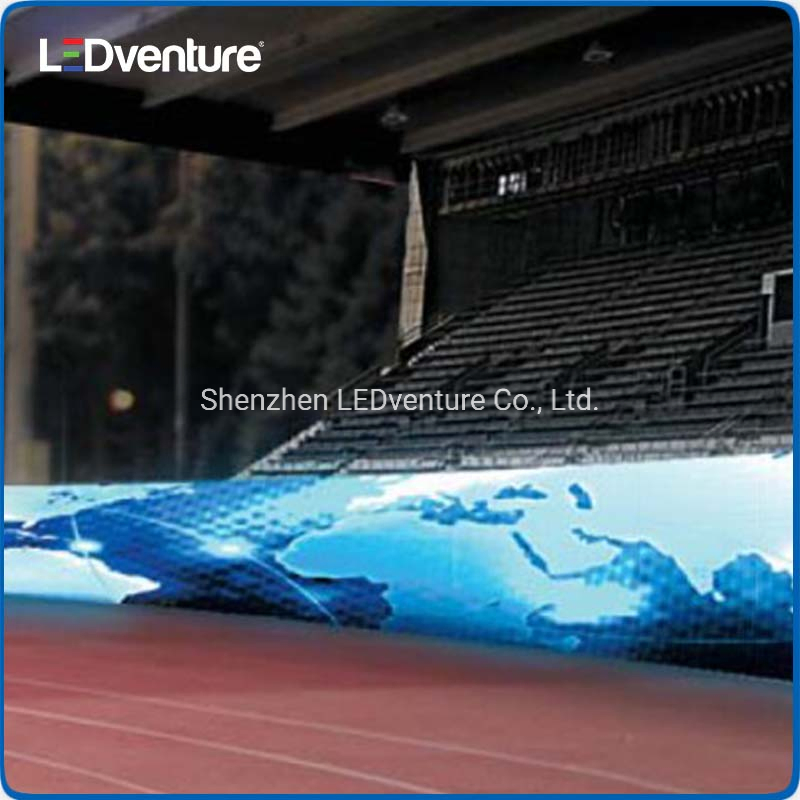

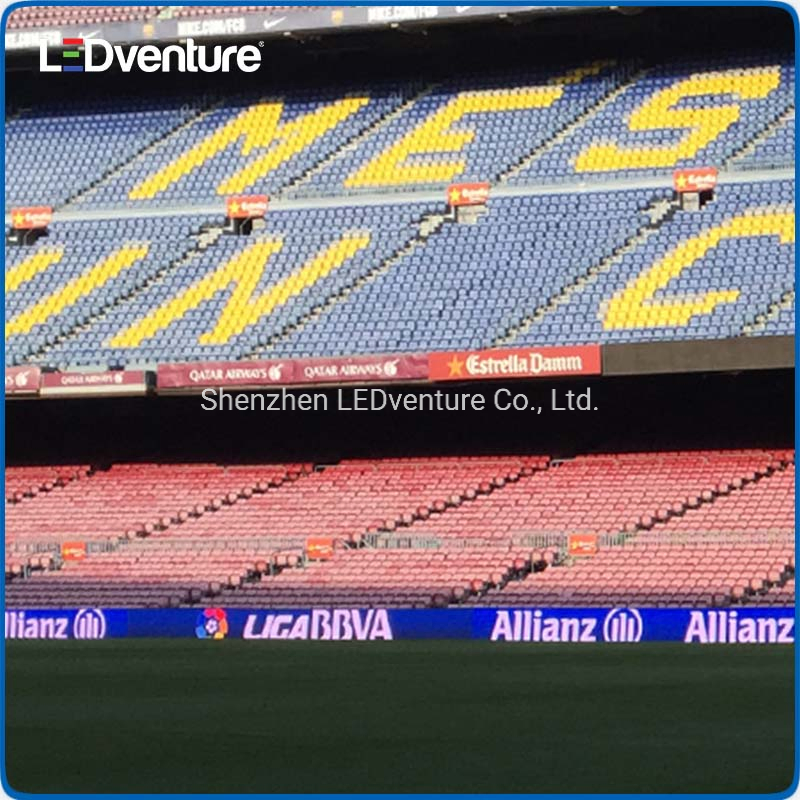

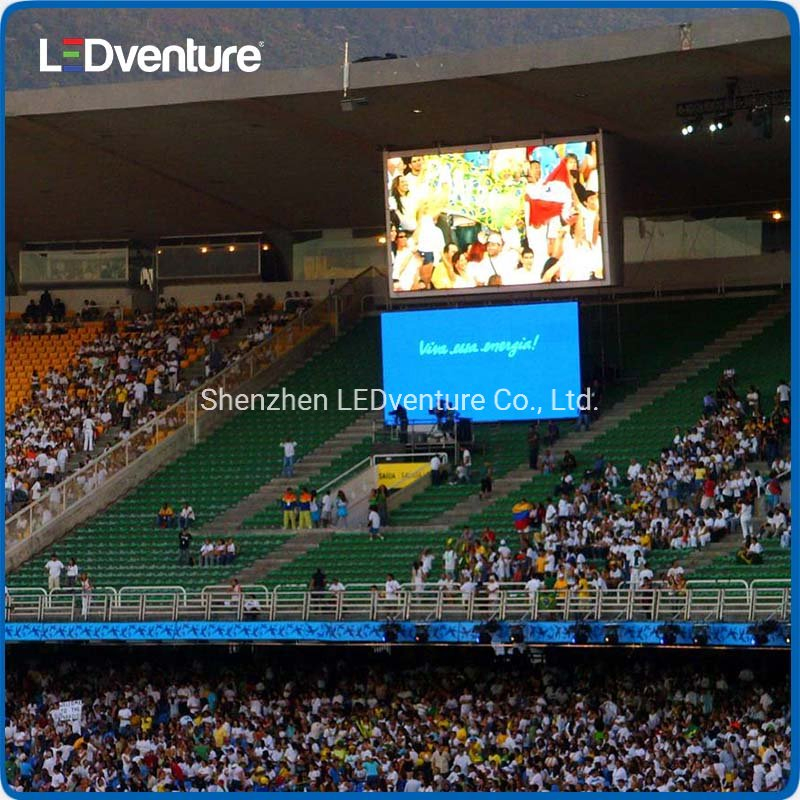

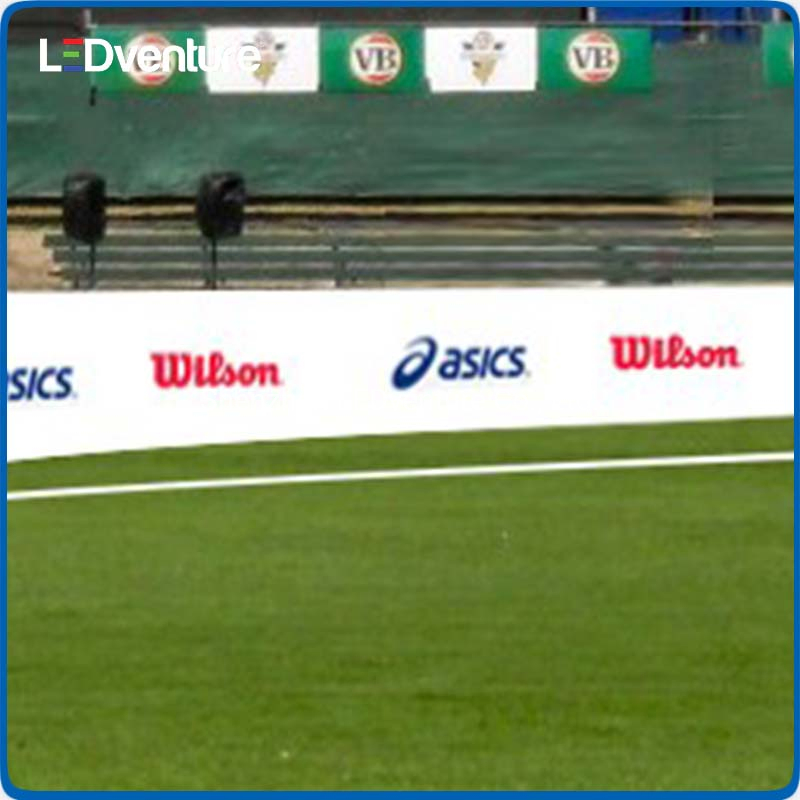

Outdoor High Brightness P20 Stadium Perimeter LED Advertising Display
This series is specifically designed for sports stadiums to facilitate brand marketing during major sporting events. It provides a highly effective platform for displaying sponsor logos and promotional content with exceptional clarity and brightness.
| Feature | Specification |
|---|---|
| Pixel Pitch | 10mm, 12.5mm, 16mm, 20mm |
| Brightness | > 7000 nits |

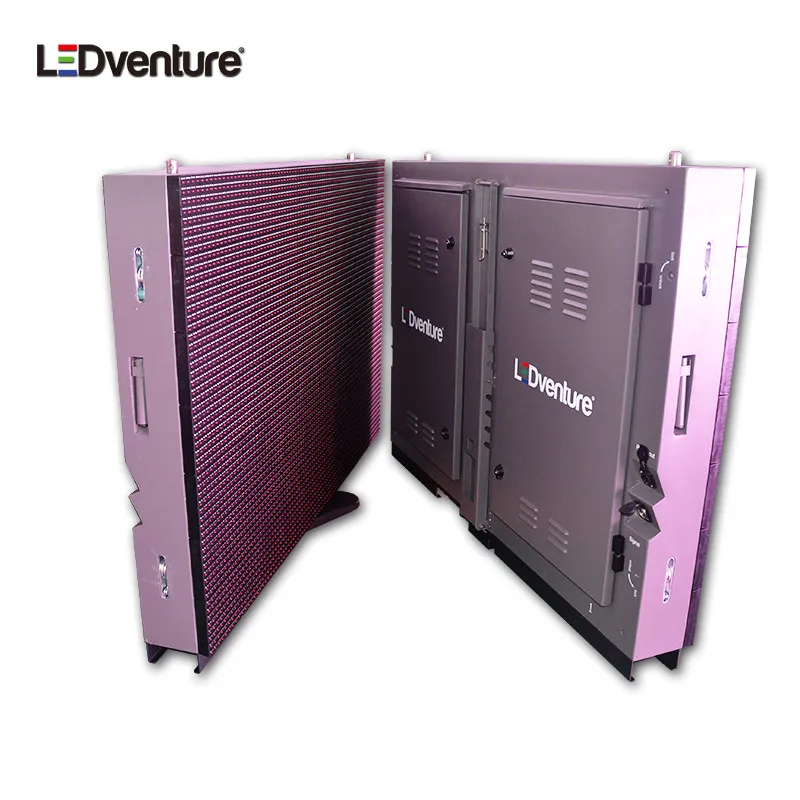

| Cabinet Size | 1280x960mm (Optional) |
| Max. Power Consumption | 750W/panel |
| Refresh Rate | > 1920Hz |
| Driver IC | MBI |

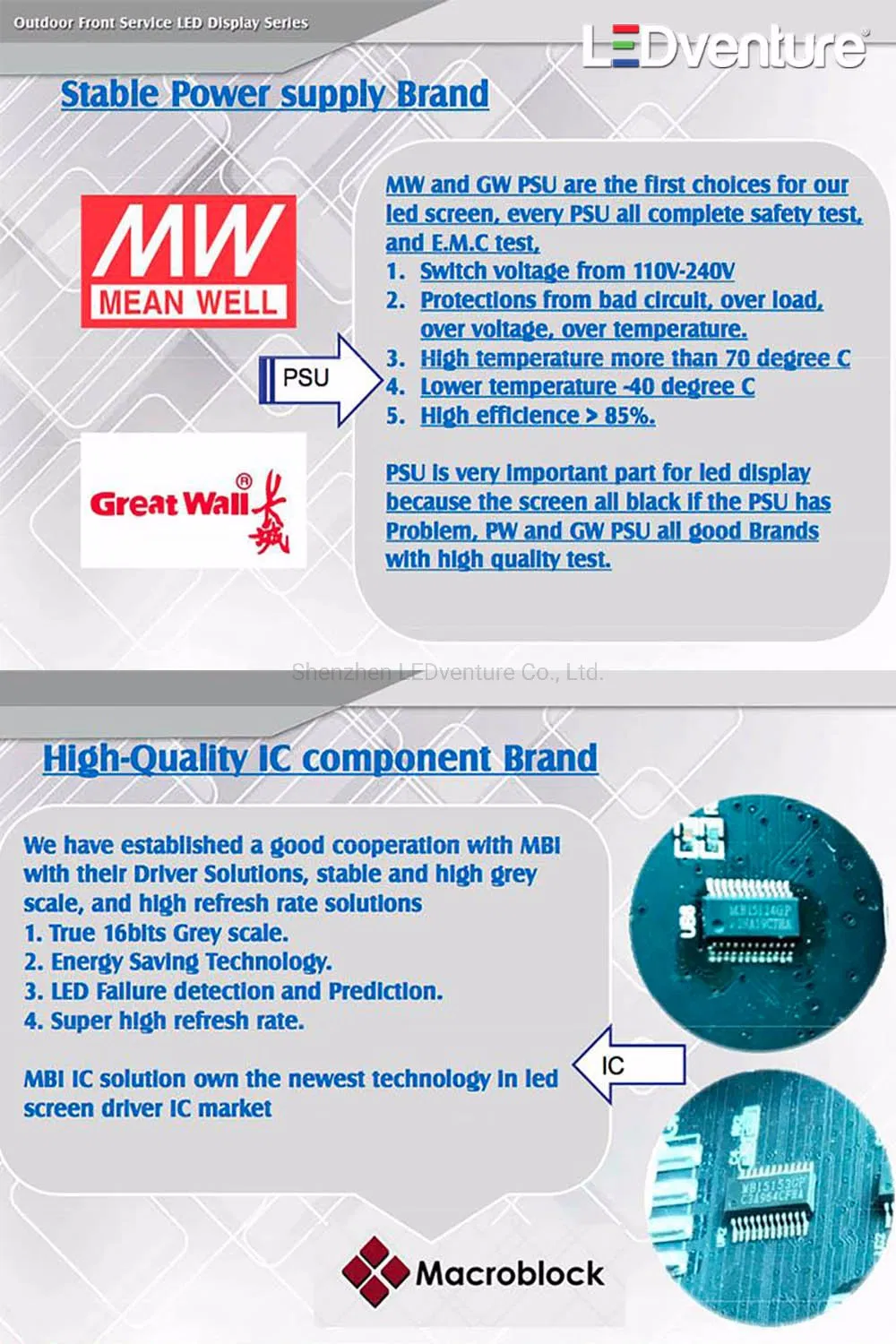

All product materials are selected from top-tier quality levels, including SMD components, ICs, PCBs, and power supply units (PSU). This rigorous selection ensures stable operation and significantly reduces maintenance costs over the product's lifespan.
| Item | Outdoor LED Stadium Display Screen |
| Model Number | SP-P20 |
| Pixel Density | 2500 pixels/M2 |
| Pixel Configuration | DIP346 |
| Module Size | 320x160mm |
| Min. Viewing Distance | 20m |
| Viewing Angle | ≤140° |
| Protection Level | IP65/IP54 |
| Input Voltage | AC110-240V, 50Hz/60Hz |
| Gray Scale | 16 bits |
| Lifespan | ≥100,000 hours |
| Operation Temp | -20°C ~ +45°C |

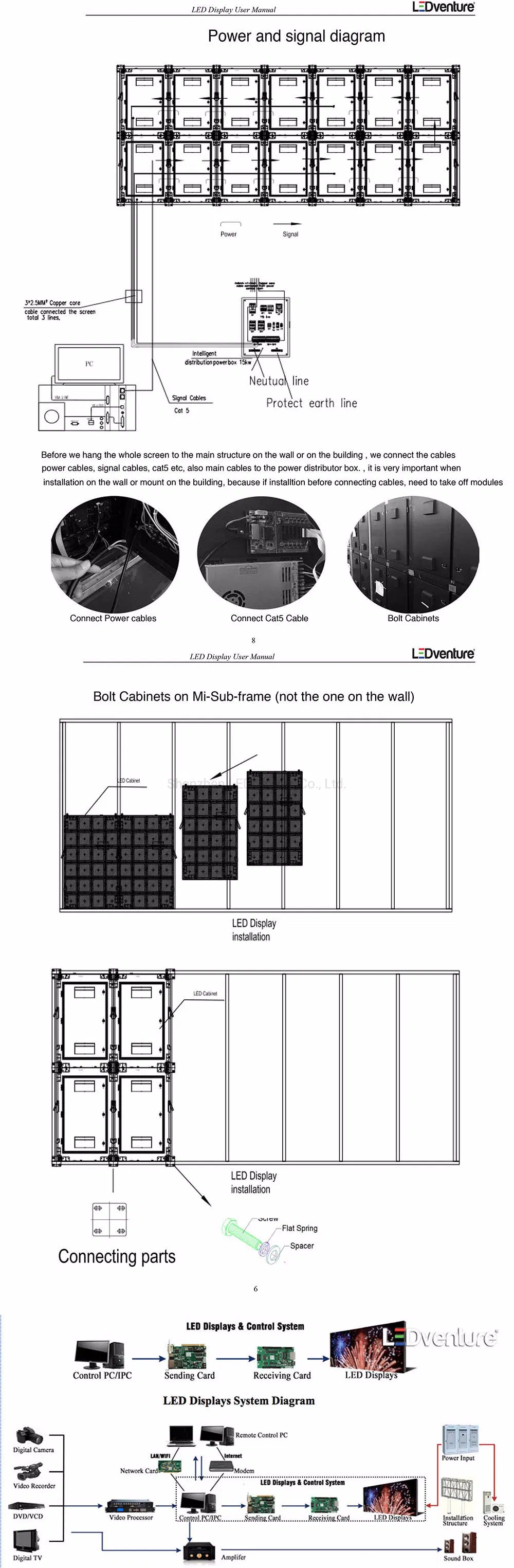

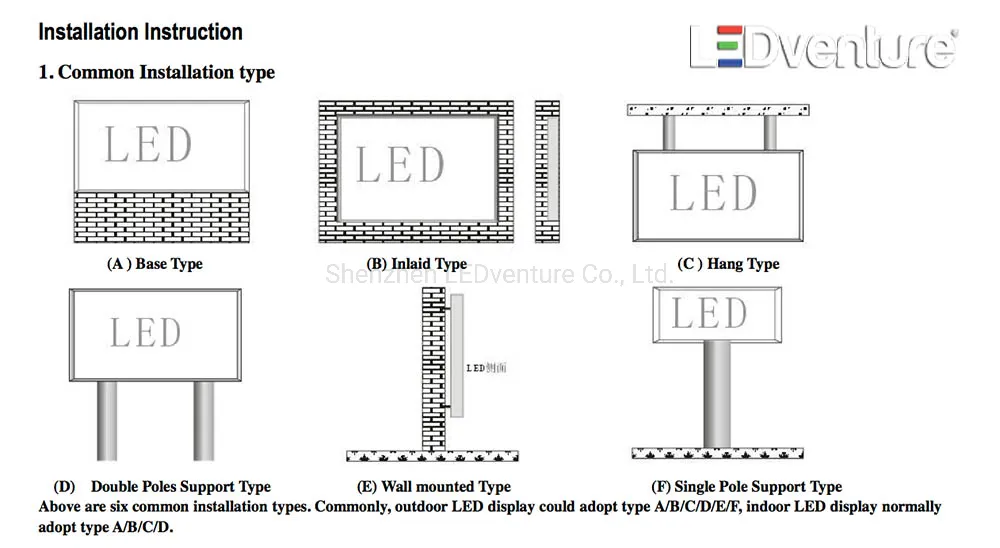

Flexible installation methods are available: wall-mounted, pillar-mounted, or standing. Systems include sending cards, processors, and receiving cards for a complete hardware solution.

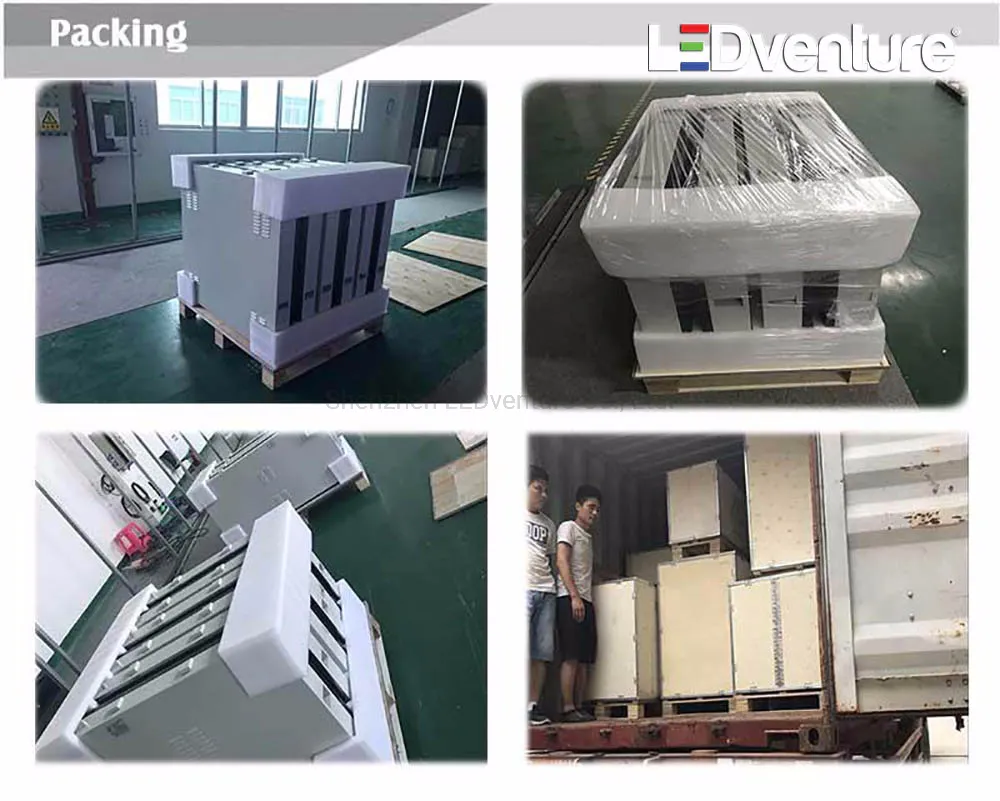

Products are packed in high-quality plywood cases to ensure safety during transport and ease of loading.

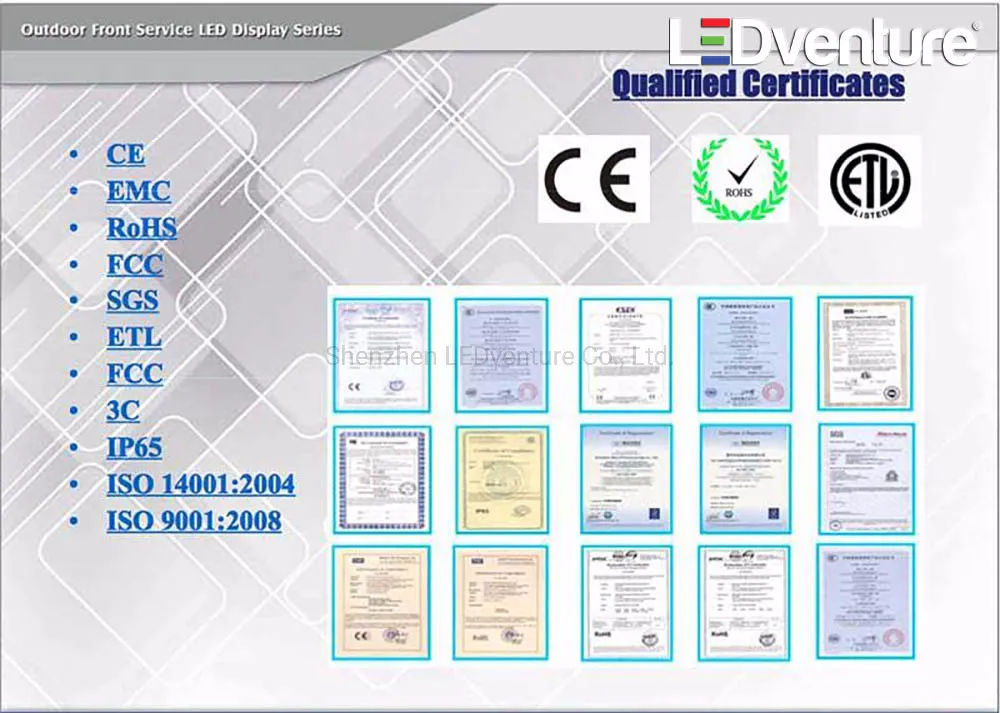

All products have passed CE, EMC, FCC, and UL security tests to meet international market standards and legal requirements.
