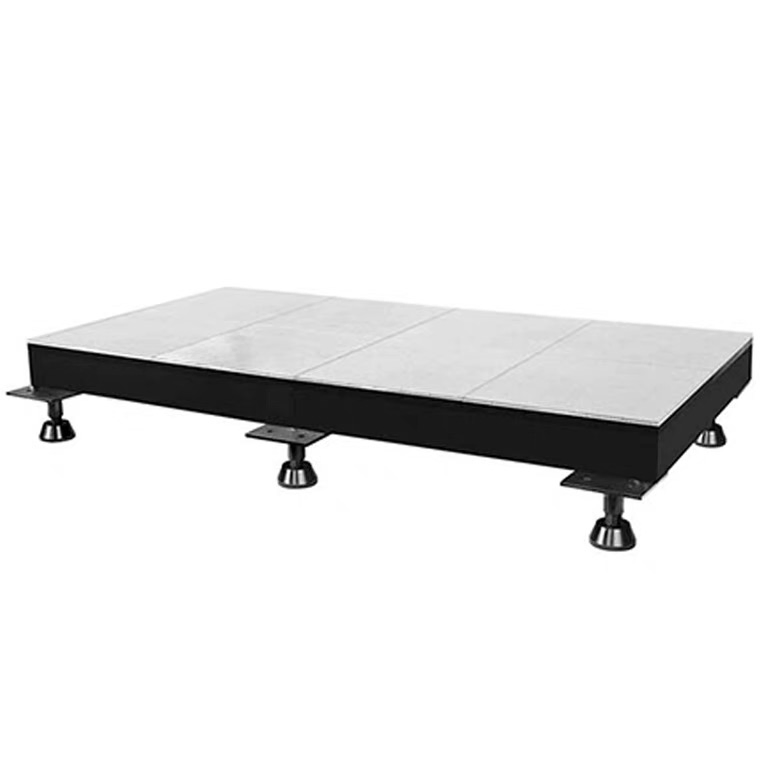

P2.604 Outdoor Indoor Ground Interactive Floor Tile LED Displays Screens Video Wall Dance Stage and Events

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
FI-C
Pixel Pitch
2.604mm
Pixel Configuration
1R,1G,1B
Pixel Density
147456dots/M²
Scanning Mode
1/32scan
System Platform
WIN XP
IP Rating
IP65
Cabinet Material
Die-Casting Aluminum
Cabinet Size
500mm×1000mm×78mm
Refresh Frequency
≥3840 Hz
Brightness
Indoor ≥800 Nits / Outdoor ≥5500 Nits
Working Life
About 100,000 Hours

Product Overview

FI series floor LED displays provide interactive and non-interactive solutions. Designed for event stages, nightclubs, concerts, and exhibitions, these ultra-high strength displays can bear 1.5-2 tons/m². They are durable enough for dancing, jumping, and even vehicle traffic. With excellent waterproof and dustproof ratings, they are ideal for both fixed installations and rental applications.

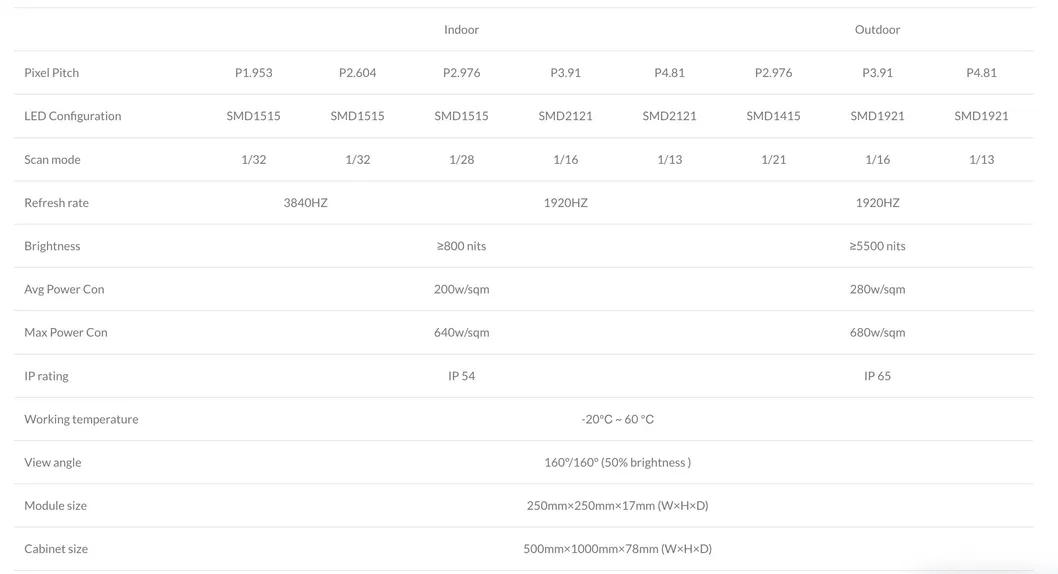

Floor LED Display Technical Specification

Key Features

Super Strong Load-bearing

1. Super Strong Load-bearing

Constructed with imported PC materials, offering high wear resistance, flexibility, and extreme temperature resilience.

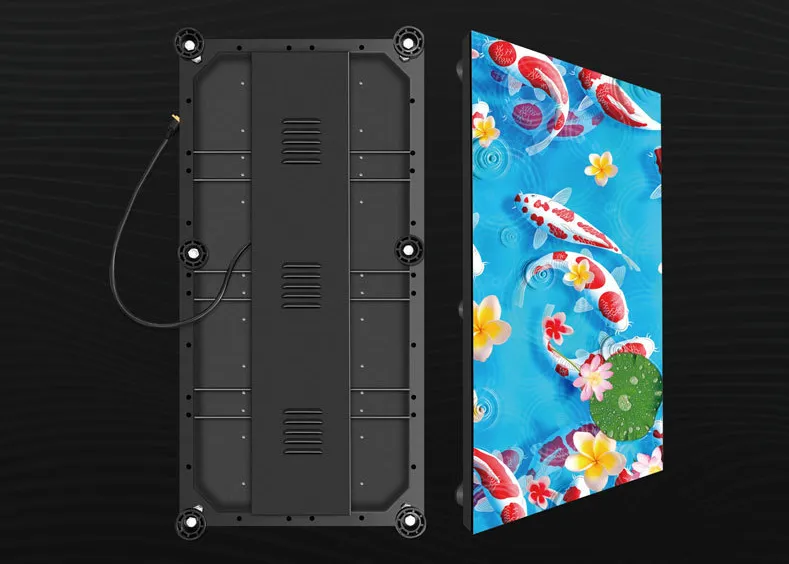

2. Excellent Performance

Utilizes high-quality SMD LEDs for stable color consistency and long life. Features intelligent adjustment for gamut, color temperature, and brightness to ensure natural imagery.

Excellent Performance

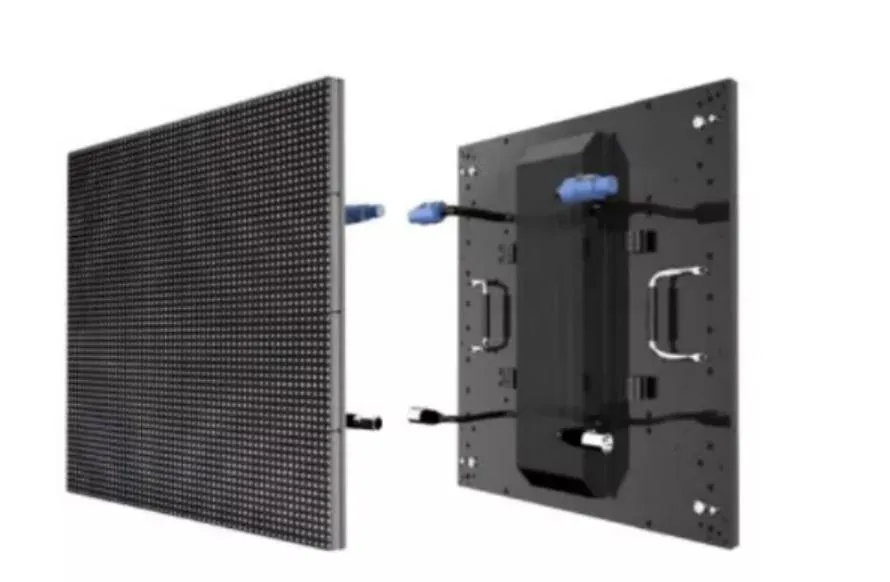

Easy Maintenance

3. Easy Installation & Maintenance

Supports quick-install power boxes and tool-free maintenance. Full front and back access allows for rapid assembly via inner cable connections.

4. Exquisite Craftsmanship

Die-casting aluminum/magnesium cabinets with high-precision splicing (within 0.1mm) ensure perfect flatness and seamless connections.

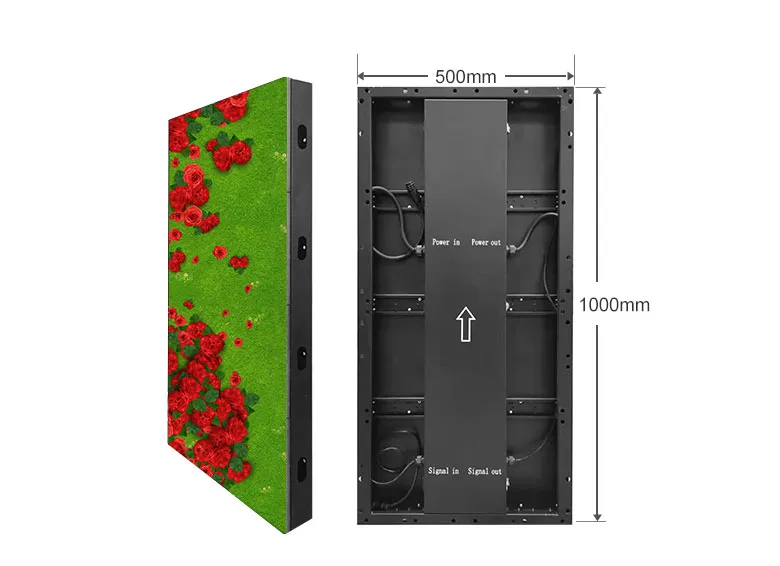

Exquisite Craftsmanship

Applications & Versatility

Ideal for Stage, Conferences, Expos, Events, and Concerts.

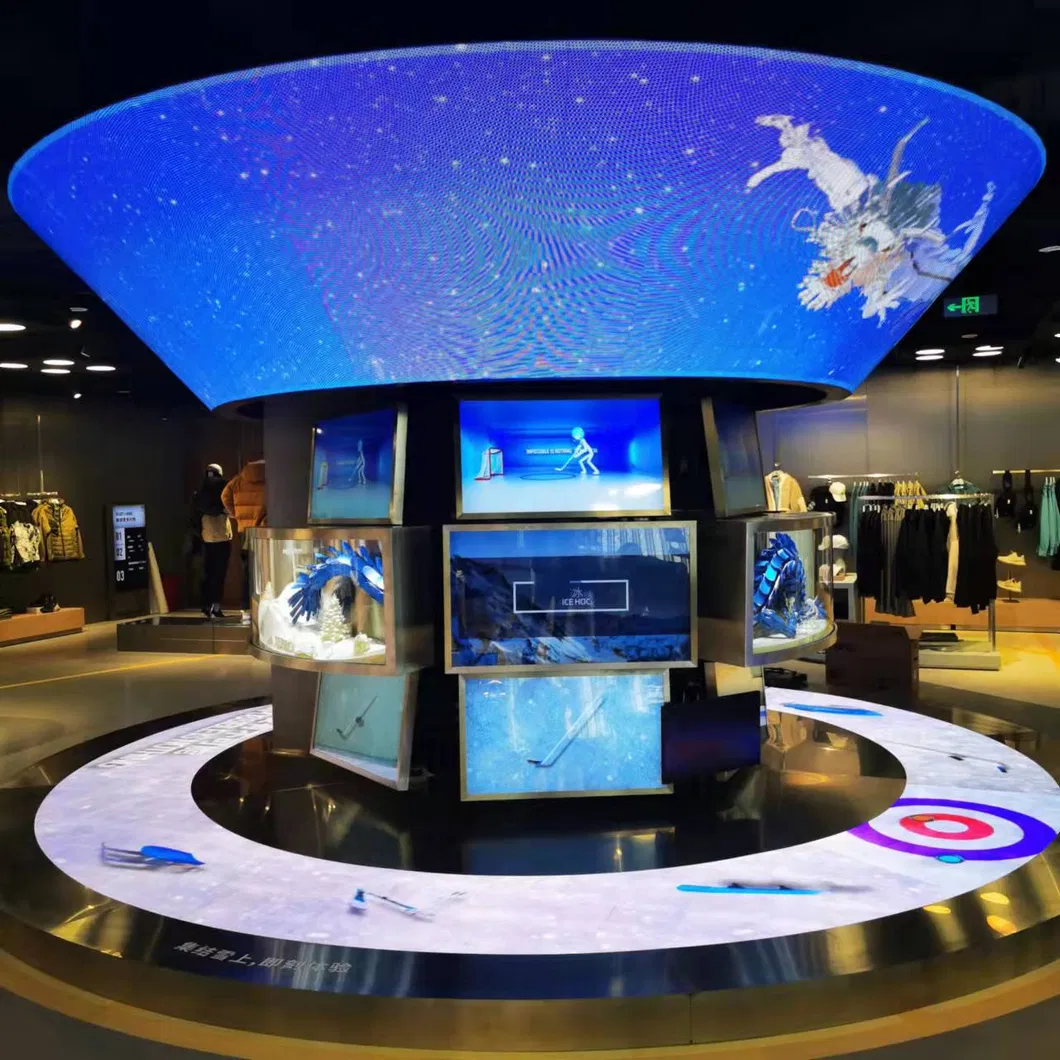

Application 1

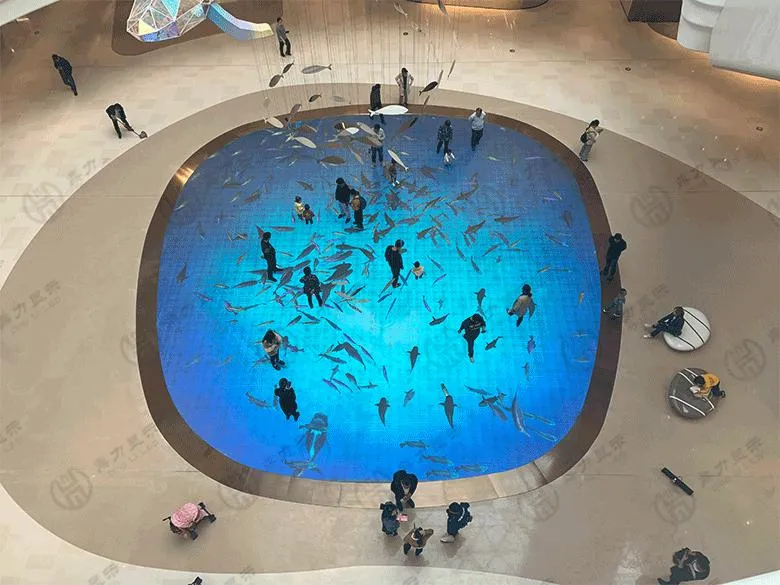

Application 2

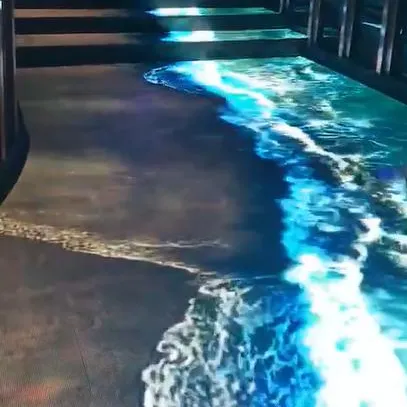

Application 3

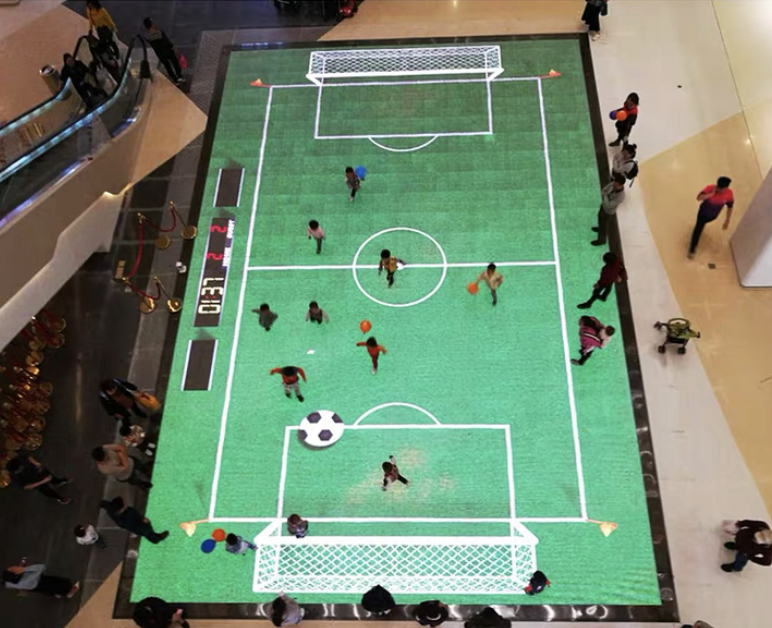

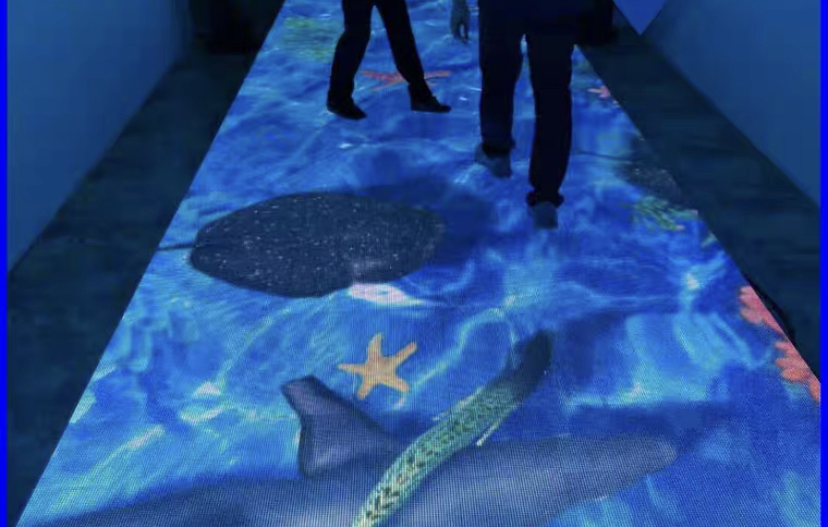

Interactive Technology

What is interactive floor LED display?

Based on standard LED tiles, this technology adds pressure, capacitive, or infrared sensors. These sensors track human movement in real-time, allowing the display to respond with interactive visual effects based on the person's trajectory and actions.

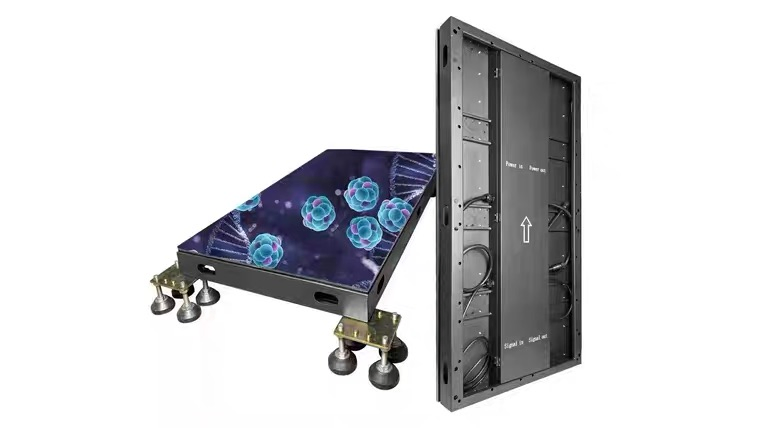

Hardware Features

  • Modular design for fast installation and disassembly.
  • New cast aluminum shell for high precision and heat dissipation.
  • Point-to-point module design for front and back maintenance.
  • Seamless connection for a smooth visual experience.
Attention: It is recommended to purchase enough modules for spare replacement in one order. Modules from different batches may have slight color differences.

Visual Documentation

Manufacturing
Quality Control
Distribution Mode

Frequently Asked Questions

Q1: Can I have a sample order for the LED display?
Yes, we welcome sample orders to test and check quality for both individual modules or complete display units.
Q2: What is the typical lead time?
Standard orders take about 2-3 weeks. Customized LED displays generally require around 35 days.
Q3: How are the goods shipped and how long does it take?
We mostly use FOB terms. Sea shipping usually takes 20-30 days depending on the destination and customs clearance.
Q4: How do I proceed with an order?
First, share your requirements. We provide a quote and design document. Once the deposit is placed, we arrange production followed by final balance payment.
Q5: Is there a warranty for the floor LED display?
Yes, we offer a 1-2 year warranty depending on the specific product model.
Q6: Can the floor display withstand car traffic?
Yes, the FI series is designed with high-strength materials that can bear 1.5-2 tons per square meter, making it safe for vehicles to pass over.
