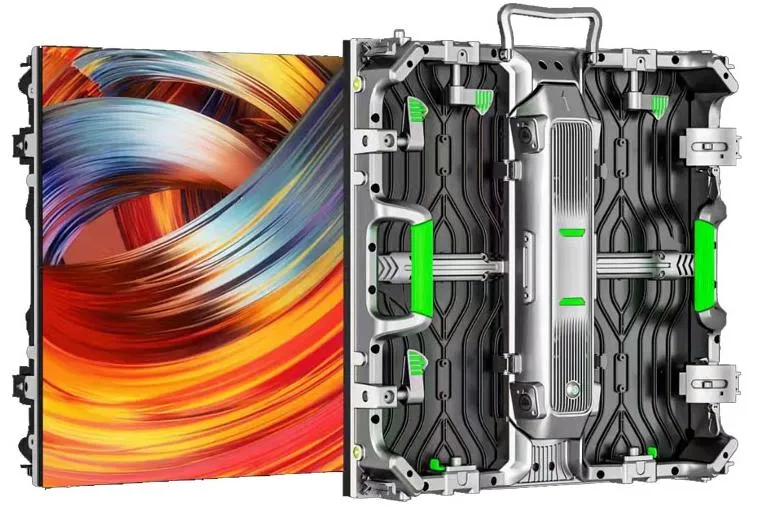

The new series rental LED display incorporates aesthetic elements with high-strength die-casting aluminum. Each cabinet weighs only 7.5kg, offering high-definition visual performance and portability.

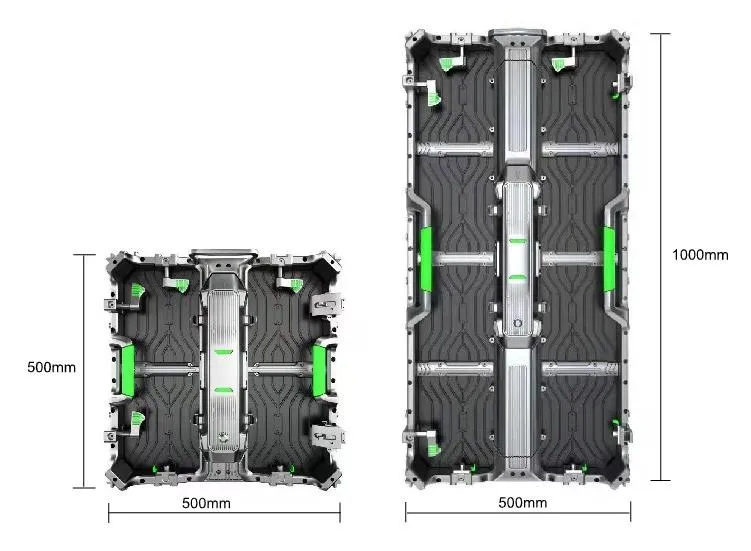

🔹 Lightweight and Thin: Only 80mm thickness and 7.5kg weight. Easy to transport and install, significantly reducing labor costs.

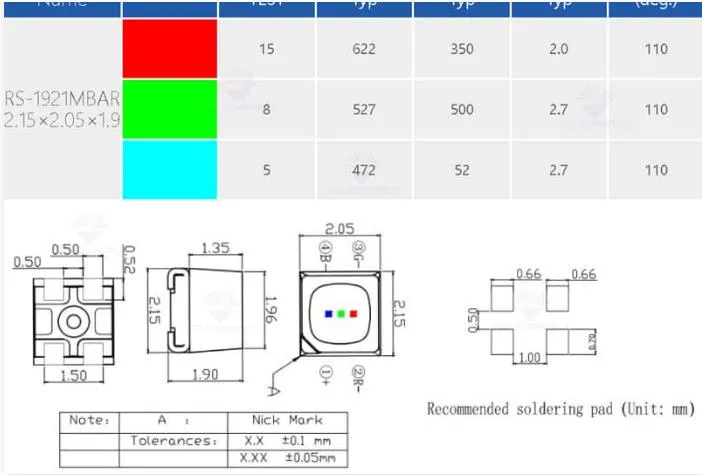

🔹 High-quality SMD LEDs: Featuring reliable lamp beads with excellent waterproof performance and high brightness.

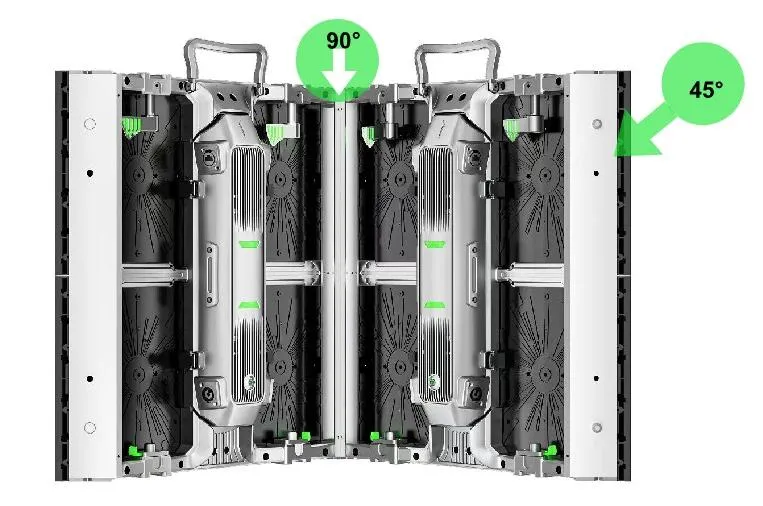

🔹 Right Angle & Curved Installation: Supports 90° right-angle splicing and curved adjustments (-6° to +6°) for creative stage layouts.
| Pixel Pitch | P2.604 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density (m2) | 147,456 | 112,896 | 65,536 | 43,264 |
| Brightness | ≥4500 cd/m2 | ≥4500 cd/m2 | ≥4500 cd/m2 | ≥4000 cd/m2 |
| Refresh Rate | ≥1920HZ / 3840HZ | |||
| Cabinet Material | Aluminum | |||
| Protection Rating | IP65 | |||
1. Startup: Use a preheating model (30% brightness) for 0.5-2 hours during initial use.
2. Usage: Operating 8 hours or more continually per day is recommended. Use at least once a week.
3. Cleaning: Use a soft brush to clean the surface. Prohibit any liquid cleaners.
