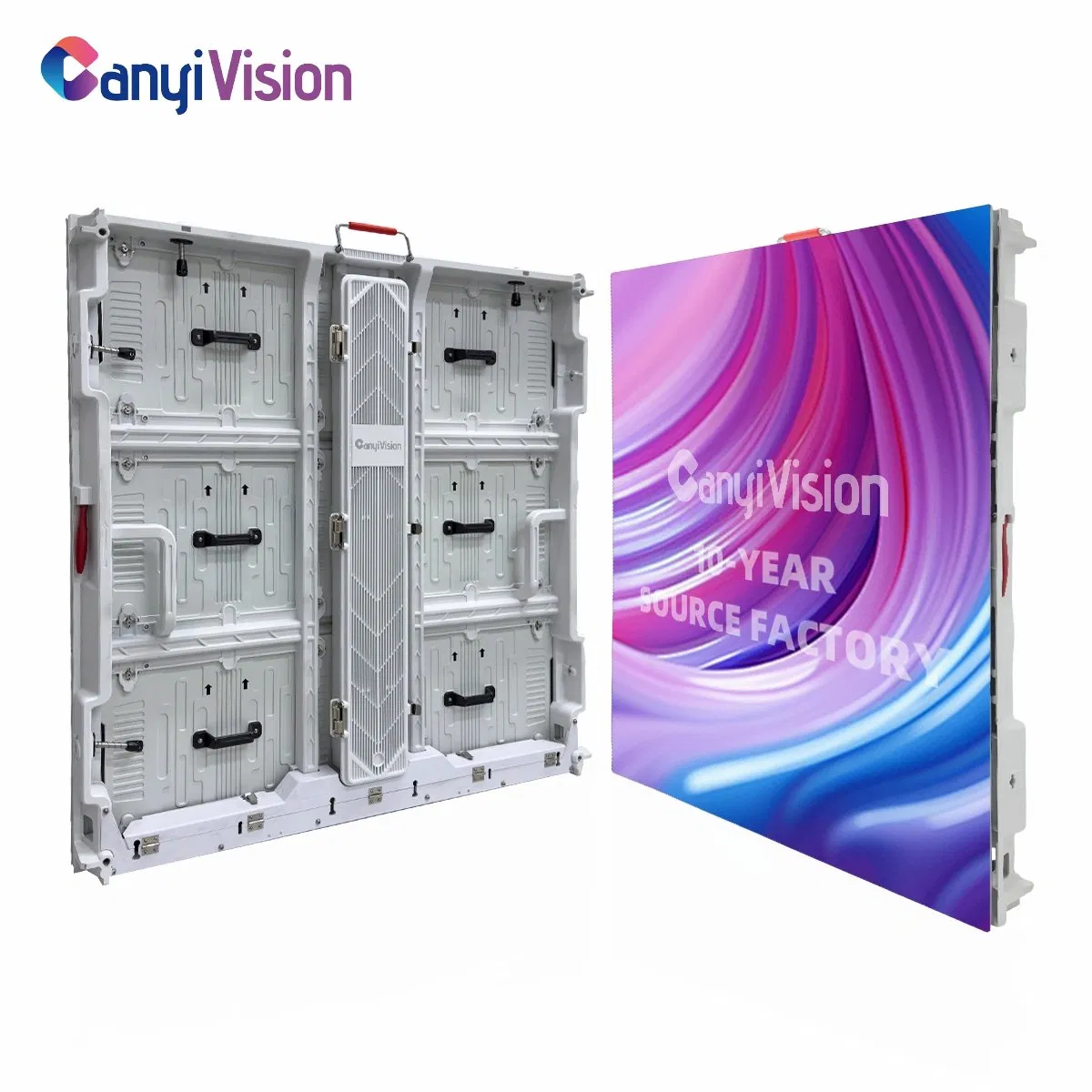

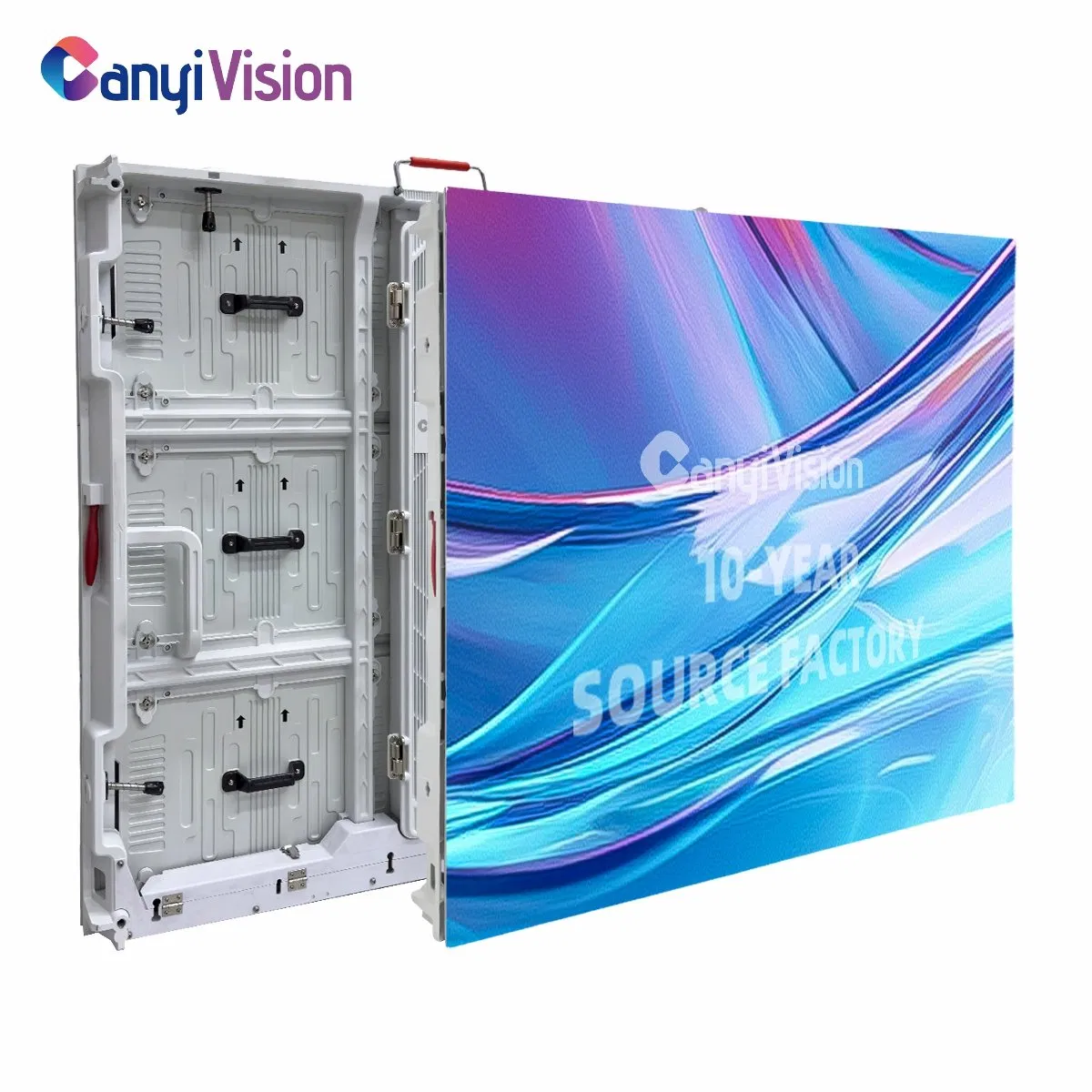

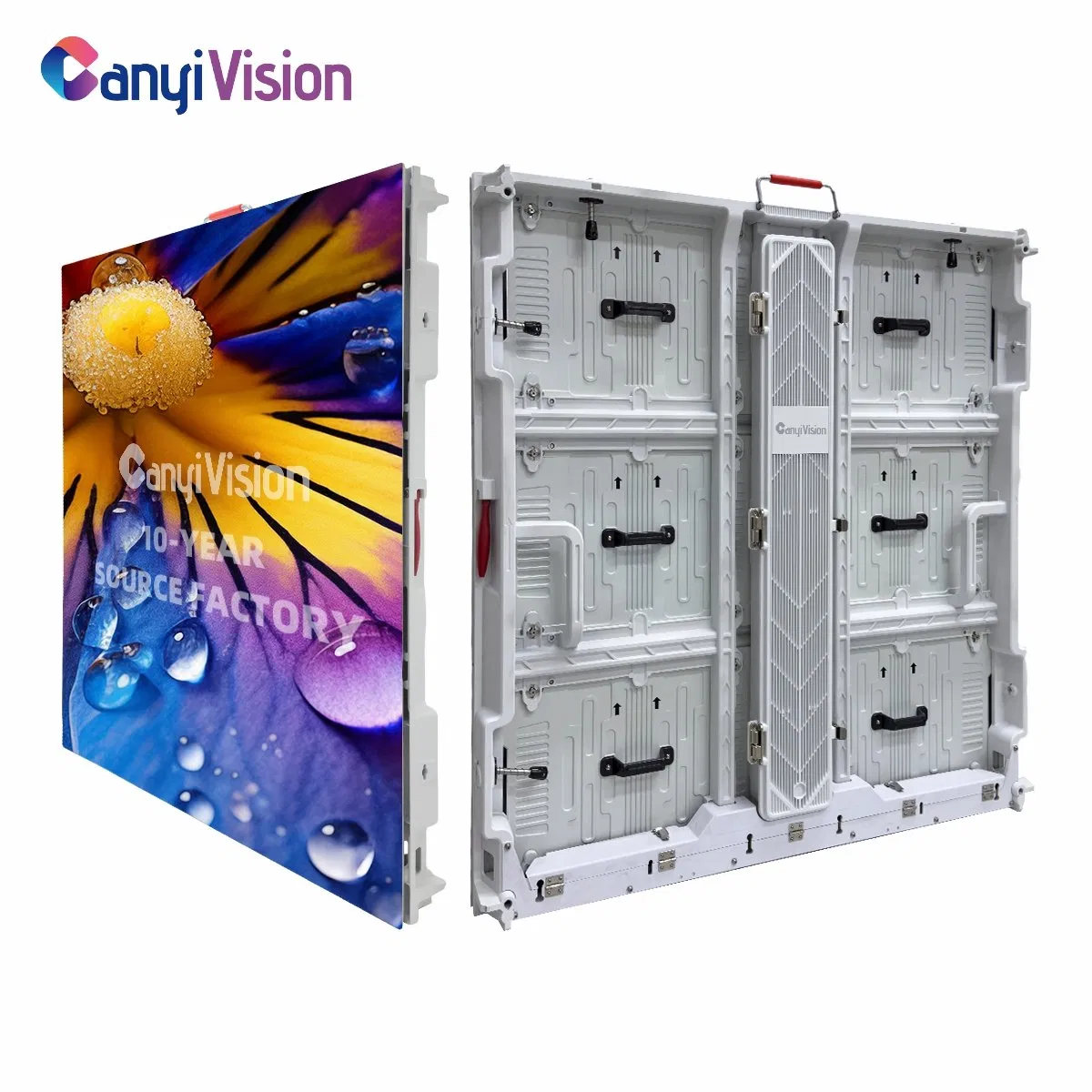

P8 P6.67 Easy Install Outdoor LED Display Full Color Big Advertising LED Screen Wall Mount on Building or Floor Standing

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
P6.67
Display Function
Video, Image, Text, Market Display
Power Consumption
Avg. 800W/M2
Pixel Density
22,477 DOT
Scanning Mode
1/6 Scan
Application
Outdoor Advertising
Certification
CE, RoHS, CCC
Brightness
6000CD - 10000CD
Mounting
Wall Mount, Floor Stand, Ceiling Mount
Power Supply
100-240V AC
Product Description

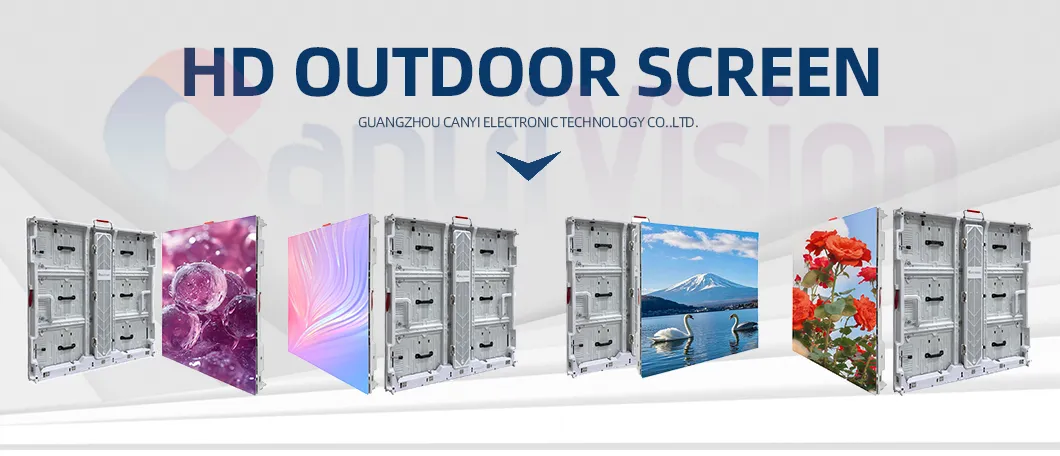

Outdoor LED Display
LED Screen Details

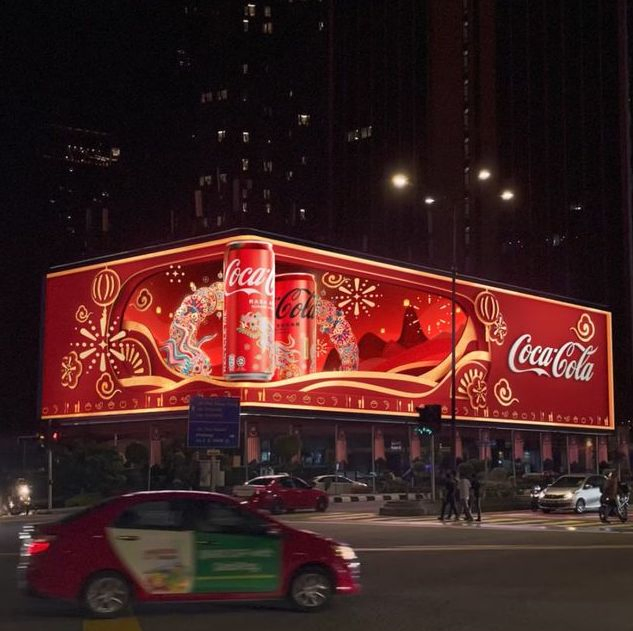

Installation View

Premium Outdoor Visual Solutions: Easy install outdoor LED display featuring full-color big advertising capabilities. Ideal for building wall mounts or floor-standing structures with high-brightness performance under direct sunlight.

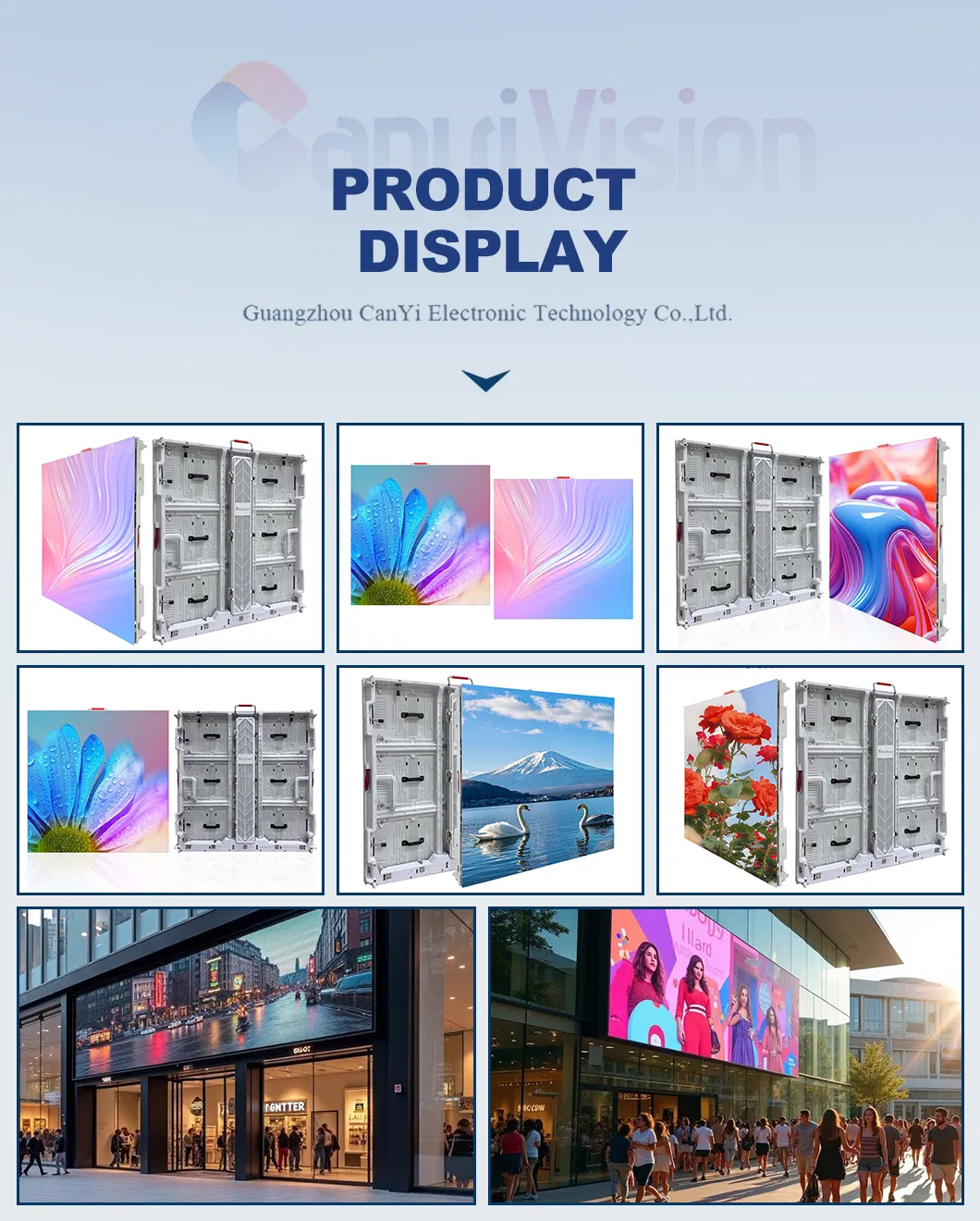

Outdoor Performance

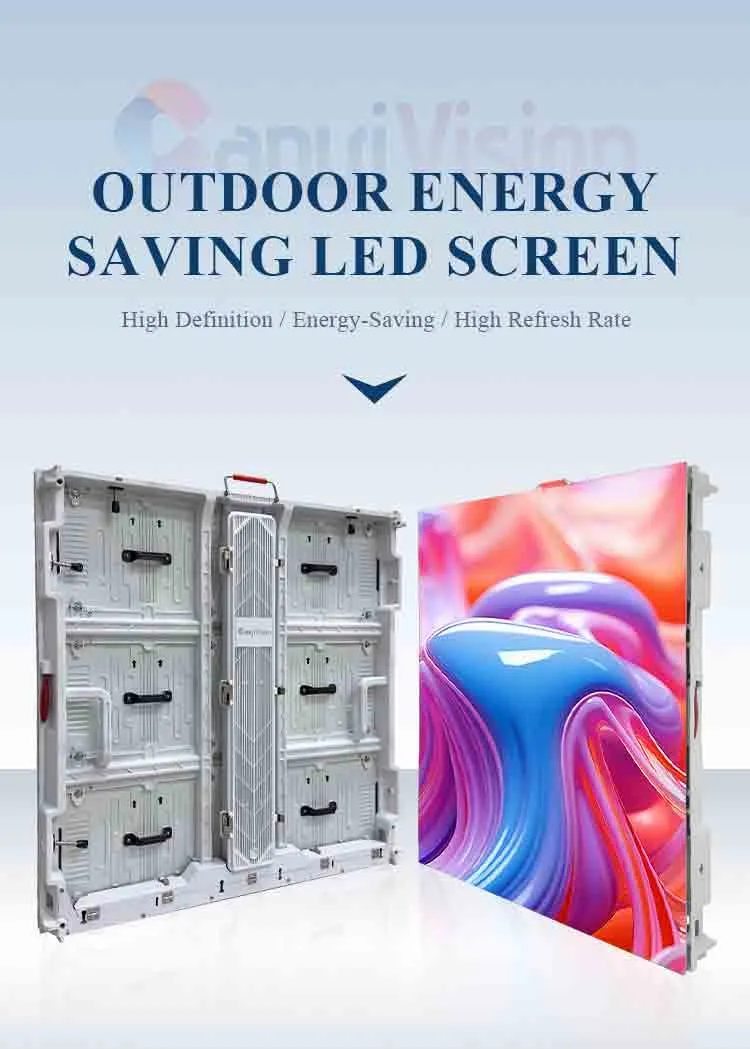

LED Module

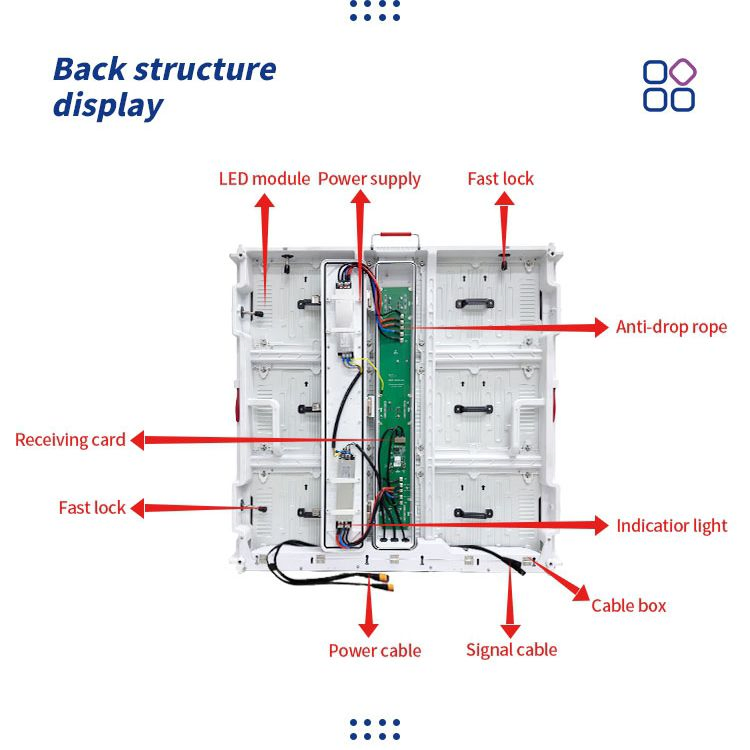

LED Cabinet
Display Effect
Process Details
Quality Control

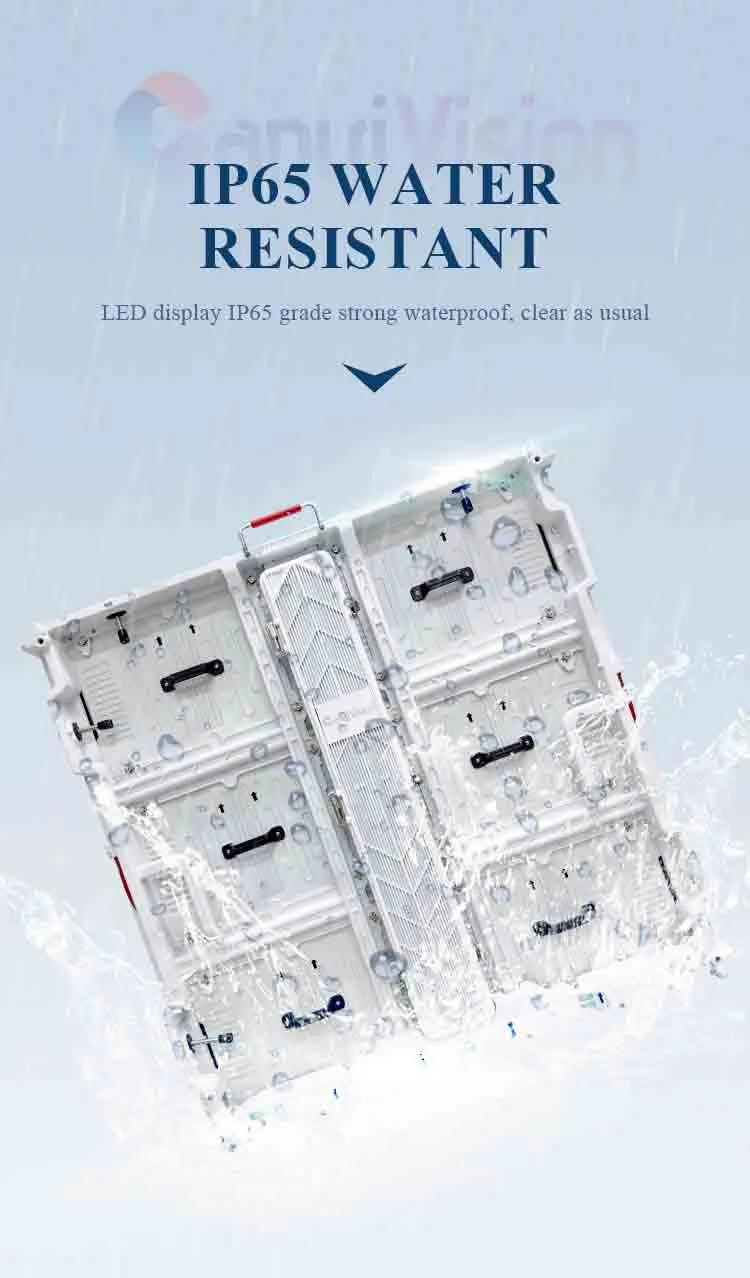

Waterproof Test
Technical Specifications
Model P5.7 P6.67 P8 P10
Pixel pitch5.7 mm6.67 mm8 mm10 mm
Density30,625 dots/m²22,427 dots/m²15,625 dots/m²10,000 dots/m²
Drive method1/7 scan1/6 scan1/5 scan1/2 scan
Viewing distance5–60 m6–70 m8–80 m10–100 m
Brightness7,000 / 10,000 nits
Module size480 × 320 mm
Screen size960 × 960 mm
IP ratingFront IP65 / Rear IP54
Packing & Delivery
Wooden Box Packing
Cooperation Cases

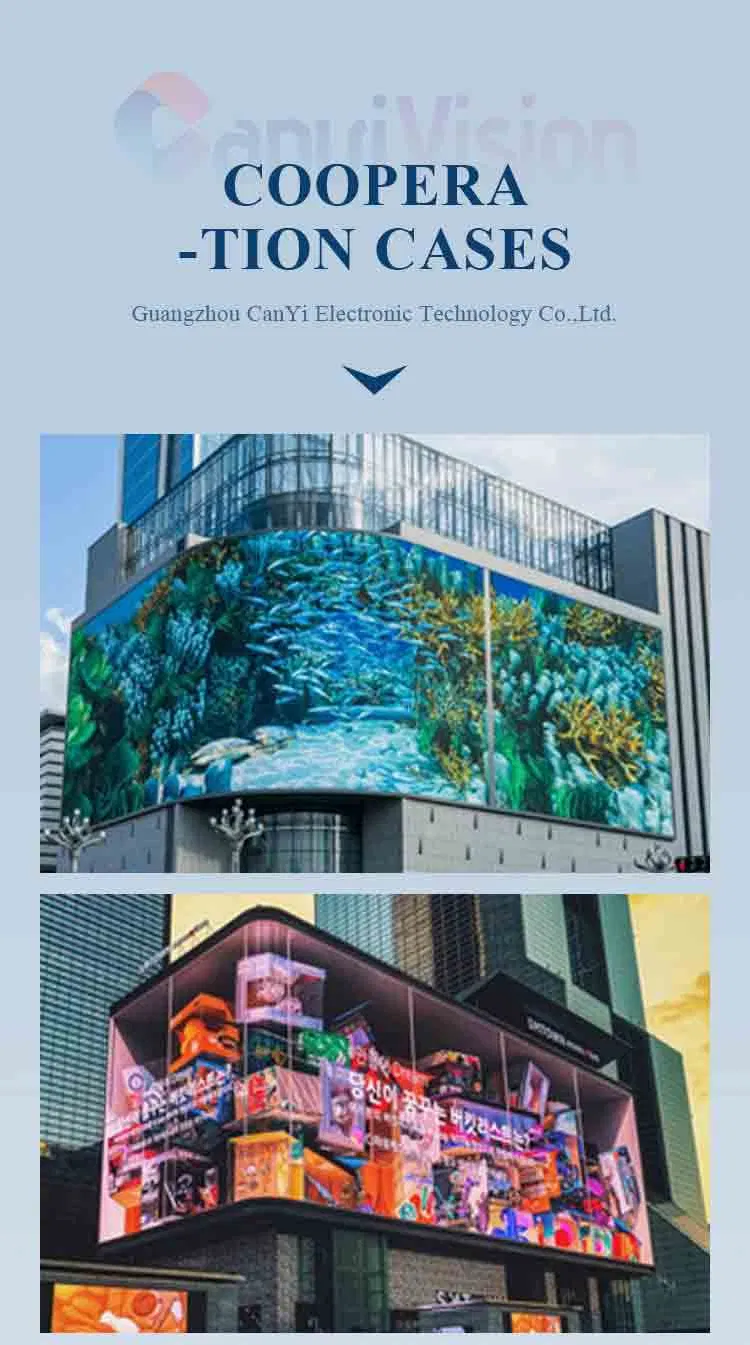

Case 1

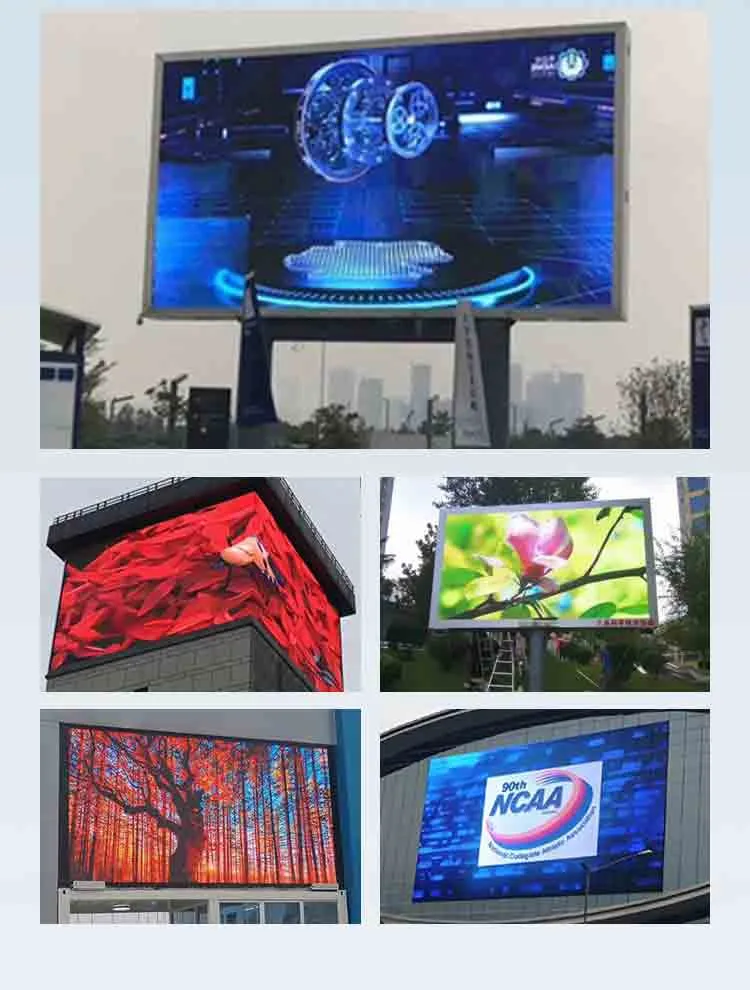

Case 2
Certifications
LED Display Certifications
Frequently Asked Questions
1. How do I determine the best pixel pitch for my project?
The optimal viewing distance is the key. A general rule is: Optimal Viewing Distance (meters) ≈ Pixel Pitch (mm) × 2 to 3. For close viewing, use P1.2-P2.5; for outdoor long-distance billboards, P5-P10 is more cost-effective.
2. What are the main differences between SMD, GOB, and COB?
SMD is the standard and most cost-effective solution. GOB (Glue-on-Board) adds a protective layer for better durability. COB (Chip-on-Board) offers the highest protection, better heat dissipation, and superior robust performance at a higher price point.
3. Can I use an indoor LED screen outdoors?
No. Outdoor screens require much higher brightness (≥5,000 nits) to be visible in sunlight and must be IP65-rated for waterproof and dustproof protection, which indoor screens lack.
4. How long is the lifespan of an outdoor LED video wall?
Our high-quality LED displays are designed for a lifetime of approximately 100,000 hours, depending on environmental conditions and maintenance.
5. Is the maintenance for wall-mounted screens difficult?
Our P6.67 and P8 models support both front and rear access. Front maintenance allows for easy module replacement without dismantling the entire structure, saving time and labor costs.
6. What kind of content can be displayed on these screens?
The system supports multi-language management and various formats including live video, high-resolution images, scrolling text, and real-time market data displays.
