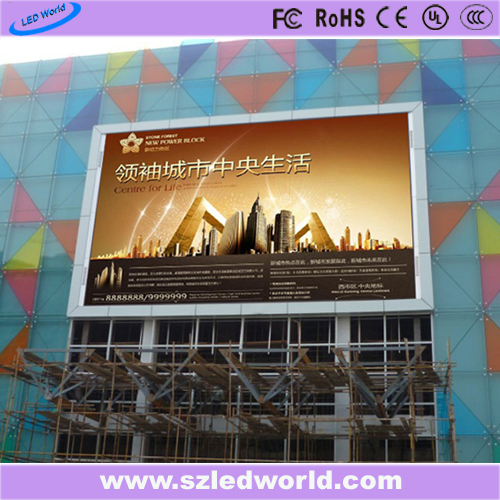

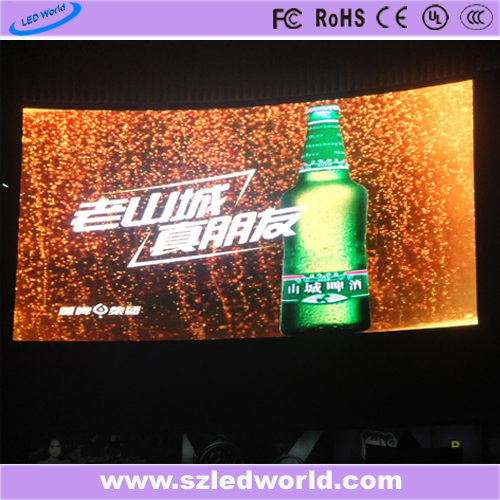

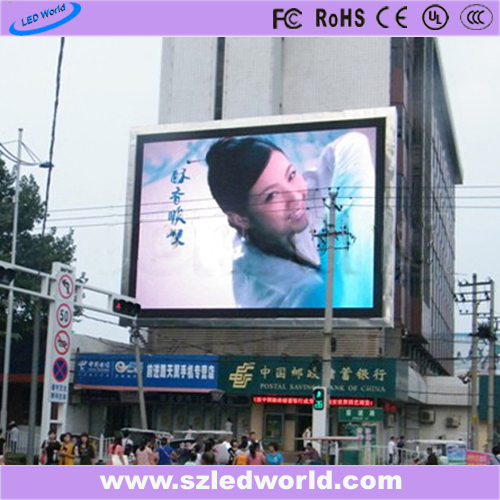

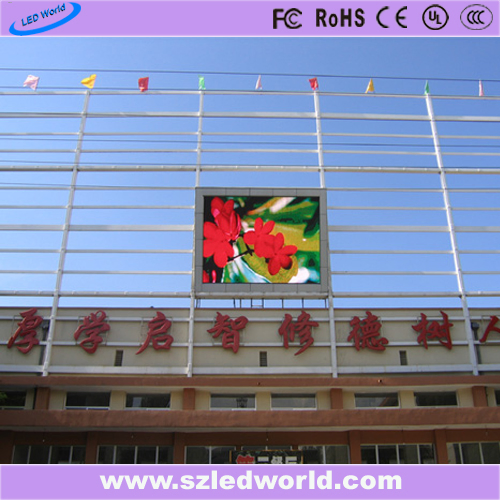

High-end outdoor fixed LED display screen panel boards designed for advertising, storefronts, showrooms, and supermarkets. Available in P3.91, P4, P5, P6, P8, and P10 configurations.
Constructed from high-quality iron or aluminum sheet metal. Durable, resistant to deformation, and offers significant price advantages over die-cast alternatives.

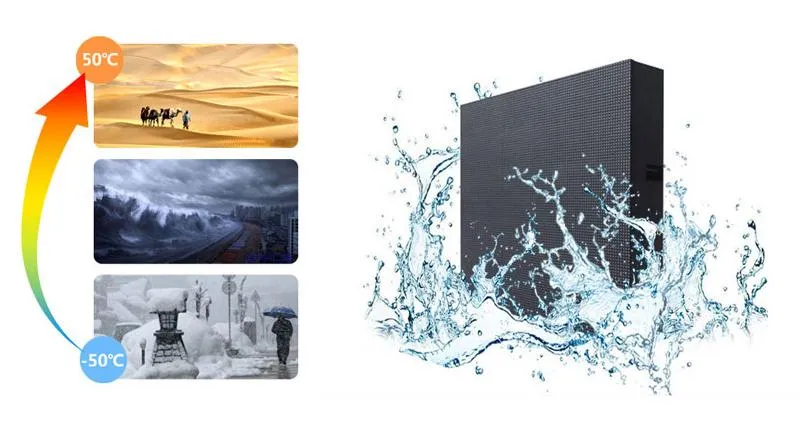

Rated for all-weather use. Dustproof, waterproof, and corrosion-resistant with anti-ultraviolet properties for long-term outdoor stability.

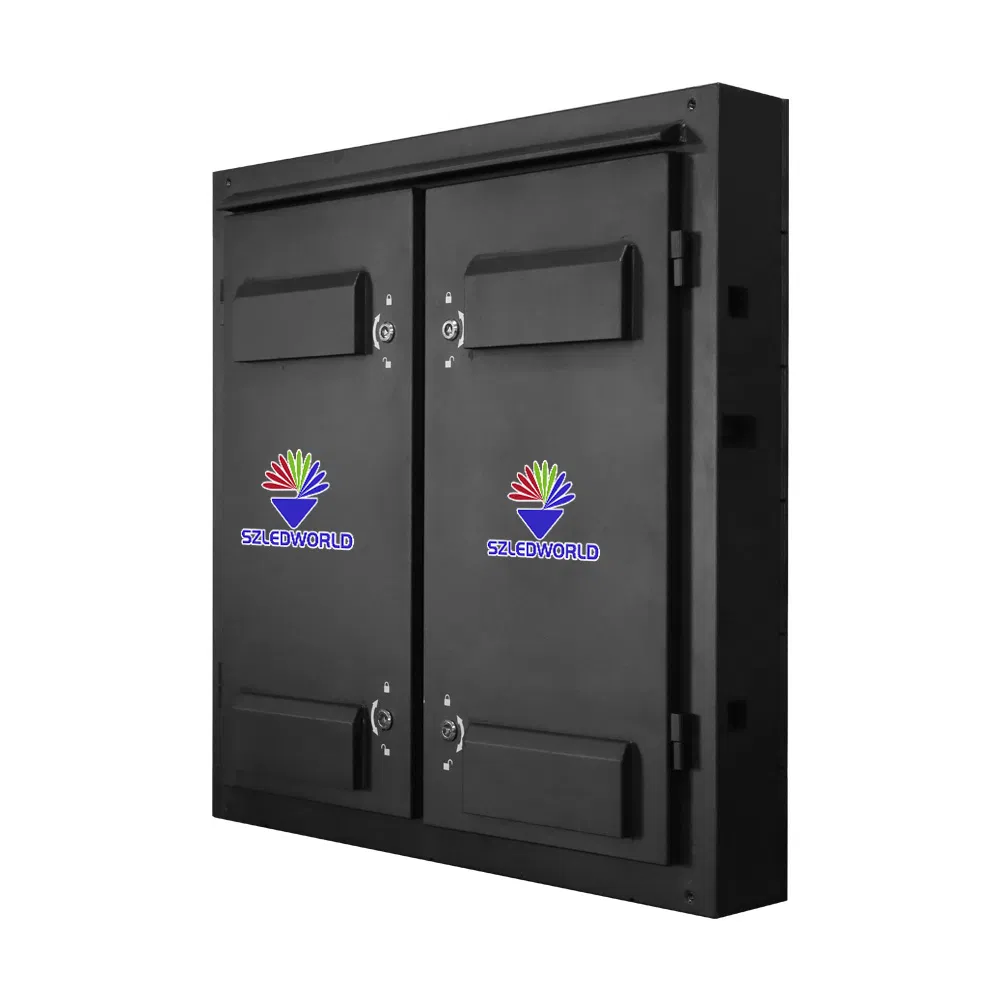

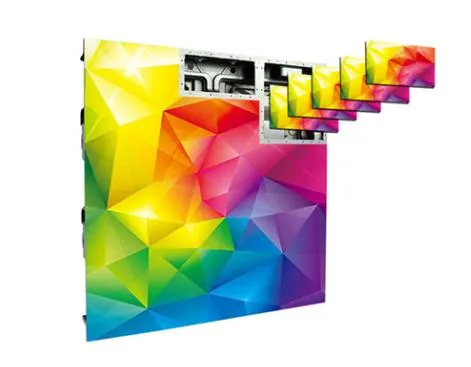

960mmx960mm standard size cabinet with standard screw holes compatible with 320x160mm modules.

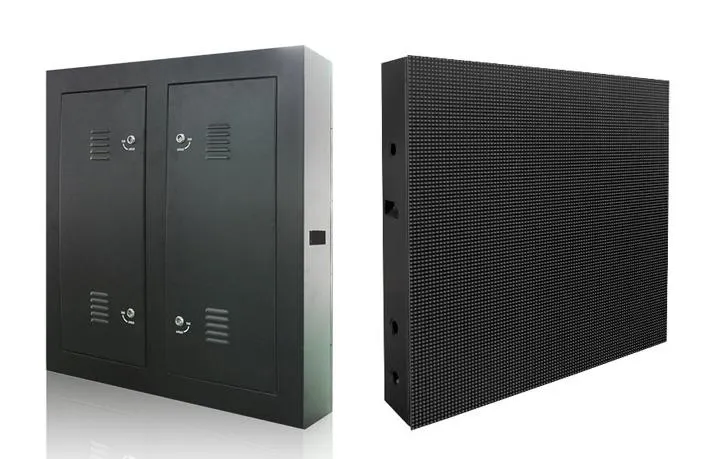

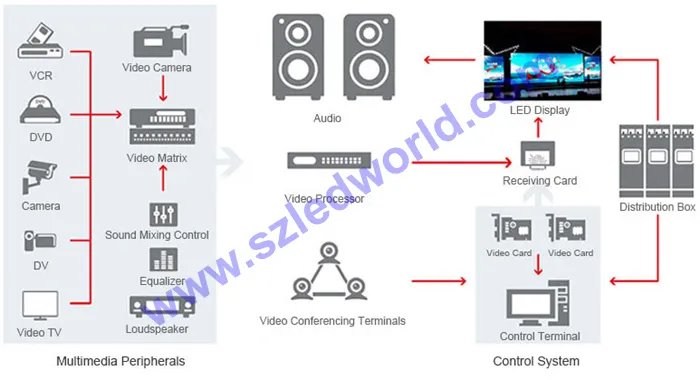

User-friendly software and hardware design allowing for both front or rear access maintenance to lower long-term operational costs.
| Pixel Pitch | P2.5 | P3 | P3.33 | P4 |
|---|---|---|---|---|
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density (pixels/m²) | 160,000 | 111,111 | 90,000 | 62,500 |
| Module Size (mm) | 160*160 | 192*192 | 320*160 | 320*160 |
| Brightness (cd/m²) | ≥6800 | ≥5500 | ≥5500 | ≥5500 |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Pixel Pitch | P5 | P6 | P8 | P10 |
|---|---|---|---|---|
| LED Type | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density (pixels/m²) | 40,000 | 27,777 | 15,625 | 10,000 |
| Brightness (cd/m²) | ≥5500 | ≥5000 | ≥5800 | ≥6500 |
| Best Viewing Distance | 5m-50m | 6m-60m | 8m-80m | 10m-100m |
| Lifespan | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |

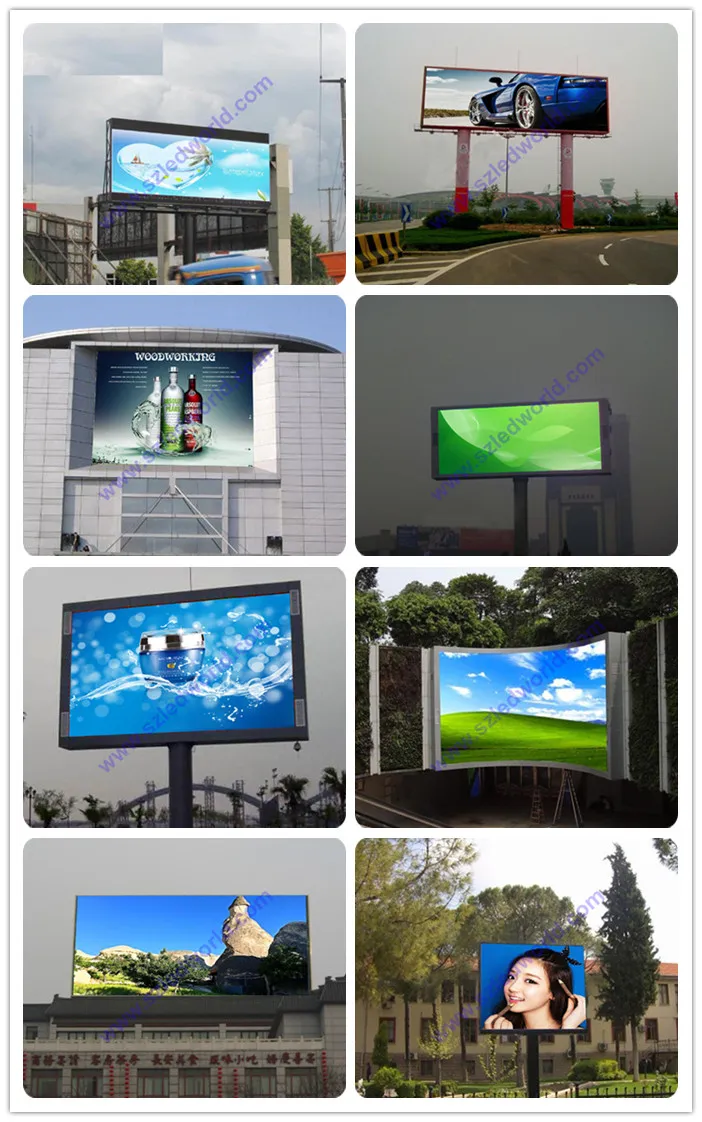

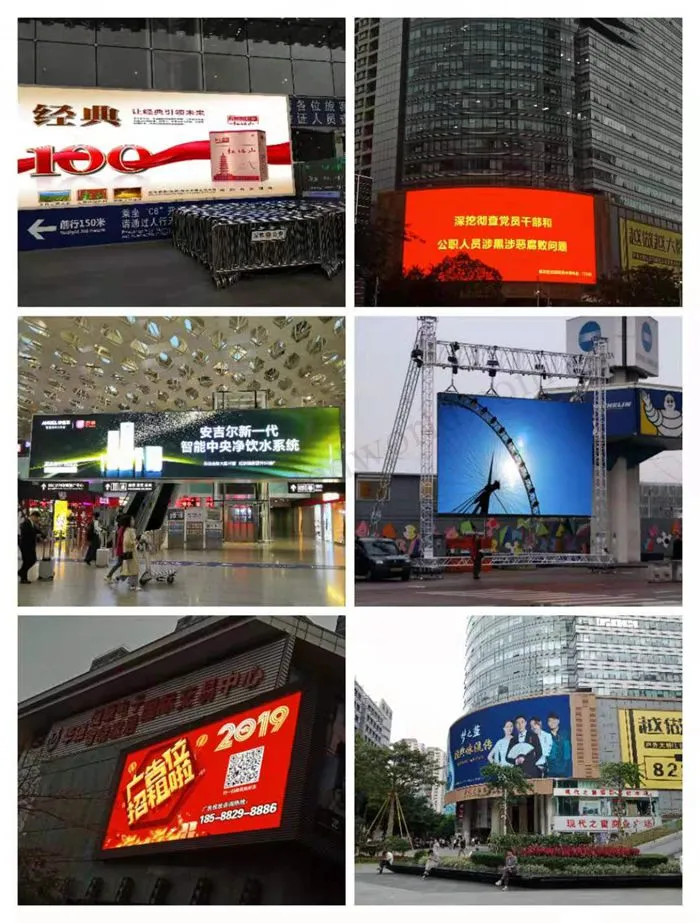

| Business | Supermarkets, shopping malls, office buildings, chain shops, hotels, restaurants. |
| Financial | Banks, security companies, insurance companies, post offices, hospitals, schools. |
| Public Places | Subways, airports, stations, gas stations, parks, exhibition halls, stadiums, museums. |
| Entertainment | Movie theaters, fitness halls, night clubs, bars, cafes, golf courses, casinos. |
