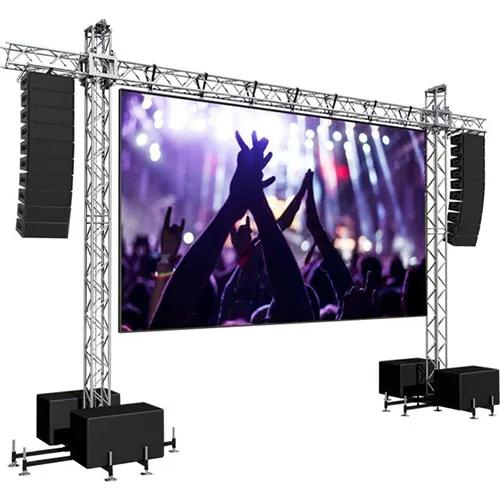

Outdoor P2.6 Stage Background Advertising Rental LED Display

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
AX2.6
Pixel Pitch
2.604mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text
Power Consumption
268W/M2 (Avg)
Pixel Density
147456 Dots/M2
Scanning Mode
1/24s
Certification
CE, RoHS, CCC
Refresh Frequency
3840 Hz
Lifespan
50,000 Hours
🚀 Product Description
(1) Lightweight design, easy to assemble The weight of a single box is only 7.5KG, allowing for effortless one-person assembly.
(2) Four-level energy-saving technology Includes dynamic, black screen, full-screen, and shunt power supply step-down modes to significantly reduce power consumption.
(3) True color, high-definition visual display Refresh rate up to 3840Hz, contrast ratio up to 5000:1, and 16-bit grayscale for realistic, grain-free images.
(4) Flexible installation options Supports straight, curved, right angle, and tesseract screen configurations with seat or hanging methods.
(5) Power supply even flow backup Adjacent boxes can supply power to each other to prevent black screens during local power failure.
(6) Advanced drive solution Features fading functions, first-row darkening improvement, and low-gray color correction.
(7) Bump protection corner Protective corners reduce damage to lamp beads during transportation and setup.
(8) Stable and reliable performance Excellent heat dissipation, low temperature rise, and IP65 protection level for long service life.

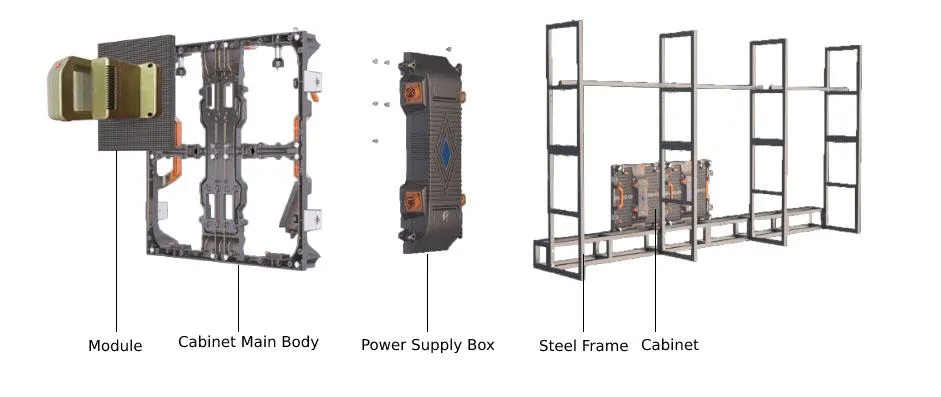

(9) Efficient maintenance Fully modular design (case, module, power box) supports both front and rear maintenance.
📊 Product Parameters
Parameter Name P1.9 P2.6 P2.9 P3.9 (16S) P3.9 (8S)
Pixel pitch (mm) 1.95mm 2.604mm 2.97mm 3.91mm 3.91mm
Module resolution (W×H) 128*128 96*96 84*84 64*64 64*64

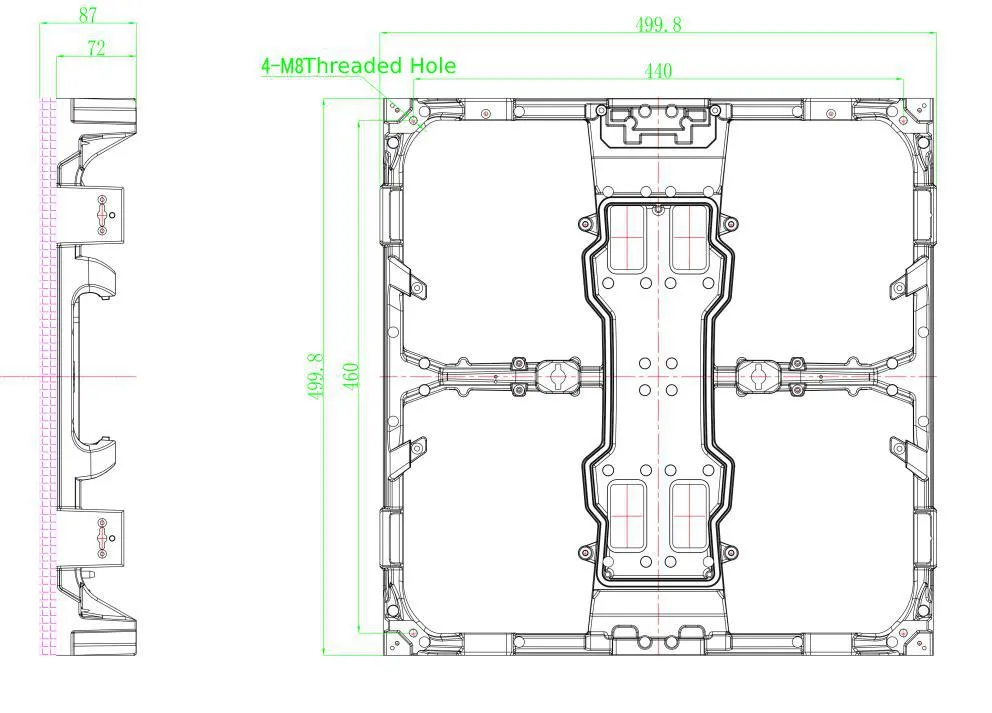

Cabinet size (mm) 500*500*87
Cabinet weight (Kg) 7.5
Pixel density (dots/m²) 262144 147456 112896 65536 65536
White balance brightness 4000 cd/m²
IP Rating IP65
Refresh frequency 3840 Hz

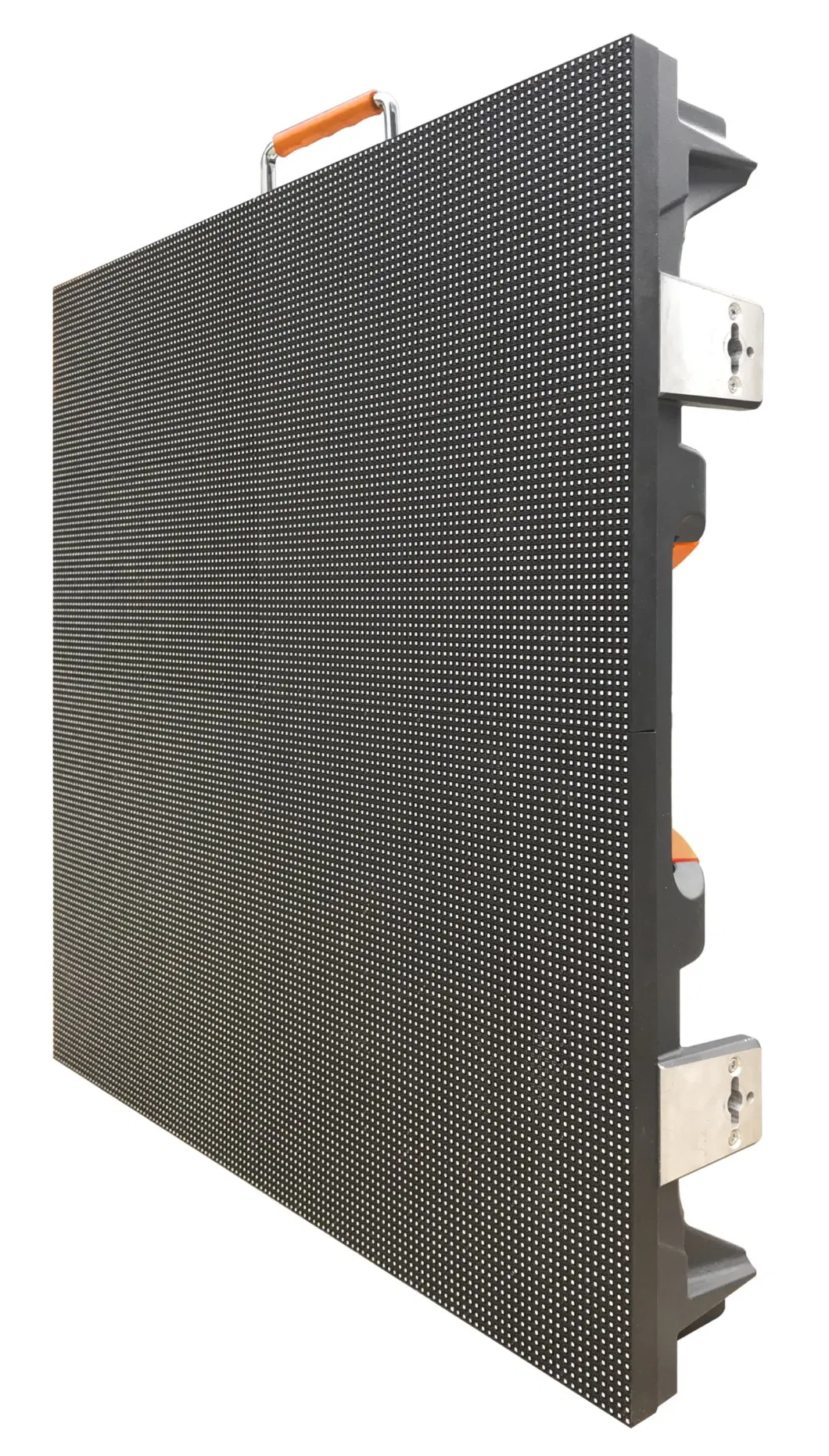

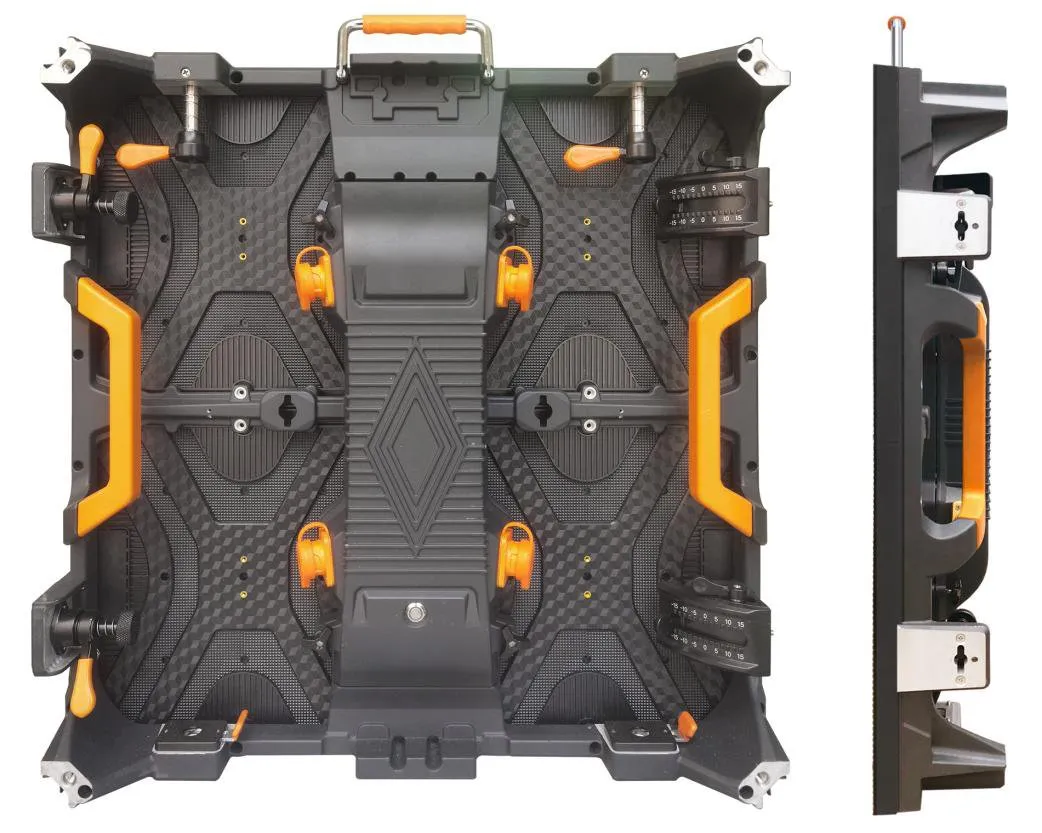

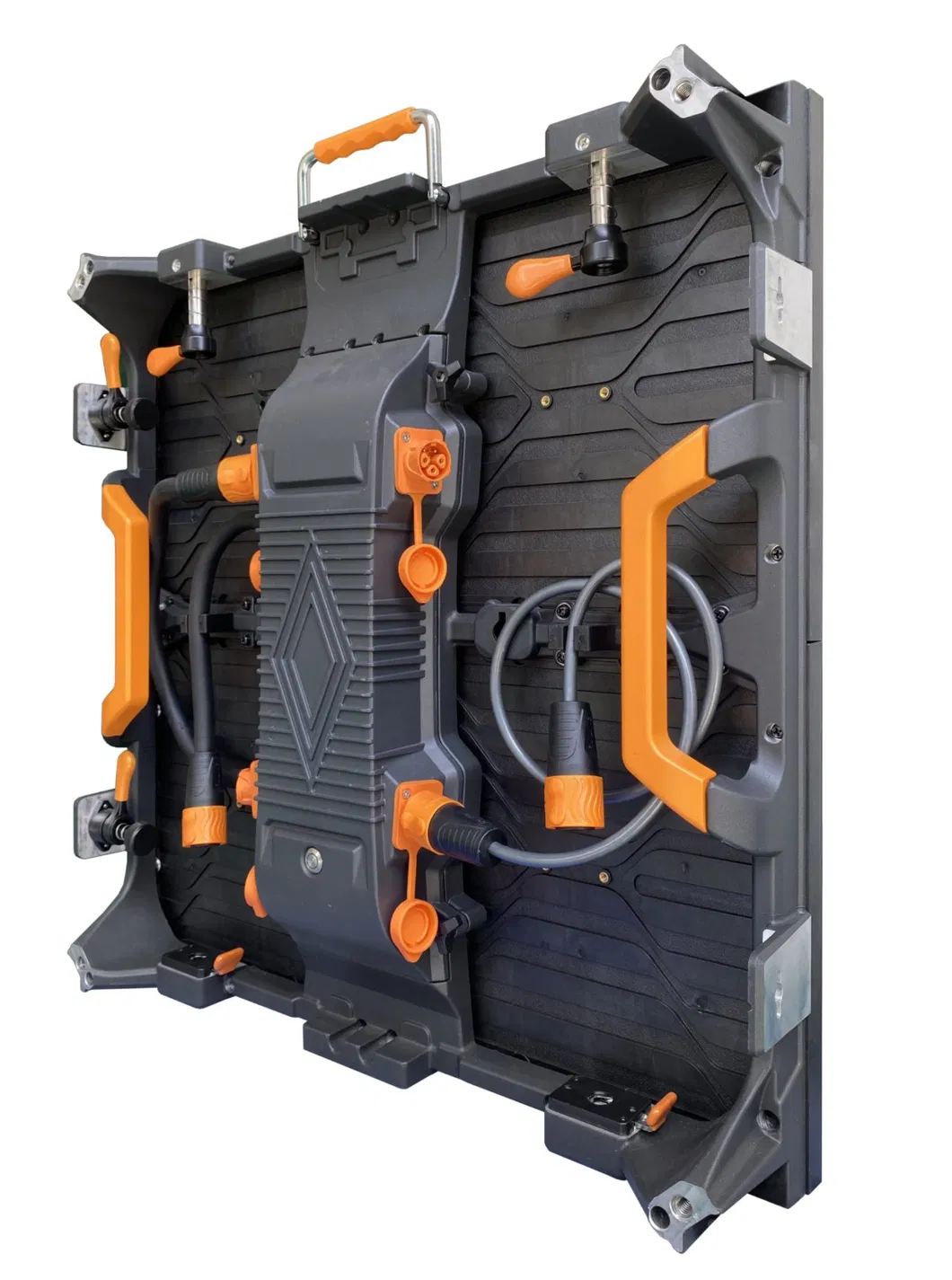

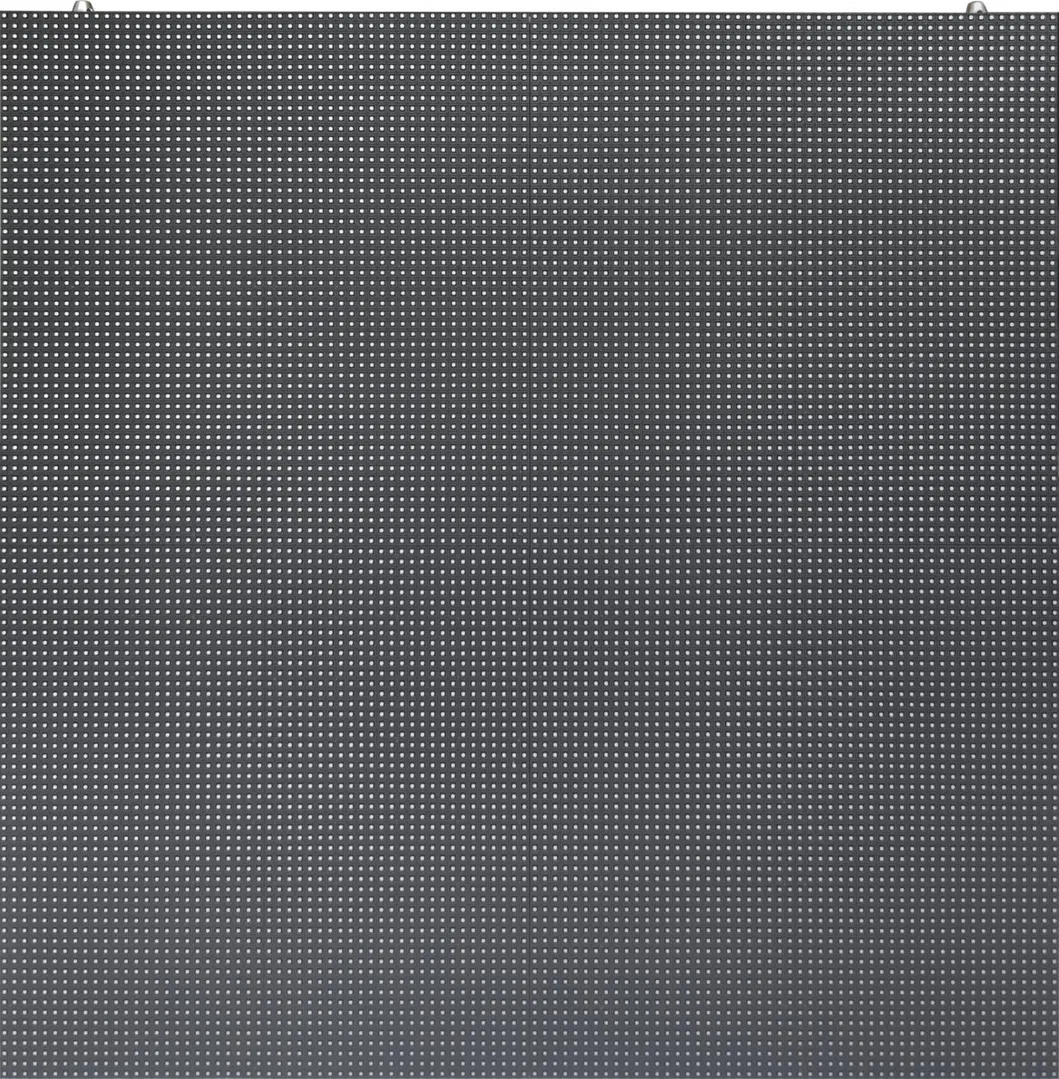

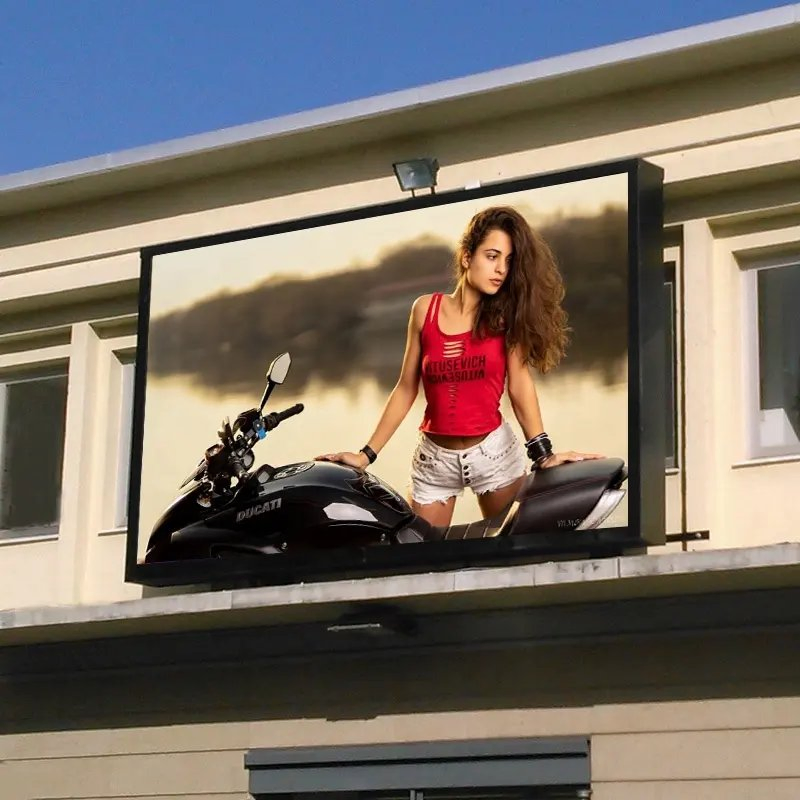

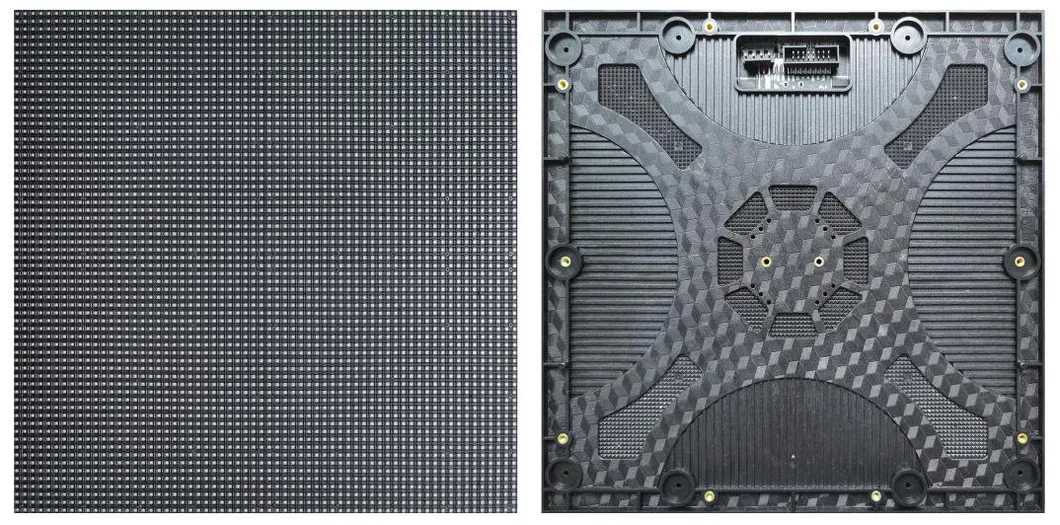

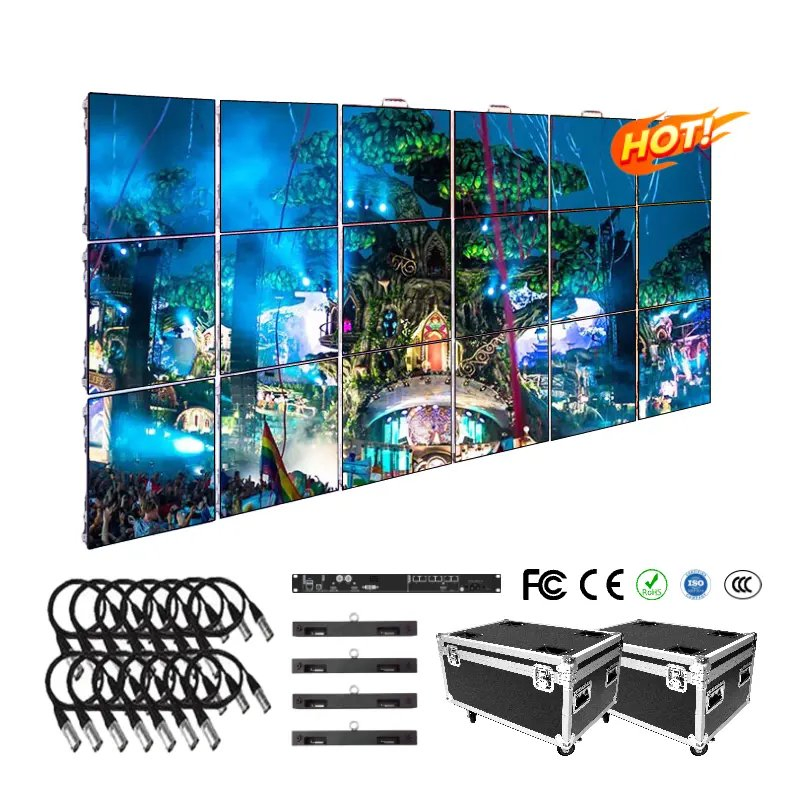

🖼️ Product Pictures

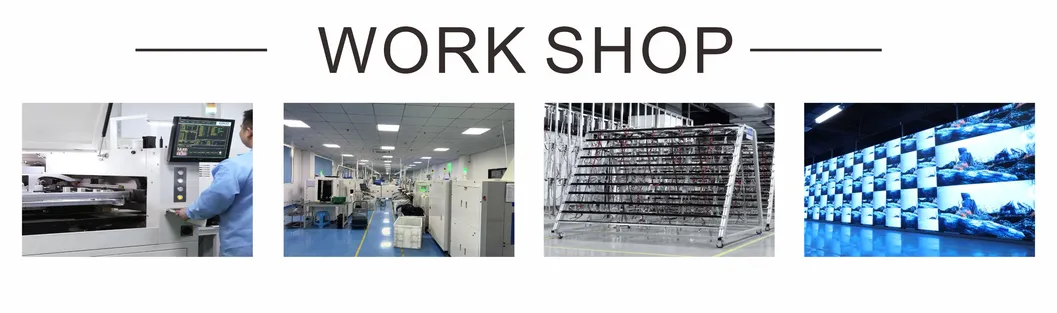

🏢 Factory & Production
❓ FAQ
Can I have a sample order for LED screen?
Yes, sample order is available for quality check and market test, both for individual LED modules and the complete screen.
How can I get technical support?
We currently provide comprehensive technical support via remote video control to assist with installation and troubleshooting.
What is your MOQ for LED screen orders?
Any quantity is acceptable for your order. Prices are negotiable for large quantity orders.
How do I proceed with an order for LED display?
First, let us know your requirements. We then provide a quote, confirm design documents upon deposit, and finally arrange production.
Does the display support front maintenance?
Yes, the product features a fully modular design that supports both front and rear maintenance for maximum convenience.
What is the protection rating of this LED display?
This display is built with an IP65 protection level, ensuring it is stable and reliable for various environmental applications.
