Outdoor P5.71 High Brightness LED Display 7680Hz Energy-Saving Digital Advertising Billboard for Events and Stadiums

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP67

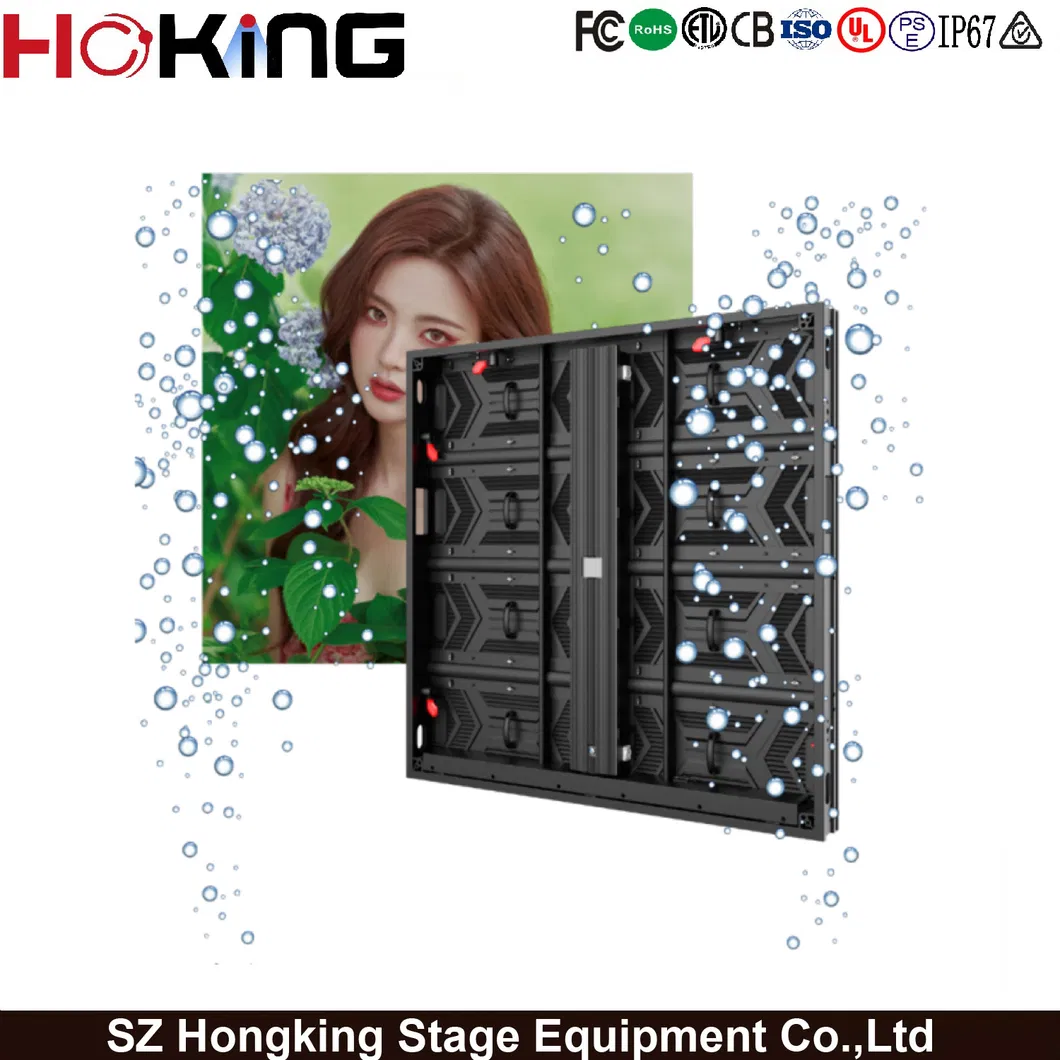

Outdoor P5.71 Energy Saving Display Overview

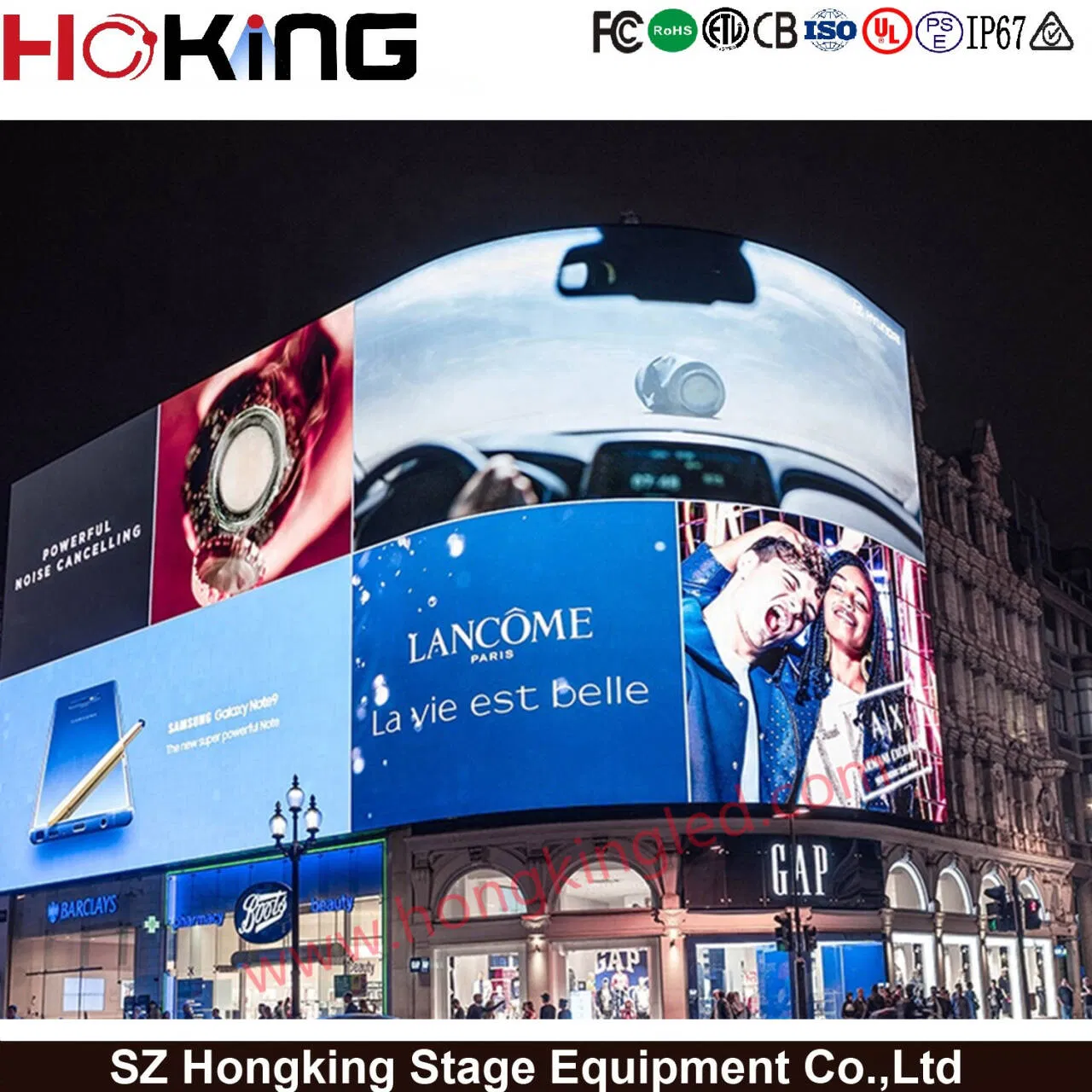

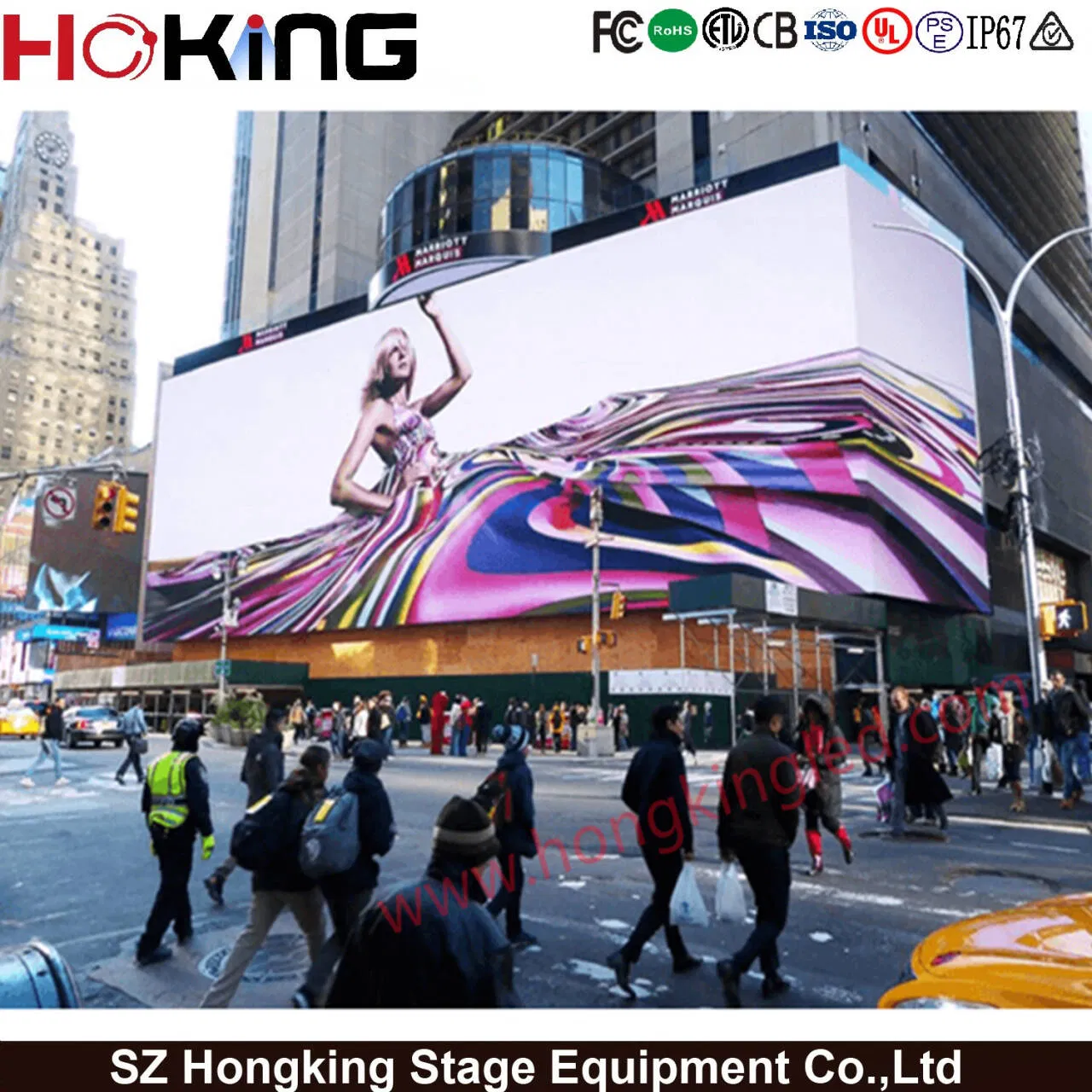

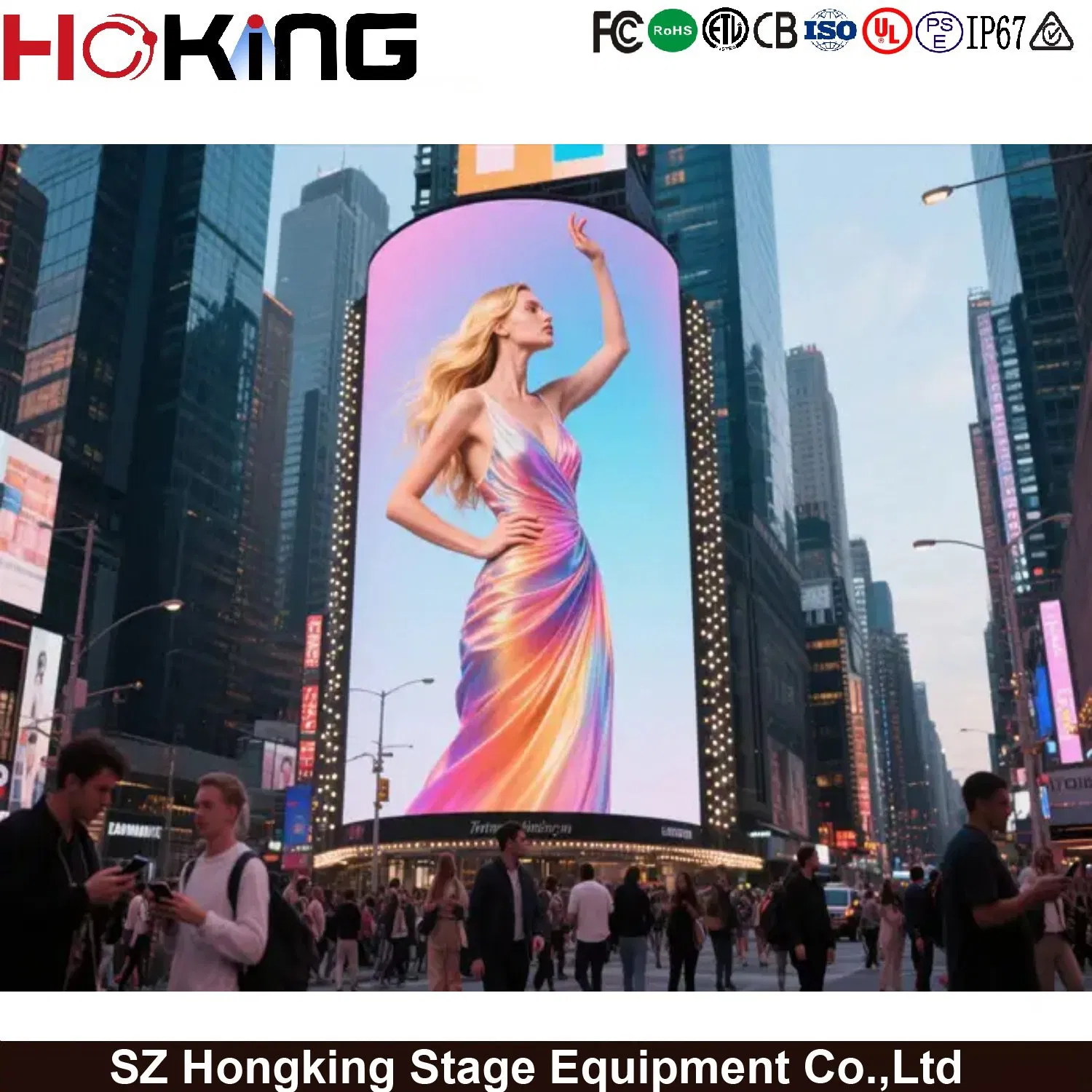

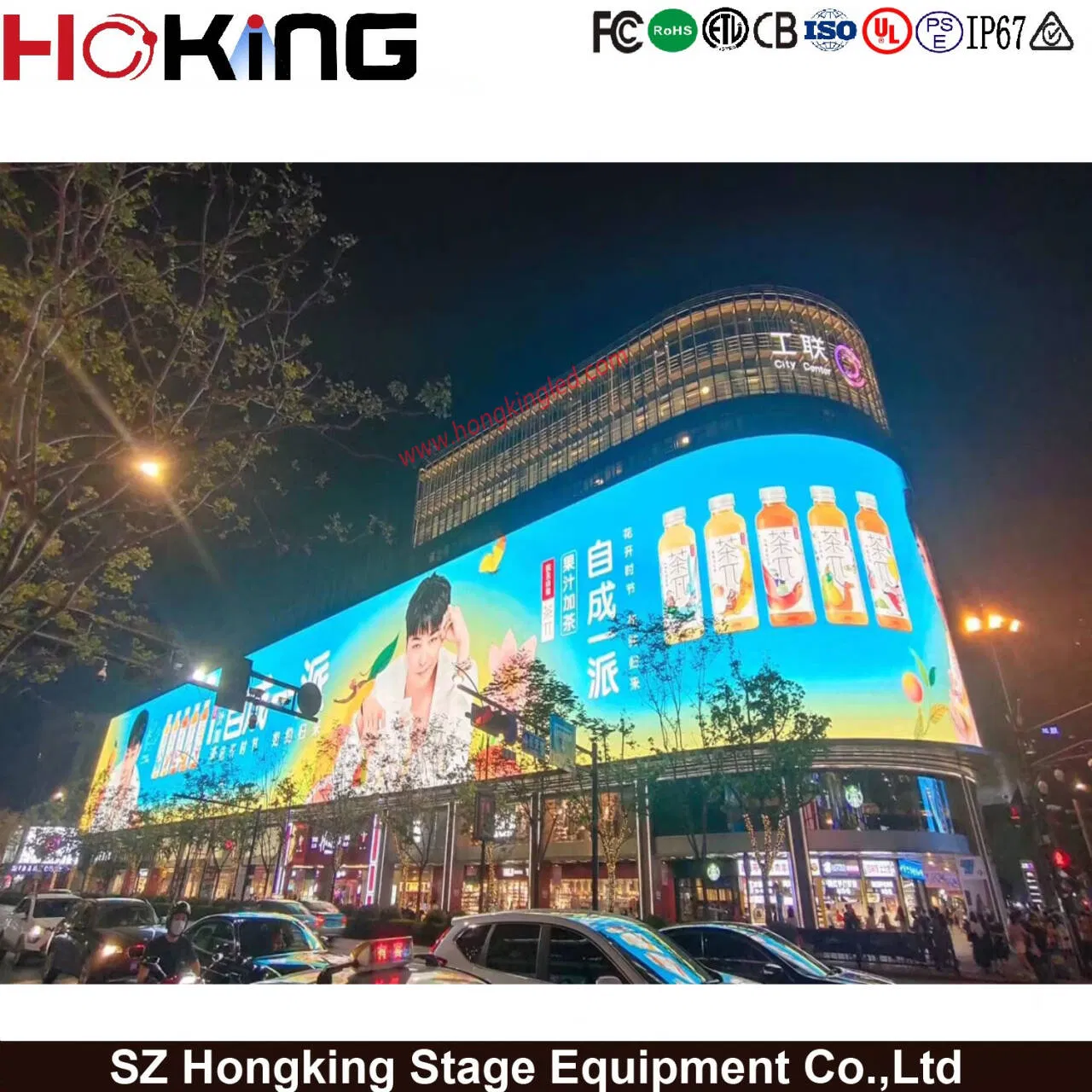

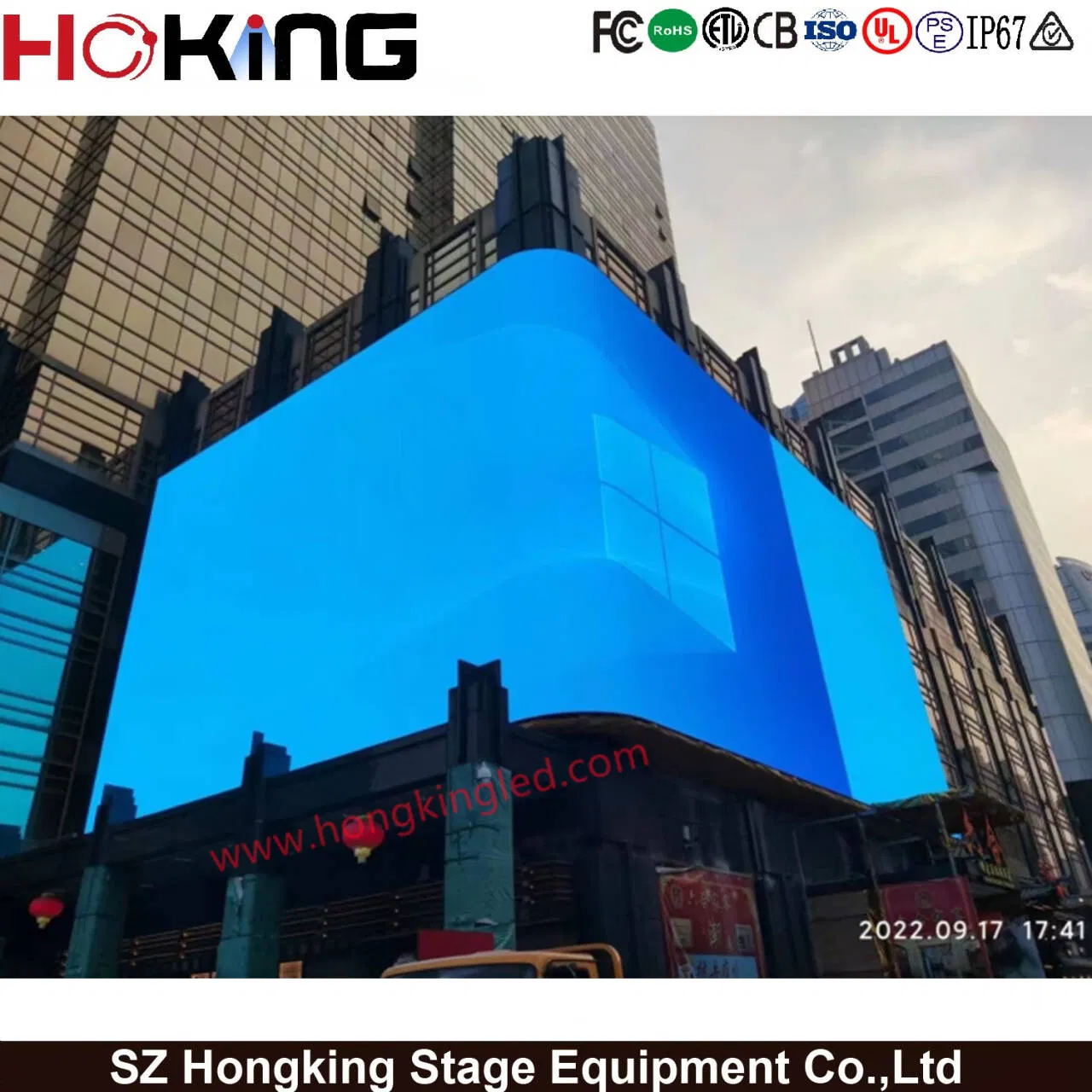

The Outdoor Fixed Energy-Saving LED Display is engineered for long-term commercial installations such as billboards, building facades, and stadiums. It delivers exceptional brightness, ultra-low power consumption, and high durability.

Basic Specifications
Model	Outdoor P5.71 Energy Saving Display
Pixel Pitch	5.71mm
Brightness	Up to 11,000 CD/Sqm
Refresh Rate	3840/7680 Hz
Scanning Mode	1/7 Scan
Module Size	480*320mm
Protection Rating	IP65 (Up to IP68)
Life Time	>100,000 Hours

Key Highlights

Energy Saving Up to 50% - Reduces power consumption without compromising performance.
Ultra High Brightness - Up to 11,000 nits for direct sunlight environments.

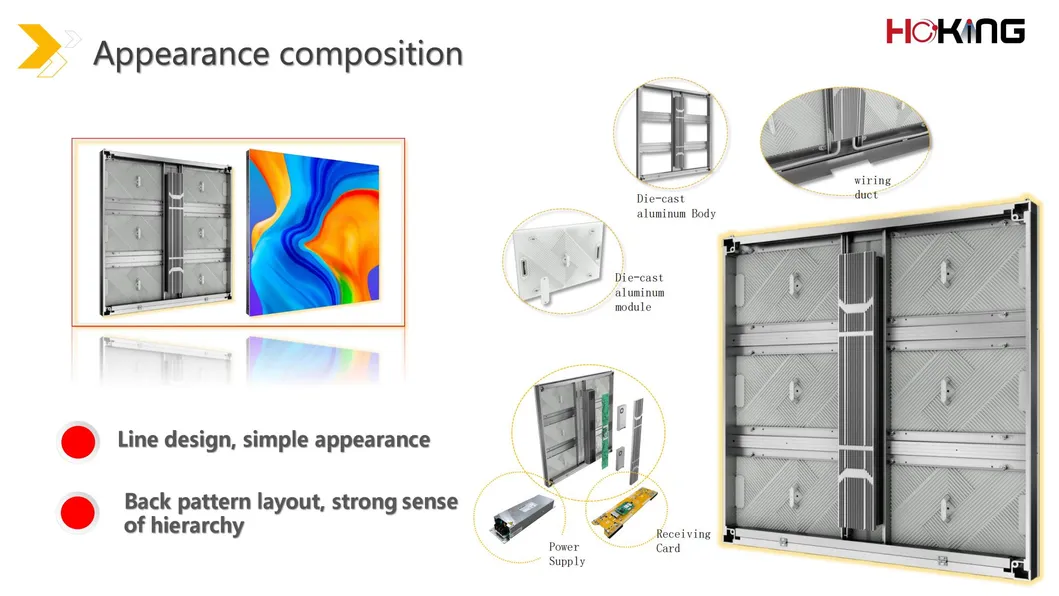

Profile Aluminum Cabinet - High wind resistance and lightweight (26kg/cabinet).

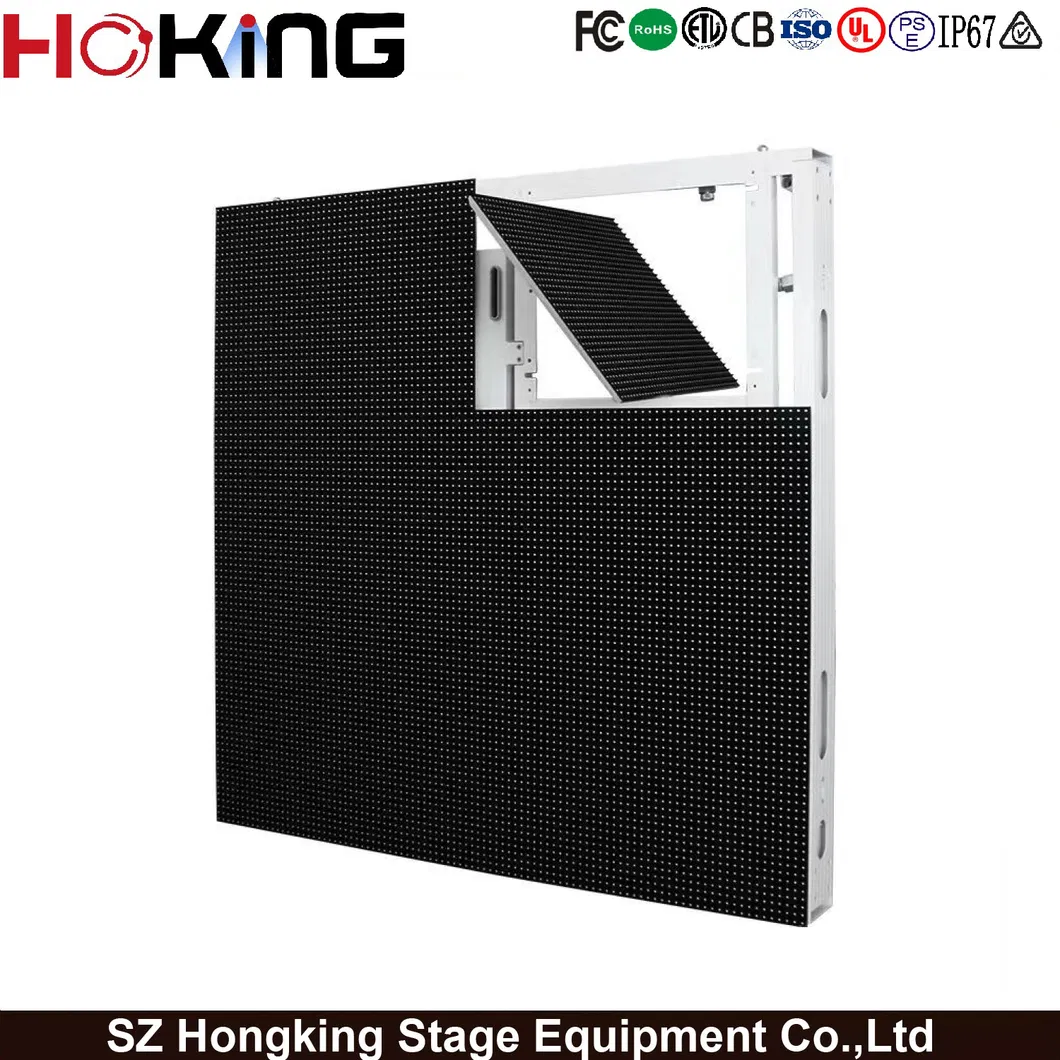

Front & Rear Maintenance - Flexible servicing for all installation types.
HUB Connection System - No traditional flat cables, improved stability.
Module Anti-Fall Lock - Secure locking mechanism for high installations.

Technical Parameters

Parameter	P4.44	P5.71	P6.67	P8	P10
Pixel density (dots/m²)	50630	30625	22500	15625	10000
Driving mode	1/9 scan	1/7 scan	1/6 scan	1/4 scan	1/2 scan
Max Power/sqm	≤450W/m²
Average Power/sqm	155W/m²
Cabinet Material	Die-casting Aluminum

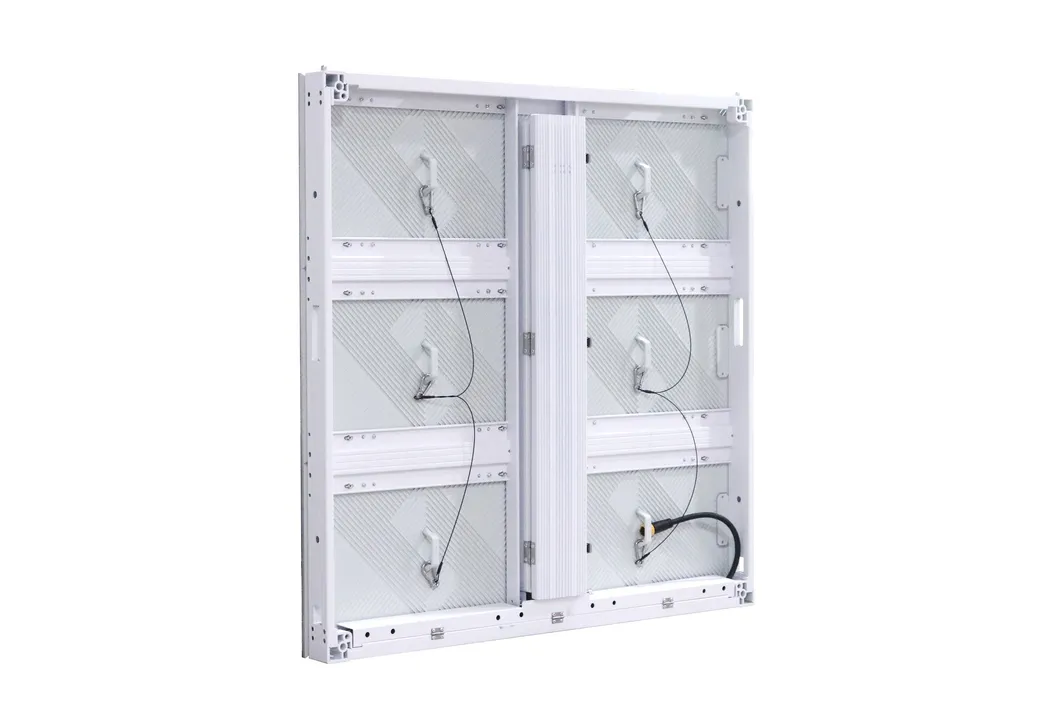

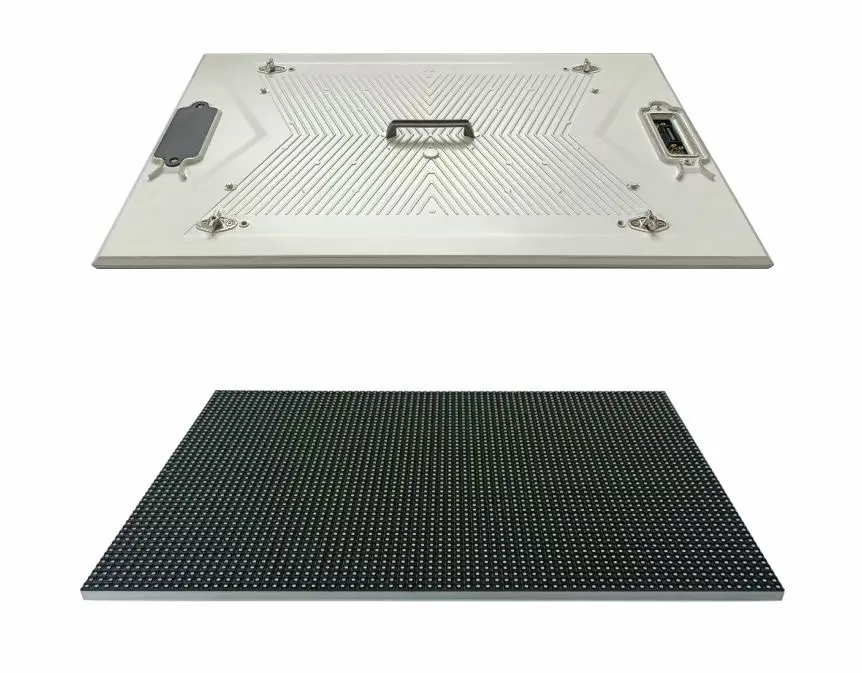

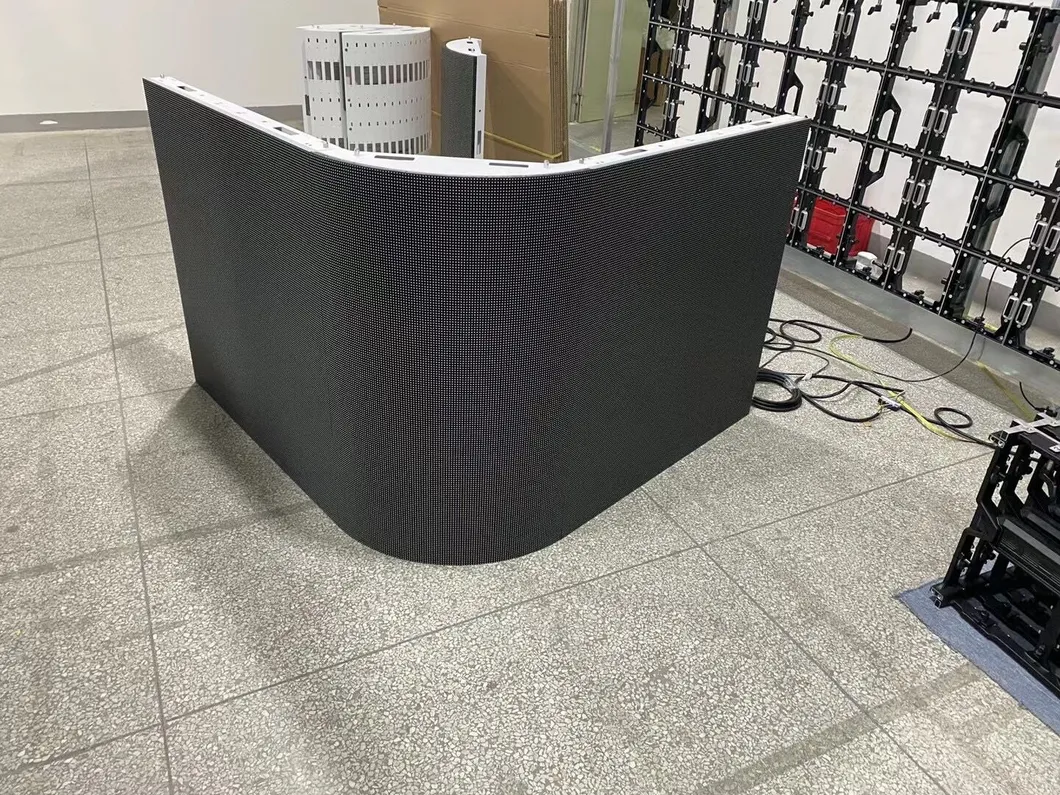

Detailed Visuals

Our Core Advantages

Quality Control

High-quality LED lamps with gold wire for long lifespan. All screens undergo strict 72-120 hours aging tests before shipment.

Visual Performance

High refresh rate up to 7680Hz ensures flicker-free broadcasting. High contrast ratio provides vivid colors even in direct sunlight.

Durability

Fully IP65 waterproof, dustproof, and anti-UV. Designed to withstand extreme temperatures from -30°C to +80°C.

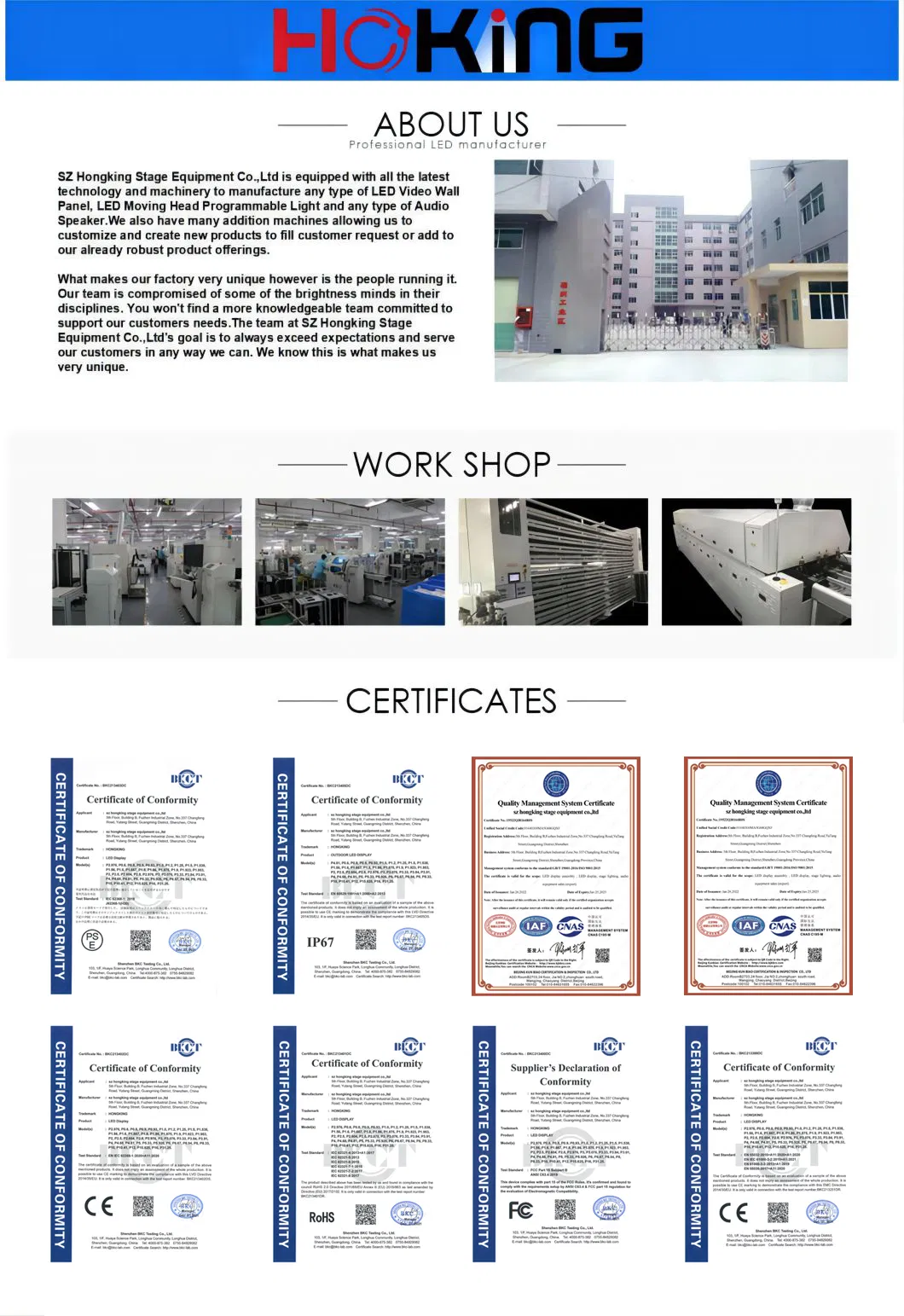

Certifications & Global Standards

CE & EMC: Compliance with European health and safety standards.
RoHS: Environmentally friendly manufacturing without hazardous substances.
ISO 9001/14001: Internationally certified quality and environmental management.
IP67/IP68: Rugged protection against dust and water immersion.

Packaging & Applications

Frequently Asked Questions

Q1: How much energy can the P5.71 LED display save? A: Powered by advanced energy-saving technology, this display can reduce power consumption by up to 50% compared to traditional outdoor LED screens.

Q2: Is the screen clearly visible under direct sunlight? A: Yes, with a high brightness rating of up to 11,000 nits, it ensures excellent visibility even in the brightest outdoor conditions.

Q3: What are the maintenance options for this model? A: The modular design supports both front and rear maintenance, allowing for flexible servicing depending on your installation requirements.

Q4: What is the lifespan and reliability of this display? A: The display uses high-quality LEDs with a lifespan exceeding 100,000 hours and features IP65 waterproof protection for all-weather durability.

Q5: Which control systems are compatible with the screen? A: It is compatible with mainstream LED control systems including Novastar, Colorlight, Huidu, and Linsn, supporting various signal inputs like HDMI, DVI, and 4G/WiFi.

Q6: What certifications do these LED displays carry? A: Our products are fully certified with CE, EMC, RoHS, FCC, and ISO standards, ensuring global safety and quality compliance.
