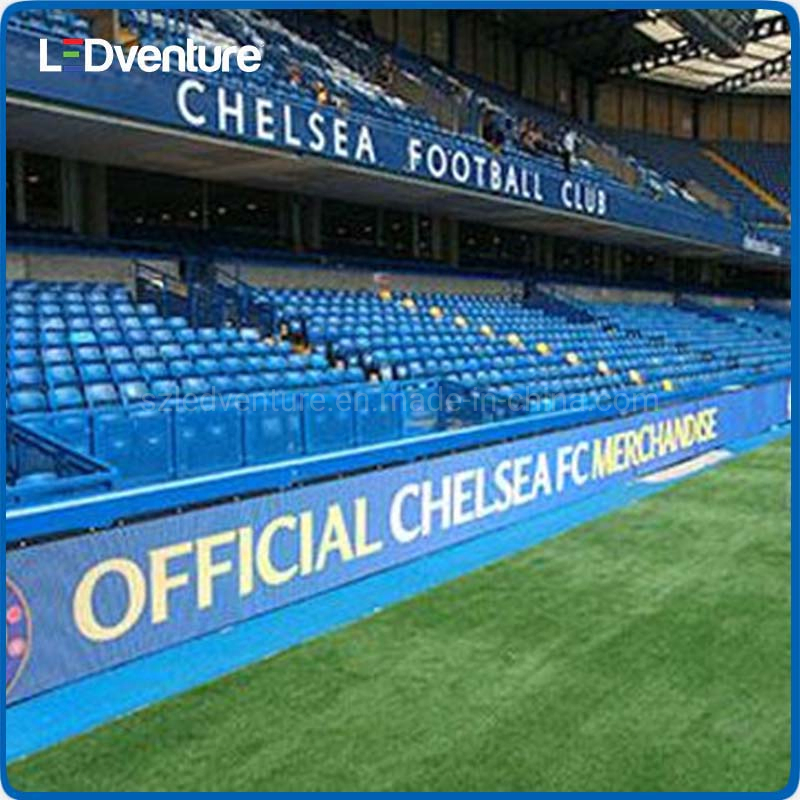

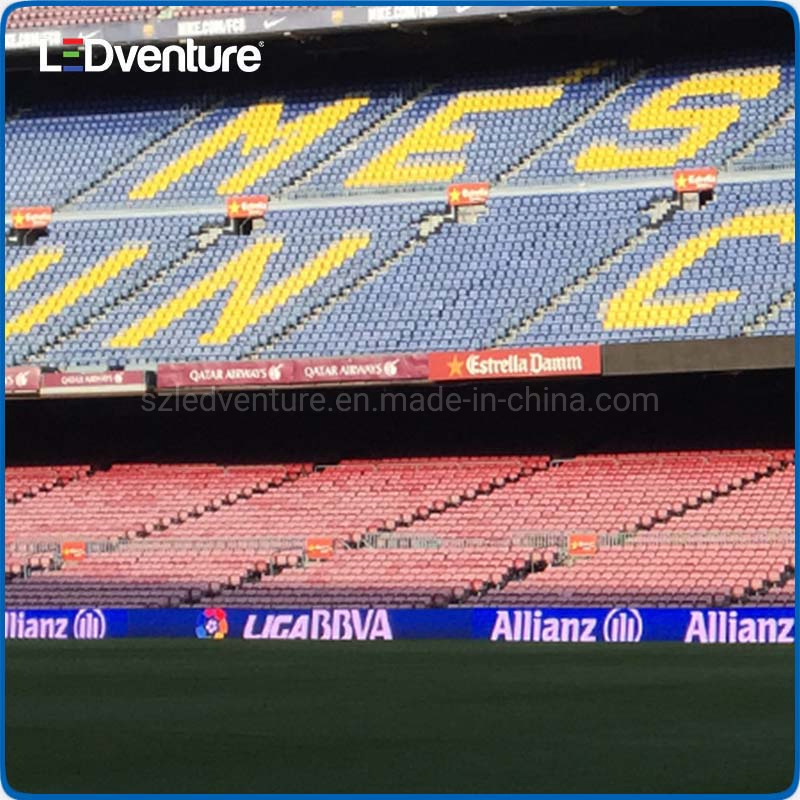

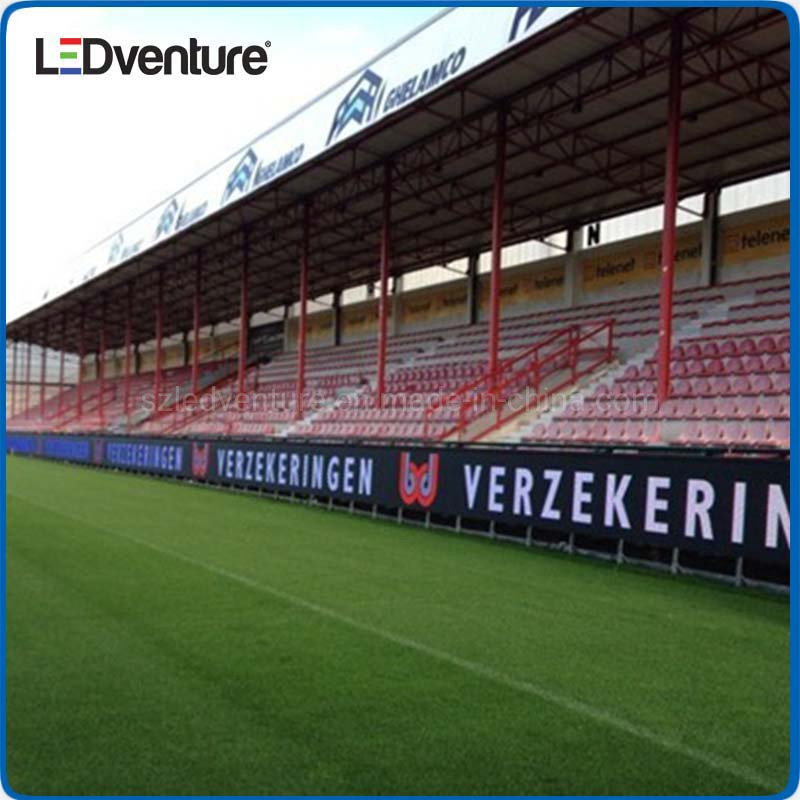

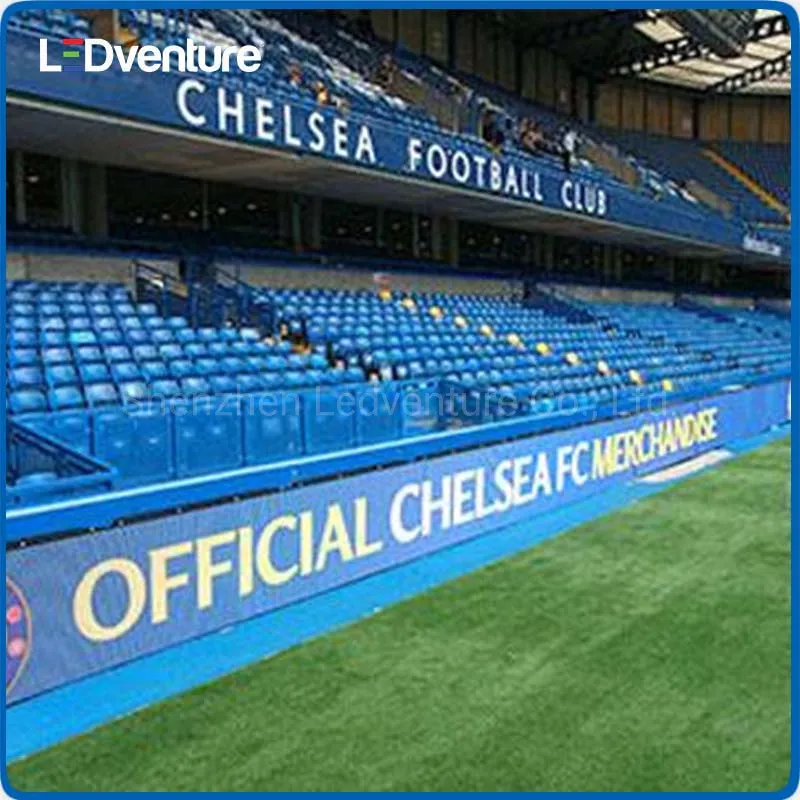

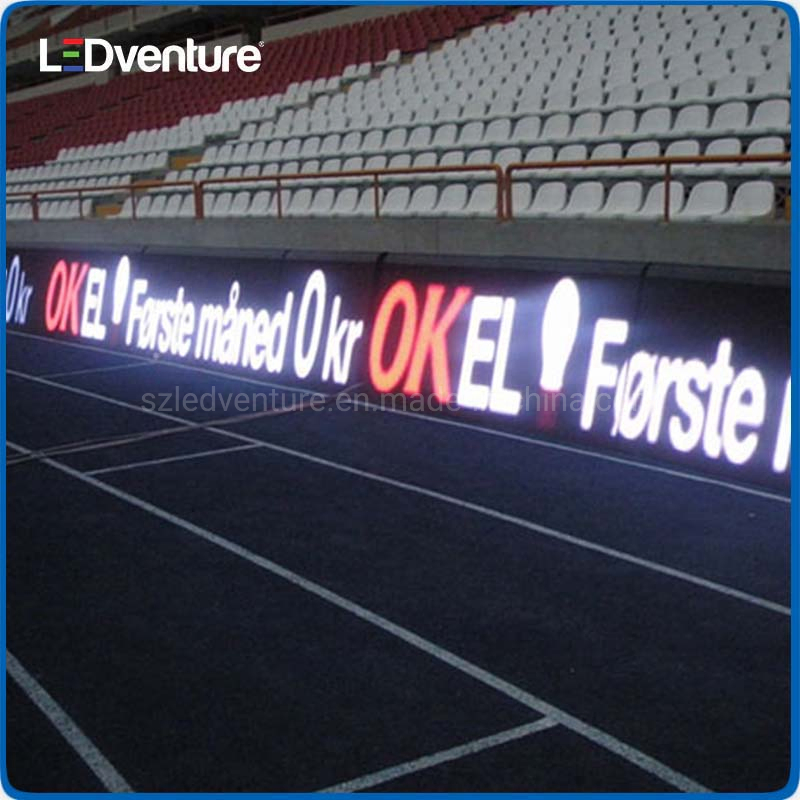

Outdoor P16 Soccer Stadium Perimeter Advertising LED Display is specifically designed for high-end sports environments. We focus on manufacturing premium LED display solutions, including indoor/outdoor displays, flexible, transparent, and specialized stadium series.
| Model | SP-P16D | Pixel Pitch | 16mm |
|---|---|---|---|
| Configuration | 1R, 1G, 1B | Brightness | >7000 nits |
| Material | Aluminum | Cabinet Weight | 50 Kg / 52 Kg |
| Density | 3906 - 10000 DOT/M2 | Refresh Rate | 1920-3840Hz |
| Protection | IP65 Ingress Protection | Viewing Angle | H: 120° / V: 60° |
| Installation | Standing / Angle-Adjustable | Life Span | 100,000 Hours |

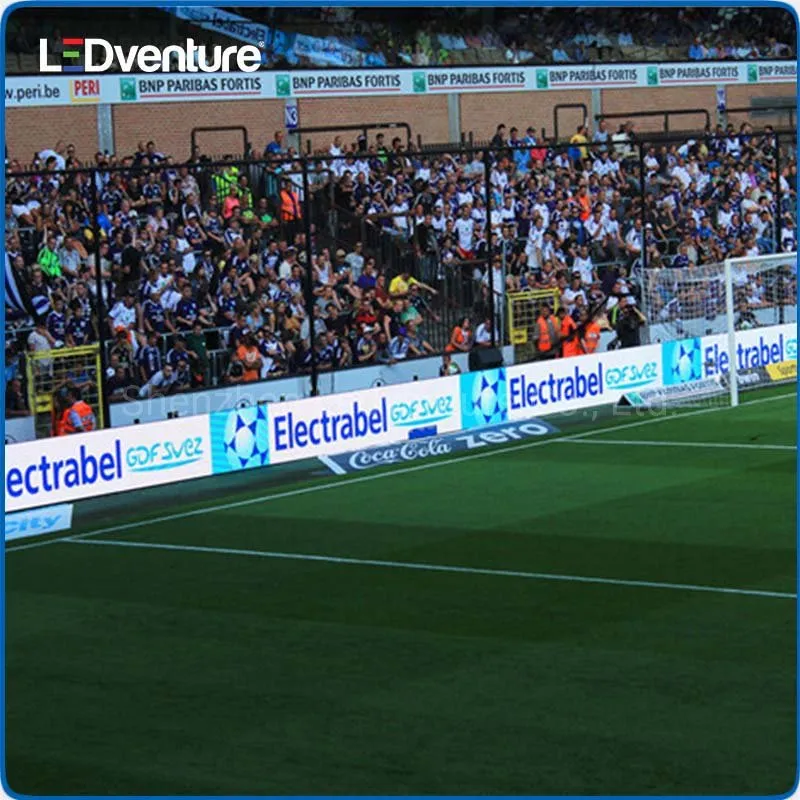

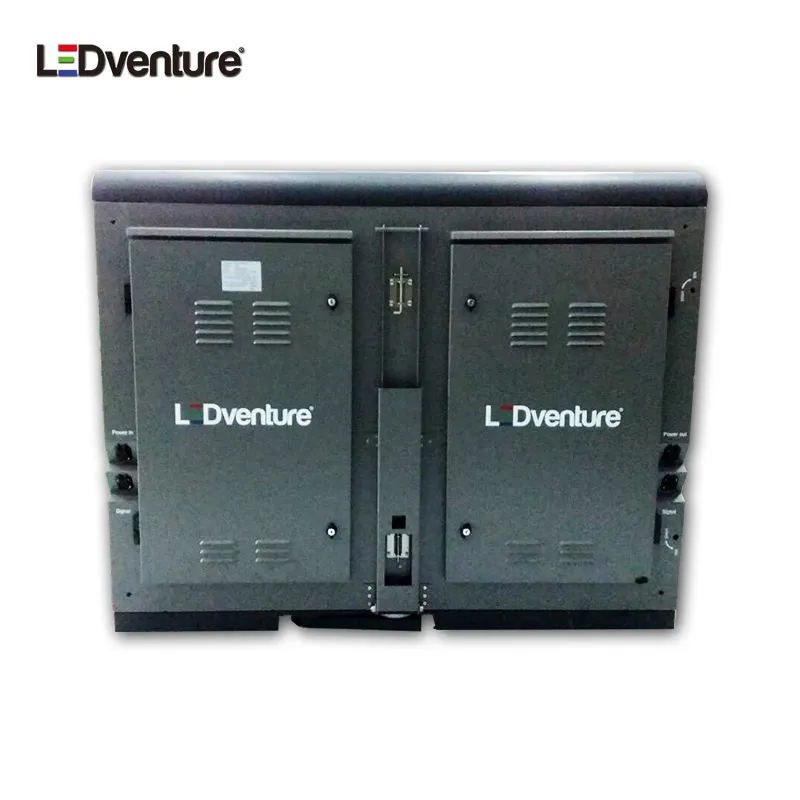

The SP series stadium perimeter LED screens are built to meet strict stadium safety and performance standards. Featuring a soft mask for player protection and high-security glue, these displays include specific standing legs and adjustable parts to ensure the best viewing angle for live audiences.

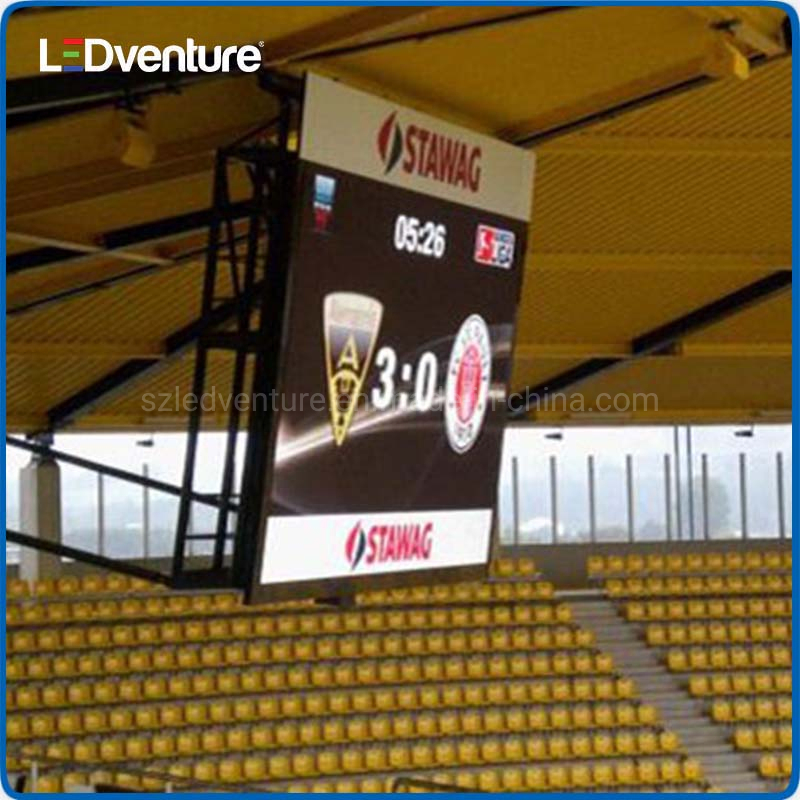

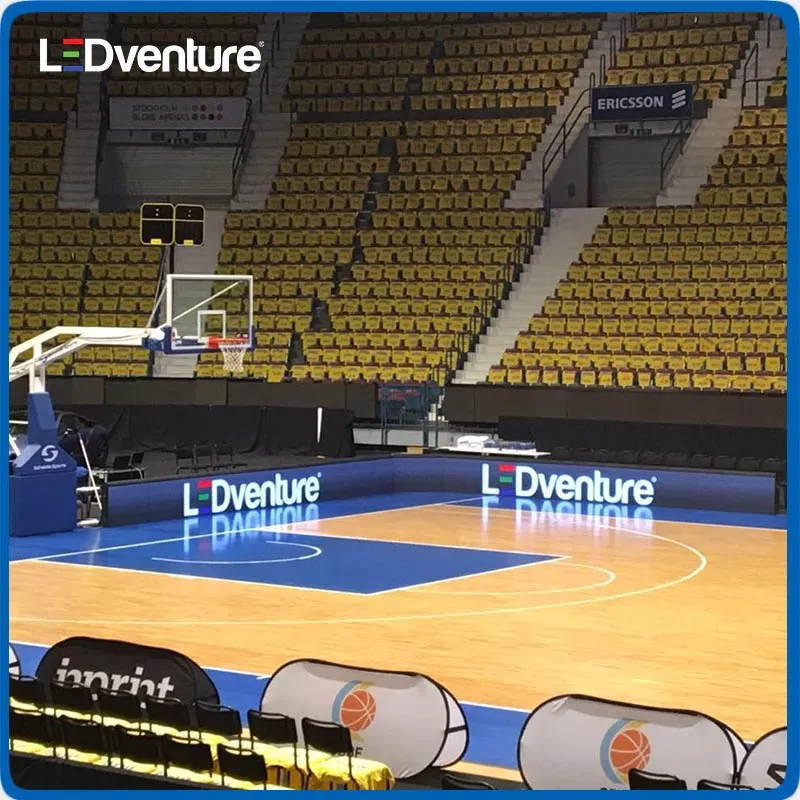

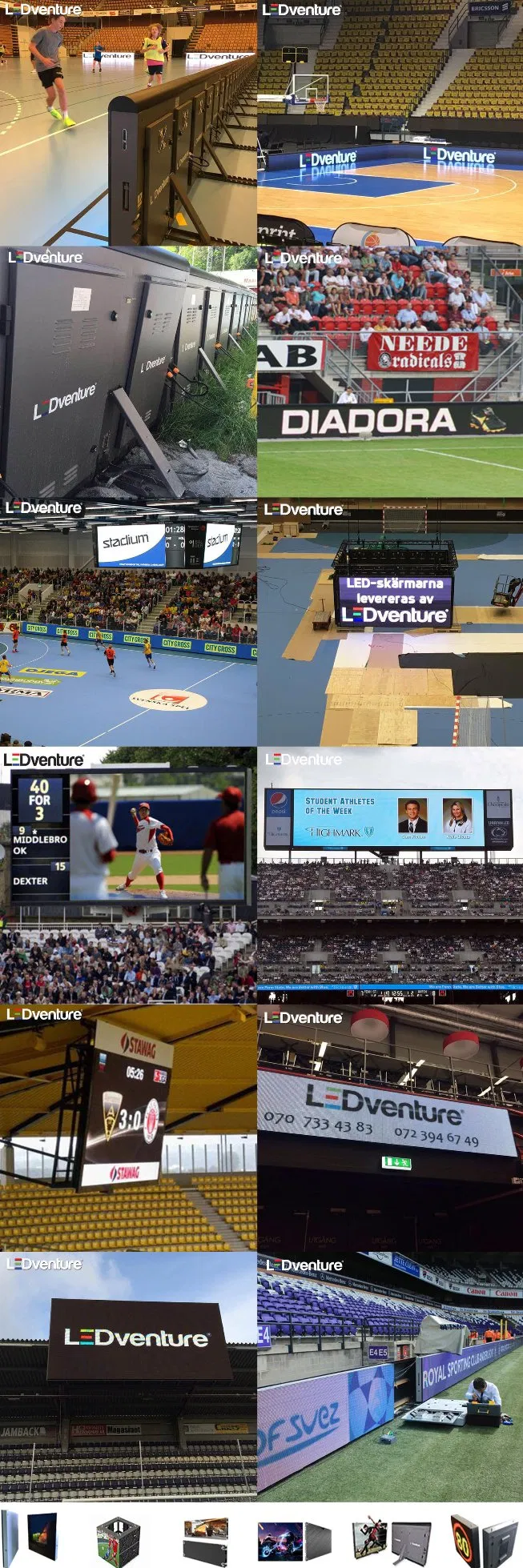

Ideal for brand marketing during global sports events like World Cups. These screens support various installation types: Indoor/Outdoor Standing, Wall Mounted, and Hanging configurations.
| PARAMETERS | DESCRIPTION |
|---|---|
| LED Encapsulation | DIP346 |
| Wavelength | R:620-625nm / G:525-529nm / B:472-478nm |

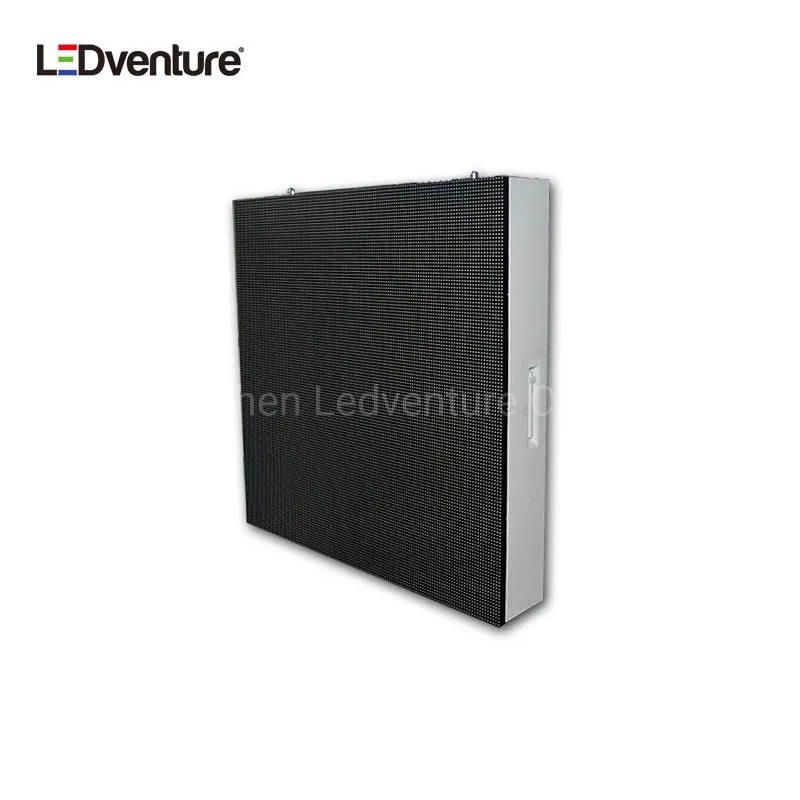

| Cabinet Size | W1280mm x H896mm |
| Max Power Consumption | 550 W/M2 |
| Gray Scale | 65536 levels per color |
| Operating Temp | -20ºC to +50ºC |
| Input Signal | RF, S-VIDEO, RGBHV, YUV, etc. |
Our products pass rigorous security tests including CE, EMC, FCC, UL, and CCC, ensuring stability and compliance with global standards.
We utilize professional plywood cases or flight cases based on customer requests to ensure safe transport via sea, air, or express.
