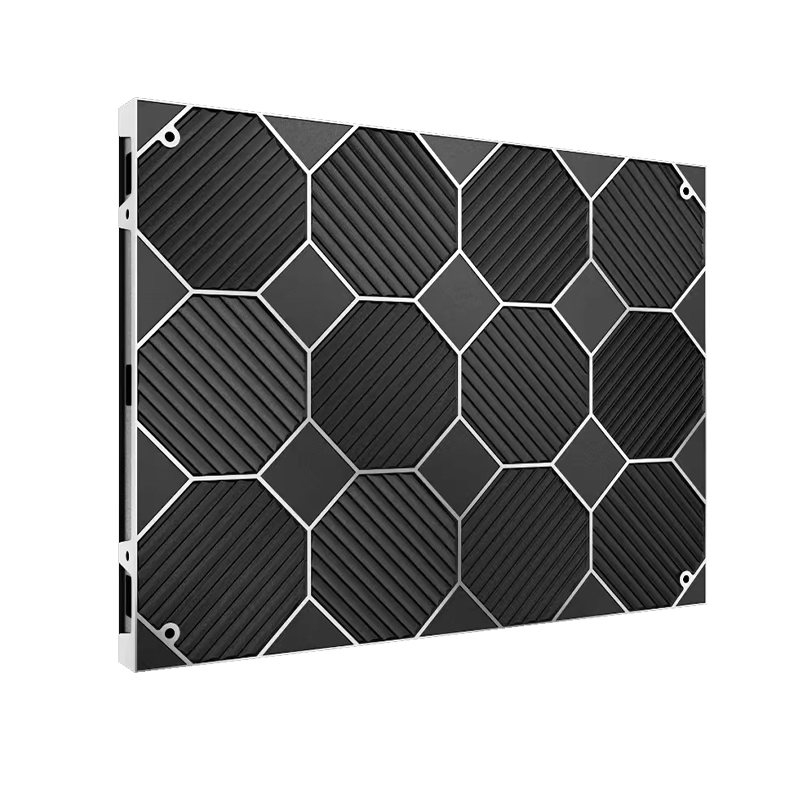

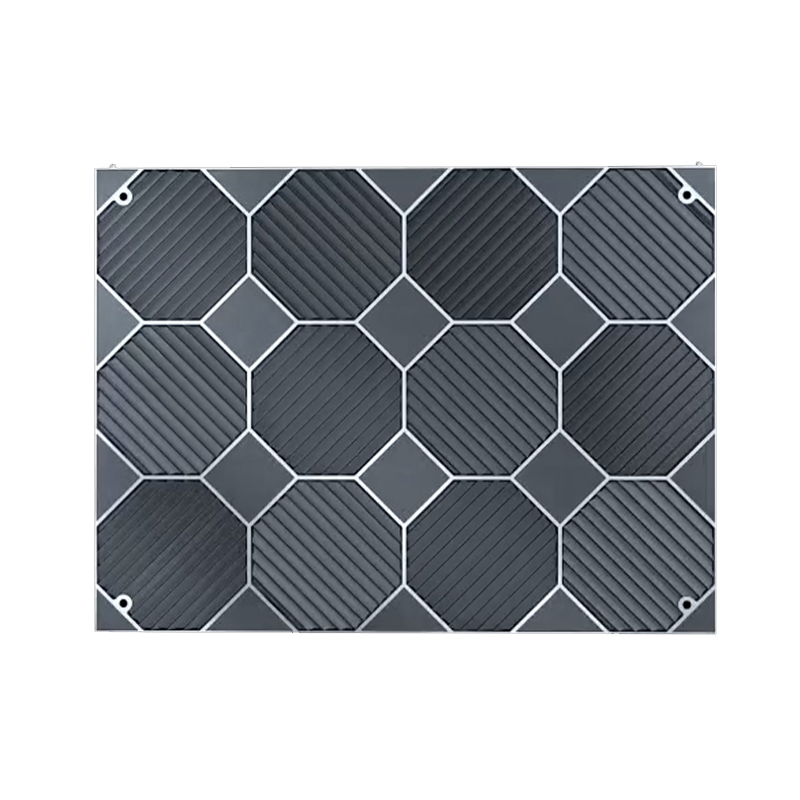

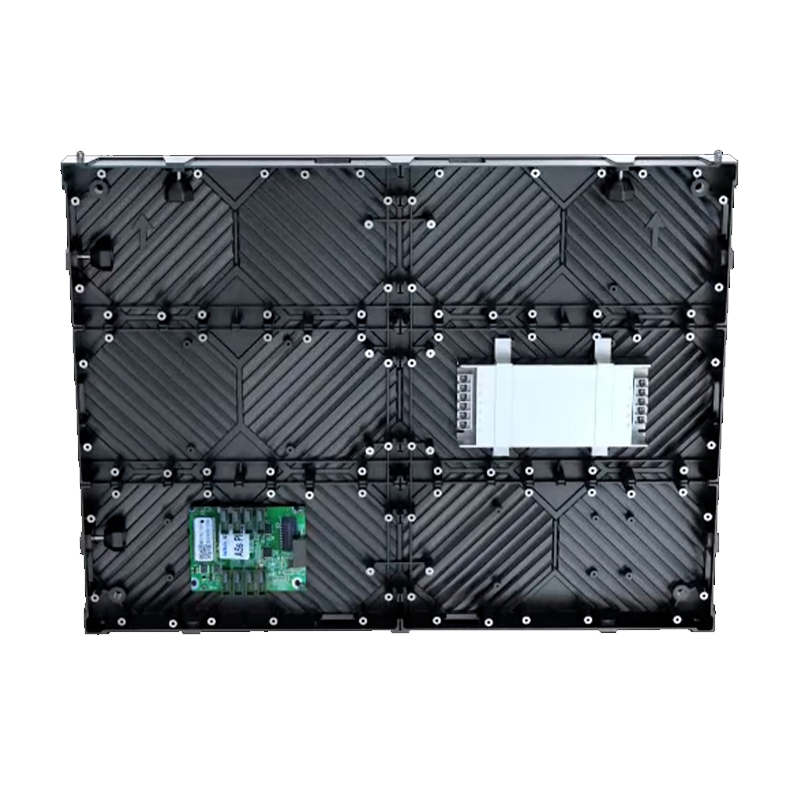

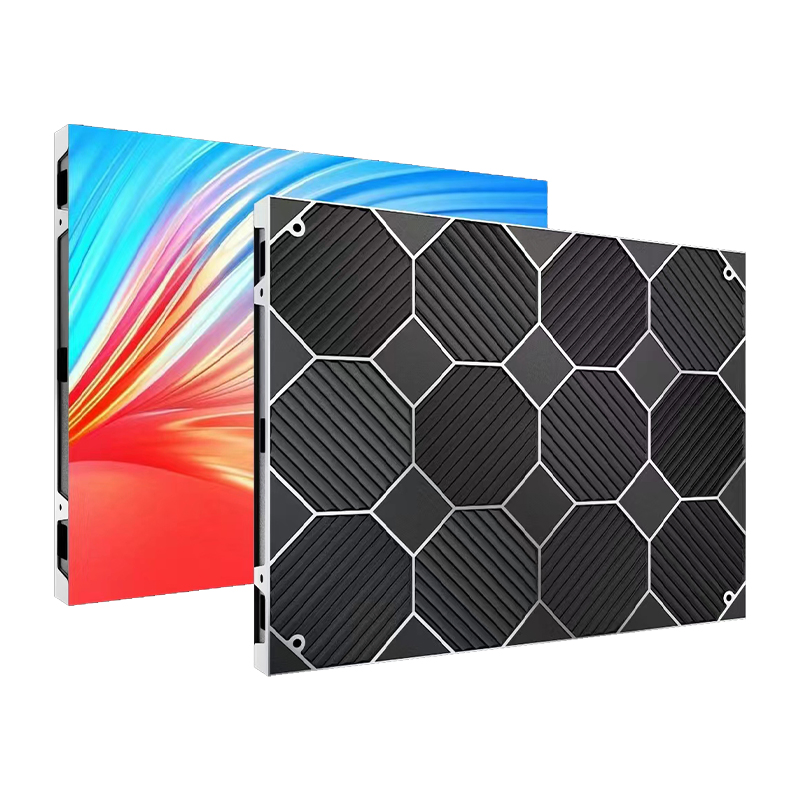

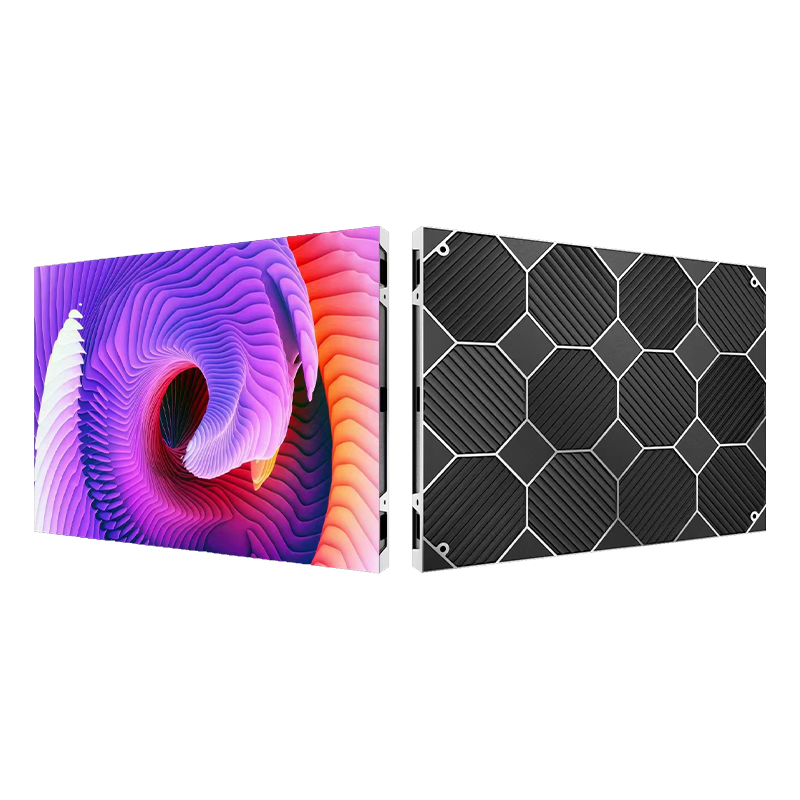

P1.86 Indoor 640X480 COB /Gcb LED Module Display Video Wall Panels Digital Signage Magnetic Front Service HD LED Screen

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
FI-I 640*480
Pixel Pitch
1.86mm
Pixel Configuration
1R,1G,1B
Pixel Density
289,051dots/M²
Scanning Mode
1/43
Display Type
LED Video Display
Application
Stage, Advertising, Shopping Guide
IP Rating
IP31
Refresh Frequency
≥3,840Hz
Brightness
500 - 1200 CD/M2
Cabinet Size
640*480mm
Cabinet Material
Die-Cast Aluminum
Life Time
100,000 Hours
Gray Grade
14 Bits
📝 Product Description

The 640X480 indoor fixed installation LED Displays adopt a magnetic suction design for convenient front maintenance. Utilizing a Die-Casting aluminum cabinet with a fast lock system, installation or locking takes only 5 seconds. These cabinets can be spliced at 90 degrees to meet diverse architectural needs. Featuring excellent heat dissipation, high brightness, and low power consumption, this ultra-thin and ultra-light solution offers a wide color gamut and high color reproduction for a superior viewing experience.

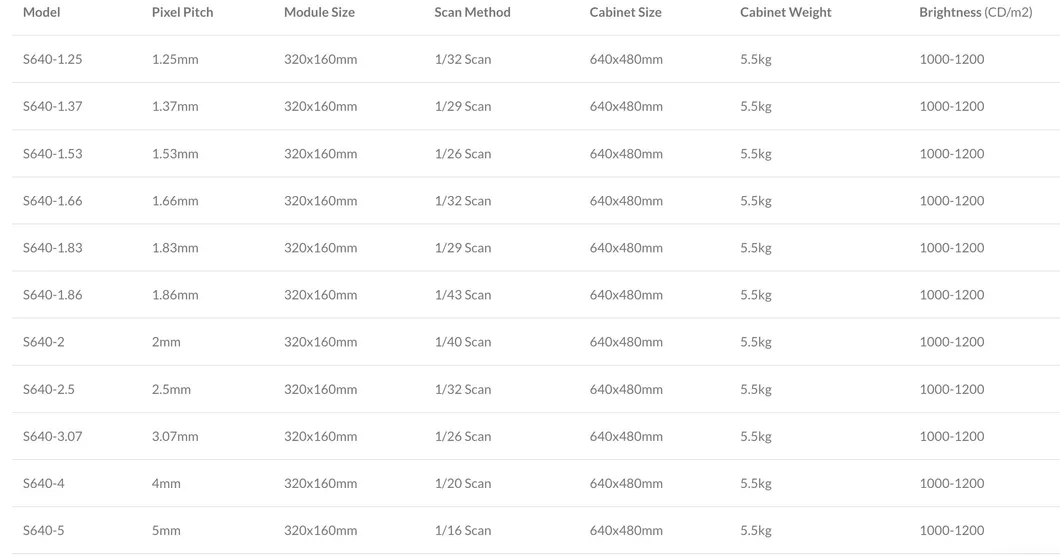

Technical Specification
Key Features & Visual Effects

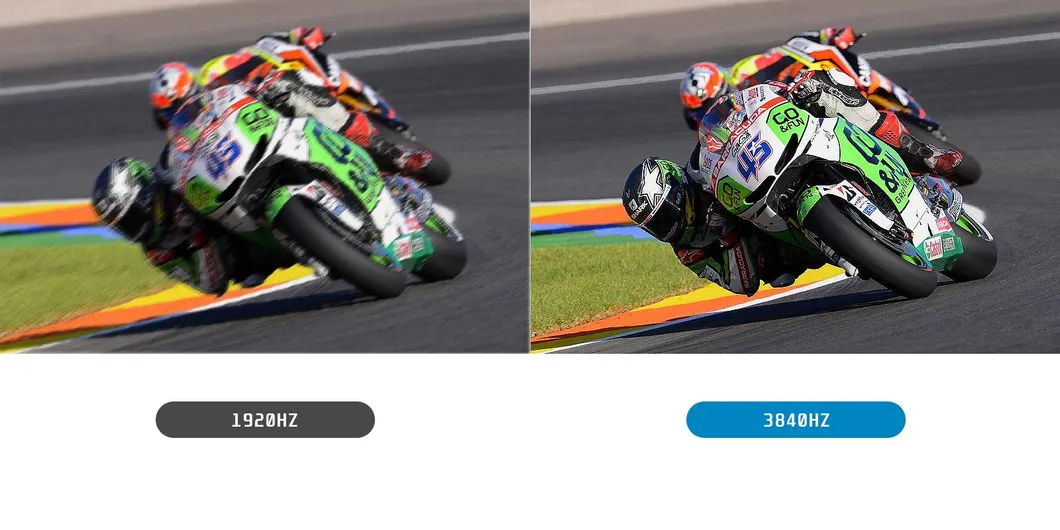

Perfect Visual Effect

Features high brightness (up to 2000cd/m2), wide viewing angles exceeding 160 degrees, and exceptional flatness. The seamless splicing achieves a smooth viewing experience without gaps or visible marks.

Visual Effect

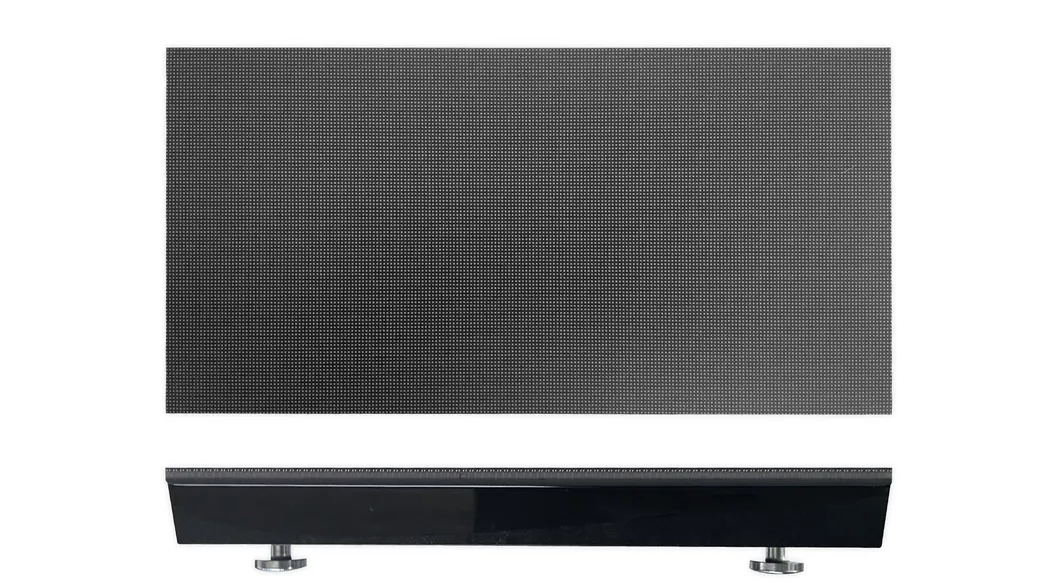

Stability

Superior Stability & COB Technology

Beyond traditional SMD, we offer COB packaging methods. With advanced film coating and glue filling, the stability of lamp beads is greatly enhanced, significantly reducing the dead light rate.

🛠️ Hardware & Installation
  • Magnetic Front Maintenance: Point-to-point module design for easy access.
  • Fast Installation: Die-cast aluminum cabinet with 5-second fast locks.
  • Versatile Mounting: Supports wall-mounted, frame, and hanging installations.
  • Seamless Connection: Precise modules for a smooth, gapless display.
  • Heat Dissipation: New cast aluminum shell for high precision and cooling.

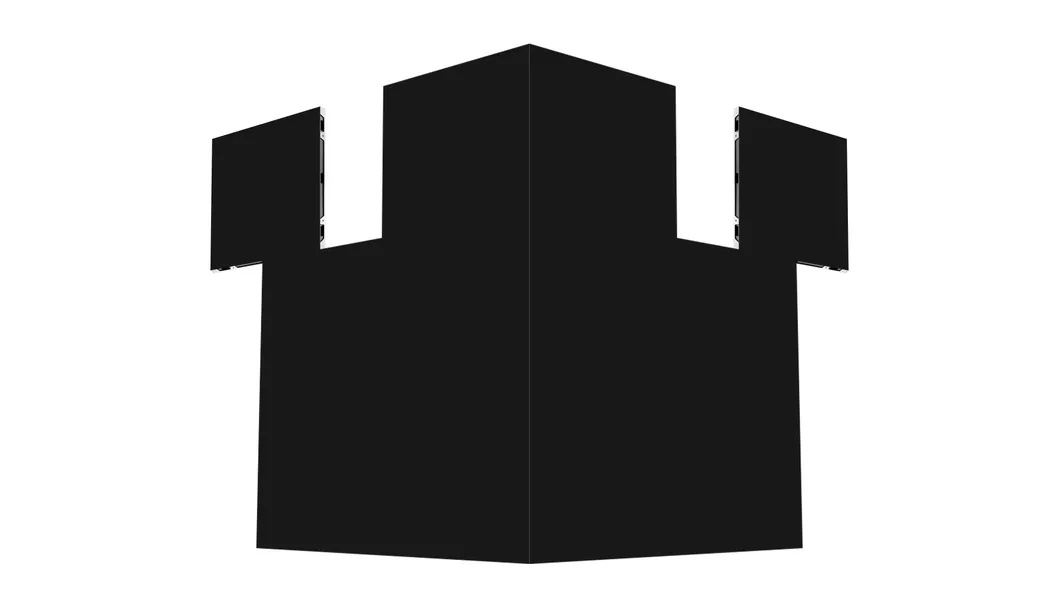

Superior Functions

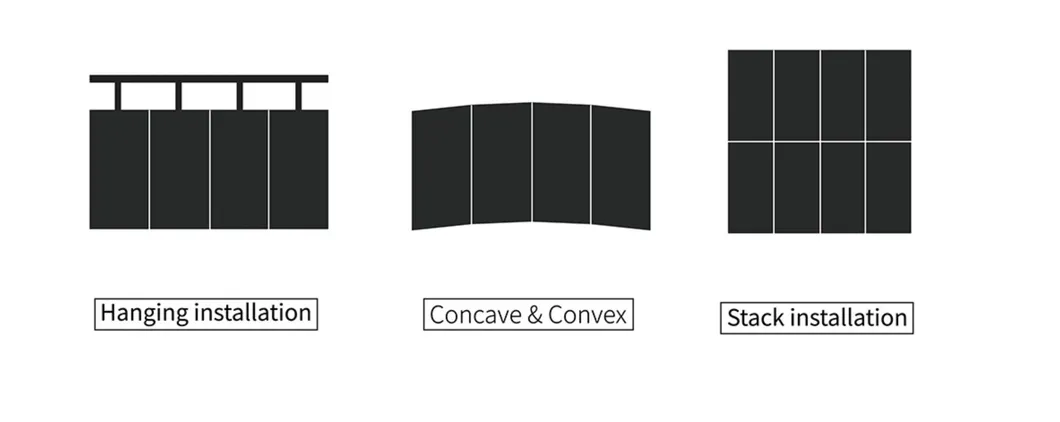

Multiple Installation
📌 Important Attention

We recommend purchasing enough LED modules for spare replacement at once. Modules from different batches may have slight color differences due to production variations.

🖼️ Application & Display

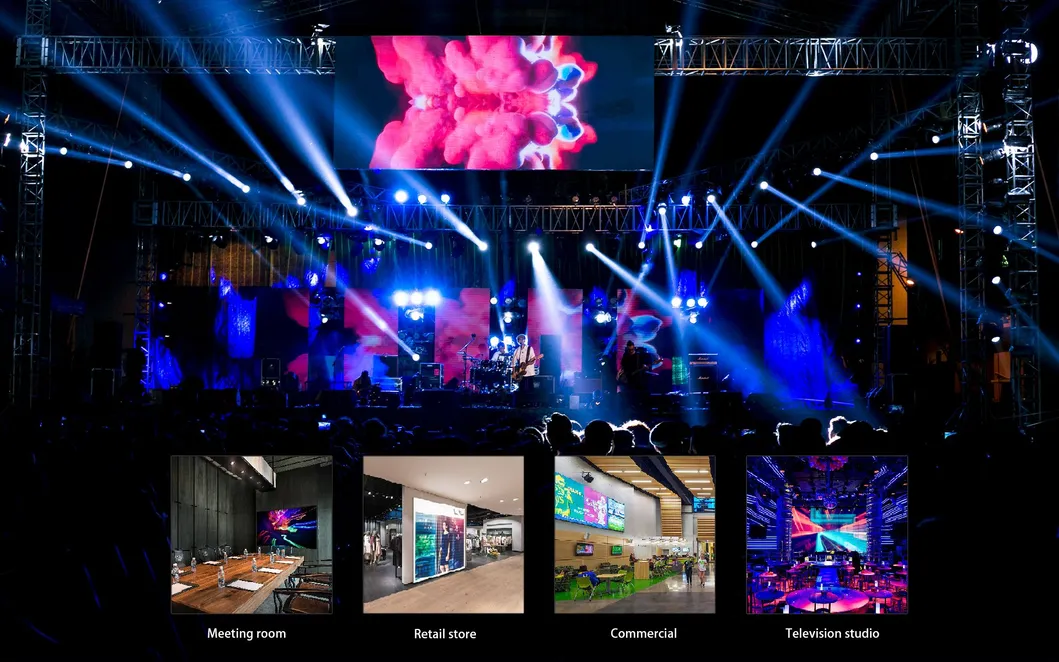

Application
Display 1
Display 2
✈️ Logistics & Distribution
Distribution Mode
Frequently Asked Questions
Q1: Can I request a sample order for the LED display?
Yes, we welcome sample orders to test and verify quality for both individual modules and full display units.
Q2: What is the typical lead time for an order?
Standard orders take about 2-3 weeks. Customized LED display solutions normally require around 35 days.
Q3: How are the goods shipped and how long does it take?
We primarily use FOB terms. Sea freight usually takes 20-30 days plus a few days for customs clearance.
Q4: What is the process for placing an LED display order?
1. Share your requirements; 2. Receive a quote; 3. Confirm design and place deposit; 4. Final payment and production arrangement.
Q5: Do you provide a warranty for your products?
Yes, we offer a 1-2 year warranty depending on the specific product type and specifications.
Q6: Are the cabinets easy to maintain?
Absolutely. The magnetic suction design allows for full front maintenance, making it easy to replace modules without dismantling the entire structure.
