| Model | p2.976 | Pixel Pitch | 2.976mm |
| Pixel Configuration | 1R,1G,1B | Pixel Density | 112896 Dots/M2 |
| Scanning Mode | 1/28 Scan | IP Rating | IP40 |
| Display Type | LED Video Display | Certification | CE, RoHS, CCC |
| Application | Stage Performance, Advertising, Shopping Guide | ||

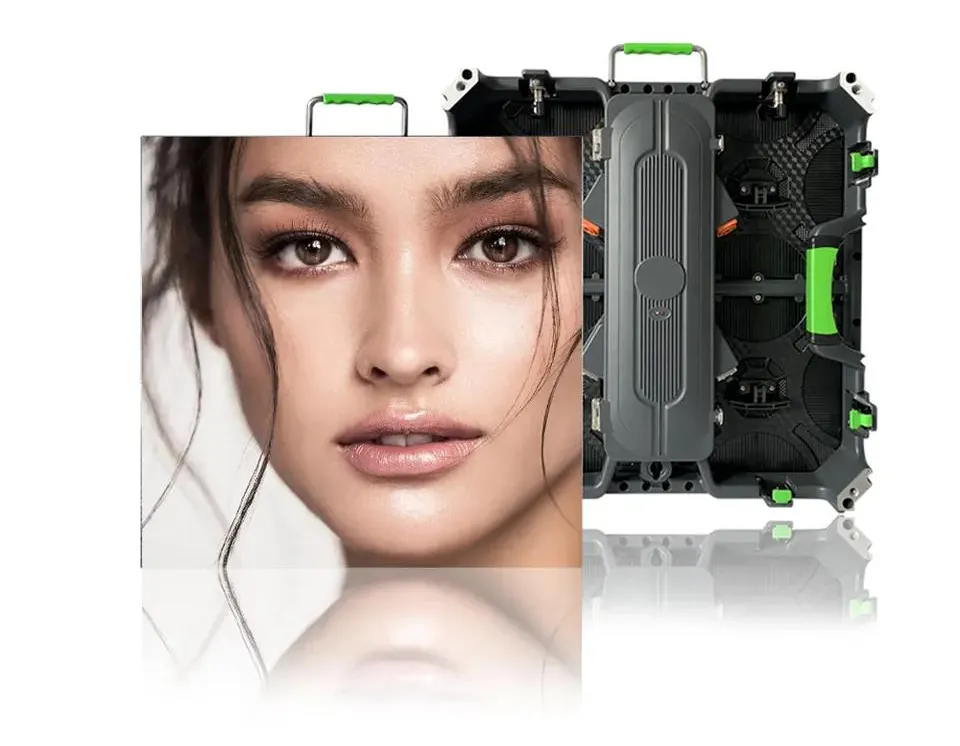

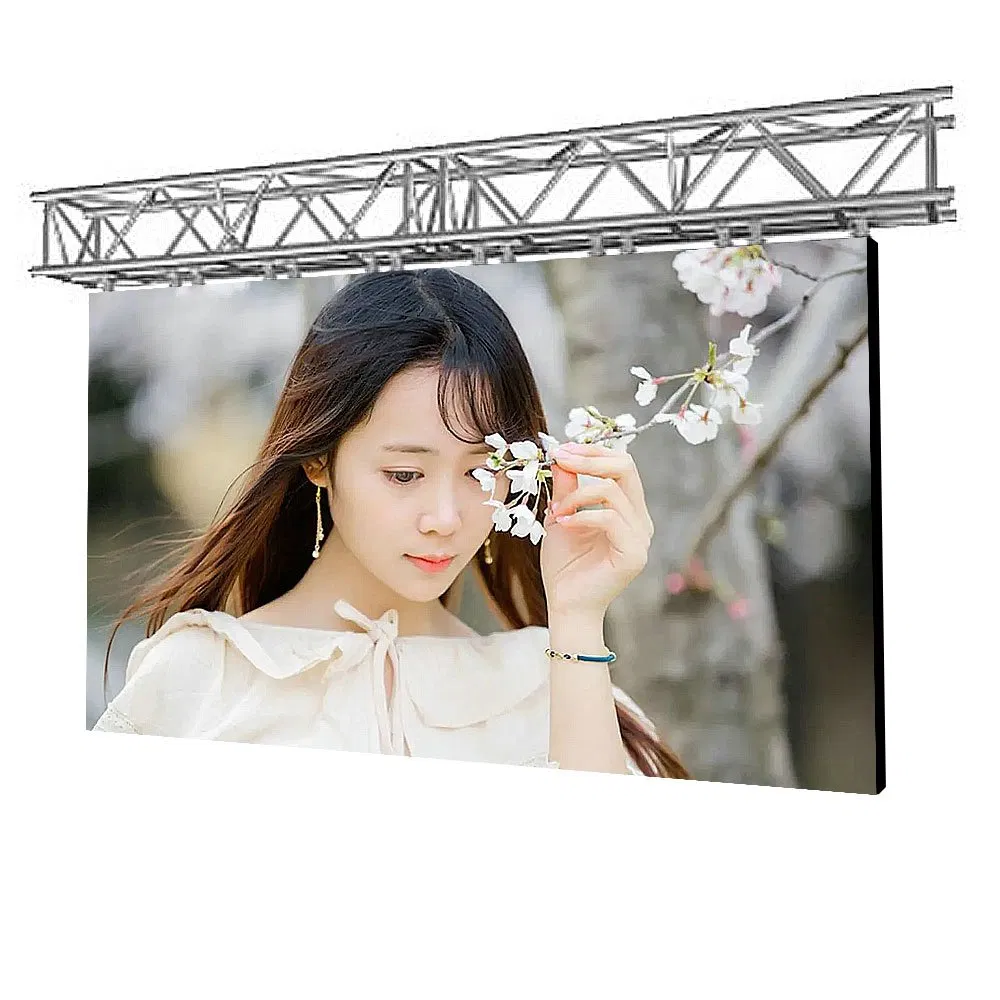

16:9 P2.976 HD Full Color Rental LED Display Screen
Professional 3840Hz refresh rate ensures smooth, flicker-free visual performance for live broadcasts and photography.

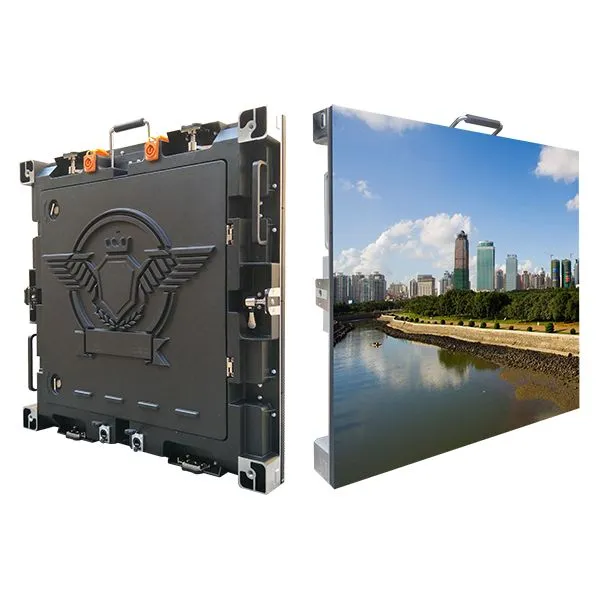

Die-casting aluminum cabinet with waterproof covers for outlet and air inlets, providing higher protection than standard products.
Super wide horizontal and vertical viewing angles (140°) to cover a larger audience area effectively.
Flexible design allowing modules to be maintained from both the front and the back for easier onsite service.
| Item | Parameter |
|---|---|
| Pixel Density | 112896 dots/sqm |
| LED Package | SMD2121 |
| Module Size | 250mm x 250mm |
| Brightness | ≤1200cd/sqm |
| Viewing Distance | 3m - 30m |

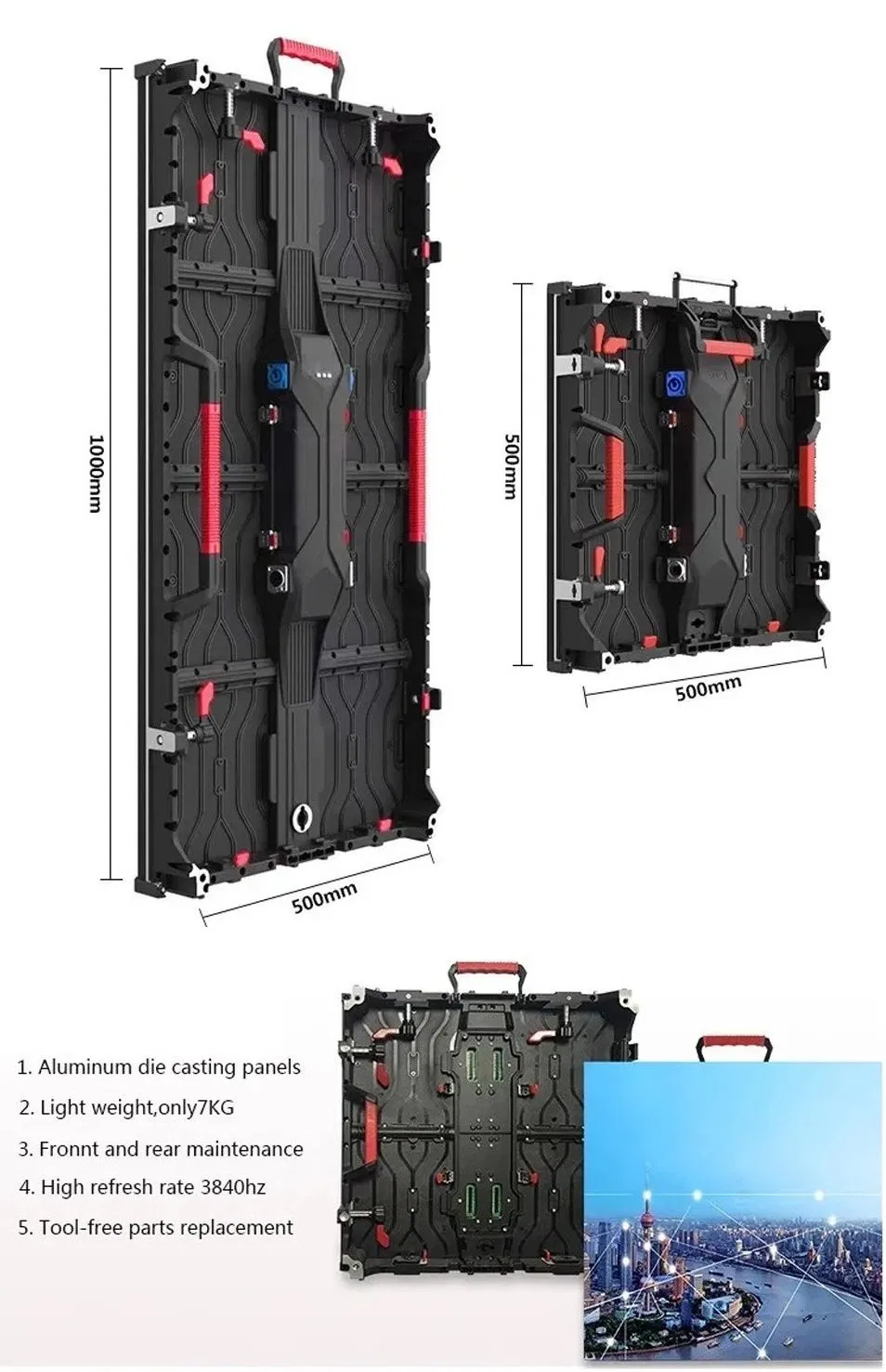

| Cabinet Size | 500mm x 500mm / 500mm x 1000mm |
| Cabinet Weight | 6.5KG / 12KG |
| Grey Scale | 16 Bits |
| Power Consumption | Ave. 300W/sqm |
| Life Span | >100,000 Hours |
| Control System | Nova |

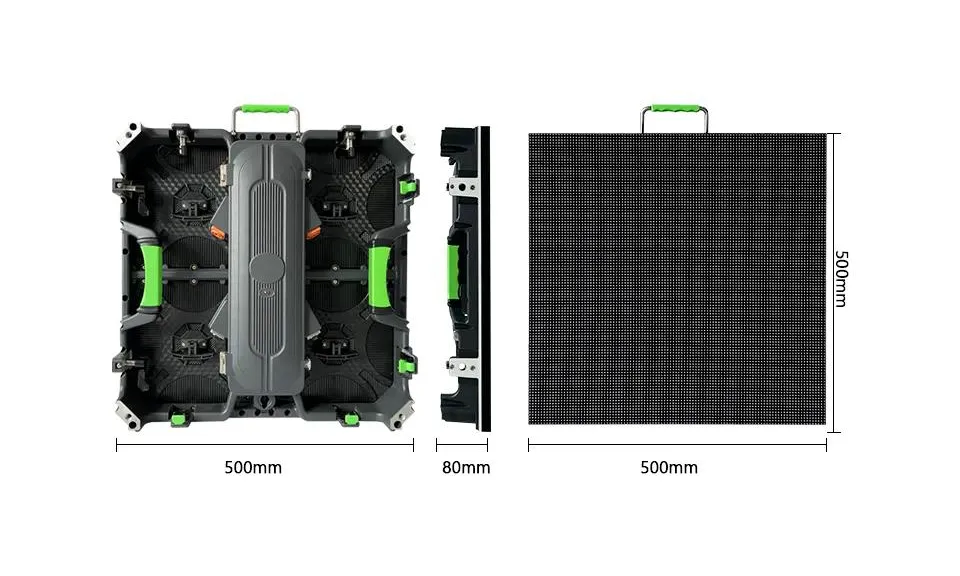

High Quality Module & Raw Materials

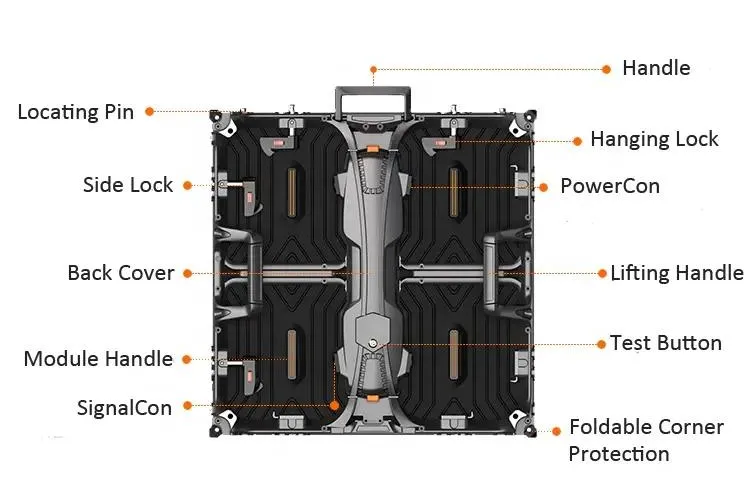

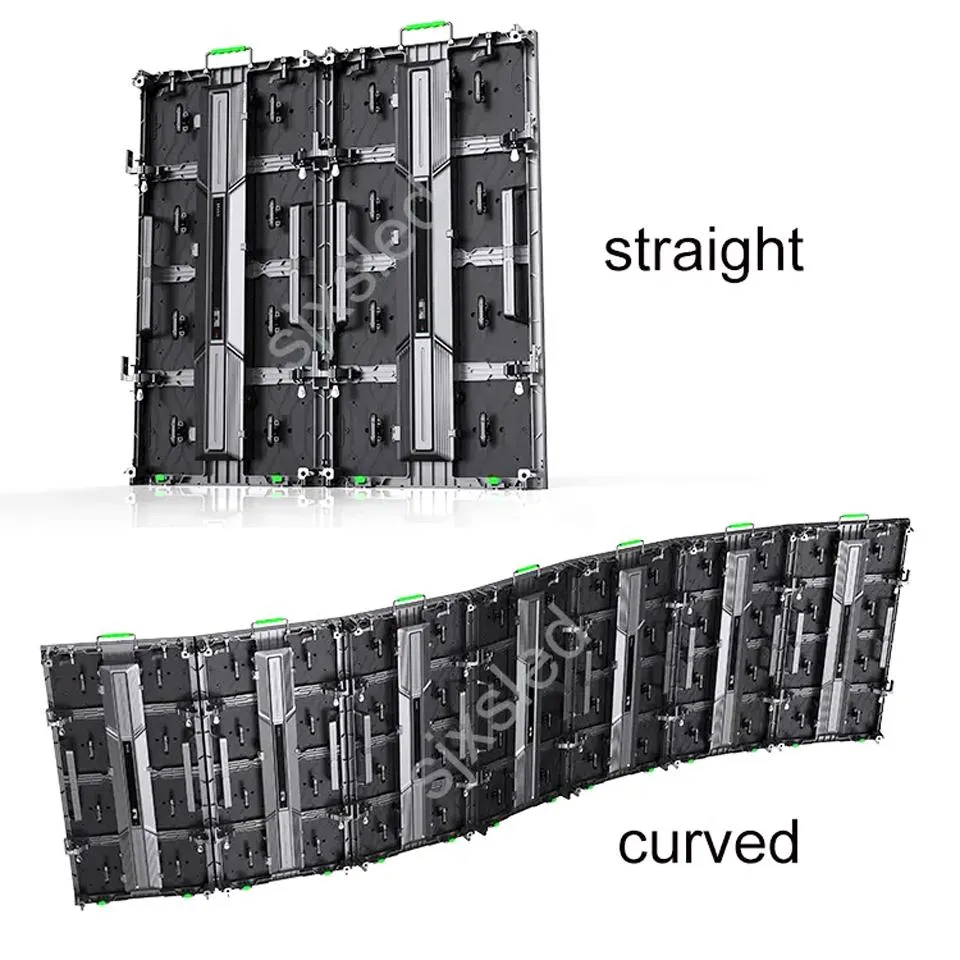

Handle & Flexible Quick Lock System
As a leading optoelectronic integrated enterprise, we focus on the R&D, production, and service of high-quality full-color LED displays. Our products are widely used in commercial squares, government agencies, sports venues, and financial institutions.
Comprehensive coverage for modules and parts, with lifetime maintenance services available.
Free onsite or factory-based training on operation and maintenance for all screen types.
