P3.91 Outdoor Indoor Ground Interactive Floor Tile LED Displays Screens Video Wall Dance Stage and Events

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
FI-C
Pixel Pitch
3.91mm
Pixel Configuration
1R,1G,1B
Pixel Density
65400dots/M^2
Scanning Mode
1/16 Scan
IP Rating
IP65
Cabinet Material
Die-Casting Aluminum
Cabinet Size
500mm×1000mm×78mm
Refresh Frequency
≥3840 Hz
Brightness
Indoor ≥800 / Outdoor ≥5500 Nits
Life Span
About 100,000 Hours
Working Temp
-20℃ ~ 60 ℃
Product Description

FI series floor LED displays provide interactive and non-interactive floor LED displays. They are mainly used on events stage, night club, concerts, shows, etc. Our floor LED display with ultra-high strength is very strong, that it can bear 1.5-2ton/m². People can jump or dance on it, and even the car can pass. The products have good waterproof and dustproof effect, suitable for both fixed installation and rental use.

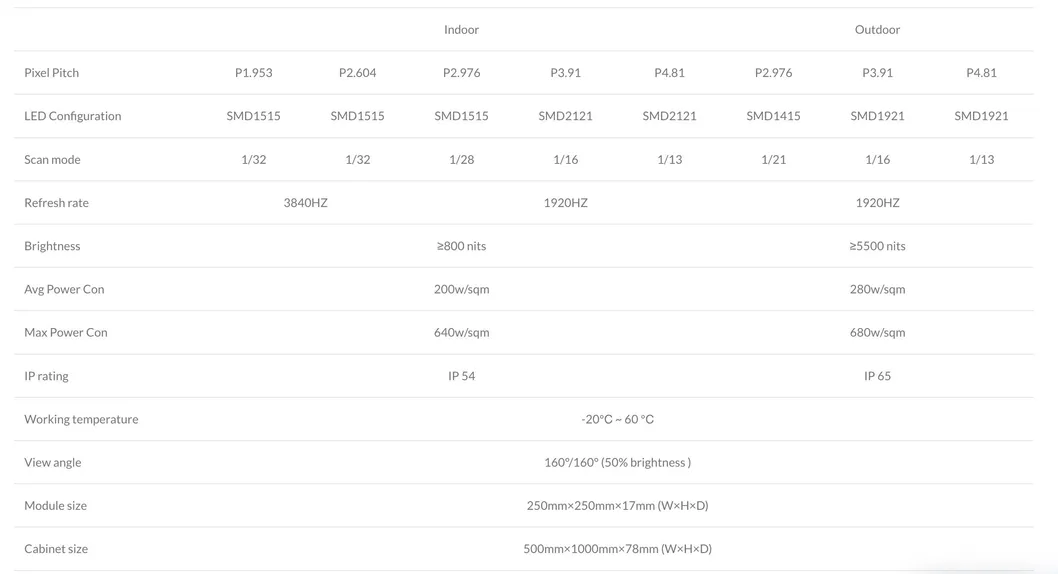

Floor LED Display Technical

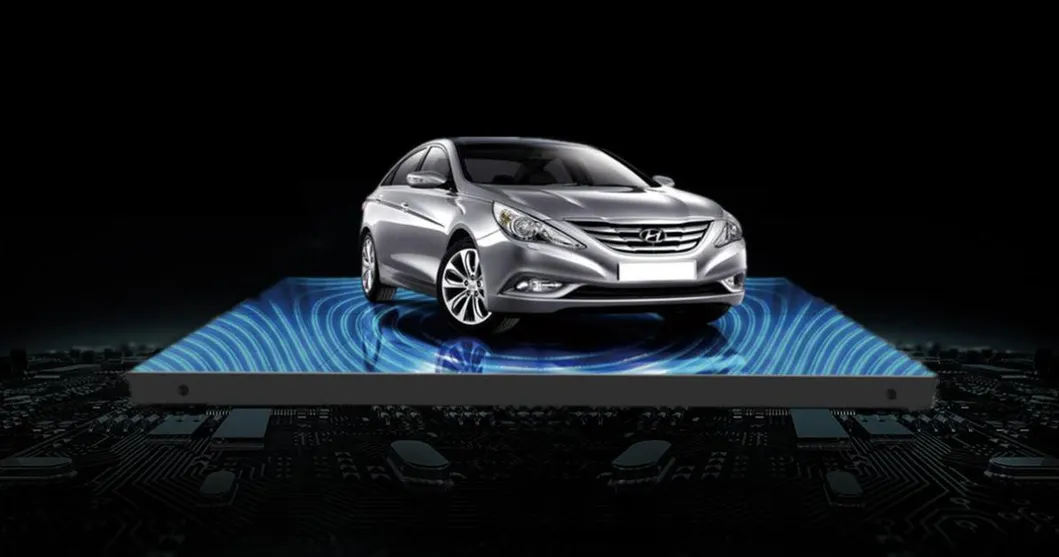

Super Strong Load-bearing

01. Super Strong Load-bearing

LED floor screen is made of imported PC materials. It has high wear resistance, flexibility, and excellent resistance to high and low temperatures.

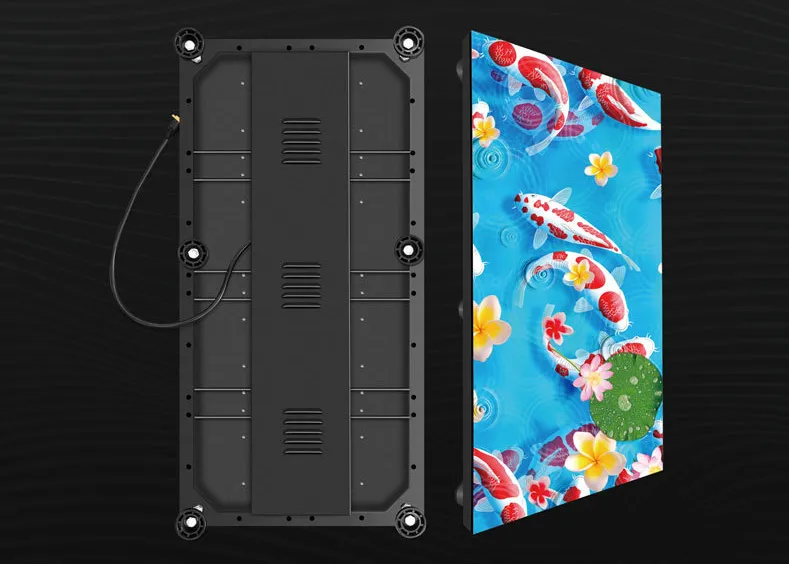

Excellent Performance

02. Excellent Performance

High-quality SMD LED with stable quality, good color consistency, and long service life. Broadcast color gamut, color temperature and brightness are intelligently adjustable with high contrast.

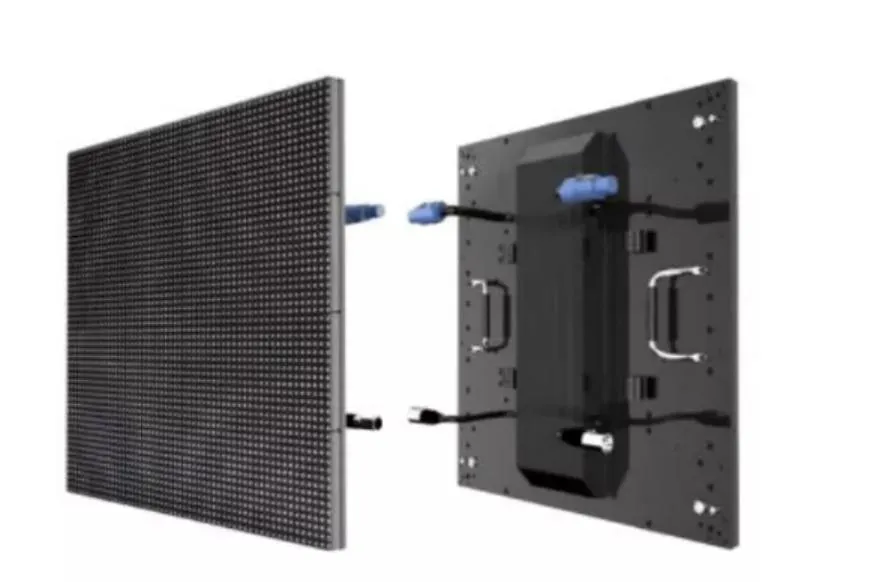

Easy Installation

03. Easy to Install and Maintain

Power Box supports quick installation. Tools free for fast maintenance. They can be fully accessed from the back & front, assembled quickly by inner cable connection.

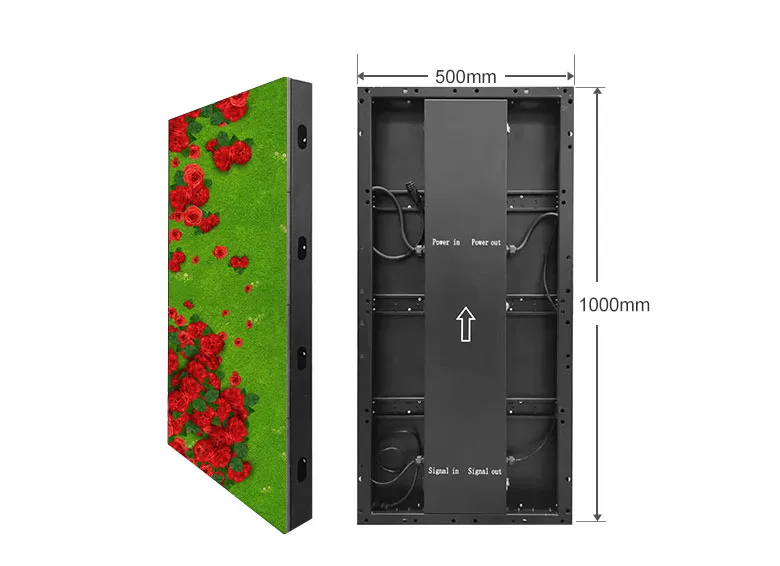

Exquisite Craftsmanship

04. Exquisite Craftsmanship

High-precision cabinet splicing within 0.1mm ensures excellent flatness. Cabinet uses Die-casting Aluminum which protects the unit structure; various sizes can be customized.

Applications & Multi-View

Perfectly suited for Stage, Conferences, Expo, Event, Concert, and more.

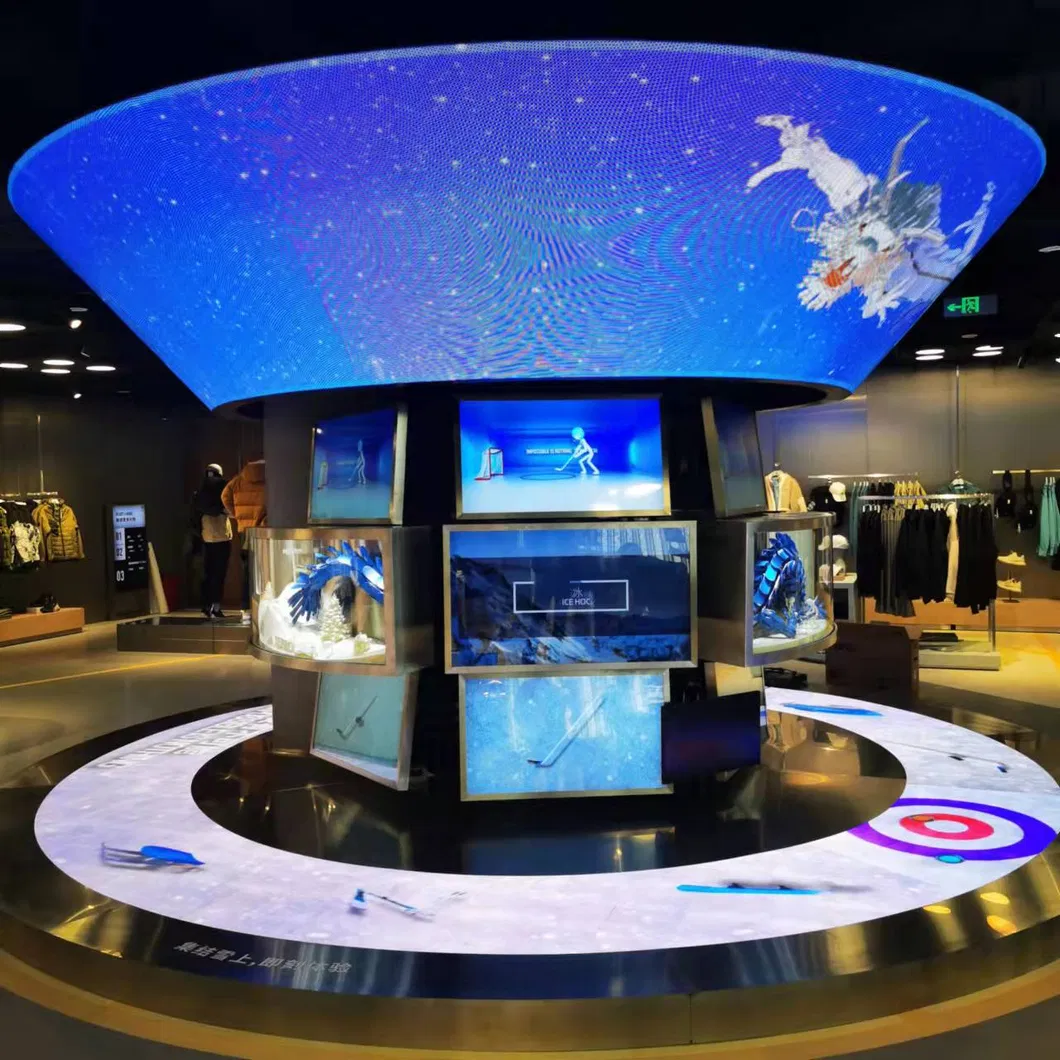

Application 1

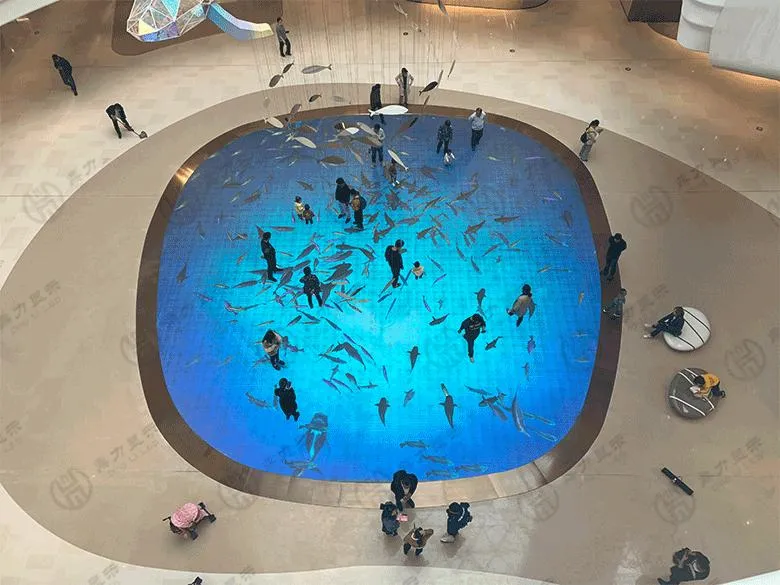

Application 2

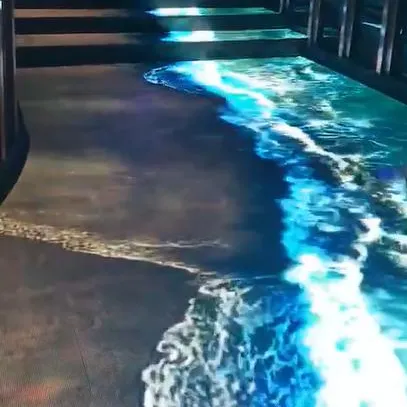

Application 3

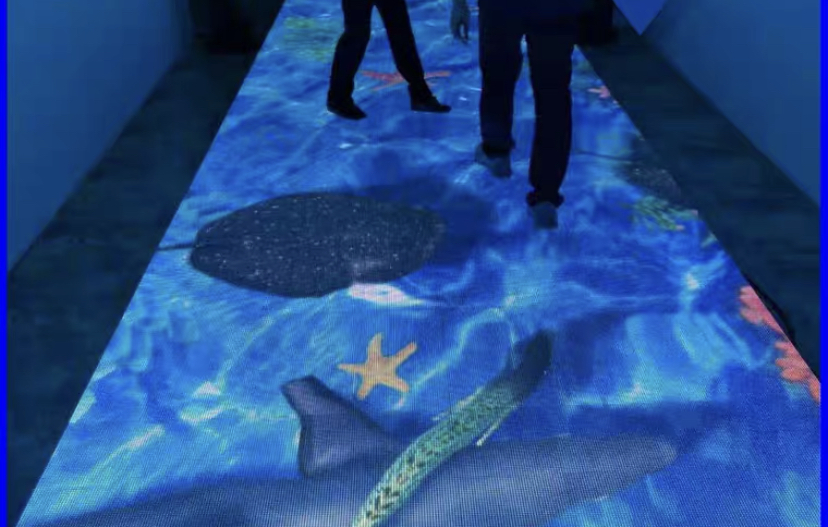

What is interactive floor LED display?

The interactive floor LED display is based on the LED floor tile screen and adds sensing functions (pressure, capacitive or infrared sensors). It can track people's motion trajectory and present real-time picture effects following human body activities.

Manufacturing & Distribution
Factory
Production
Distribution Mode
Frequently Asked Questions
Q1. Can I have a sample order for LED display?
Yes, we welcome sample order to test and check quality. Both for LED module or a whole display.
Q2. What about the lead time?
About 2-3 weeks. For customized LED display, normally need around 35 days.
Q3. How do you ship the goods and how long does it take?
We mostly accept FOB trade terms. It usually takes 20 to 30 days by sea plus a few days for customs clearance.
Q4. How to proceed an order for LED display?
1. Let us know your requirements. 2. We quote based on your needs. 3. Confirm design and place deposit. 4. Pay balance and we arrange production.
Q5. Do you offer a guarantee for the products?
Yes, we offer 1-2 years warranty depending on the specific product type.
Q6. Why should I buy spare modules?
We recommend purchasing enough spare modules at once to avoid color differences that may occur between different production batches.
