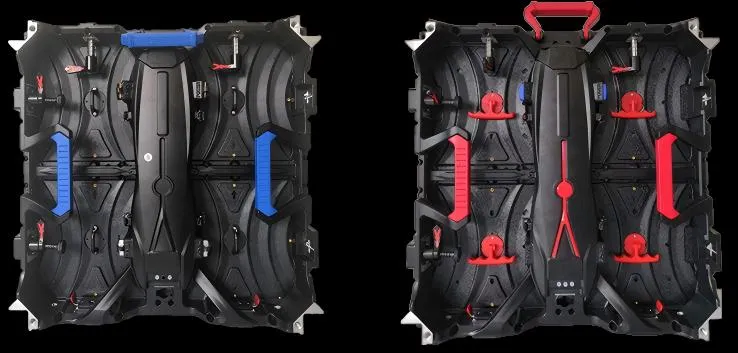

Safety is the first policy for outdoor applications. CNC machining not only makes the product premium, but more importantly safer. Wind load testing has been done by professional lab in Europe.

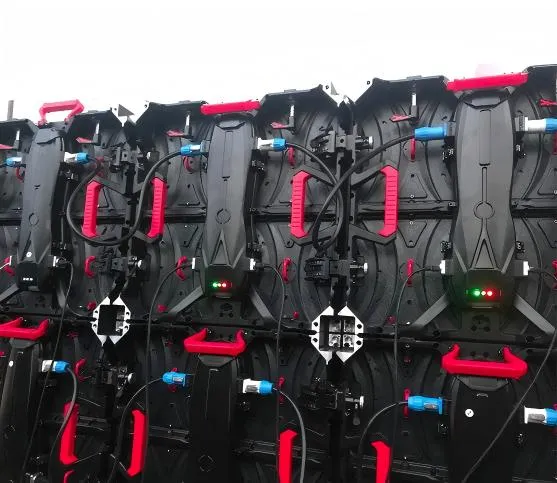

Classic locking system, giant installation pins, and all metal panels give you a real robust product that makes the installation extremely easy and fast.
Wide viewing angle 160° horizontal and 140° vertical, brings excellent visual experience for all audience members.

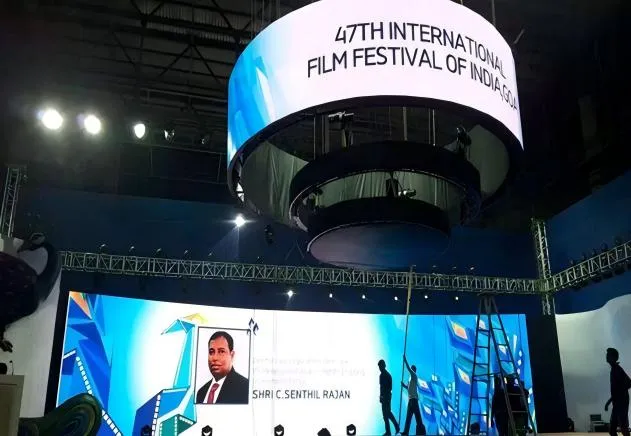

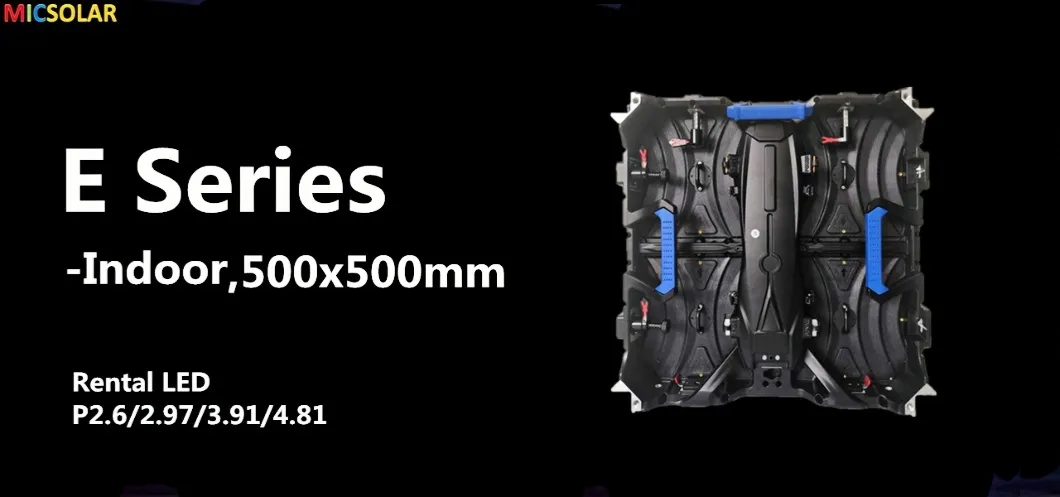

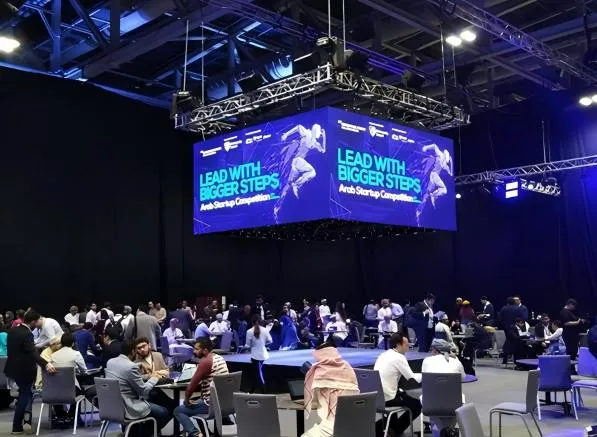

E series widely used for indoor and outdoor events, concerts, fashion shows, and exhibitions for the rental market.
| Model Name | IE 26 | IE 29 | IE 39 | IE 48 |
| Pixel Pitch | 2.604 mm | 2.97 mm | 3.91 mm | 4.81 mm |
| Pixel Density/m² | 147,456 dots | 112,896 dots | 65,536 dots | 43,264 dots |
| LED Configuration | SMD1515/2020 | SMD1515/2020 | SMD2020 | 1R1G1B 2020 |
| Module Size | 250 mm * 250 mm | |||
| Module Res. | 96 * 96 dots | 84 * 84 dots | 64 * 64 dots | 52 * 52 dots |
| Panel Size | 500 * 500 * 75 mm | |||
| Panel Res. | 192 * 192 dots | 168 * 168 dots | 128 * 128 dots | 104 * 104 dots |
| Panel Weight | 8kg | |||
| Driving Mode | 1/32 | 1/28 | 1/16 | 1/13 |
| Refresh Rate | 3840HZ | |||
| Brightness | ≥ 1000 CD/M² | ≥ 1000 CD/M² | ≥ 1200 CD/M² | ≥ 1200 CD/M² |
| Material | Aluminum Die-Casting | |||
| IP Rating | IP3X | |||
