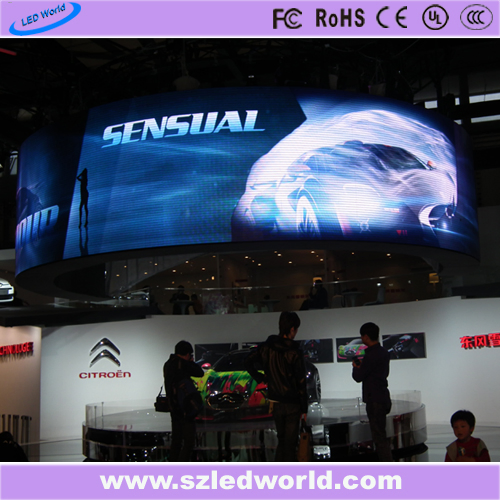

P5 16 Scan Small Pixel Pitch Indoor Fixed LED Display Panel with 960X960 Cabinets Flexible 3D Transparent Advertising Digital LED Display

Basic Product Specifications

Pixel Pitch

3.91mm

Pixel Configuration

1R,1G,1B (SMD 3-in-1)

Pixel Density

65,536 dots/m2

Scanning Mode

1/16 Scan

Brightness

Up to 6000 CD/M2

IP Rating

IP43

Cabinet Size

500mm*500mm / 1000mm

Cabinet Material

Die-Casting Aluminum

Certification

CE, RoHS, CCC, ETL, FCC

Viewing Distance

>4m

Power Consumption

Average 120W

Production Capacity

10,000 Sqm/Month

Indoor Fixed LED Display Panel Features

P5 16 scan small pixel pitch Indoor Fixed LED Display panel with 960x960 cabinets

Excellent heat dissipation and noiselessness with ultra-quiet fan.
High-quality LEDs with black body for high contrast and brightness up to 6800nits.
Large viewing angle up to 120° (Horizontal & Vertical).
Versatile cabinet design suitable for indoor/outdoor P5, P6.67, P8, and P10.
High-quality image with good consistency, no particle or mosaic phenomenon.
Fully approved by CE, RoHS, and FCC.
Optimized cooling system to effectively reduce energy consumption.
Easy onsite installation with both front and rear access available.

Technical Parameters

Indoor Fixed Parameters:

Model No.	IF2	IF2.5	IF3.076	IF4	IF5
Pixel Pitch	2.0 mm	2.5 mm	3.076 mm	4 mm	5 mm
Pixel Structure	3 IN 1 SMD	3 IN 1 SMD	3 IN 1 SMD	3 IN 1 SMD	3 IN 1 SMD
Pixel Density	250,000 pixel/m2	160,000 pixel/m2	105,625 pixel/m2	62,500 pixel/m2	40,000 pixel/m2
Module Size	320x160 mm	320x160 mm	320x160 mm	320x160 mm	320x160 mm
Refresh Rate	1920 - 3840 HZ
IP Rating	IP20

Outdoor Rental Parameters:

Pixel Pitch	P2.604	P2.97	P3.91	P4.81
LED Type	SMD1415	SMD1415	SMD1921	SMD1921
Pixel Density	147,456/m2	112,896/m2	65,536/m2	43,264/m2
Cabinet Size	500*1000mm	500*1000mm	500*1000mm	500*1000mm
Brightness	≥4500 cd/m2	≥4000 cd/m2	≥4000 cd/m2	≥4000 cd/m2
IP Rating	IP65	IP65	IP65	IP65

Product Detail Showcase

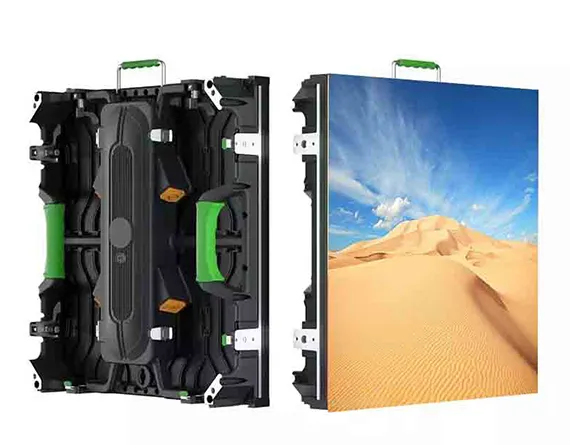

Outdoor Rental 500x500mm Cabinets

Lightweight die-casting aluminum
IP65 waterproof grade
High definition and excellent dissipation

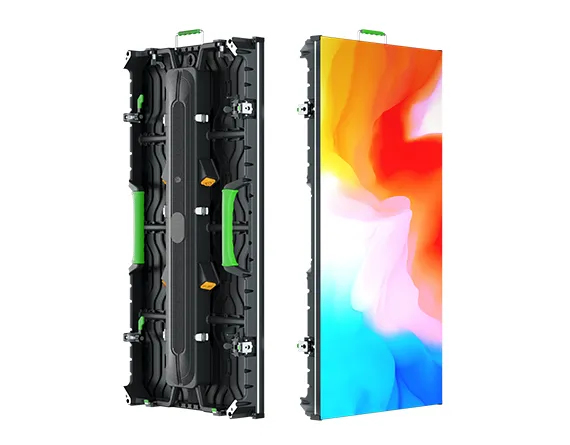

Outdoor Rental 500x1000mm Cabinets

High grayscale and low consumption
Wide viewing angle
Easy to install, dismantle, and maintain

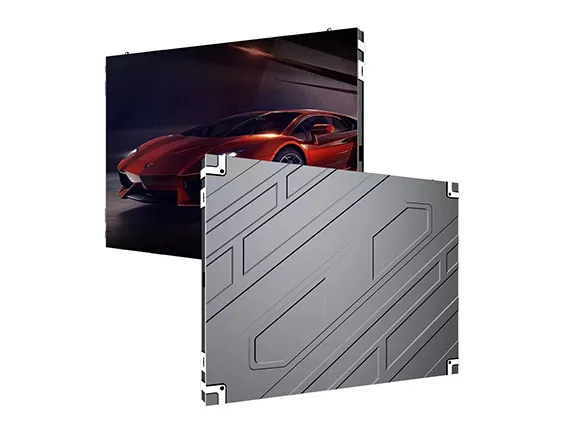

P2.5 Indoor Fixed 640x480mm Cabinets

Full front service access
Energy saving and ultra-thin design
High refresh rate and fast locks

Advantages & Applications

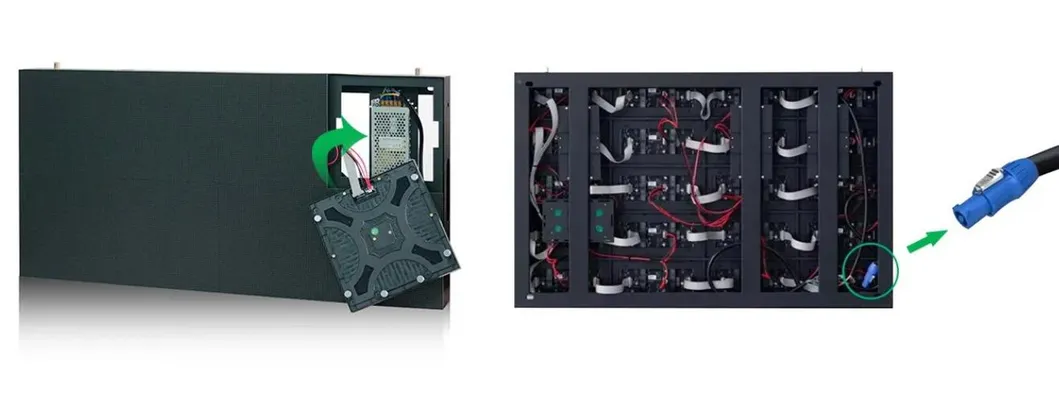

Front Maintenance: Magnetic suction modules save 1/3 of installation time.

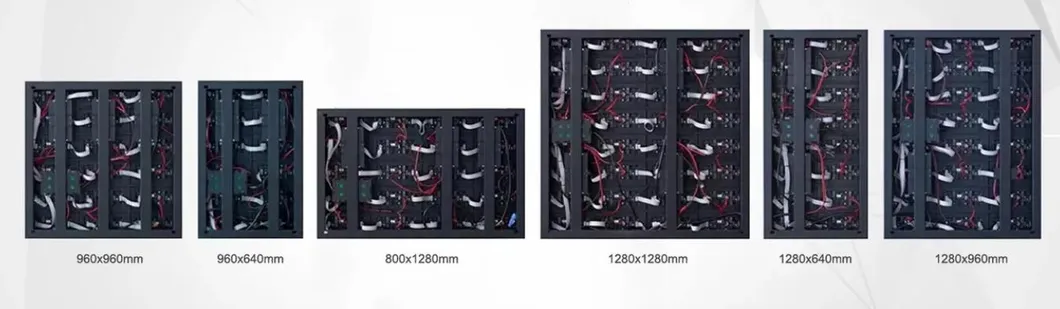

Customized Sizes: Flexible cabinet dimensions to fit any space requirements.

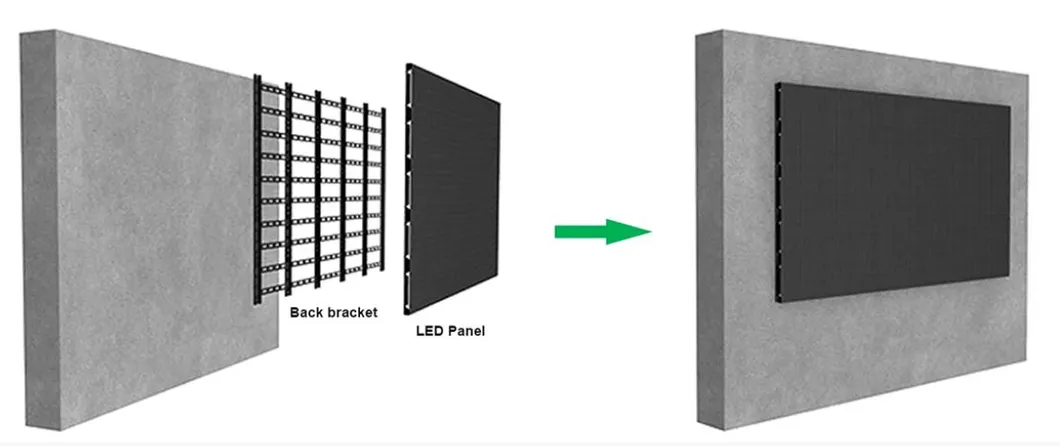

Easy Installation: Wall-mounted options with strong fast locks for assembly.

Business Organizations	Supermarkets, shopping malls, office buildings, hotels, restaurants, travel agencies.
Financial & Public	Banks, hospitals, schools, airports, subway stations, stadiums, convention centers.
Entertainment	Movie theaters, night clubs, bars, cafes, golf courses, casinos.

Professional Support Services

Pre-sales Support:

Technical advice and budget optimization.
Framework design with technical drawings.
Software customization for specific usage.

After-sales Service:

Over two years of warranty service.
Free maintenance and remote troubleshooting.
Lifetime software upgrades and training.

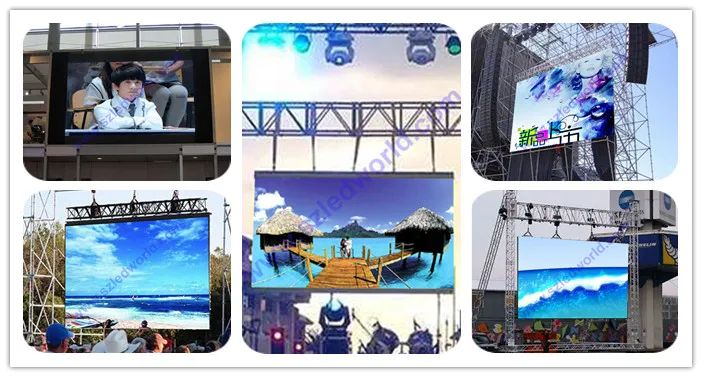

Project Case & Quality Control

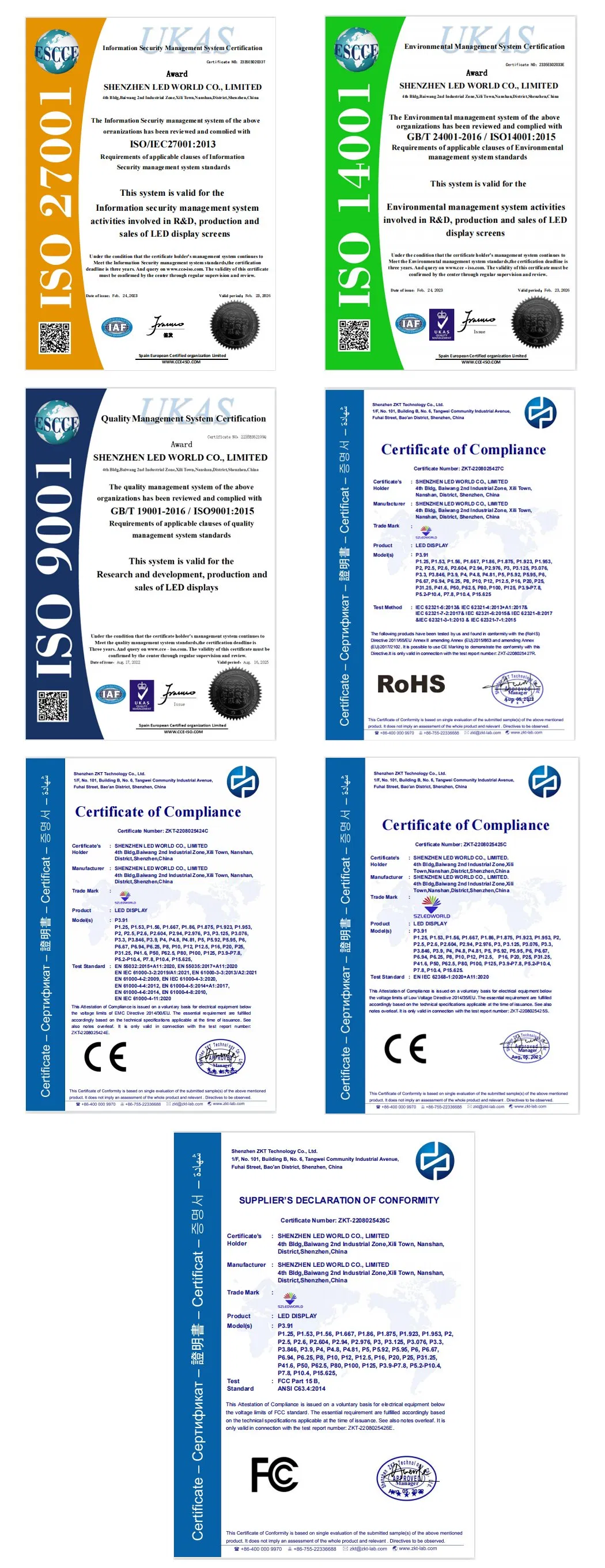

Quality Certifications

Frequently Asked Questions

How can I place an order?

Please provide your requirements details as clearly as possible. We will send you an offer immediately. Discussion via digital communication channels is recommended to avoid delays.

What kind of LED displays do you provide?

We offer indoor/outdoor fixed displays, rental screens, taxi top displays, mobile LED screens, and irregular-shaped LED displays for various applications.

Are you a professional manufacturer?

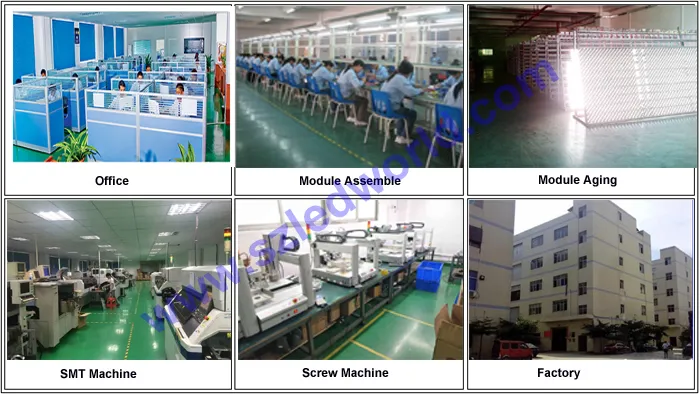

Yes, we operate a specialized factory covering 2,000 square meters, equipped with advanced production lines for high-quality LED display manufacturing.

What is the typical production and delivery time?

Production usually takes 10-25 working days. Once the 30% deposit is received, we begin manufacturing and provide regular updates until full payment and final delivery.

How are the LED cabinets packaged for transport?

For fixed installations, we use secure wooden cases (2-4 cabinets each). For the rental market, we recommend professional flight cases (usually 8 cabinets per case) for safe and economical transport.

What is the viewing distance for a P3.91 display?

The optimal viewing distance for our P3.91 LED display is typically 4 meters or more, providing clear and vibrant visuals for audiences.
