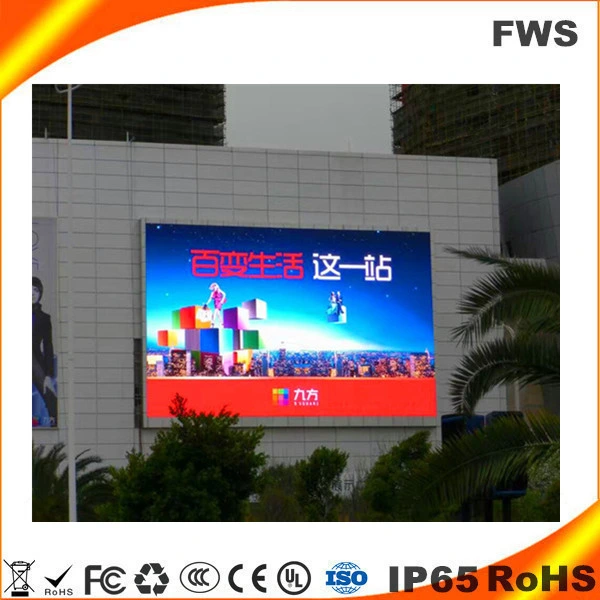

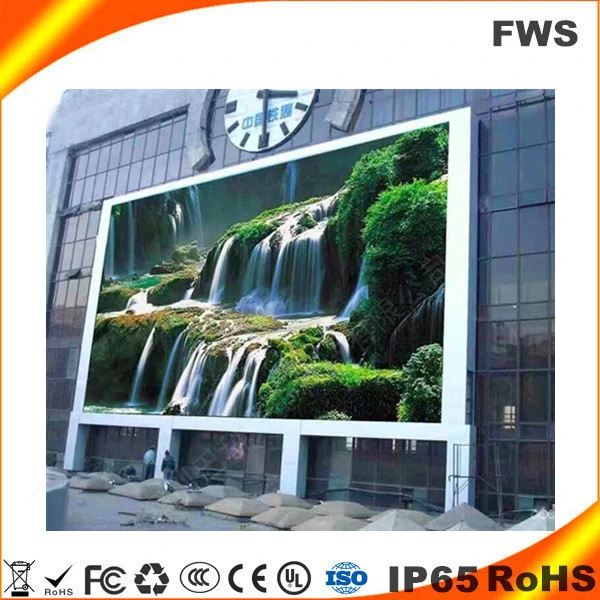

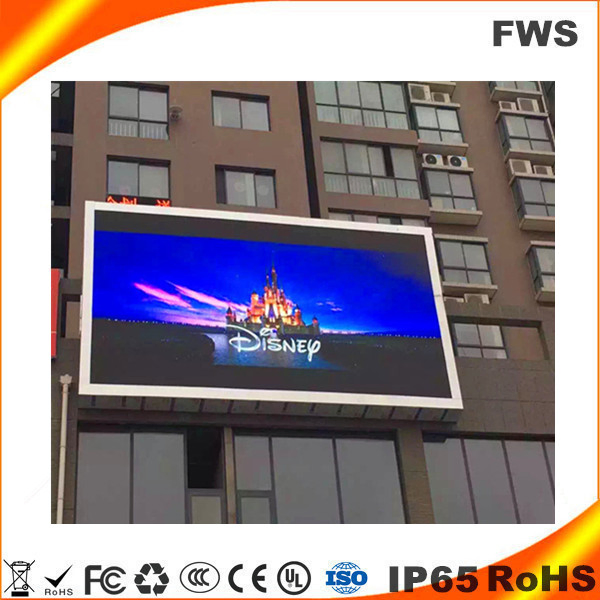

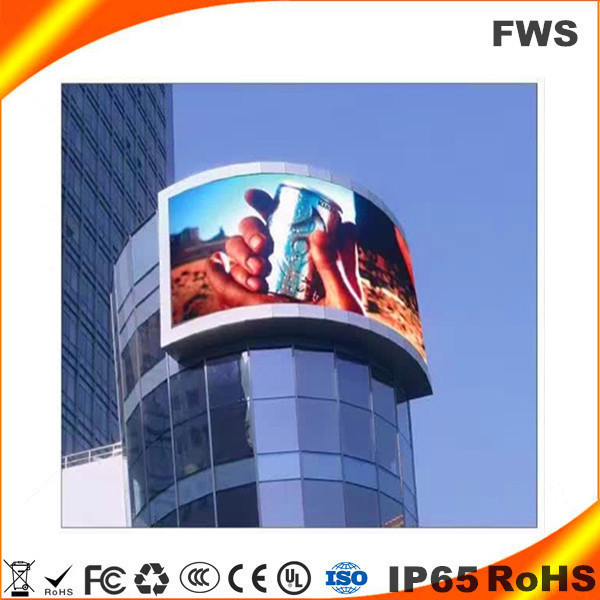

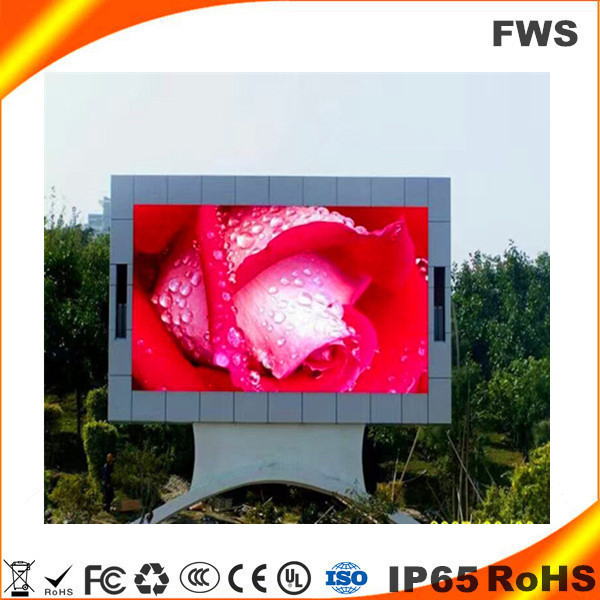

P8 SMD (4 Scan) Outdoor LED Display Full Color TV LED Video Wall

1 / 5

P8 SMD (4 Scan) Outdoor LED Display Full Color TV LED Video Wall

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Pixel Pitch

8mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video Display

Average Power

300W / m²

Pixel Density

15625 dots/m²

Scanning Mode

1/4 Scan

Application

Stage, Advertising, Shopping Guide

Certification

CE, CCC

Warranty Period

2 Years

Brightness

6500 mcd/m²

Life Span

100,000 Hours

★

Outdoor P8 LED Display Overview

The Outdoor P8 LED Display features high brightness that is adjustable to sufficiently meet the needs of various application environments.

Our outdoor products are built with premium raw materials, including high-grade LED chips, masks, and cabinets. They are engineered to endure high temperature and high humidity, while being anti-UV, waterproof, anticorrosion, and antirust.

⚙

Technical Parameters

Category	Item	Technical Parameter
Panel Details	Dimension	256mm * 128mm
	Pixel Density	15625 DOTS/M2
	LED Specification	SMD 3535
	Pixel Resolution	32 * 16 dots
	Panel Weight	0.25KG
Cabinet & Viewing	Bracket Size	768mm * 768mm
	Best Viewing Distance	8 - 40 Meters
	Working Temperature	-20ºC / ±50ºC
	Max Power	760W/M2
	Average Power	220W/M2
Performance	Refresh Frequency	>1200HZ
	Display Color	4096 * 4096 * 4096
	Brightness	6500 mcd/M2
	Drive Type	1/4 Scanning

✔

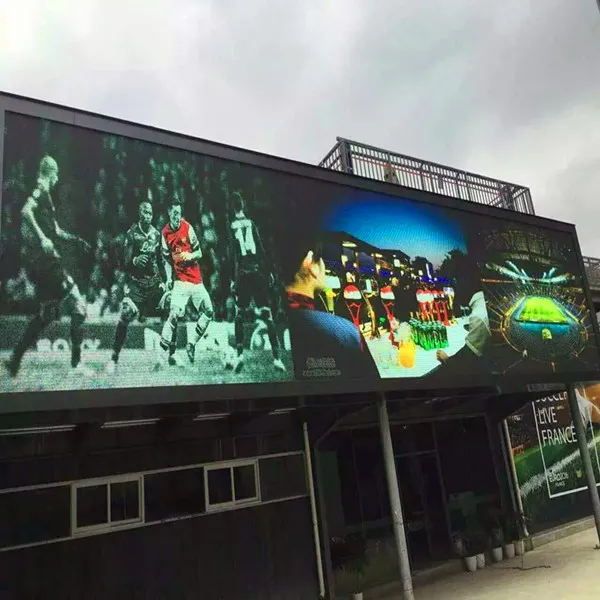

Visual Display & Quality Control

Frequently Asked Questions

What is the pixel pitch and best viewing distance for the P8 LED display?

The pixel pitch is 8mm, and the optimal viewing distance ranges from 8 meters to 40 meters, making it ideal for outdoor advertising and large-scale events.

Is the P8 LED display suitable for extreme weather conditions?

Yes, the display is designed with anti-UV, waterproof, and anticorrosion materials. It can operate effectively in temperatures ranging from -20ºC to +50ºC.

What is the expected lifespan of this LED video wall?

Our high-quality LED chips and constant current drive systems ensure a long lifespan of up to 100,000 hours of continuous operation.

How much power does the P8 outdoor screen consume?

The average power consumption is approximately 220W/m² to 300W/m², with a maximum power output of 760W/m² depending on brightness settings.

Does the product come with a warranty?

Yes, we provide a 2-year warranty period for the P8 outdoor LED display to ensure reliable performance and customer satisfaction.

What are the main applications for this display?

It is widely used for stage performances, outdoor advertising, shopping guide displays, and stadium scoreboards due to its high brightness of 6500 mcd/m².
