Basic Information
Pixel Configuration
1R,1G,1B
Pixel Density
160000 Dots/Sqm
Display Type
LED Video Display
Application
Stage Performance
Certification
CE, RoHS, CCC
Cabinet Material
Die-Casting Aluminum
Control System
Novastar/Colorlight/Huidu

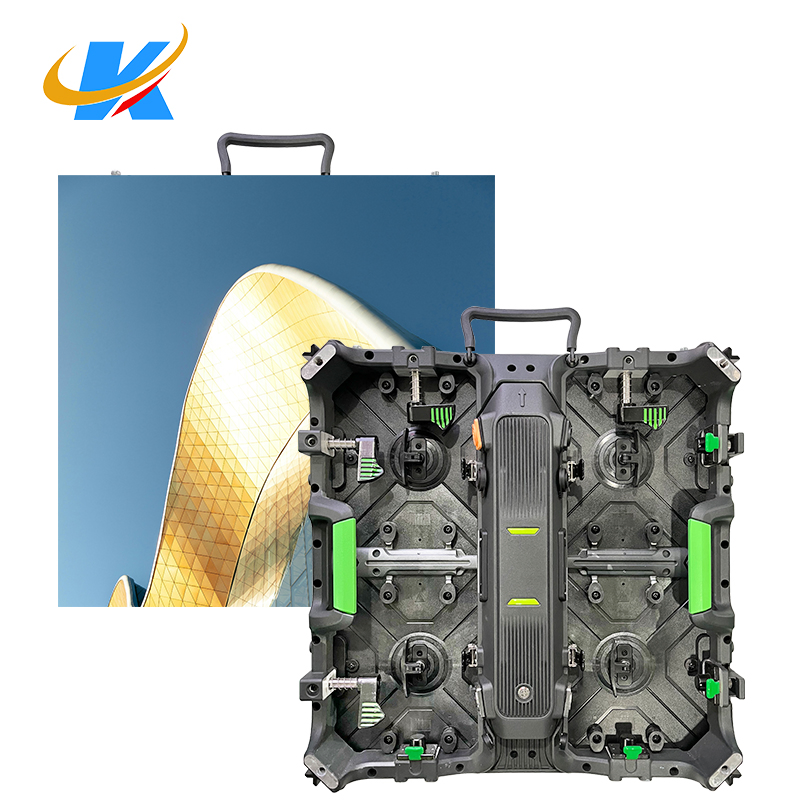

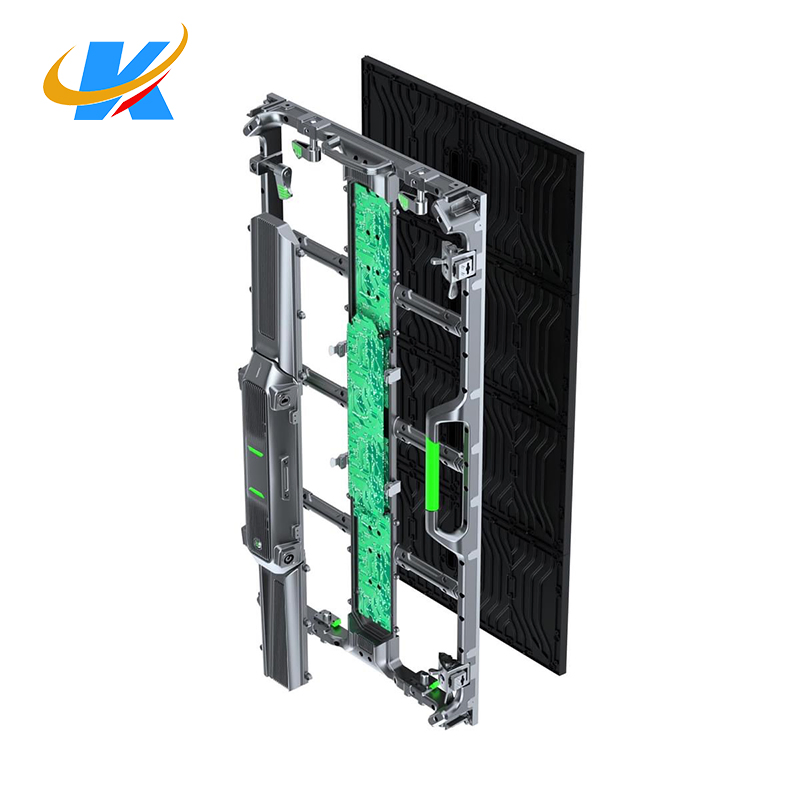

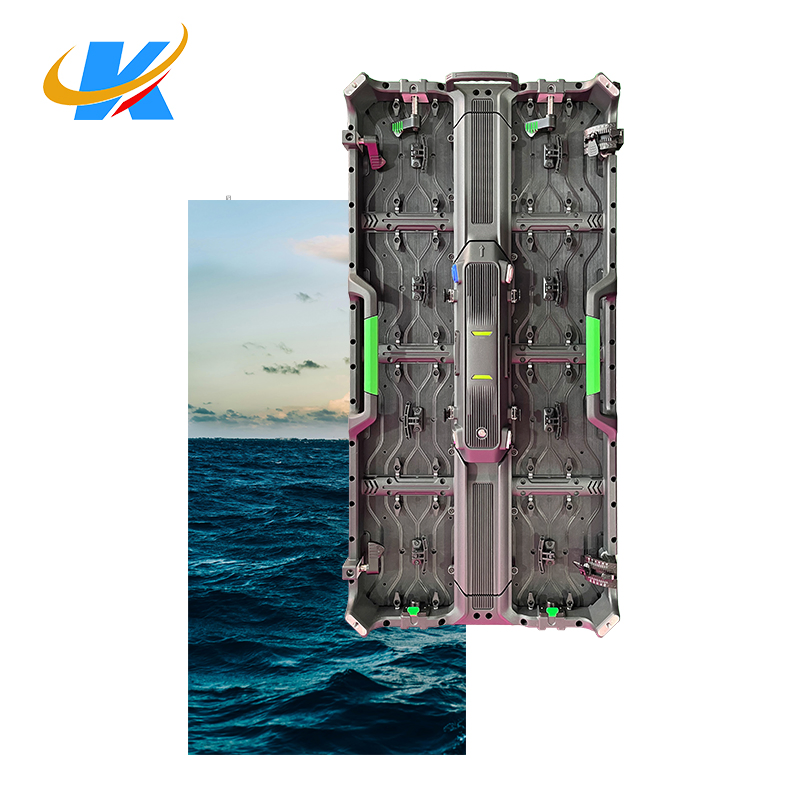

Product Description

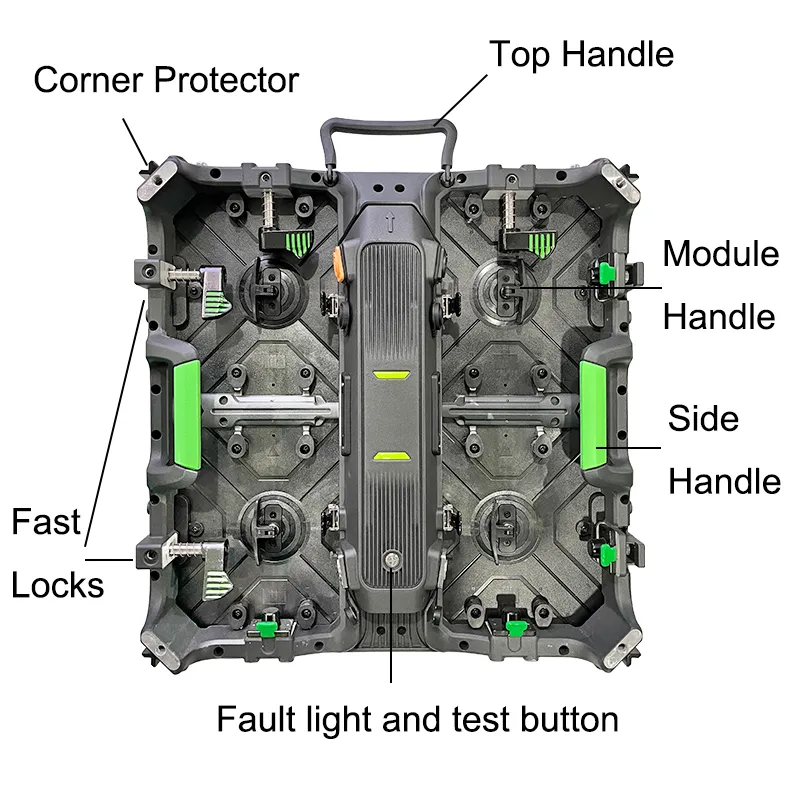

High Precision & Quick Installation
- Magnetic module, front maintenance, supports quick installation
- Two-in-one module interface (HUB connection), more stable transmission

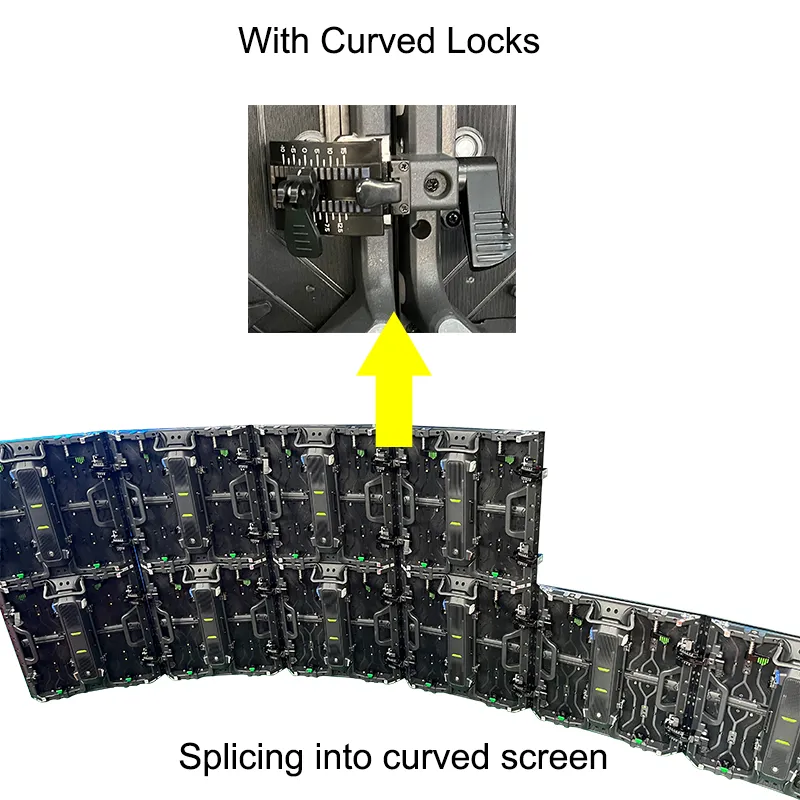

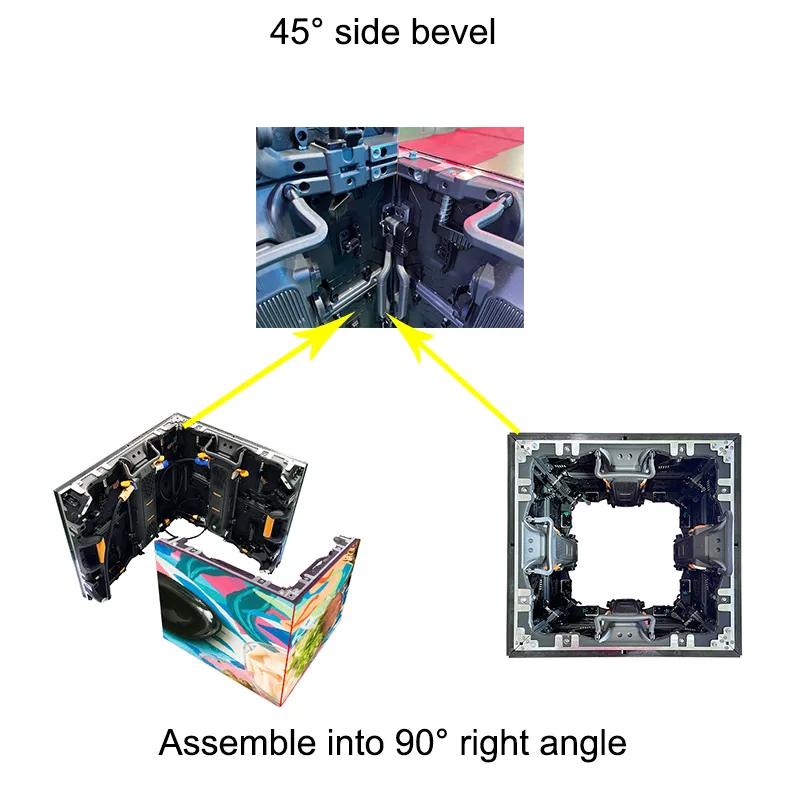

- High-precision seamless splicing for arcs and right angles
- Die-casting aluminum cabinet, only 7kg each
- Compact 500*500mm size
- Equipped with corner protectors and anti-collision design

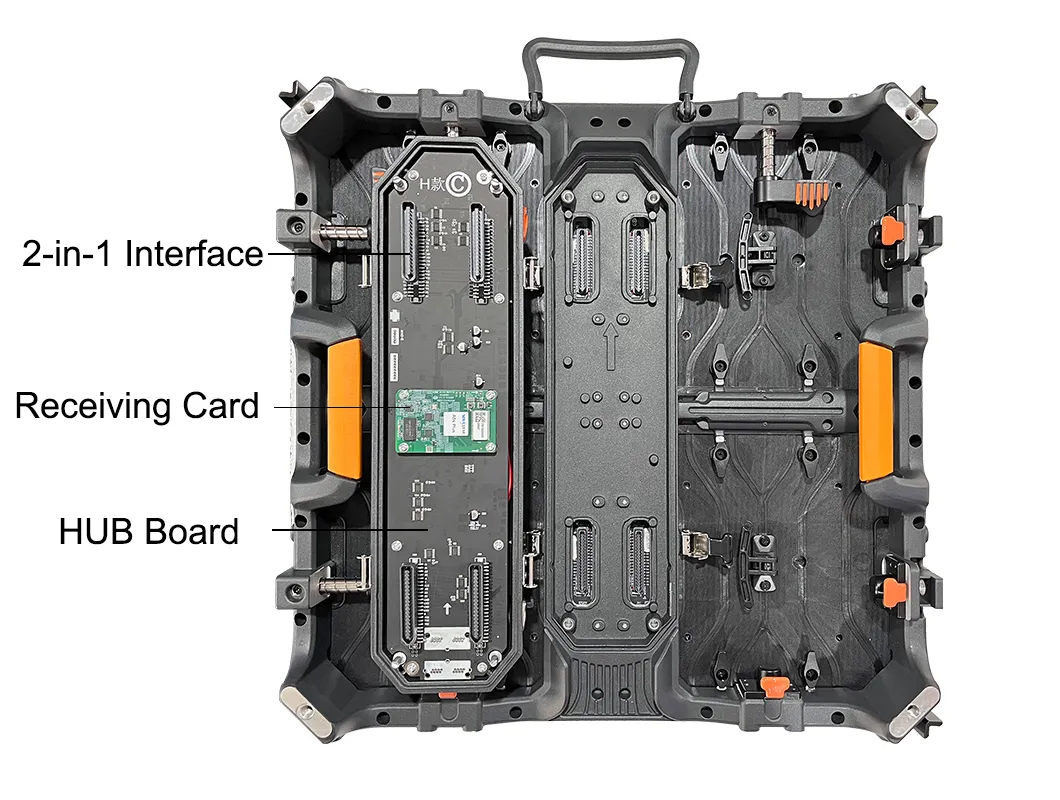

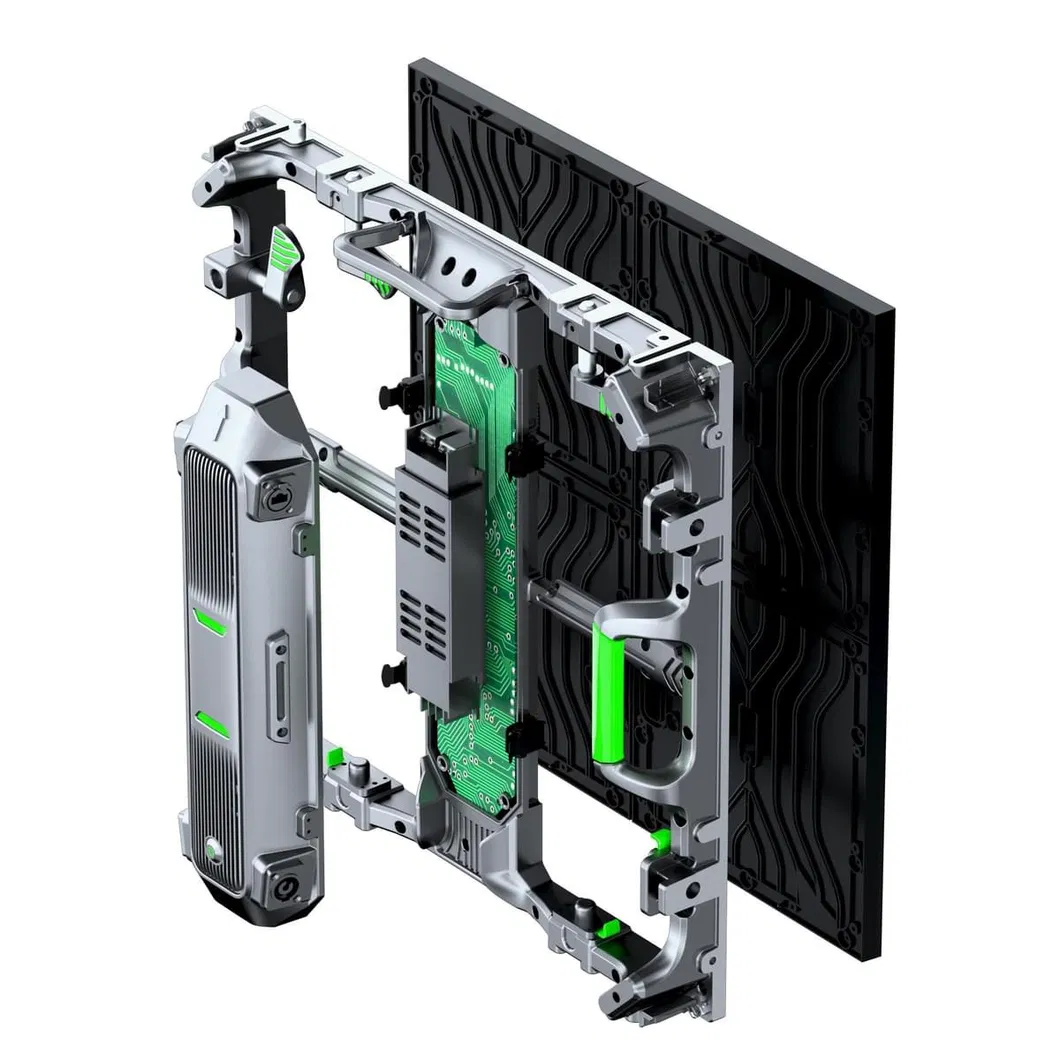

Internal Structure
- Novastar A5s plus receiving card
- Highly integrated design
- Plug-in module interface for easy removal

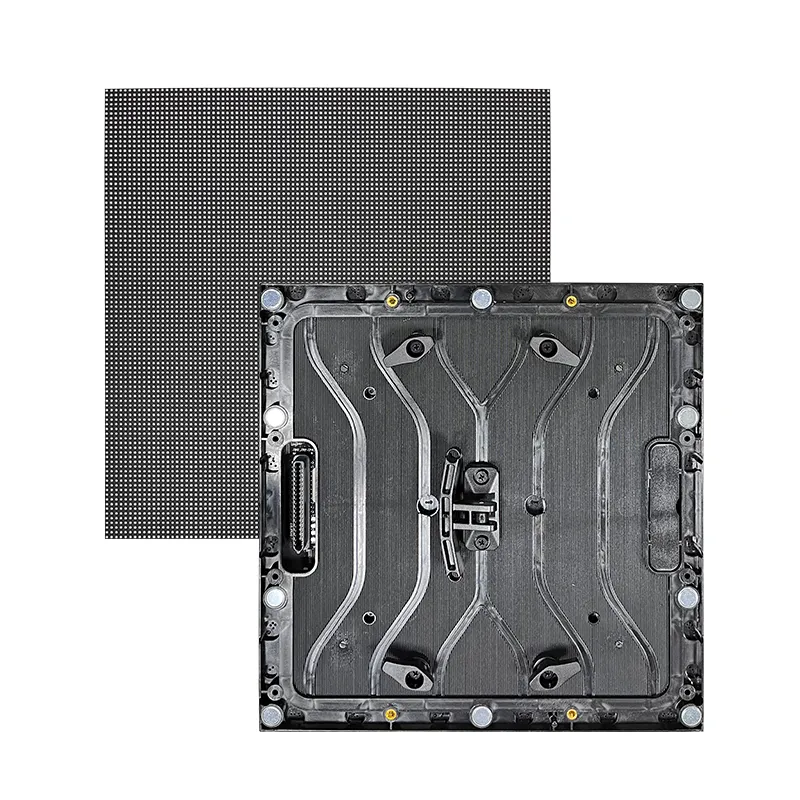

Optional Configuration
Module Size: 250*250mm
- Brightness: 700-800nits(indoor) / 4000-5500nits(outdoor)
- Refresh rate: 3840Hz / 7680Hz
- Contrast ratio 5000:1
Maintenance & Installation

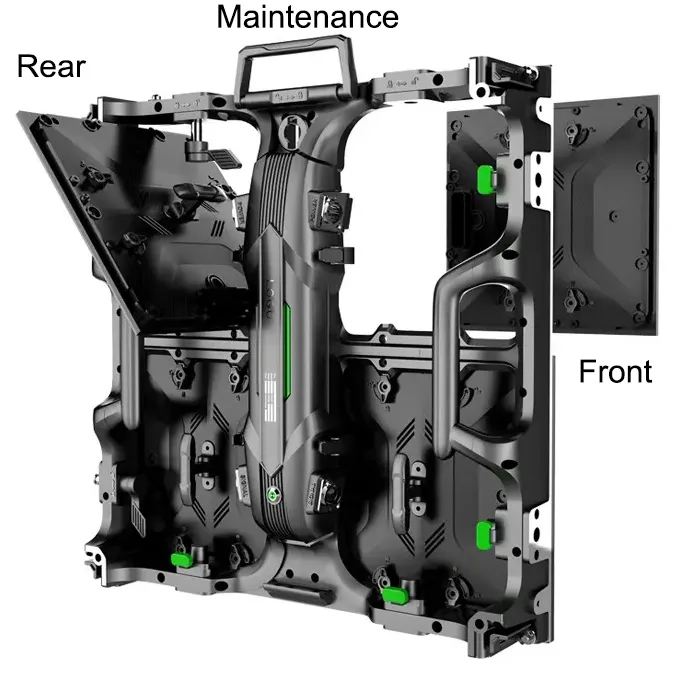

Flexible Maintenance
- Remove the module from the front of the cabinet
- Remove the module from the rear of the cabinet

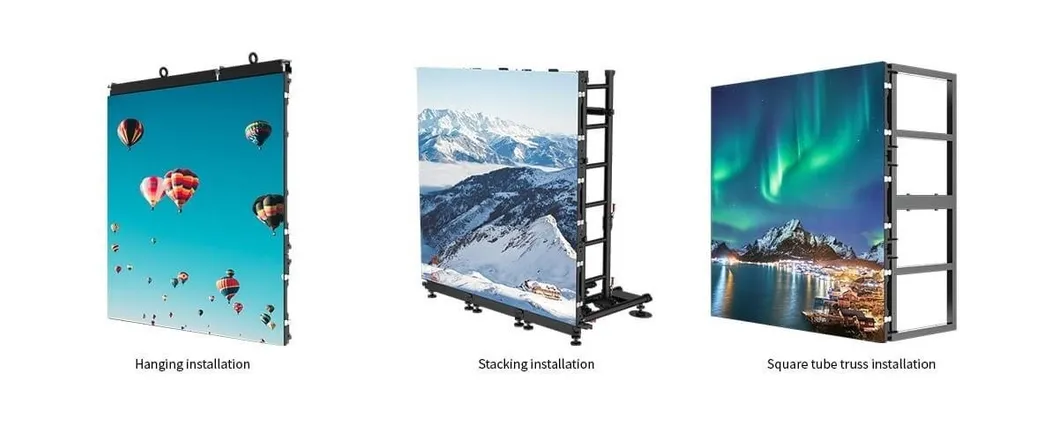

Installation Methods
Parameters of Series Products
| Model |
P1.56 GOB |
P1.95 GOB |
P2.5 |
P2.6 |
P2.97 |
P3.91 |
P4.81 |
| Location | Indoor | Outdoor |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.5 | 2.604 | 2.97 | 3.91 | 4.81 |
| Module Size | 250*250mm |
| Cabinet Size | 500*500mm or 500*1000mm |
| Brightness | 800nits | 4000-5500nits |
| Refresh rate | 3840Hz or 7680Hz |
| IP Rate | IP43 | IP65 rainproof |

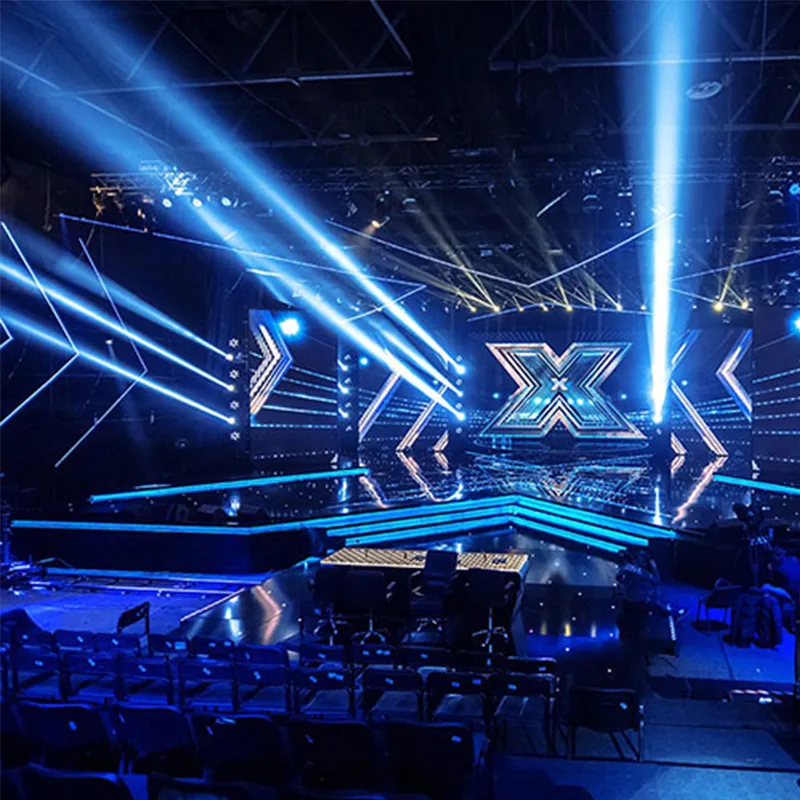

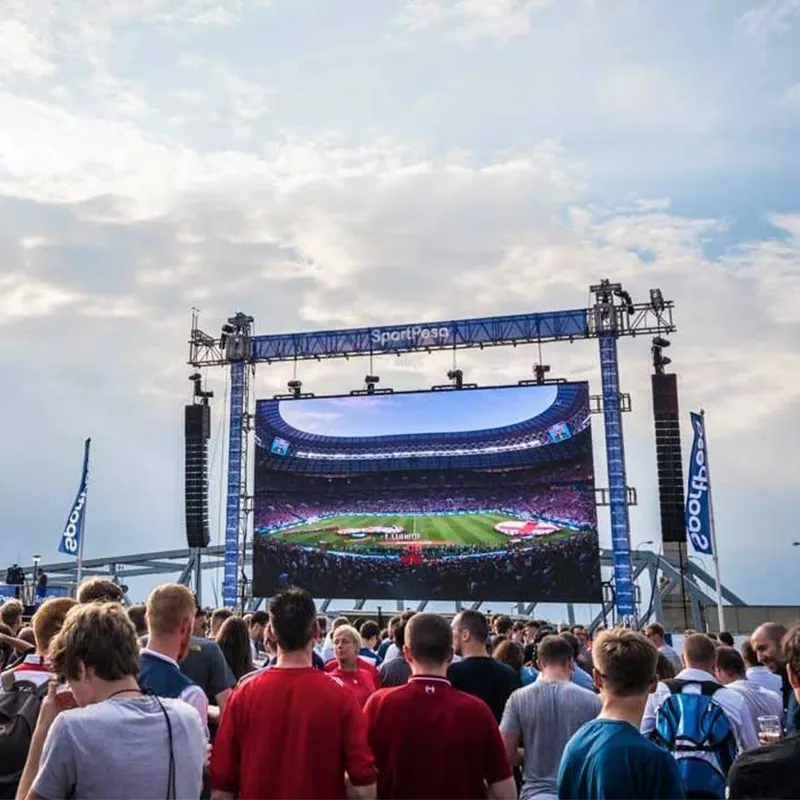

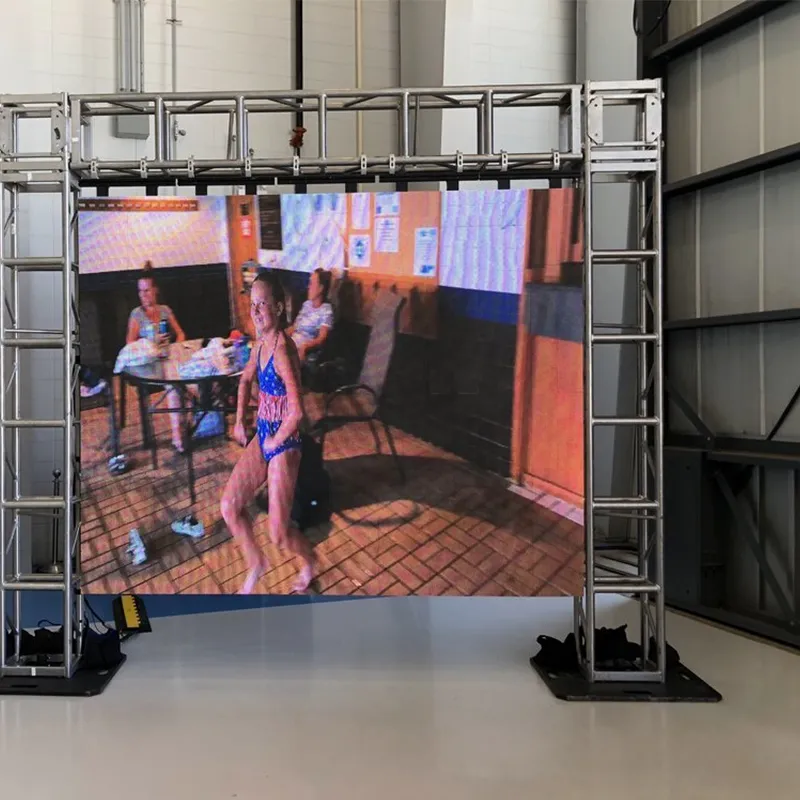

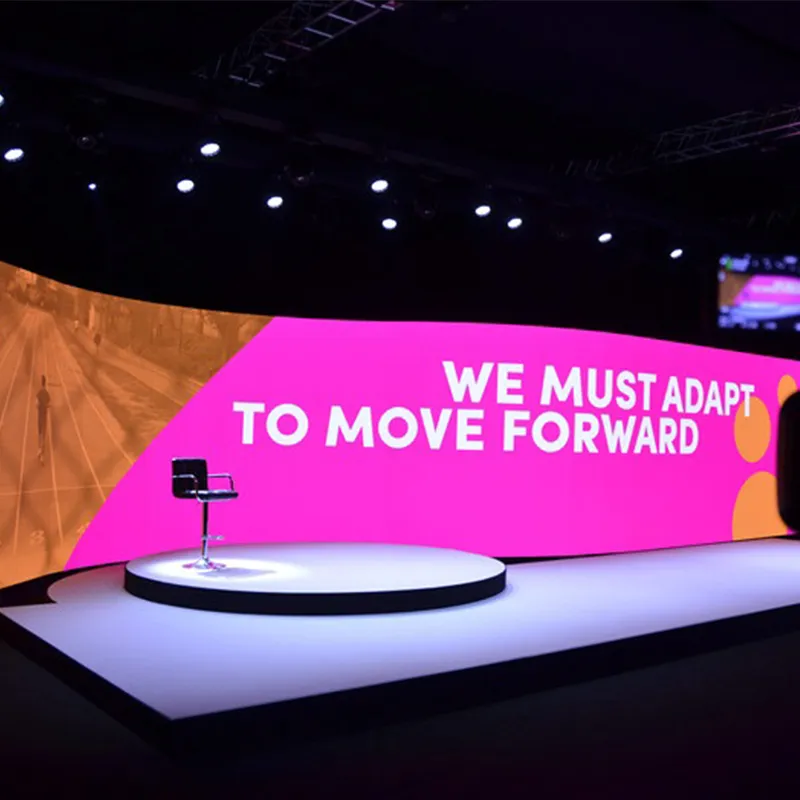

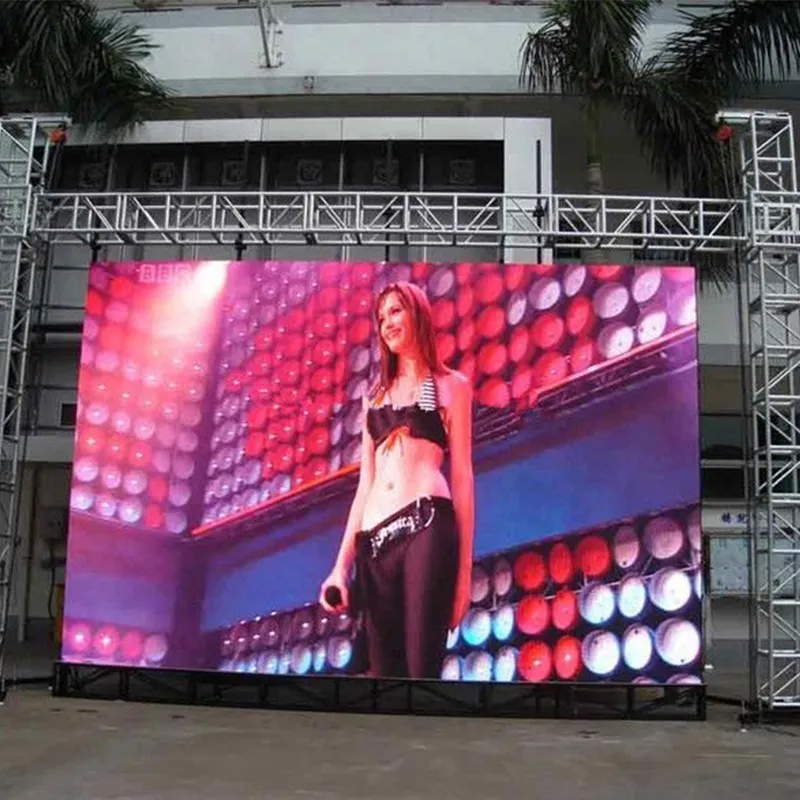

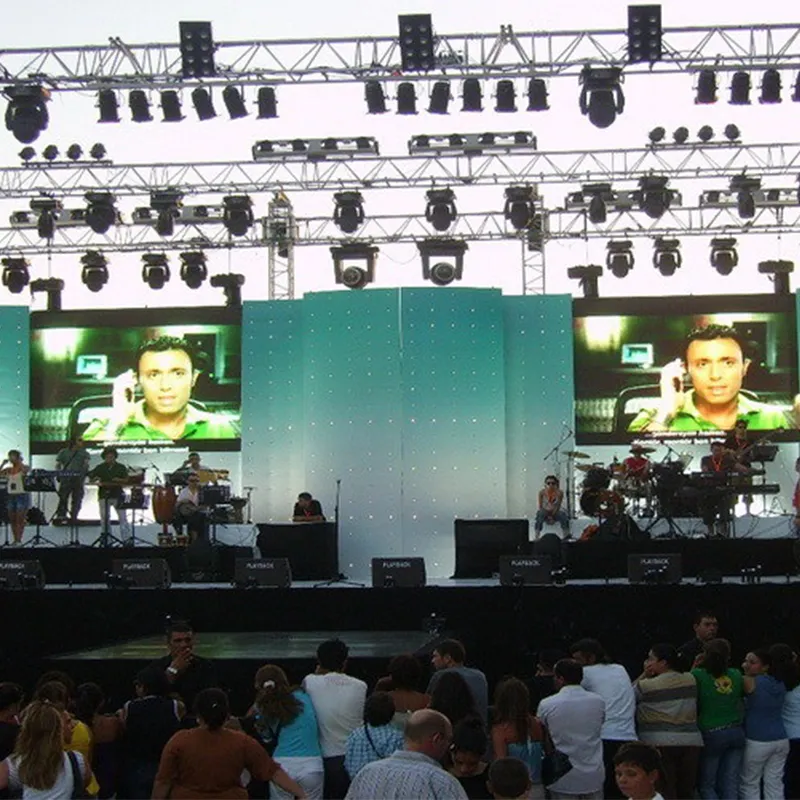

Application Cases
Packaging Options

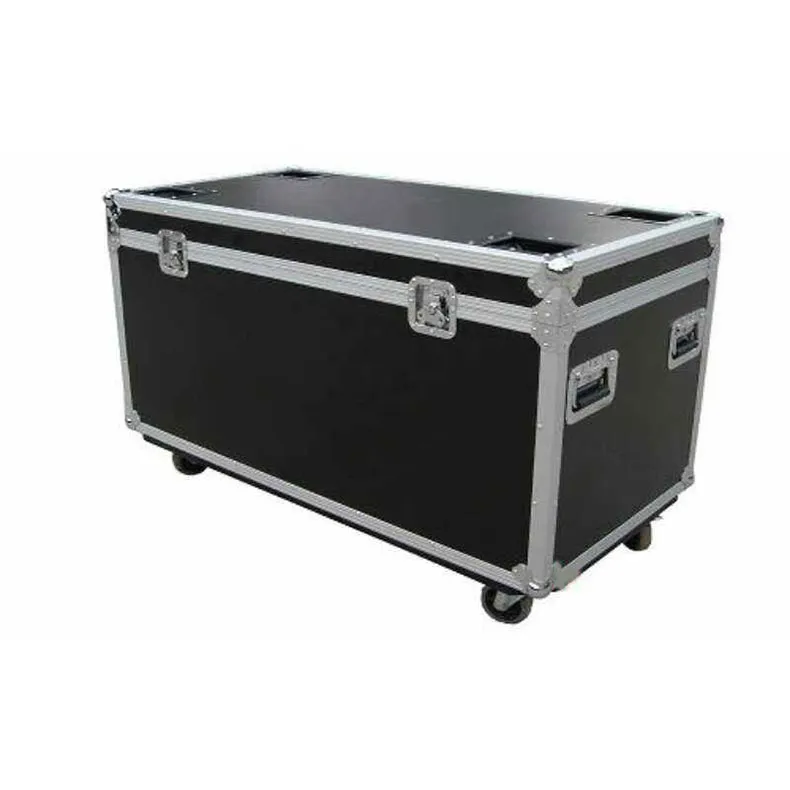

Flight Case
- Sturdy and durable protection during transport
- Waterproof and moisture-proof sealing
- Easy transfer with bottom wheels
- Reusable and high cost-performance

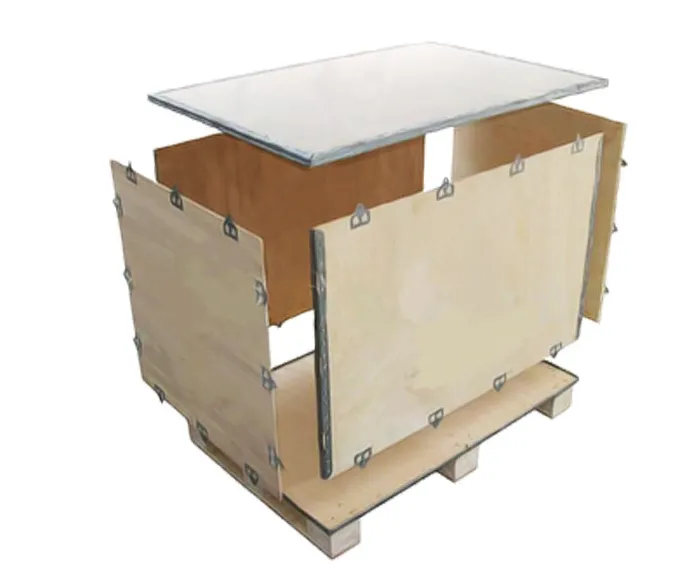

Wooden Case
- Economical packaging costs
- Easy to customize for different sizes
- Environmentally friendly and recyclable material

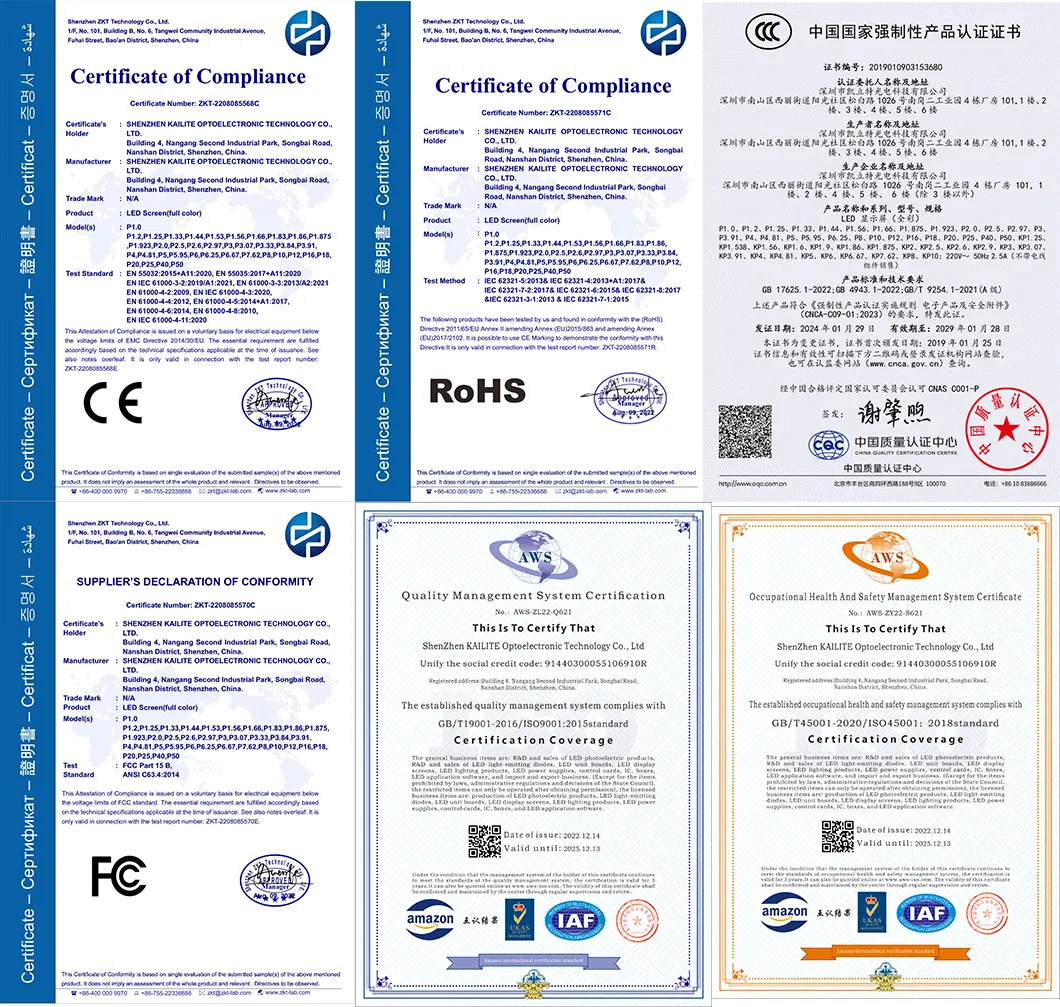

Certifications
After-sale Service
- 2-year comprehensive warranty
- Free remote control debugging service as needed
- Failure maintenance of LED panels
- Providing pre-loaded programs for immediate use upon installation
- 24-hour hotline for technical guidance and counseling
Frequently Asked Questions
Is the product customizable?
Yes, we can customize the product according to customers' specific needs. Simply provide your requirement details.
Do you test all goods before delivery?
Yes, we conduct a 100% rigorous test on all products before they are dispatched.
What is the typical delivery time?
Generally, it takes about 20-22 days after receiving your advance payment. The specific time depends on the items and order quantity.
What are your terms of payment?
Our standard terms are T/T 40% as a deposit and 60% before delivery. We provide photos of products and packages before final payment.
Are free spare parts included in each order?
Yes, we provide a certain amount of free spare parts, including modules, power cables, signal cables, LED lamps, ICs, masks, power supplies, and receiving cards.
What is the warranty period for the LED screens?
We offer a 2-year warranty along with 24-hour technical support and remote debugging services to ensure smooth operation.
