📋Basic Specifications
Model NO.
SAE 100 R2/EN853 2SN
Product Name
Wire Braid Hydraulic Hose
Application
Oil Cooling System
Working Temperature
-40 to 100°c
Surface
Cloth Wrapped or Smooth
Feature
Flexible, Corrosion Resistant, Abrasion Resistant
Daily Capacity
60,000 Meters
⚙️Product Description

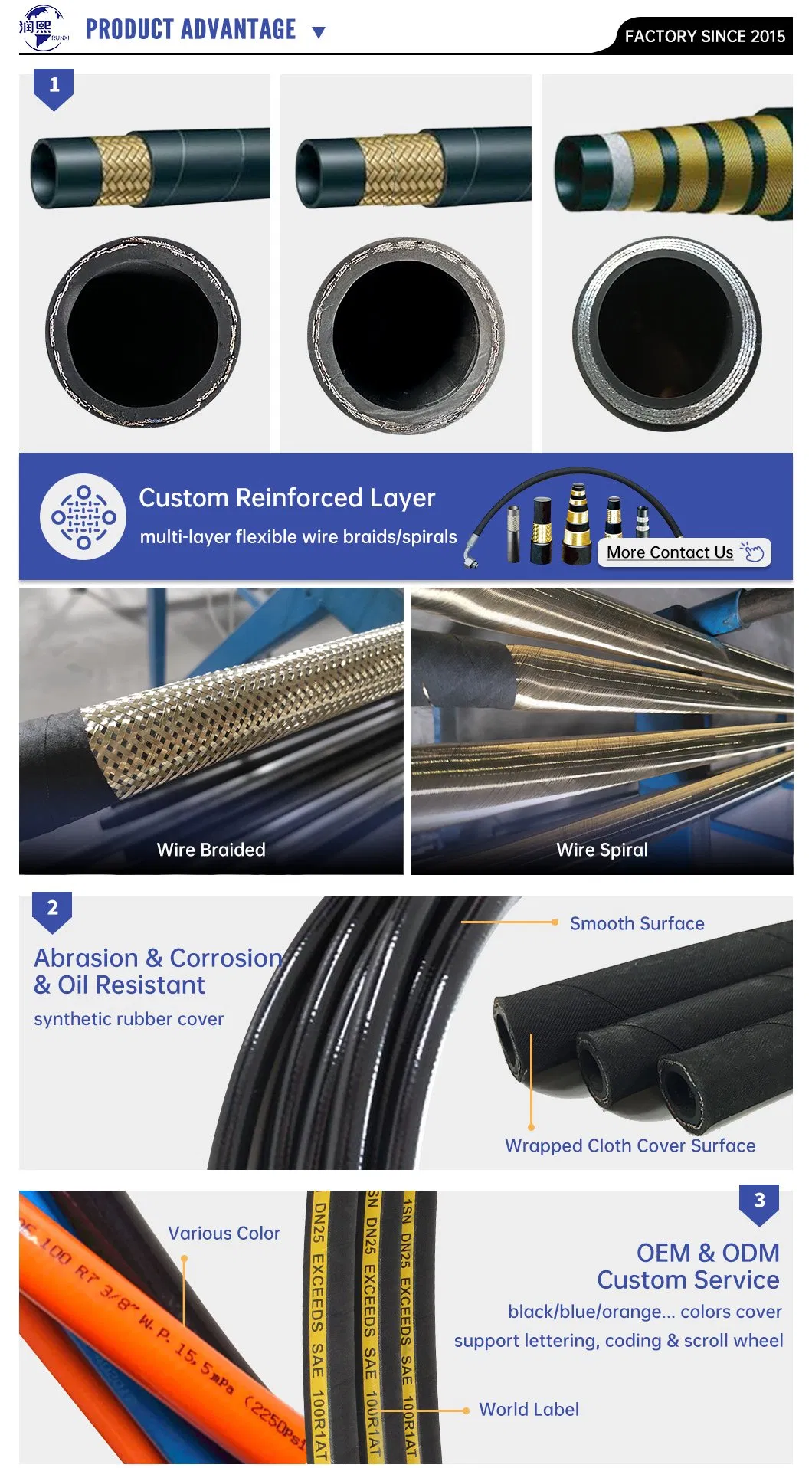

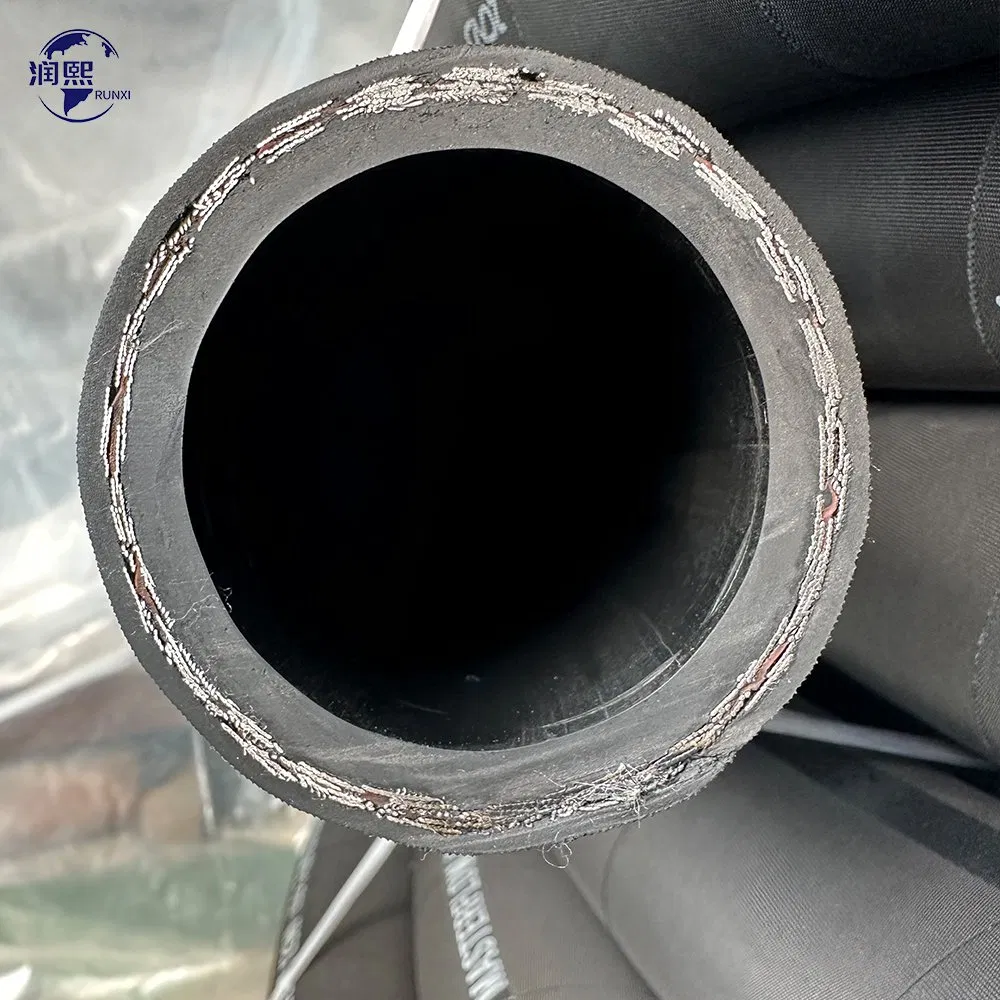

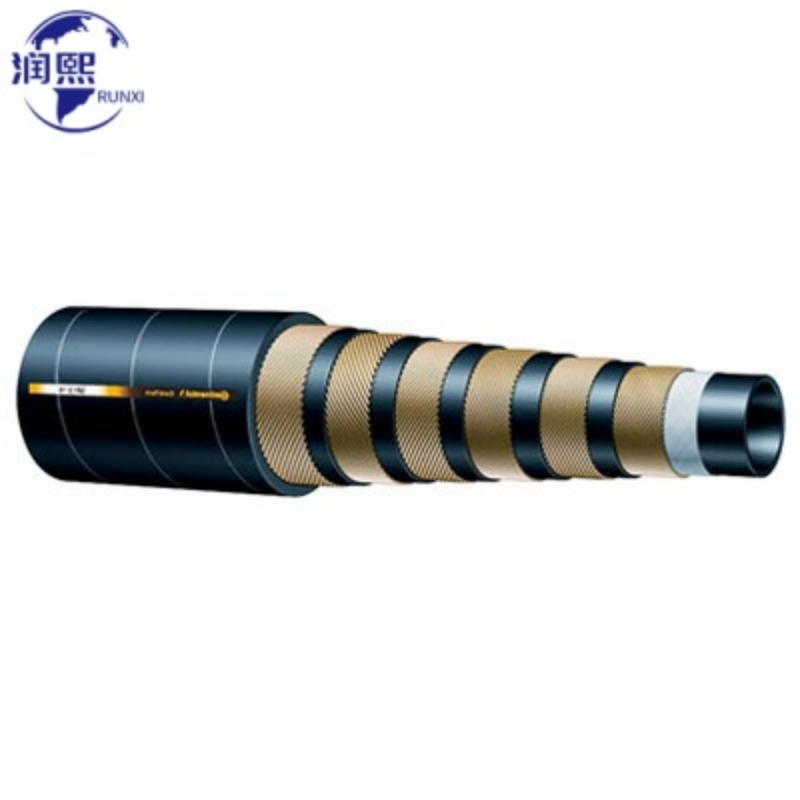

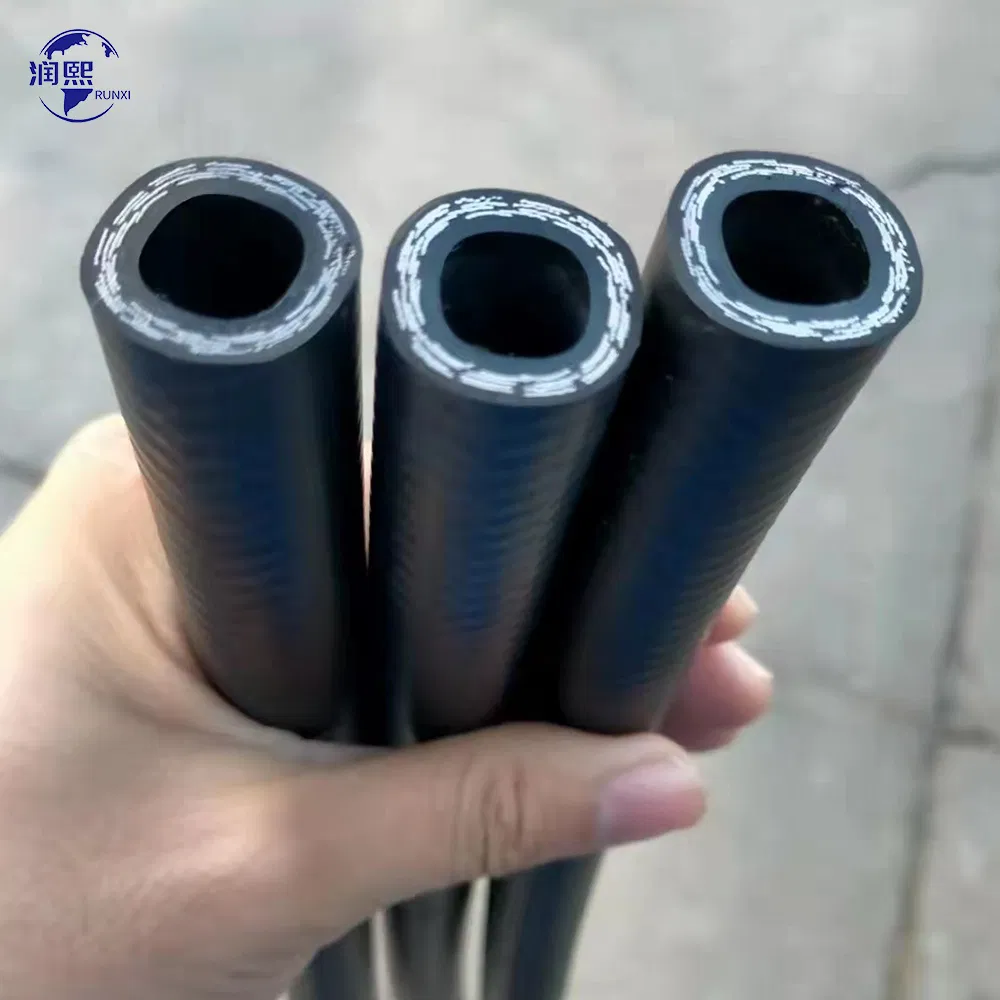

High pressure hose is made of internal rubber, middle rubber, 2, 4 or 6 layers of wire-wood, and external rubber.
Inner rubber layer: Mineral oil resistant synthetic rubber.

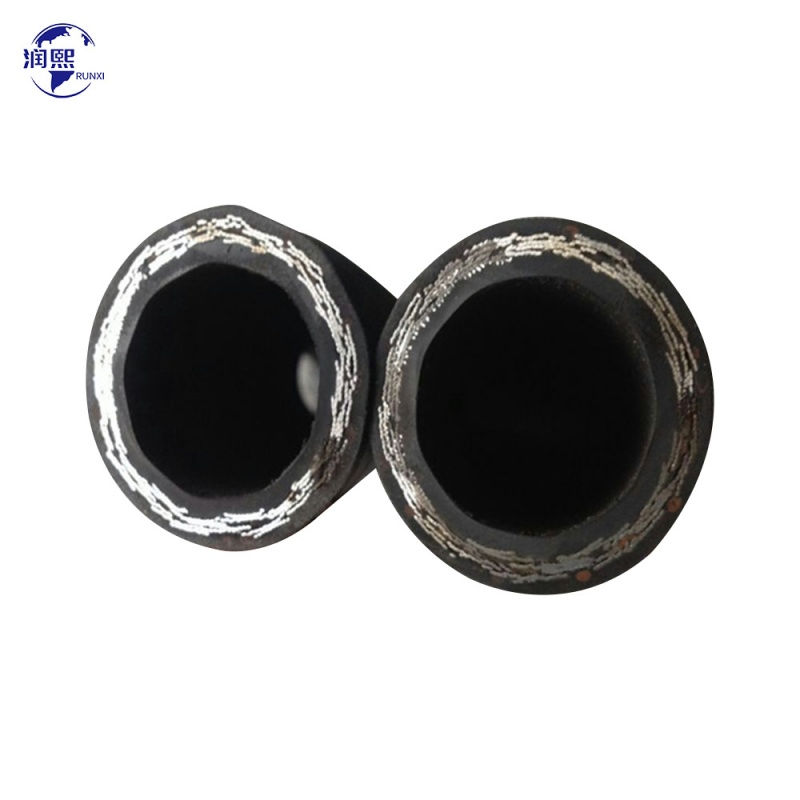

Reinforcement layer: 1, 2 layers of high-strength steel wire weaving.
Outer rubber layer: Synthetic rubber with excellent weather resistance.
Purpose: Suitable for petroleum based and water based hydraulic fluids.
📊Product Parameters
Hydraulic Hose Size Chart (SAE 100R2AT / EN853 2SN):
| Part No. |
SIZE (inch) |
I.D (mm) |
O.D (mm) |
W.P (bar) |
B.P (bar) |
WEIGHT (g/m) |
| P04-2SN | 1/4″ | 6.4 | 14.5 | 400 | 1600 | 380 |
| P05-2SN | 5/16″ | 8 | 16.7 | 350 | 1400 | 435 |
| P06-2SN | 3/8″ | 9.5 | 19.2 | 330 | 1320 | 550 |
| P08-2SN | 1/2″ | 12.7 | 21.8 | 275 | 1100 | 640 |
| P10-2SN | 5/8″ | 16 | 25.4 | 250 | 1000 | 750 |
| P12-2SN | 3/4″ | 19 | 29.9 | 215 | 850 | 925 |
| P16-2SN | 1″ | 25.4 | 37.8 | 165 | 650 | 1290 |
| P20-2SN | 1 1/4″ | 31.8 | 46.4 | 125 | 500 | 1895 |
| P24-2SN | 1 1/2″ | 38.1 | 52.7 | 90 | 360 | 2120 |
| P32-2SN | 2″ | 50.8 | 65.4 | 80 | 320 | 2765 |
🏗️Applications
Hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industries.
🌍Global Cooperation
Our products are exported to more than 30 countries, including Russia, USA, The UK, Korea, Vietnam, Iraq, Singapore, Indonesia, and Japan. We have obtained high praise from clients domestic and abroad due to the excellent quality and competitive price.
Emphasis is placed on human resource development as we believe in professional growth and competent, experienced staff.

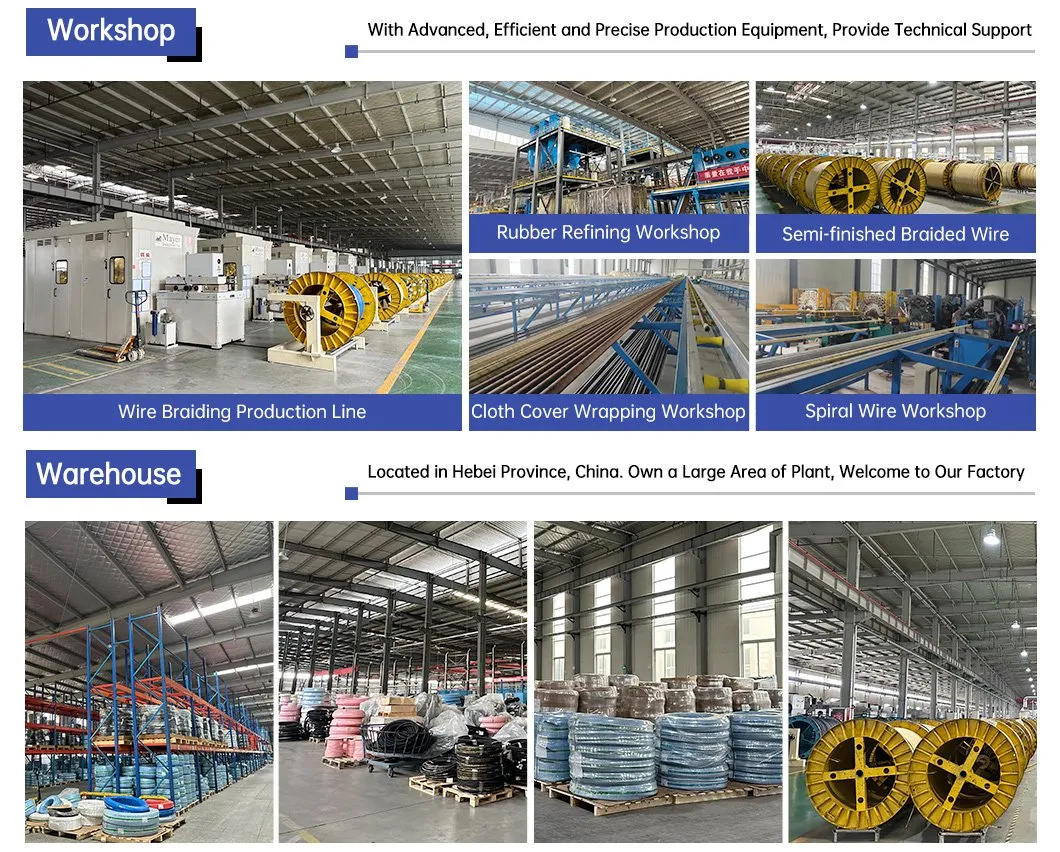

🏭Our Expertise
We are a technology-based enterprise specialized in R&D and marketing of multiple rubber products. Our expertise includes Telecom towers, High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Suction and Discharge hose, and complete Hose Production Lines.

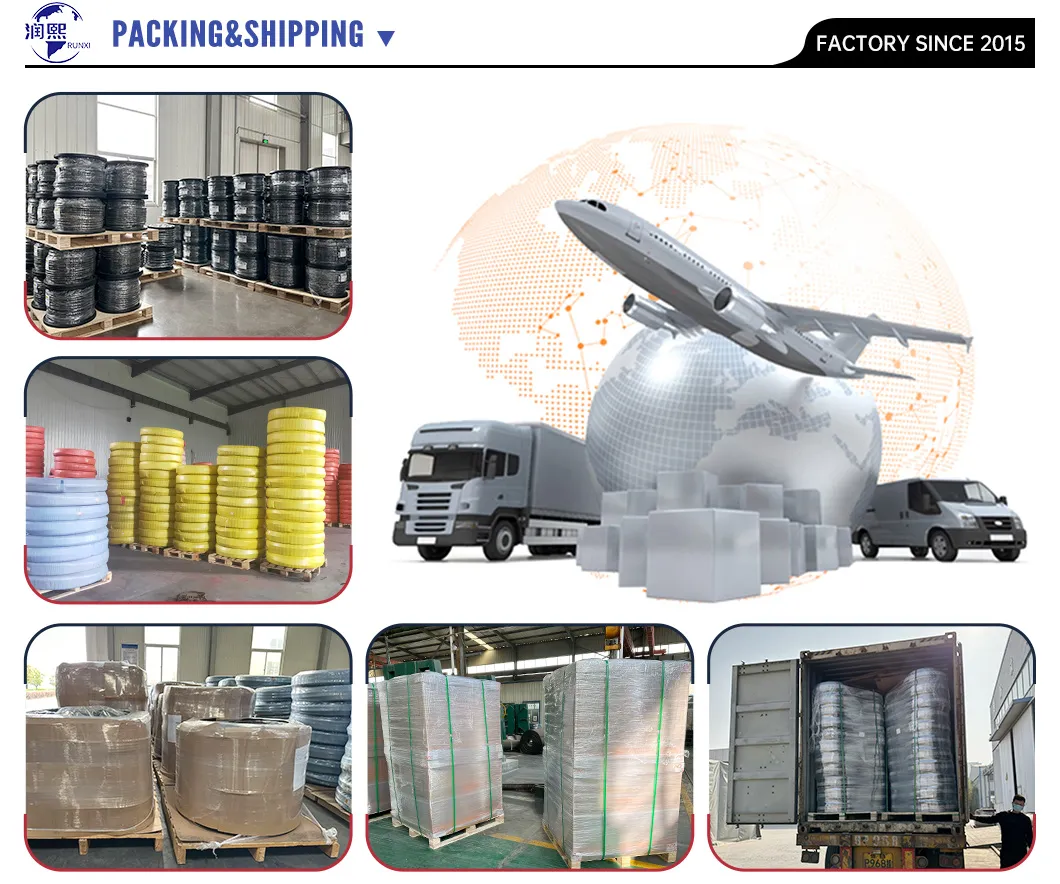

📦Packaging & Shipping
Delivery time depends on order quantity, usually 3-5 days per container. After finishing production, we pack the hoses using woven bags and plastic film. Special packing is available according to customer requirements.
📜Certifications
❓Frequently Asked Questions
What are your terms of packing?
Generally, we pack our goods in neutral white wearable woven bags. Customized branded packaging is available with proper authorization.
What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We provide photos of the products and packages before final payment.
What are the available delivery terms?
We support EXW, FOB, CFR, CIF, and DDU delivery terms.
How long does the delivery usually take?
Generally, it takes 20 to 60 days after receiving the advance payment, depending on the specific items and order quantity.
What is the working temperature range for these hoses?
The hoses are designed to operate efficiently within a temperature range of -40 ºC to +100 ºC.
What fluids are these hydraulic hoses compatible with?
They are suitable for both petroleum-based and water-based hydraulic fluids, making them ideal for oil cooling systems.
