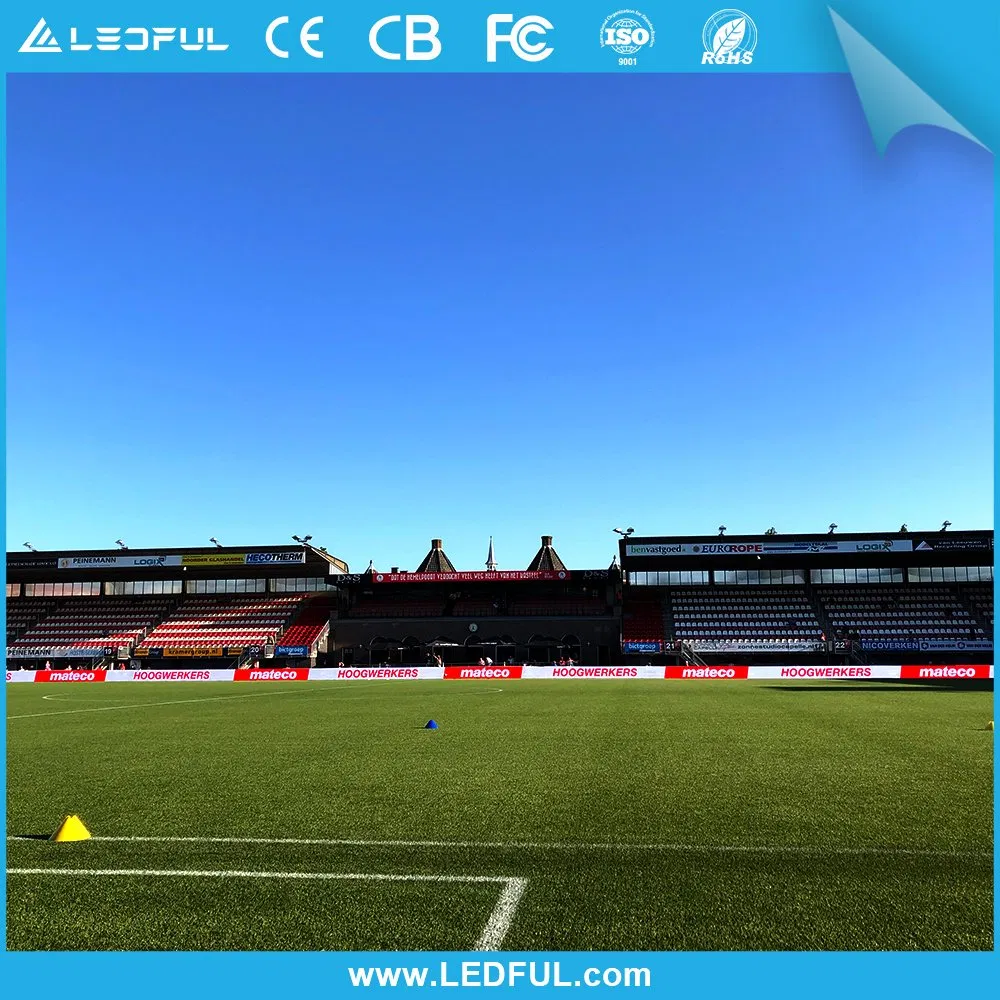

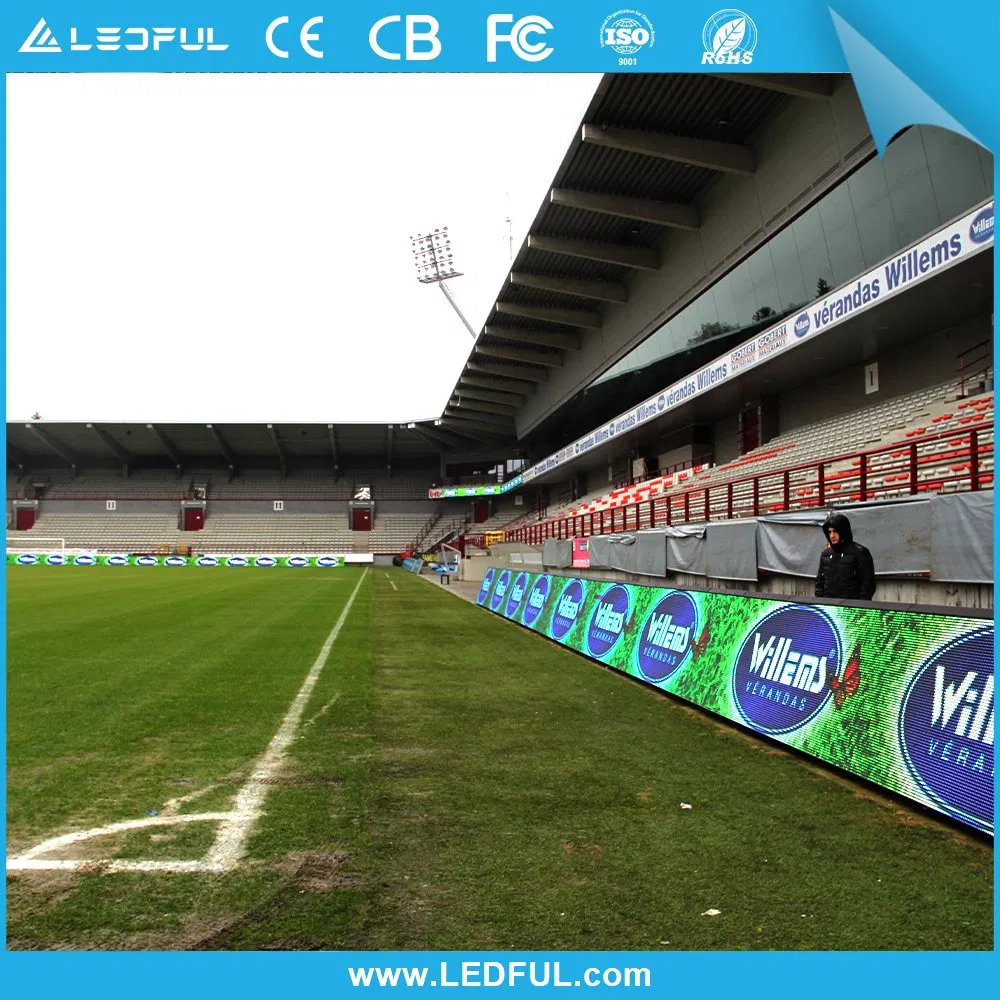

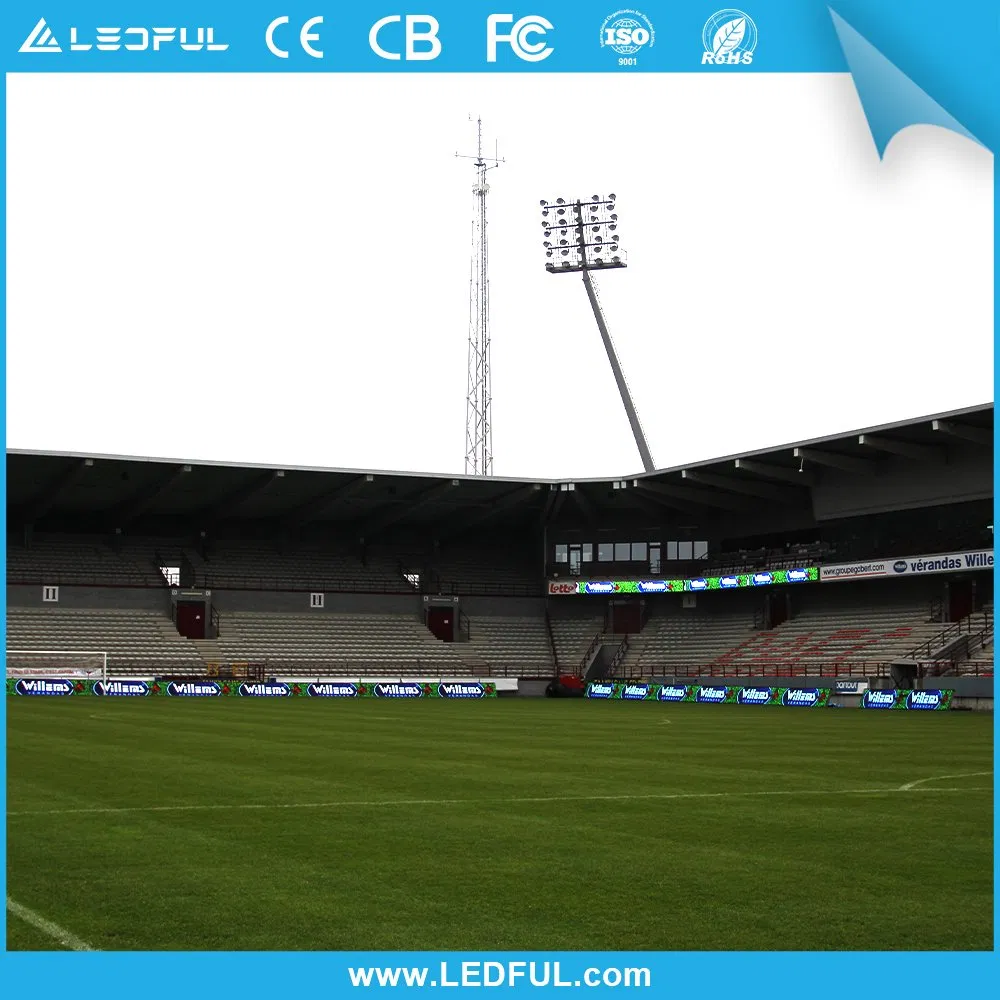

Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
1 / 5
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display
Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display

Large Sport Stadium LED Board Soccer Match Advertising Video LED Screen P8 P10 P16 Perimeter LED Display

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.PM
Pixel Pitch10mm
Pixel Configuration1R, 1G, 1B
Display FunctionVideo Display, Image & Text Display
Average Power Consumption110W
Pixel Density10000 dot / m²
Scanning Mode1/2 Scan
Brightness (Nits)7500
Cabinet Dimension960X960mm
IP RateIP65
Refresh Rate (Hz)2880
Viewing Angle140 / 140

Product Overview

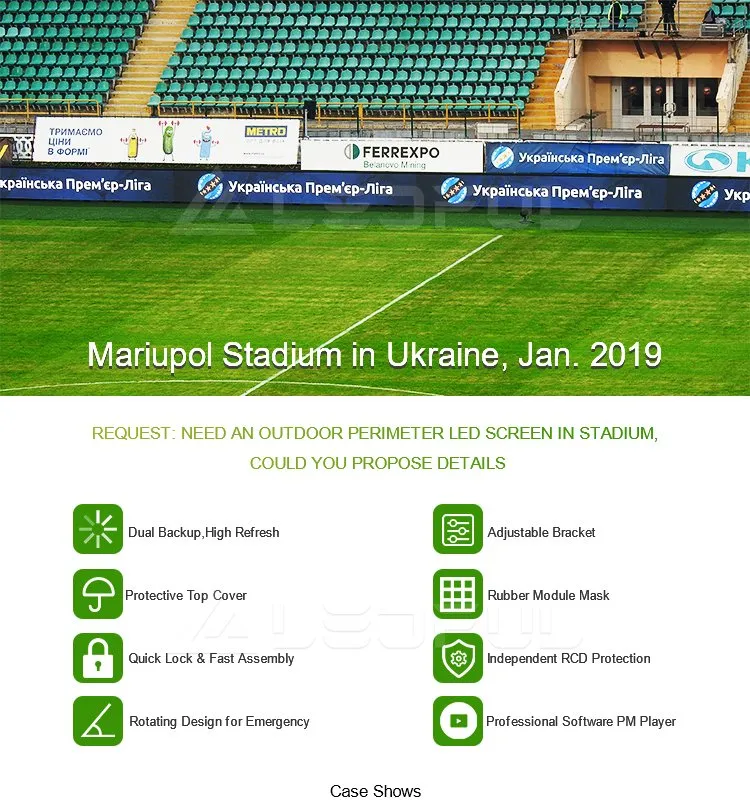

Sport Stadium LED Board

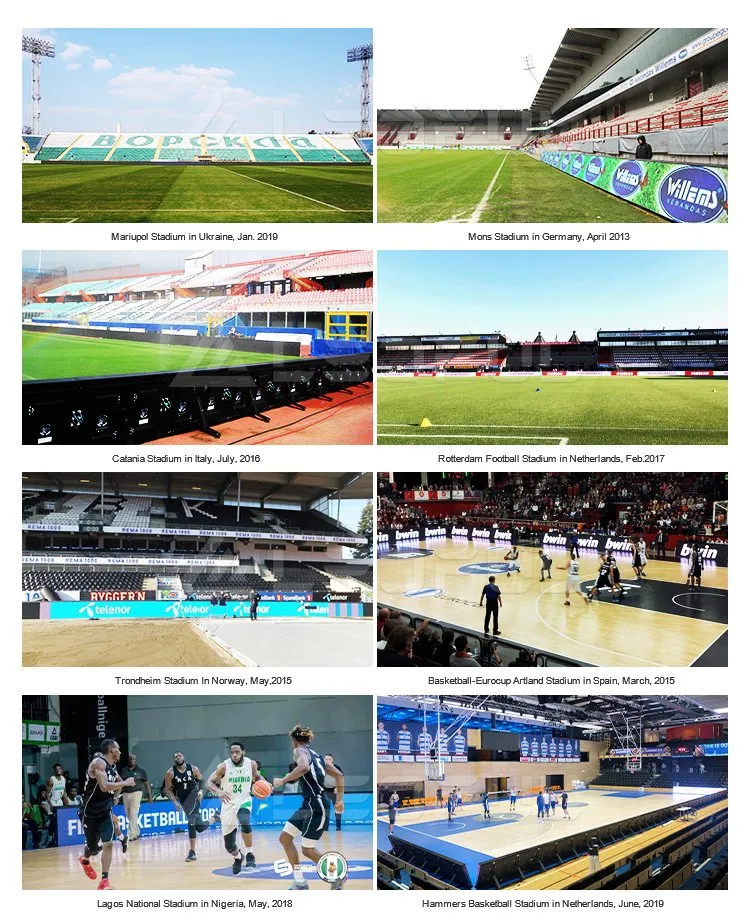

Perimeter LED Display

Technical Specification

Indoor/Outdoor PM IPM6 IPM10 OPM8 OPM10 OPM16
Pixel Pitch(mm) 6 10 8 10 16
Pixel Configuration SMD3528 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 2200 1800 6800 7500 8000
Module Dimension 192x192mm 320x160mm 320x160mm 320x160mm 256x256mm
Cabinet Resolution 160x160 128x96 160x120 96x96 64x64
IP Rate IP43 IP65
Refresh Rate (HZ) 2880 >1920

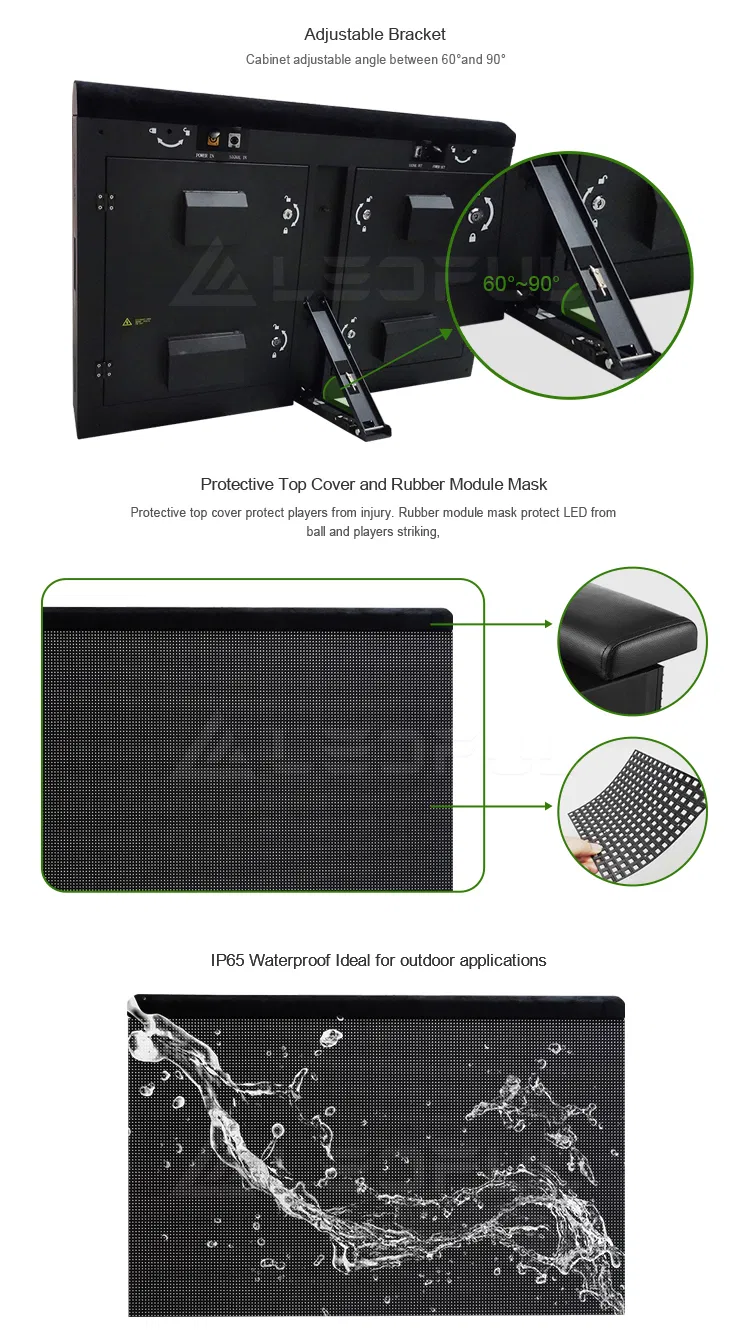

Display Detail 1

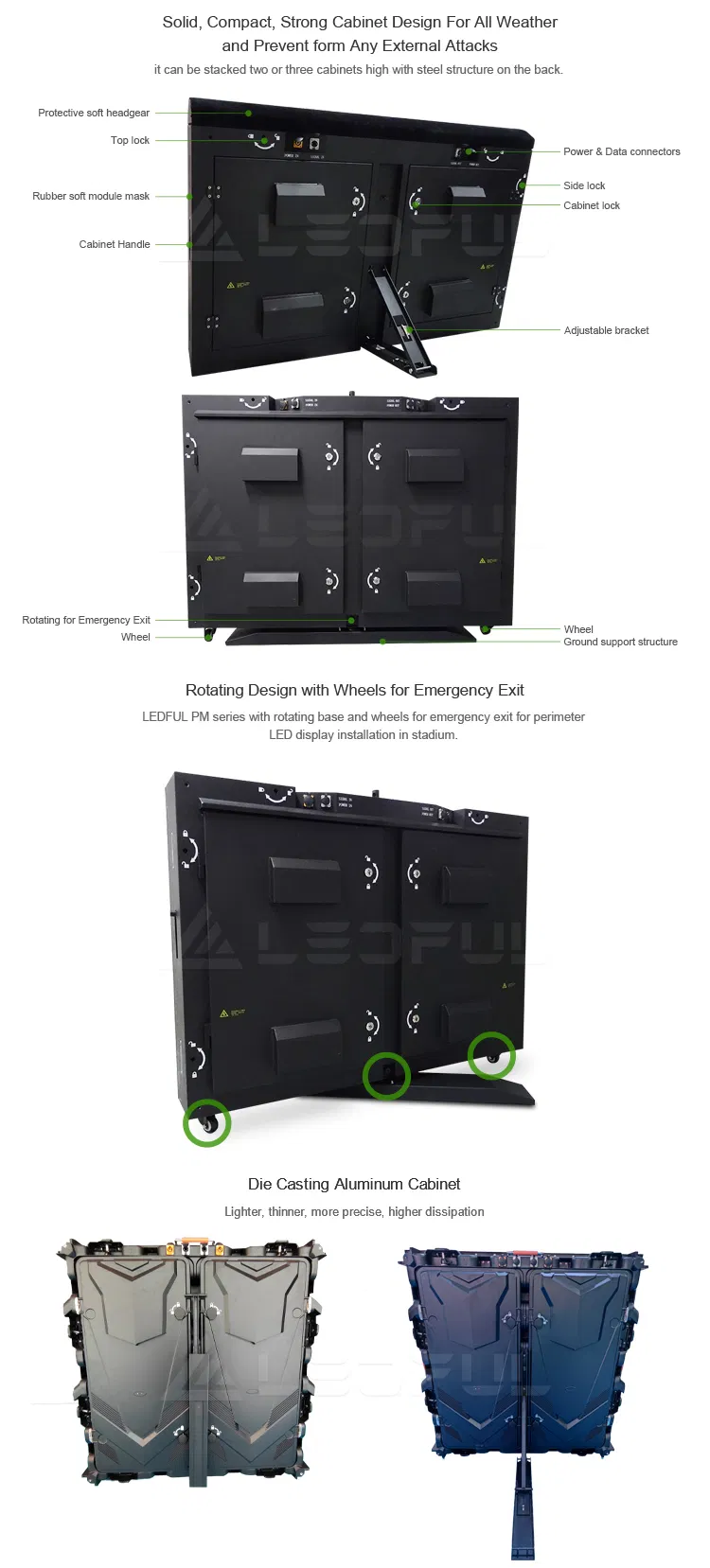

Display Detail 2

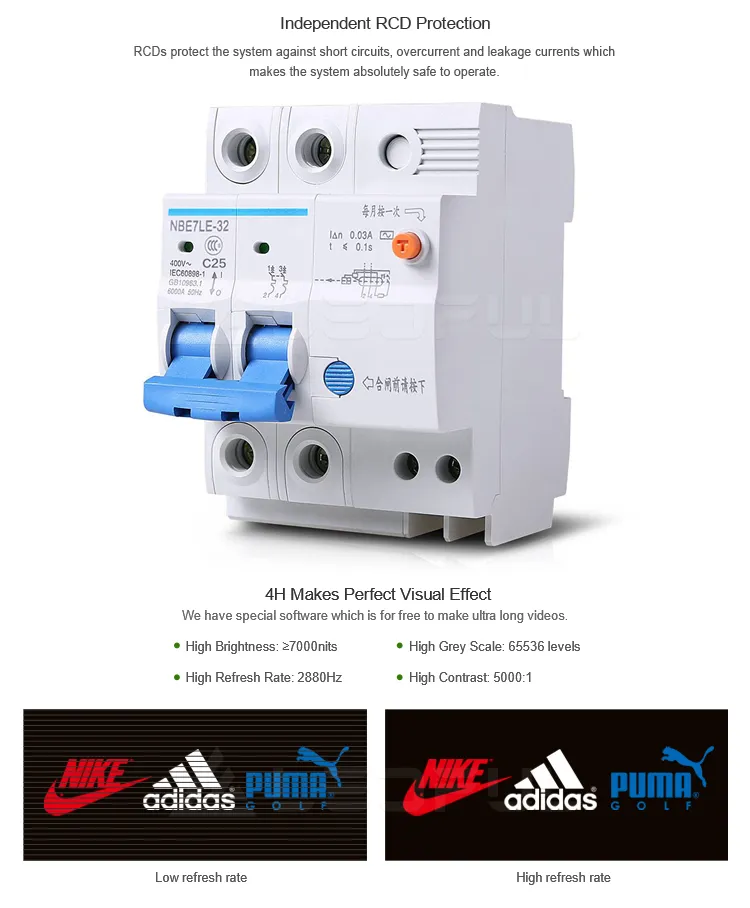

Display Detail 3

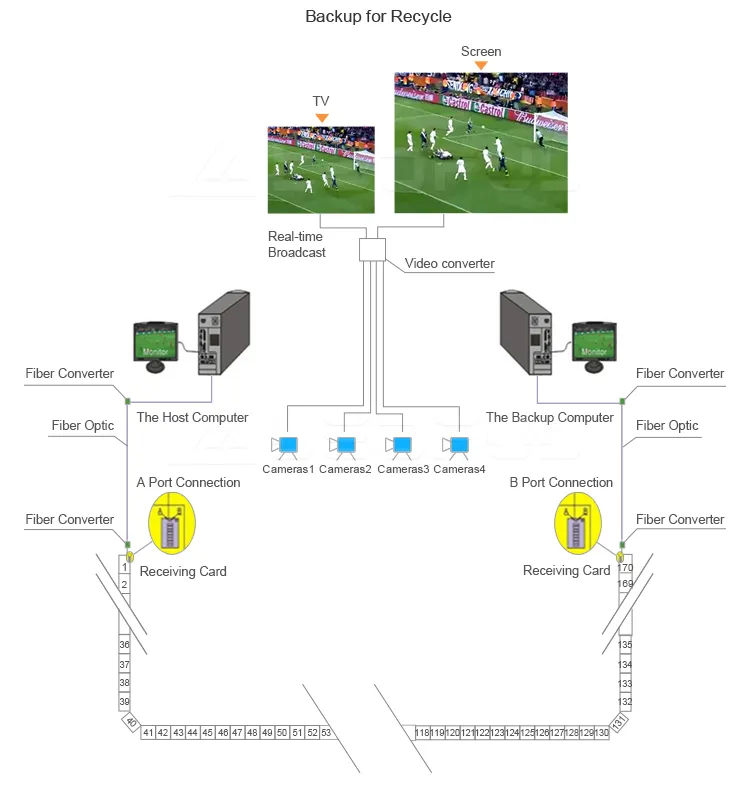

Display Detail 4

Packaging & Logistics

We provide comprehensive LED display solutions for media advertising, sports stadiums, retail, and event industries. Our specialized manufacturing and testing facility ensures all products maintain high and stable quality through rigorous testing procedures.

Certifications Display
Shipping Packaging
Application 1
Application 2

Frequently Asked Questions

1. Can the cabinets be stacked? Yes, it can be stacked two or three cabinets high with a steel structure on the back for stability.
2. How to display ultra-long videos on the perimeter screen? We provide special software designed to handle and create ultra-long video formats for seamless playback.
3. What is the protection grade of the PM series? The series features a soft rubber facial mask and soft top cover, protecting the LEDs from impact while preventing player injuries.
4. What control system is used? We utilize advanced asynchronous control systems that support cluster play, management, and control via WiFi, Phone, Laptop, or Cloud.
5. What services are included during the project? We provide full solution design, order tracking, installation guidance, and comprehensive after-sales maintenance support.
6. What is the standard warranty term? A professional 3-year warranty is provided, supported by a dedicated technical team to resolve any operational questions.
