Basic Information
Pixel Density
32768 dots/m²
Transparency
More Than 45 %
Cabinet Size
1000mm x 500mm / 1000mm x 1000mm

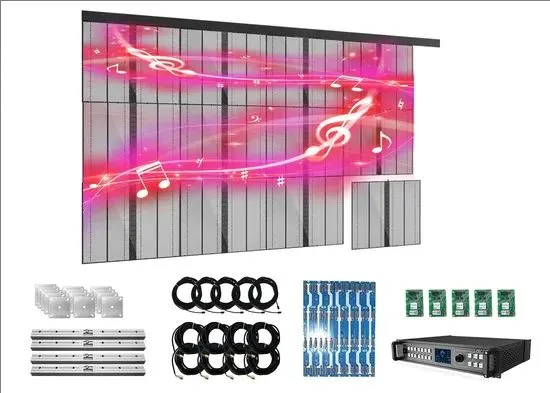

Product Description
- Dual Service: Supports both Front and Back service to meet different installation needs.
- High Transparency: Transparency rate reaches up to 60%, ensuring excellent light transmission and wind resistance.
- Modular Design: Easy installation with modular components, significantly reducing shipping costs.
- Ultra Lightweight: Super slim structure at only 15kg/m² with brightness up to 5000 CD.
Detailed Specifications
| Type Name |
Tr p3.91-7.81 |
TRP7.8-7.8 |
TRP5.2-10.42 |
Trp10.42-10.42 |
| Pixel Pitch | 3.91-7.81mm | 7.8-7.8mm | 5.2-10.42mm | 10.42-10.42mm |
| Pixel Density (dot/m²) | 32768 | 16384 | 18432 | 9216 |
| Brightness (nits) | 1000-5500 CD | 1000-5000 CD | 1000-5500 CD | 1000-5500 CD |
| Transparency Rate | 45% | 65% | 75% | 85% |
| Refresh Rate (HZ) | 3840 HZ |
| Cabinet Material | Aluminum |
| Maintenance Mode | Front and Back Access |

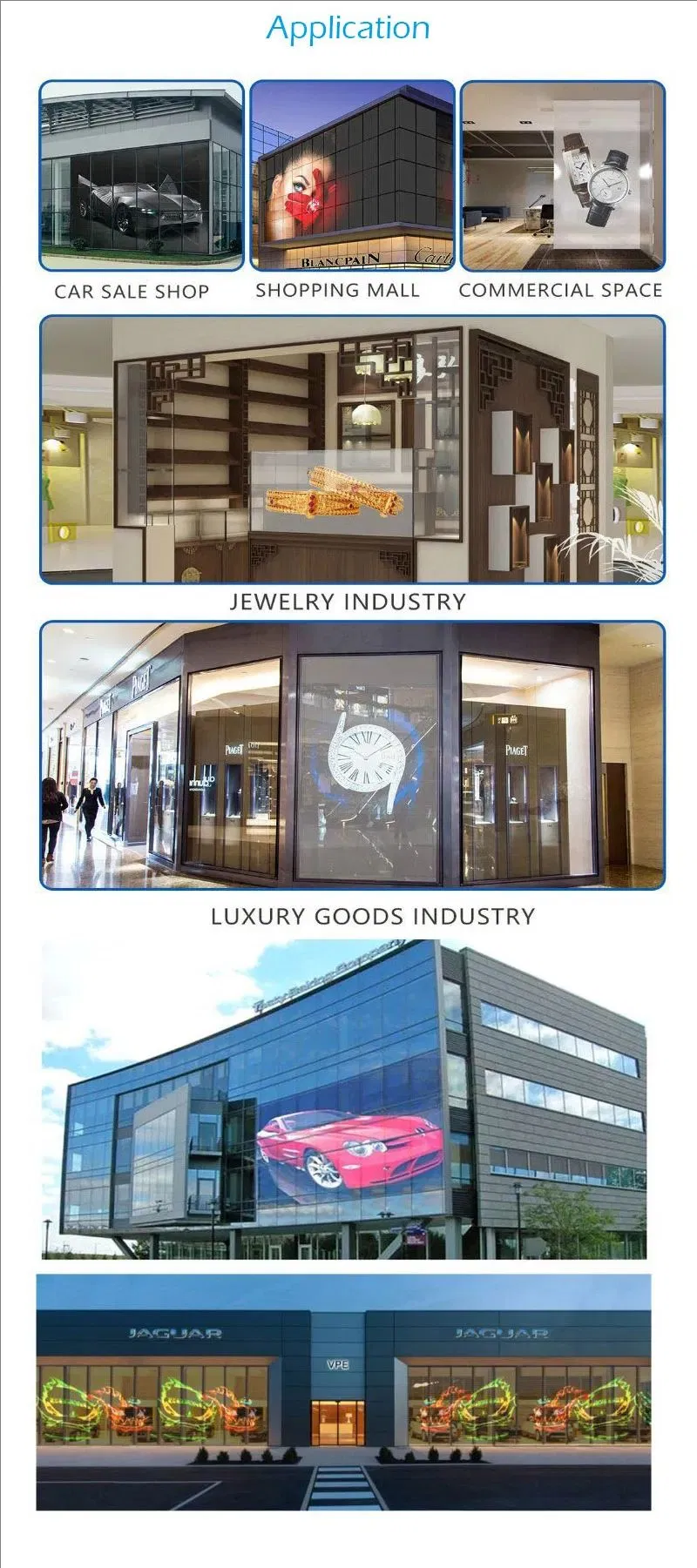

Application Scenarios
Our transparent LED screens are widely utilized for high-impact visual communication in:

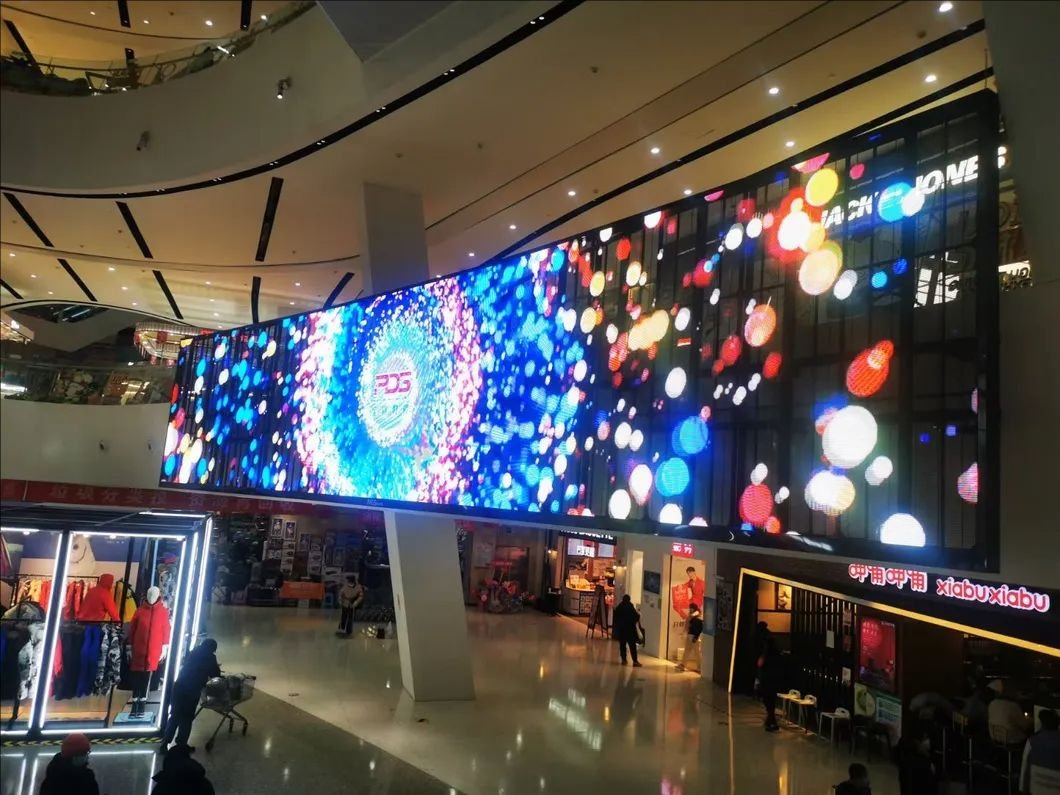

Outdoor Billboards, Office Glass Walls, Exhibition Halls, Stage Backgrounds, Shopping Malls, and Airports.
Packaging Information
Package Size
110.00cm * 73.00cm * 110.00cm
Frequently Asked Questions
Q1: What is the transparency rate of these LED screens?
A: Depending on the model and pixel pitch, our screens offer a transparency rate ranging from 45% up to 85%.
Q2: Can the screen be serviced from the front?
A: Yes, our modular design supports both front and back maintenance for maximum flexibility.
Q3: Is the screen suitable for outdoor use?
A: The LG-003 model features an IP65 rating, making it suitable for various application environments including semi-outdoor glass walls.
Q4: What is the lifespan of the transparent LED display?
A: Our LED displays are designed for long-term performance with a lifespan exceeding 50,000 hours.

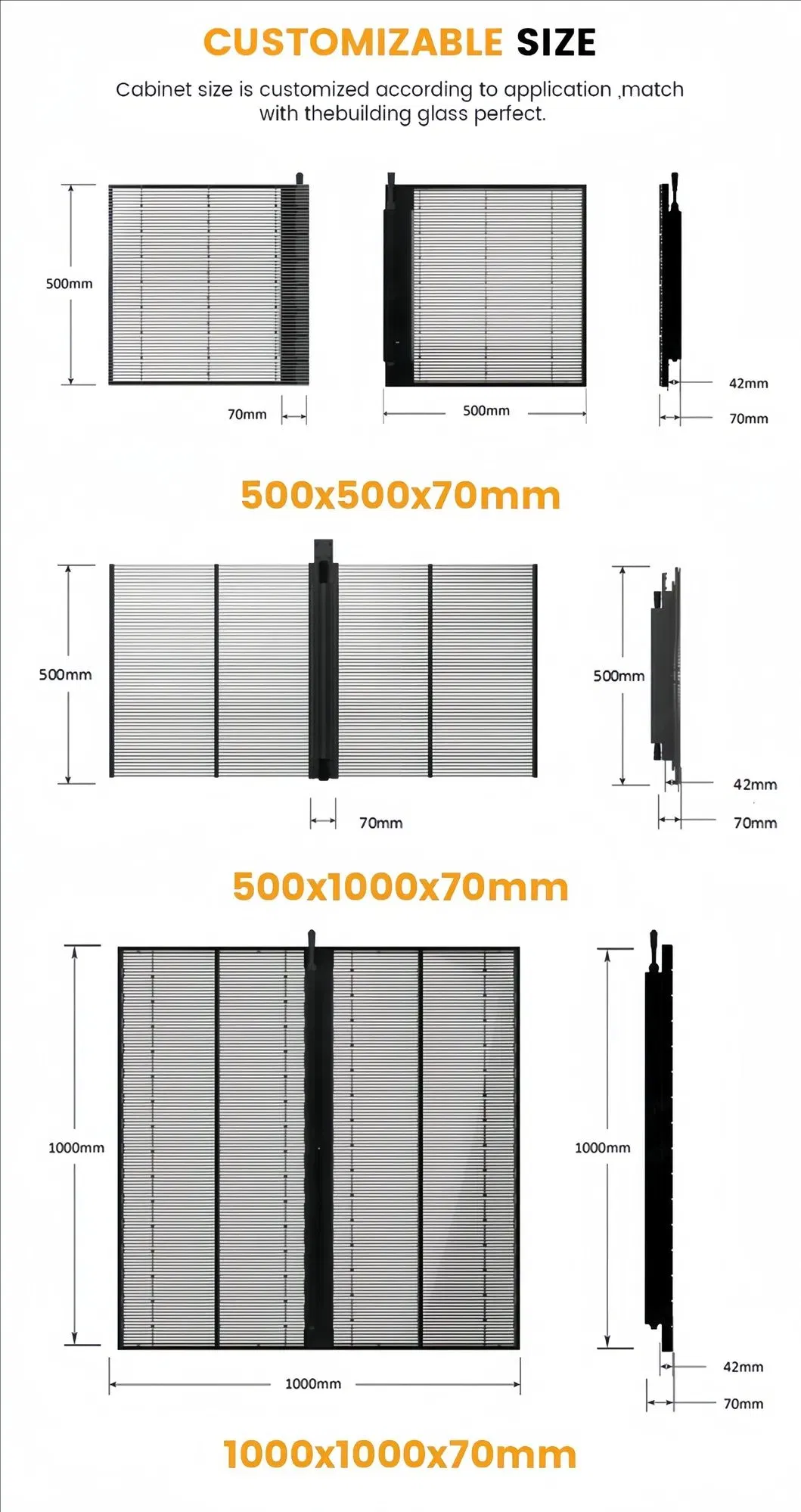

Q5: What are the standard cabinet sizes available?
A: Standard sizes include 1000mm x 500mm and 1000mm x 1000mm, constructed from lightweight aluminum.
Q6: How is the product shipped?
A: We use professional Flight Cases or Plywooden Cases to ensure the safety of the display during transport.
