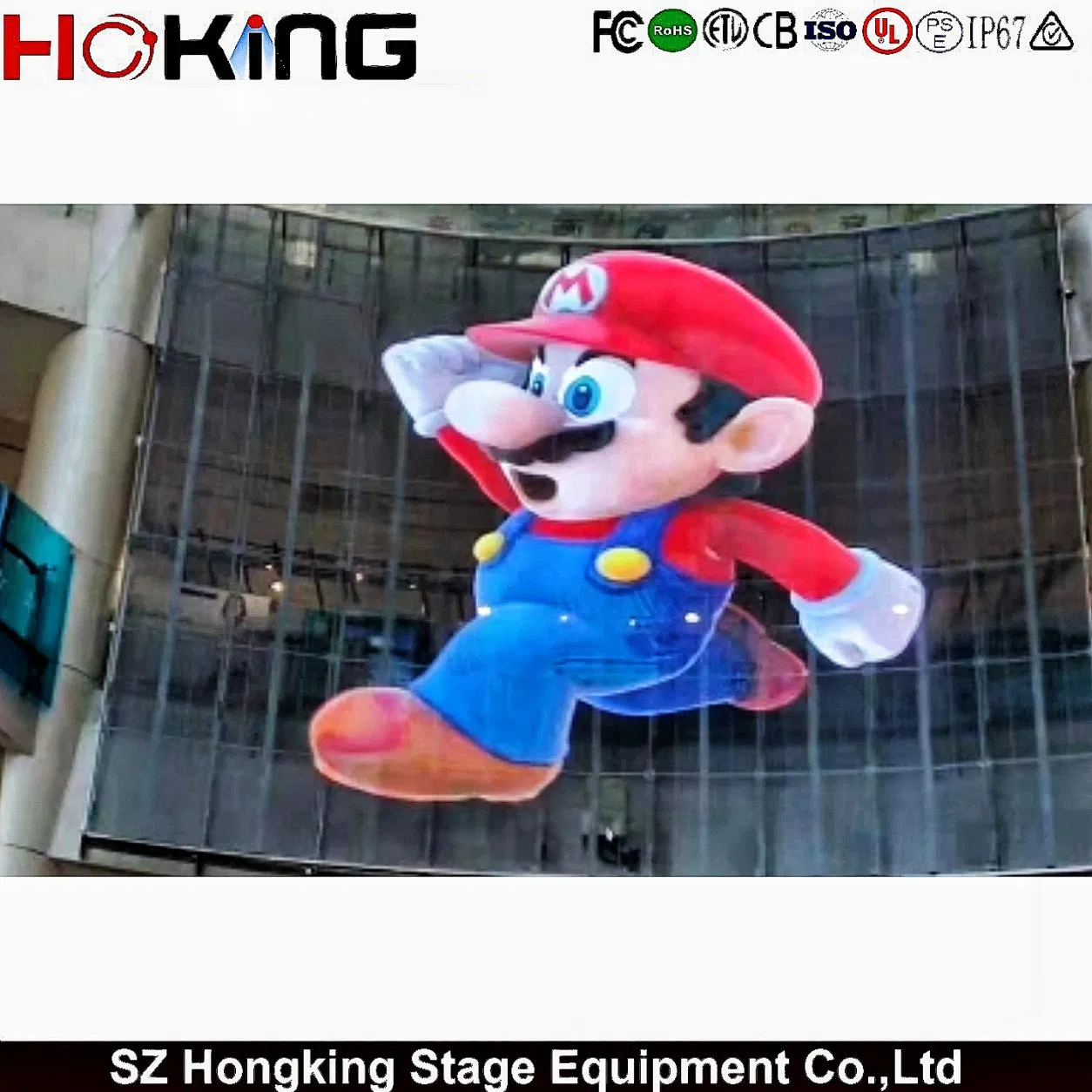

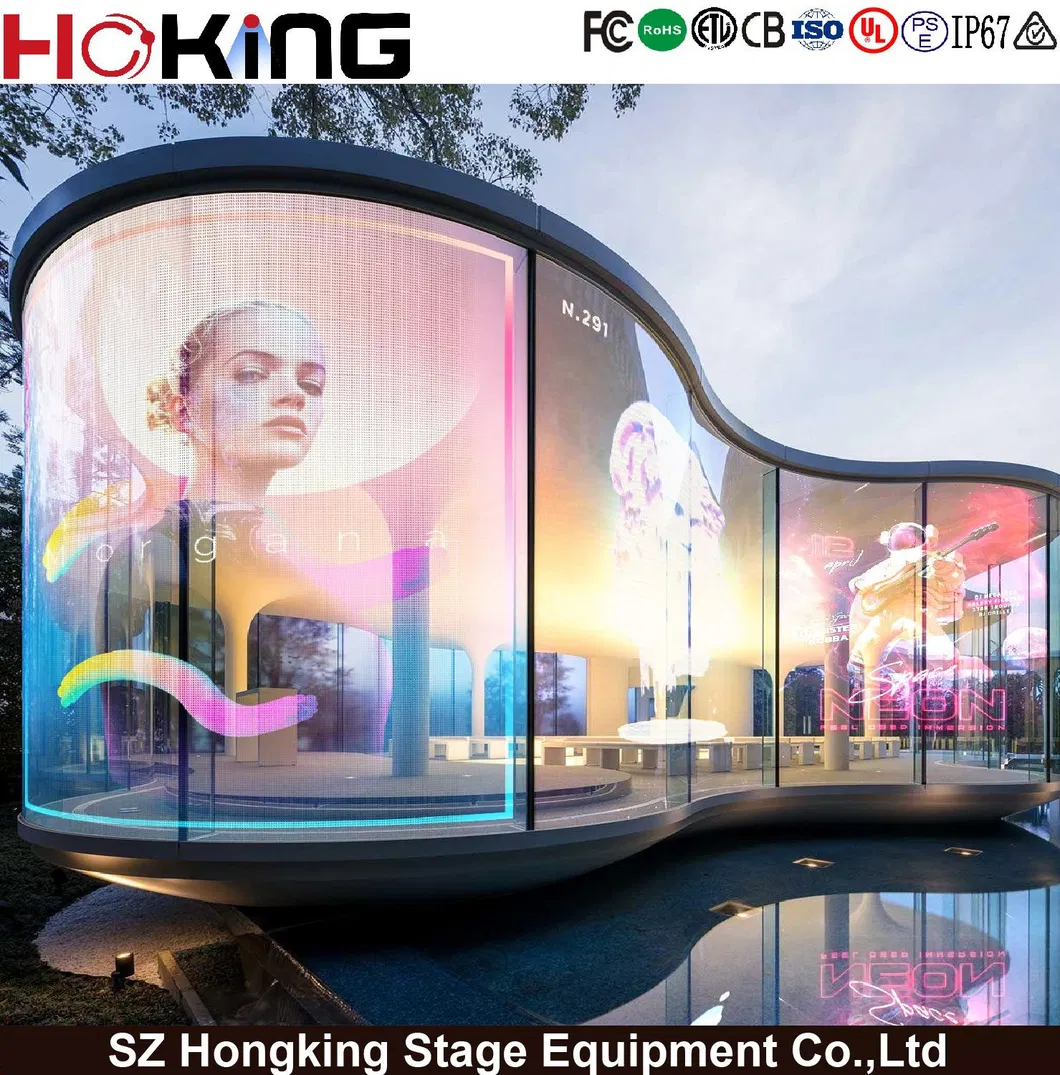

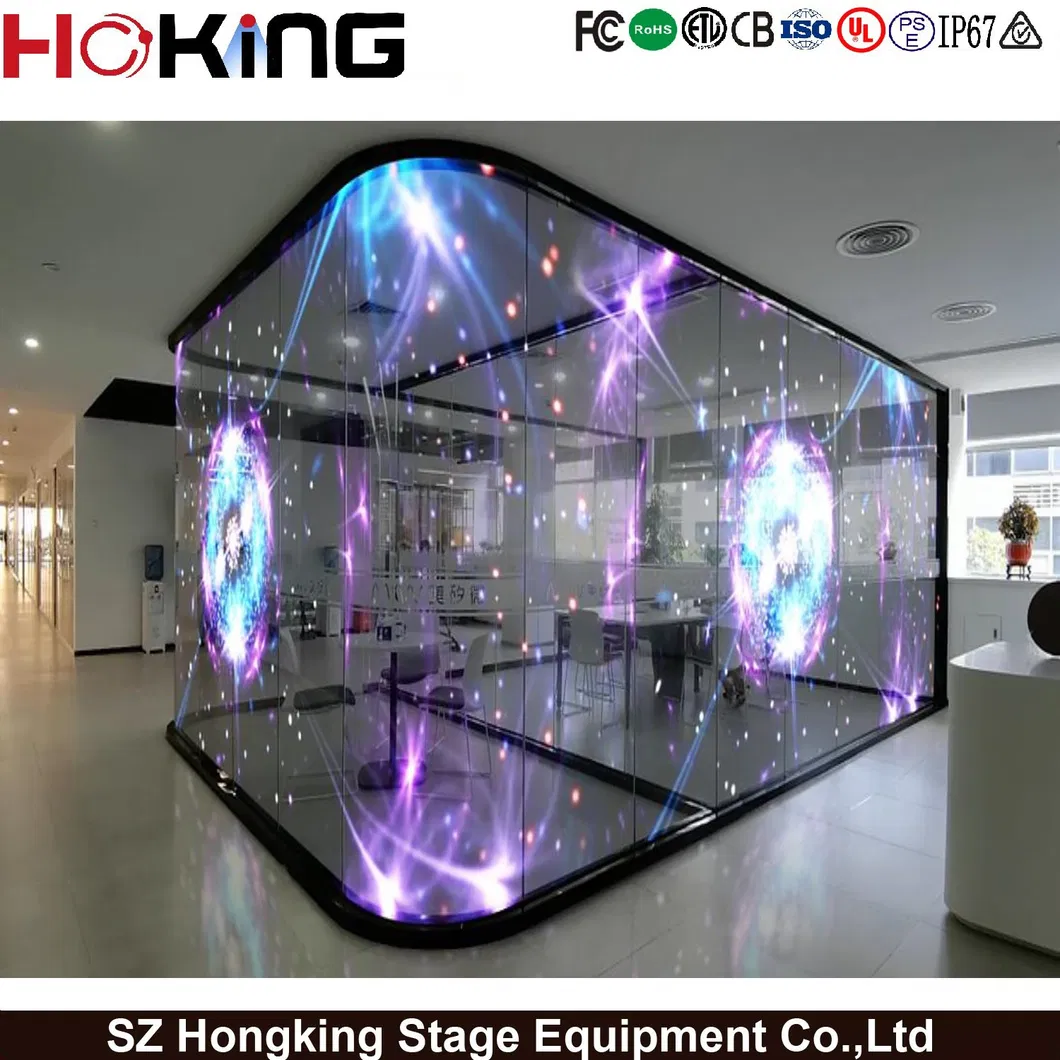

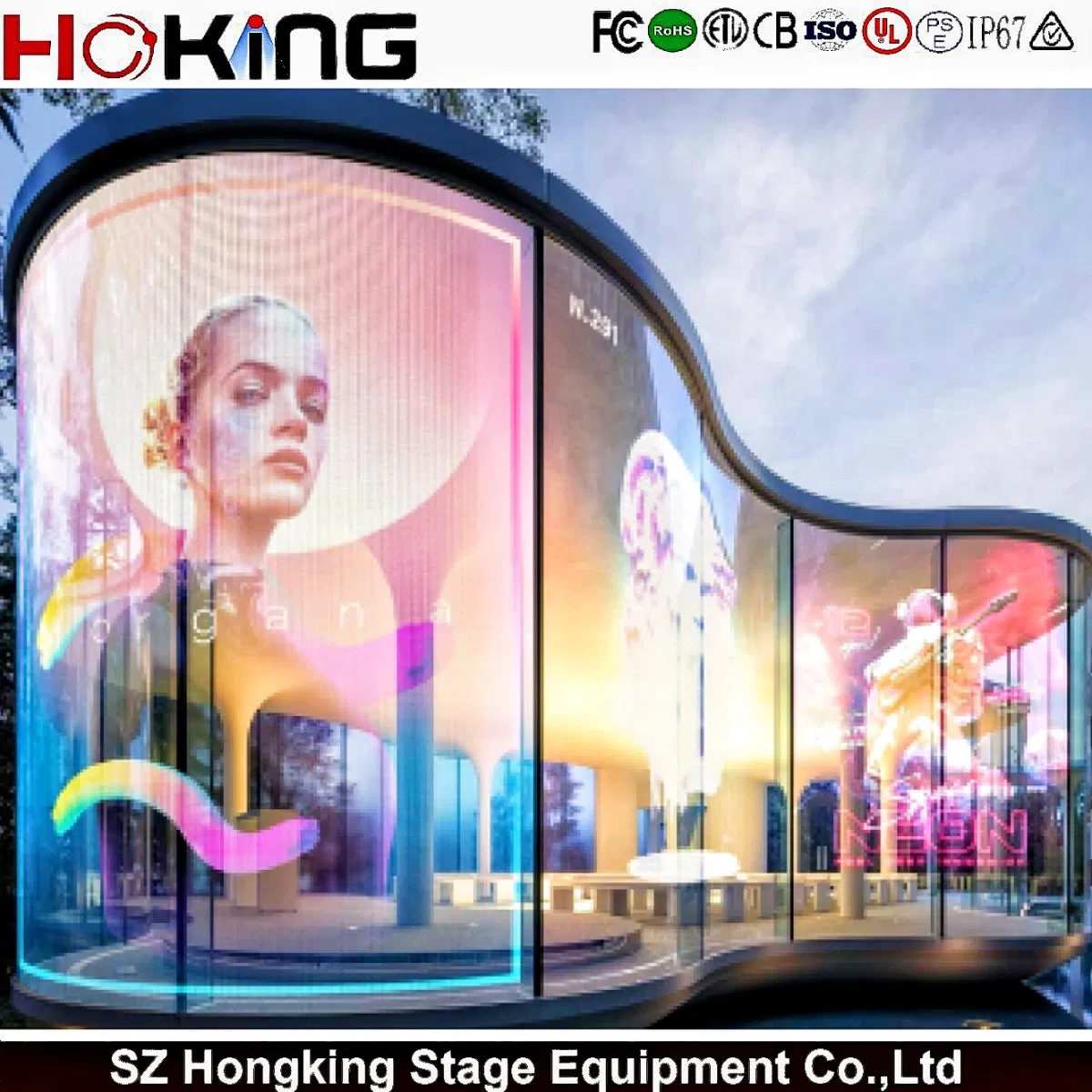

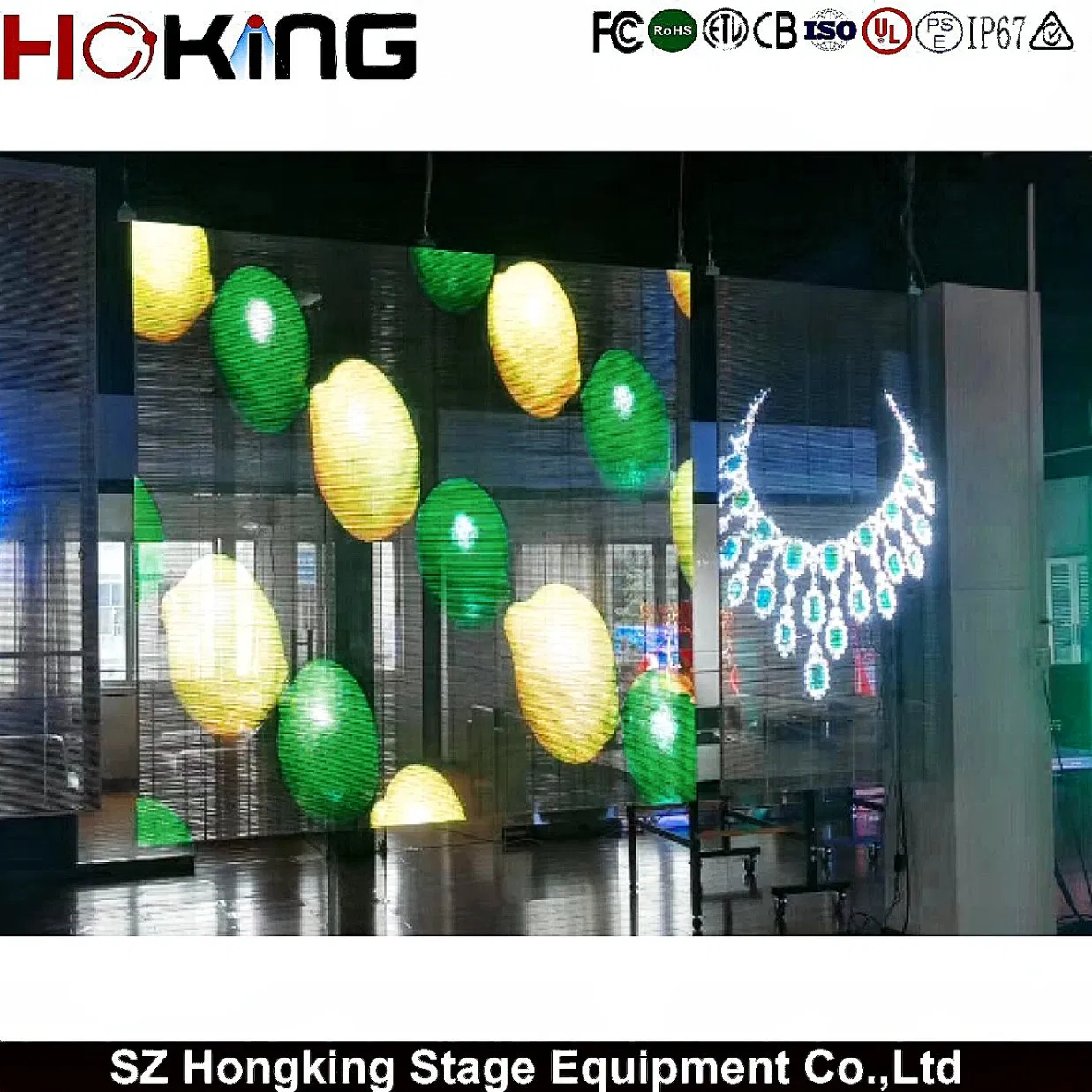

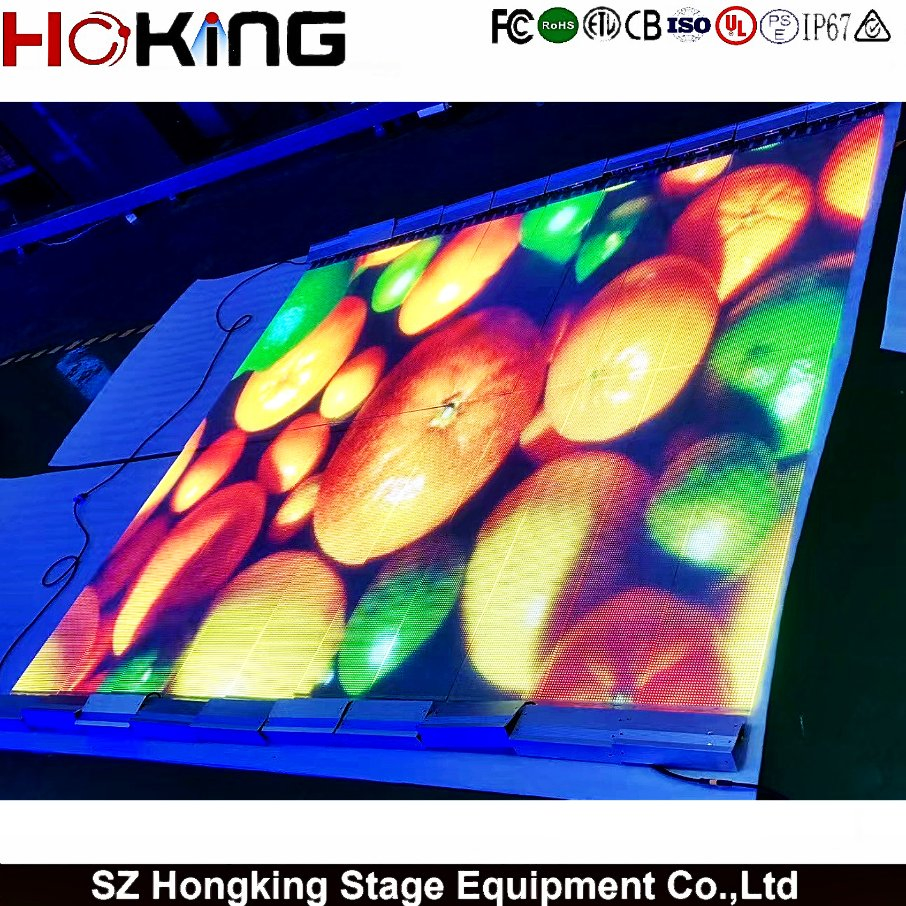

The Transparent LED Film Screen is an innovative display solution designed for glass facades, shop windows, malls, and commercial buildings where visibility and light transmission are critical. Featuring an ultra-thin flexible structure (2.5mm), it offers up to 90% transparency.
| Model | P4-8 Transparent Film Screen | Pixel Pitch | 4-8 mm |
|---|---|---|---|
| Pixel Density | 31250 Dots/M2 | Brightness | 4000CD/Sqm |
| Transparency | Up to 90% | Thickness | 2.5mm |
| Refresh Rate | 3840Hz | IP Rating | IP43 |

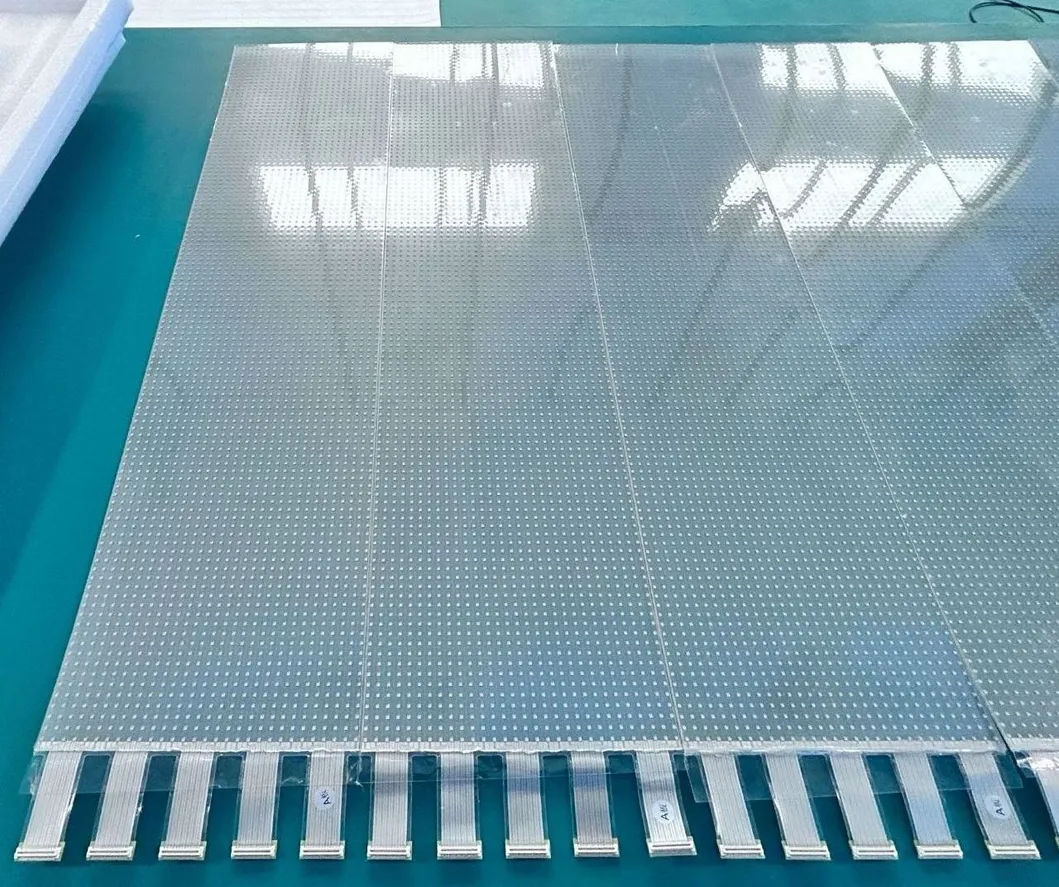

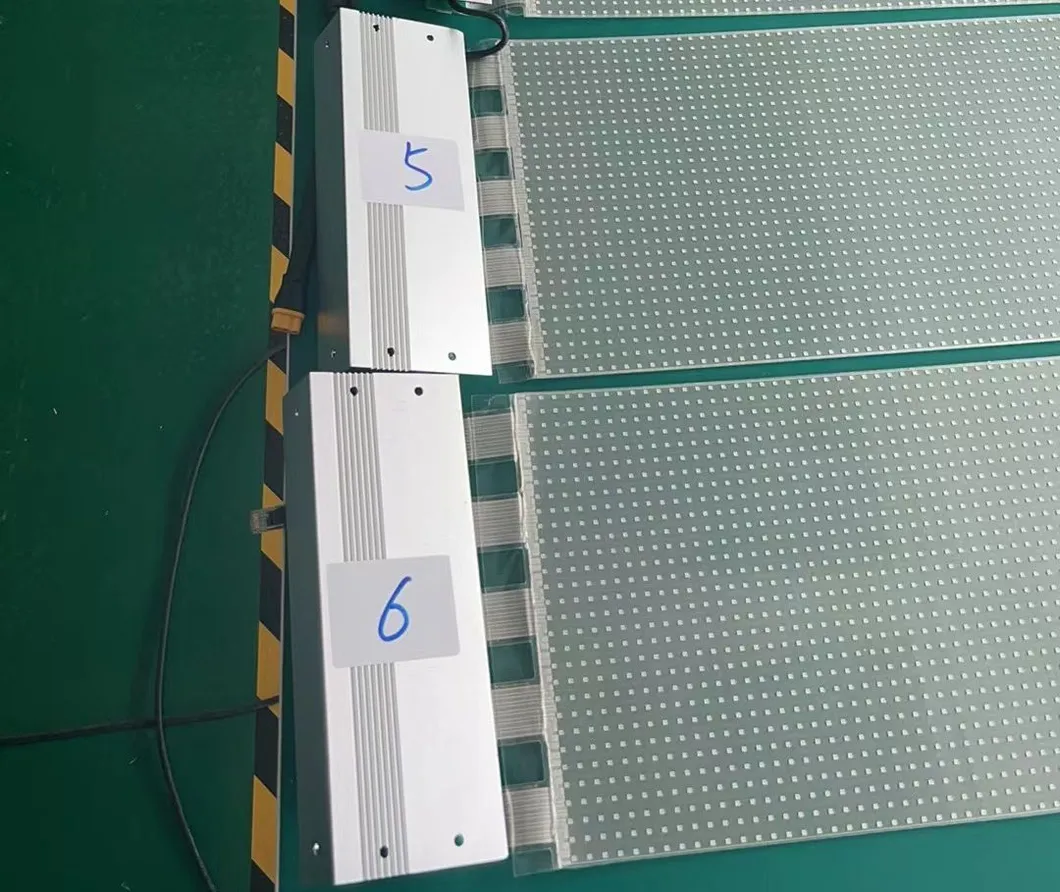

| Module Size | 1000*240mm | Weight | 1.3kg |
| Model Parameter | P4 | P4-8 | P6 | P10 |
|---|---|---|---|---|
| Pixel Spacing (mm) | 4*4 | 4*8 | 6.25*6.25 | 10*10 |
| Permeability | 90% | 92% | 93% | 94% |
| Peak Power | 600w/m² | |||
| Working Temp | -20℃ ~ 55℃ | |||
| Life Time | 100,000 Hours | |||

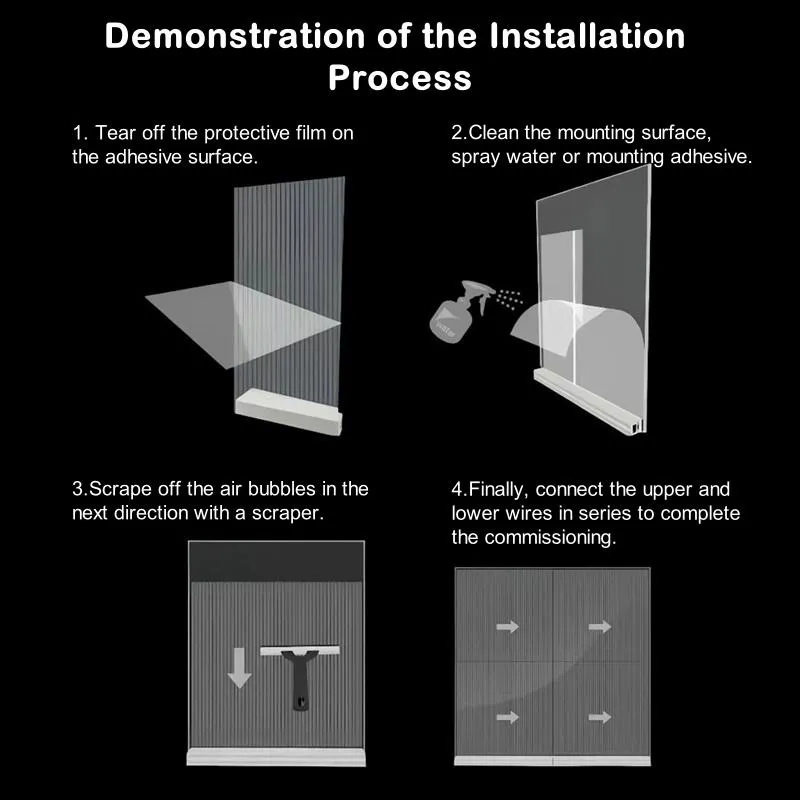

No heavy steel structure is required. The screen utilizes a self-developed glue-filling process allowing the body to be directly attached to the glass surface. The viscosity increases over time due to inherent colloid characteristics.
