Product Description

Overview - Basic Info.

Model NO.
O8
Pixel Pitch
2.5mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text Display
Avg Power Consumption
600W / m²
Pixel Density
160000 DOT/Sqm
Scanning Mode
1/16 Scan
Refresh Rate
3840/7680Hz
Brightness
4500 CD/Sqm
Certification
CE, RoHS, ETL, FCC

Product Description

Outdoor LED Module

1. Unique mask design, dark black color, high contrast.
2. Standard module size 320*160mm.
3. Symmetrical and uniform, sturdy and flat structure.
4. Adopts SMD1415 lamp for excellent heat dissipation and weather resistance.
5. Constant current drive with 1/16S scanning.
6. High brightness over 4500 cd/sqm with superior light distribution consistency.

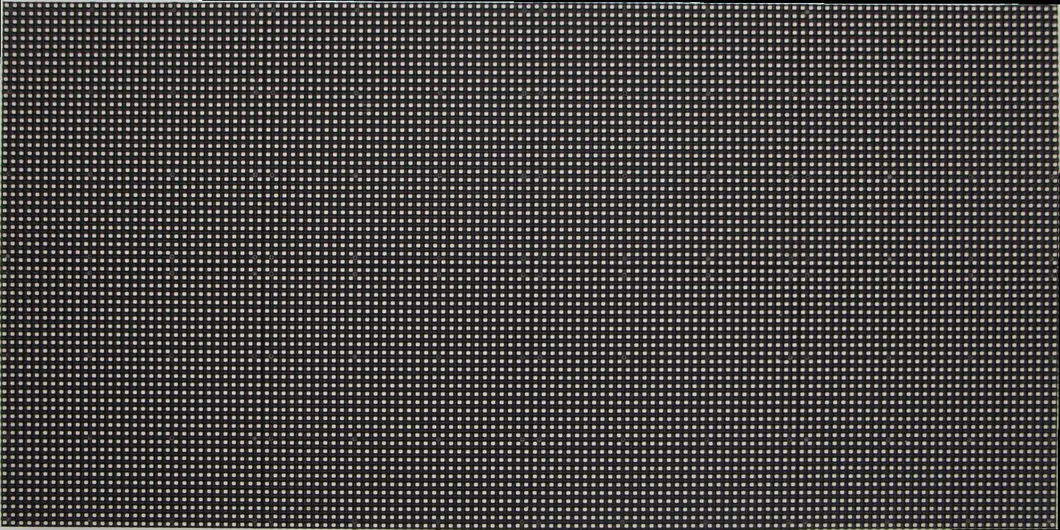

Outdoor LED Module Front

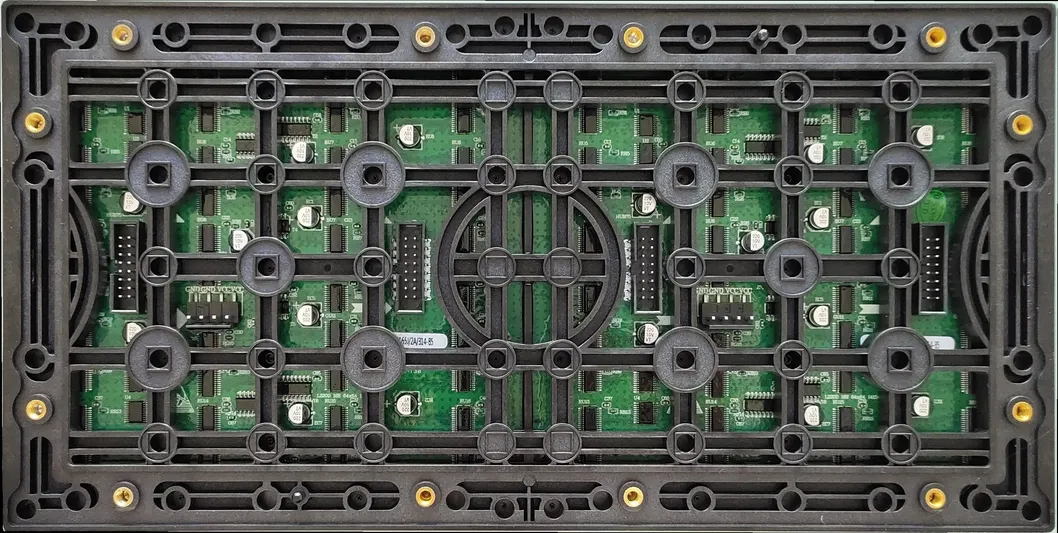

Outdoor LED Module Back

Waterproof Cabinet Design

1. 960 * 960mm standard iron cabinets, fully compatible with 320 * 160mm modules.
2. Unified installation holes, waterproof gaskets, and standardized interfaces for easy maintenance.
3. IP65 professional waterproof rating for outdoor environments.

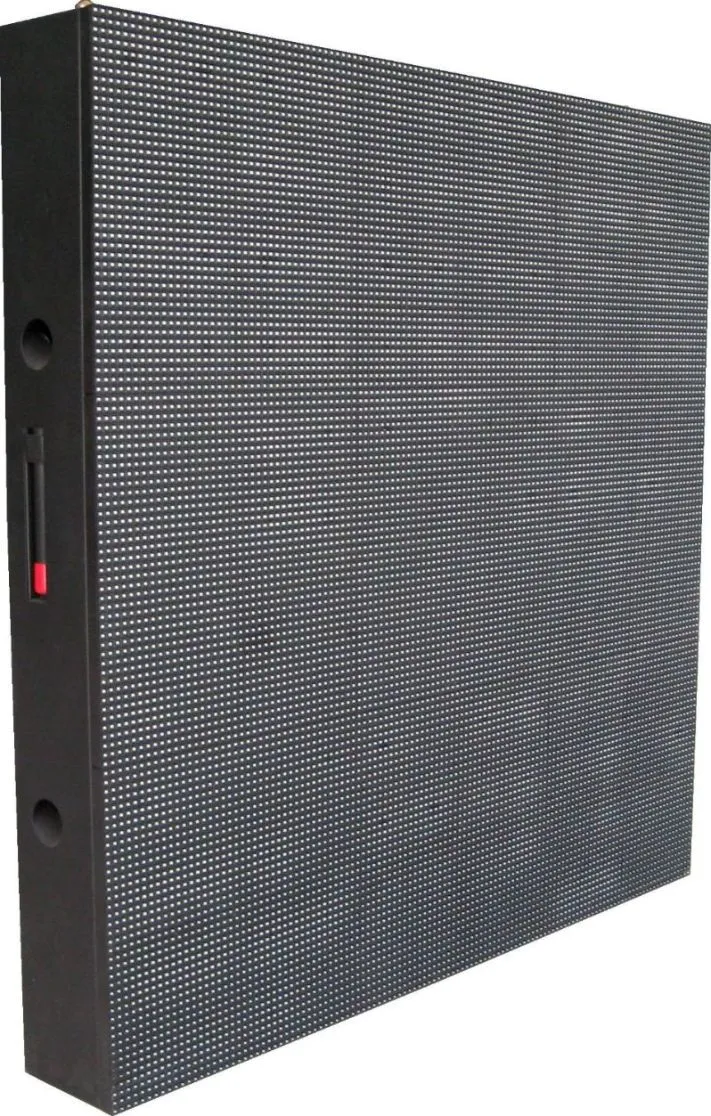

LED Cabinet Front

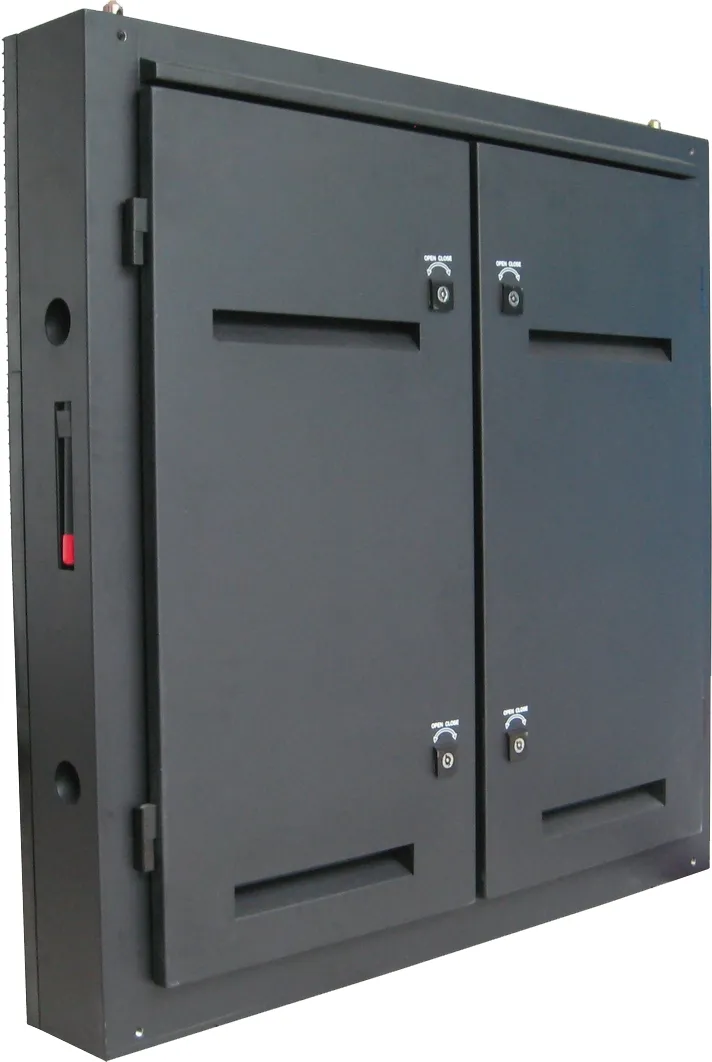

LED Cabinet Internal

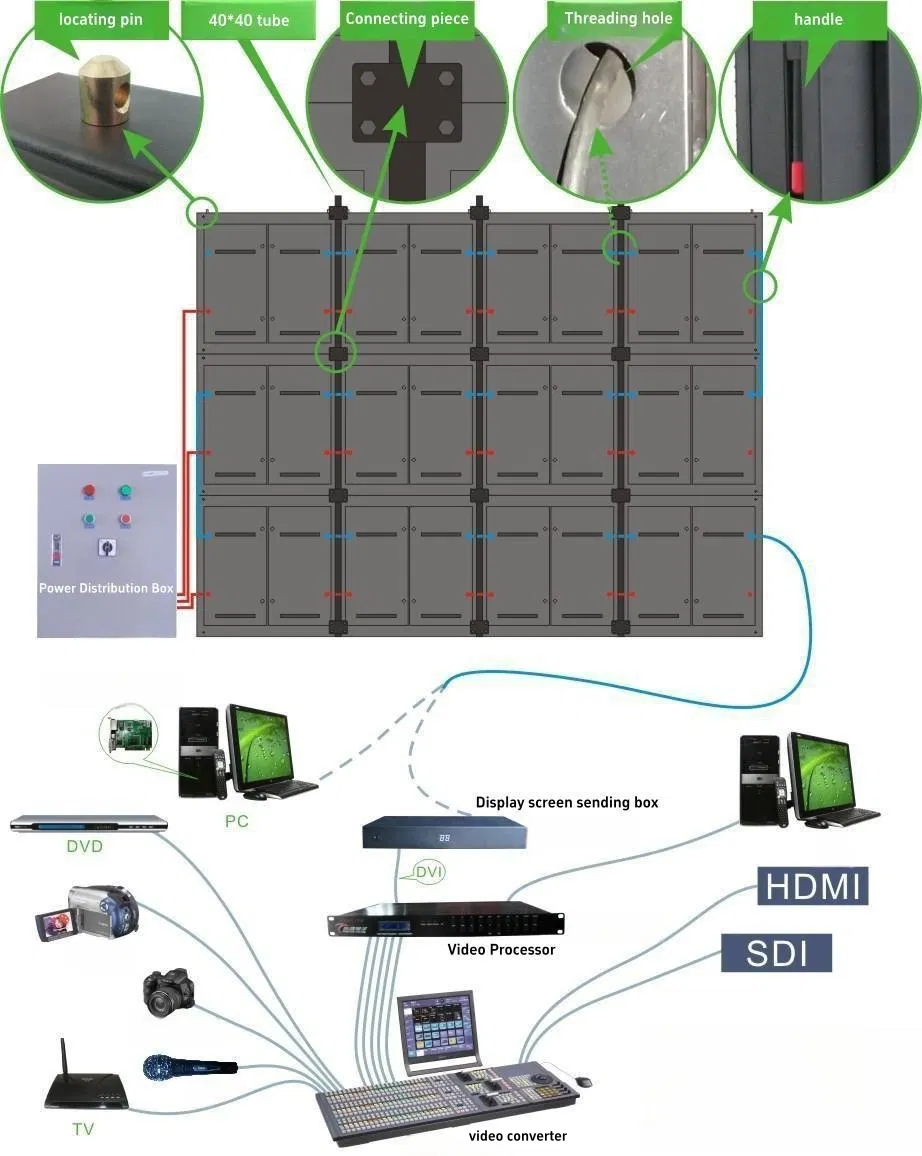

Application System Diagram

Application System Diagram

Application Scenarios

  • Shopping Mall Advertising
  • Outdoor Landmark Building 3D Displays
  • School & Stadium Information Boards
  • Office Building Façades
  • Highway Digital Billboards

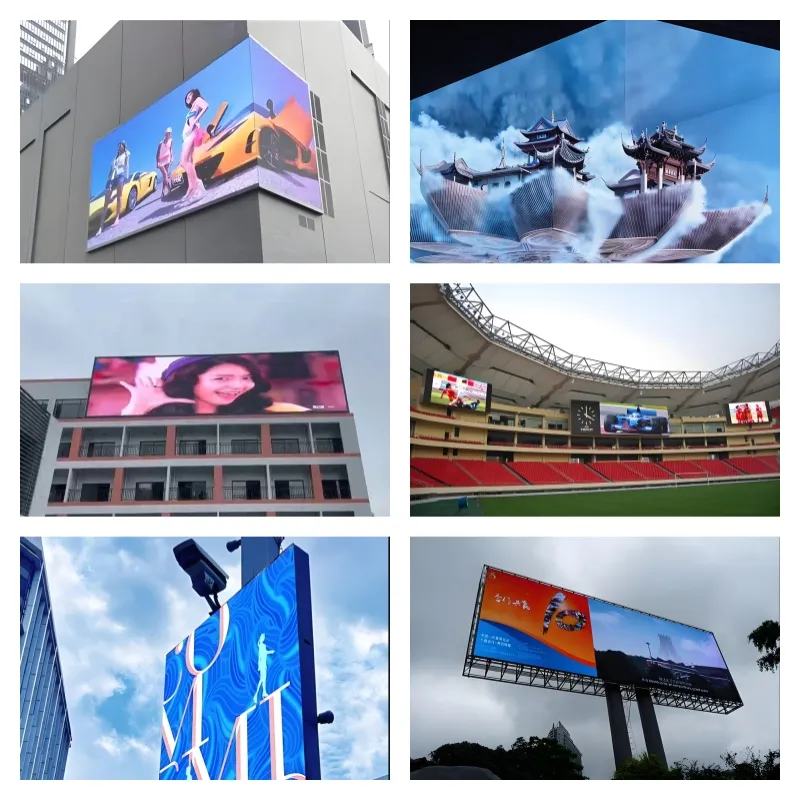

LED Application Example

Installation Instructions

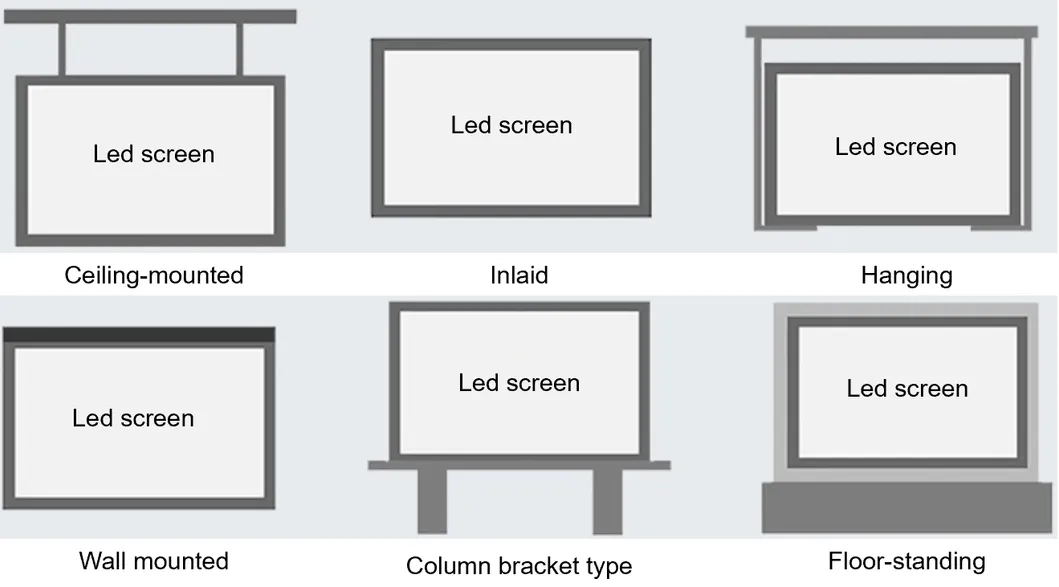

Installation Guide

Technical Parameters

Item P2.5 P4 P5 P6 P8 P10
Pixel Pitch 2.5mm 4mm 5mm 6mm 8mm 10mm
Pixel Density (dot/sqm) 160000 62500 40000 27777 15625 10000
Configuration SMD1415 SMD1921 SMD2828 SMD3535 SMD3535 SMD3535
Brightness (cd/sqm) 4500 4500 4500 4500 4500 4500
Refresh Rate ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz
Waterproof Grade IP 65 IP 65 IP 65 IP 65 IP 65 IP 65

Packaging & Shipping

Wooden Case Packaging
Shipping Logistics

Our Advantages

Why Choose Us?

  • One-stop solution service: Comprehensive integration based on your specific needs.
  • Complete supply chain: Full coverage from raw materials to customized products.
  • Customer-centric approach: We solve problems from your perspective to provide real value.
  • Refined service system: Professional management of packaging, transport, and follow-ups.
  • Global market layout: Serving over 1,000 customers across Europe and the Americas.

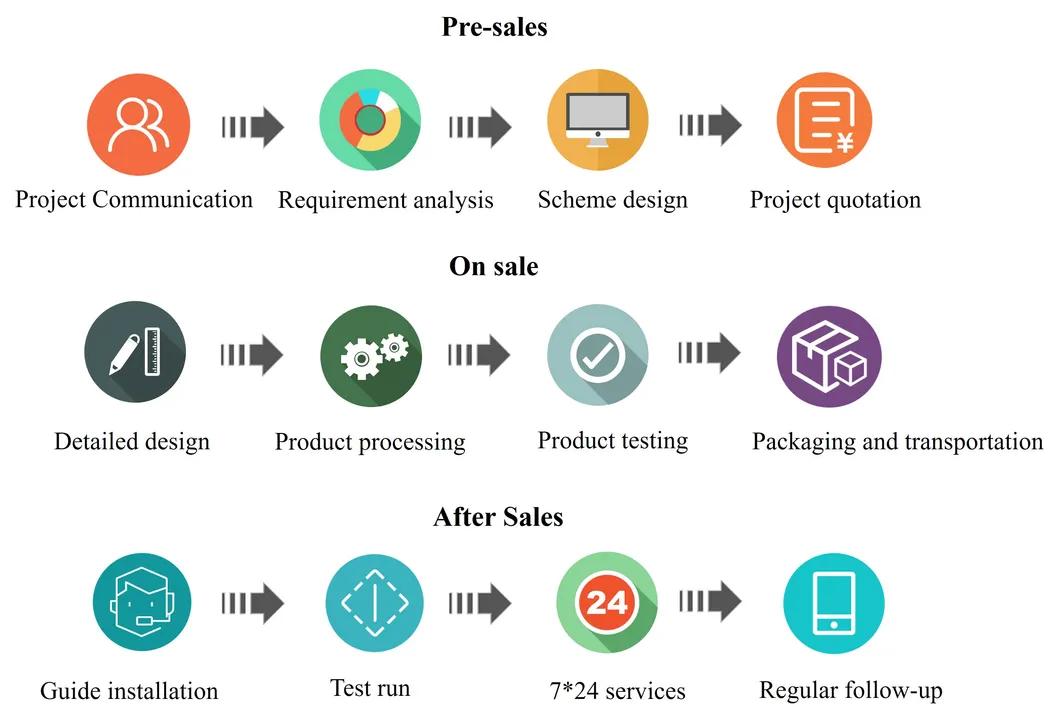

Factory Advantages

Frequently Asked Questions

Q1: What is your minimum order quantity?
A1: We accept orders of any quantity. Prices for large volume orders are negotiable to ensure the best value for your project.
Q2: What is the average lifespan of an LED display?
A2: High-quality LED displays typically have a lifespan of approximately 100,000 hours, depending on usage conditions and component quality.
Q3: How long does delivery usually take?
A3: Depending on the order size and specifications, we typically deliver finished LED screens within 10-20 days.
Q4: What is the standard warranty period?
A4: Our standard warranty is 2 years. Extended warranty options are available upon request to meet specific project requirements.
Q5: Do you provide installation design support?
A5: Yes, we provide free professional design drawings based on your specific installation site environment and requirements.
Q6: How is after-sales technical service handled?
A6: Each project is supported by a dedicated technical team providing remote guidance, debugging, and troubleshooting. On-site technical services are also available upon request.
