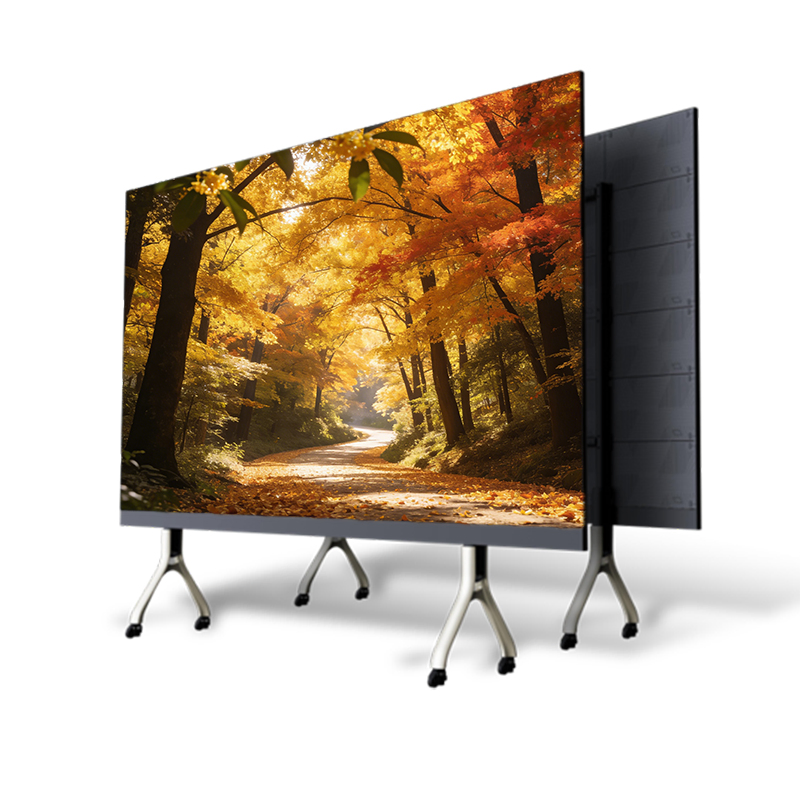

This LED Conference All-in-One is equipped with Chip-on-Board (COB) packaging technology. Aided by dynamic resolution technology, fine-pitch LED displays of the same size can deliver a display effect with double the resolution.
Furthermore, the device is configured with a nine-layer protection system, encompassing anti-glare, anti-light dropout, anti-collision, scratch resistance, splash proofing, fingerprint resistance, anti-oxidation, anti-static, and dust proofing functions.

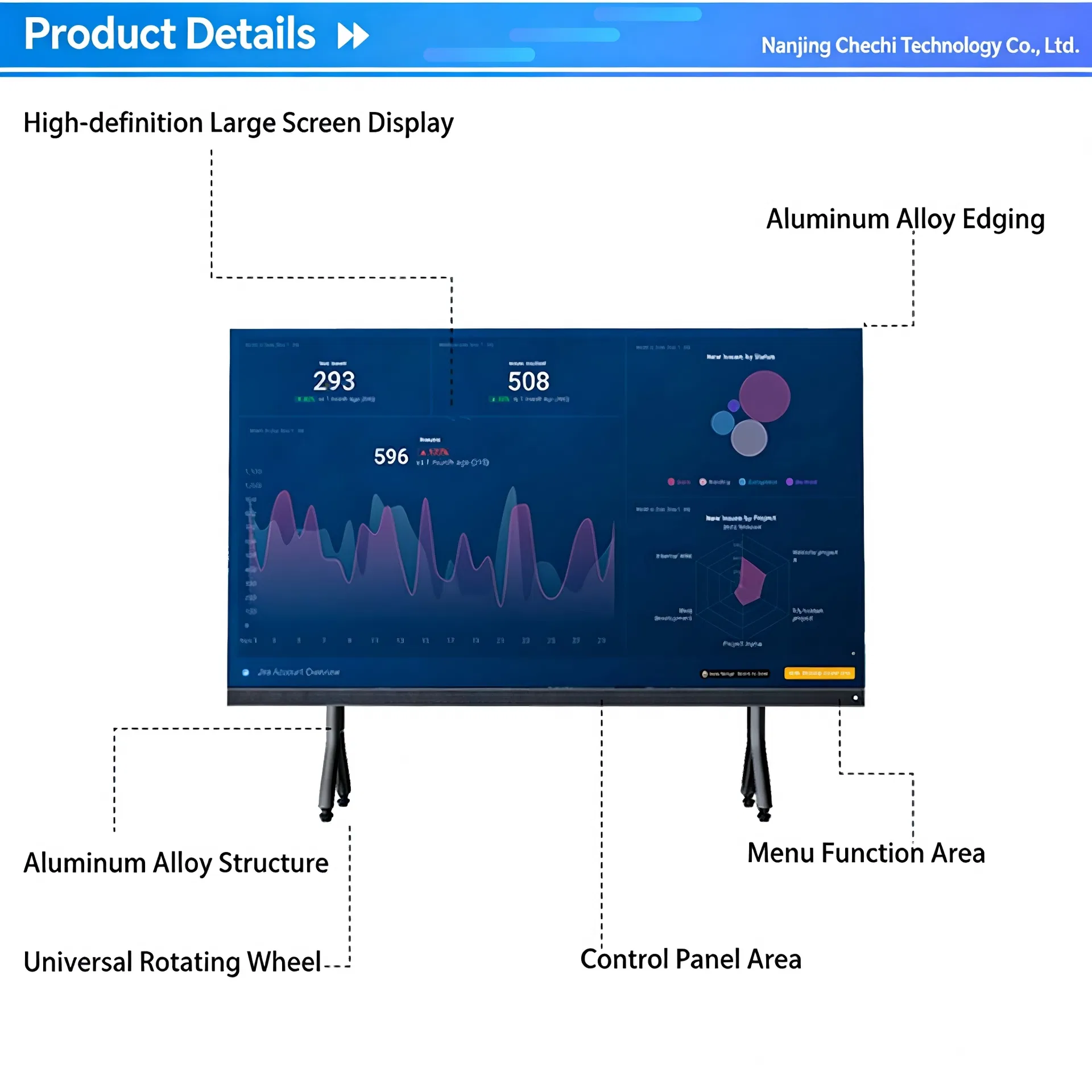

The device features simple and efficient installation, supporting both mobile bracket mounting and wall-mounted installation.
Supports computers, smartphones, tablets (Windows, iOS, Android). 4 split-screen independent sharing.
Control writing and annotation on the LED screen with instant handwriting response.

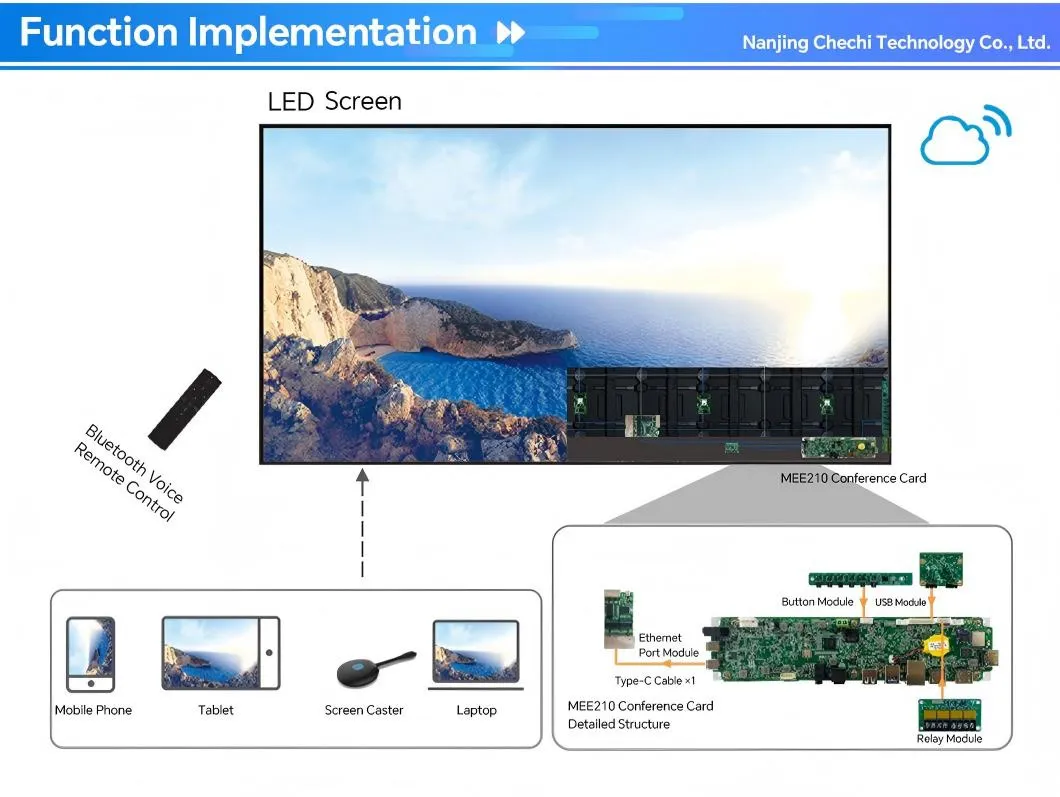

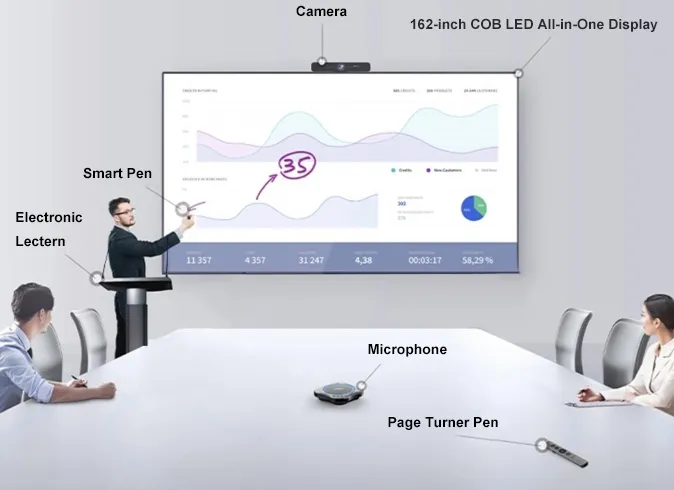

Integrate multiple functions such as projection, display, audio, camera, and microphone to reduce the number of devices and simplify meeting setup.

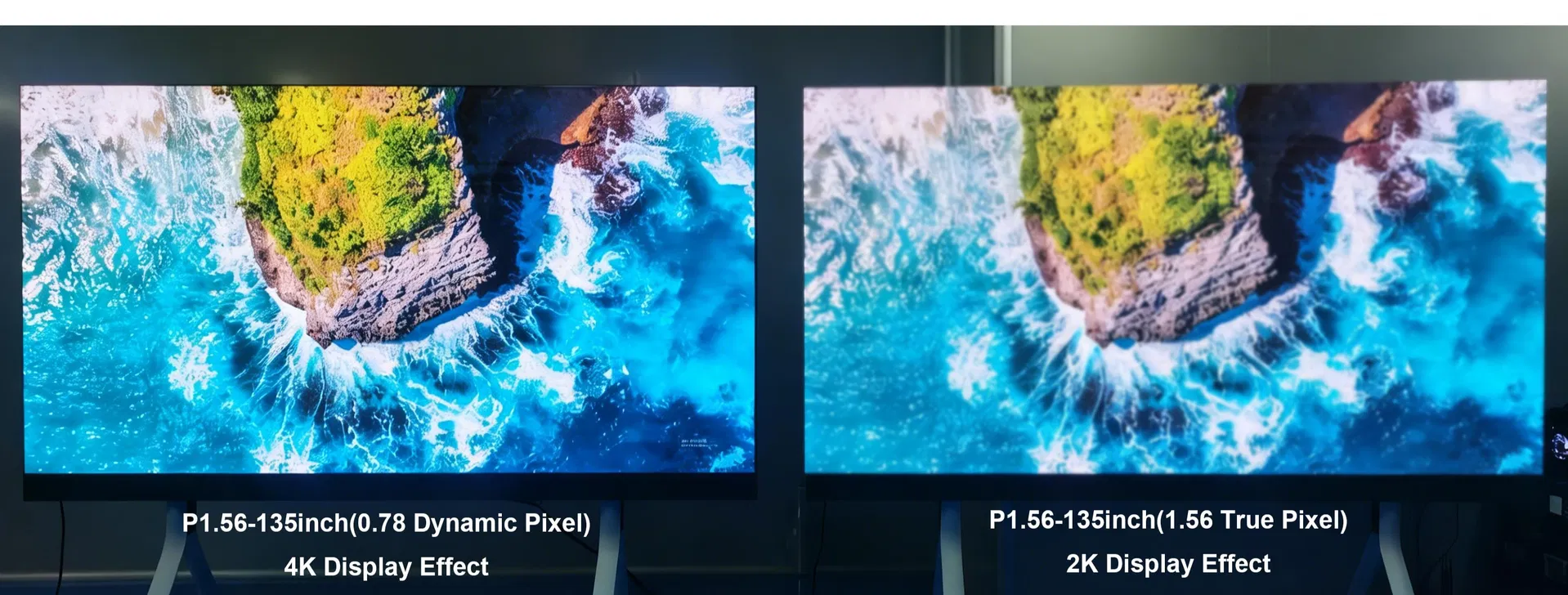

Fine-pitch LED displays can deliver double the display effect:

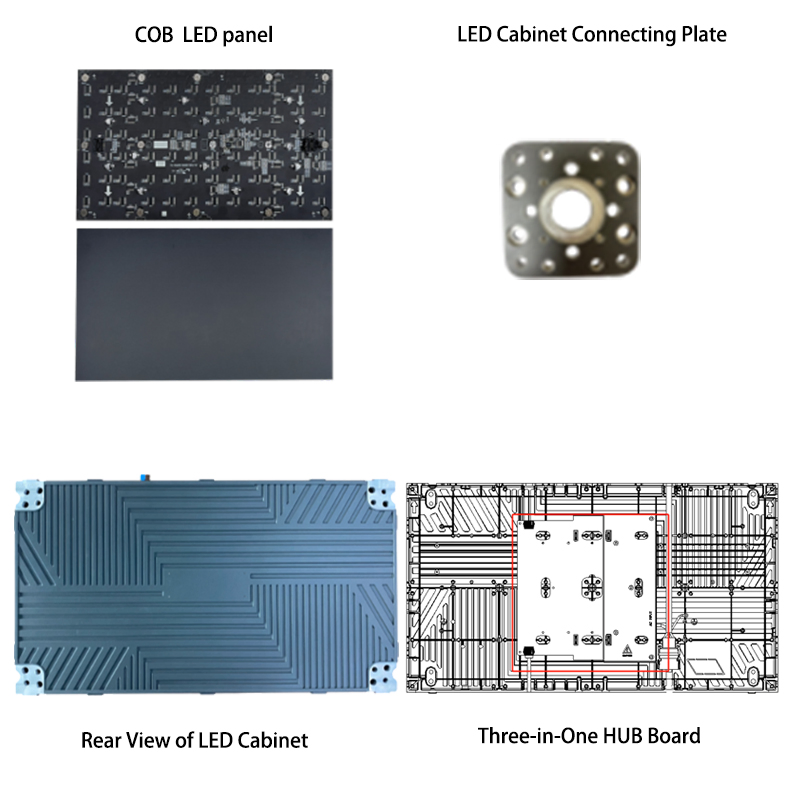

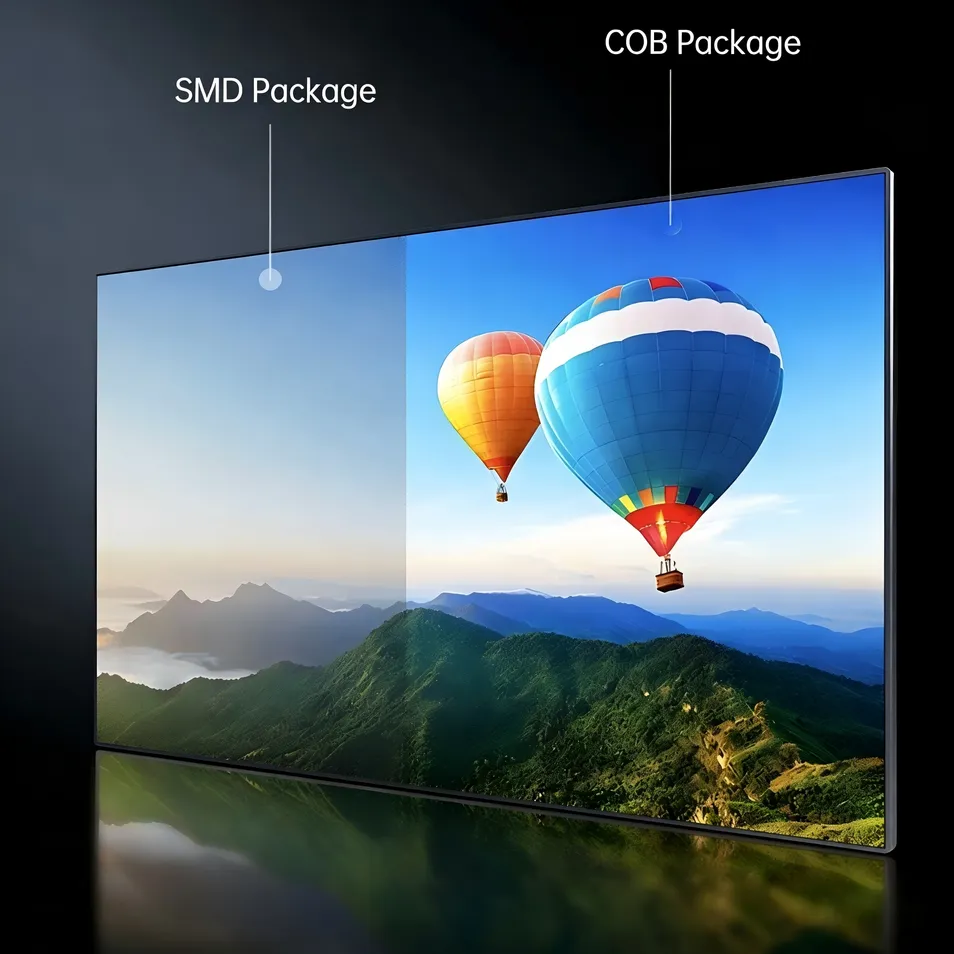

COB technology employs chip-level integrated packaging, achieving a smooth and seamless display surface with excellent impact and dust resistance. Its unique matte black screen significantly enhances contrast ratio, delivering a soft, grain-free visual experience.
| Size (inch) | 108' | 135' | 162' | |||
|---|---|---|---|---|---|---|
| Type | Real | Dynamic | Real | Dynamic | Real | Dynamic |
| Pixel pitch | 0.78-1.87 | 0.39-0.93 | 0.78-1.87 | 0.39-0.93 | 0.78-1.87 | 0.39-0.93 |
| Resolution (Max) | 3072×1728 | 6144×3456 | 3840×2160 | 7680×4320 | 4608×2592 | 9216×5184 |
| Brightness (nit) | 600 | 600/1200 | 600 | 600/1200 | 600 | 600/1200 |
| Display Size (mm) | 2400*1350 | 3000*1687.5 | 3600*2025 | |||
| Gray scale | ≥14 bit | |||||
| Contrast ratio | 20000:1 | |||||
| Refresh rate | ≥3840 Hz | |||||
| Viewing angle | Horizontal 160° / Vertical 140° | |||||
