Basic Specifications
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
Certification
CE, RoHS, CCC, ETL, FCC
Module Size
160mm*80mm / 250*250mm
Package Mode
SMD2121 / SMD1921
Cabinet Size
480mm*480mm / 500mm*1000mm
Brightness
Up to 4500 CD/M2
Operating Platform
WIN XP / Win 7 / Win 10
Product Description & Features
- High Efficiency: Combined with brightness auto-adjusting technology and PFC power supply, saving energy by over 35%.
- Noiseless Operation: The precision aluminum structure requires no cooling fans, ensuring a completely quiet environment.

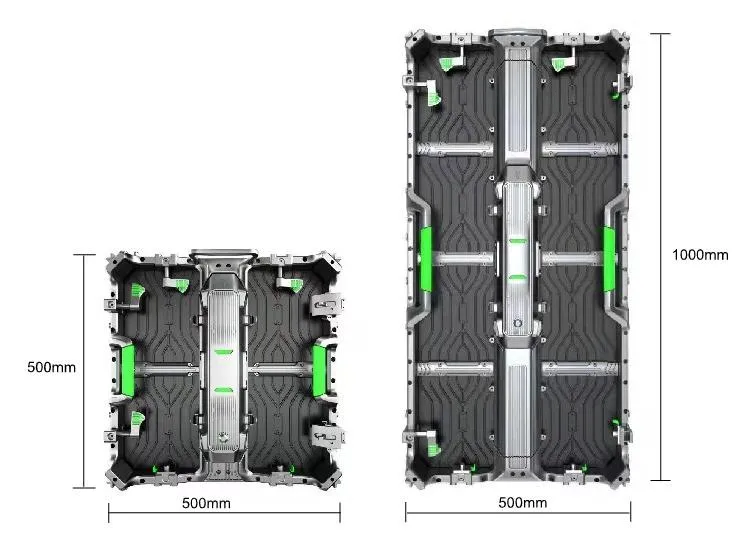

- Lightweight Design: Portable cabinets weigh only 7.5kg - 8kg, significantly reducing labor and transport costs.
- Superior Heat Dissipation: High thermal conductivity alloy cabinet ensures stable performance and longevity.
- Easy Installation: Equipped with Neutrik or Seetronic connectors for rapid assembly and dismantling.
High-Definition Visual Experience

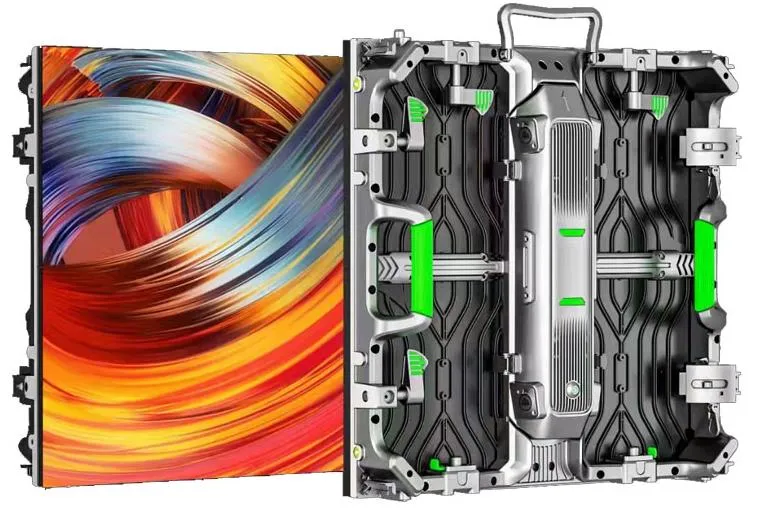

The series incorporates aesthetic elements with high-strength die-casting aluminum. Using high-quality lamp beads, it offers excellent reliability, high brightness, and well-designed unit display pixels to ensure stability across the entire screen.

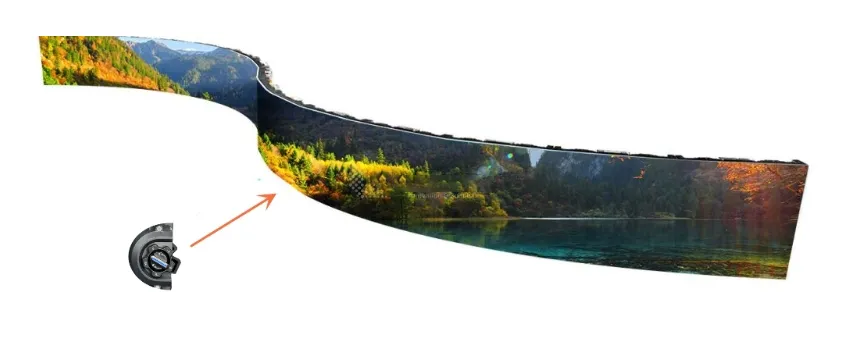

Flexible Installation & Curved Support

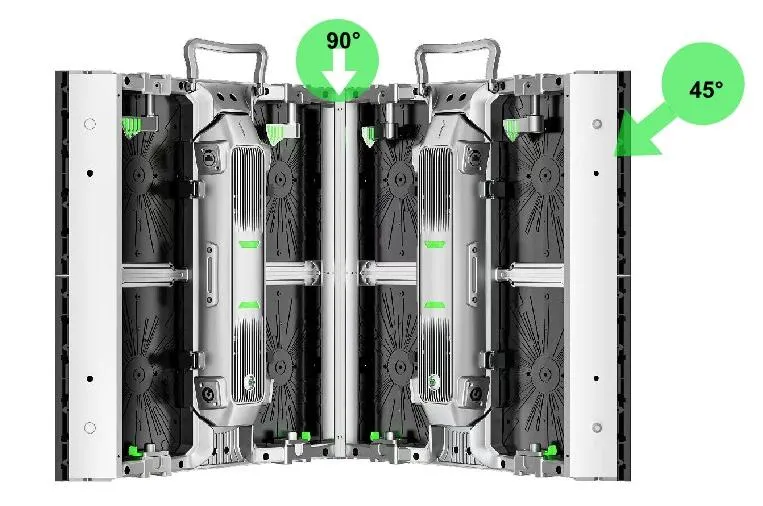

Supports 90° right-angle installation to meet special architectural applications. Additionally, the screen is available for curved configurations (adjustments between -6° and 6°) to build circular or wavy LED displays.
500x1000mm Cabinet Parameters
| Pixel Pitch |
P2.604 |
P2.97 |
P3.91 |
P4.81 |
| LED Type |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Pixel Density |
147,456/m2 |
112,896/m2 |
65,536/m2 |
43,264/m2 |
| Brightness |
≥4500 cd/m2 |
≥4500 cd/m2 |
≥4500 cd/m2 |
≥4000 cd/m2 |
| Refresh Rate |
≥1920/3840HZ |
≥1920/3840HZ |
≥1920/3840HZ |
≥1920/3840HZ |
| Cabinet Weight |
13kg/pcs |
13kg/pcs |
13kg/pcs |
13kg/pcs |
500x500mm Cabinet Parameters
| Pixel Pitch |
P2.604 |
P2.97 |
P3.91 |
P4.81 |
| LED Type |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Module Resolution |
96*96 dots |
84*84 dots |
64*64 dots |
52*52 dots |
| Cabinet Weight |
8kg/pcs |
8kg/pcs |
8kg/pcs |
8kg/pcs |
| Screen Life |
≥100,000 hrs |
≥100,000 hrs |
≥100,000 hrs |
≥100,000 hrs |
| Protection |
IP65 |
IP65 |
IP65 |
IP65 |

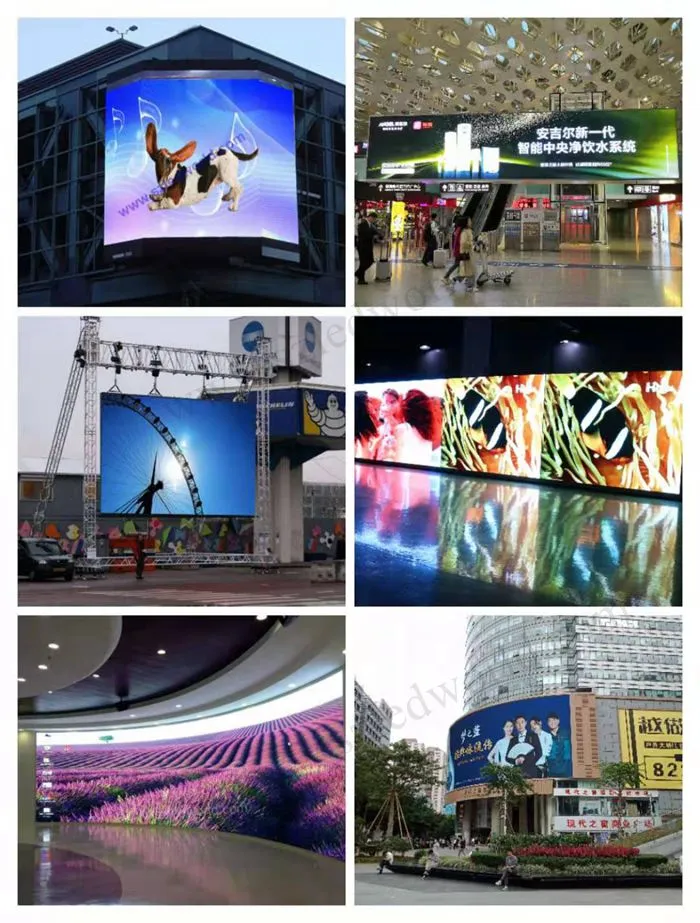

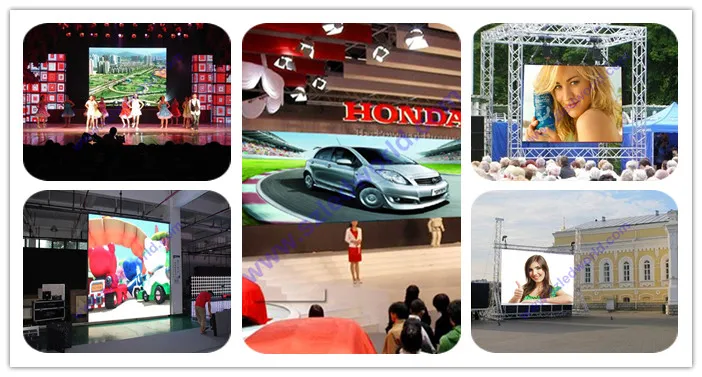

Project Cases & Quality Control

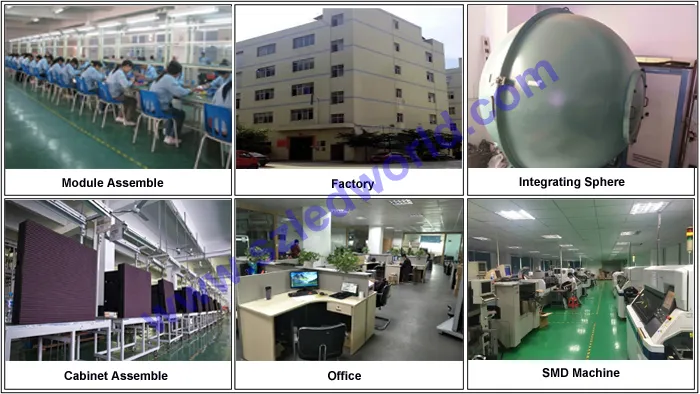

Workshop & Maintenance
🛠
Maintenance Tip: Always use a soft brush to clean the display surface. Liquid cleaners are strictly prohibited. It is recommended to power on the screen at least once a week for 8 hours to maintain optimal diode health.
Frequently Asked Questions
Q1: What is the main advantage of the die-casting aluminum cabinet?

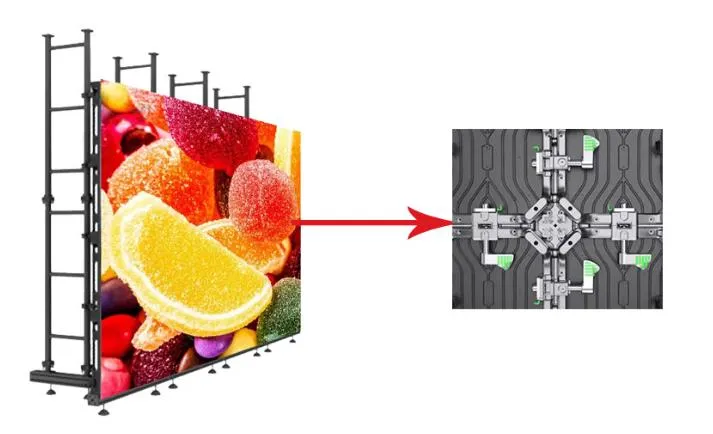

It provides a high-strength, lightweight structure (only 7.5kg-8kg) that allows for seamless splicing and excellent heat dissipation without the need for noisy fans.
Q2: Can this LED display be used for curved stage designs?
Yes, with the special curve lock system, the cabinets can be adjusted between -6° and +6° to create concave or convex circular displays.
Q3: What is the recommended viewing distance for the P2.5 and P3.91 models?
For P2.5, the best viewing distance is 2.5m to 25m. For P3.91, it ranges from 4m to 40m.
Q4: How does the power saving technology work?
The display utilizes brightness auto-adjusting technology and PFC power supplies, which can reduce energy consumption by more than 35% compared to standard displays.
Q5: Is it difficult to install and dismantle for rental events?
Not at all. The cabinets feature quick-side locks and professional Neutrik/Seetronic connectors, making it very easy for a small team to set up and take down quickly.

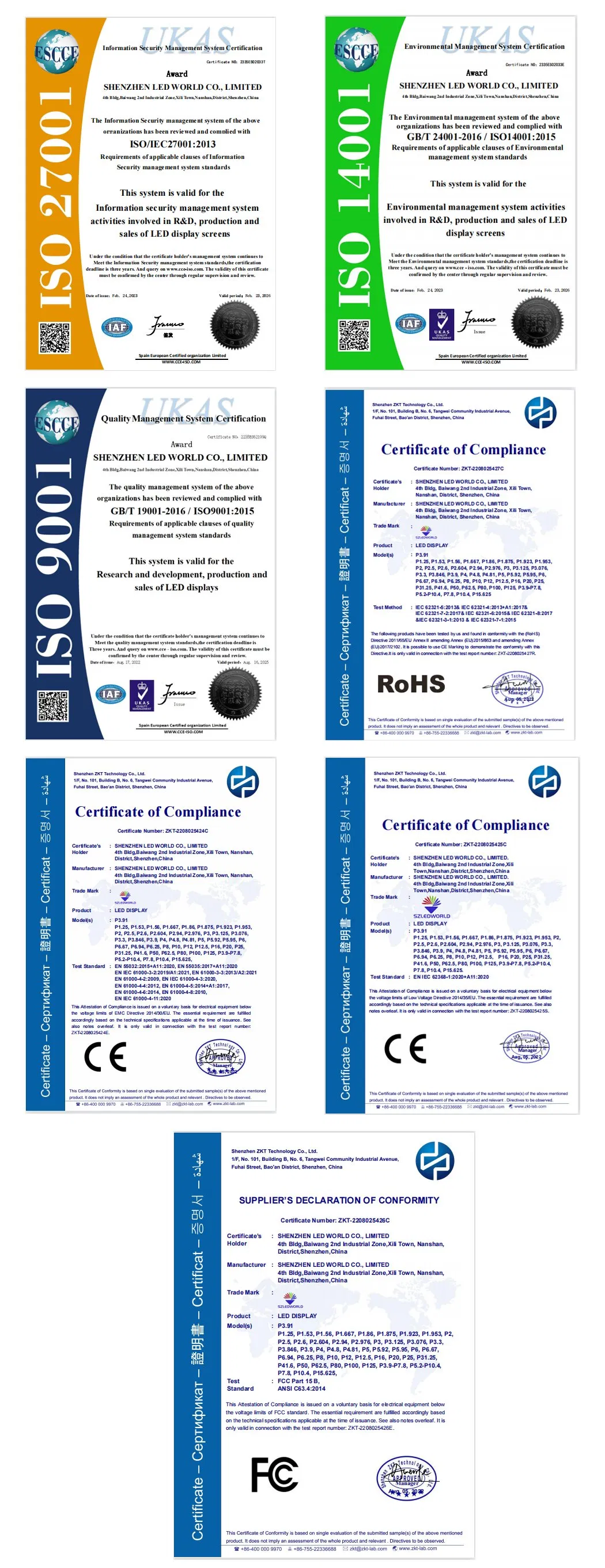

Q6: What certifications do these products hold for international markets?
Our products are fully compliant with international standards, holding CE, RoHS, FCC, CCC, and UL certifications.
